*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

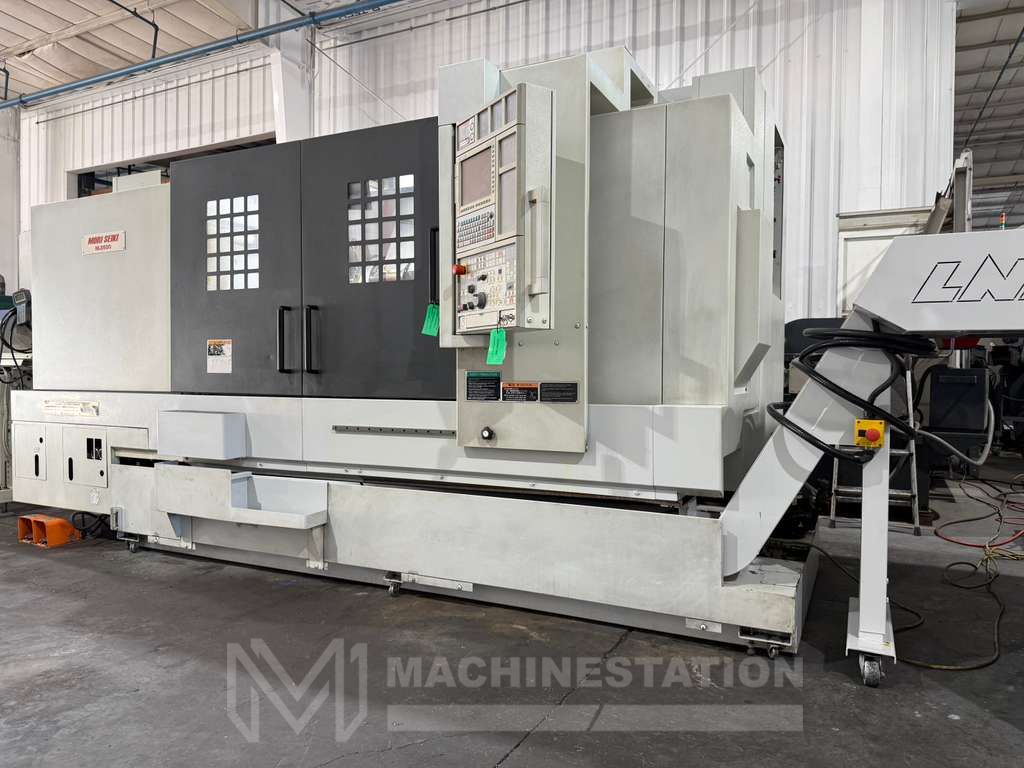

| Make: | Mori Seiki |
| Model: | NL2500SY/1250 |
| Year: | 2011 |
| Condition: | Used – Good |
| Equipped With: |
|---|

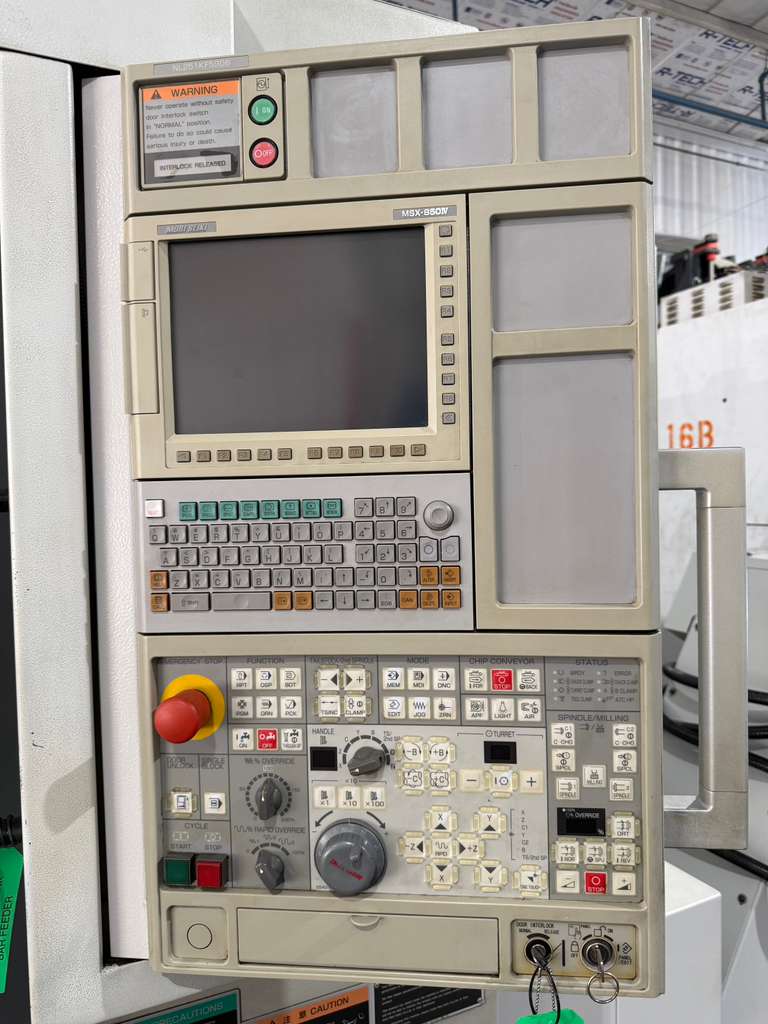

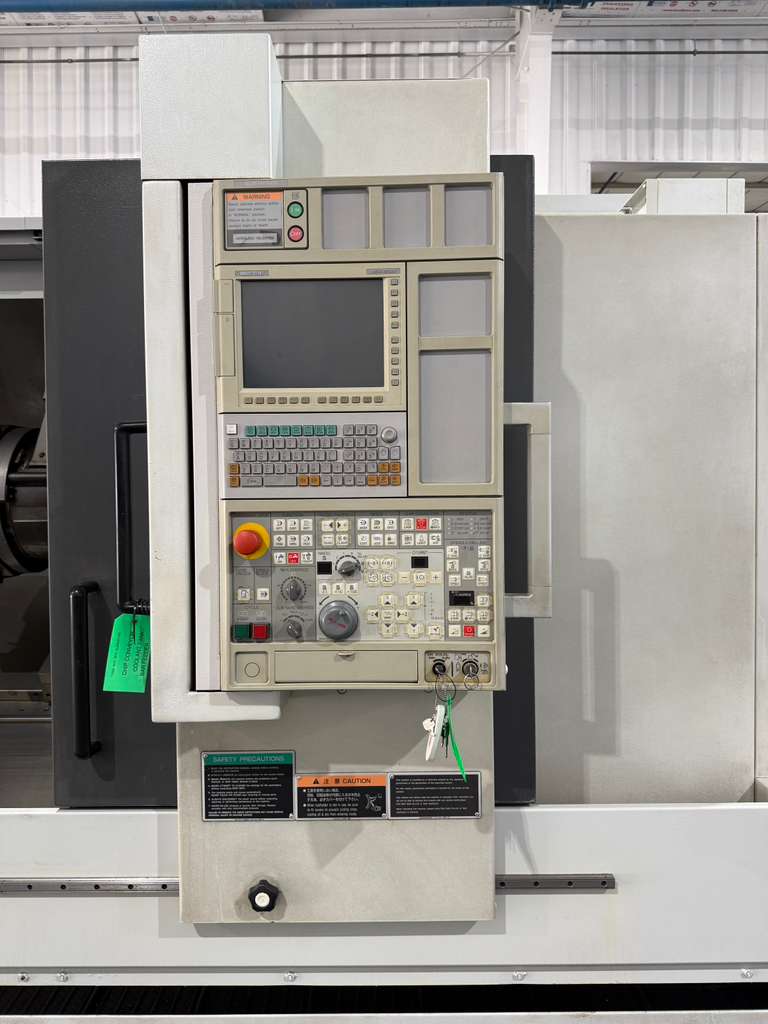

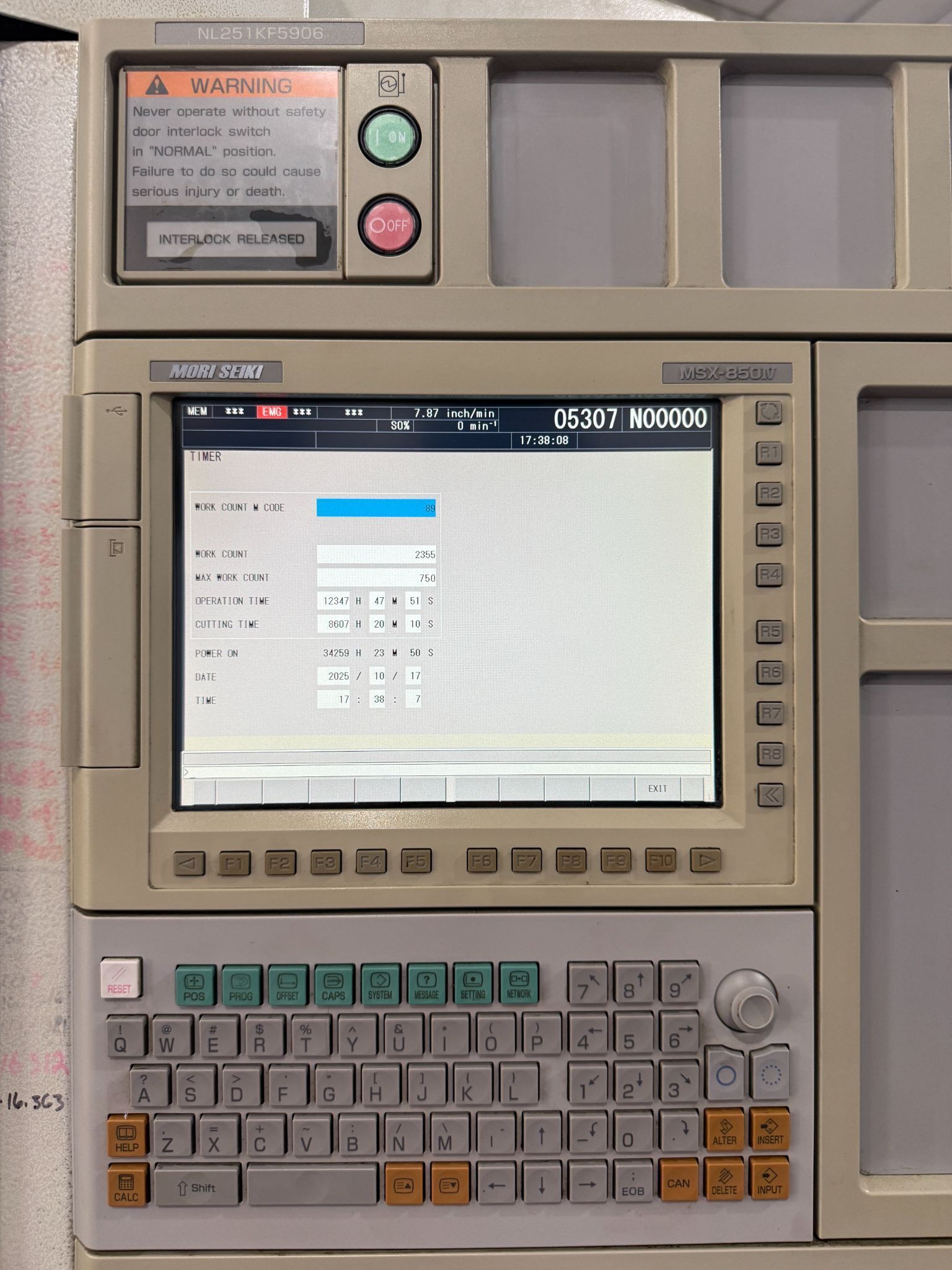

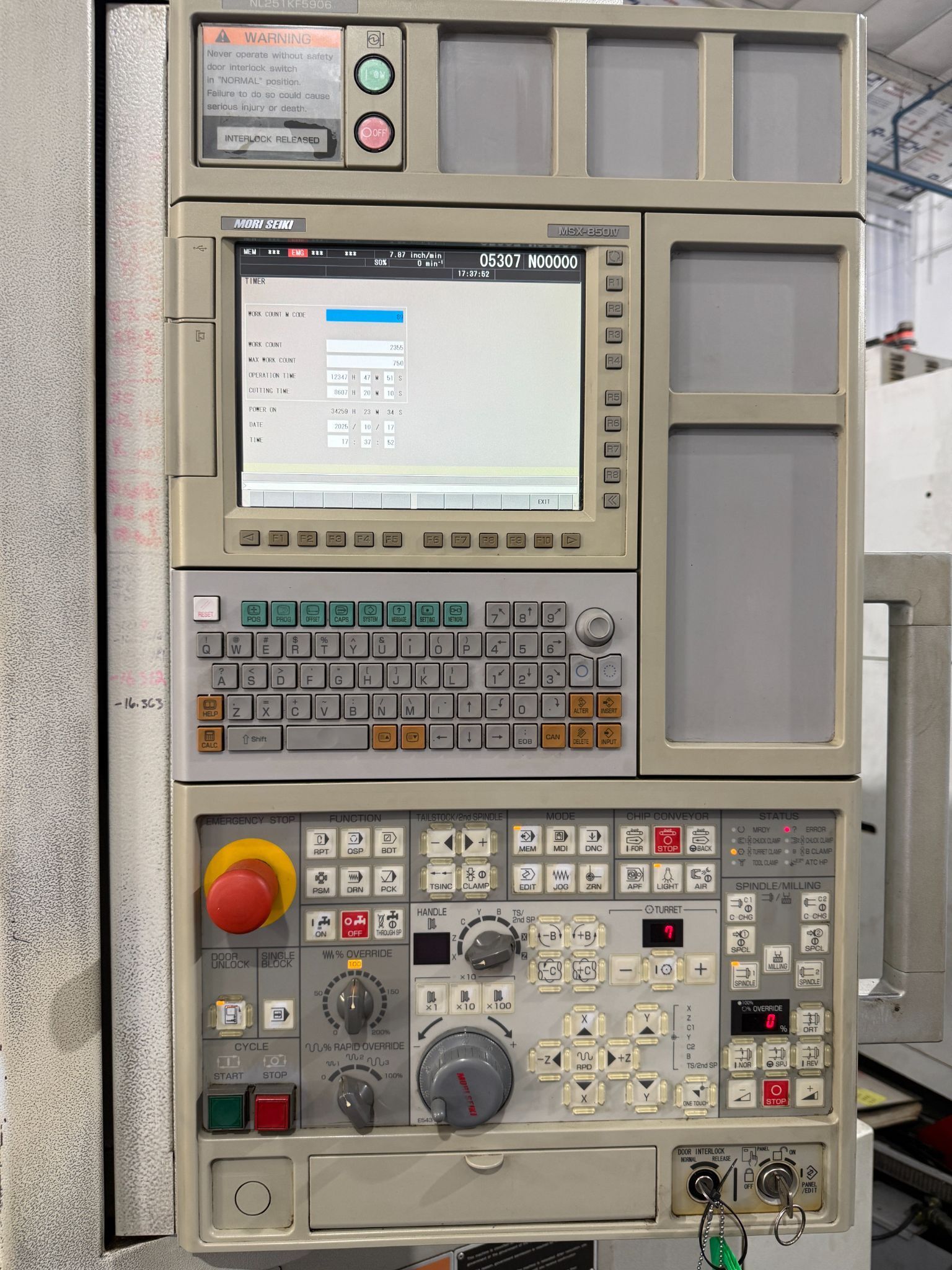

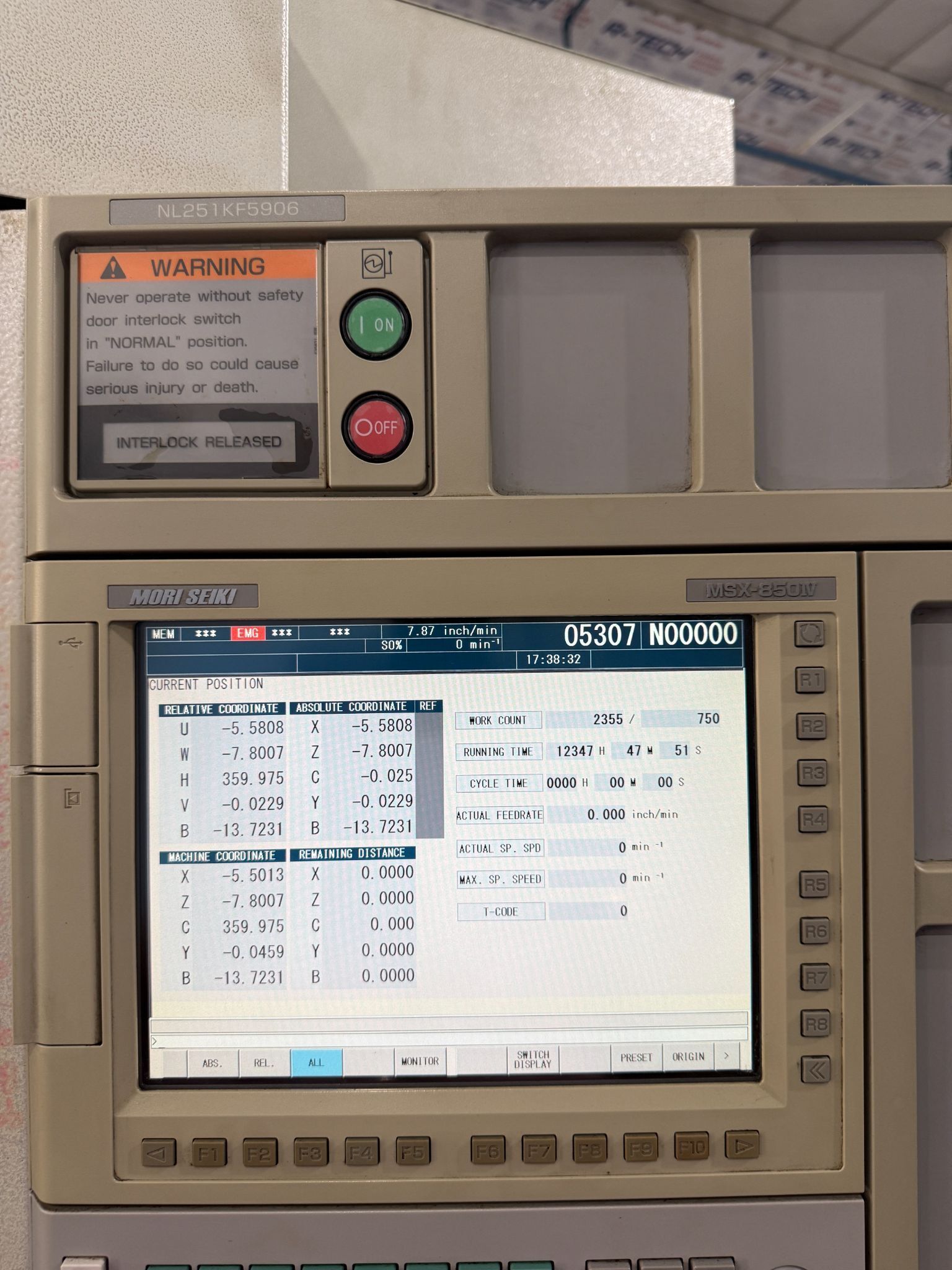

| Mori Seiki MSX-850IV CNC Control |
| Heavy Duty Box Way Construction |
| Bar Feeder Interface |

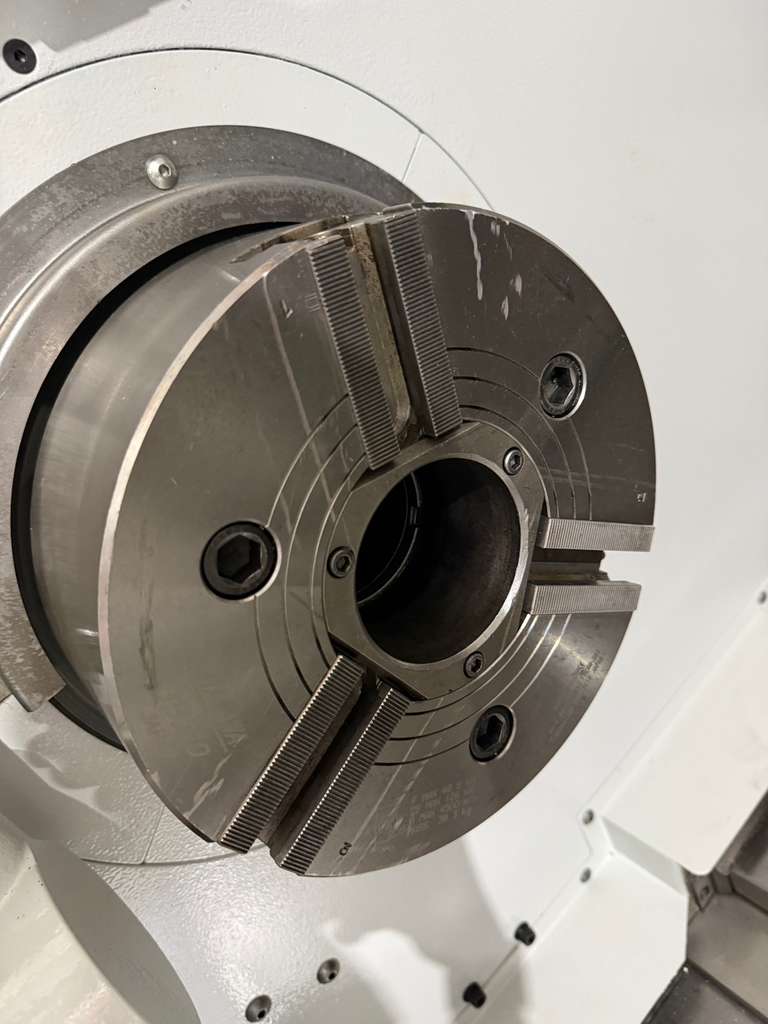

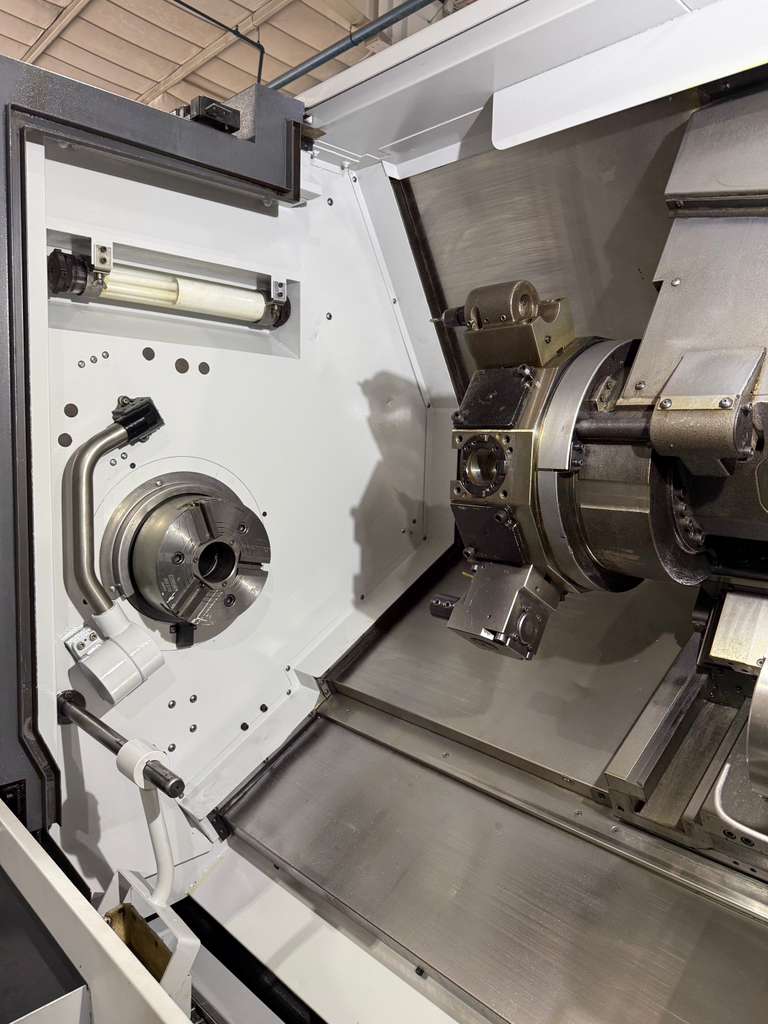

| 10″ 3-Jaw Kitagawa Chuck on Main Spindle |

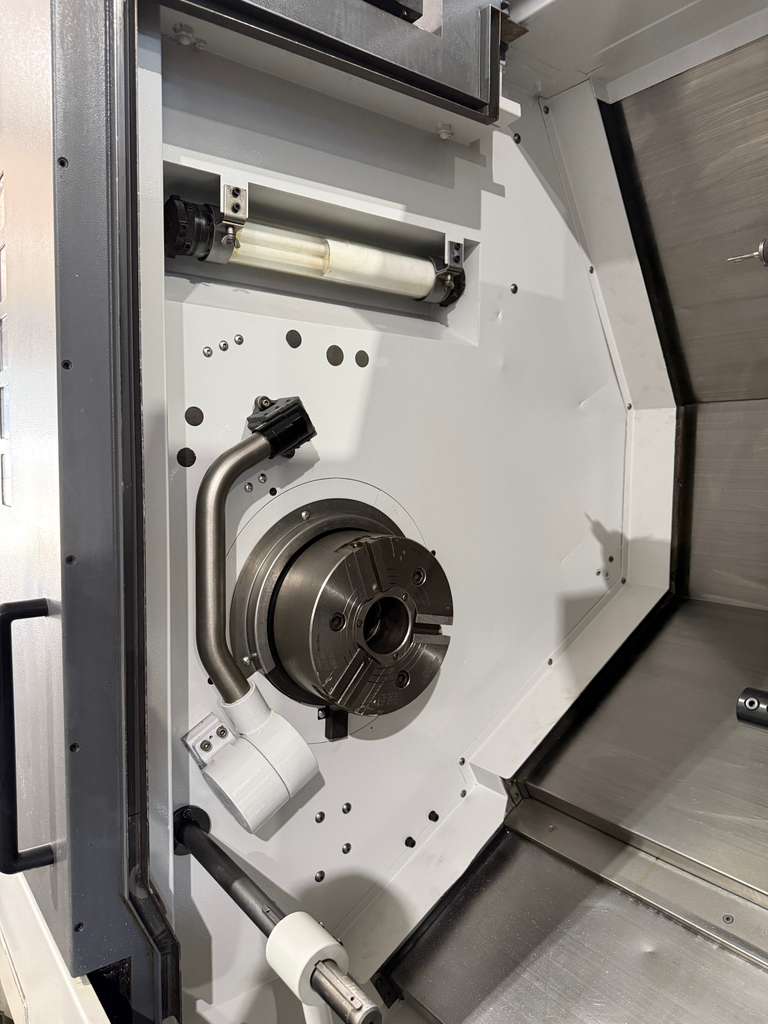

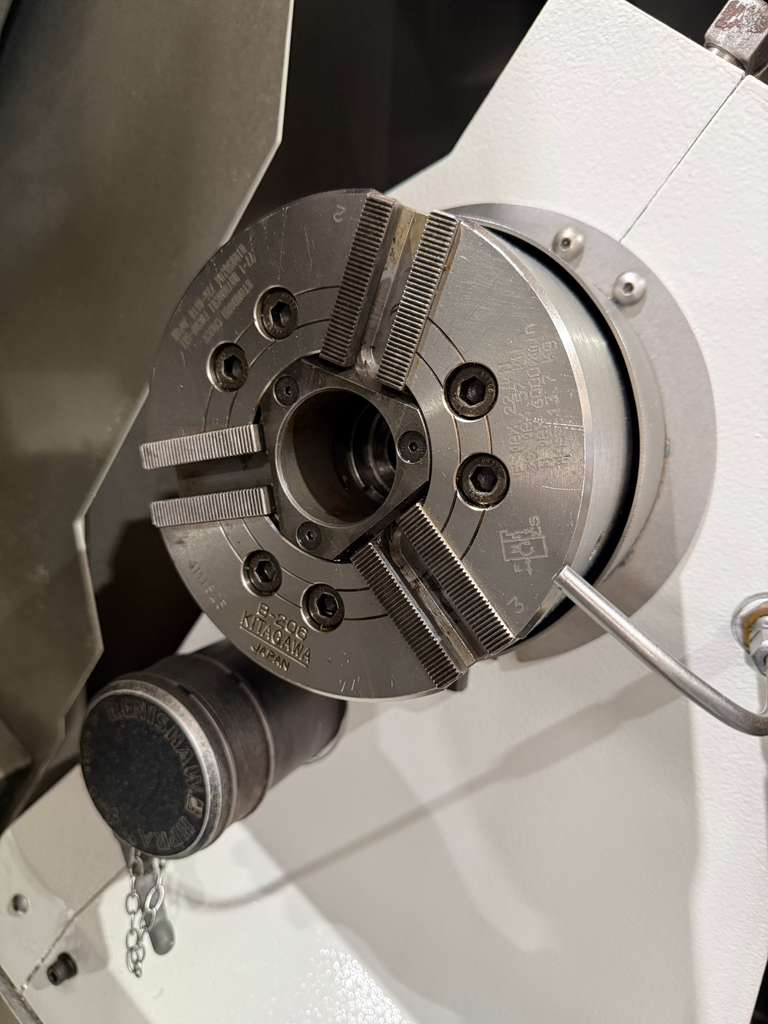

| 8″ 3-Jaw Kitagawa Chuck on Sub Spindle |
| C Axis Capable |
| Y Axis On Turret |

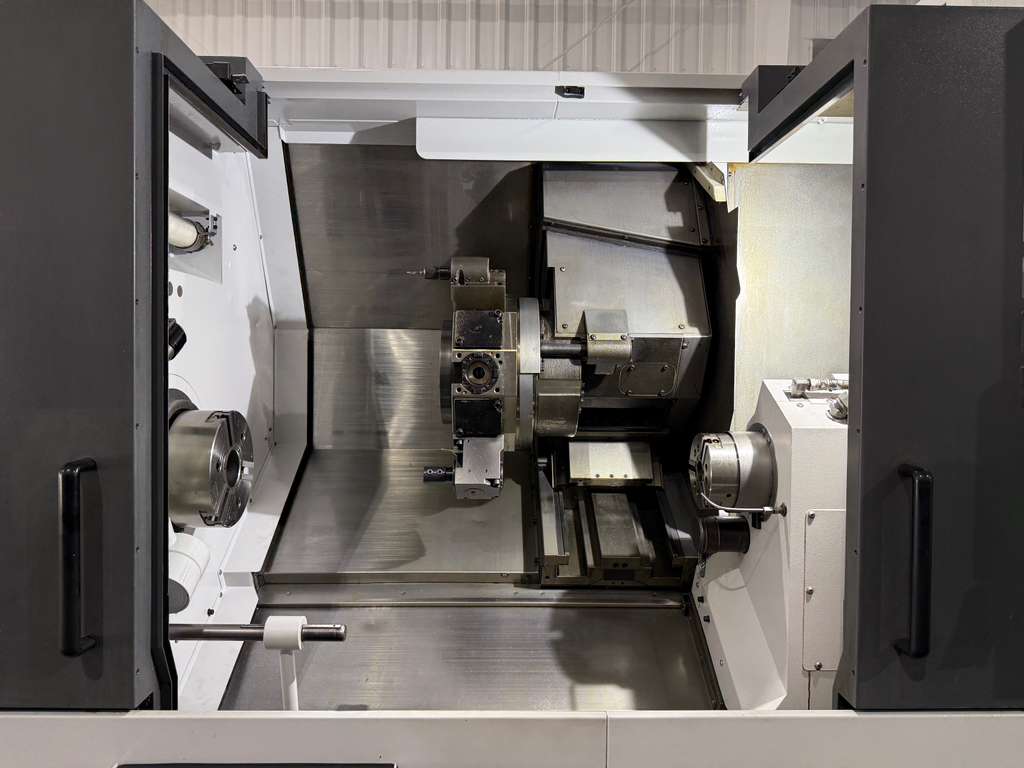

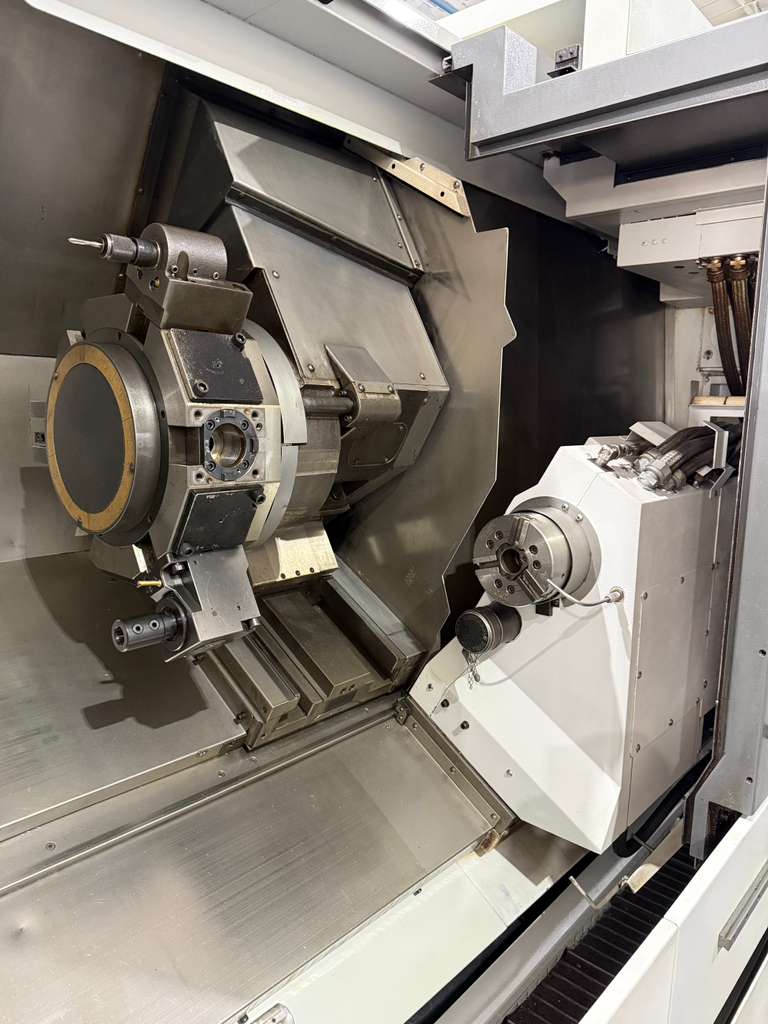

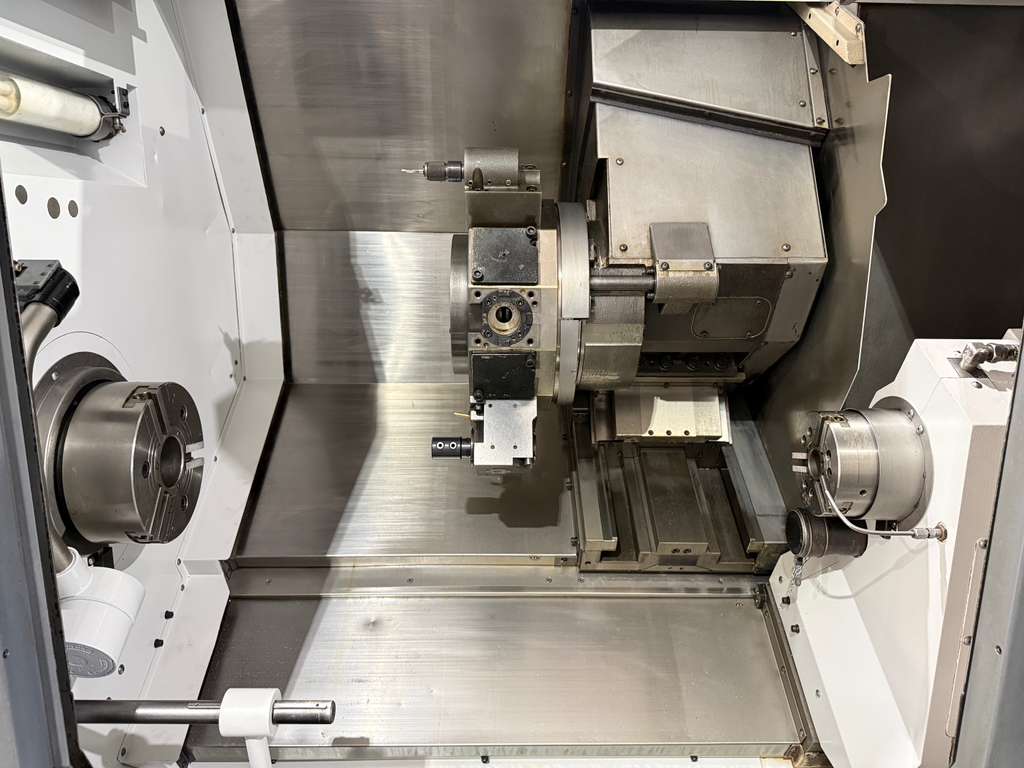

| 12 Station High Speed Live Tool Turret |

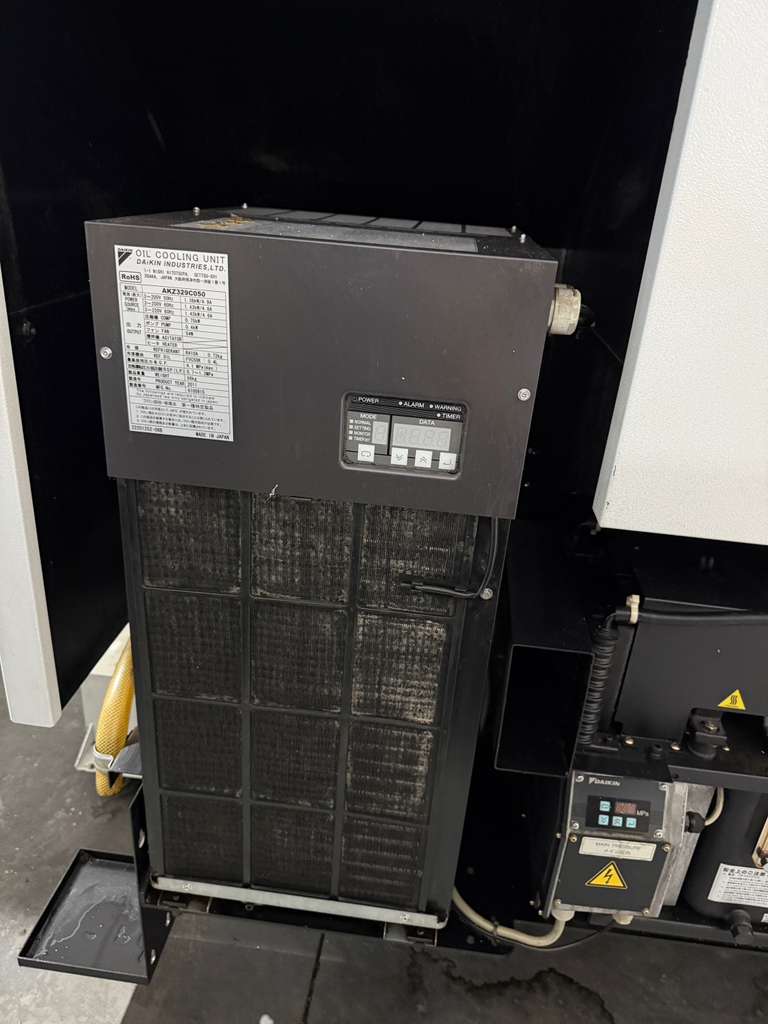

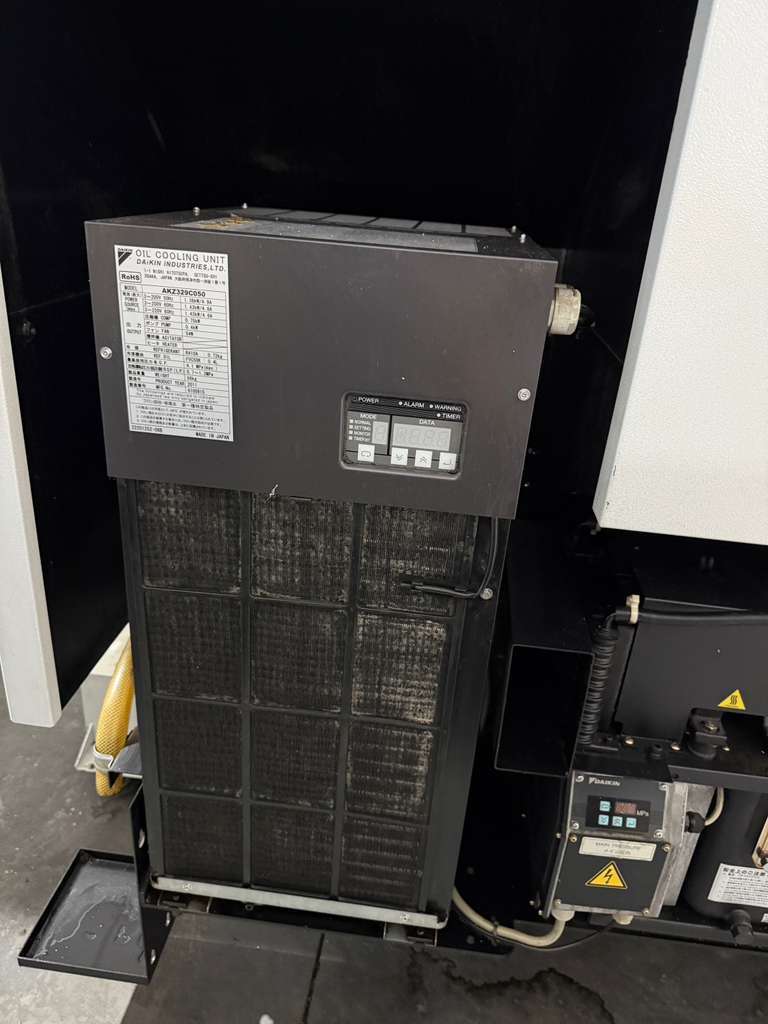

| Oil Cooling Unit |
| Tool Presetter |

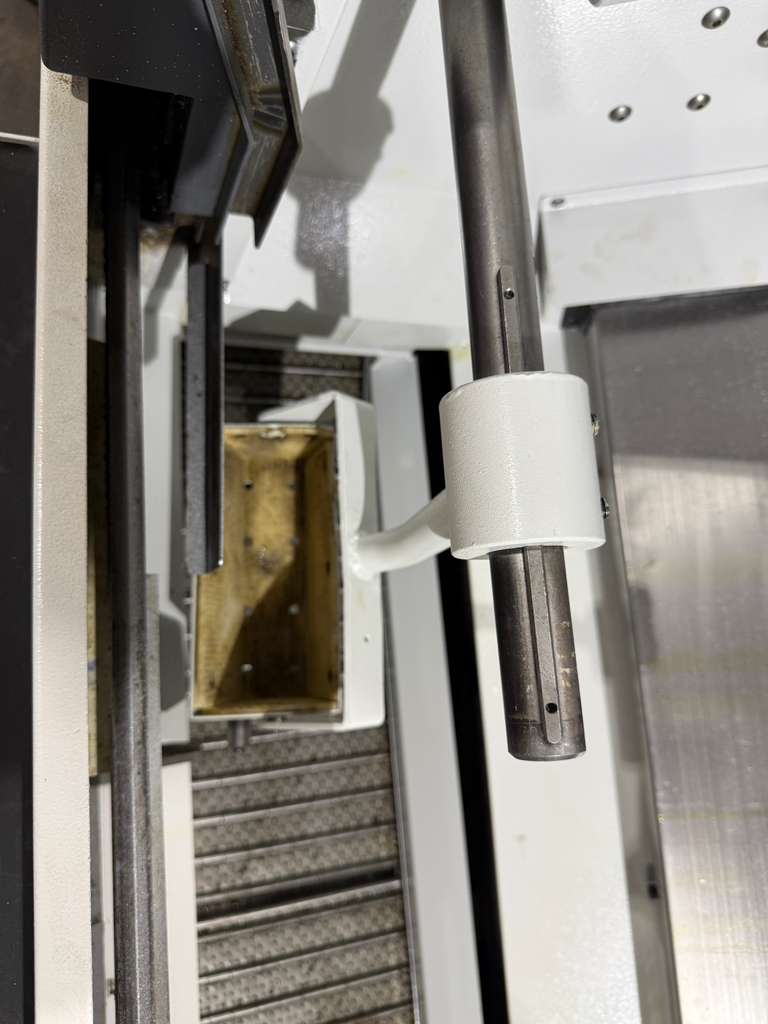

| Parts Catcher |
| 25 HP Main Spindle Power |
| PCMCIA Card Slot |
| Rigid Tapping |
| Automatic Lubrication System |

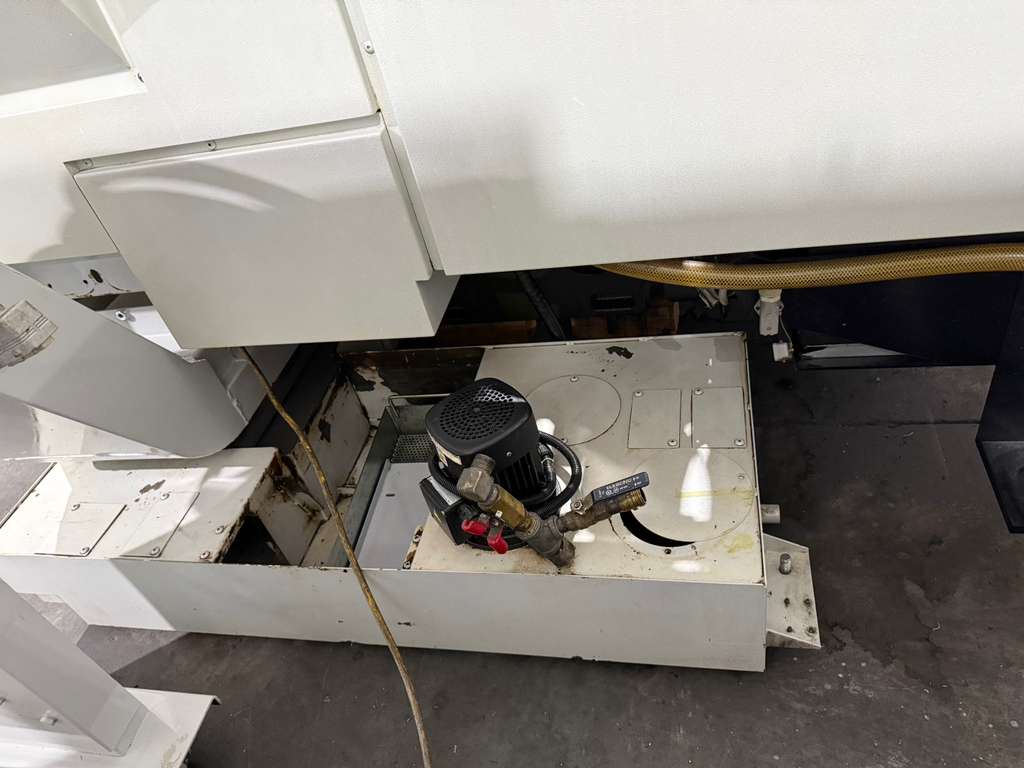

| Coolant System |
| LNS Chip Conveyor |
| Foot Switches |
| Capacity: |
|---|
| Max Turning Diameter: 14.0″ |
| Max Turning Length: 51.1″ |
| Swing Over Cross Slide: 29.7″ |
| Max Bar Capacity: 3.1″ |
| Travels: |
|---|
| X Axis Travel: 10.2″ |
| Y Axis Travel: 3.9″ (±2.0) |
| Z Axis Travel: 53.0″ |
| B Axis Travel (Sub Spindle): 50.6″ |
| C Axis (Both Spindles): 360 Degree (0.001) |
| Rapid Traverse Rate X & Z Axis: 1181 IPM |
| Rapid Traverse Rate Y Axis: 394 IPM |
| Rapid Traverse Rate B Axis: 787 IPM |
| Main Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.6″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 25 HP |
| Sub Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 1.7″ |
| Spindle Speed: 6000 RPM |
| Spindle Motor: 15 HP |

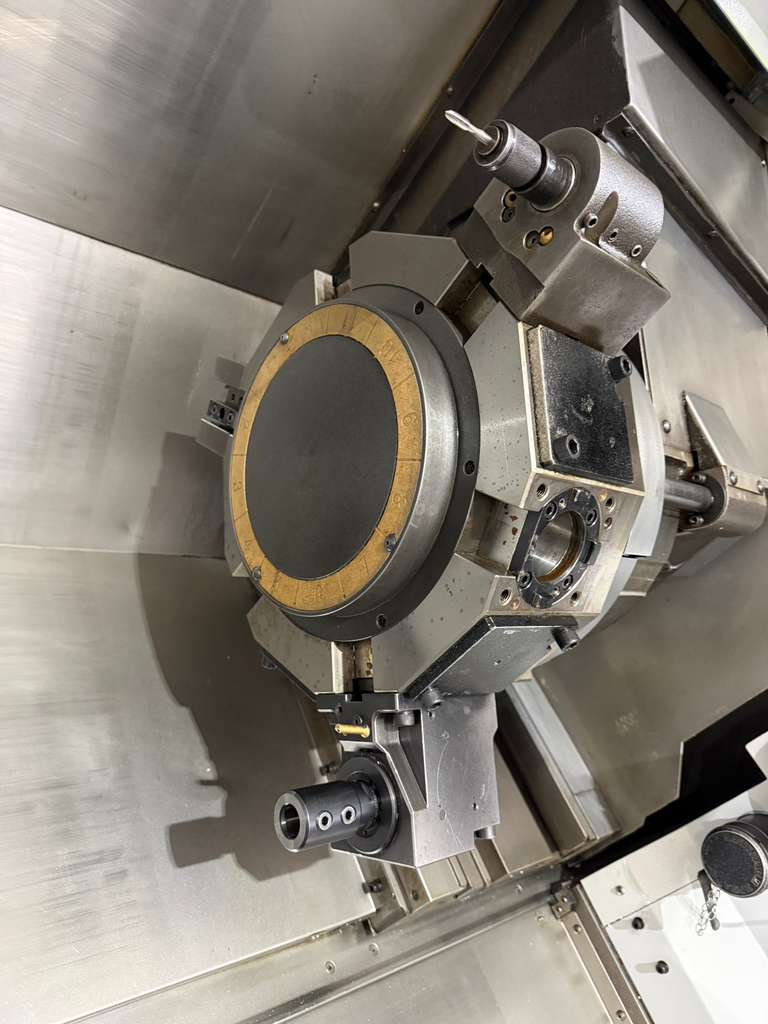

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.25 Second |
| Rotary Tool Speed: 6000 RPM |
| Rotary Tool Motor: 7.5 HP |
| Turret Type: BMT |
| General: |
|---|

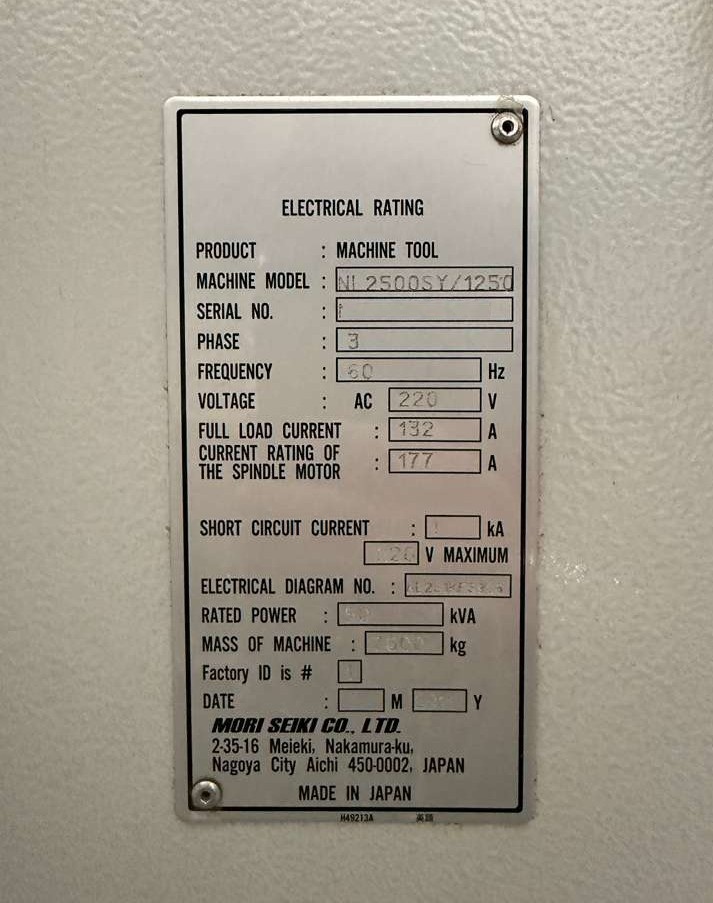

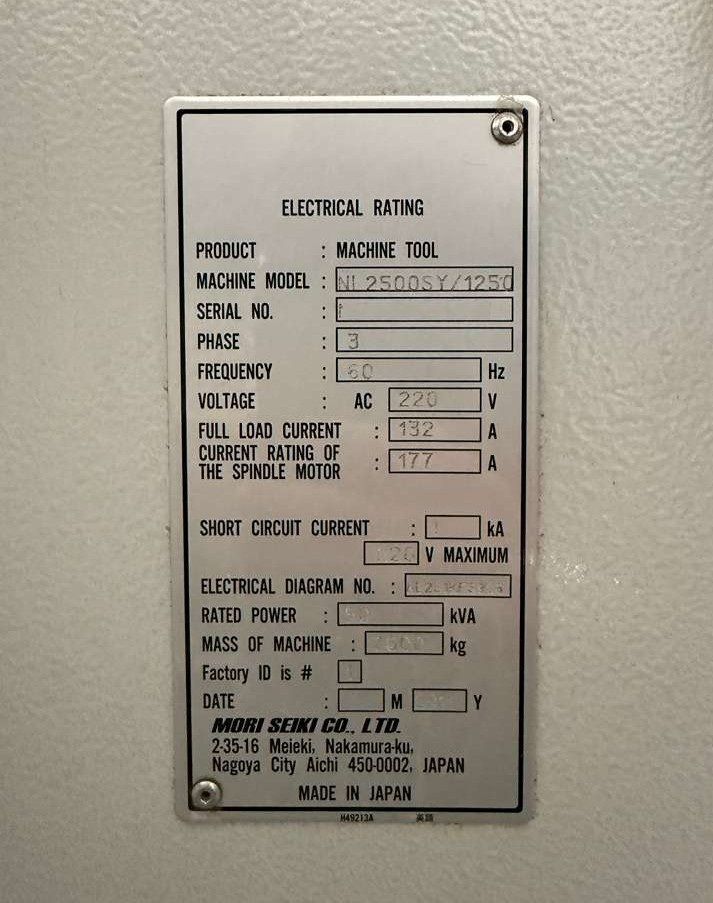

| Power Source: AC 220 V Three Phase 60 Hz |
| Power Requirement: 50 kva |
| Overall Dimensions: 171″ x 85 ″ x 88″ High |
| Weight : 16,750 lbs Approx. |
