All specifications are approximations and are subject to verification.
“This machine is in very Good running condition. It is equipped with 10″ Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”
| Make | Mori Seiki |
| Model No. | SL25B |
| Condition | Very Good |

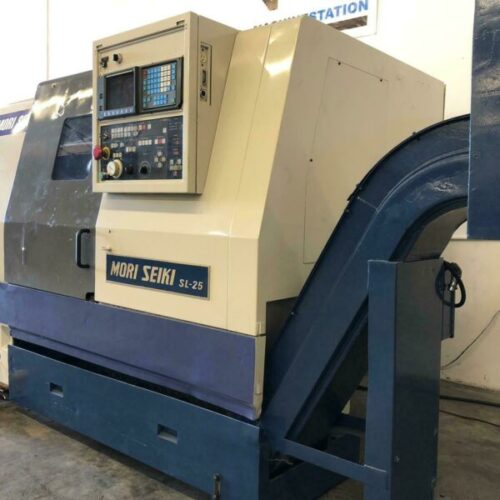

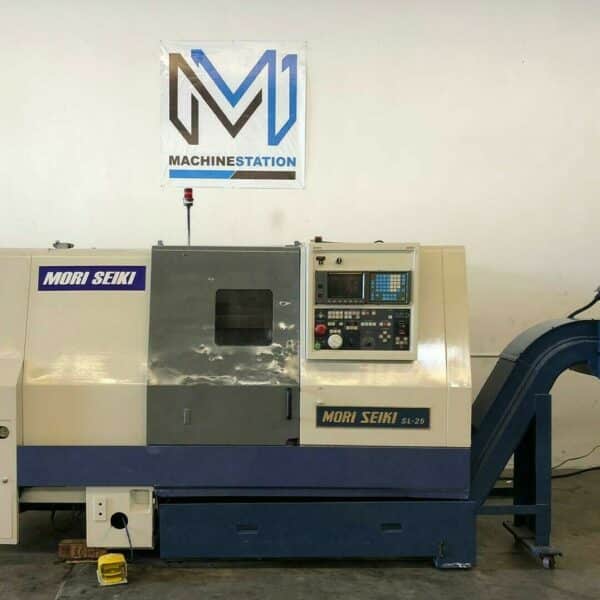

| MORI SEIKI SL-25B CNC Equipped With: |
|---|

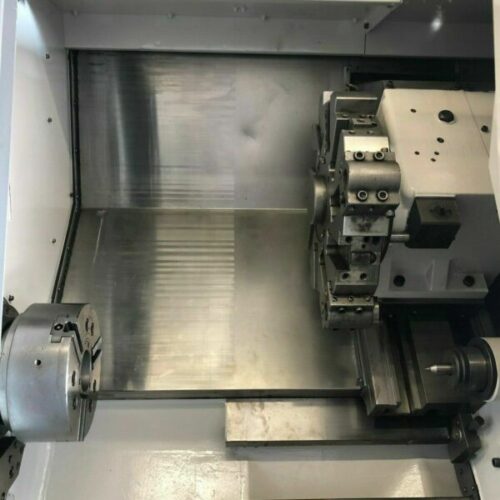

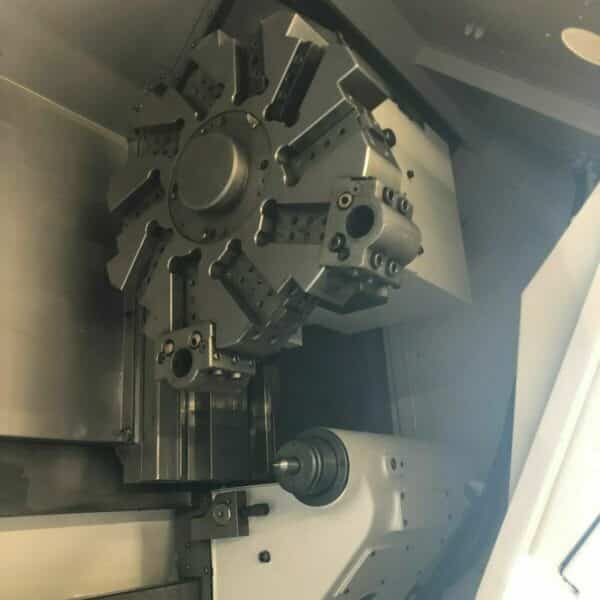

| 10-Station Turret with Tools |

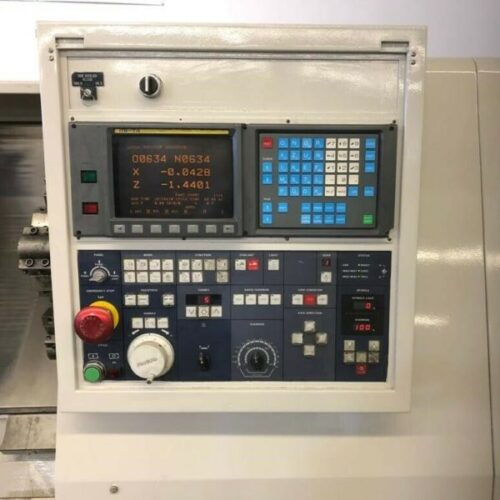

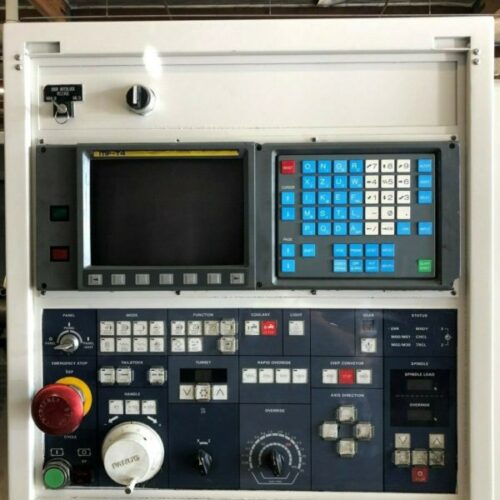

| Fanuc MF-T4 CNC Control |

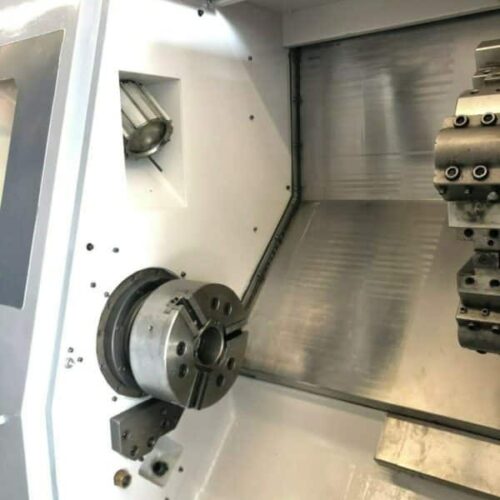

| 10″ 3-Jaw Kitagawa Hydraulic Chuck |
| 2 Step gear spindle for powerful torque |
| Hydraulic Tailstock with Power Quill |
| Chip Pan and Chip Conveyor |
| Coolant System. |
| Automatic Lubrication system |
| Foot Operated Control for Chuck |
| MORI SEIKI SL-25B CNC Specifications: |
|---|
| Max Turning Diameter: 10.2″ |
| Max Turning Length: 20.9″ |
| Max Bar Capacity: 2.65″ |
| Swing Over Slide: 13.8″ |
| Swing Over Bed: 22.4″ |
| Distance Between Centers: 24.6″ |
| X Axis Travel: 6.3″ |
| Z Axis Travel: 23.2″ |
| Rapid Traverse X Axis: 790 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle Nose: A2-6 |
| Spindle Bore: 3.1″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 20 HP |
| Turret Capacity: 10 Stations |
| Turret Index Time: 0.5 Second |
| Tailstock Body Travel: 19.3″ |
| Tailstock Quill Dia.: 4.33″ |
| Tailstock Quill Stroke: 3.93″ |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 68 Amps |
| Overall Dimensions: 110″ x 68″ x 80″ High |
| Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor |
| Weight : 12000 lbs Approx. |
