Mori Seiki SL-600CMC/2000 CNC Turn Mill - MachineStation
  • MORI SEIKI SL-600CMC 2000 CNC TURN MILL(1)

Mori Seiki SL-600CMC/2000 CNC Turn Mill

$3,543.00

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”



Qty =

Product Description

MORI SEIKI SL-600CMC/2000 CNC TURN MILL

Make: MORI SEIKI
Model No.: SL-600CMC/2000
Serial No.: 31
Condition: Very Good
Comes with 16″ bore 31″ Chuck, Live Tools, Tailstock & Chip conveyor. Prepared for Steady Rest.
All specifications are approximations, and are subject to verification.

Mori Seiki SL-600CMC/2000 Equipped With:

Mori Seiki MSC-501 (Fanuc) CNC Control
Coversational Auto Programming
A1-20 Spindle with 10.8″ Bore
31″ 3 Jaw Chuck with 16″ Bore
60/50 HP Gearbox Spindle
PCMCIA Card Slot
Live Tool 10 Station high speed Turret (0.4 second )
3000 RPM Milling Turret w/Rigid Tapping
Programmable Tailstock
Rigid Tapping
Coolant System
Foot Switch
Chip Conveyor

Mori Seiki SL-600CMC/2000 Specifications:

Capacity:
Max Turning Diameter: 36.6″
Max Turning Length: 78.7″
Max Bar Capacity: 10.8″
Swing Over Bed: 39.1″
Swing Over Cross slide: 28.9″
Distance Between Centers: 90.6″

Travels:
X Axis Travel: 19.1″
Z Axis Travel: 82.7 ”
C Axis : 0.001
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Nose: A1-20
Spindle Bore: 10.8″
Spindle Speed: 10 – 1000 RPM
Spindle Motor: 60/50 HP

Turret:
Turret Capacity: 10 Live Stations
Turret Index Time: 0.4 Second
Live Tool Speed: 3000 RPM

Tailstock:
Tailstock Taper: MT-5
Quill Diameter: 5.9″
Quill Travel: 5.9″
Tailstock Body Travel: 82.7″

General:
Power: 78kva, 220v / 3-Phase Overall
Dimensions: 275″ X 102″ X 104 ” High
Weight: 42900 lbs

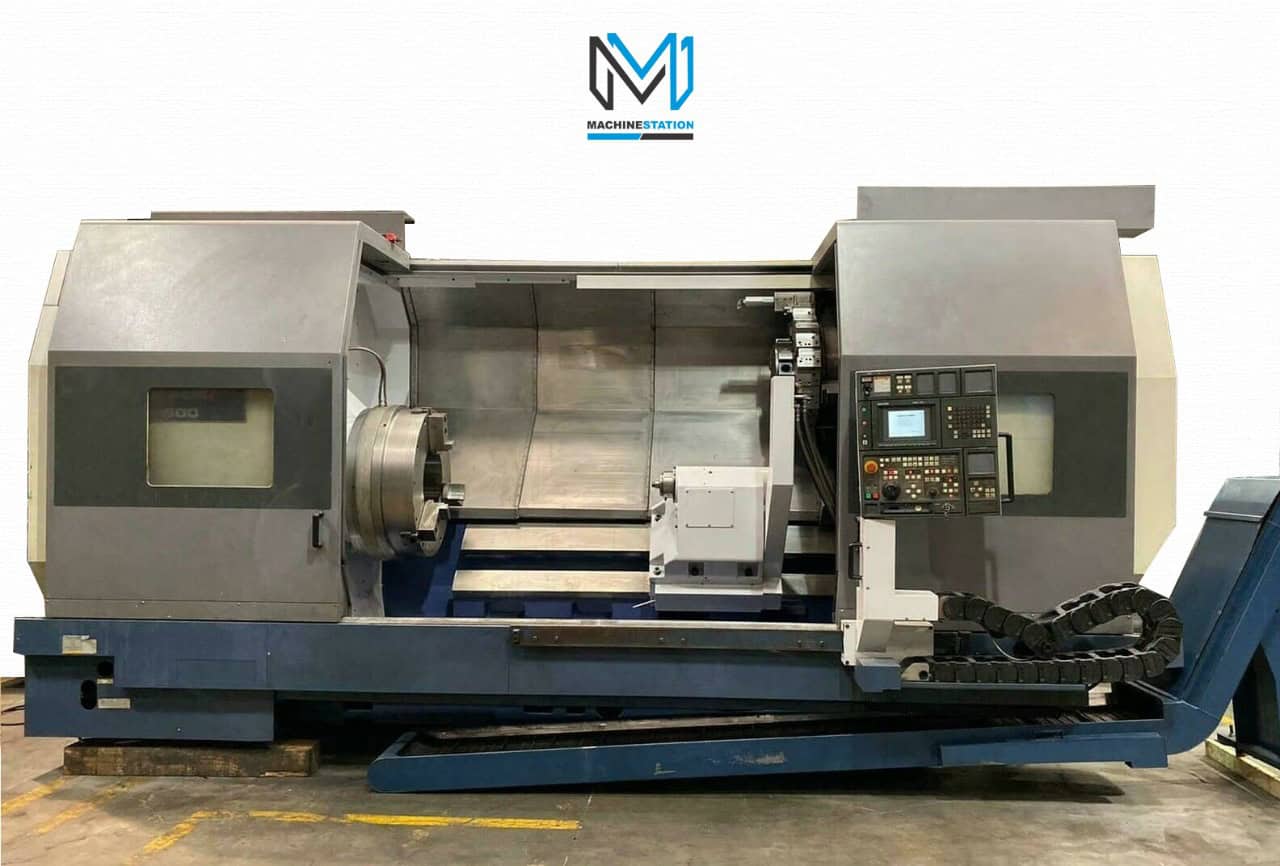

Comes as Shown in Pictures…..
