*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

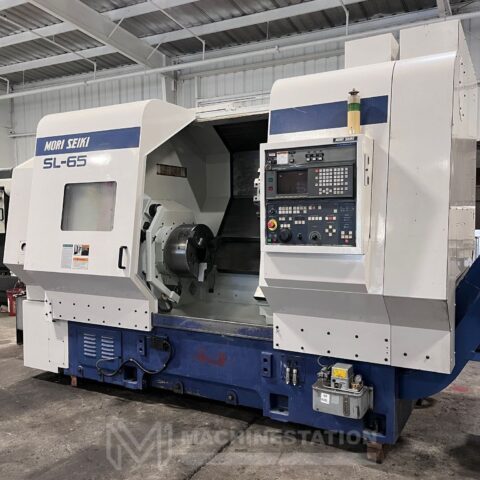

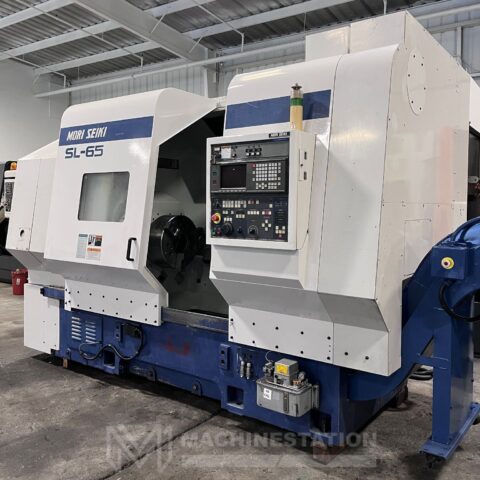

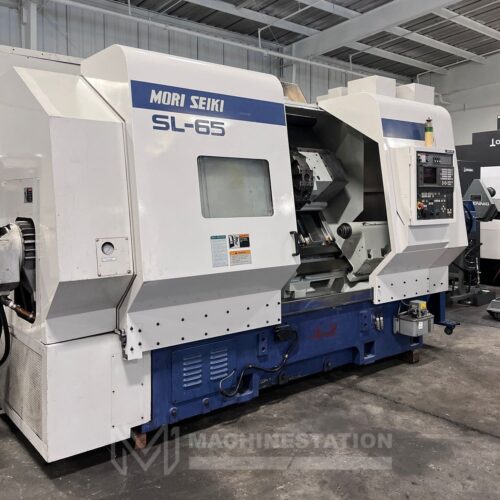

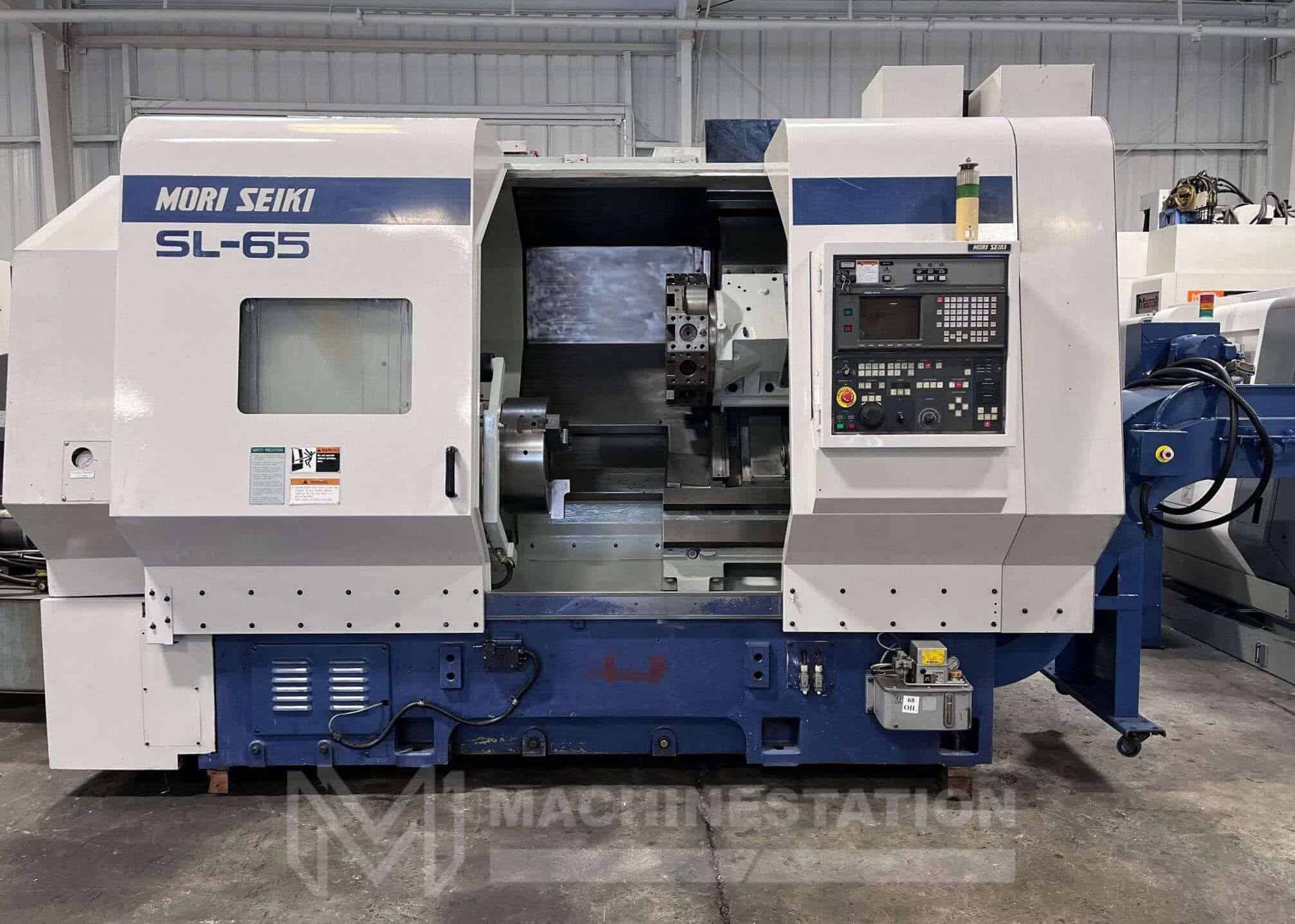

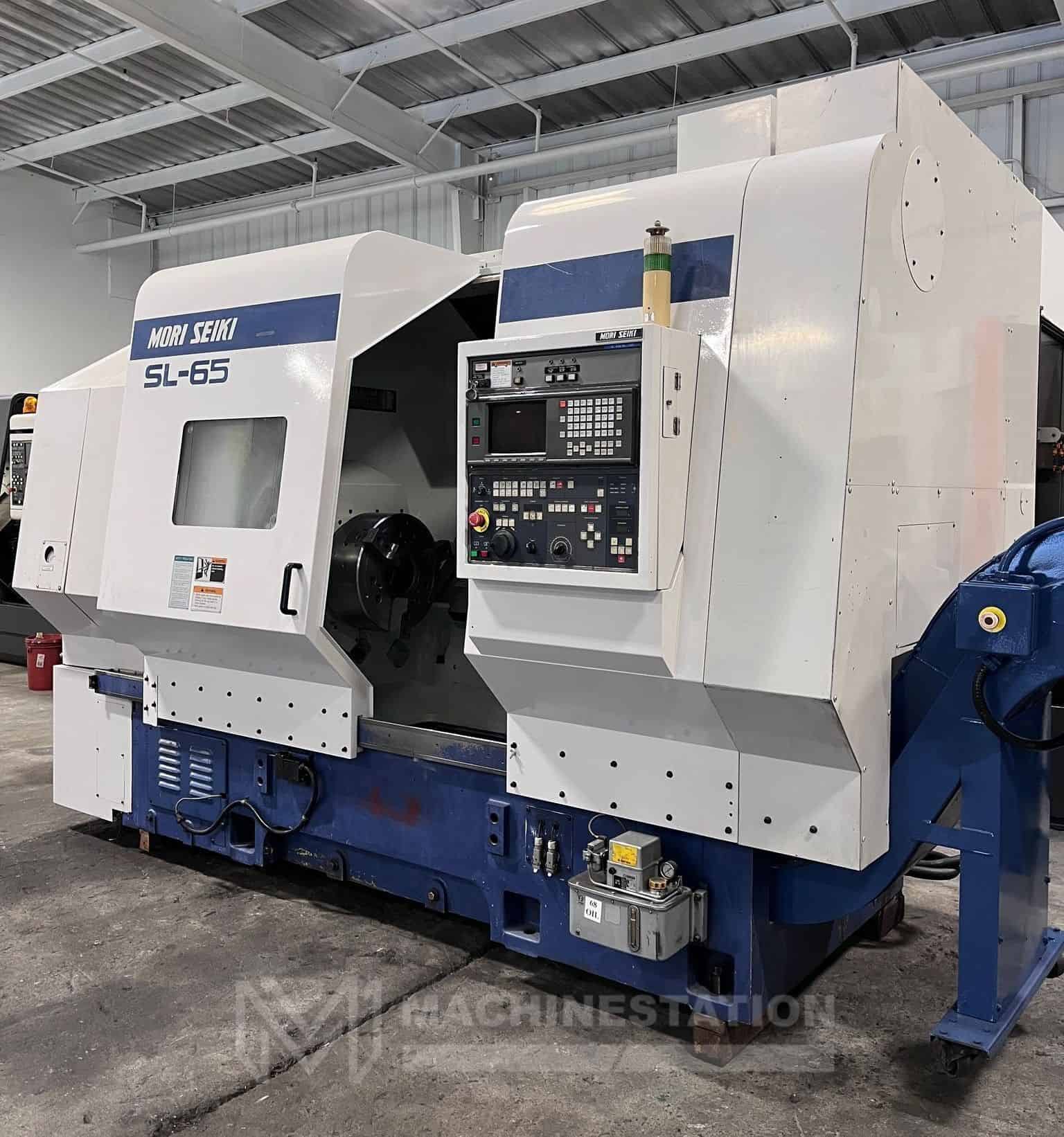

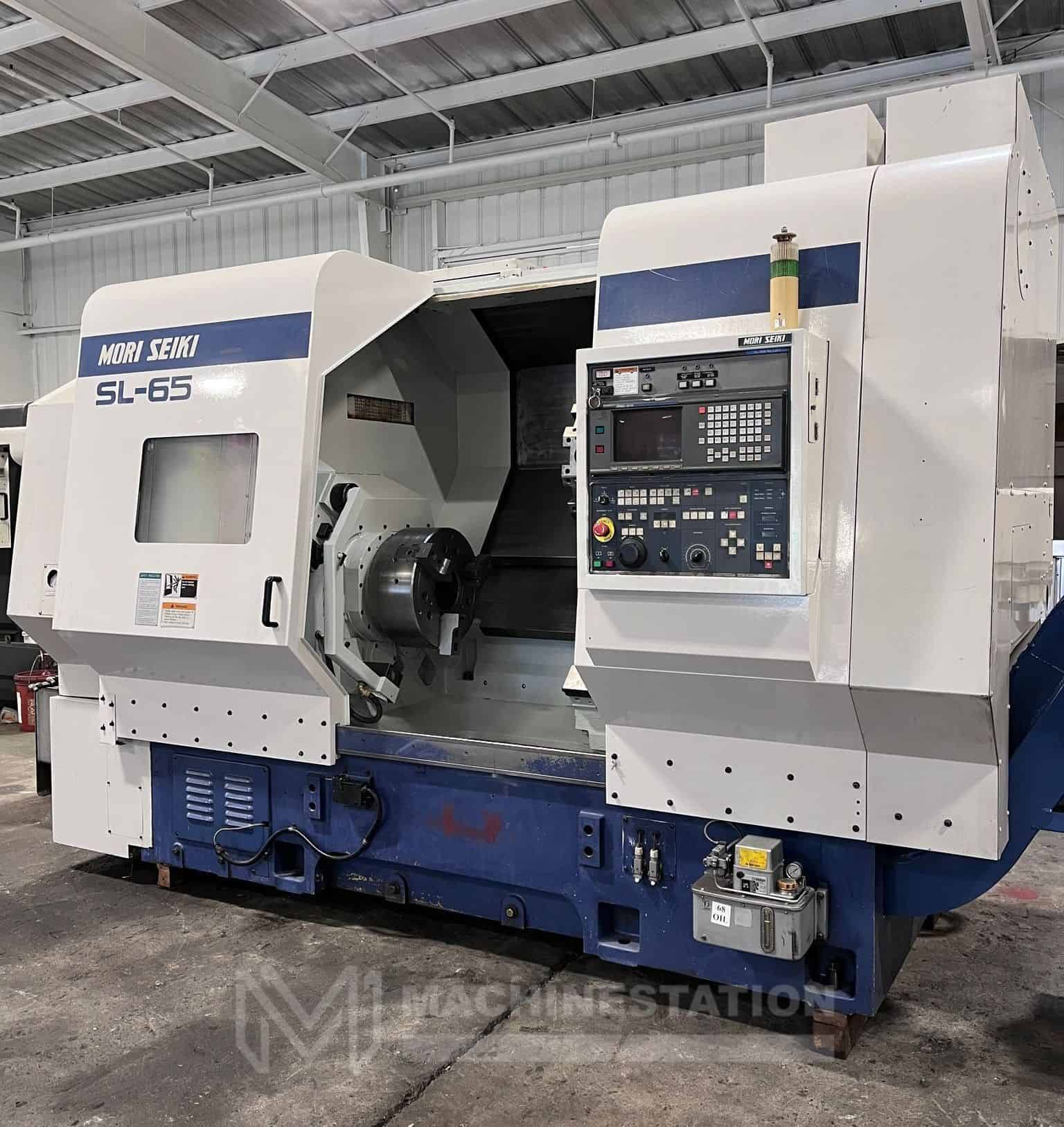

| Make: | Mori Seiki |
| Model: | SL65B |
| Year: | 1996 |
| Condition: | Used – Good |
| Equipped With: |
|---|

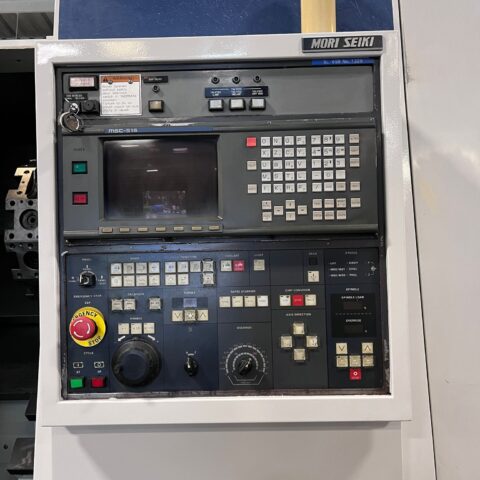

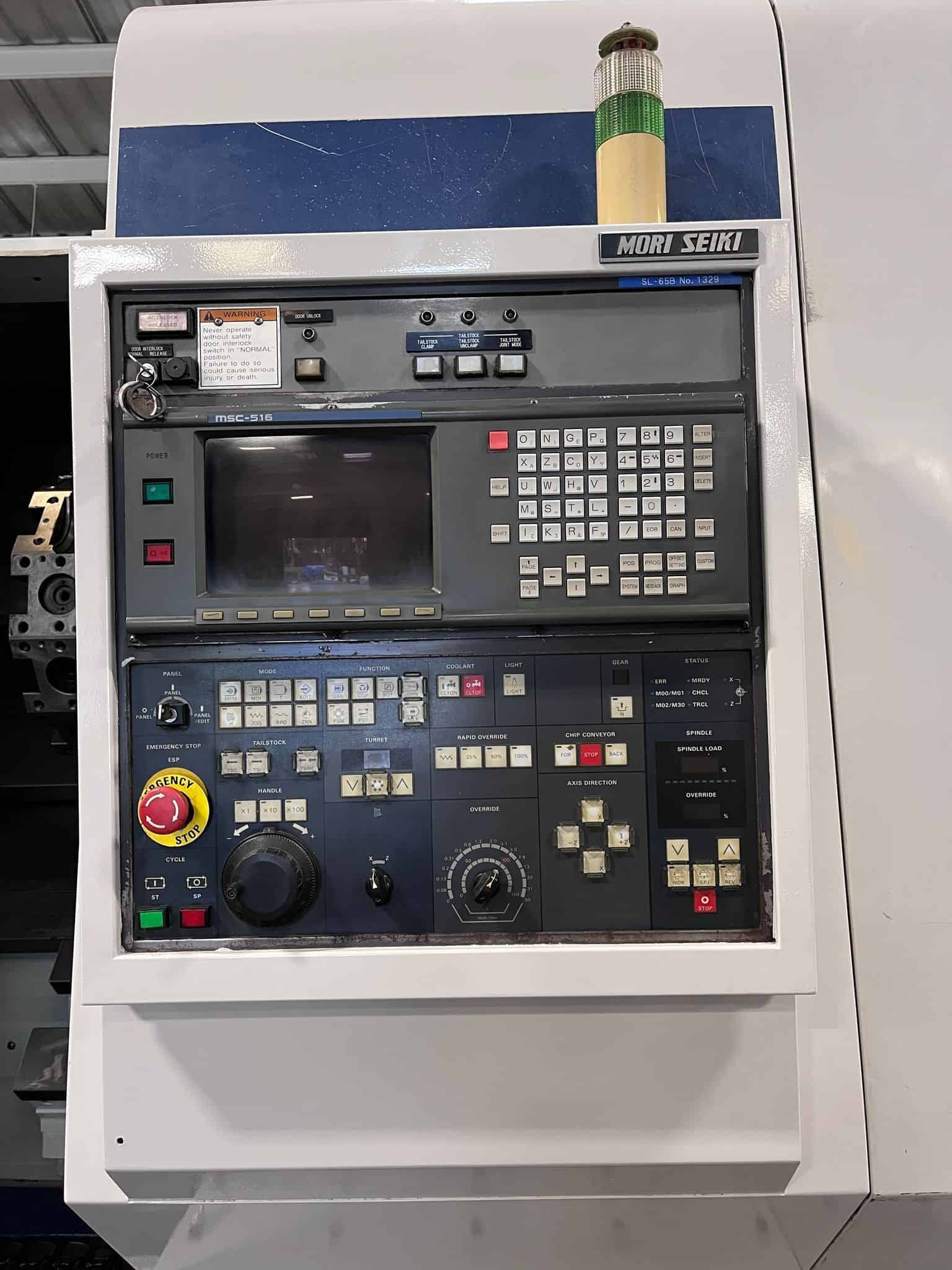

| Mori Seiki MSC-516 (Fanuc) CNC Control |

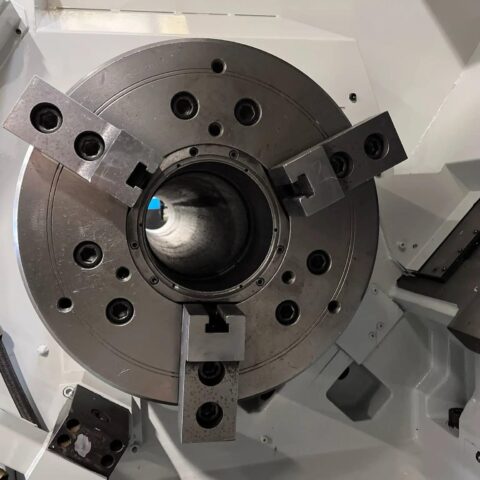

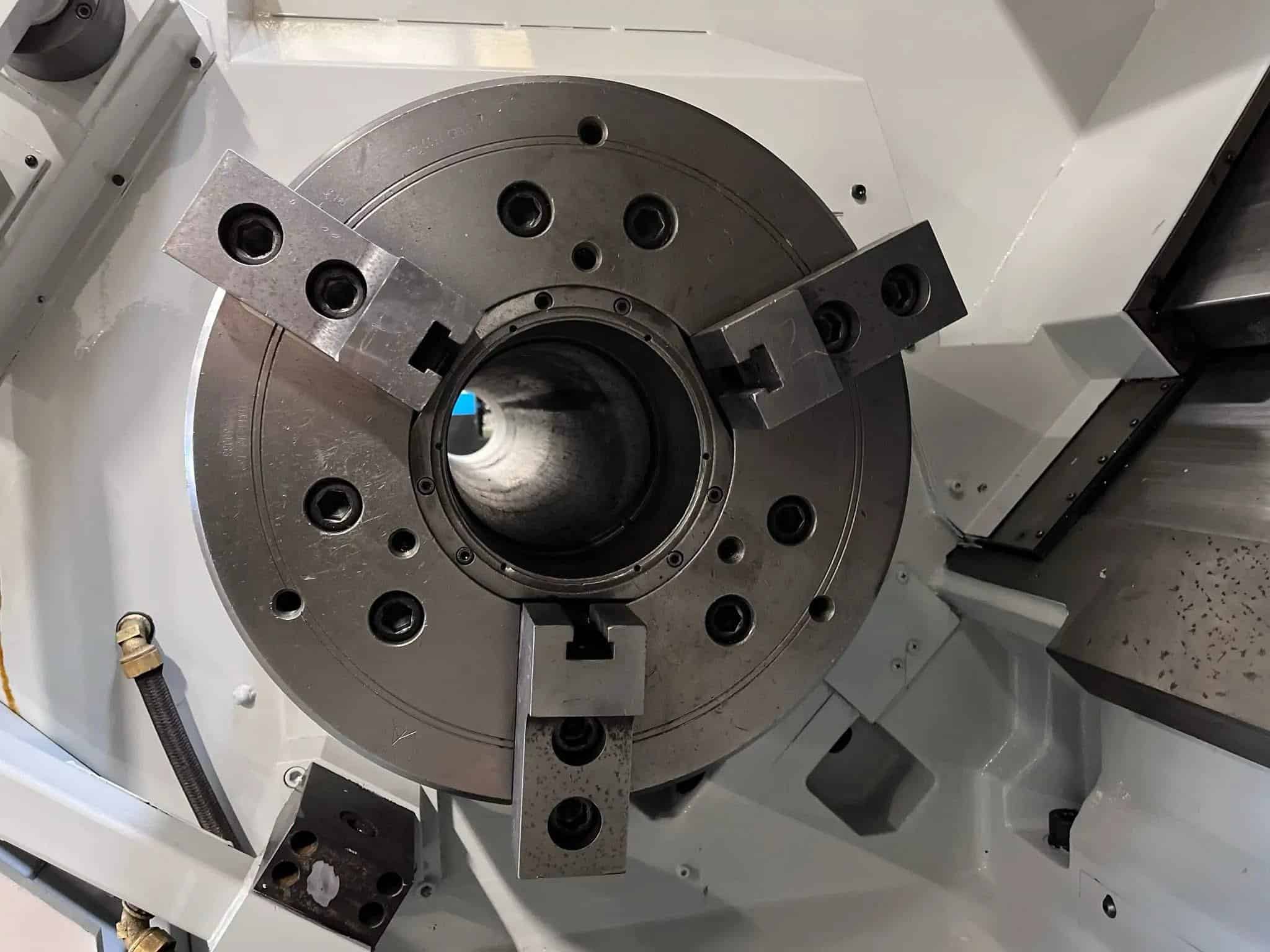

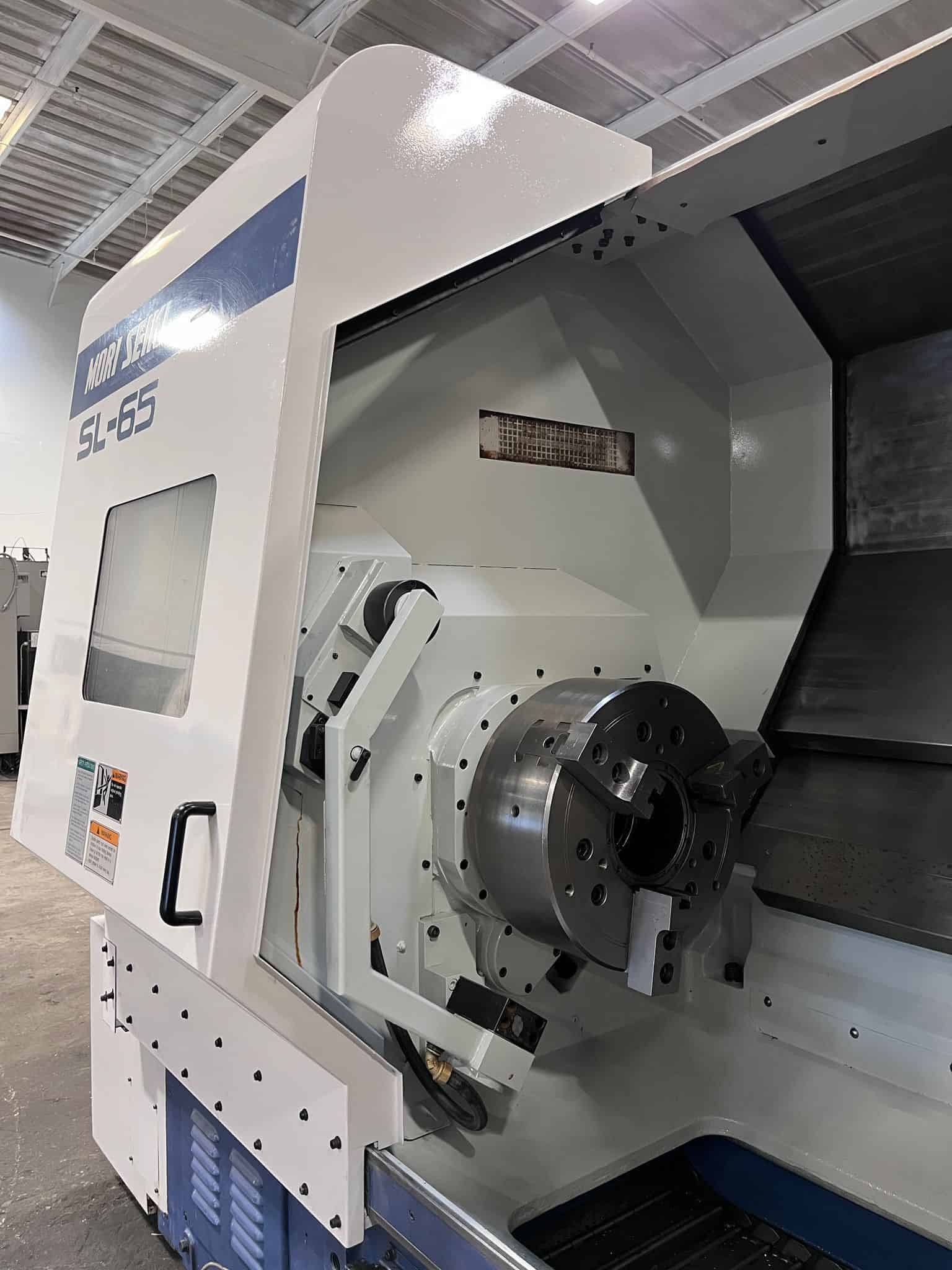

| 18″ 3-Jaw Hydraulic Chuck |
| 6.5″ Big Bore A2-11 Spindle |
| 50 HP 2 Speed Gear Head Spindle |

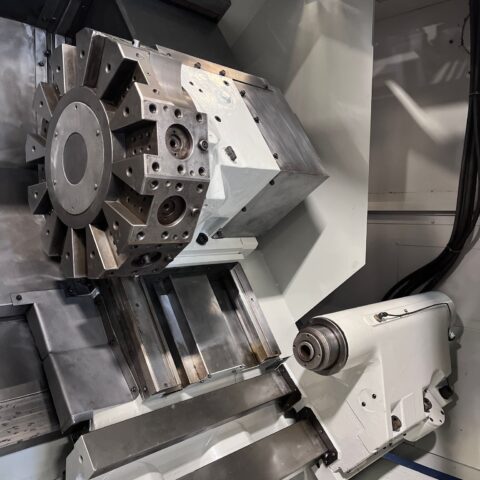

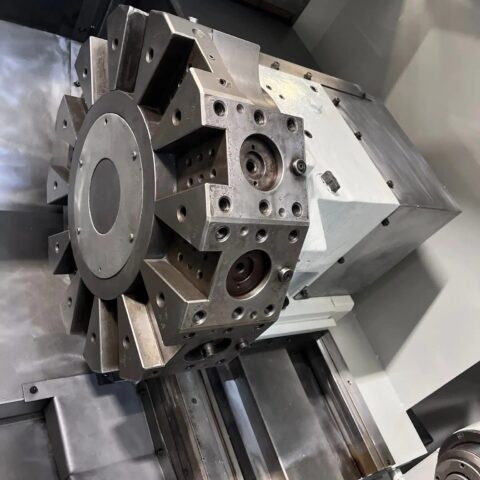

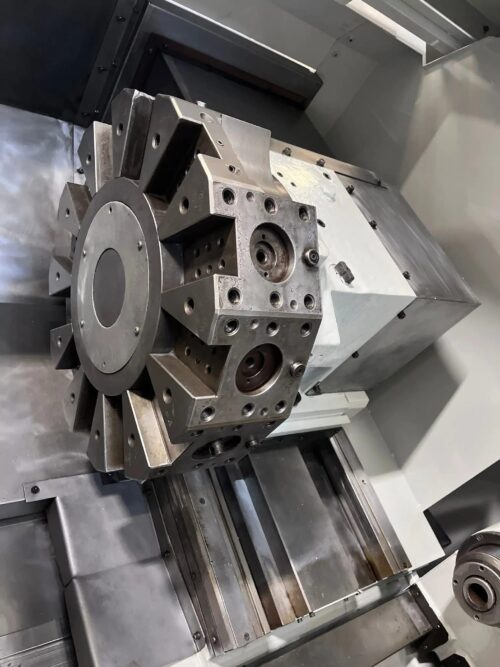

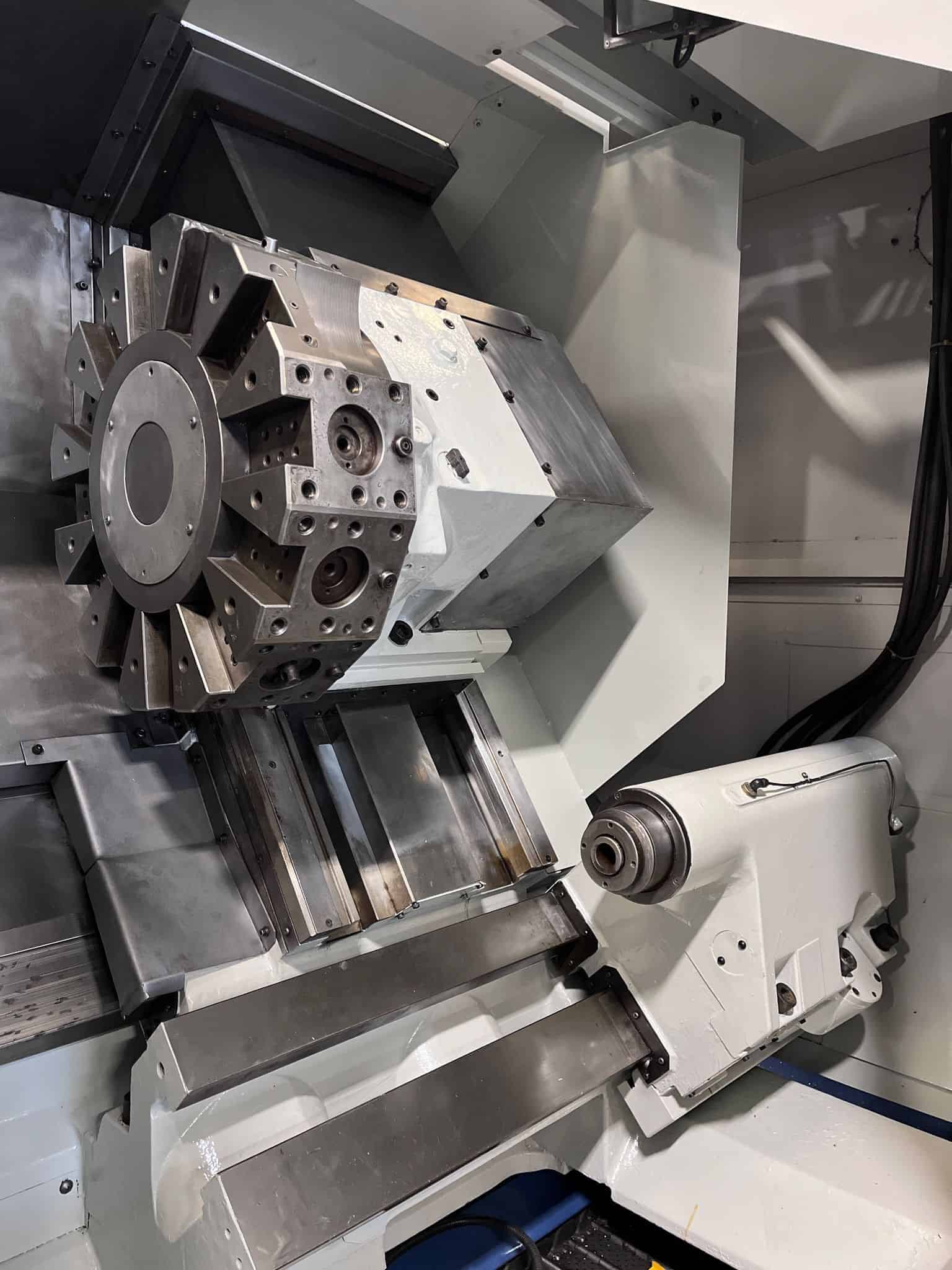

| 12 Station Automatic Turret |
| Tool Presetter |

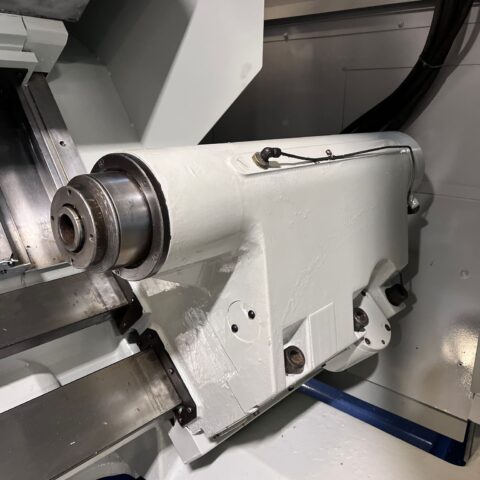

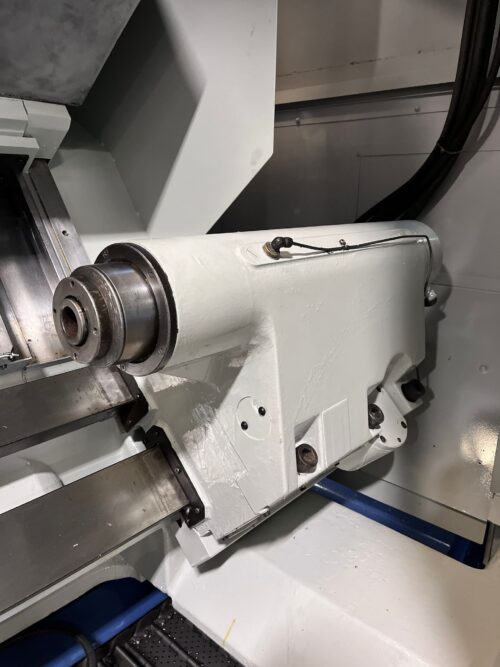

| Hydraulic Tailstock |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 25.6″ |
| Max Turning Length: 33.9″ |
| Swing Over Bed: 35.0″ |
| Swing Over Carriage: 22.0″ |
| Max Bar Capacity: 6″ |
| Distance Between Centers: 35.4″ |
| Travels: |
|---|
| X Axis Travel: 13.8″ |
| Z Axis Travel: 33.9″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 196 IPM |
| Rapid Traverse Z Axis: 315 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 6.5″ |
| Spindle Speed: 4-1010 RPM |
| Spindle Motor: 50 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 4.3″ |
| Tailstock Quill Travel: 3.9″ |
| General: |
|---|
| Power: 220v / 3-Phase / 62 kva |
| Overall Dimensions: 160″ x 80″ x 98″ High Approx. |
| Weight: 20,000 lbs Approx. |
