*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

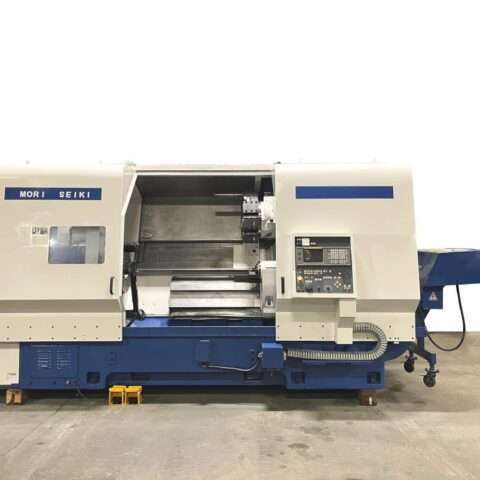

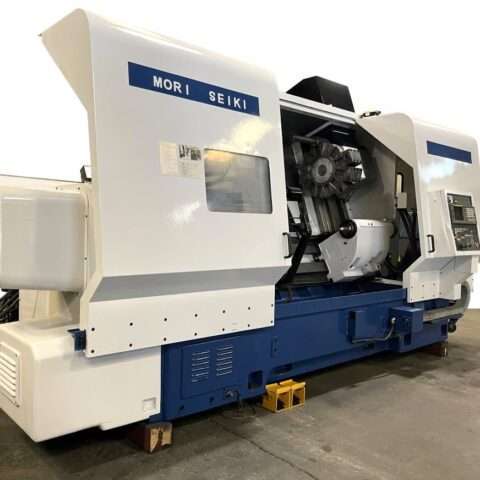

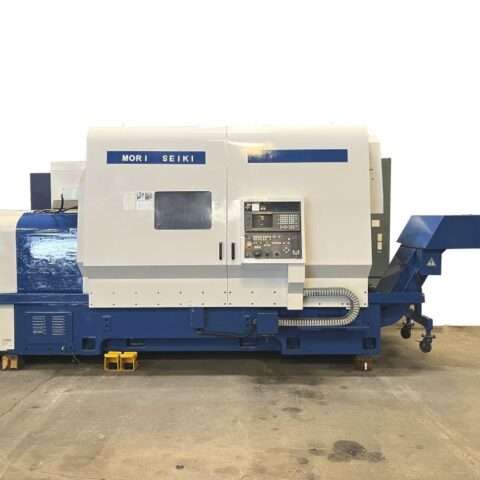

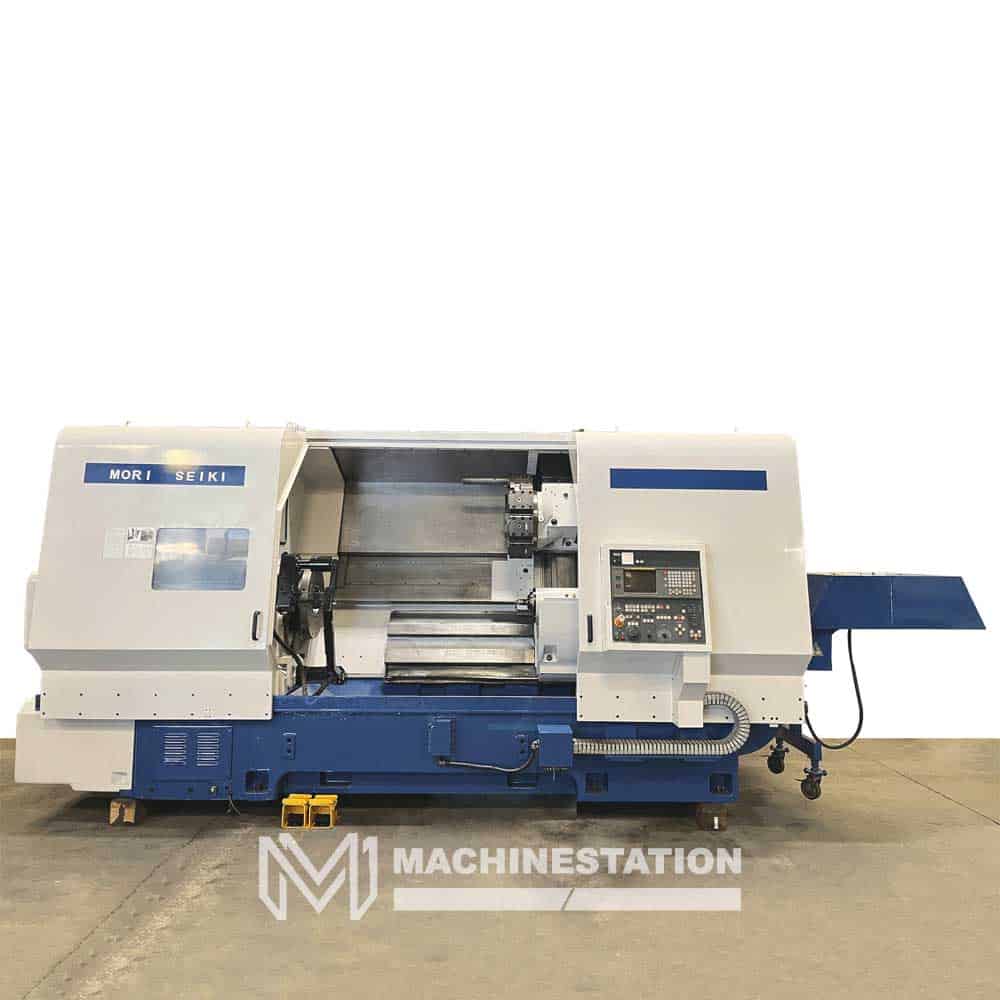

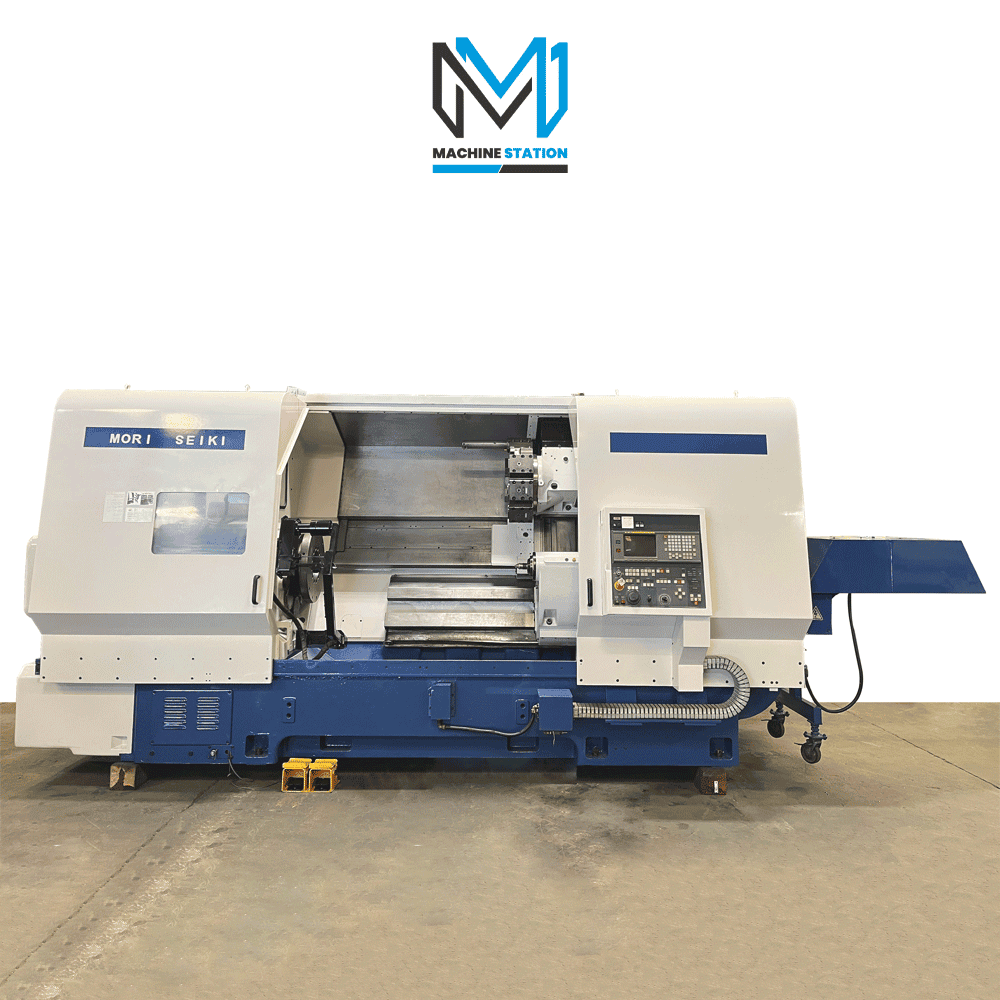

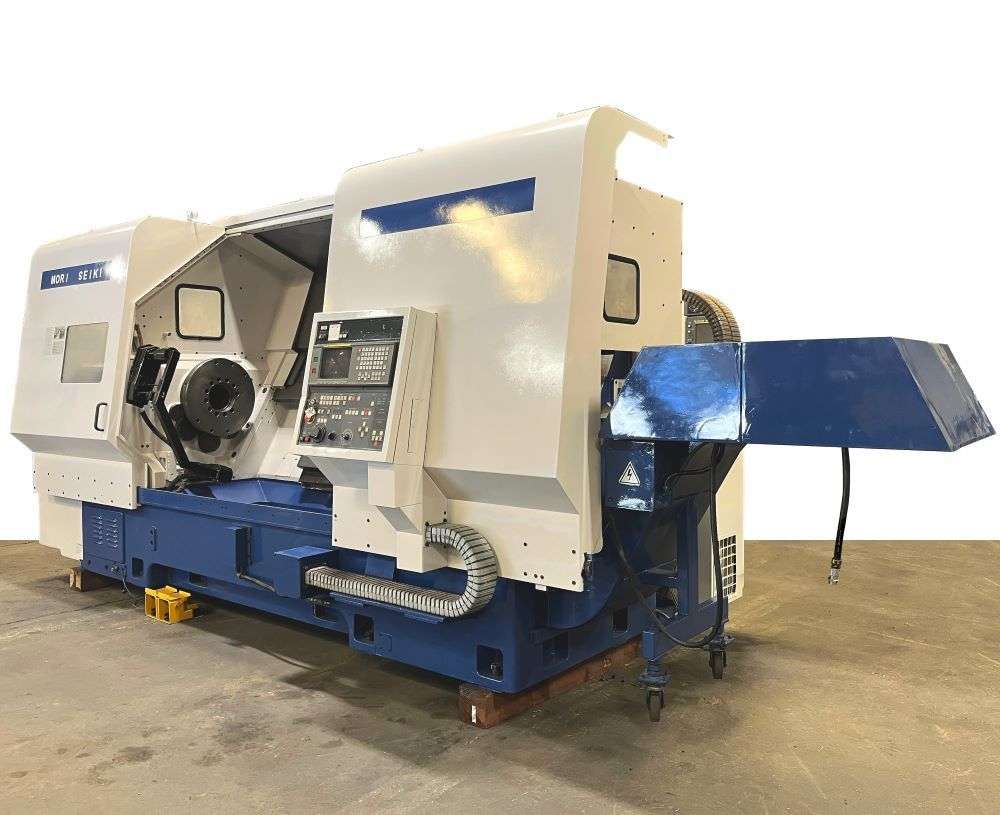

| Make: | Mori Seiki |
| Model: | SL-75B |
| Equipped With: |
|---|

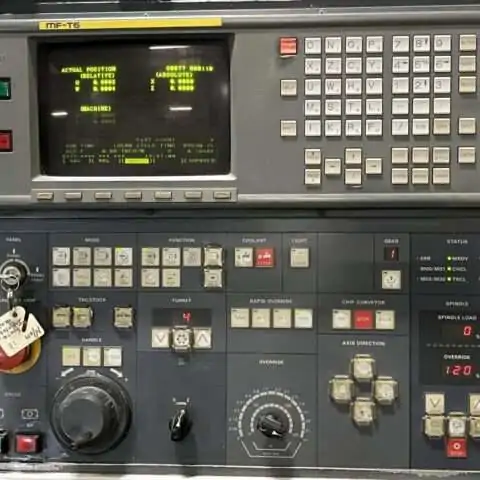

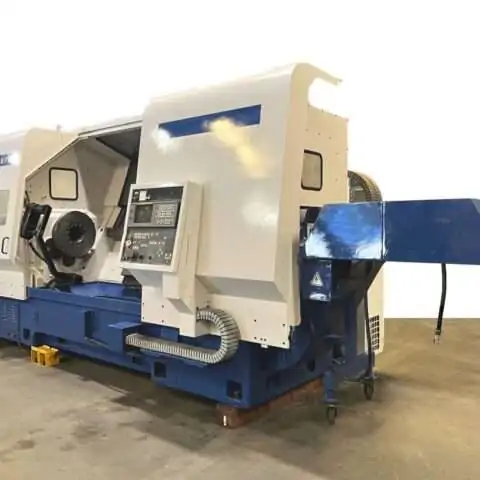

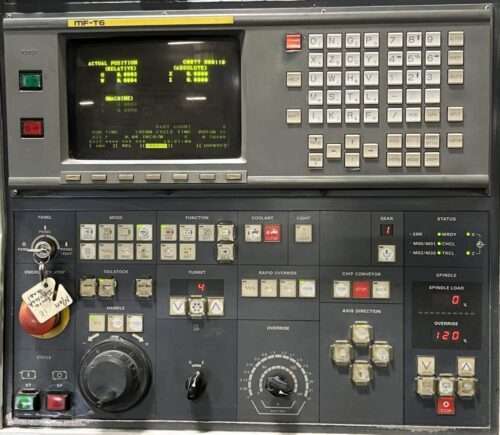

| MF-T6 (Fanuc 16T) CNC Control |

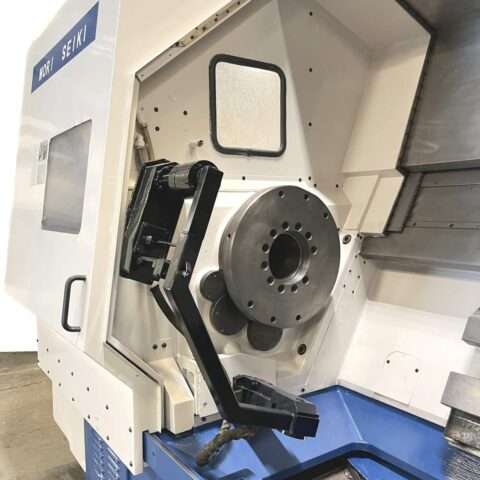

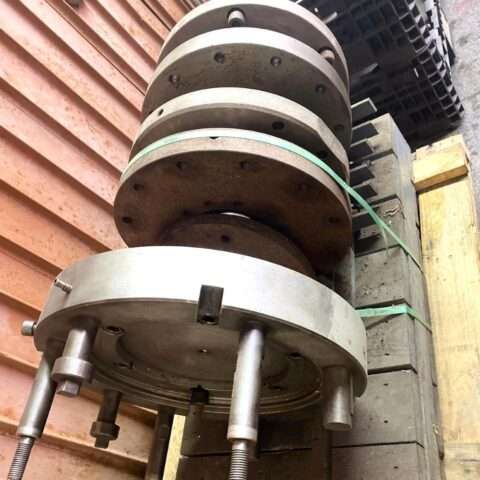

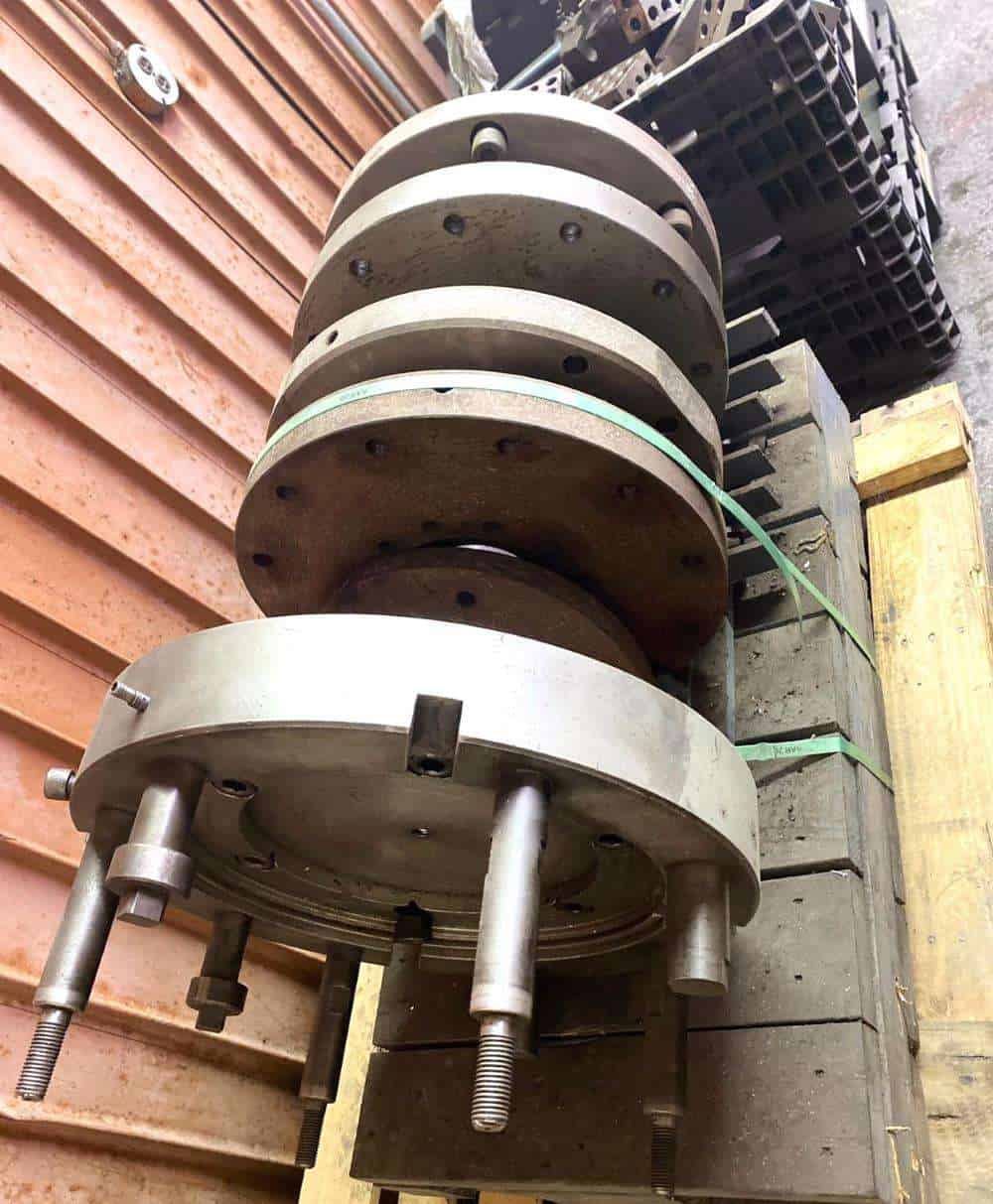

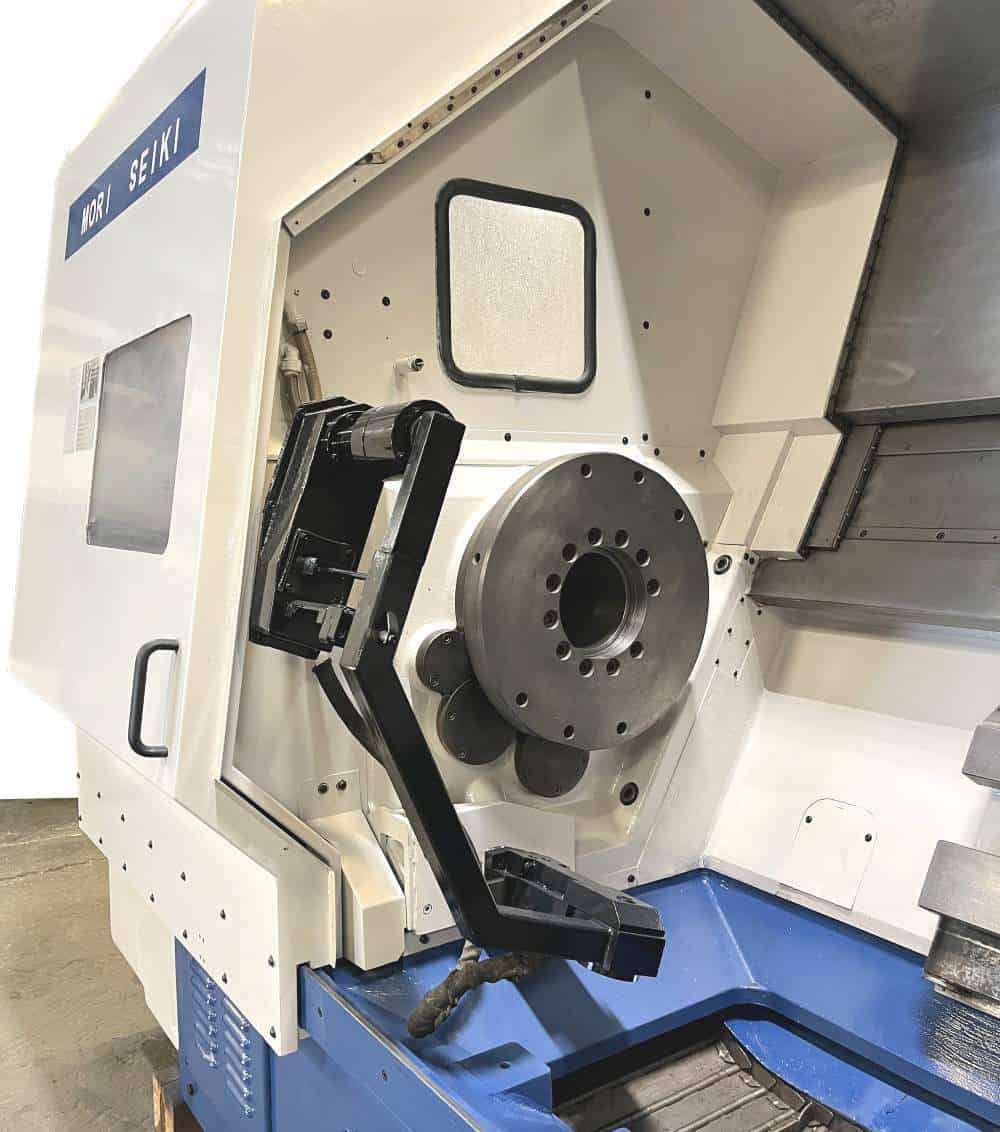

| Multiple chucks and Faceplate |

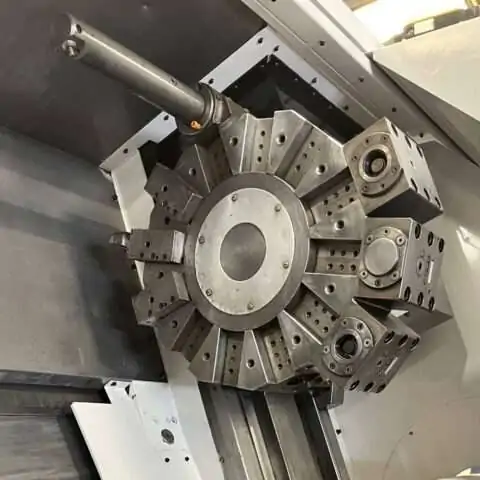

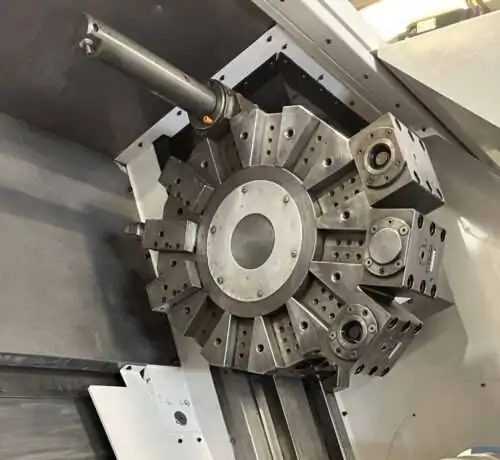

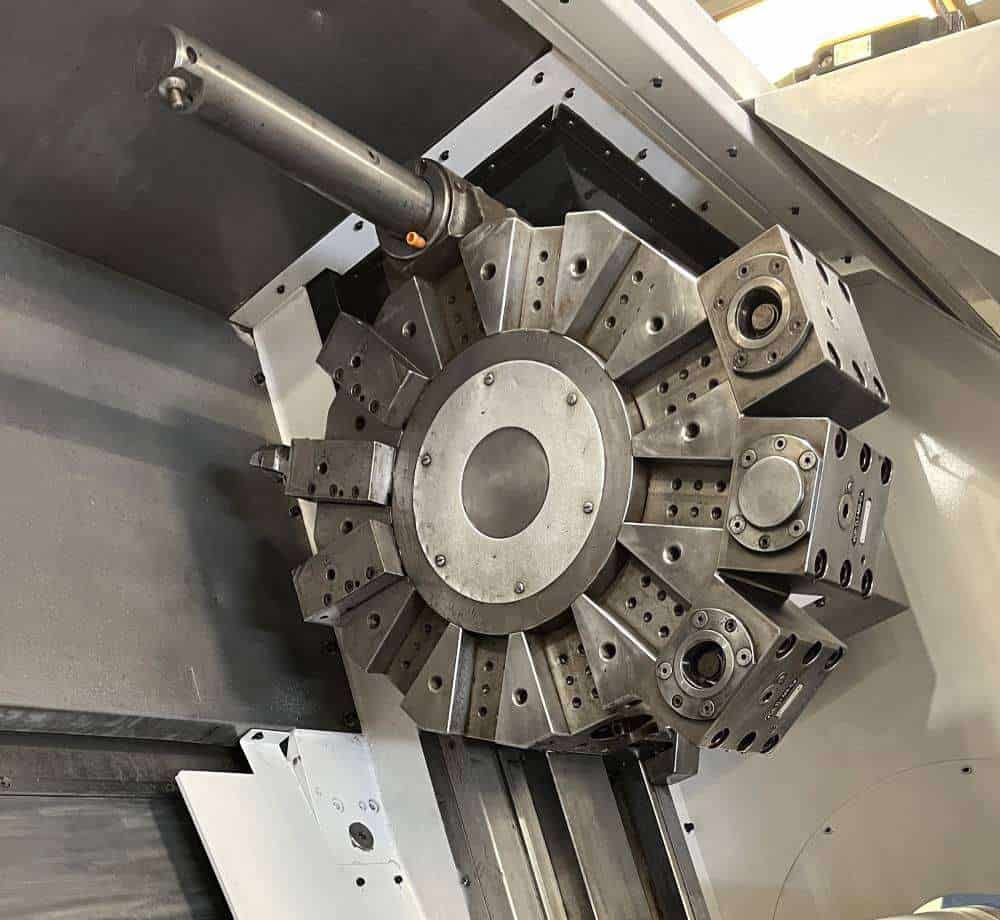

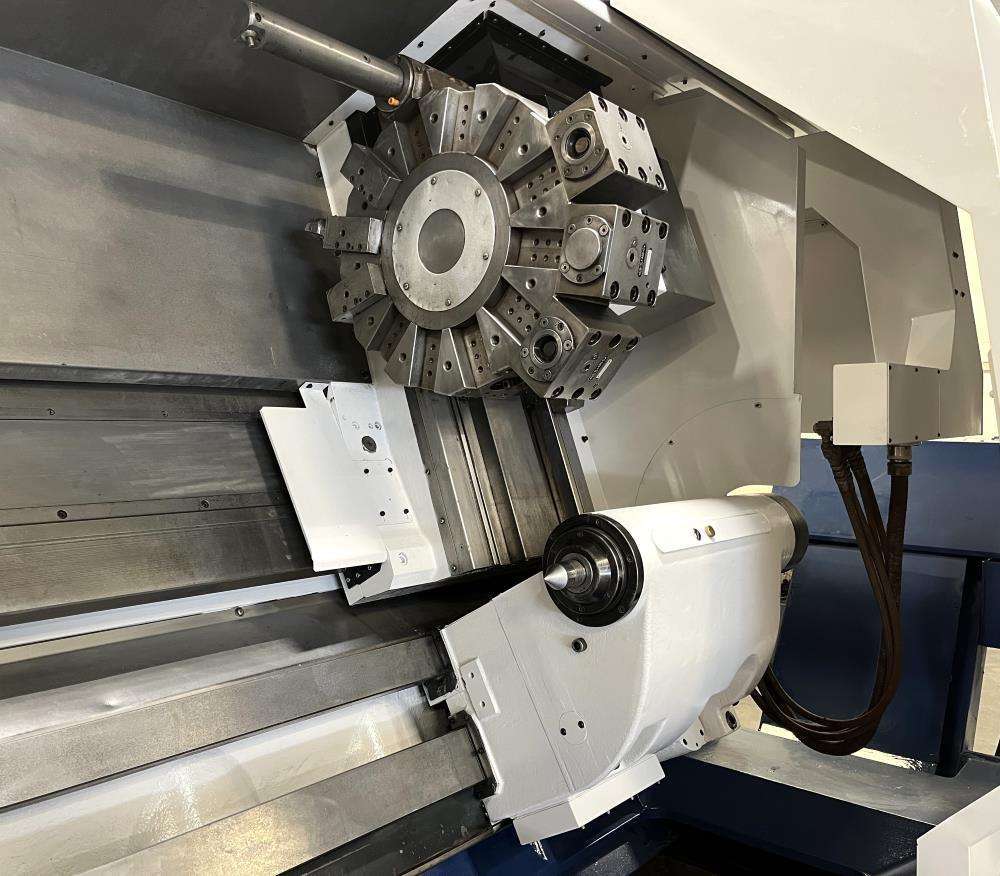

| 12 -Station Turret with Tool Holders |
| 6.3″ Bore A2-11 Spindle |
| 2 Step gear spindle for powerful torque |

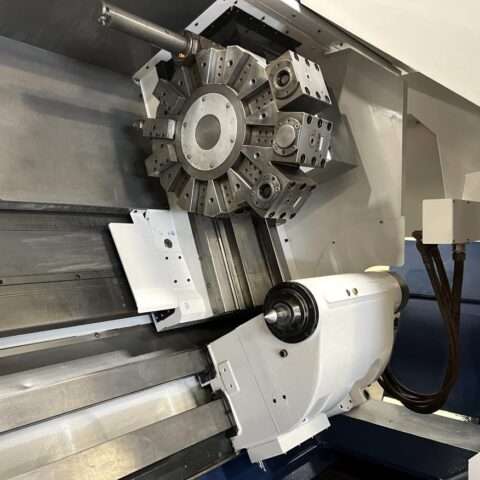

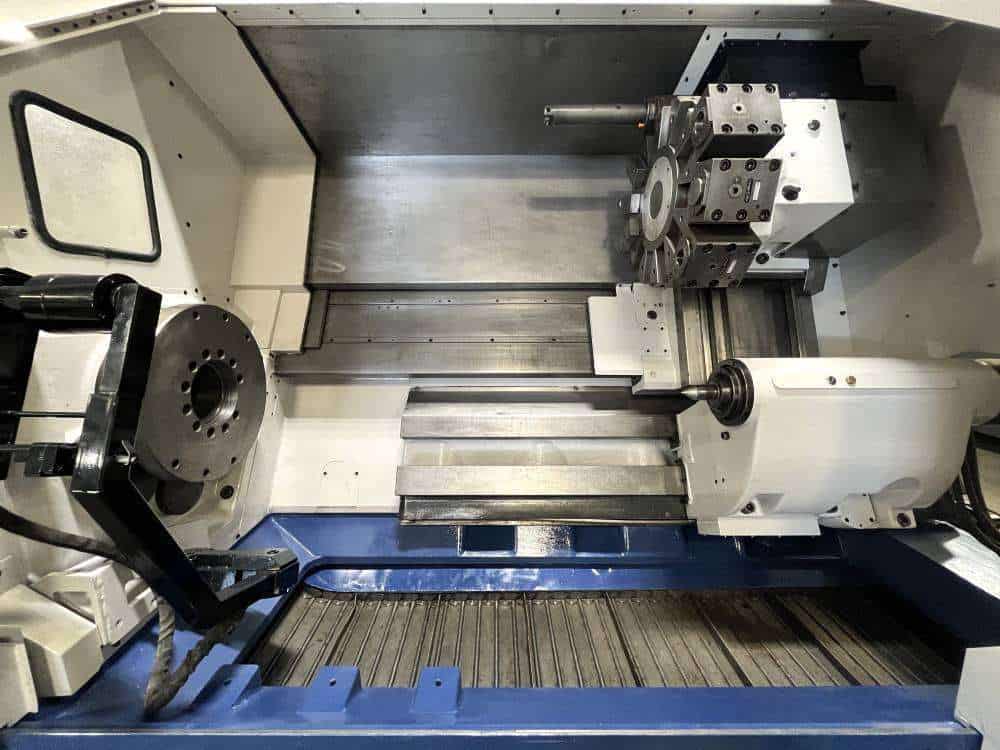

| Hydraulic Tailstock with Power Quill |
| RS-232 Port |
| Coolant System |

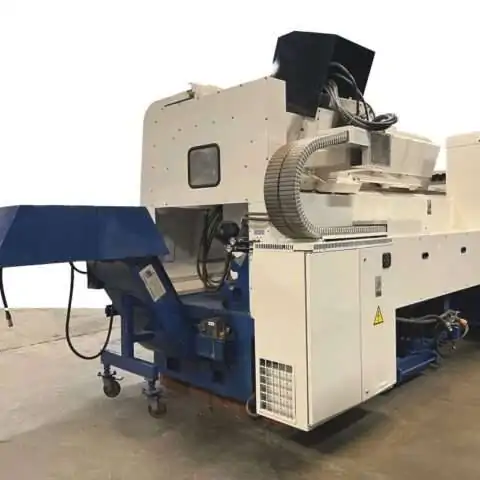

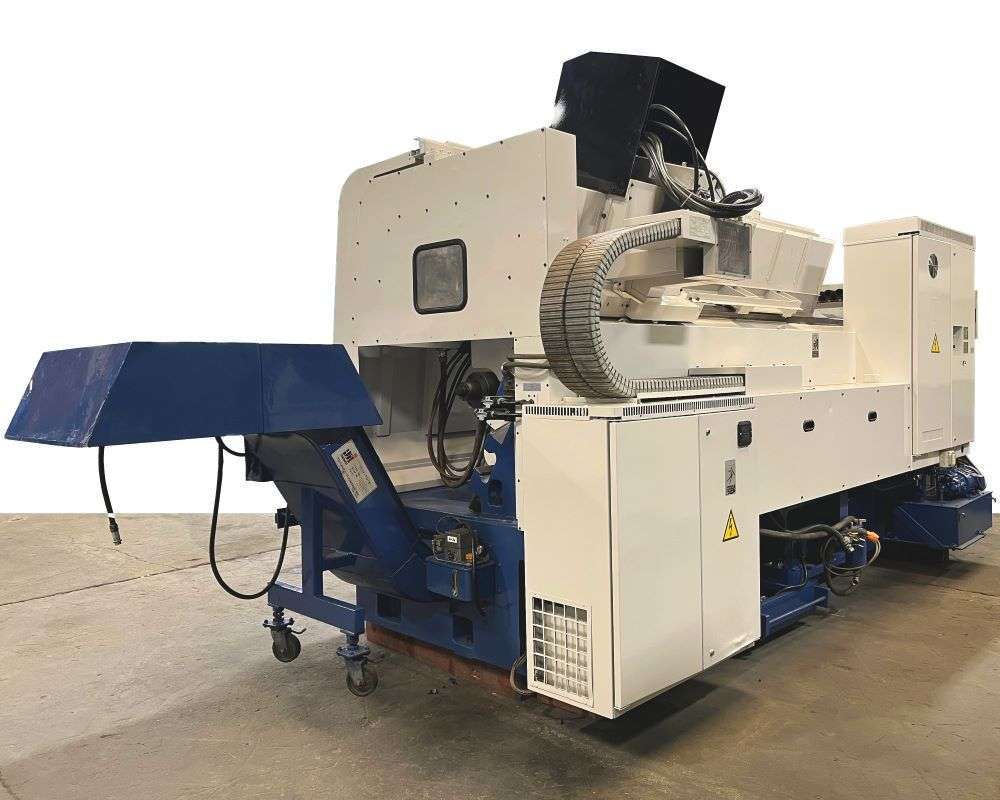

| Chip Pan and Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 29.9″ |
| Max Turning Length: 65.4″ |
| Max Bar Capacity: 5.65″ |
| Swing Over Bed: 35.8″ |
| Swing Over Cross Slide: 22.8″ |
| Distance Between Centers: 68.9″ |
| Travels: |
|---|
| X-Axis: 15.75″ |
| Z-Axis: 61.61″ |
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Z Axis: 590 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 6.3″ |
| Spindle Speed: 10-1010 RPM |
| Spindle Motor: 50 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 52.8″ |
| Tailstock Quill Dia.: 4.33″ |
| Tailstock Quill Stroke: 5.93″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz, 71kva |
| Overall Dimensions: 245″ x 88″ x 108″ High |
| Weight : 36,000 lbs Approx. |
