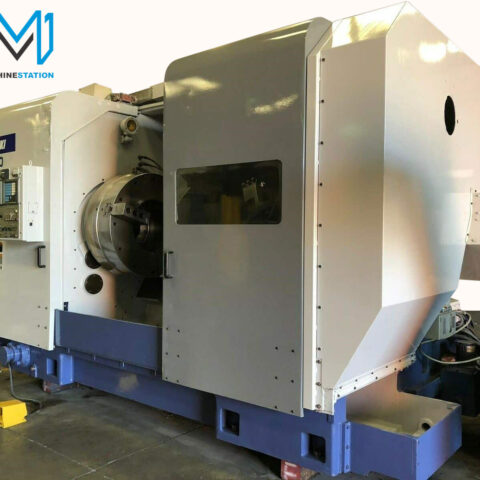

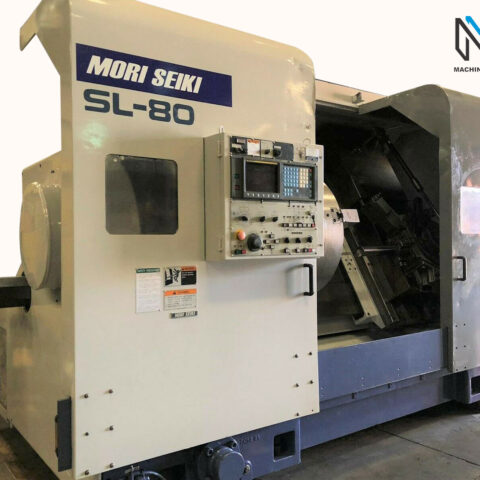

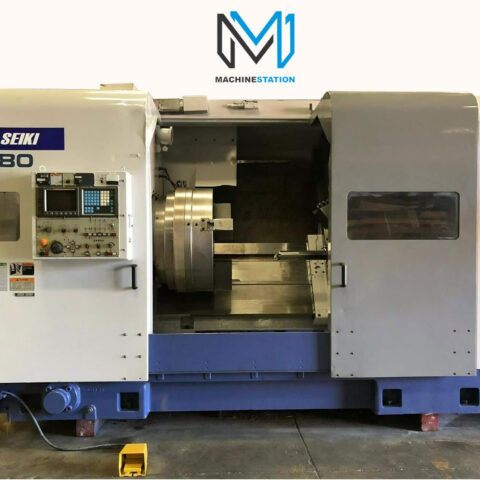

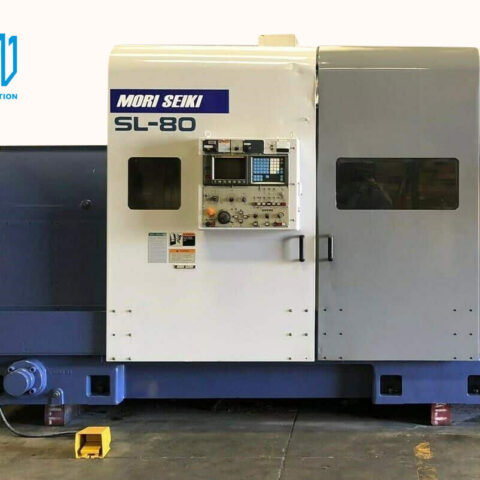

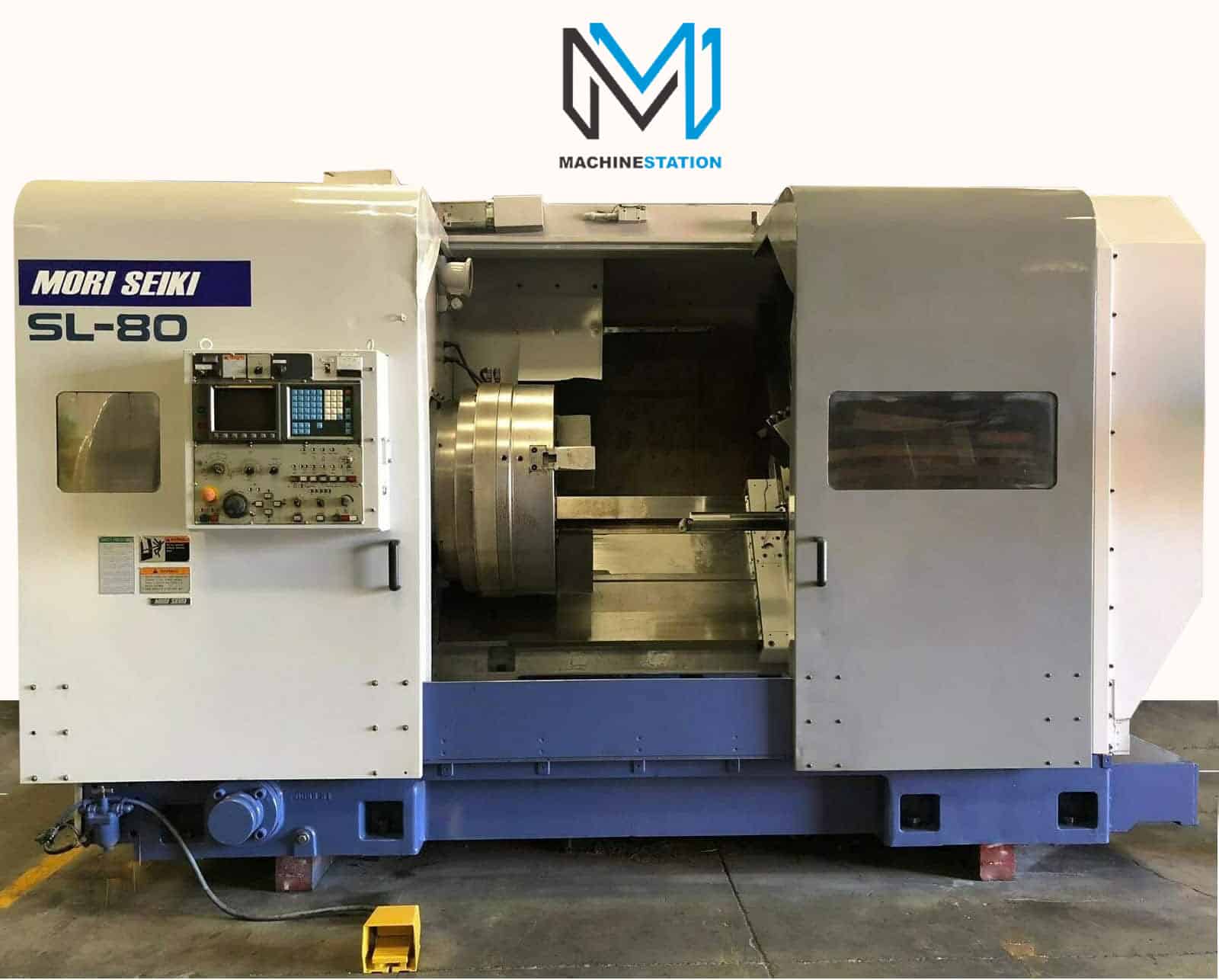

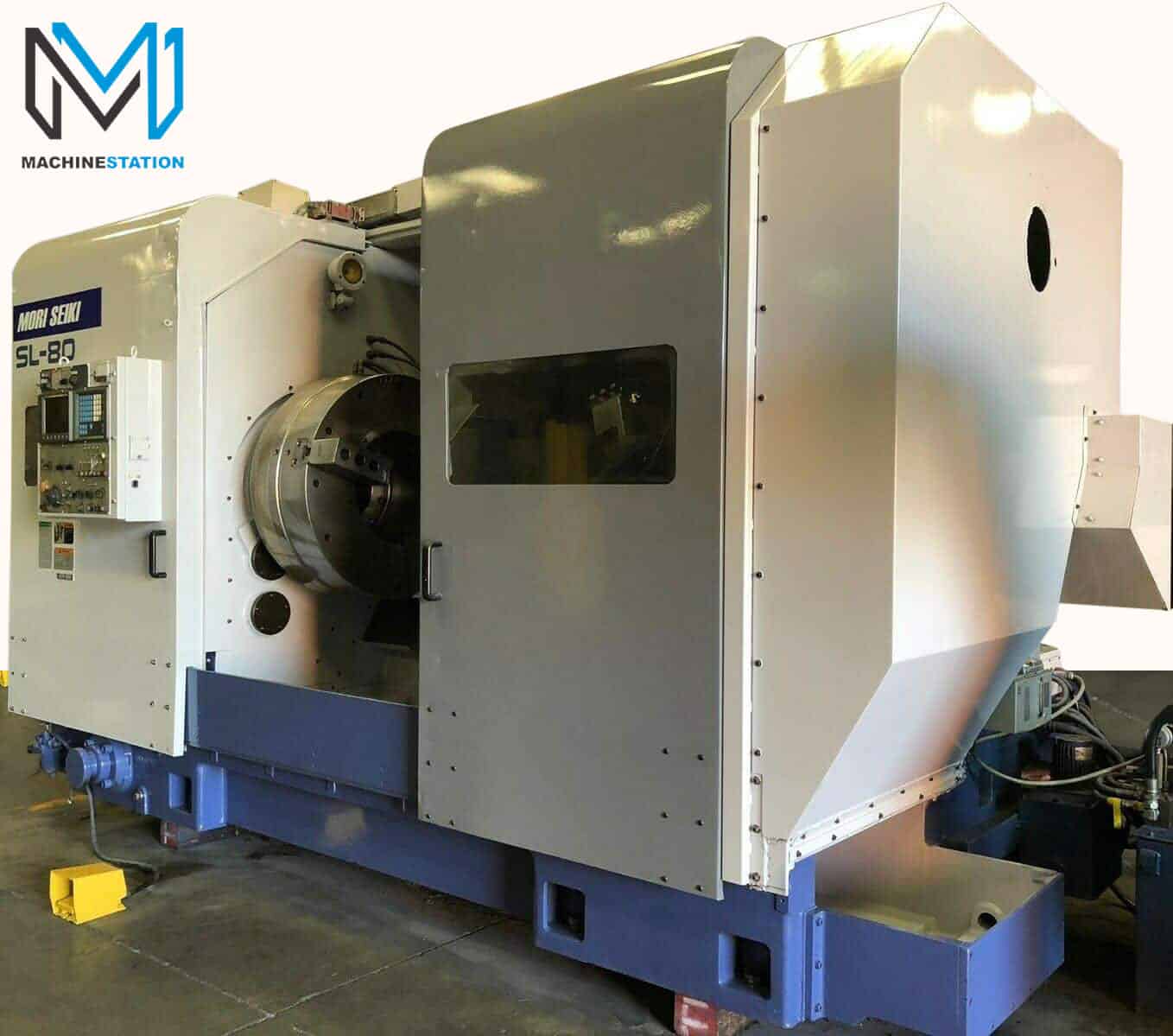

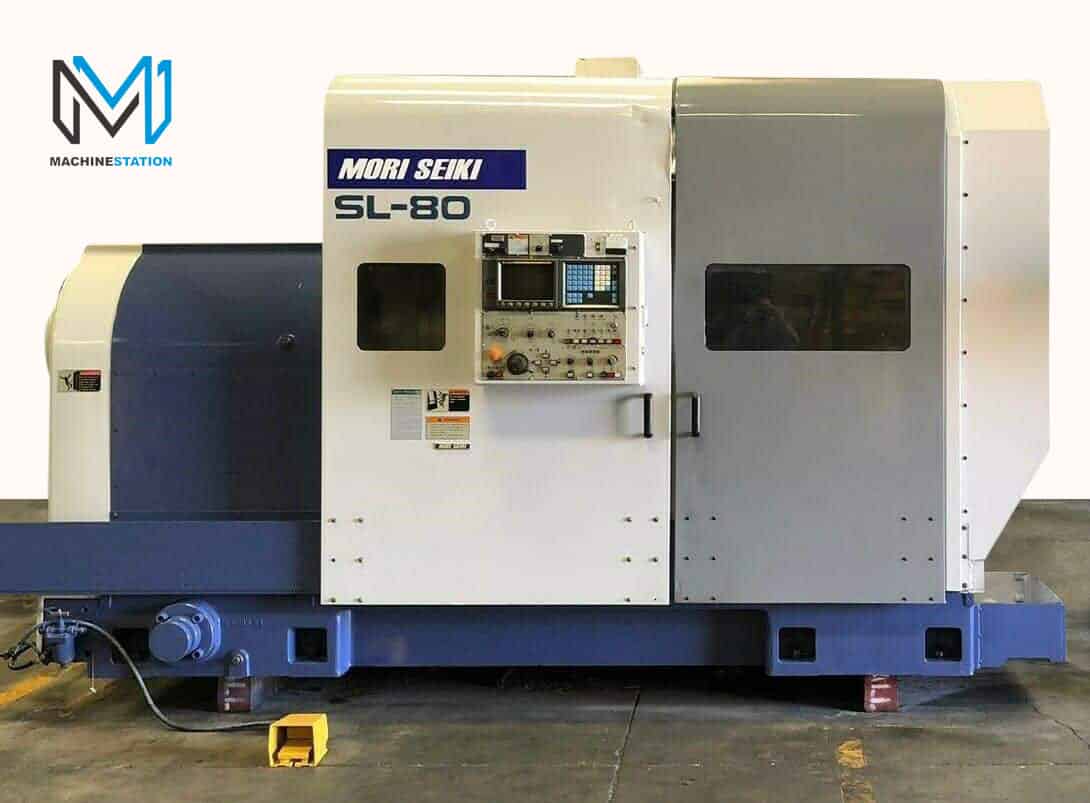

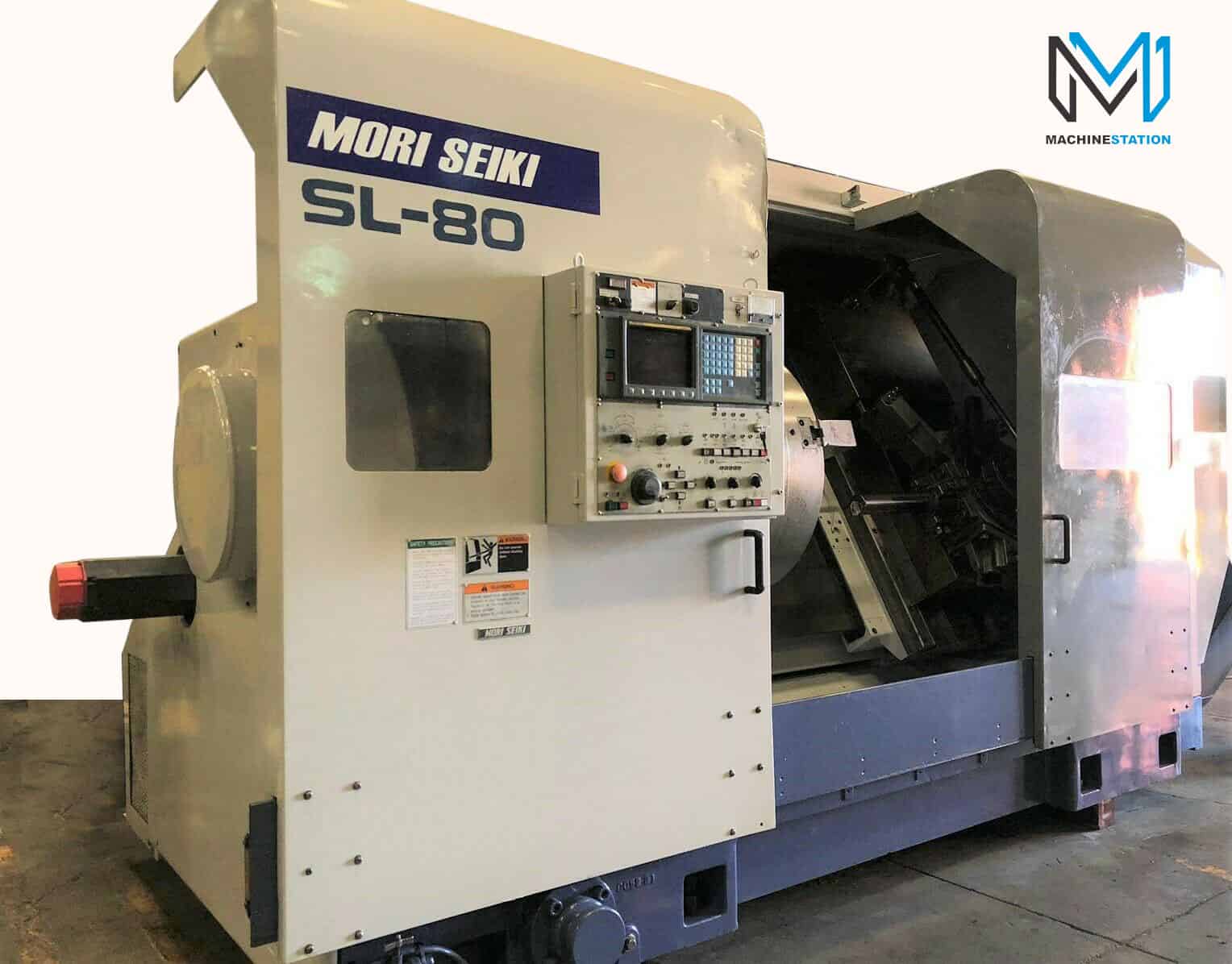

Mori Seiki SL-80 CNC Turning Center
Out of stock
Description
| MORI SEIKI SL-80 CNC TURNING CENTER | |
|---|---|
| Make | Mori Seiki |
| Model No. | SL-80 |
| Year | 1997 , installed 1999 |
| Serial # | 324 |
| Condition | Very Good |
- Mori Seiki SL-80 Equipped With:
- 6-Station Turret Box Ways Design
- A1-20 10.5″ Big Bore Spindle
- Long Bed Machine
- Fanuc 0T CNC Control

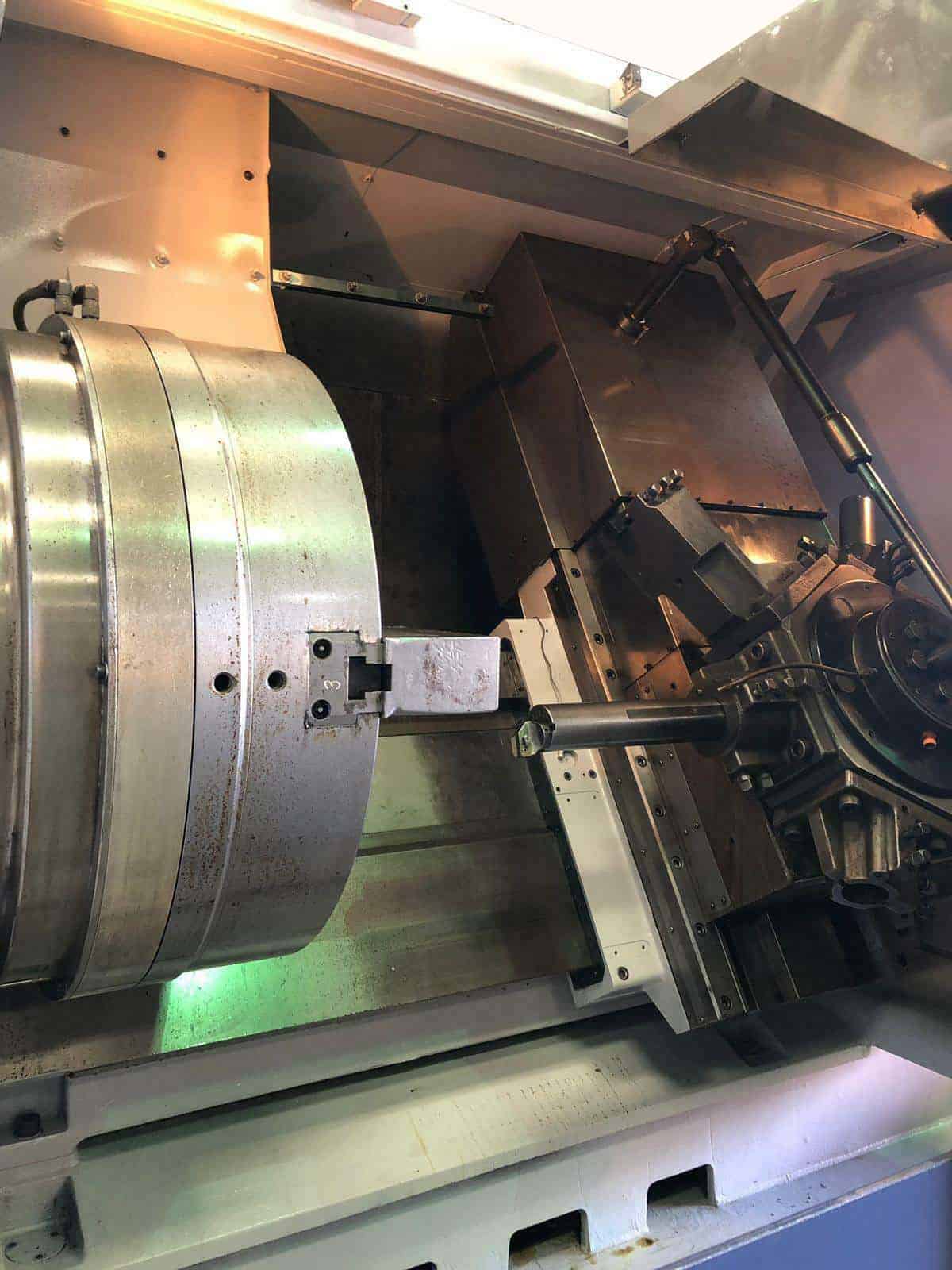

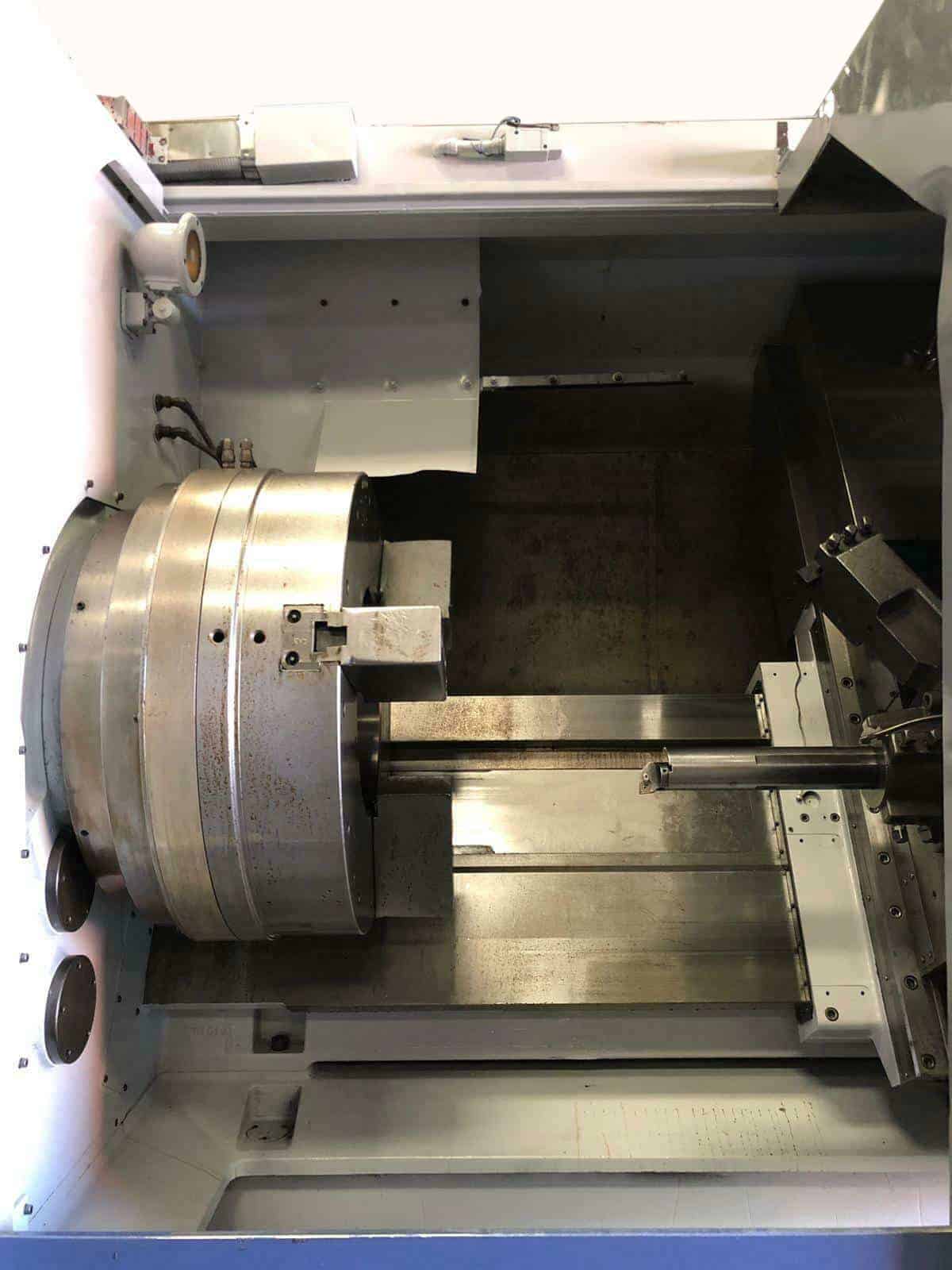

- 33″ 3-Jaw Air Chuck
- Geared Head spindle for powerful torque
- Hydraulic Turret
- Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Coolant Tank Comes with Chip Conveyor
- MORI SEIKI SL-80 CNC Specifications:
- Max Turning Diameter: 35.4″
- Max Turning Length: 43.3″
- Max Bar Capacity: 10.2″
- Swing Over Carriage: 35.4″
- Swing Over Bed: 39.9″
- Travel:
- X Axis Travel: 16.5″
- Z Axis Travel: 43.3″
- Rapid Traverse X Axis: 197 IPM
- Rapid Traverse Z Axis: 315 IPM
- Spindle:
- Spindle Nose: A1-20
- Spindle Bore: 10.5″
- Spindle Speed: 4 – 550 RPM
- Spindle Motor: 50 HP Turret
- Capacity: 6 Stations Turret
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz Power Requirement: 68 Amps Overall
- Dimensions: 180″ x 80″ x 98″ High
- Overall Dimensions: 220″ x 80″ x 98″ High with Chip Conveyor
- Weight : 33,000 lbs Approx.
