All specifications are approximations and are subject to verification.

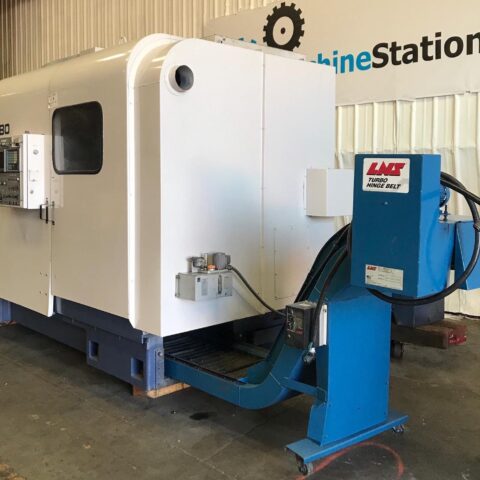

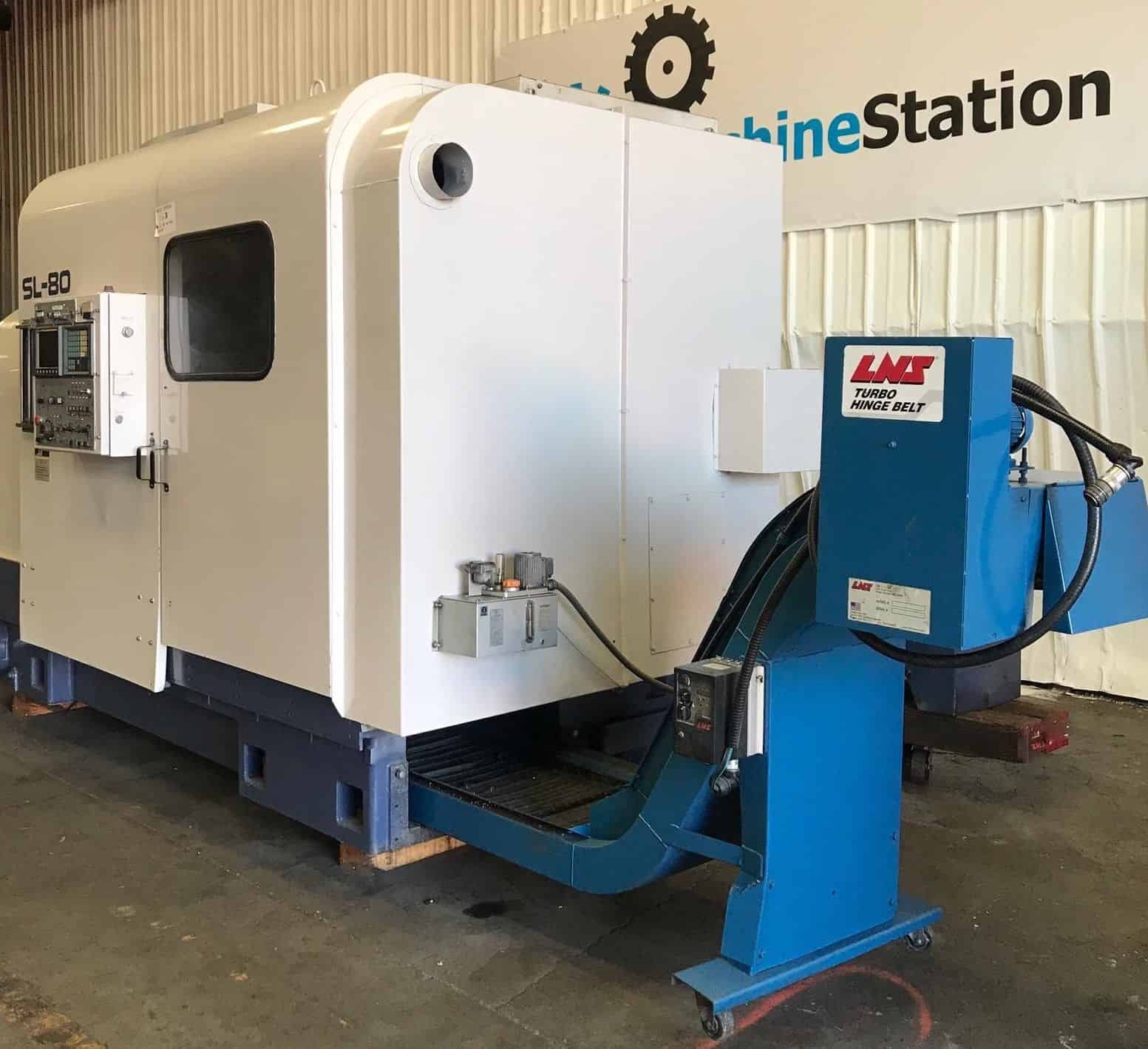

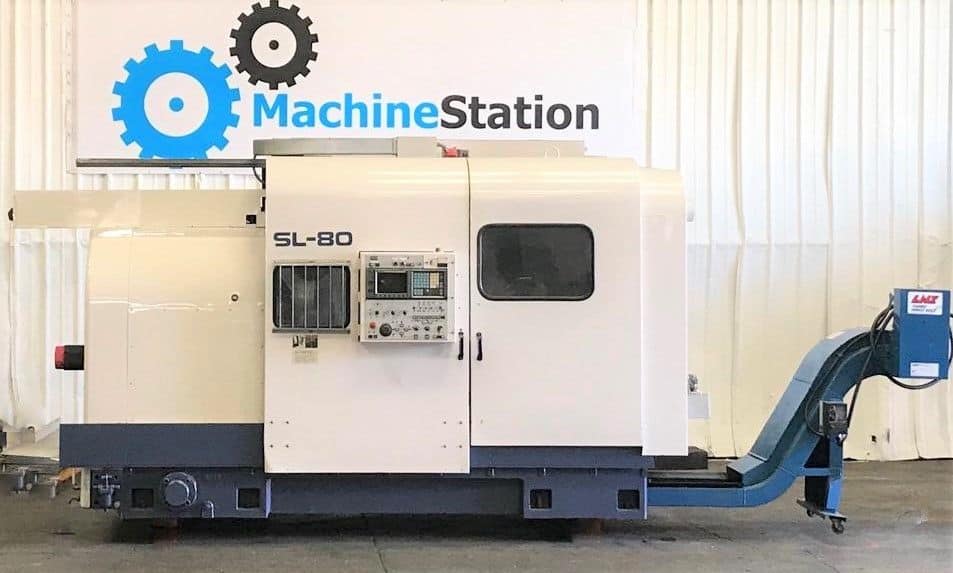

“This machine is in very Good running condition. It is equipped with 32″ Chuck, chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”
| Make | Mori Seiki |
| Model No. | SL-80B |
| Serial # | 290 |
| Condition | Very Good |
-

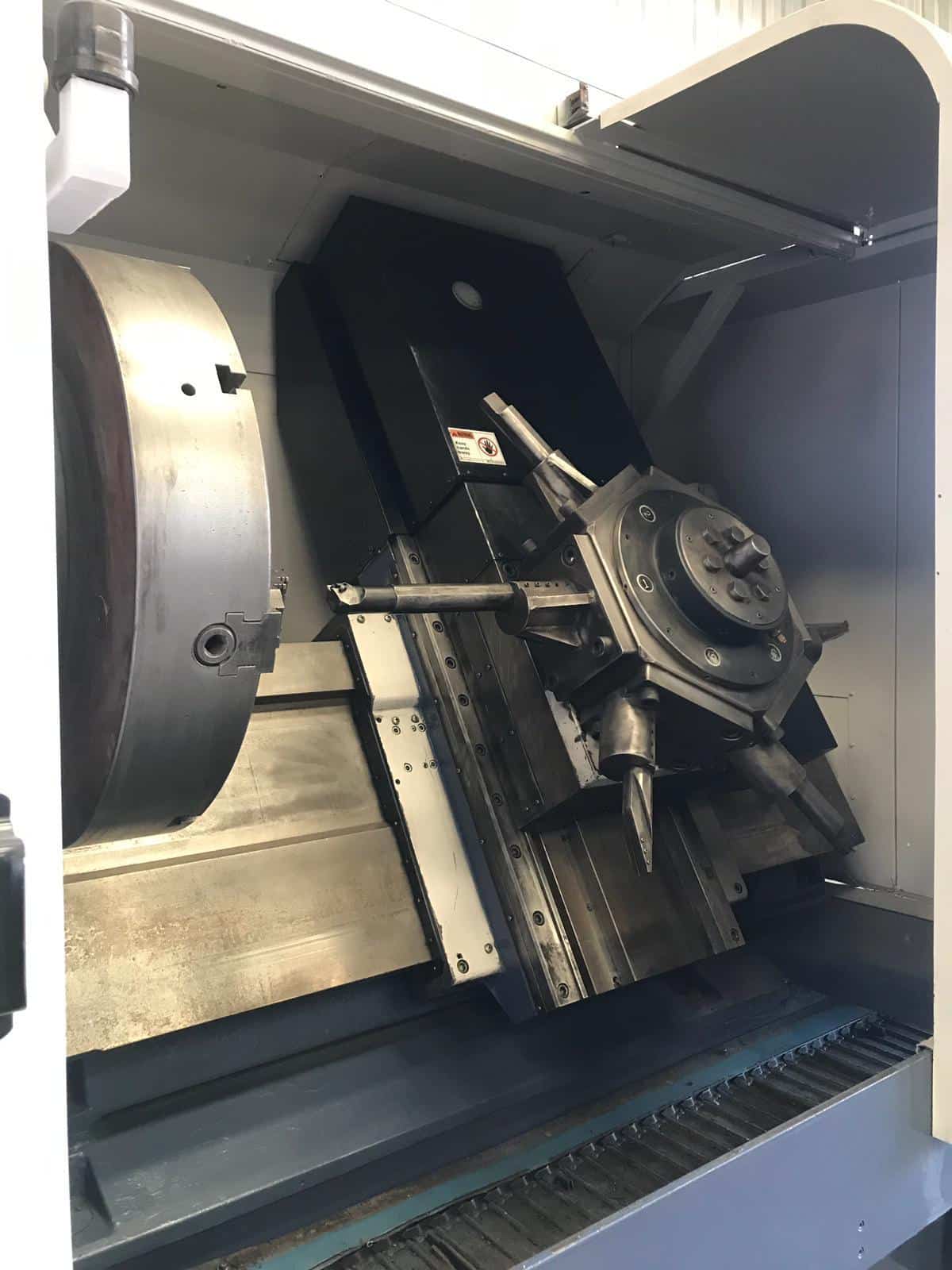

Mori Seiki SL-80B Equipped With:
- A1-20 10.2″ Bore Spindle

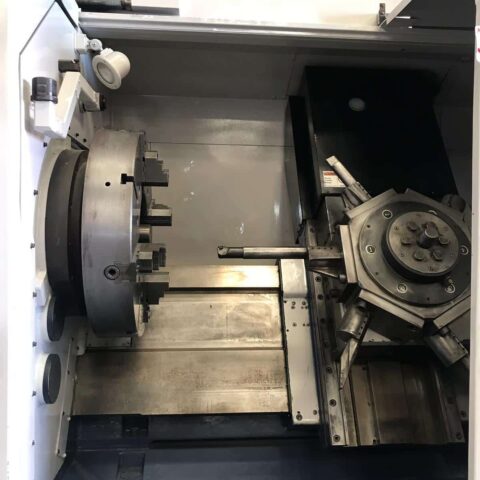

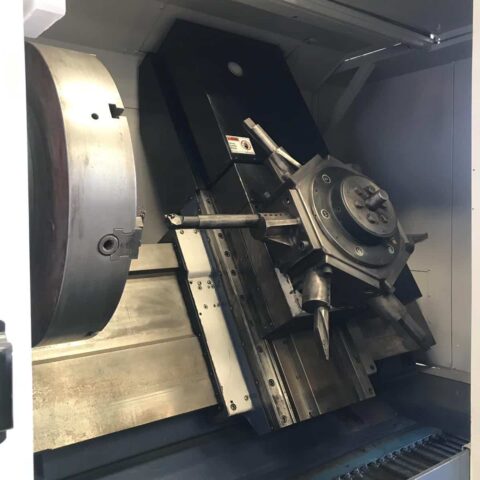

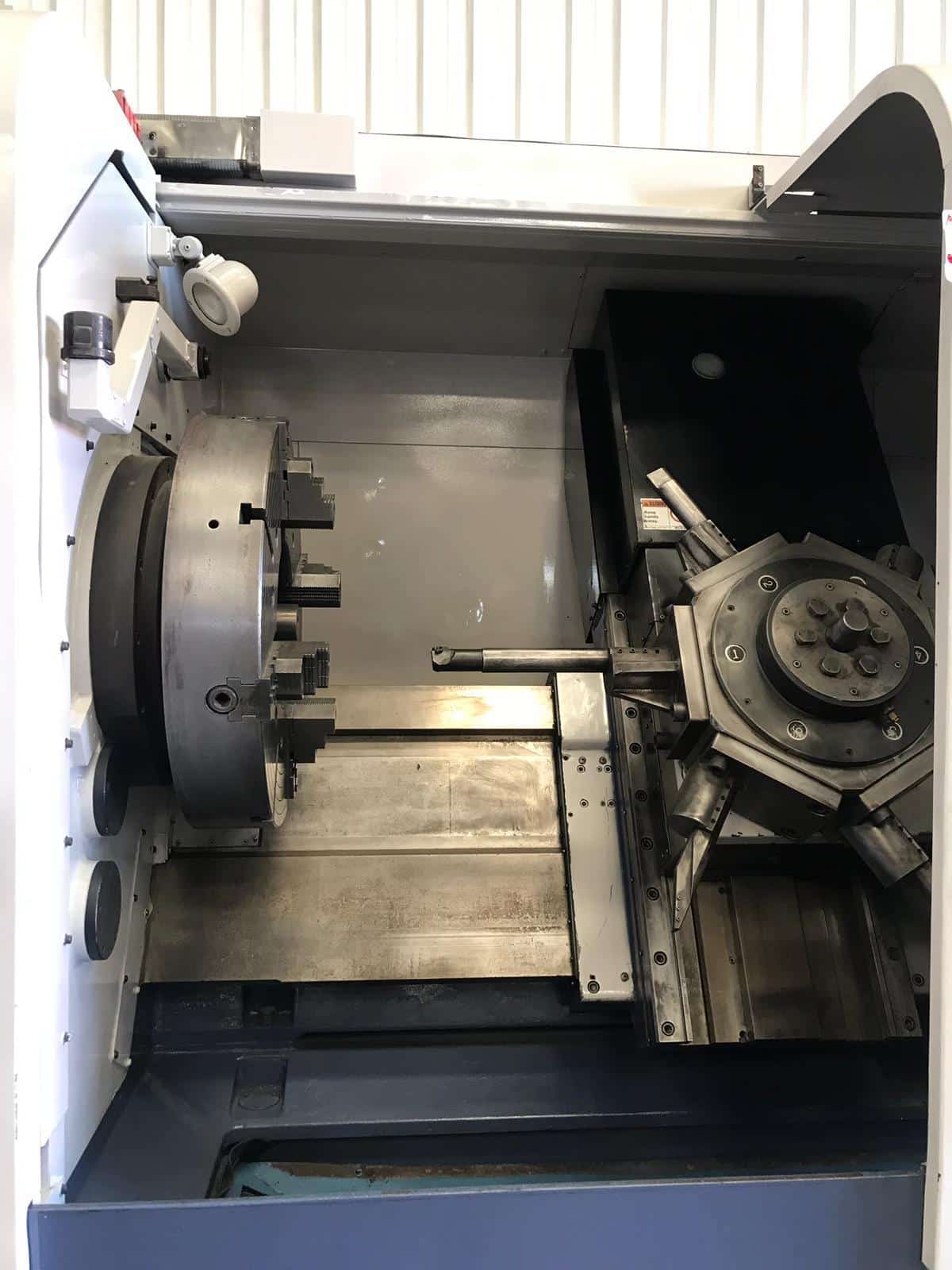

- 6-Station Turret with Tool Holders

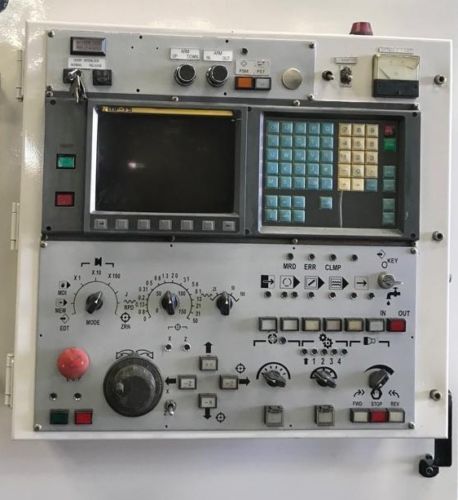

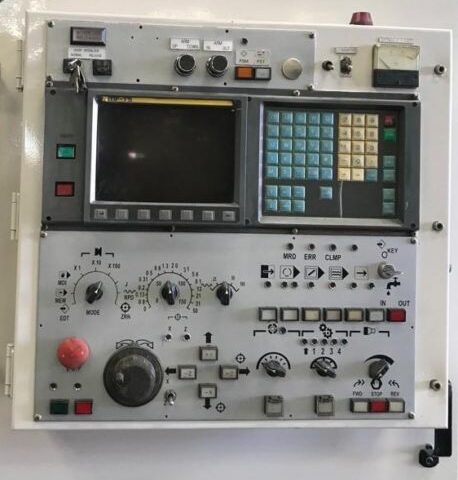

- Fanuc CNC Control

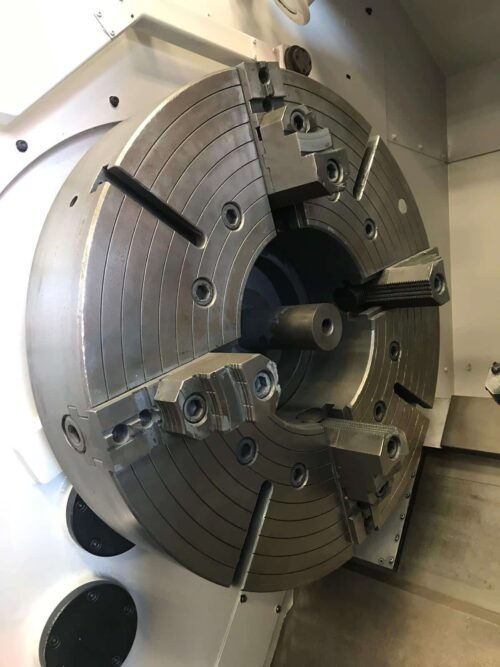

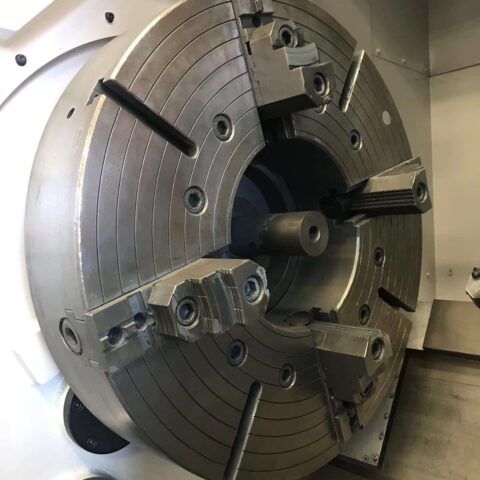

- 32″ 4 jaw Chuck
- 2 Step gear spindle for powerful torque
- Chip Pan and Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Work Light
-
Mori Seiki SL-80B Specifications:
- Capacity:
- Max Turning Diameter: 35.4″
- Max Turning Length: 43.3″
- Max Bar Capacity: 10.2″
- Swing Over Slide: 35.4″
- Swing Over Bed: 39.9″
- X Axis Travel: 16.5″
- Z Axis Travel: 43.31″
- Rapid Traverse X Axis: 290 IPM
- Rapid Traverse Z Axis: 345 IPM
- Spindle Nose: A1-20
- Spindle Bore: 12.5″
- Spindle Speed: 4-550 RPM
- Spindle Motor: 45 HP
- Turret Capacity: 6 Stations
- Turret Index Time: 1.5 Second
-
General:

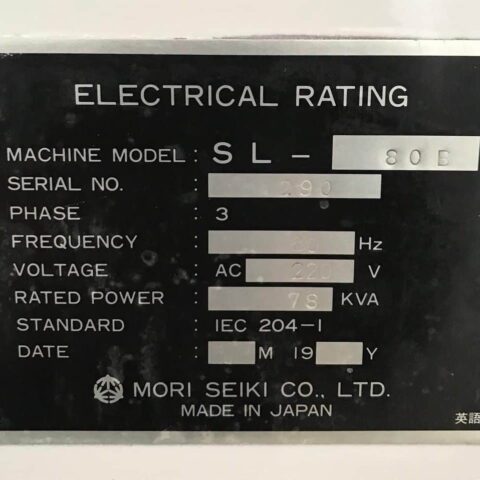

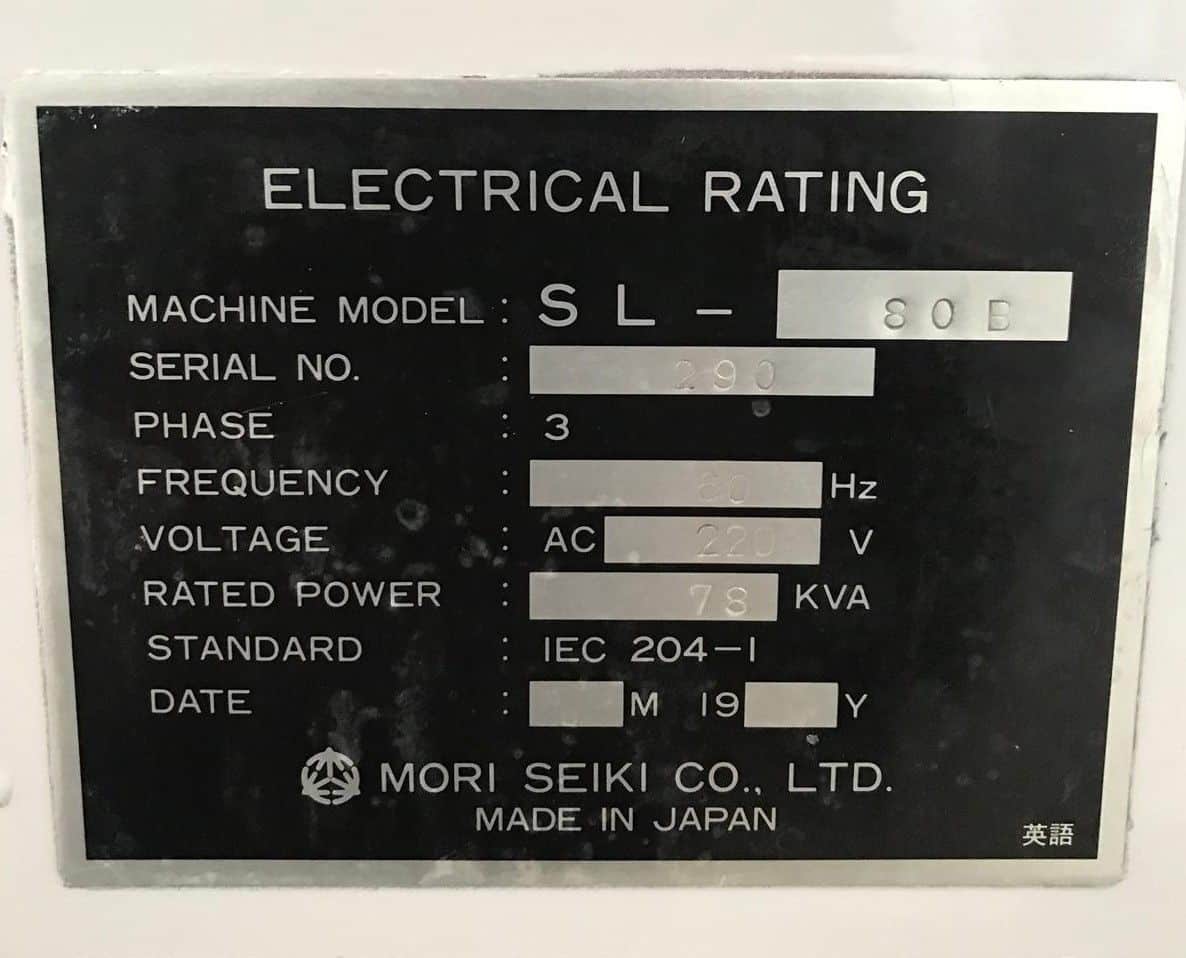

- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 180″ x 78″ x 80″ High
- Weight : 35000 lbs Approx.
