All specifications are approximations and are subject to verification.

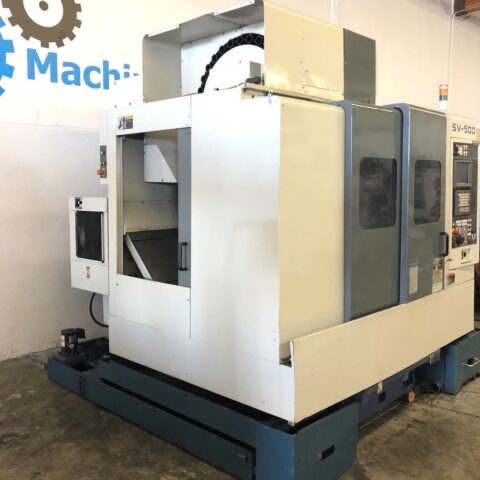

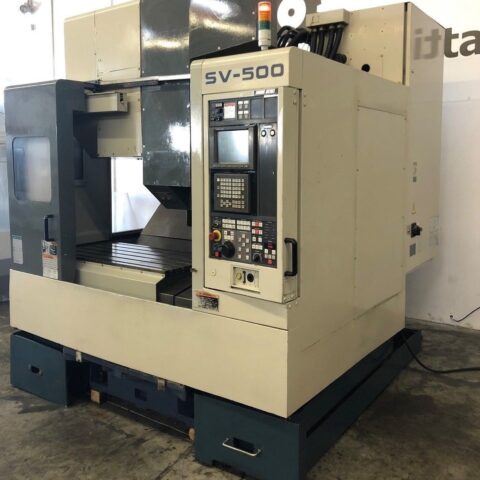

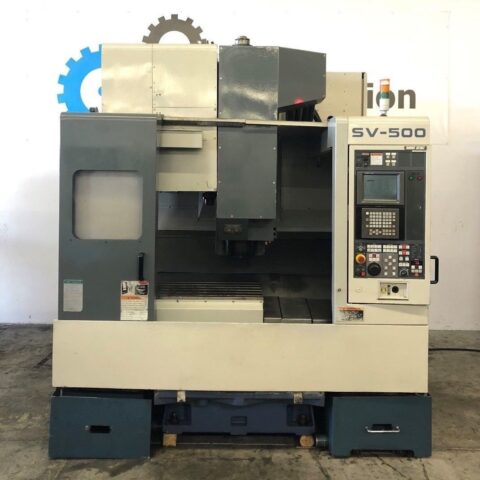

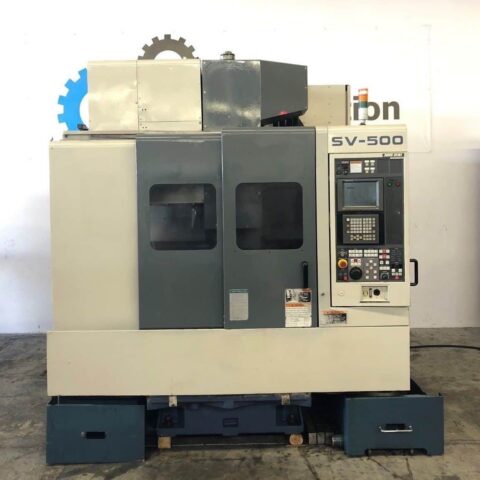

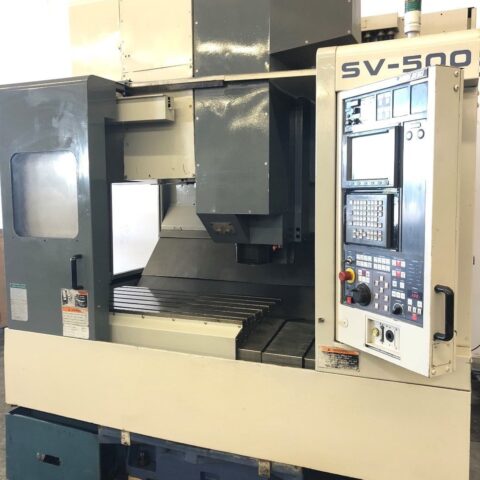

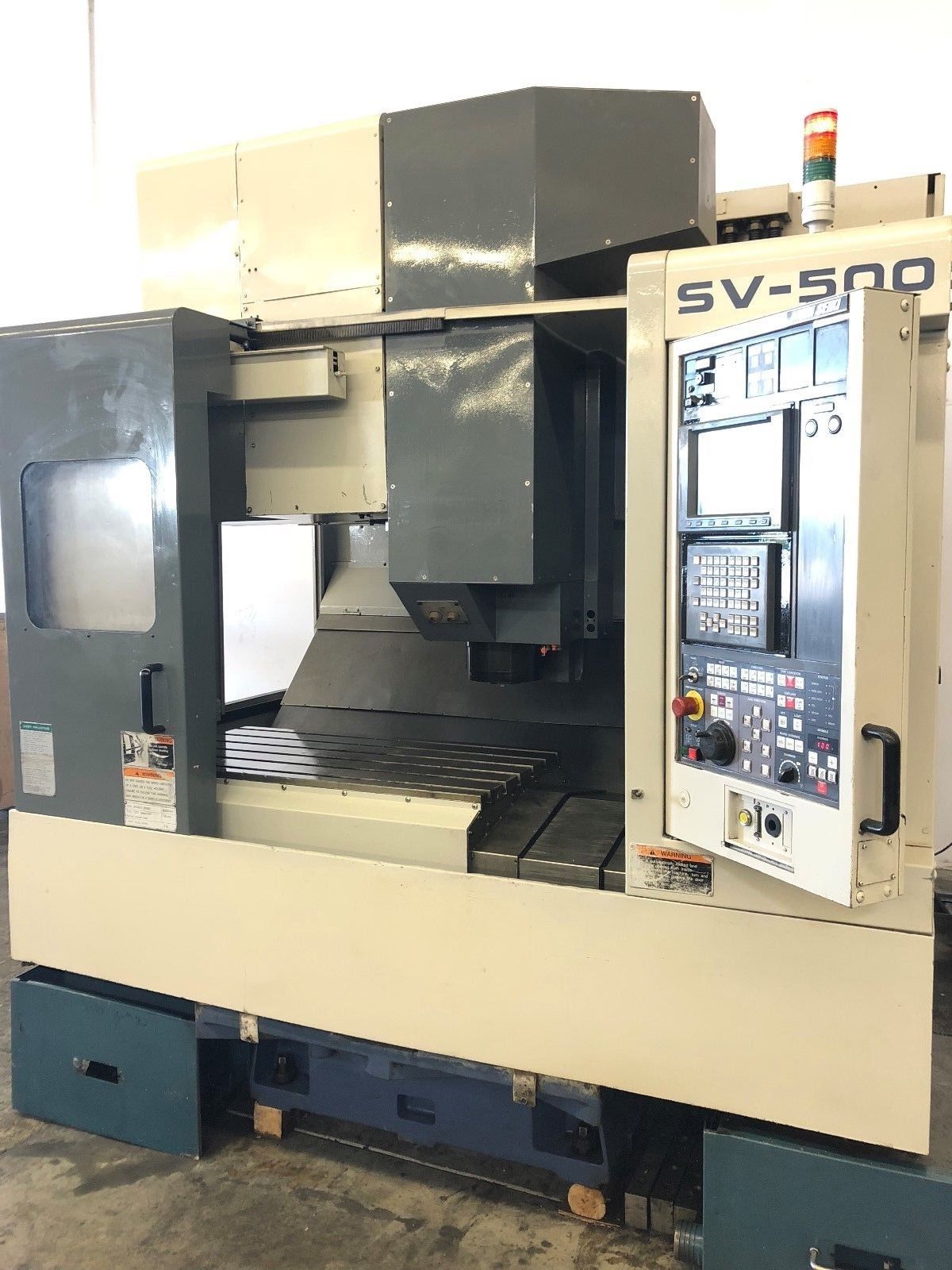

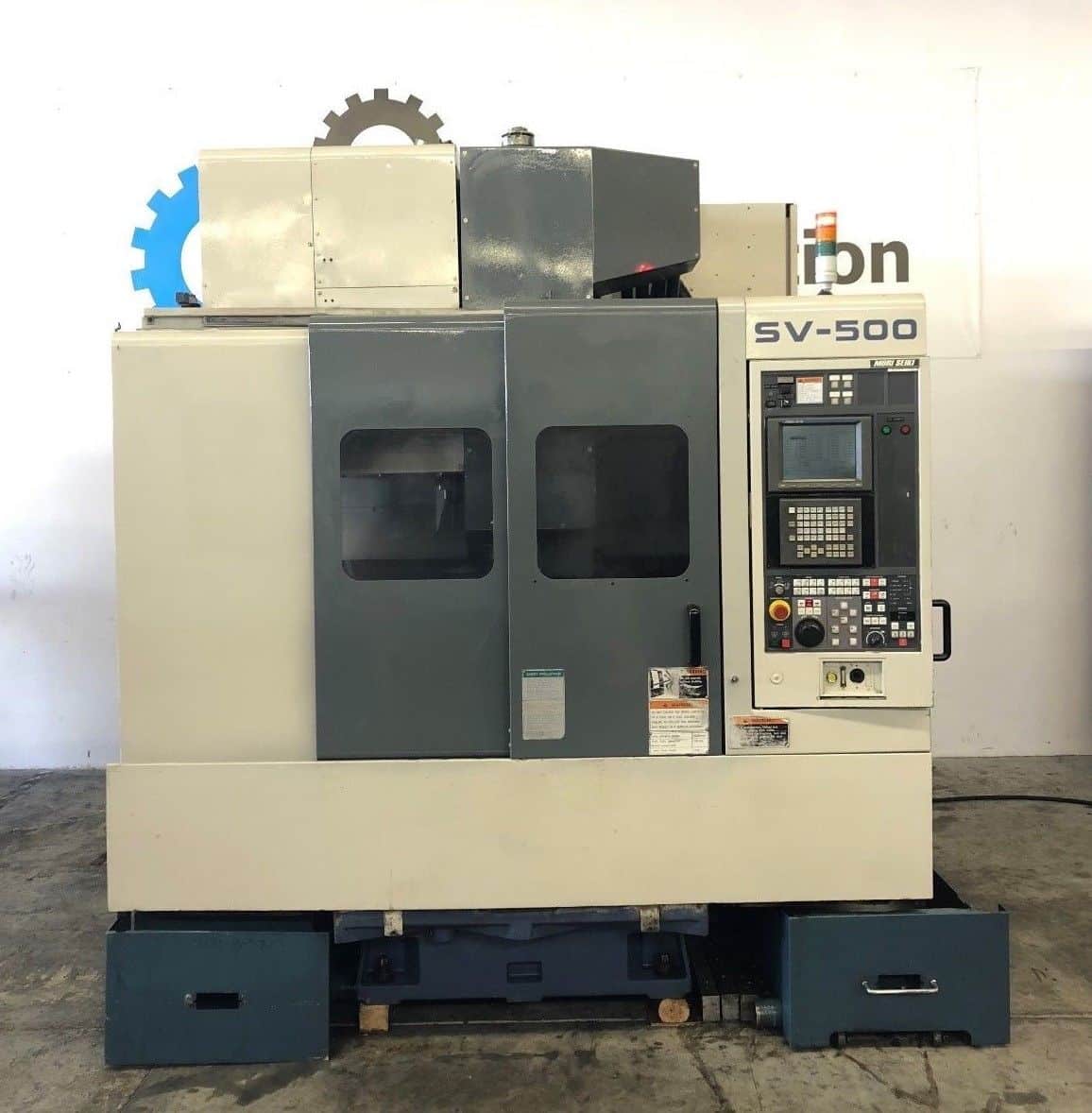

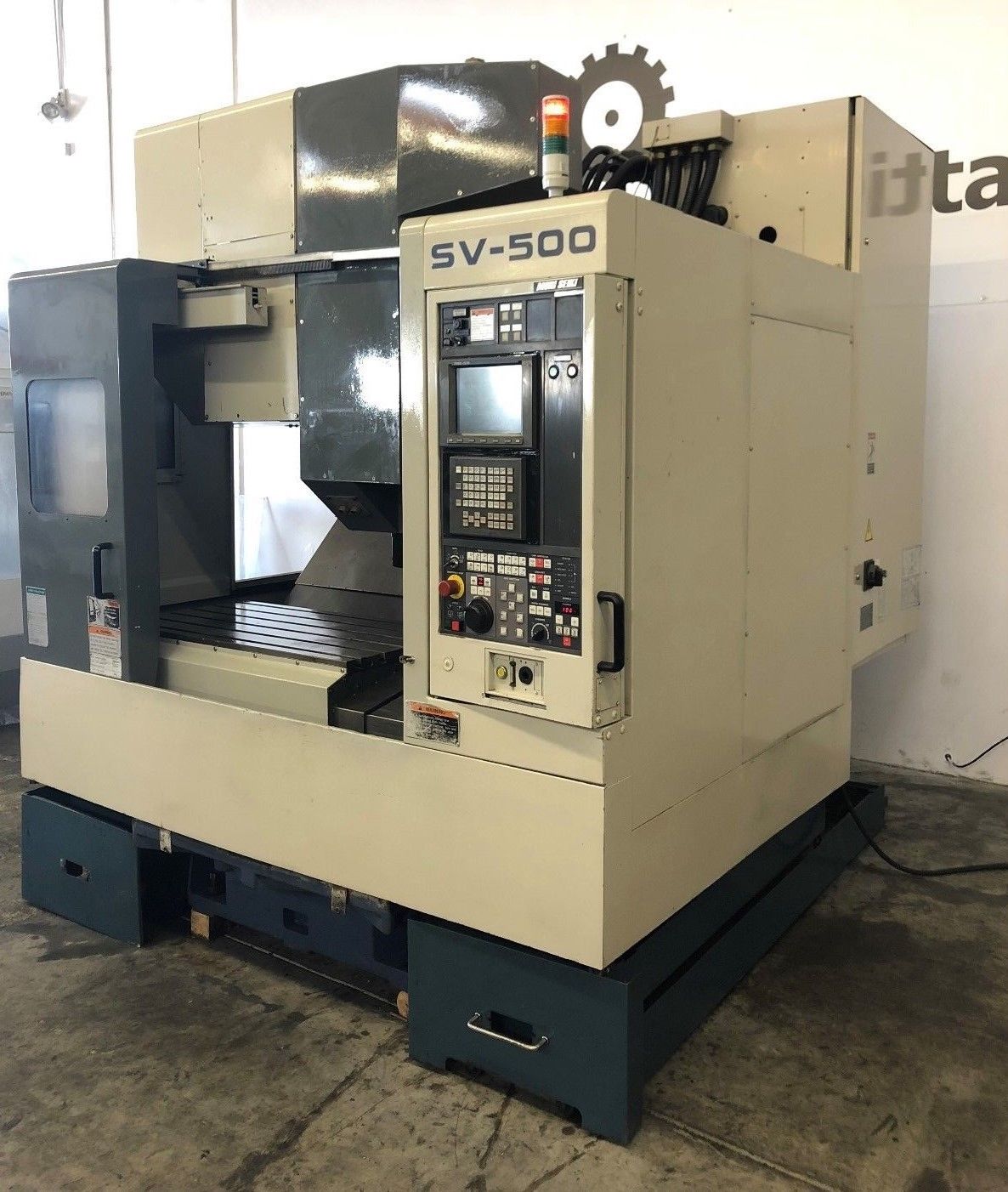

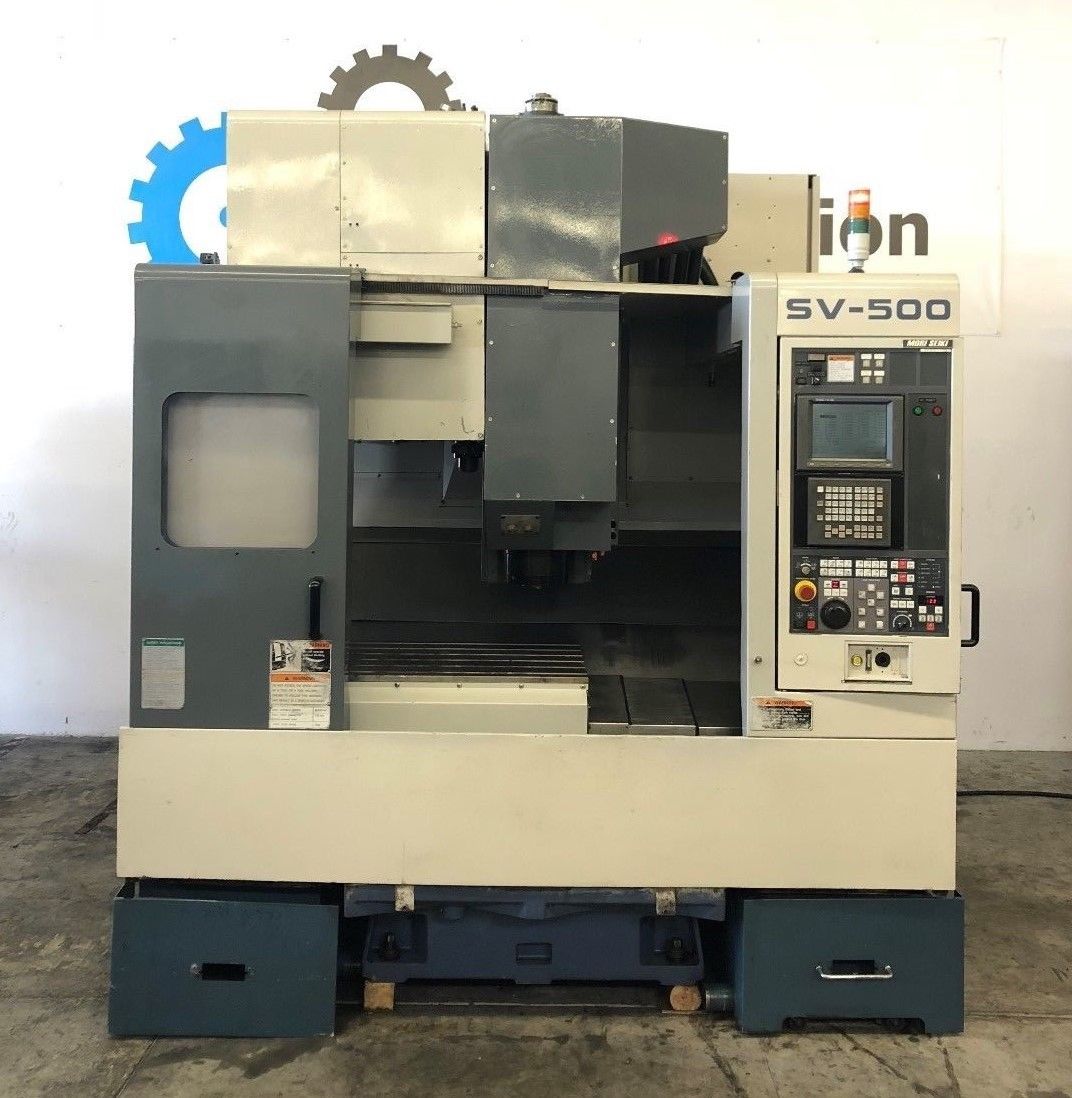

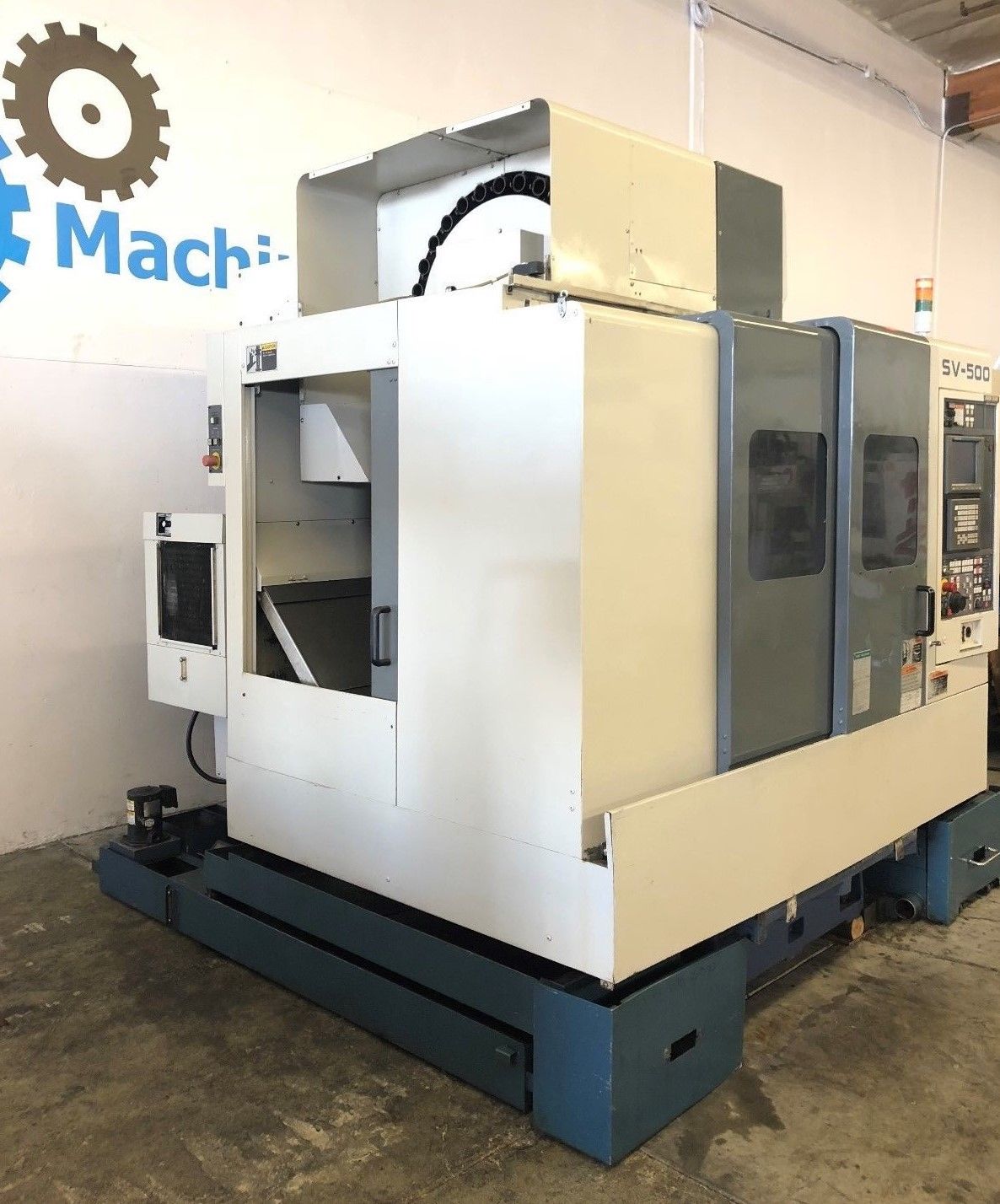

“On our Floor fully working. This Mill has 10,000 RPM, 30 tool Side Mount Tool changer, Fanuc Control, expanded Memory and many more features. feel free to contact us for more Pictures & Video.”

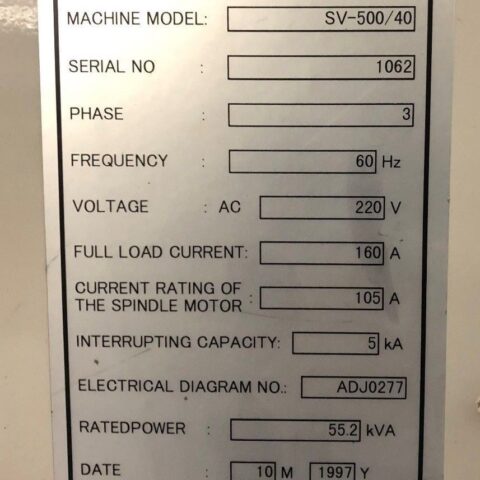

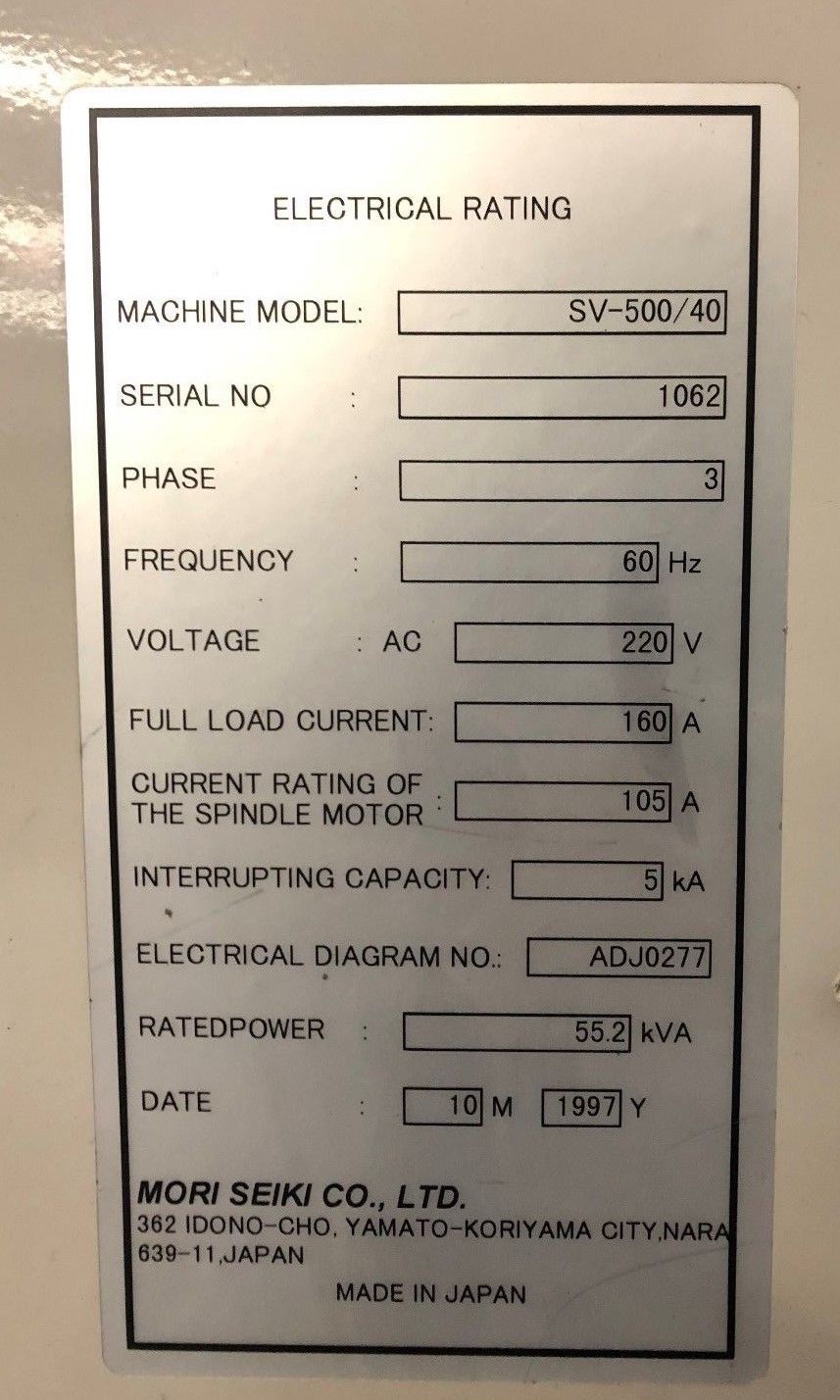

| Make | Mori Seiki |
| Model No. | SV-500/40 |
| Year | 10/1997 |
| Serial # | 1062 |
| Condition | Very Good |
-
Mori Seiki SV-500/40 Features:

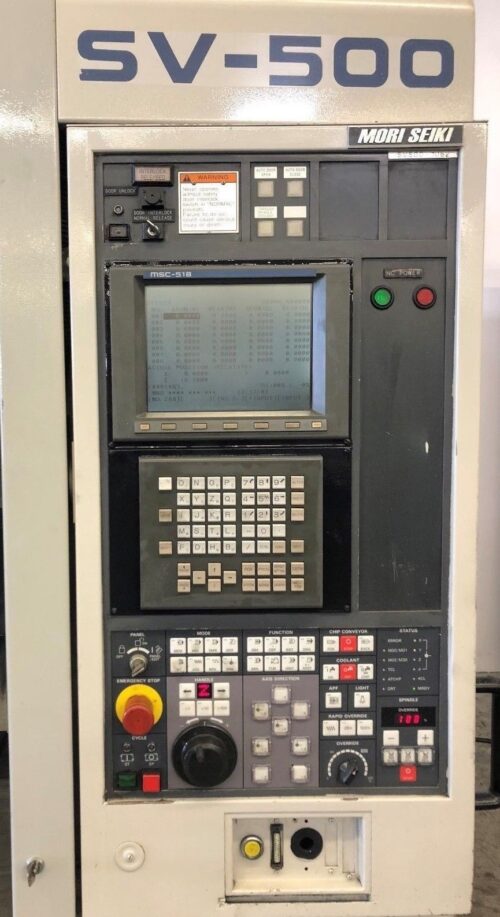

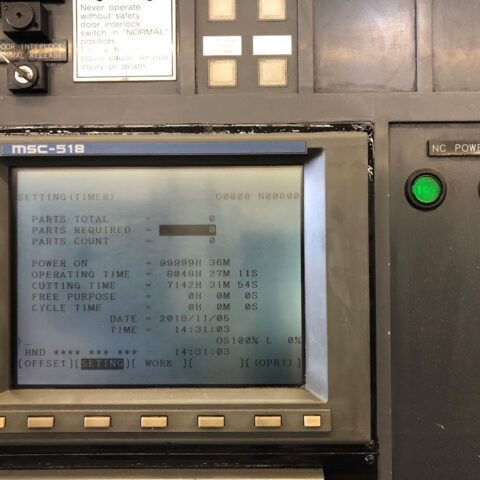

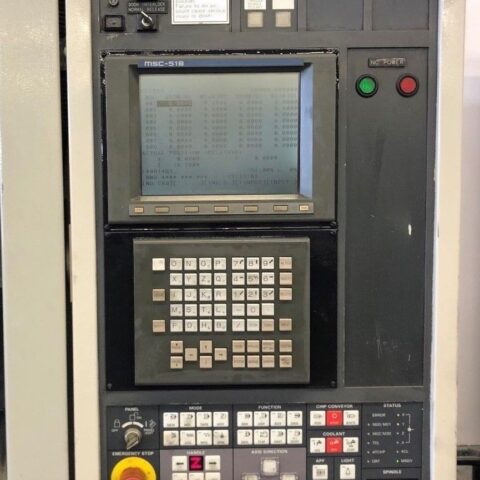

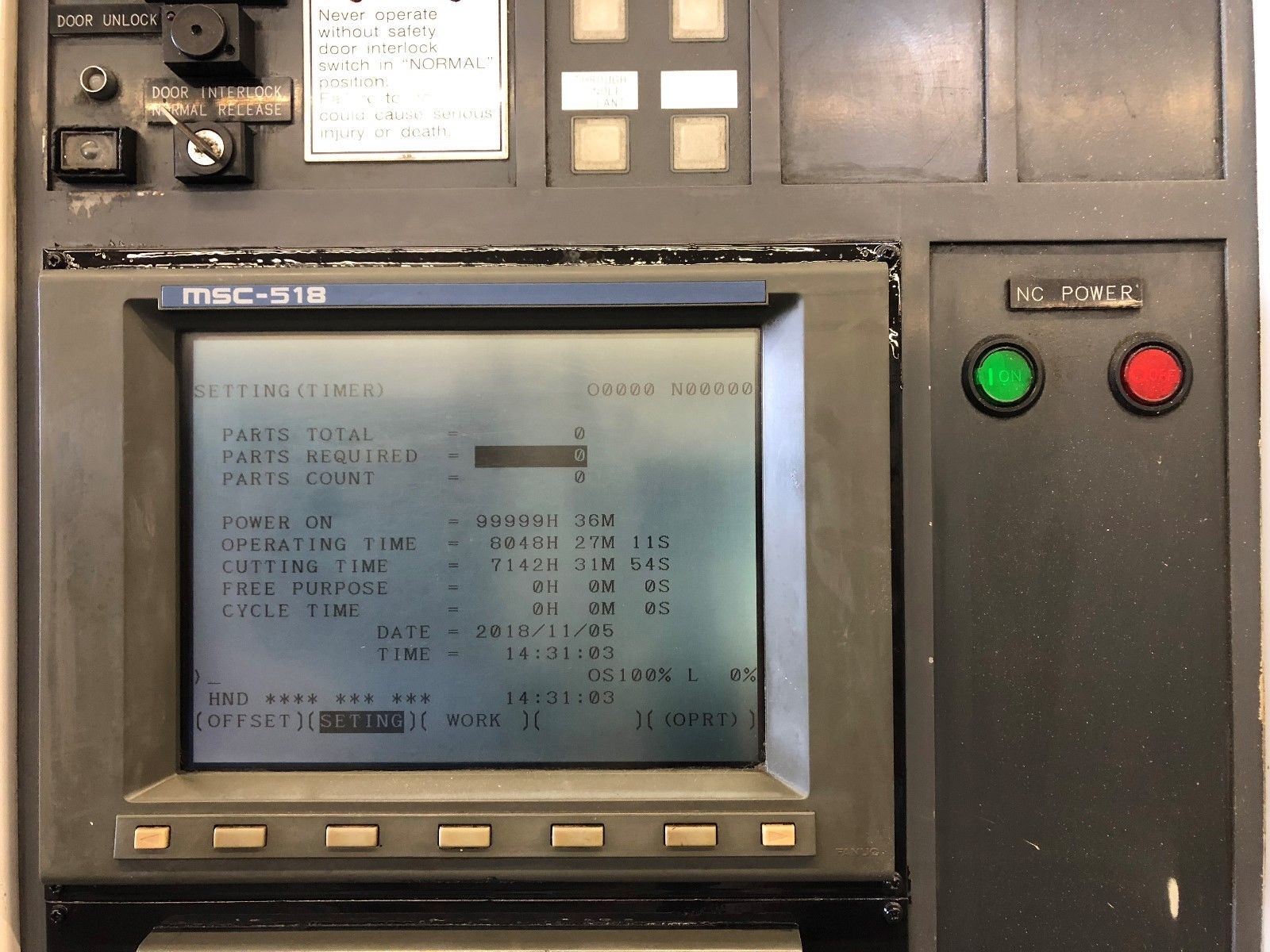

- MSC-518 (Fanuc) CNC Control
- High Precision 10,000 RPM Spindle
- 40 Taper Geared Head Spindle

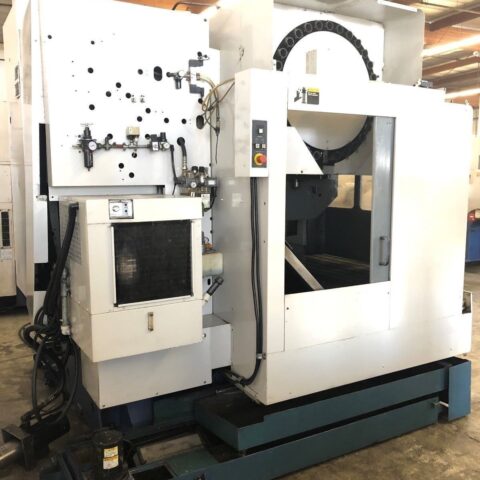

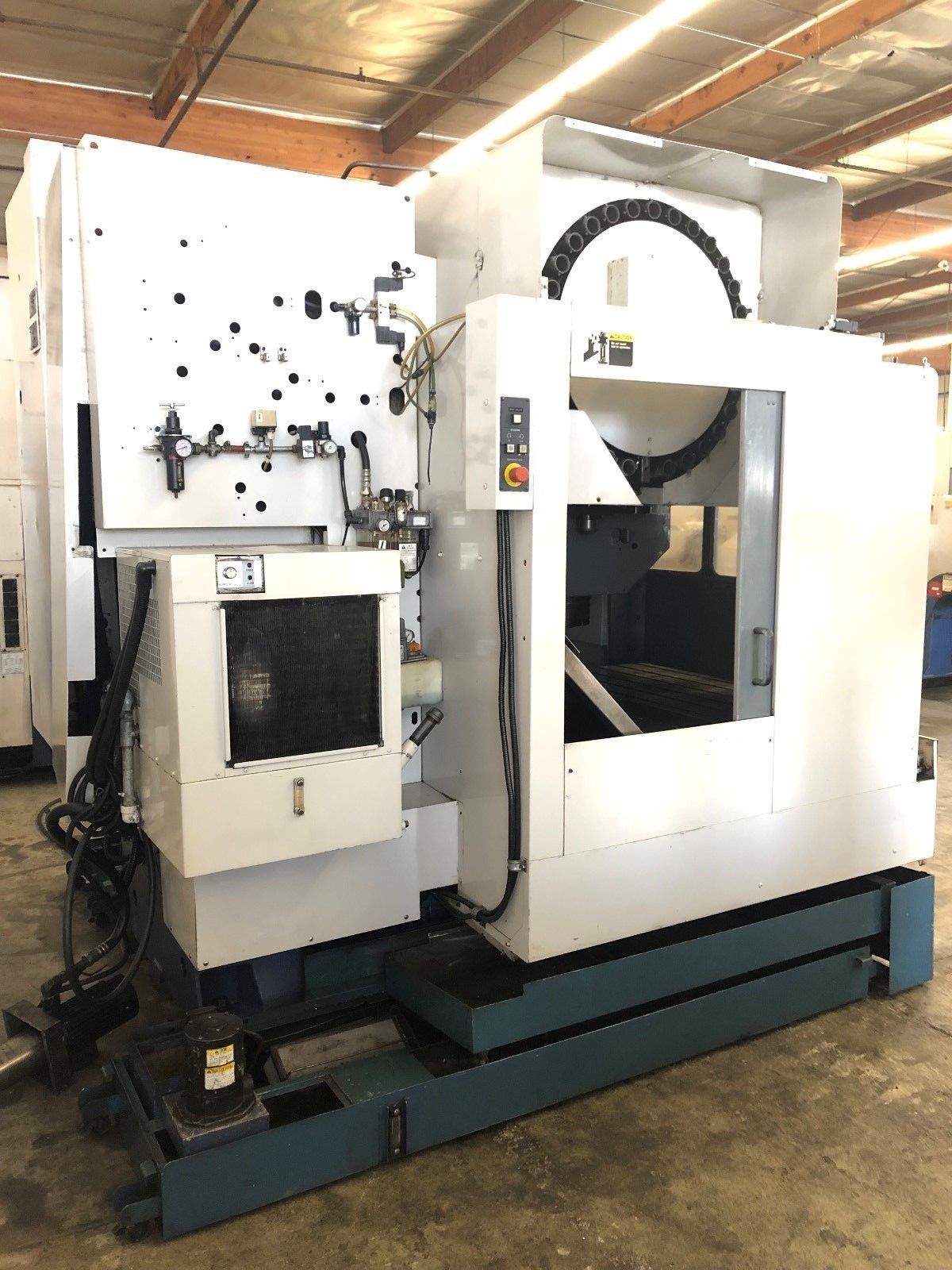

- 30 Tools Side Mount Bidirectional Tool Changer
- Powerful 30 hp high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Work light
- Spindle Chiller
-
Mori Seiki SV-500/40 Specifications:
- Travels:
- X-Axis: 31.5″
- Y-Axis: 20.1″
- Z-Axis: 20.1″
- Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″
-

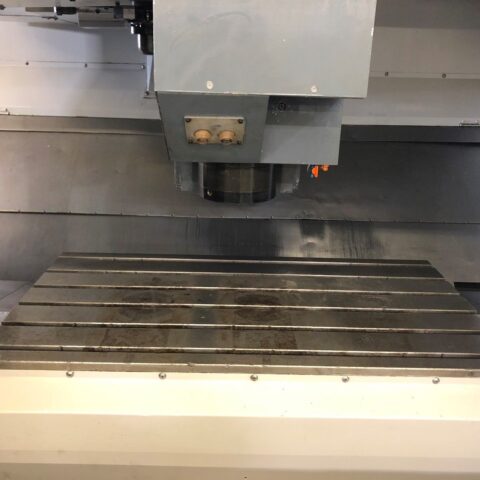

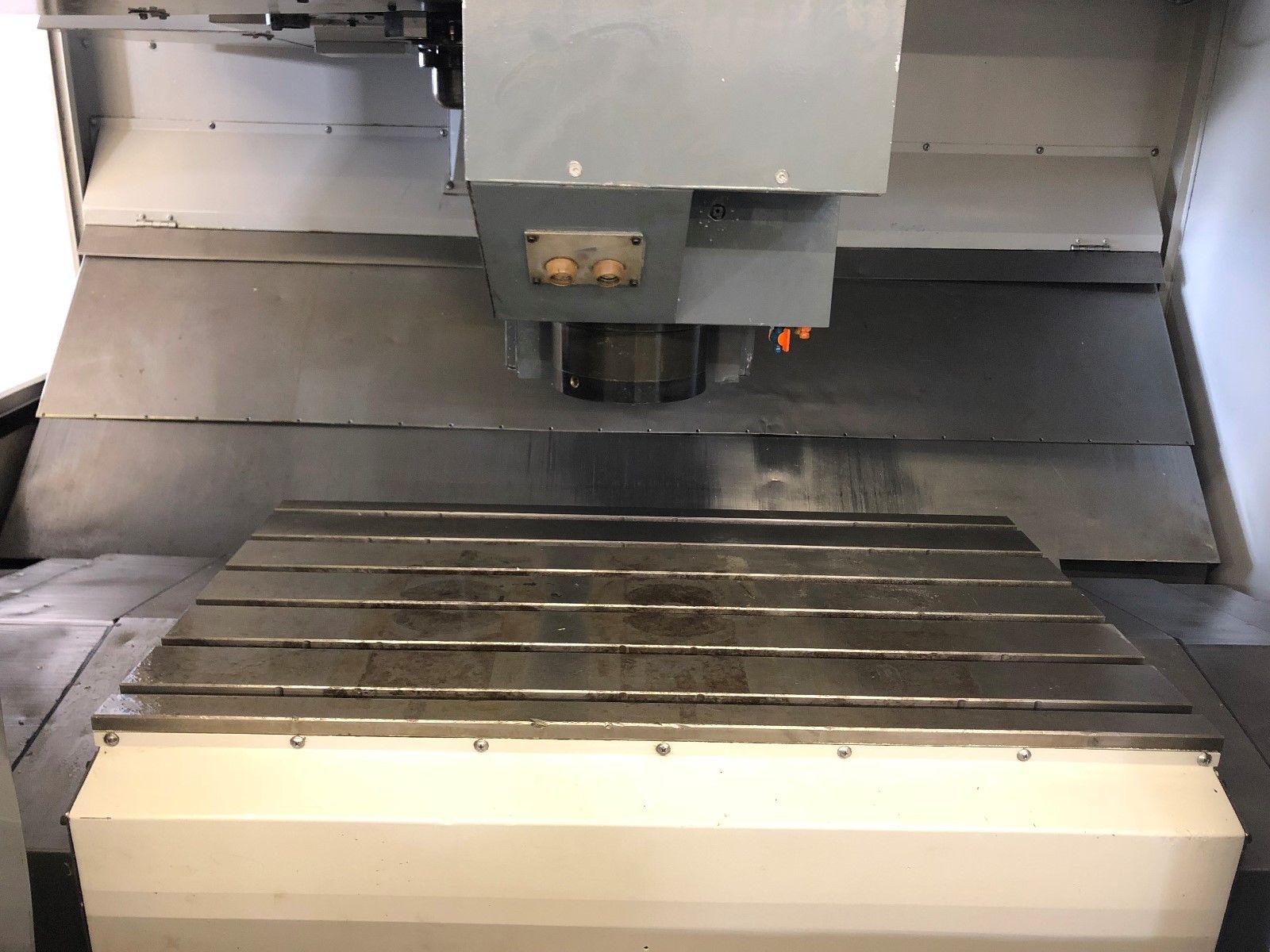

Table:
- Length: 43.0″
- Width: 23.6″
- Max Weight on Table: 2200 lbs
- T-Slot no. & Width: 6 X 0.7″
-

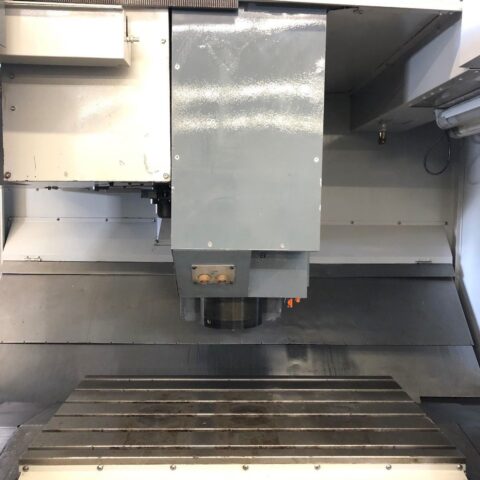

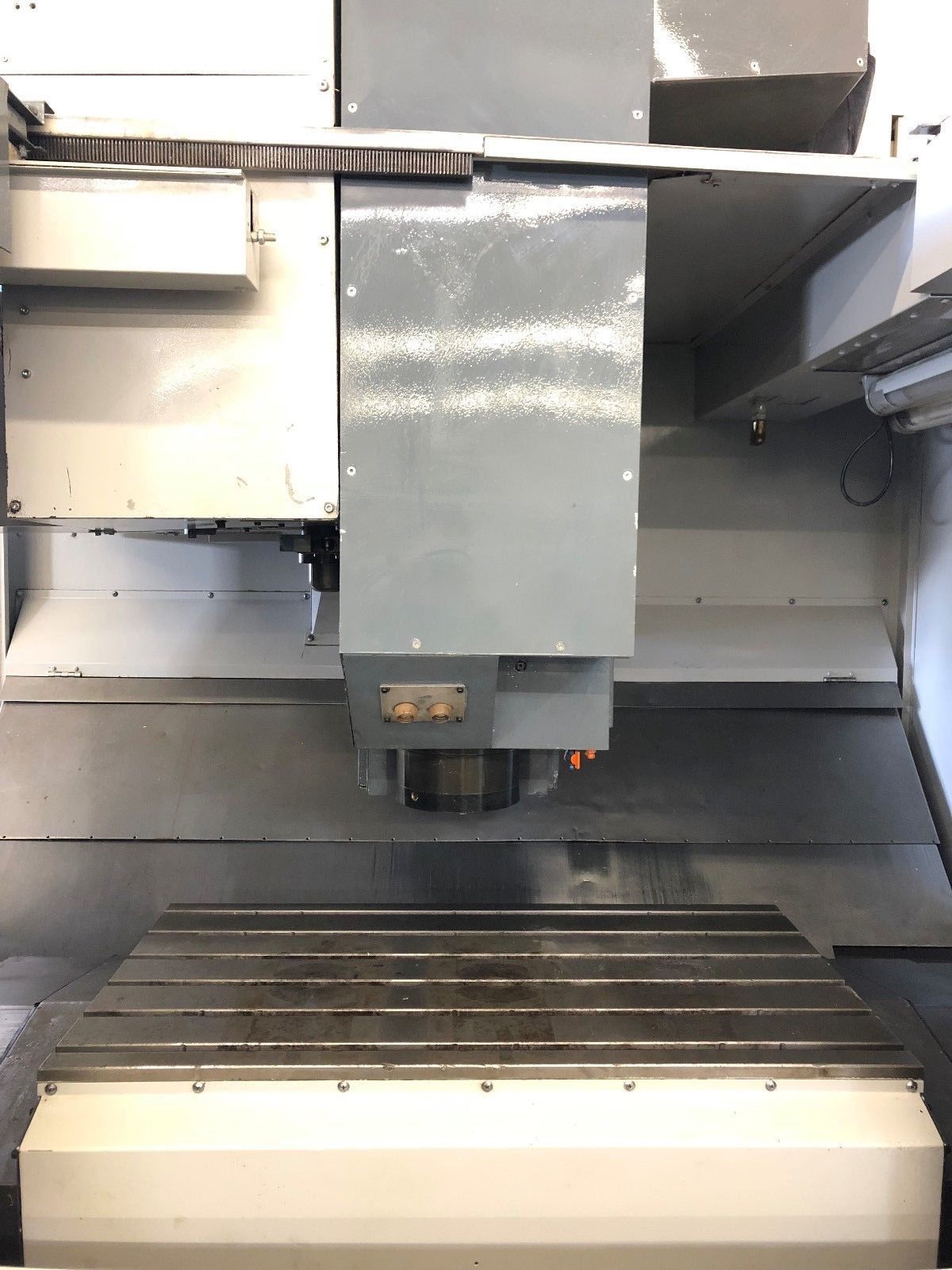

Gear Head Spindle:
- Taper Size: 40
- Speed Range: 60 – 10,000 RPM
- Spindle Power: 30 HP
-
Feed rates:
- Rapid X,Y & Z: 1260 inch/Per Minute
- Cutting Feedrate: 630″ inch/ Per Minute
-
Automatic Tool Changer:
- 40 Taper
- Capacity: 30
- Max Tool Weight: 31.6 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 4.9″
- Tool Change Time: 1.5 second
-
General:
- Air Required: 90 psi, 4 scfm
- Power: 205-220v / 50kva / 3-Phase
- Overall Dimensions: 115″ x 102″ x 110″ High
- Weight: 16000 lbs
