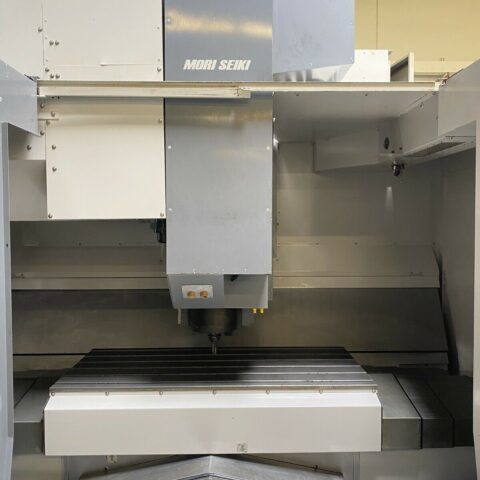

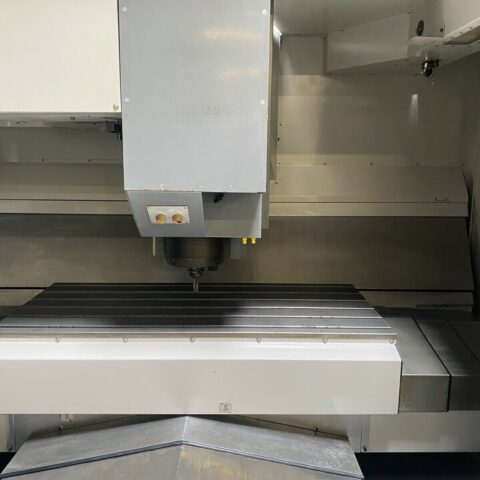

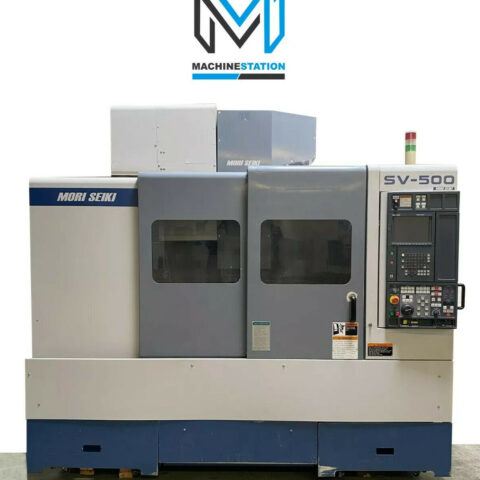

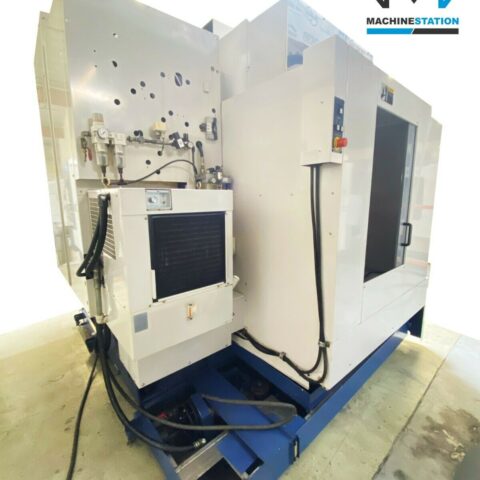

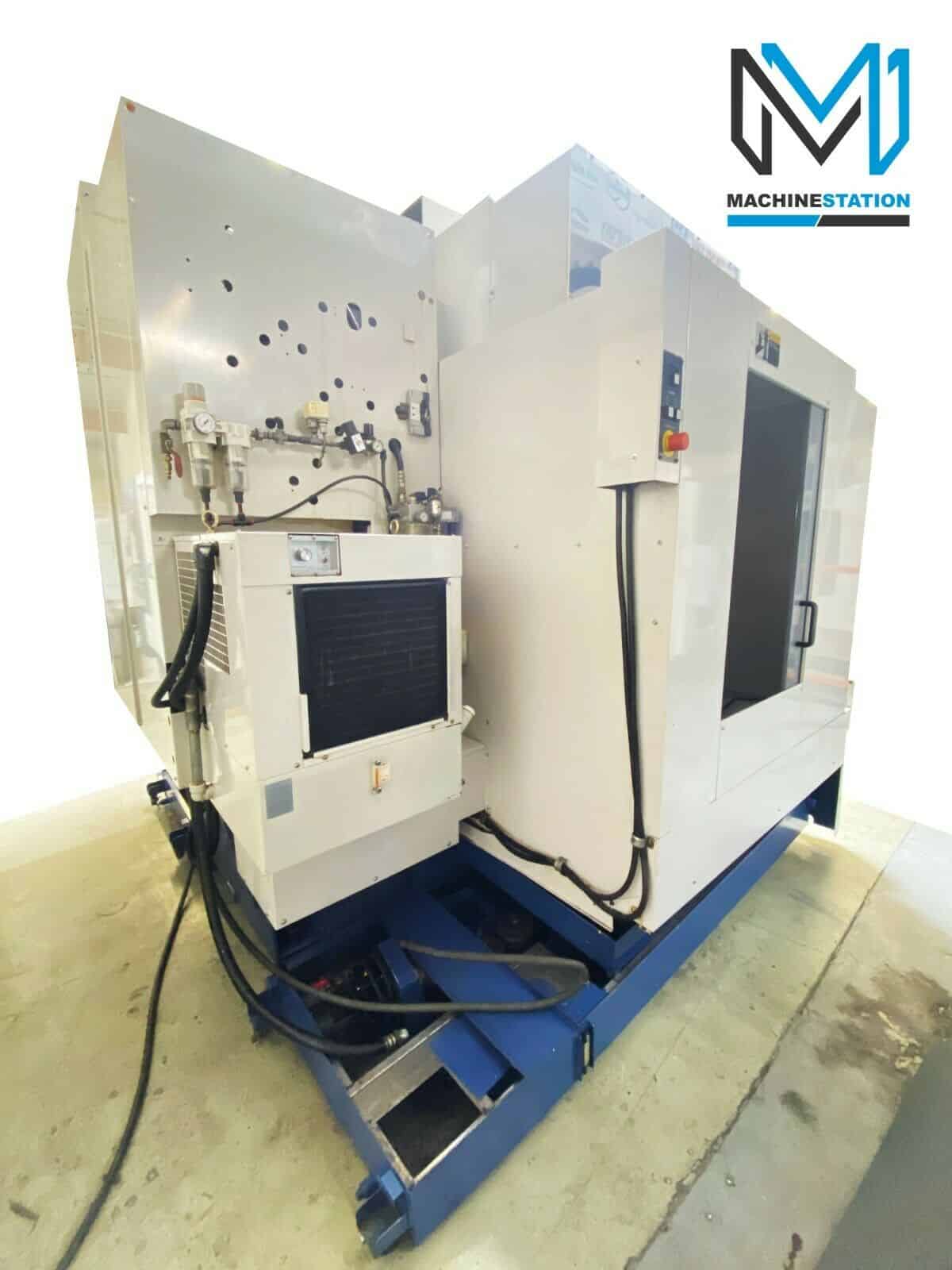

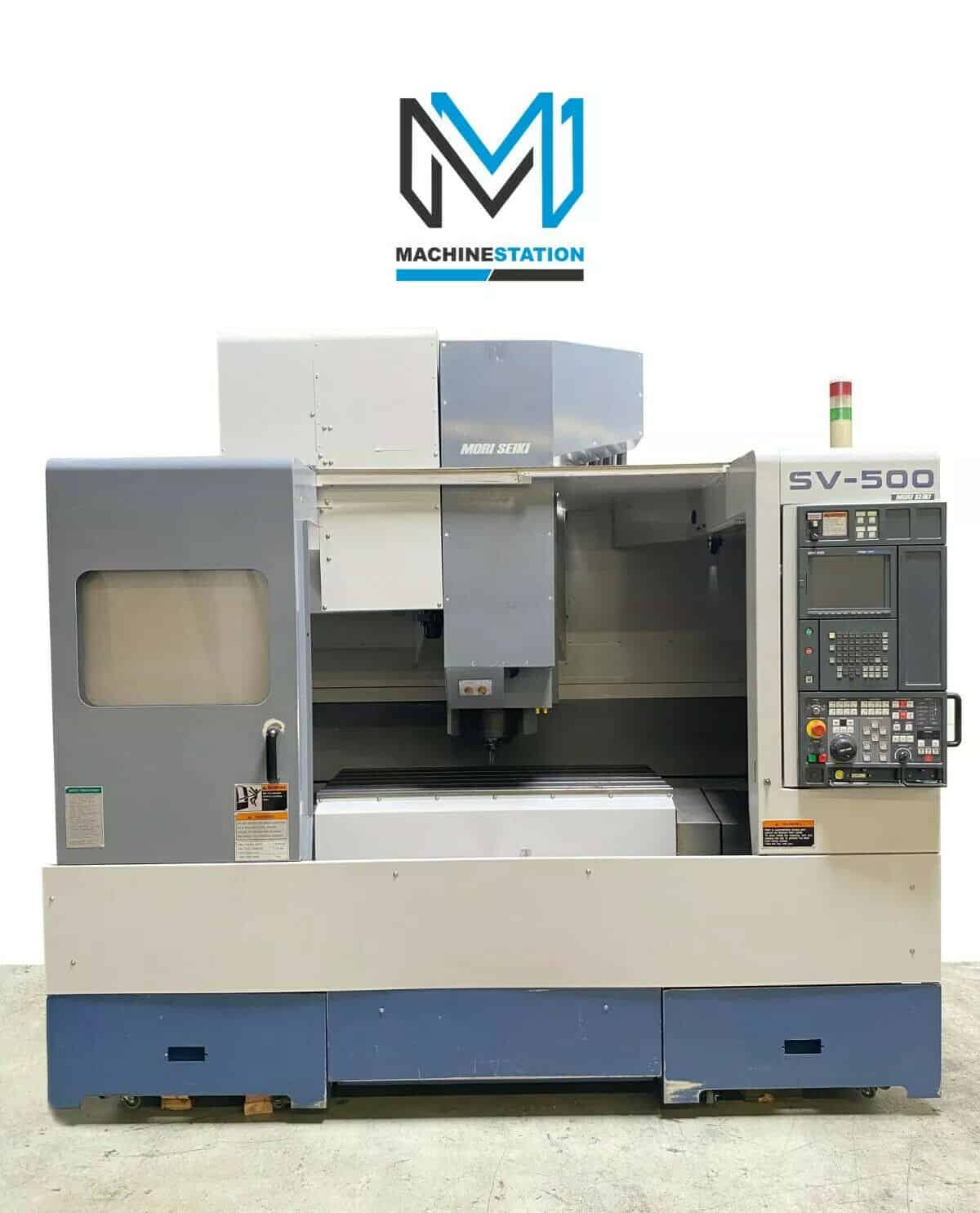

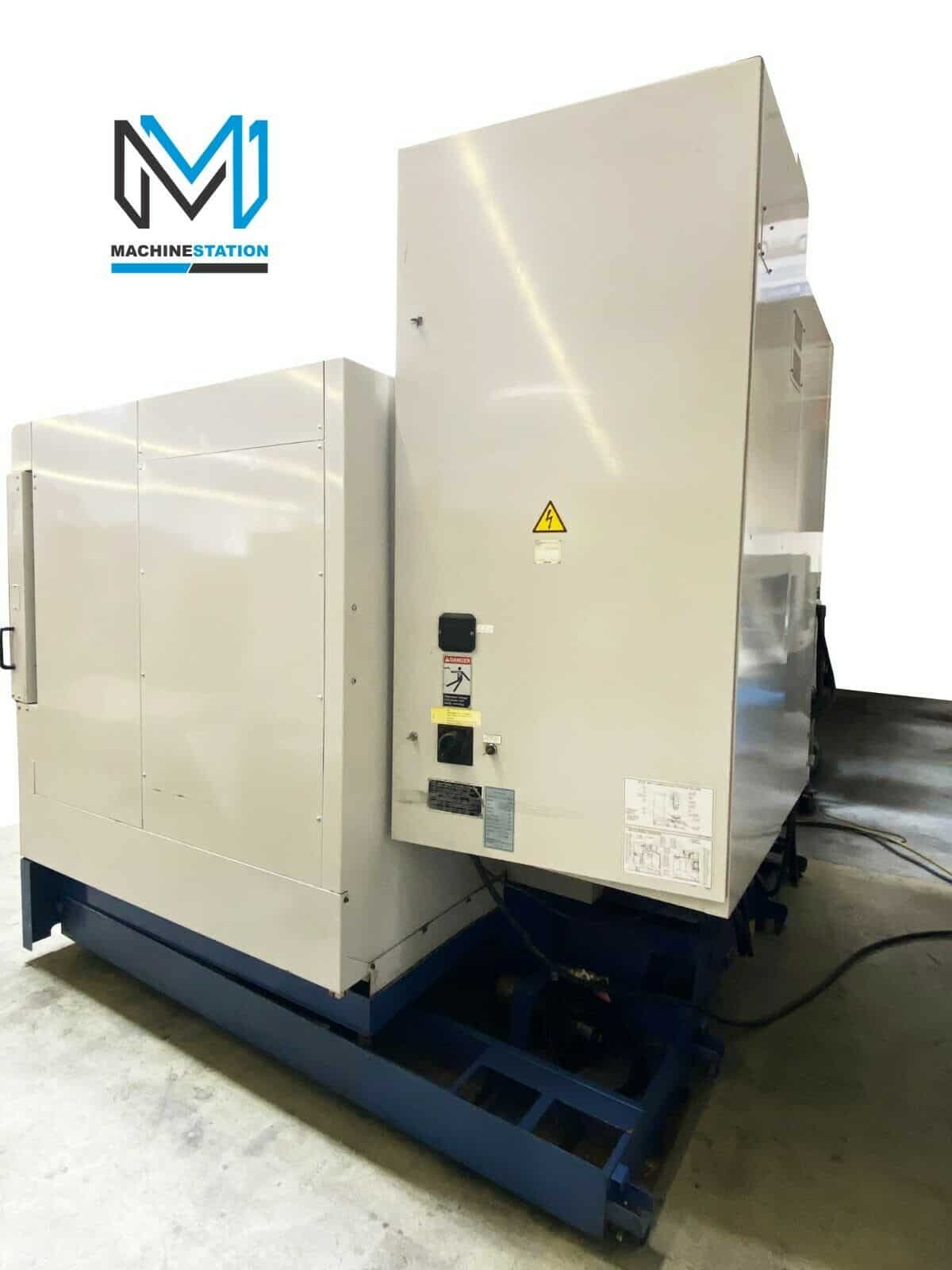

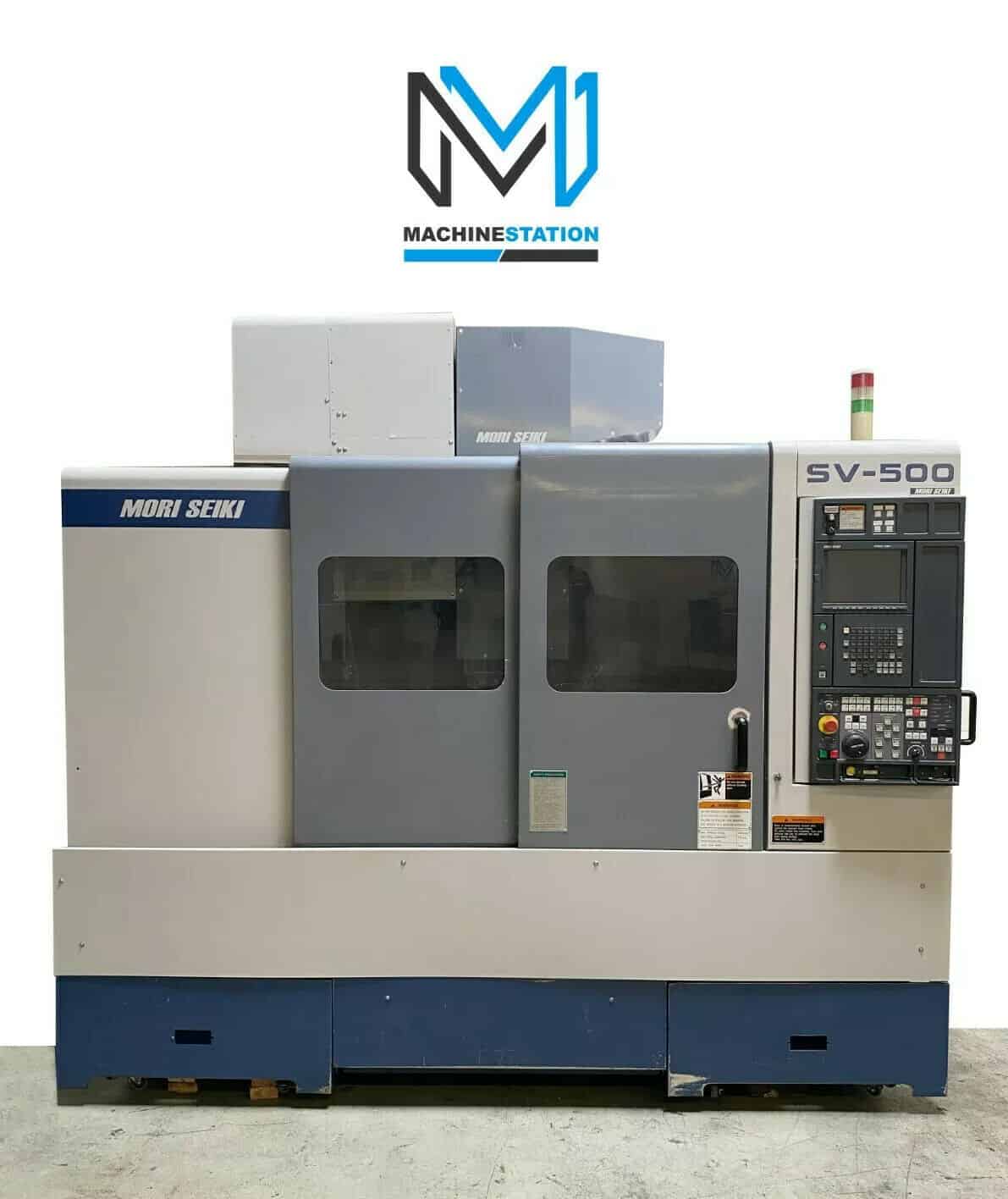

Mori Seiki SV-500B CNC Vertical Machining Center

SKU 2096

Make Mori Seiki

Model No. SV-500B/40

Serial # 126B

Condition Very Good

Cutting Hours 3456 Hours

Out of stock

SKU	2096
Make	Mori Seiki
Model No.	SV-500B/40
Serial #	126B
Condition	Very Good
Cutting Hours:	3456 Hours

SKU: 2096

Features:

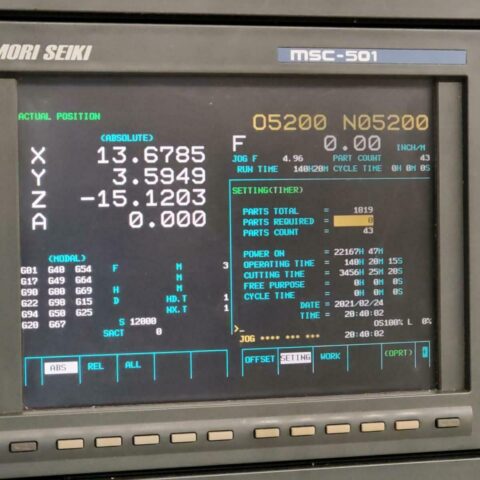

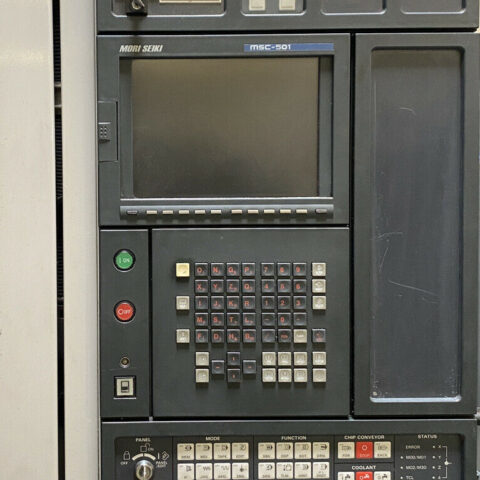

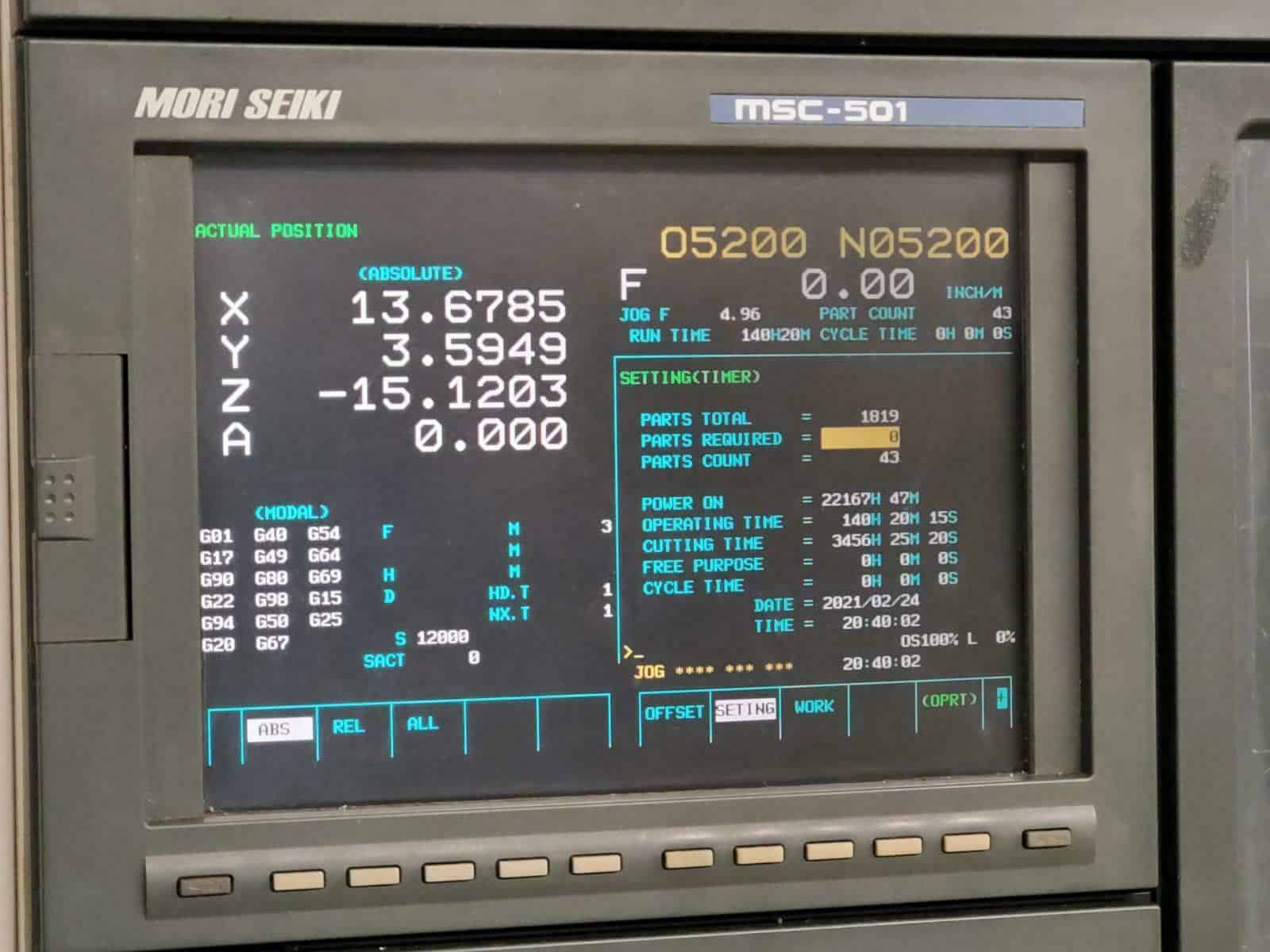

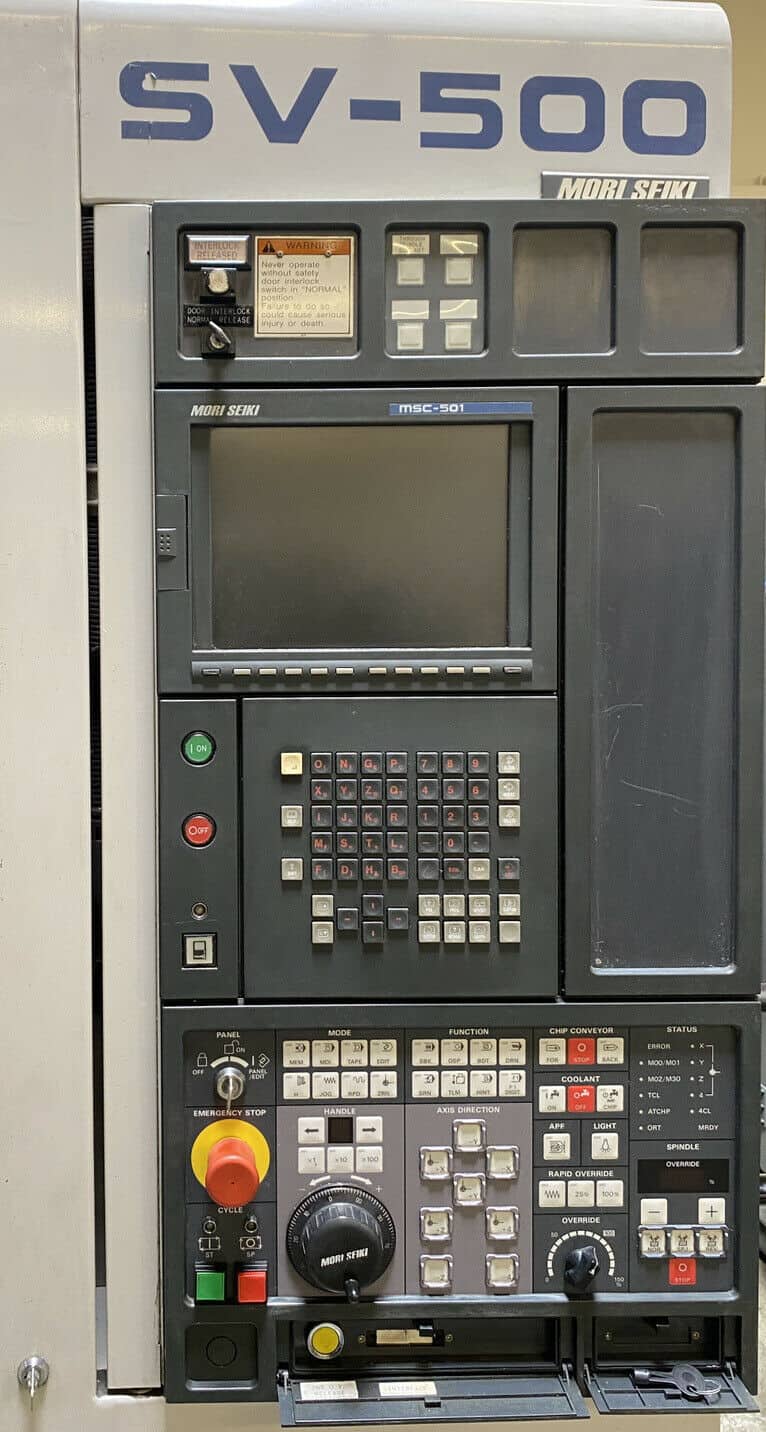

MSC-501 (Fanuc 21i) CNC Control
4th Axis Ready
High Precision 10,000 RPM Spindle
40 Taper Geared Head Spindle

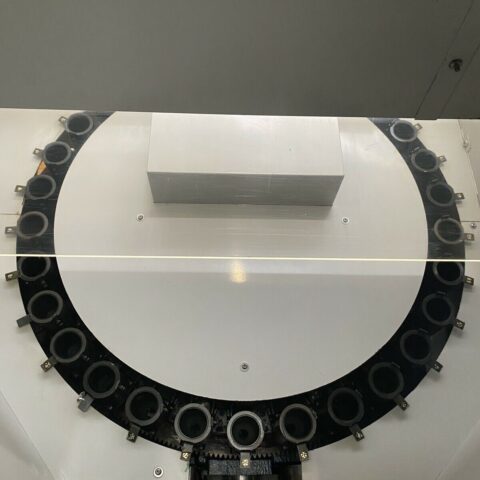

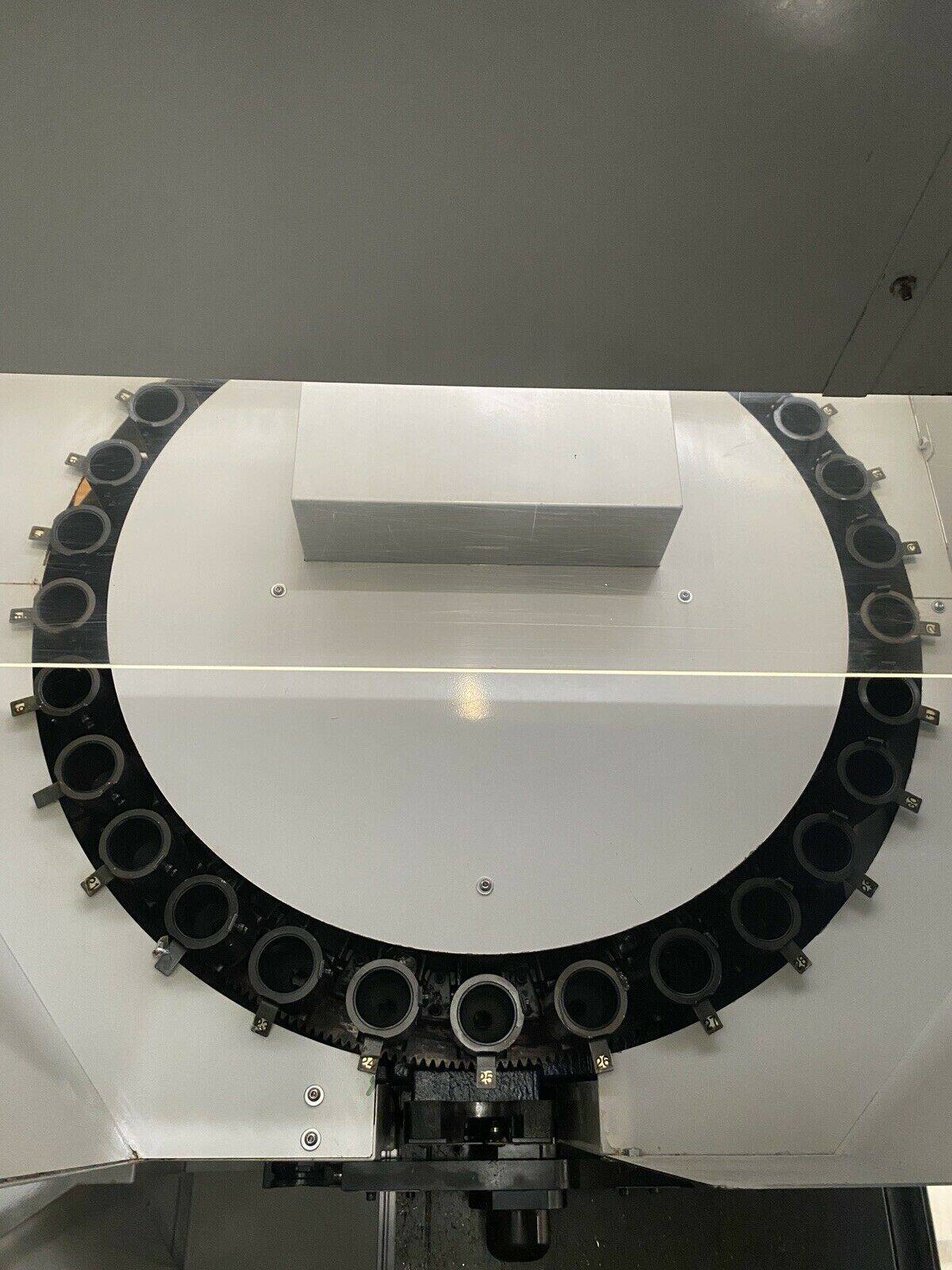

30 Tools Side Mount Bidirectional Tool Changer
PCMCIA Card Slot
Powerful 30 hp high torque spindle motor
Spindle Orientation
Rigid Tapping
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Work light
Spindle Chiller

Specifications:
Travels:
X-Axis: 40.2″
Y-Axis: 20.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

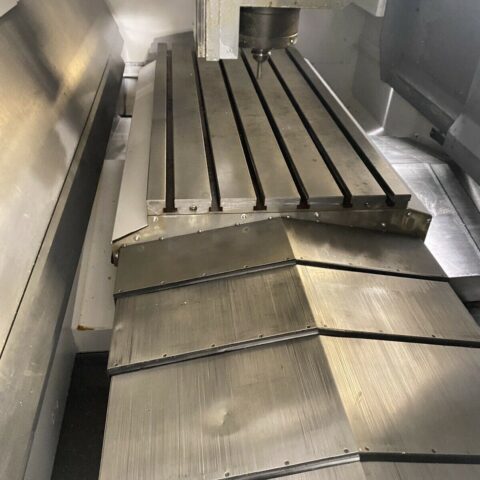

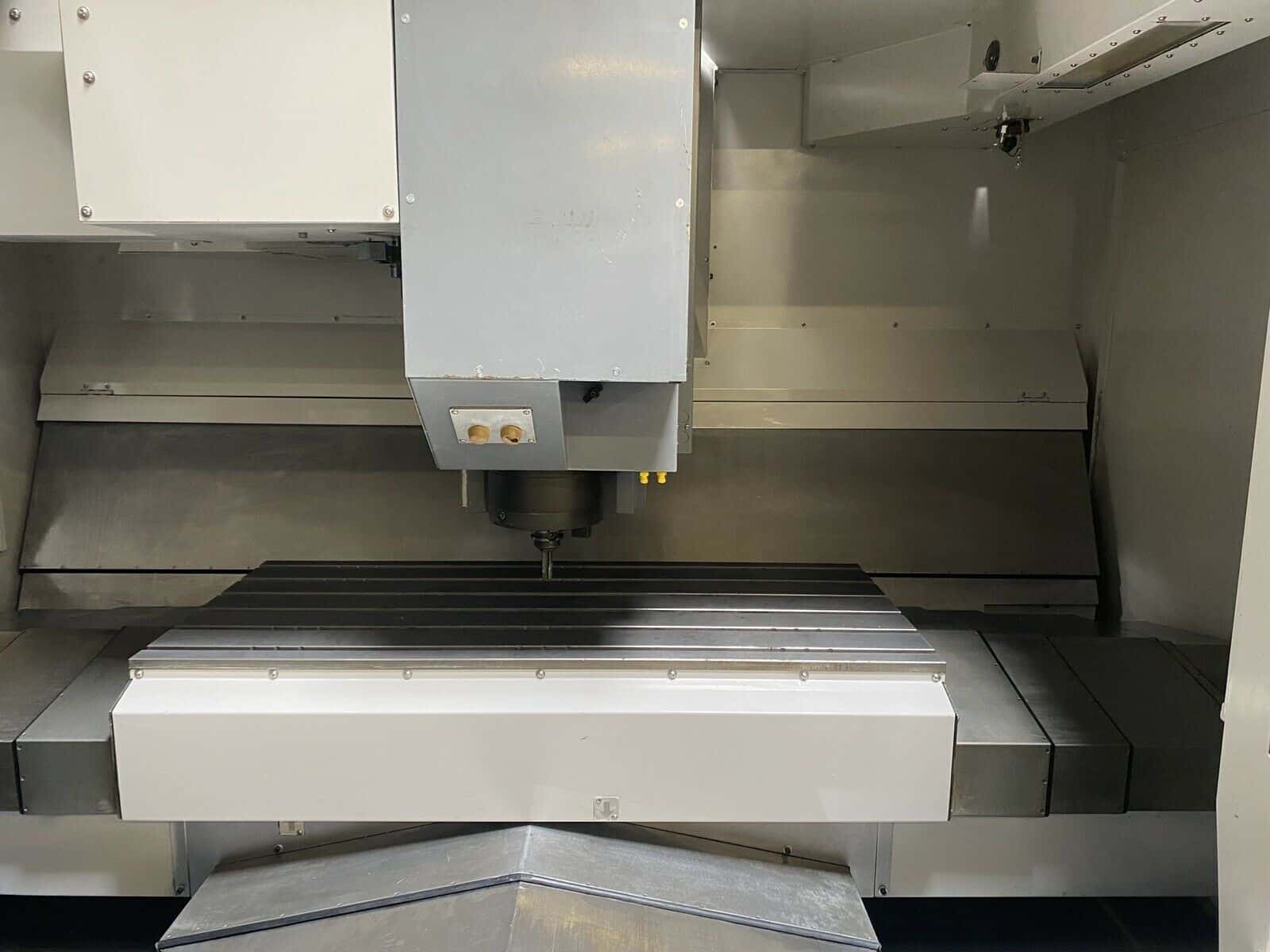

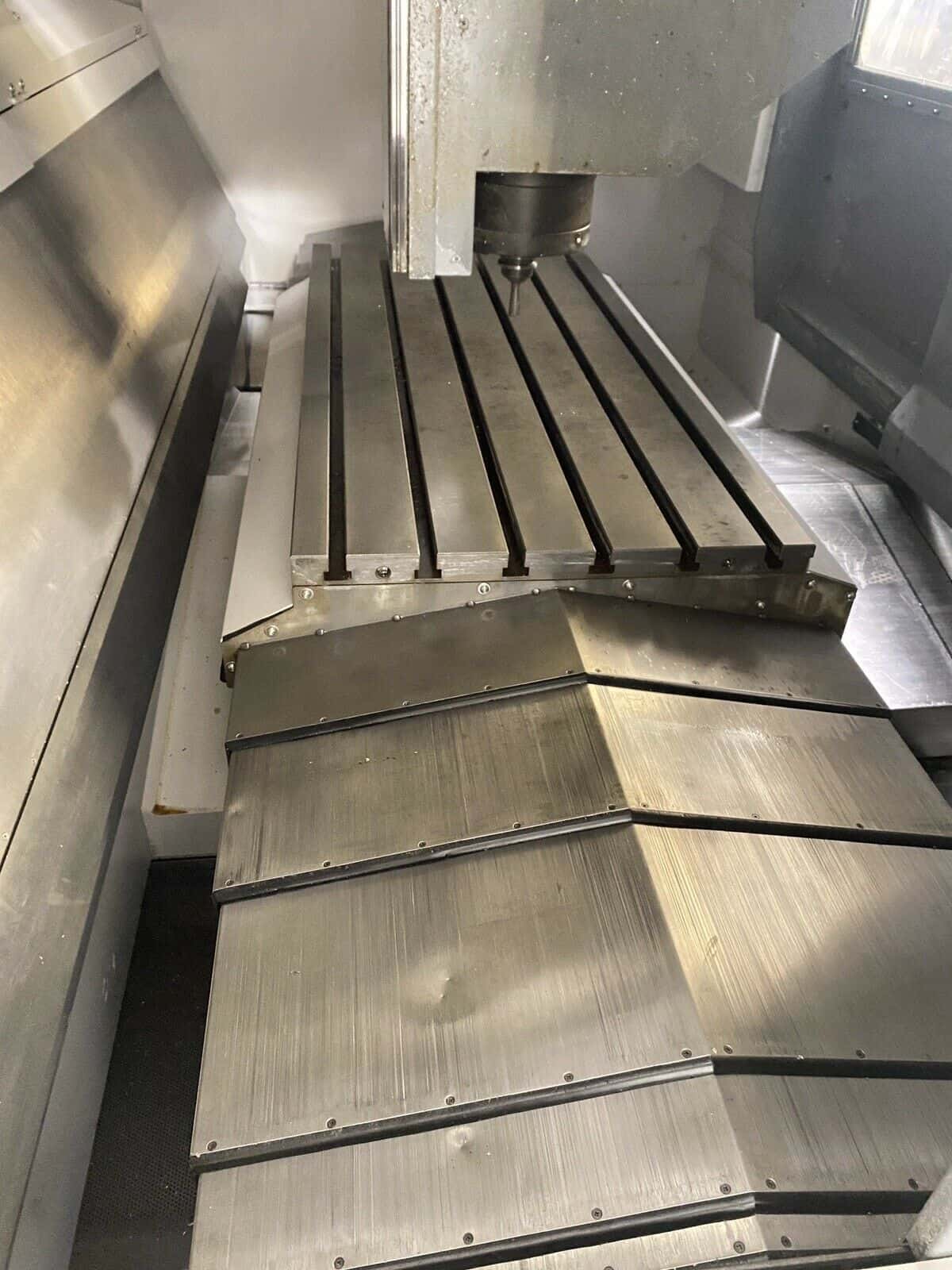

Table:
Length: 52.0″
Width: 23.6″
Max Weight on Table: 2800 lbs
T-Slot no. & Width: 6 X 0.7″

Gear Head Spindle:
Taper Size: 40
Speed Range: 60 – 10,000 RPM
Spindle Power: 30 HP

Feed Rate:
Rapid X,Y & Z: 1260 inch/Per Minute
Cutting Feedrate: 630″ inch/ Per Minute

Automatic Tool Changer:
40 Taper
Capacity: 30
Max Tool Weight: 31.6 lbs
Max Tool Length: 11.8″
Max Tool Dia.: 4.9″
Tool Change Time: 1.5 second

General:
Air Required: 90 psi, 4 scfm

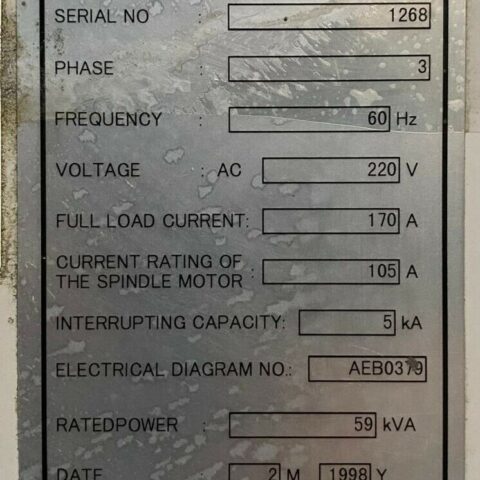

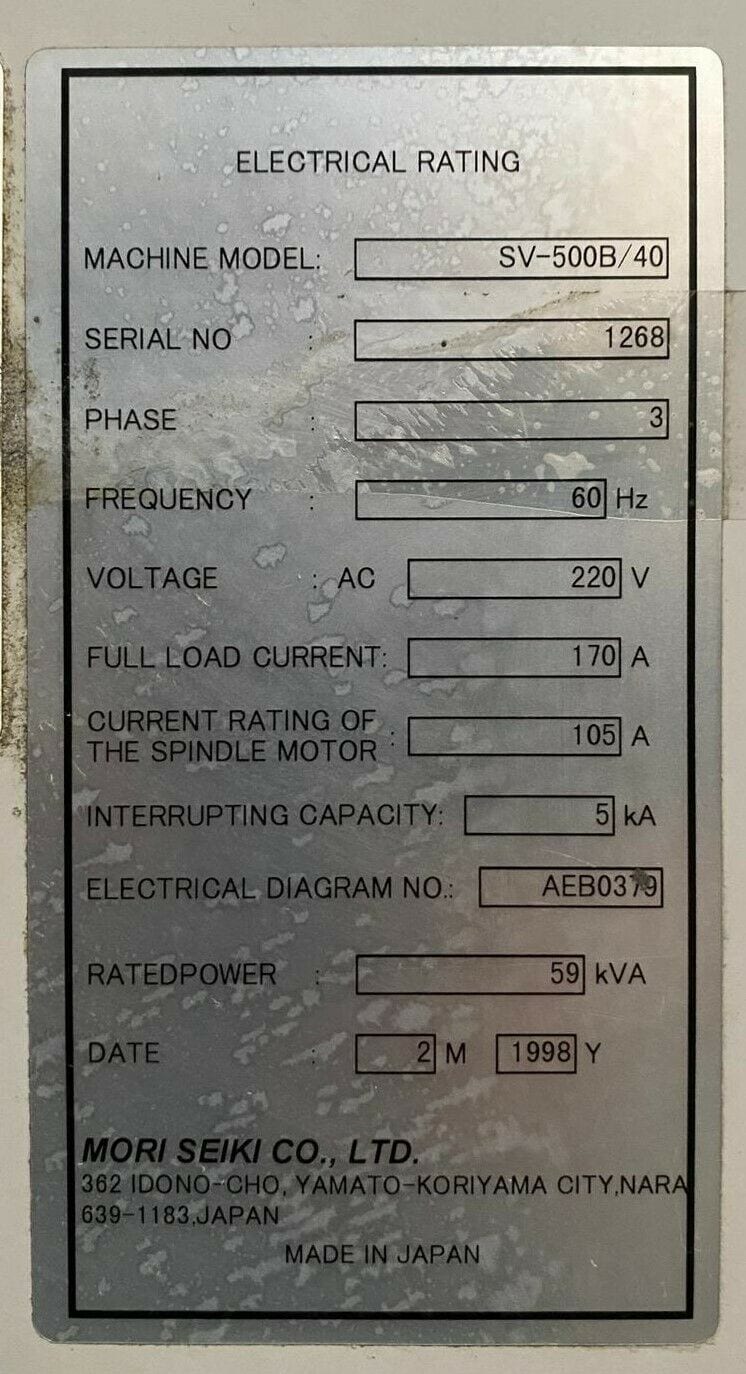

Power: 205-220v / 50kva / 3-Phase
Overall Dimensions: 132″ x 116″ x 110″ High
Weight: 16500 lbs

Tags: DMG MORI, DMG Mori Seiki

Specifications:
Travels:
X-Axis: 1,021 mm
Y-Axis: 511 mm
Z-Axis: 511 mm
Spindle Nose to Table (Min.- Max.): 150 mm – 660 mm

Table:
Length: 1,321 mm
Width: 599 mm
Max Weight on Table: 2800 lbs
T-Slot no. & Width: 6 X 18 mm

Gear Head Spindle:
Taper Size: 40
Speed Range: 60 – 10,000 RPM
Spindle Power: 30 HP

Feed Rate:
Rapid X,Y & Z: 1260 inch/Per Minute
Cutting Feedrate: 16,002 mm inch/ Per Minute

Automatic Tool Changer:
40 Taper
Capacity: 30
Max Tool Weight: 31.6 lbs
Max Tool Length: 300 mm
Max Tool Dia.: 124 mm
Tool Change Time: 1.5 second

General:
Air Required: 90 psi, 4 scfm
Power: 205-220v / 50kva / 3-Phase
Overall Dimensions: 3,353 mm x 2,946 mm x 2,794 mm High
Weight: 16500 lbs

Make	DMG Mori, Mori Seiki

MSC-501 (Fanuc 21i) CNC Control
4th Axis Ready
High Precision 10,000 RPM Spindle
40 Taper Geared Head Spindle
30 Tools Side Mount Bidirectional Tool Changer
PCMCIA Card Slot
Powerful 30 hp high torque spindle motor
Spindle Orientation
Rigid Tapping
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Work light
Spindle Chiller
