*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

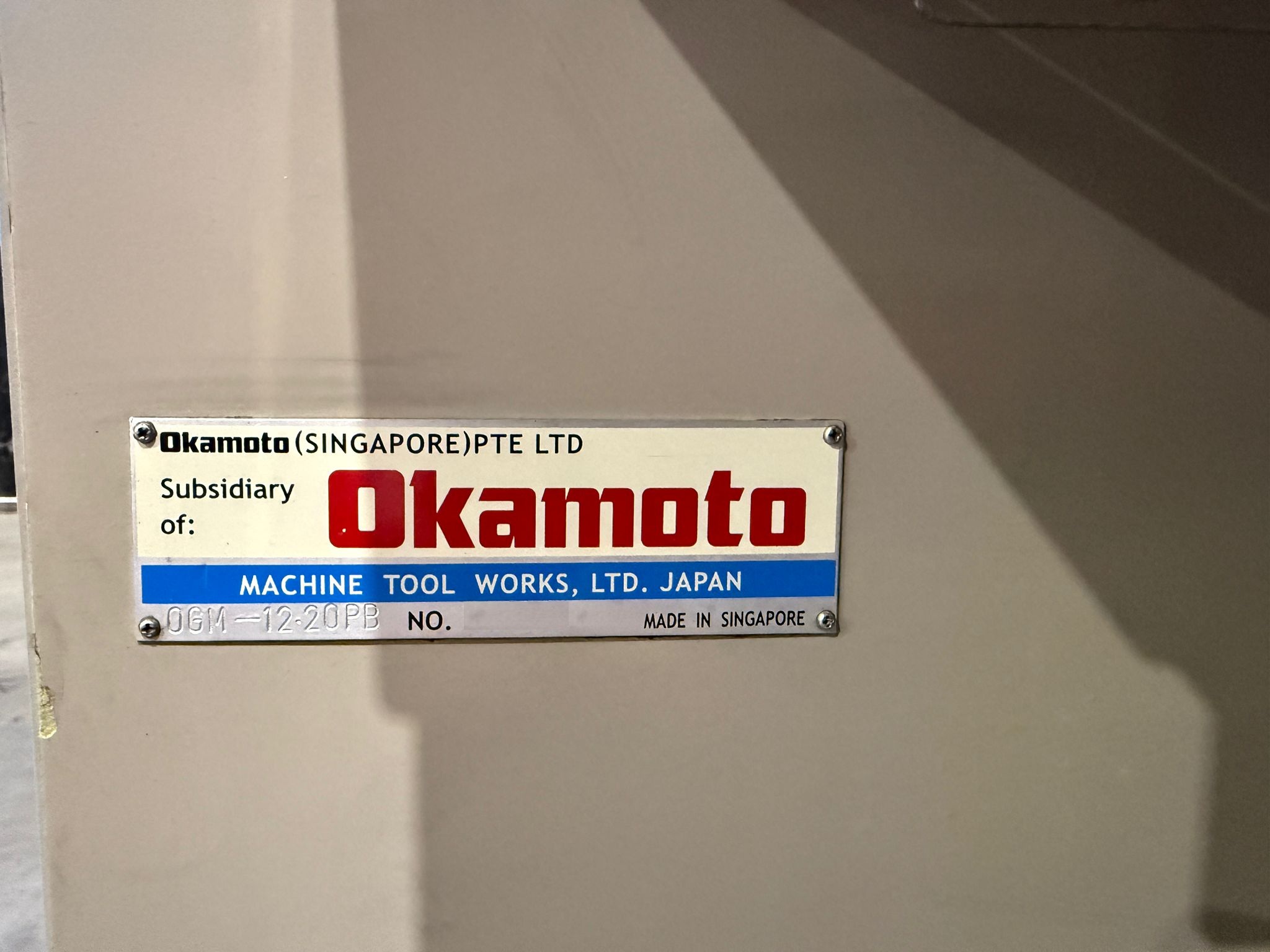

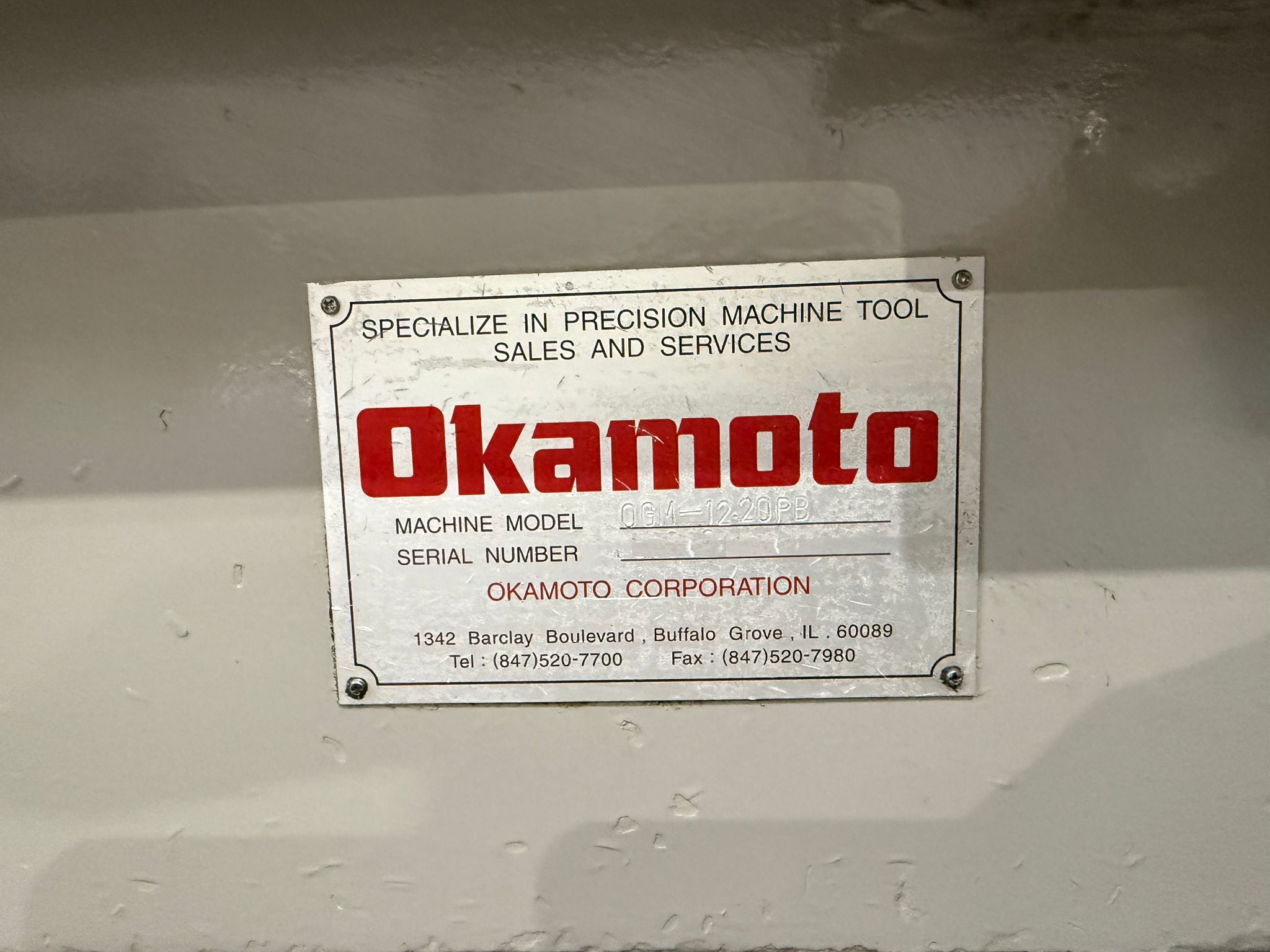

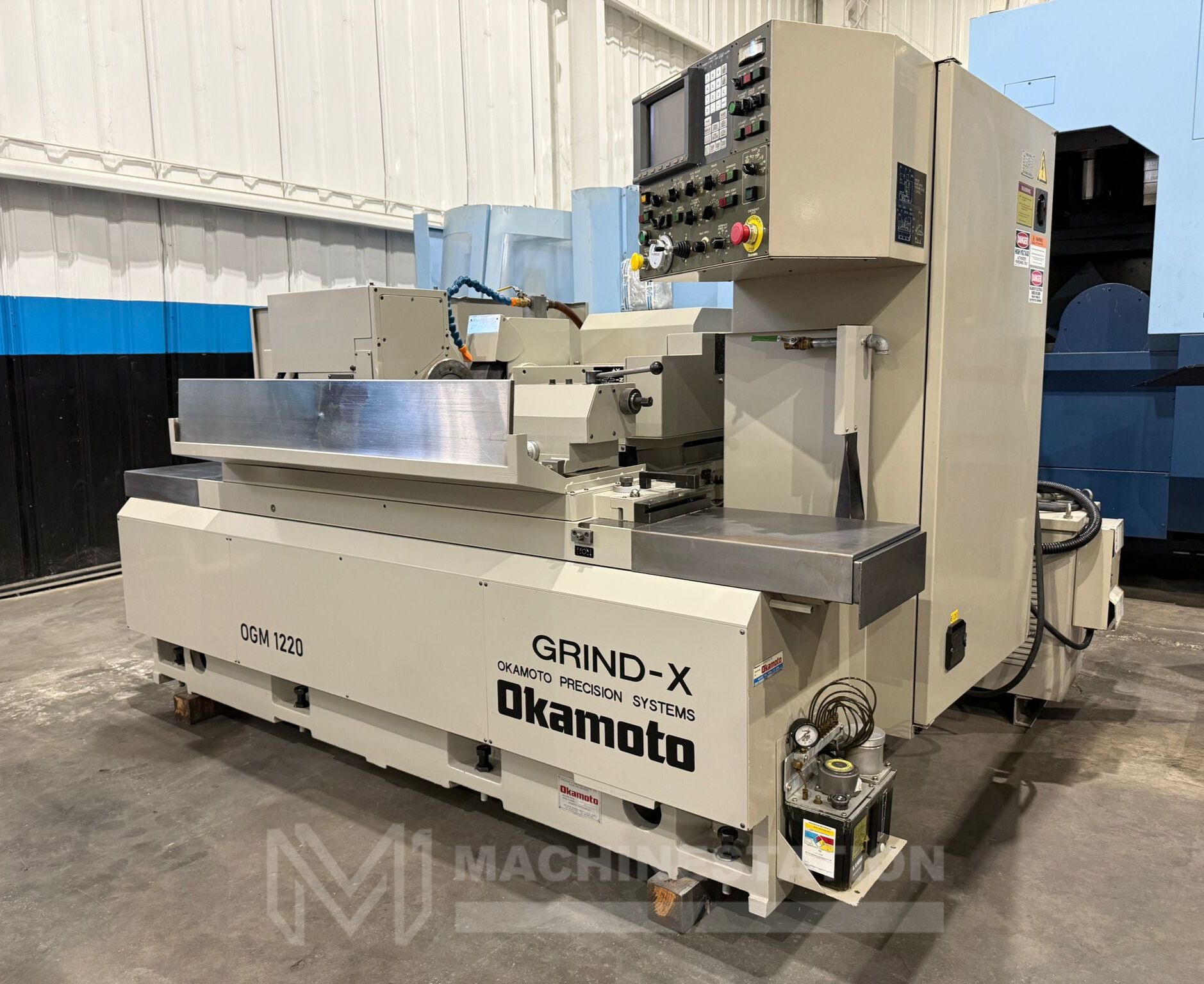

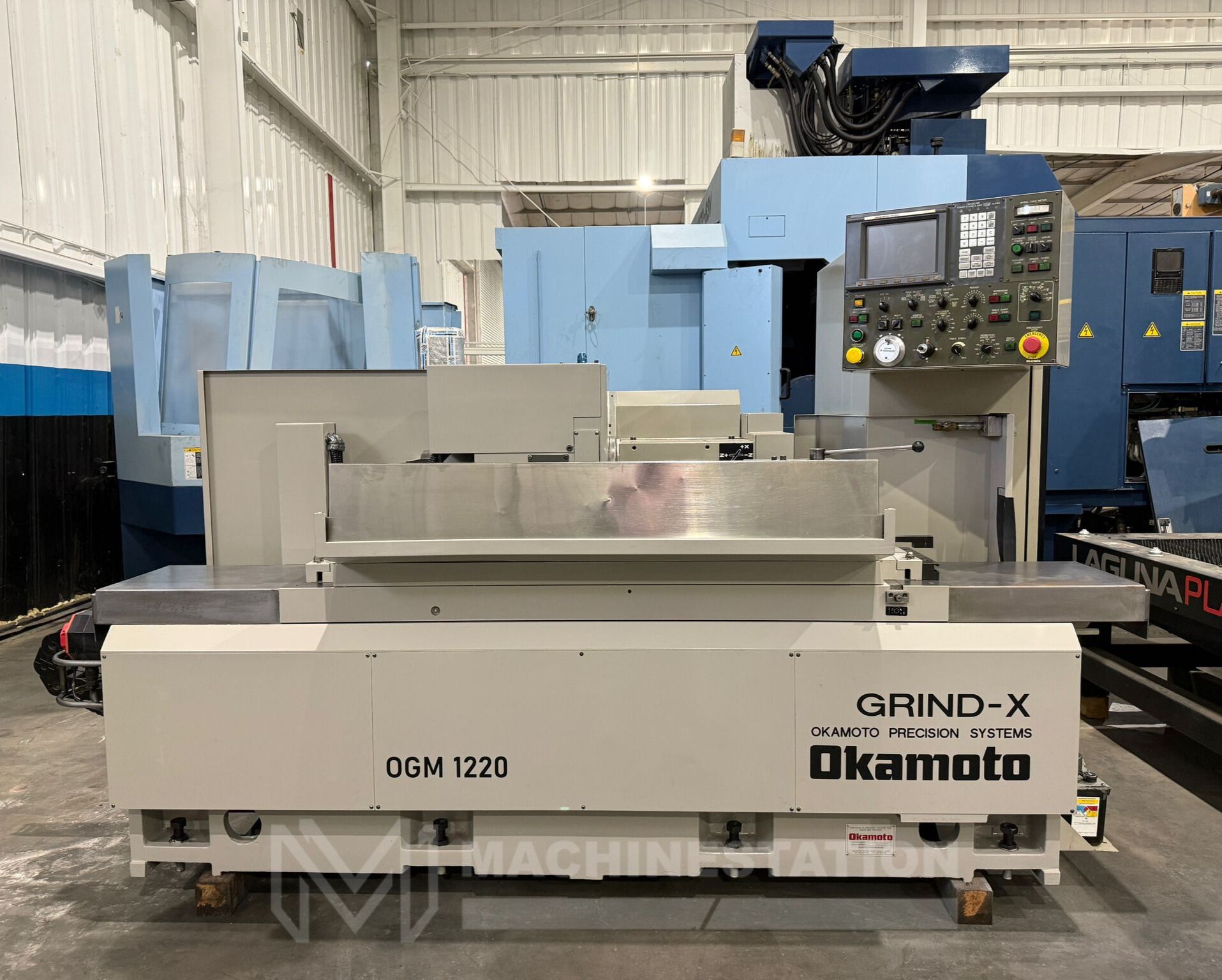

| Make: | OKAMOTO |

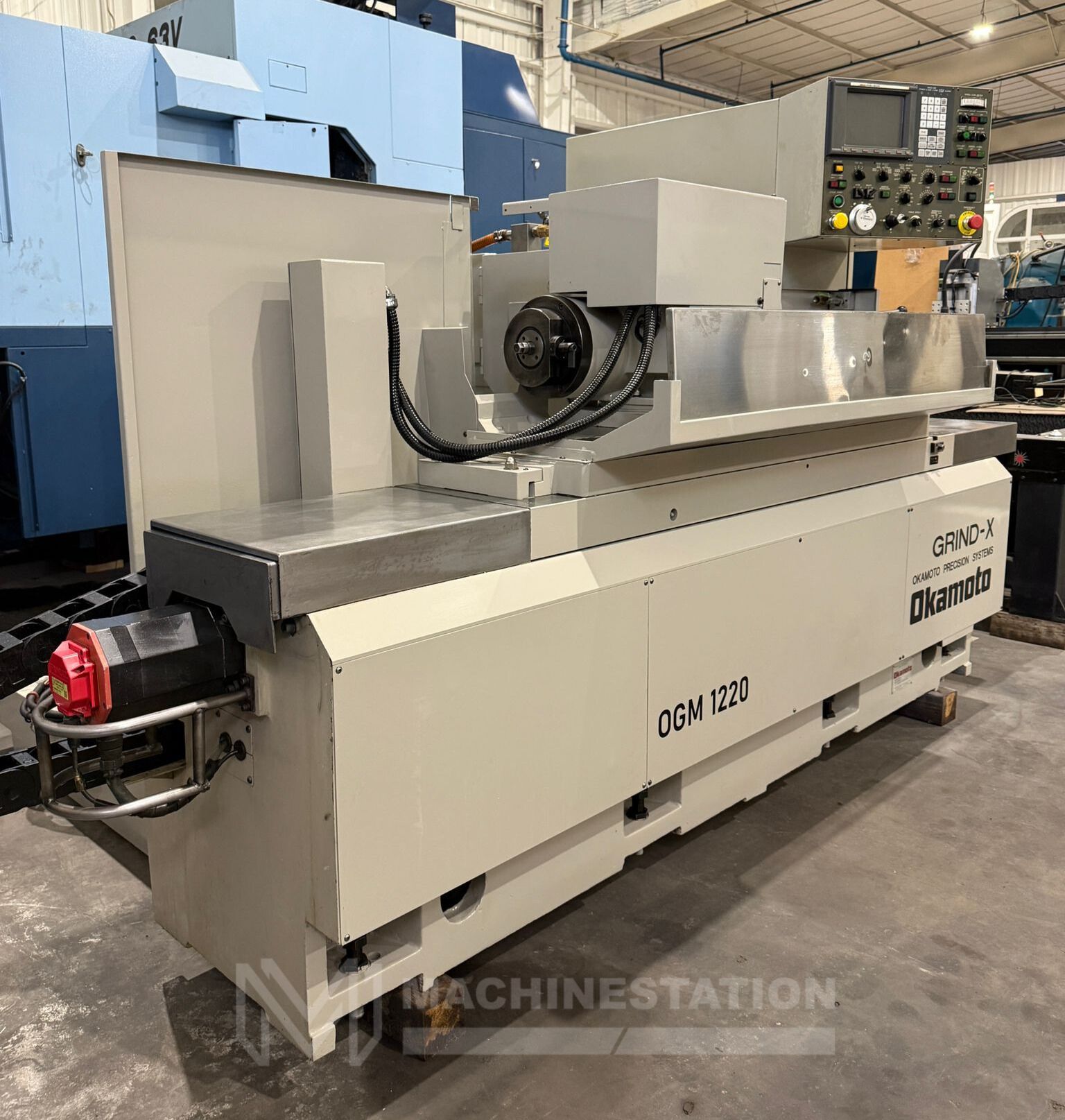

| Model: | OGM 12-20PB |
| Year: | 2007 |
| Condition: | Used – Good |
| Features: |
|---|

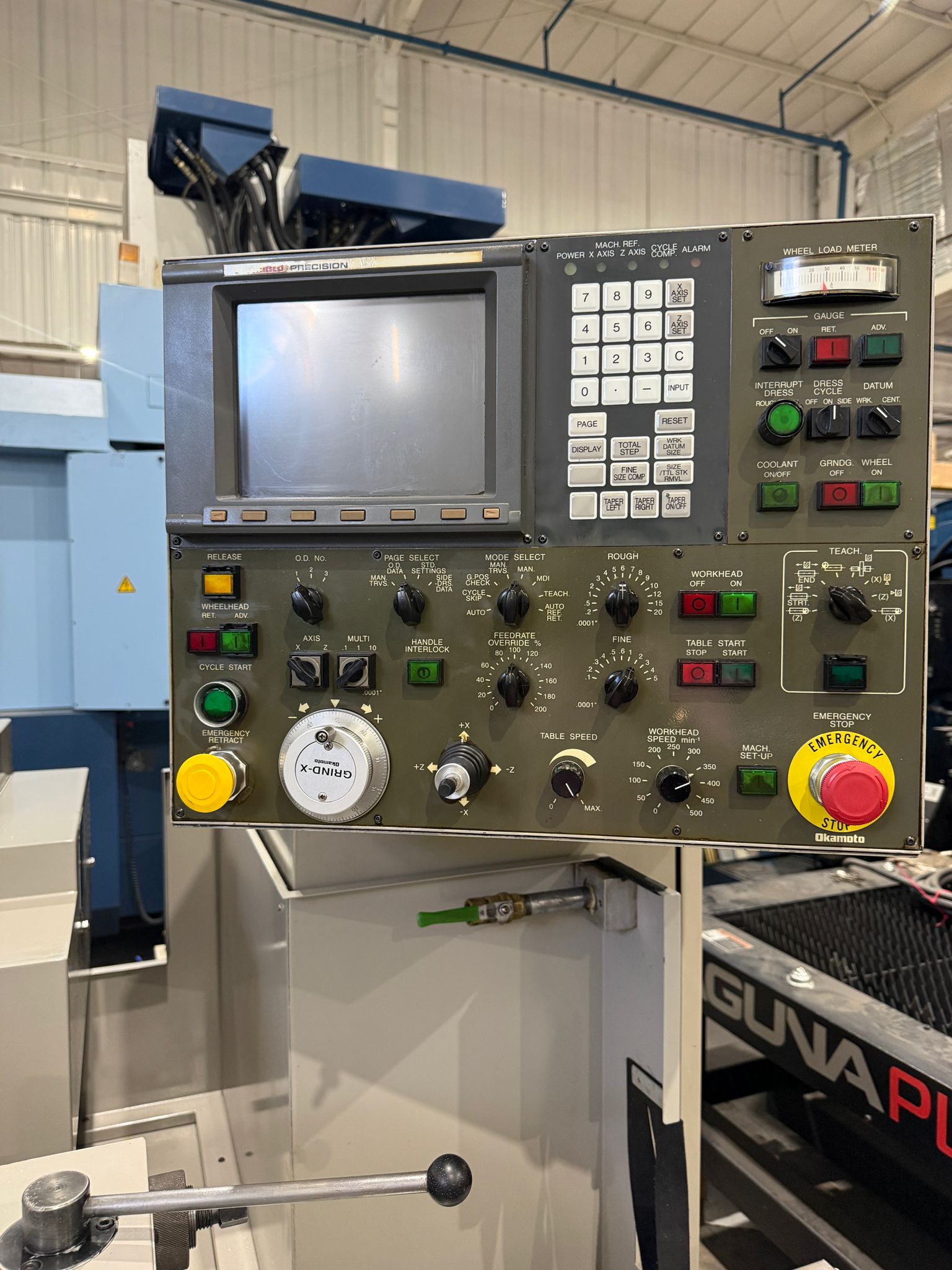

| Fanuc Oi-TB CNC Control |
| Absolute/Incremental Combined Programming |
| Swivelable Table |
| MPG Control |
| Inch / Metric Conversion |
| Tailstock |
| Auto Reference Point Return |

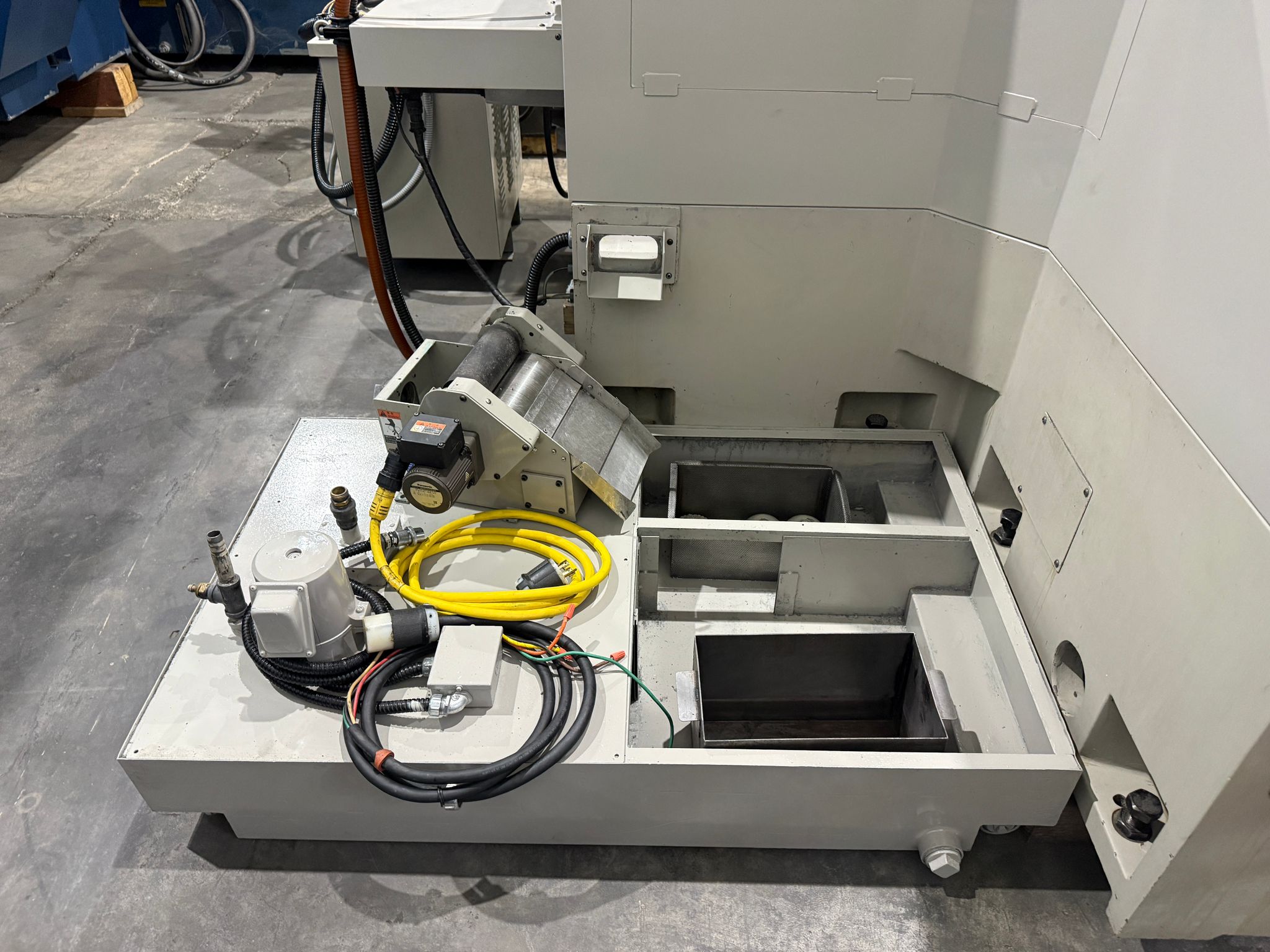

| Coolant System |

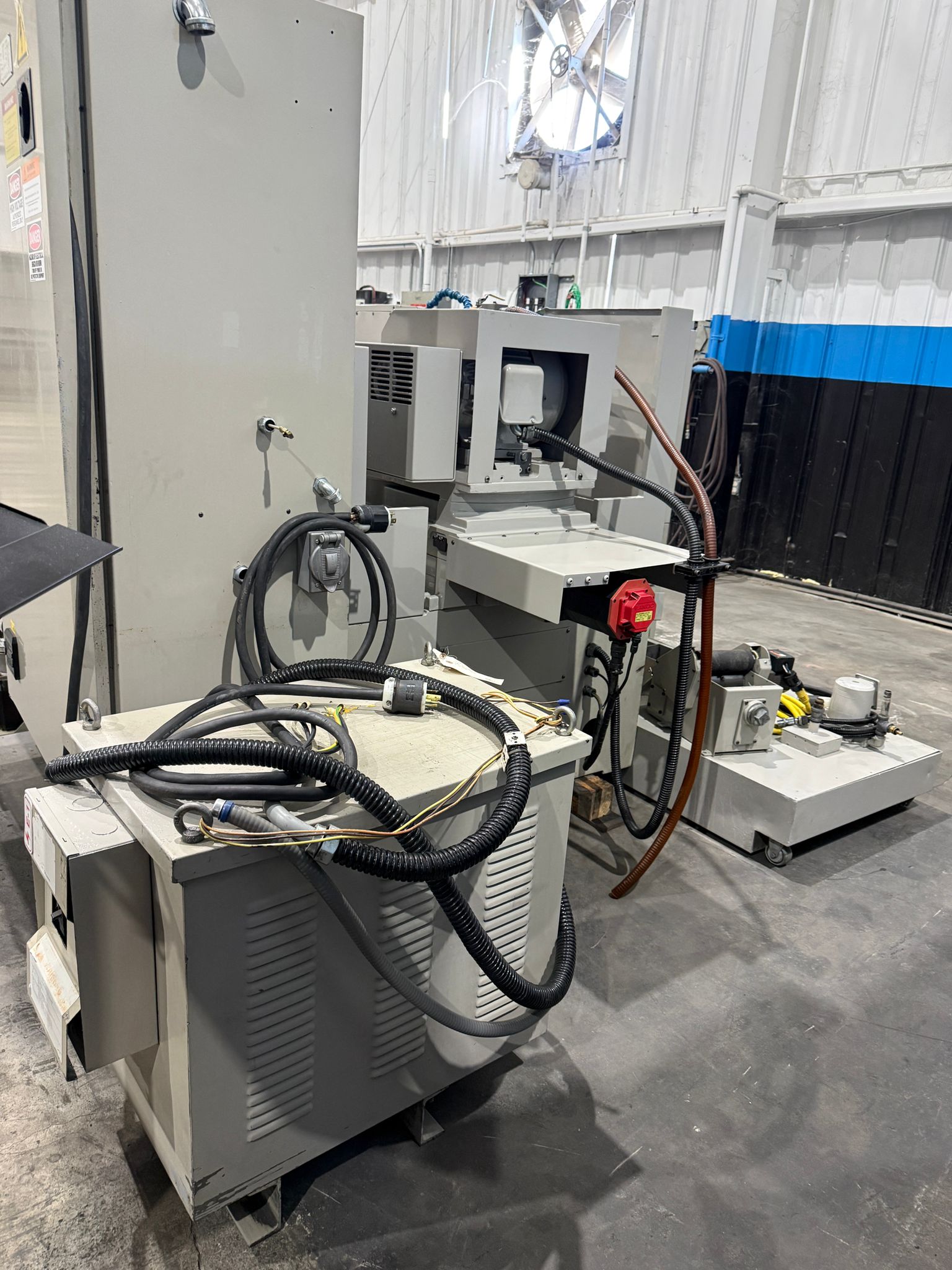

| Transformer |
| Capacity: |
|---|
| Max Grinding Diameter: 12.0″ |
| Max Grinding Length: 19.68″ |
| Max Weight Between Centers: 330 lbs |
| Swing Over Table: 12.6″ |
| Distance Between Centers: 20.0″ |
| Grinding Wheel: |
|---|
| Speed: 1845 RPM |
| wheel Size: 16″ x 2″ x 5″ |
| Grinding Wheel Spindle Motor: 5 HP |
| Wheelhead: |
|---|
| Total Stroke (X-Axis): 11.8″ |
| Automatic Infeed: 0.00001” – 0.004″ |
| Minimum Increment: 0.00001” |
| Continuous Feedrate: 160 IPM |
| Manual Pulse Feed (x.1 , x1, x10) : 0.00001″ , 0.0001″ , 0.001″ |
| Wheelhead Rapid Retract: 1.5″ |
| Grind Feed Override: 0 – 200% |

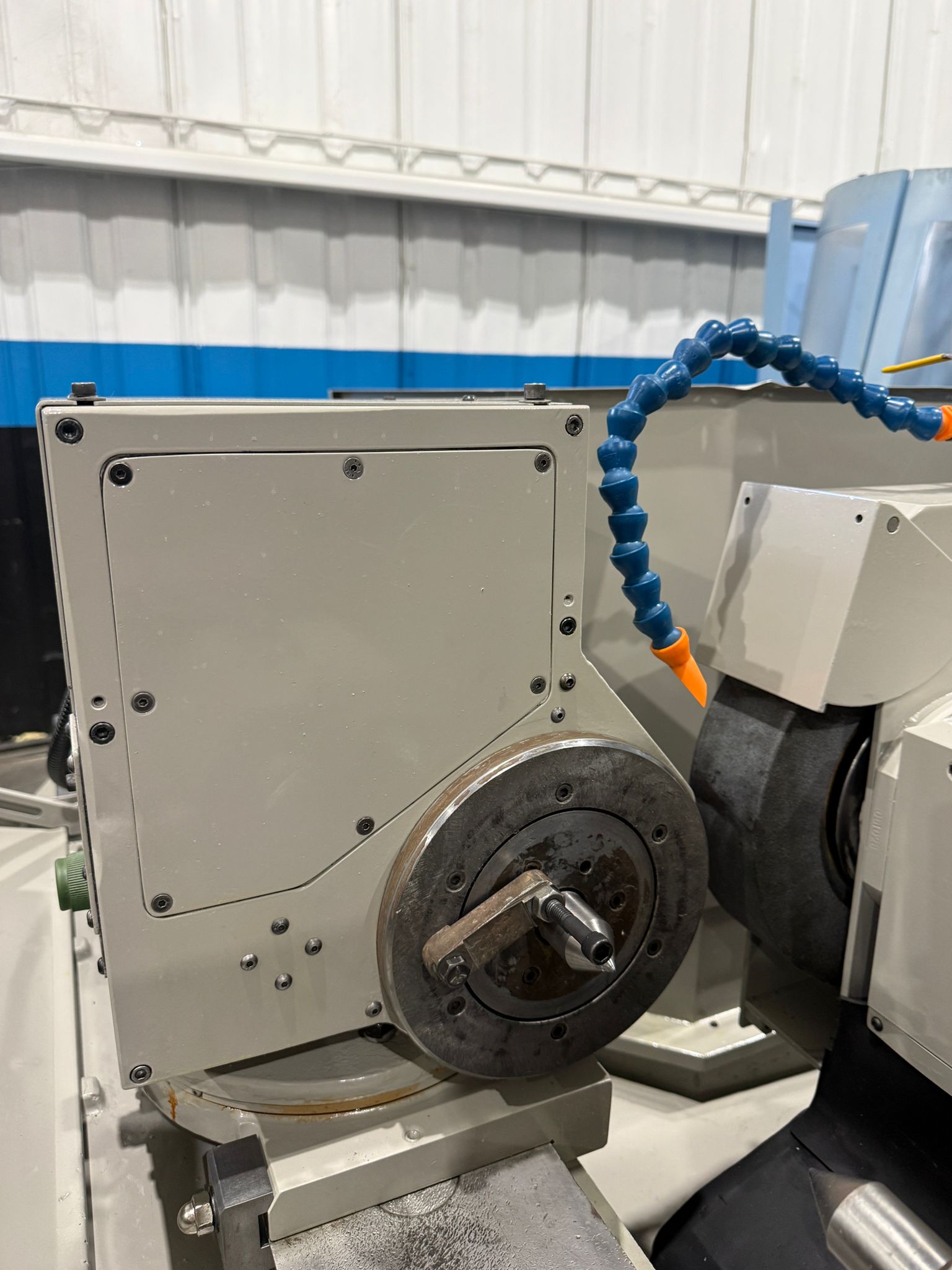

| Workhead: |
|---|
| Center Taper: MT-4 |
| Speed: 10 – 500 RPM |
| Motor: 1 HP |
| Table: |
|---|
| Maximum Table Travel: 34″ |
| Swivel Angle: 0 to .10° |
| Traverse Speed: 0 – 400 IPM |
| Manual Pulse Feed (x.1 , x1, x10) : 0.00001″ , 0.0001″ , 0.001″ |
| Rapid Feedrate: 400 IPM |
| Feedrate Override: 0 – 200% |

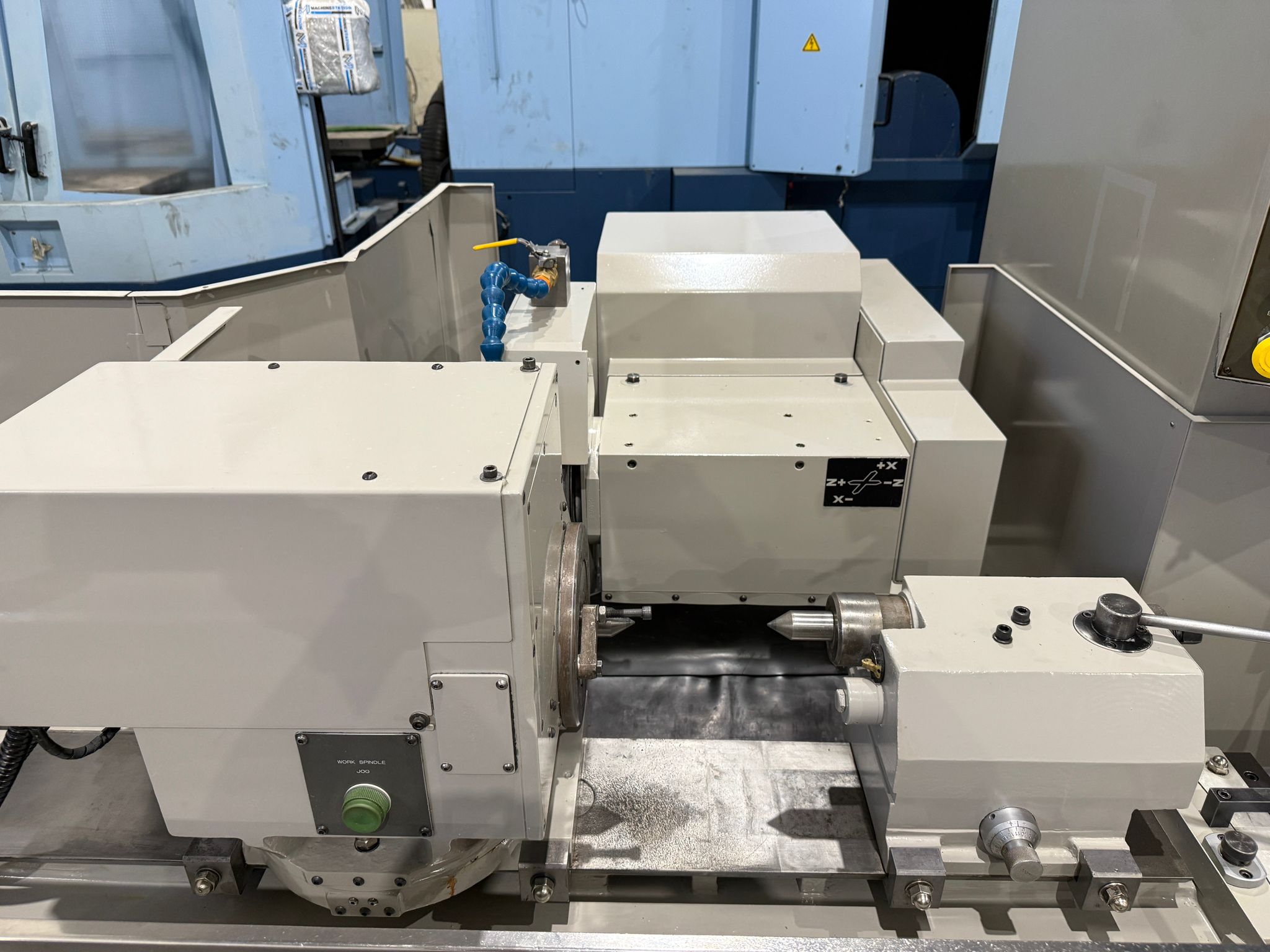

| Tailstock: |
|---|
| Tailstock Quill Stroke: 1.2″ |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: AC 200 V Three Phase 60 Hz |
| Power Requirement: 20 kva |
| Overall Dimensions: 143″ x 76″ x 67″ High |
| Weight : 7700 lbs Approx. |
