*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

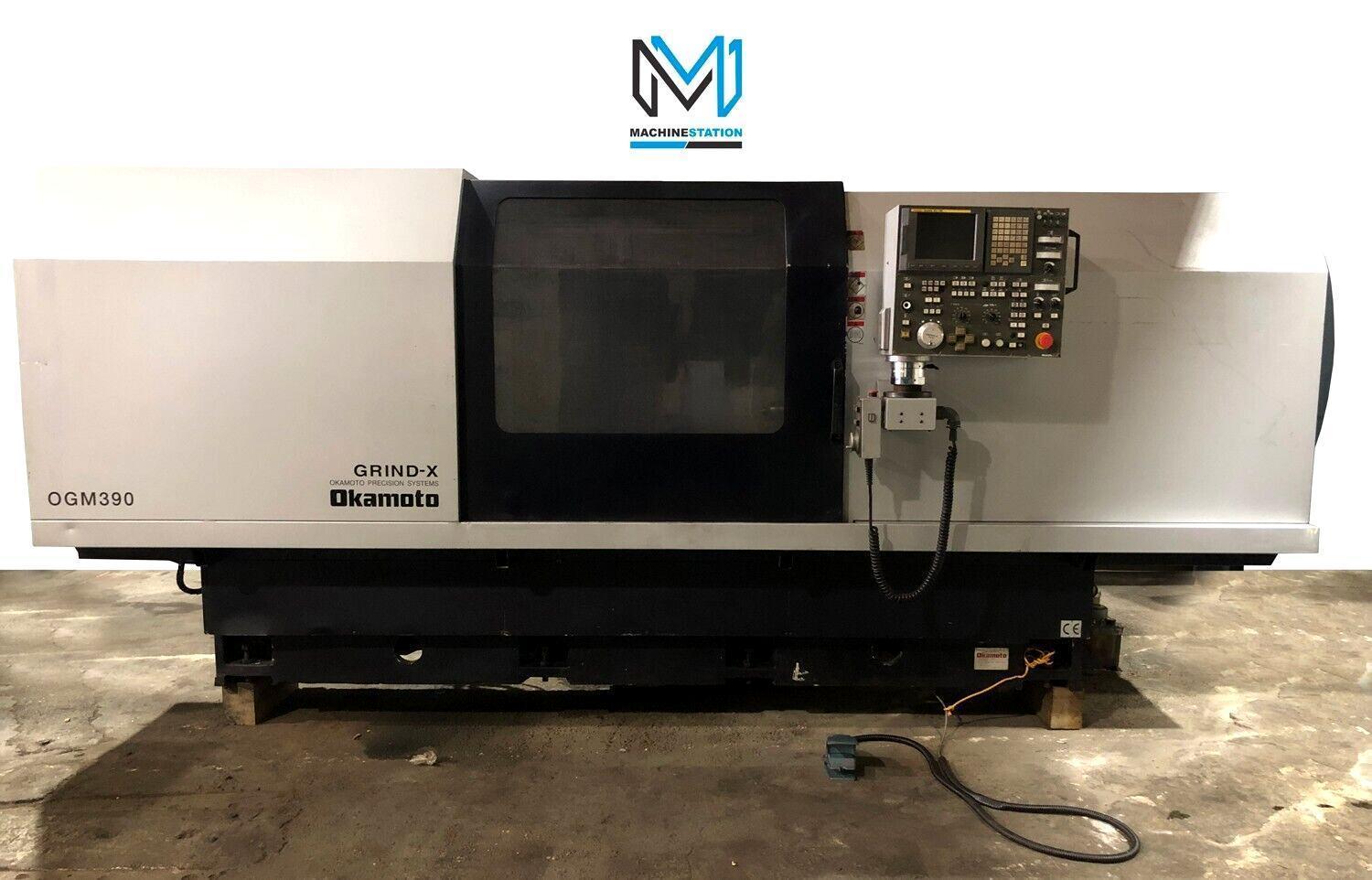

| Make: | OKAMOTO |
| Model: | OGM 390 |
| Year: | 2008 |
| Condition: | Used – Good |
| Equipped With: |
|---|
| Fanuc 21i-TB CNC Control |
| Absolute/Incremental Combined Programming |
| 4 x Subprograms |
| Swivelable Table & Wheel-Head Fixed |
| MPG Control |
| Inch / Metric Conversion |
| Stored Stroke Check |
| Auto Reference Point Return |
| Automatic Acceleration & Deceleration |
| Coolant System |
| Automatic Lubrication system |
| Capacity: |
|---|
| Max Grinding Diameter: 11.81″ |
| Max Grinding Length: 35.43″ |
| Max load Capacity: 88 lbs |
| Swing Over Table: 12.6″ |
| Distance Between Centers: 35.43″ |
| Grinding Wheel: |
|---|
| Speed: 1890- 2687 RPM |
| Wheel Size: 17.91″ X 2.95″ X 5″ |
| Wheelhead: |
|---|
| X Axis Travel Distance: 11.81″ |
| Swivel Angle: +/- Fixed |
| Least Travel Increment: 0.0001” |
| Rapid Feed Rate: 158″ |
| Cont. Feed Rate: 0.0001″ to 158″ |
| Motor: 5 HP |
| Workhead: |
|---|
| Swivel Angle: Fixed |
| Center Taper: MT-4 |
| Spindle Bore Dia.: 0.79″ |
| Speed: 10-500 RPM |
| Motor: 2.5 HP |
| Table: |
|---|
| Z Axis Travel Distance: 50″ |
| Swivel Angle: 0 ~ -8.5 Degree |
| Least Travel Increment: 0.0001” |
| Rapid Feed Rate: 394″ |
| Cont. Feed Rate: 0.0001″ to 394″ |
| Tailstock: |
|---|
| Tailstock Quill Stroke: 1.18″ |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: AC 400 V Three Phase 50 Hz |
| Power Requirement: 20 kva |
| Overall Dimensions: 165″ x 92″ x 77″ High |
| Weight : 11023 lbs Approx. |
| “No Charges for loading at list Price” |
