Sold
OKK HM-4 CNC Horizontal Machining Center – 400mm Pallet, Fanuc 21i-M
Out of stock
| SKU: | 11282 |
| Make/Model: | OKK HM-4 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | OKK |
| Model No.: | HM-4 |
| Condition: | Used |
| Machine Type: | CNC Horizontal Machining Center |

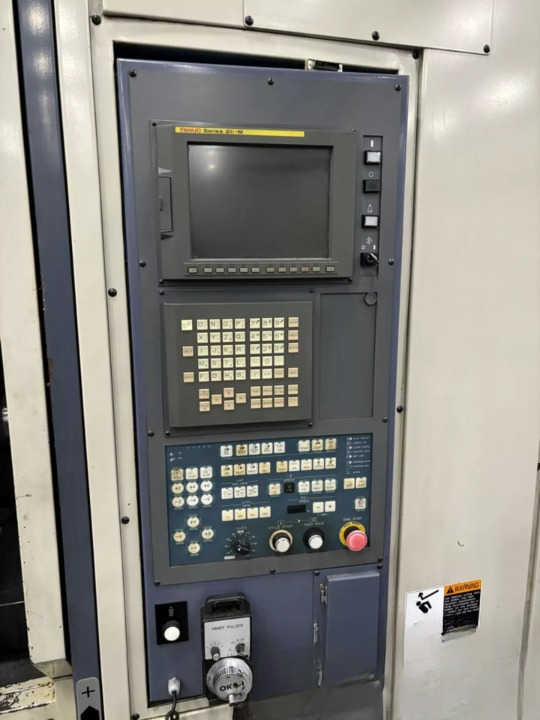

| CNC Control: | Fanuc 21i-M |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Fanuc 21i-M CNC Control |
| Dual Pallet Changer (APC) |
| Chip Conveyor |
| Coolant System |
| Pendant Control |
| Full Enclosure |
| Heavy Duty Construction |
| Travels: |
|---|
| X-Axis Travel: 22.0″ (560 mm) |
| Y-Axis Travel: 22.0″ (560 mm) |
| Z-Axis Travel: 22.0″ (560 mm) |
| Rapid Traverse (X/Y/Z): 1,181 IPM (30 m/min) |
| Table / Pallet: |
|---|

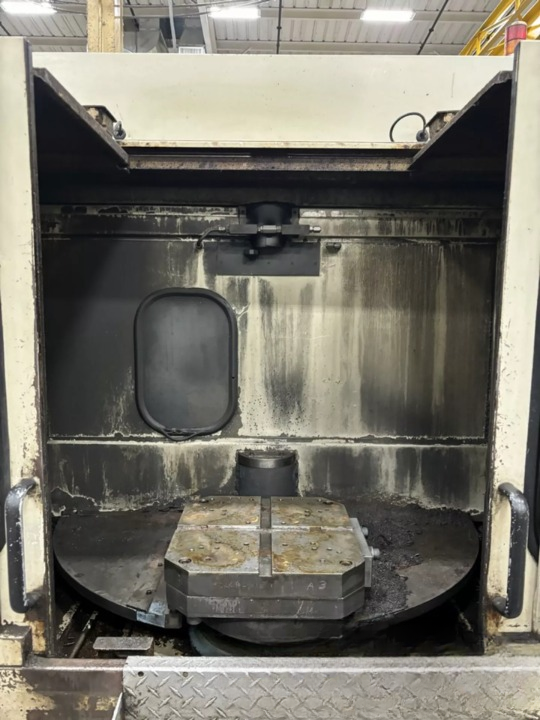

| Pallet Size: 15.7″ × 15.7″ (400 × 400 mm) |
| Max Table Load Capacity: 880 lbs (400 kg) |
| Pallet Indexing: 1° (Full 4th Axis) |
| Pallet System: Dual Pallet Changer (APC) |
| Spindle: |
|---|
| Spindle Taper: BT40 |
| Spindle Speed: 6,000 RPM |
| Optional Speed: 10,000 RPM |
| Spindle Motor: 15 HP (11 kW) |
| Tool Changer: |
|---|
| Tool Capacity: 40 ATC |
| Tool Type: BT40 |
| Max Tool Diameter: 3.1″ |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 15 lbs |
| Accuracy: |
|---|
| Positioning Accuracy: ±0.0004″ |
| Repeatability: ±0.0002″ |

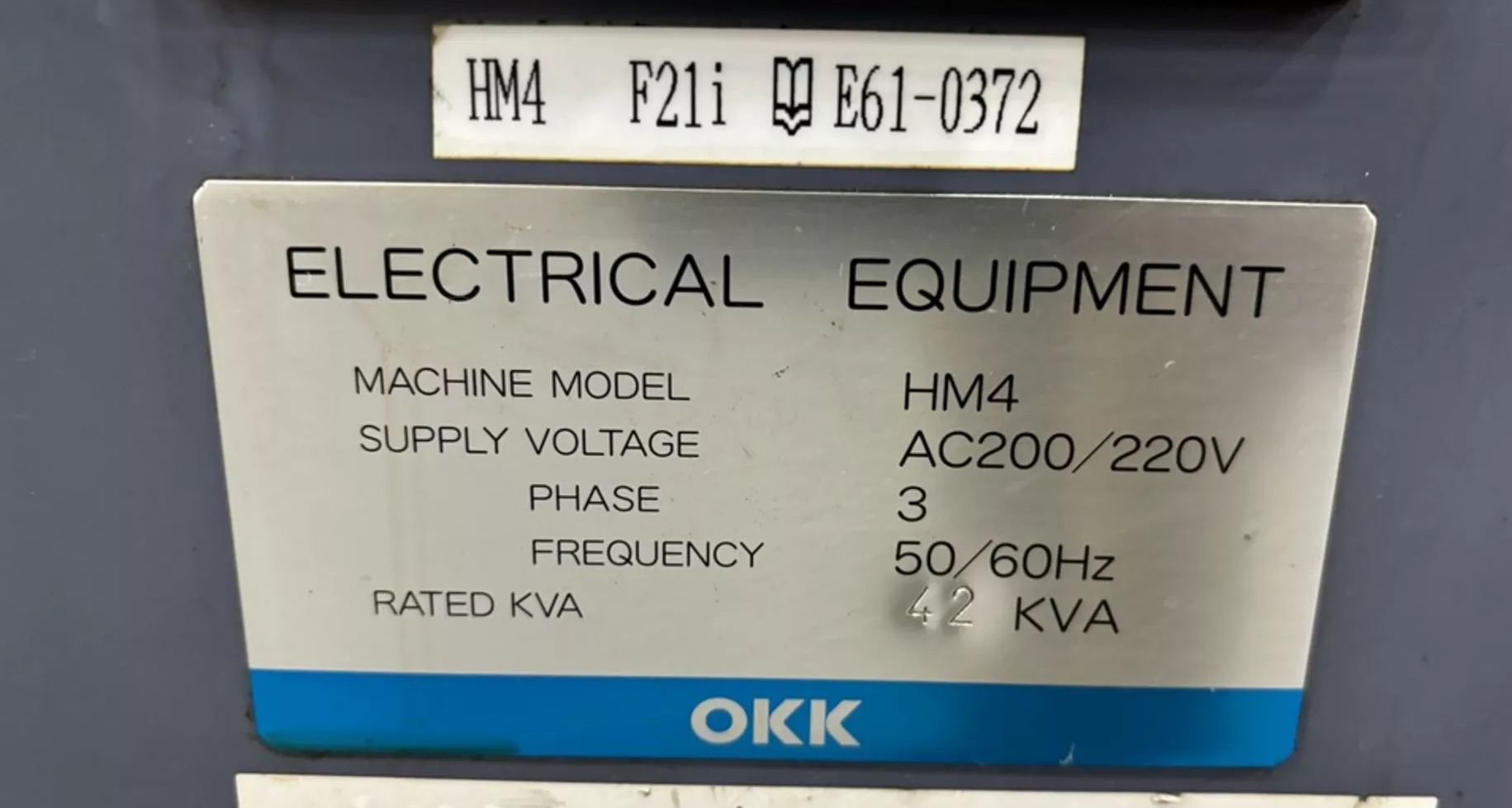

| Electrical: |
|---|
| Voltage: AC 200 / 220 V |
| Phase: 3 Phase |
| Frequency: 50 / 60 Hz |
| Rated Capacity: 42 kVA |
| General: |
|---|
| Machine Dimensions: 110″ × 95″ × 100″ |
| Machine Weight: 18,000 lbs |
| Categories | CNC Horizontal Machining Center |
|---|---|
| Make | |
| Model | HM-4 |
