*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

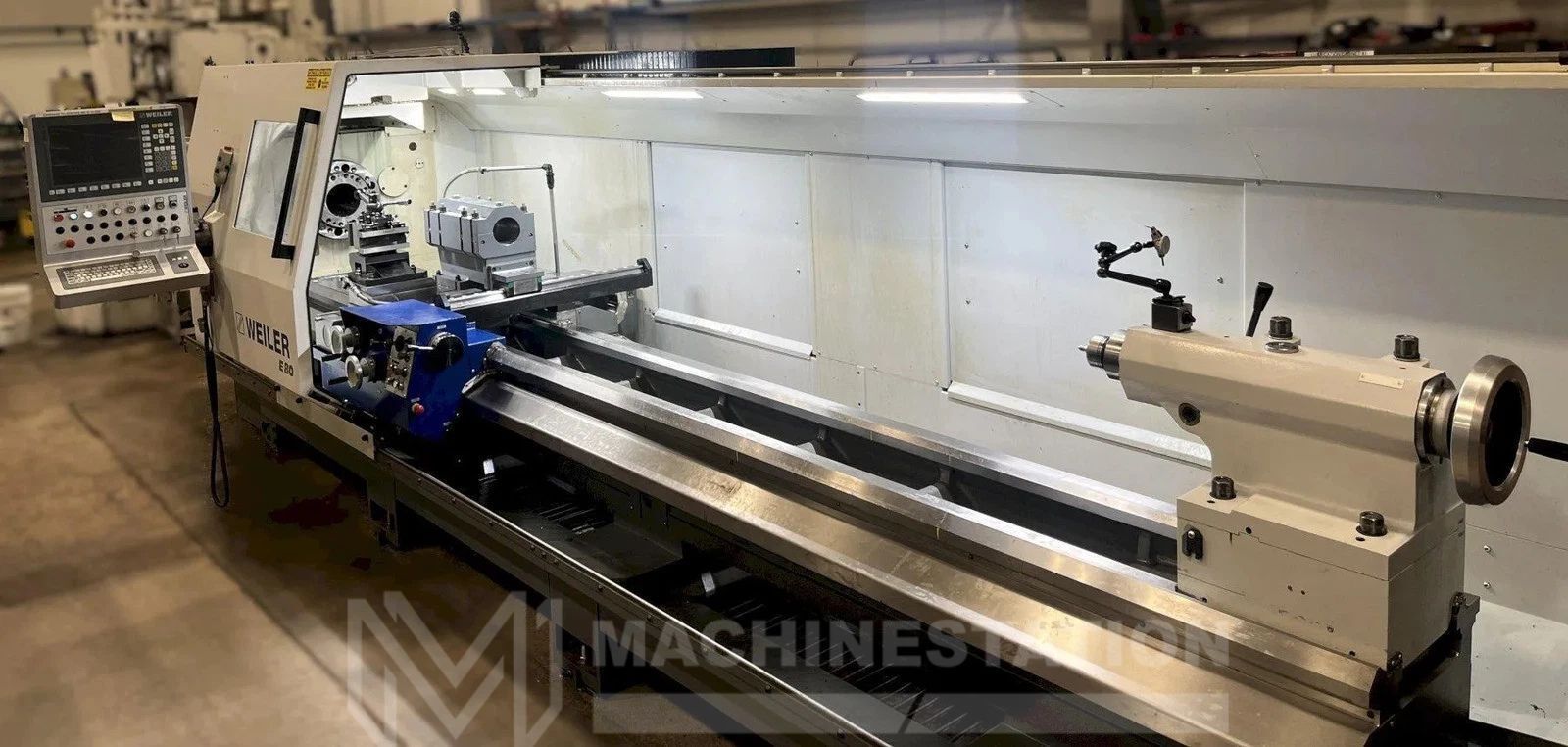

| Make: | Weiler |
| Model: | E80 x 4500 |
| Year: | 2017 |
| Equipped With: |
|---|

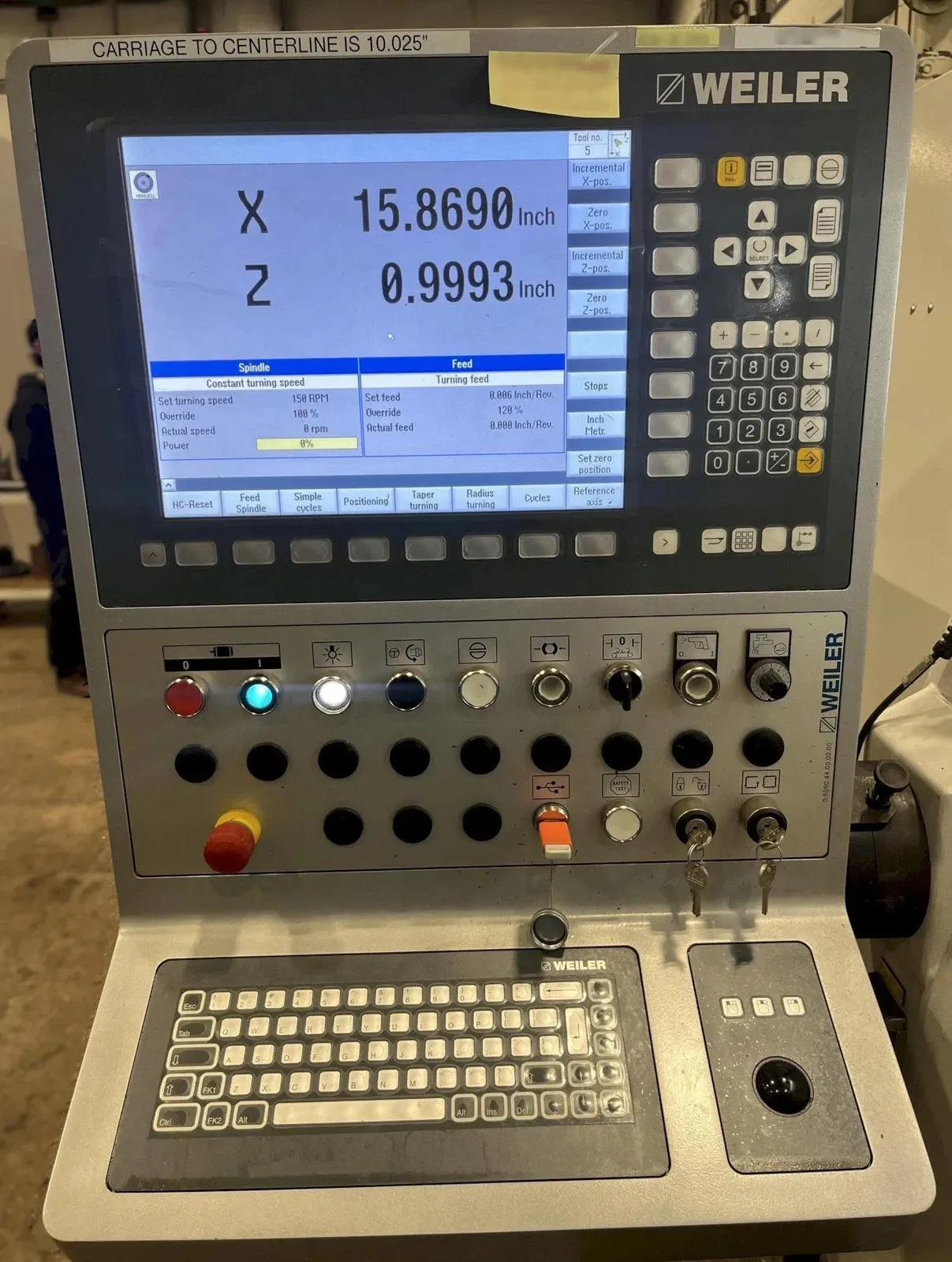

| Weiler CNC Control |

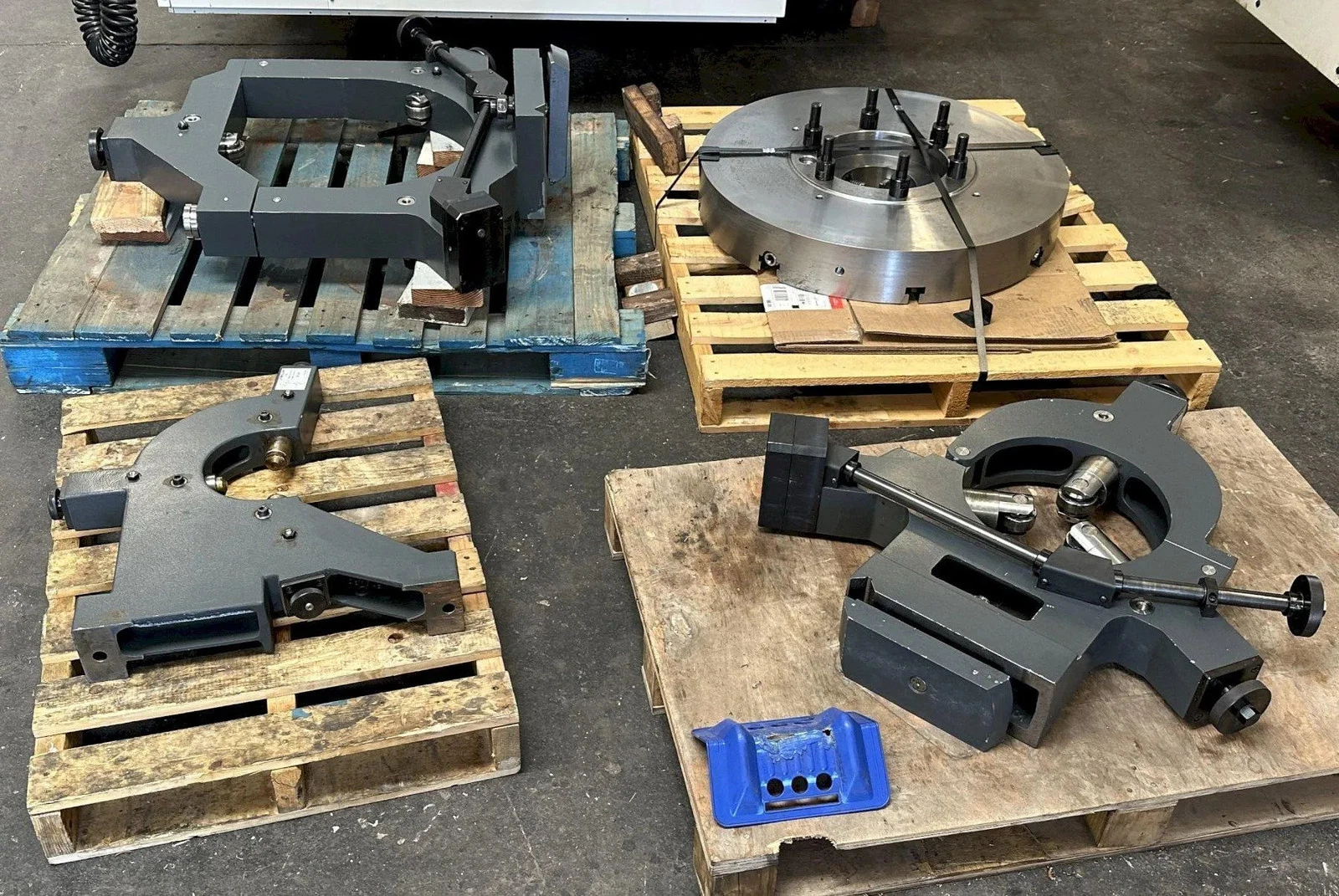

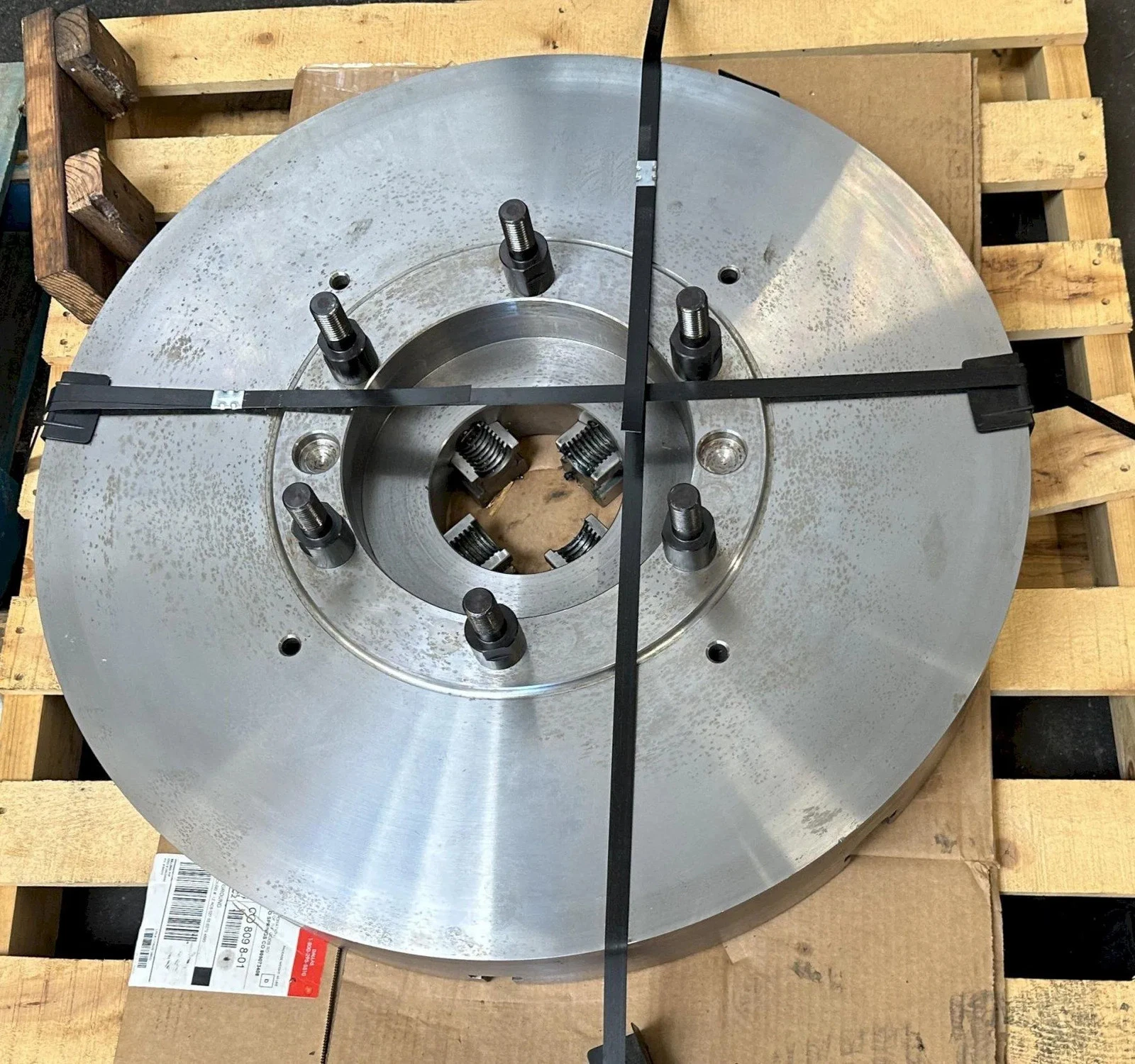

| 31.5″ 4-Jaw Chuck |

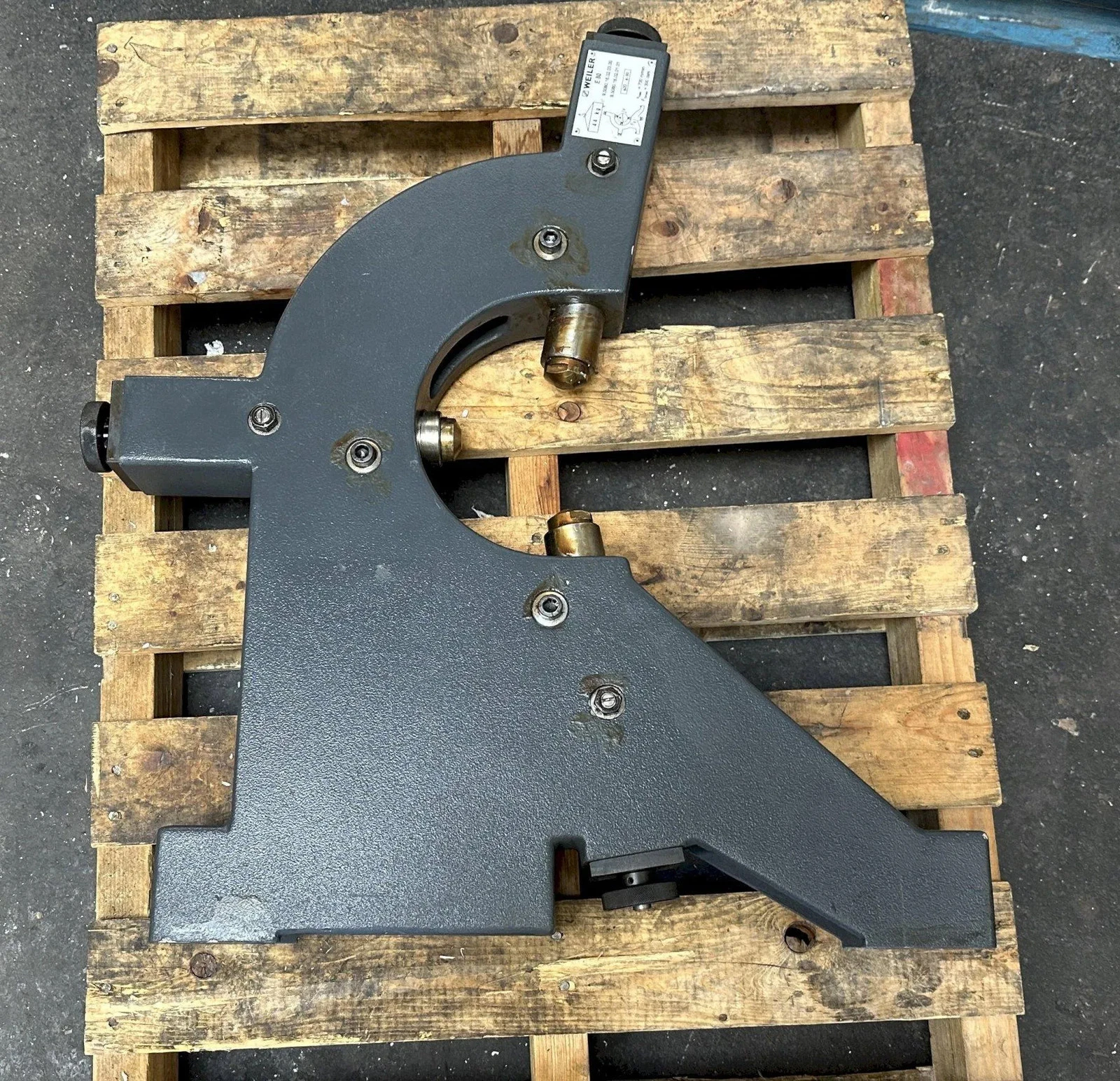

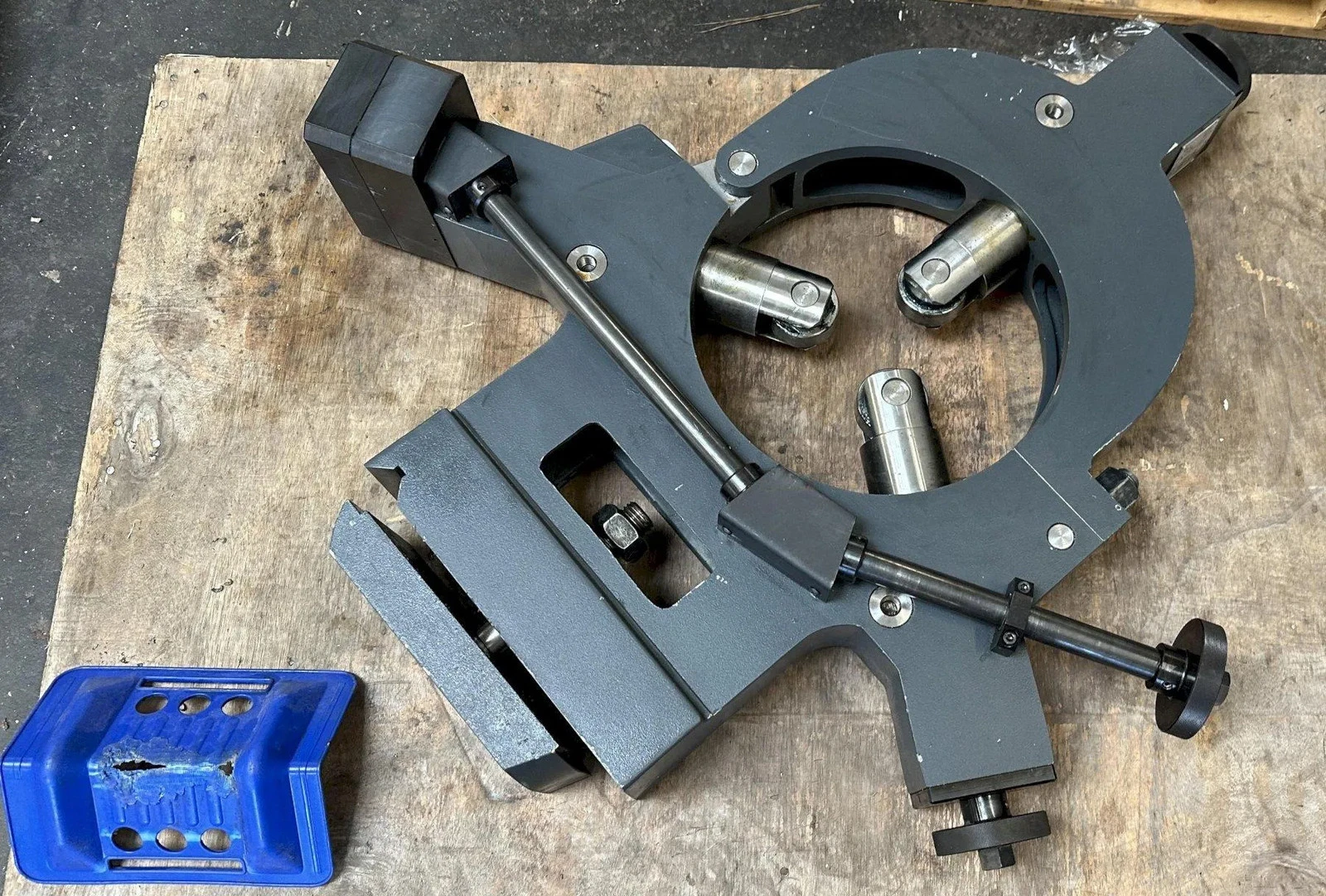

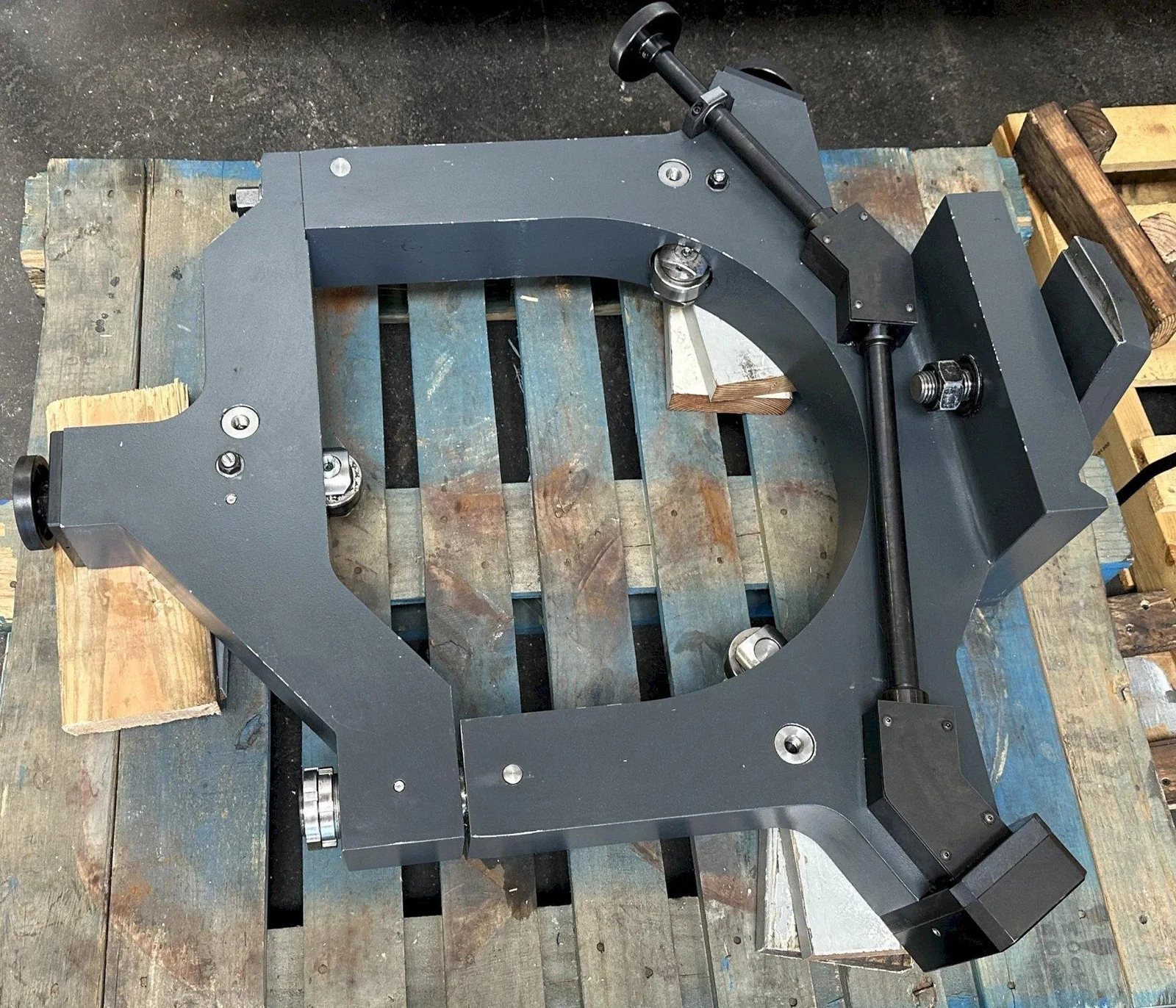

| (2) Roller Steady Rest & (1) Follow Rest |

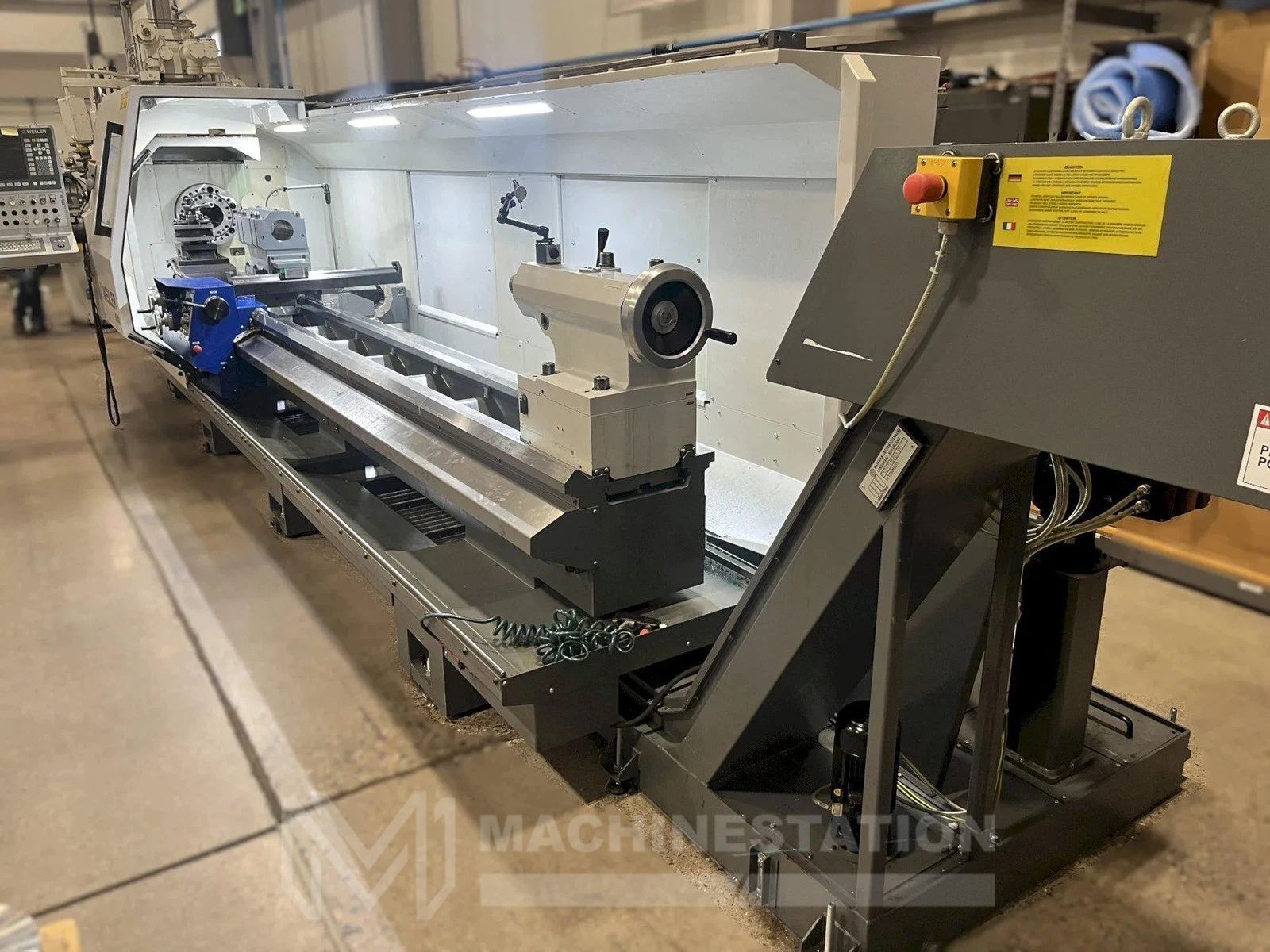

| Tailstock With Live Center |

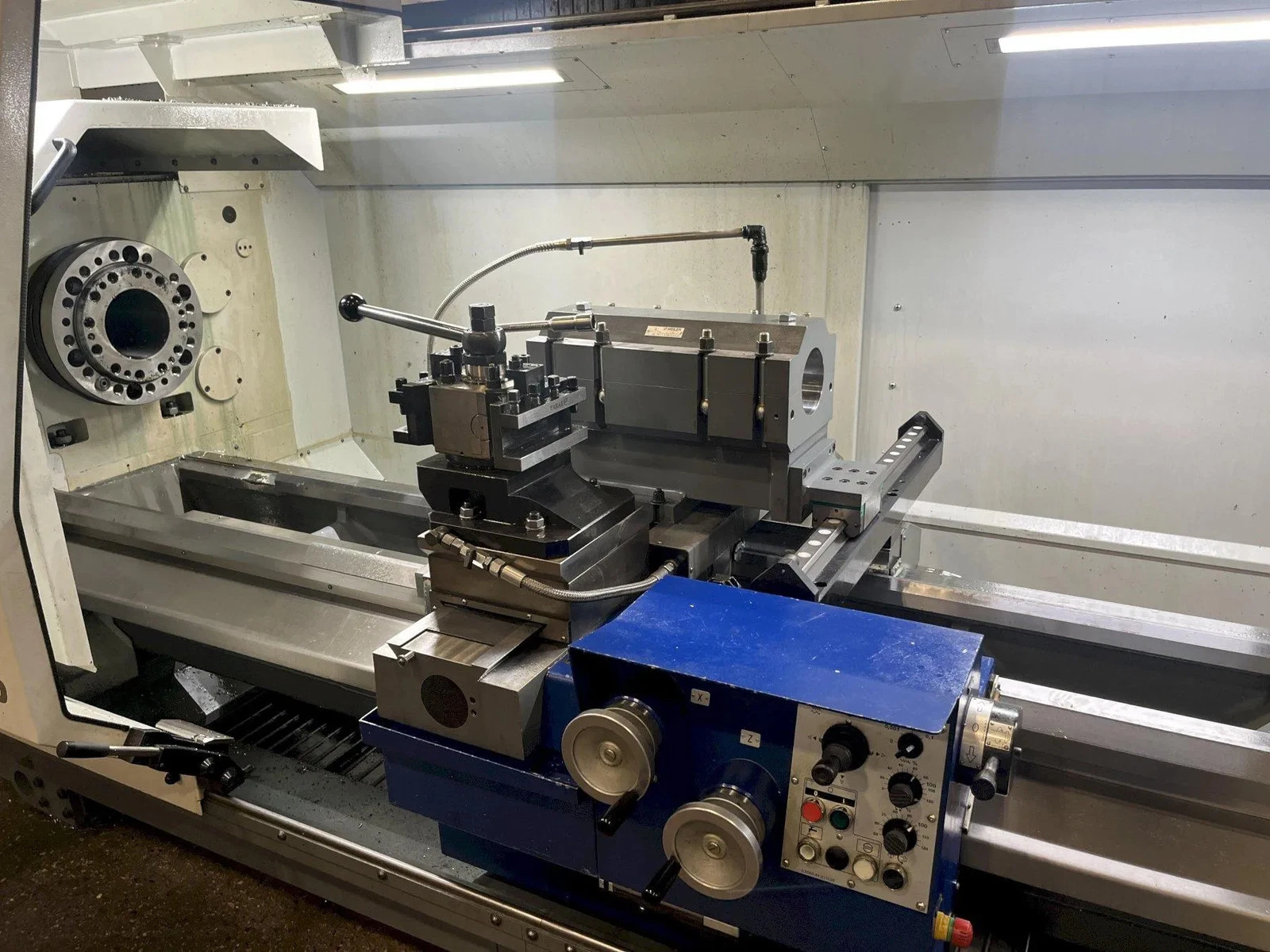

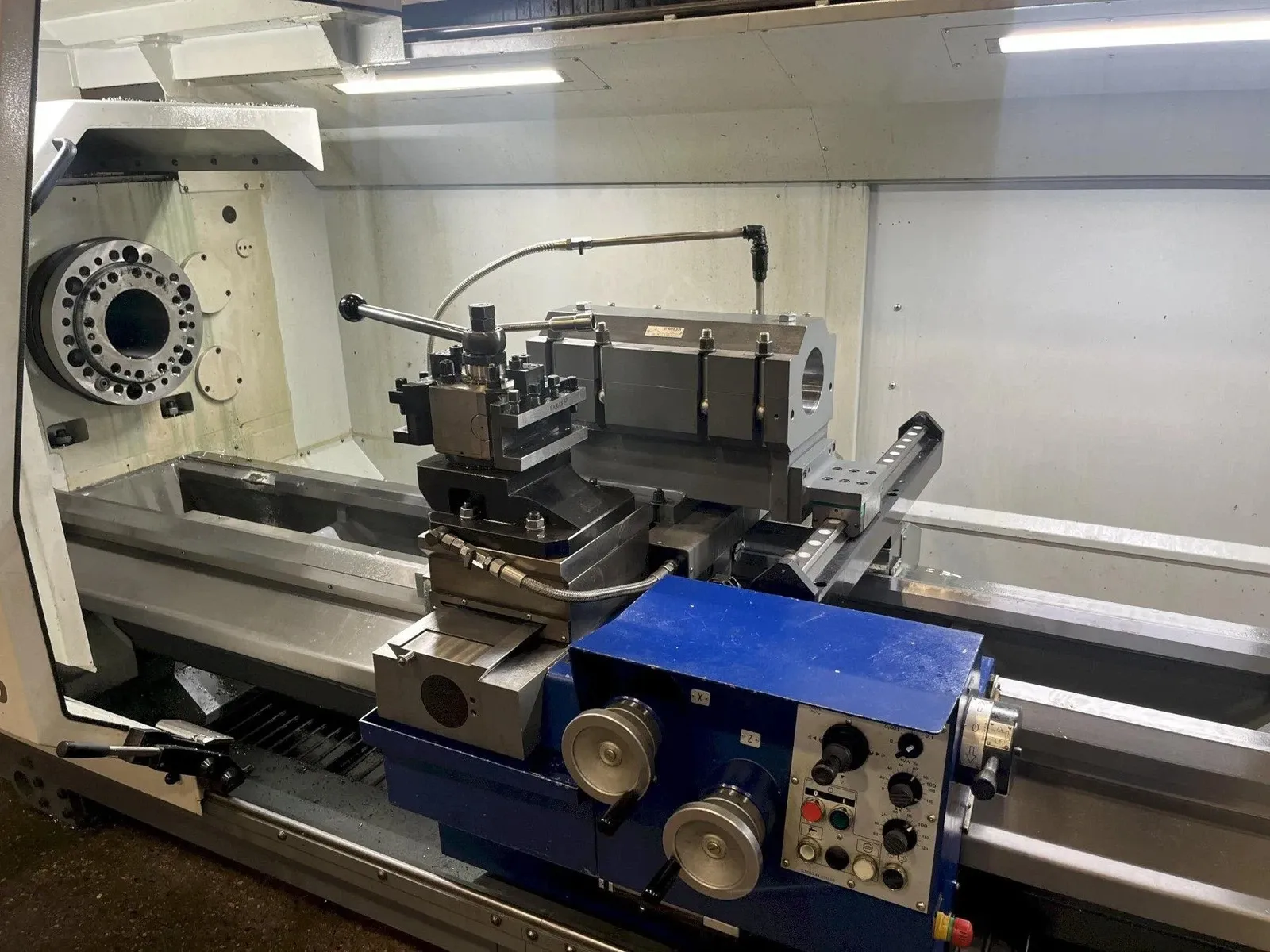

| Parat Quick Change Tool Post With 2 Holders |
| Weiler Boring Bar Holder |
| Coolant Tank |
| Chip Conveyor |
| Capacity: |
|---|
| Max Swing Over Bed : 34.0″ |
| Max Swing Over Cross Slide: 20.0″ |
| Bed Width: 18.90″ |
| Distance Between Centers : 177.17″ |
| Travels: |
|---|
| X Axis Travel (Cross Slide): 16.14″ |
| Z Axis Travel (Longitudinal) : 177″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 197 IPM |
| Rapid Traverse Z Axis: 394 IPM |
| Spindle: |
|---|
| Spindle Bore: 6.5″ |
| Spindle Speed: 1 – 1800 RPM |
| Spindle Motor: 48 HP |
| Tailstock: |
|---|
| Taper: MT-6 |
| Quill Diameter: 5.51″ |
| General: |
|---|

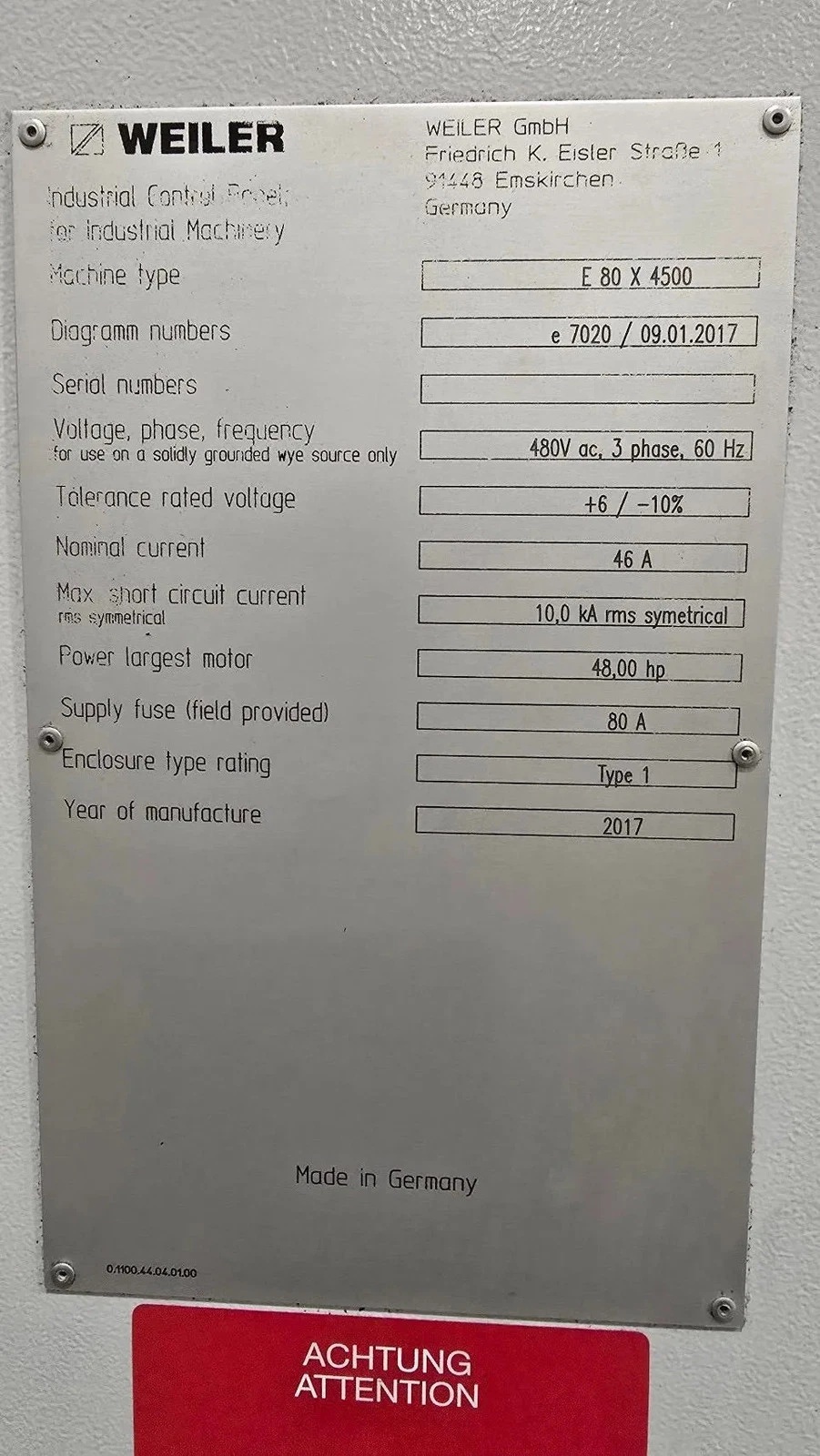

| Power Requirement: 480v / 3 phase / 60 Hz |
| Machine Weight: 20,000 lbs. Approx. |
