*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Olympia |
| Model: |
V60 |
| Year of Manufacture: |
2000 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Vertical Turning Lathe |
| CNC Control: |

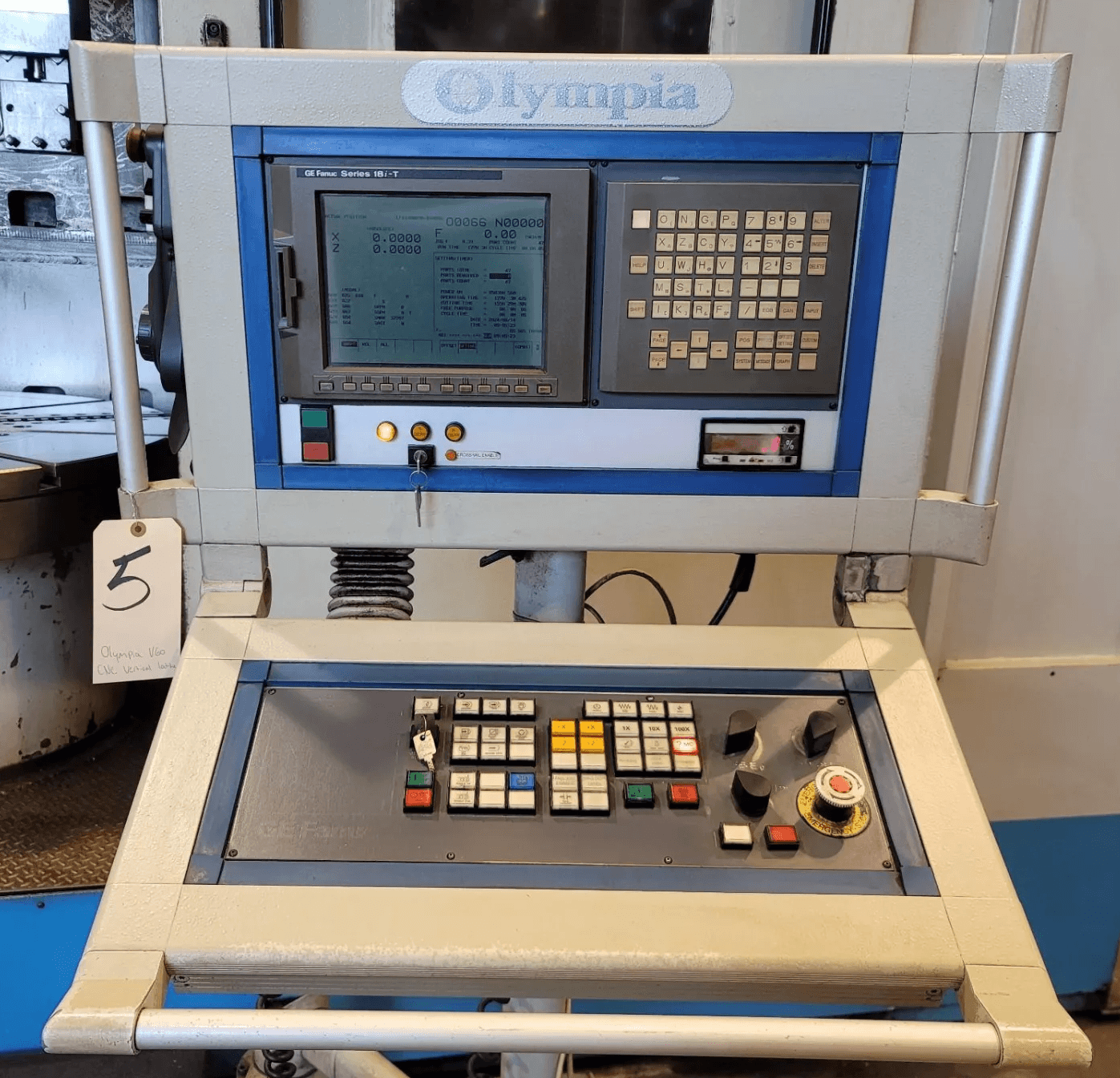

Fanuc Series 18i-T CNC Control |
| Equipped With: |
| Fanuc 18i-T CNC Control |
| 66″ Built-In 4-Jaw Chuck |
| 12-Position Automatic Tool Changer with Tool Blocks |
| Rear Discharge Chip Conveyor |
| Coolant System |
| Full Machine Enclosure |
| Sets of Chuck Jaws |
| Tooling Cabinet with Contents |
| Capacity: |
| Chuck Size: 66″ |
| Maximum Turning Diameter: 72″ |
| Maximum Turning Height: 84″ |
| Spindle / Table: |
| Main Spindle Motor: 80 HP |
| Maximum Table Speed: 450 RPM |
| Drive Type: Heavy-Duty Gear Driven Table |
| Travels: |
| X-Axis Travel: Approx. 40″ – 60″ (Typical for V60 Class) |
| Z-Axis Travel: Approx. 60″+ (to accommodate 84″ height) |

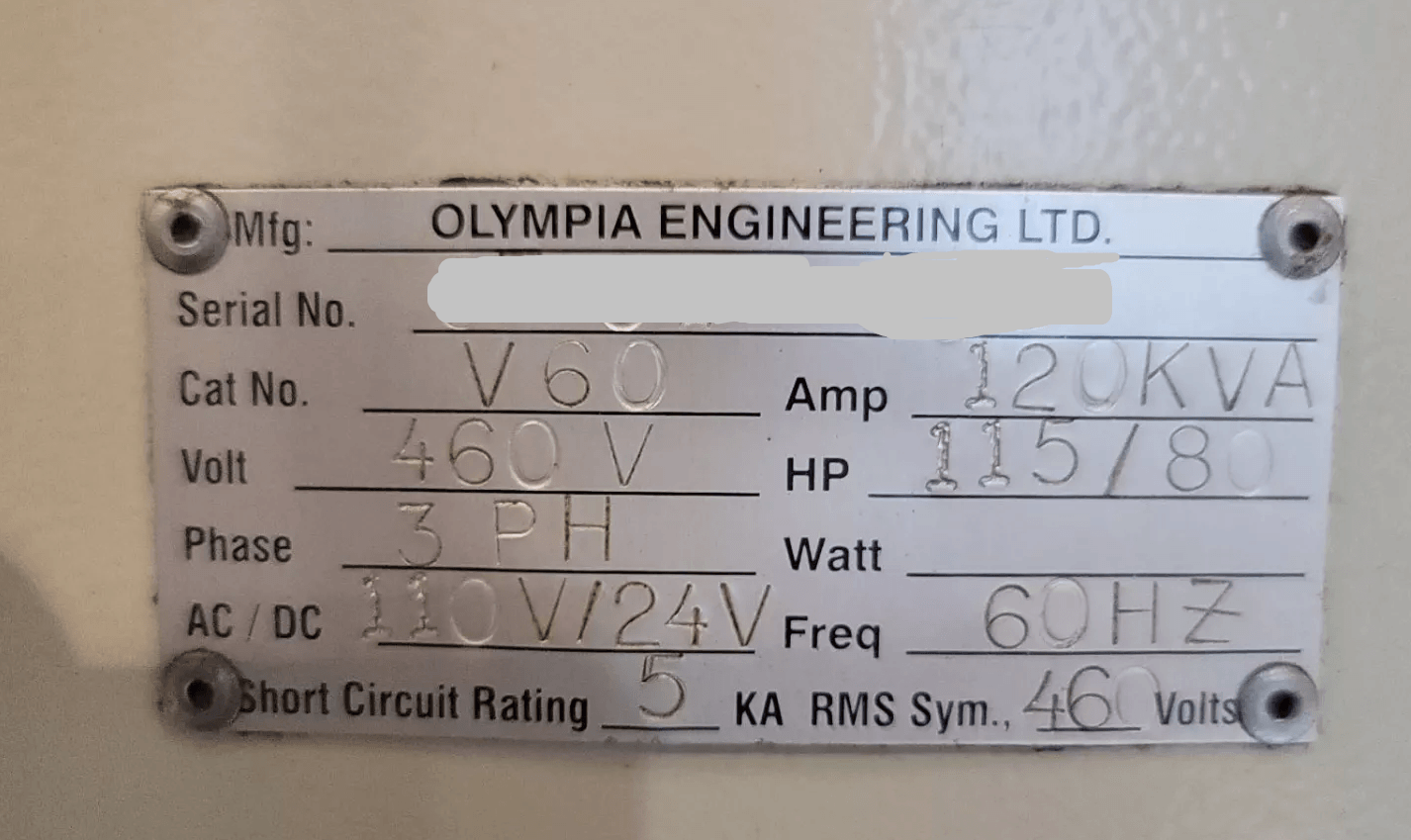

| Electrical: |
| Voltage: 460V |
| Phase: 3-Phase |
| Frequency: 60 Hz |
| Rated Capacity: 120 kVA |
| General: |
| Machine Type: Large Floor-Type Vertical Lathe |
| Machine Weight: Estimated 40,000+ lbs |
| Features: |
| Heavy-duty VTL designed for large diameter components |
| High torque 80 HP spindle for aggressive cutting |
| Large 66″ chuck ideal for big castings and rings |
| 12-position ATC improves productivity vs manual tool change |
| Full enclosure with chip management system |
| Excellent for oil & gas, power generation, aerospace, and heavy equipment industries |
