*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

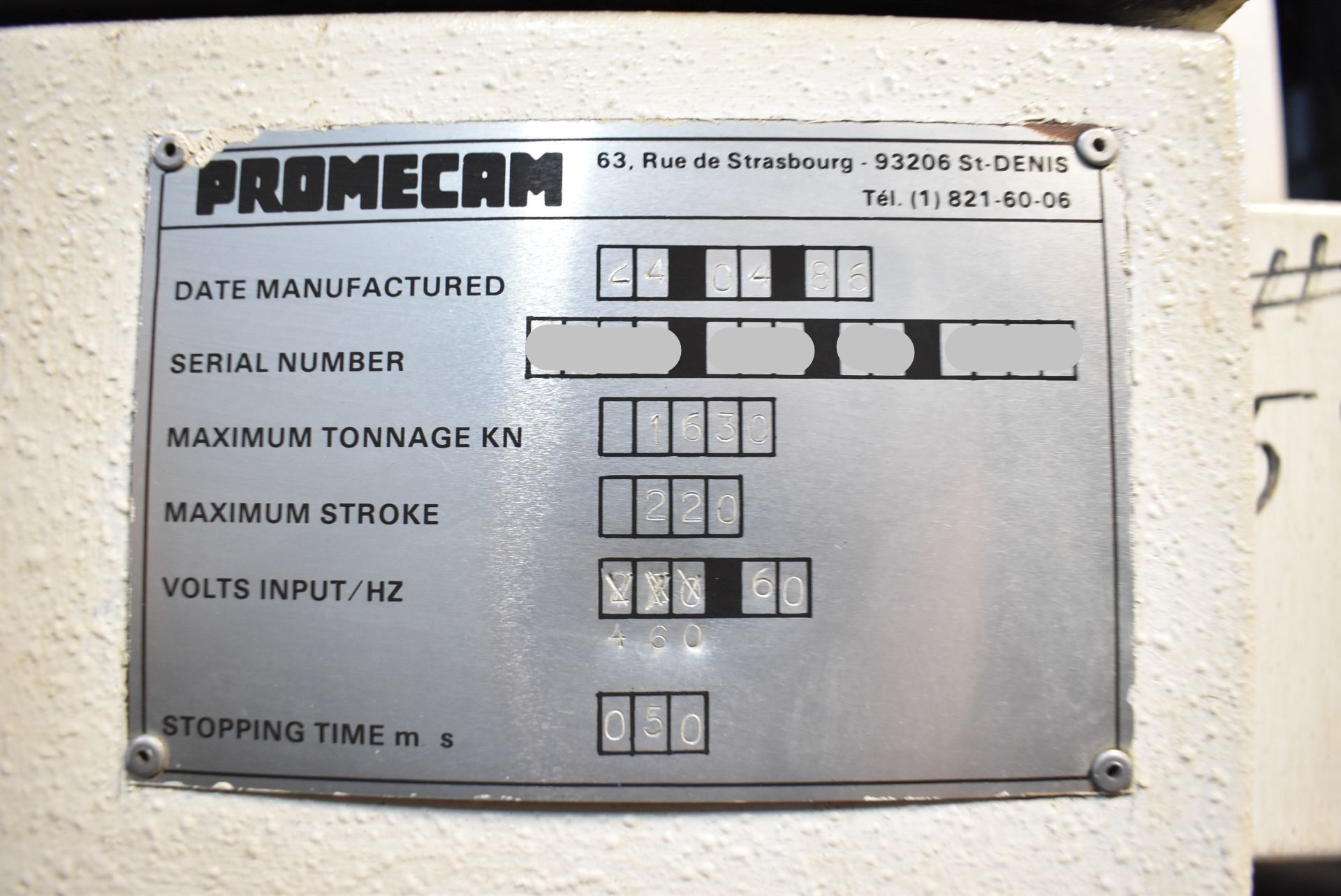

| Make: | Promecam |
| Year: | 1996 |
| Condition: | Used – Good |

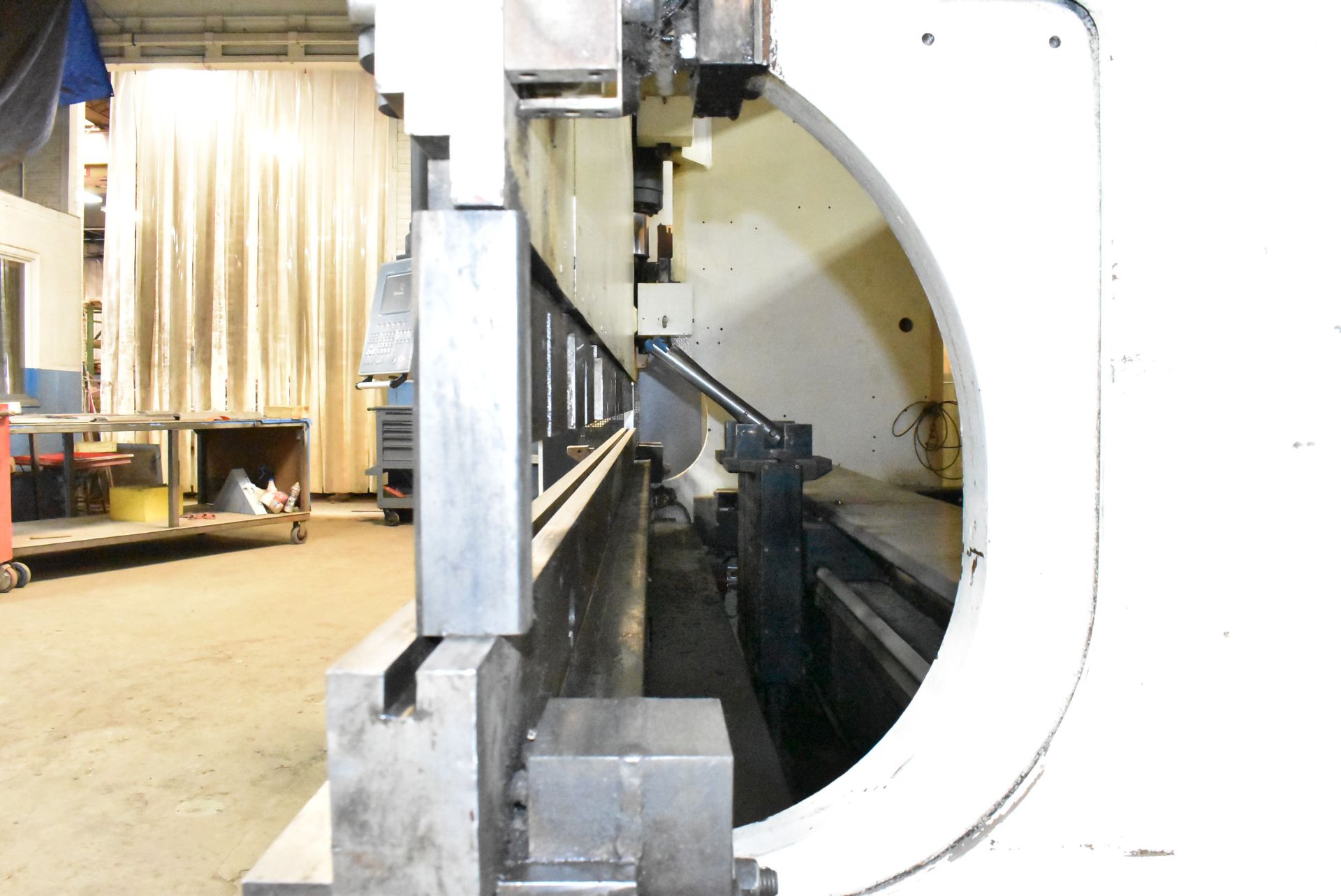

| Machine Type: | CNC Hydraulic Press Brake |
| Country of Origin: | France |
| CNC Control: | Cybelec DNC 880C |
| Machine Overview: |
|---|
- European CNC Hydraulic Press Brake
- Designed for Precision Sheet Metal Bending
- Heavy-Duty Industrial Forming Machine
- Suitable for Job-Shop & Production Environments
|
| Capacity & Performance: |
|---|
- Maximum Bending Force: 1,630 kN (Approx. 160–163 Tons)
- Maximum Stroke: 220 mm (Approx. 8.7″)
- Bending Length: Approx. 4,000 mm (157″)
- Stopping Time: 0.50 Seconds
|

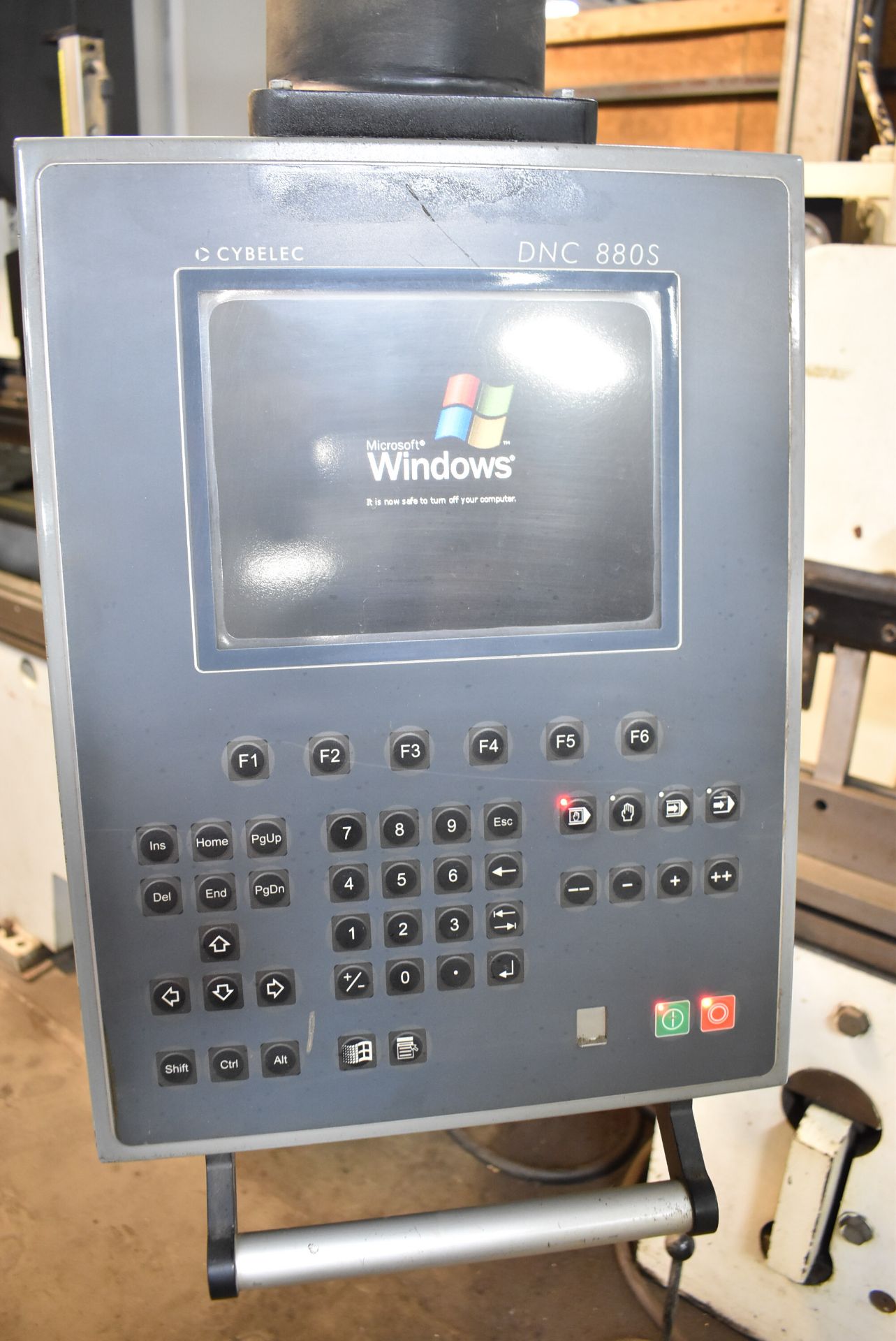

| CNC Control – Cybelec DNC 880C: |
|---|
- CNC Press Brake Control – Industrial PC Platform
- Windows-Based Operating System (Embedded / XP Generation)
- Angle-Based & Depth-Based Programming
- 2D Graphical Bending Simulation
- Automatic Bend Sequence Calculation
- Automatic Spring-Back Compensation
|
| Axis Configuration: |
|---|
- Standard Axes: Y1 / Y2 (Synchronized Ram Cylinders)
- X-Axis: CNC Backgauge
- Optional Axes: R, Z1, Z2 (Machine Dependent)
- Closed-Loop Control with Linear Scale Feedback
|
| Tooling & Bend Management: |
|---|
- Upper Punch & Lower Die Library
- Tool Segmentation Support
- Automatic Tool Height Calculation
- Tool Collision & Safety Checking
- Multi-Tool Setup Capability
|
| Machine Functions: |
|---|
- Automatic Ram Positioning
- Automatic Backgauge Positioning
- Manual & Automatic Operation Modes
- Inch / Metric Selection
- Diagnostic Monitoring & Error Logging
|
| Electrical Specifications: |
|---|
- Power Supply: 460V / 3-Phase / 60 Hz
- Industrial PLC-Integrated CNC System
- Hydraulic System Interface with Overload Protection
|
| Safety & Monitoring: |
|---|
- Ram Synchronization Monitoring
- Position Error Detection
- Overload Protection
- Emergency Stop Integration
- Safety Interlock Supervision
|
| Typical Applications: |
|---|
- CNC Hydraulic Press Brake Bending
- Sheet Metal Fabrication
- Structural & Heavy Plate Forming
- Job-Shop and Production Environments
|
| Key Selling Highlights: |
|---|
- 160-Ton Class European Press Brake
- Proven Cybelec DNC 880C CNC Control
- Accurate Y1 / Y2 Ram Synchronization
- Graphical CNC Bending with Automatic Compensation
- Ideal for Precision & Heavy-Duty Fabrication
|
