*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Southwestern Industries |
| Model: | TRAK 1840 |
| Year: | 2011 |
| Machine Type: | CNC Turning Center |
| CNC Control: | ProtoTRAK LX3 CNC Control |

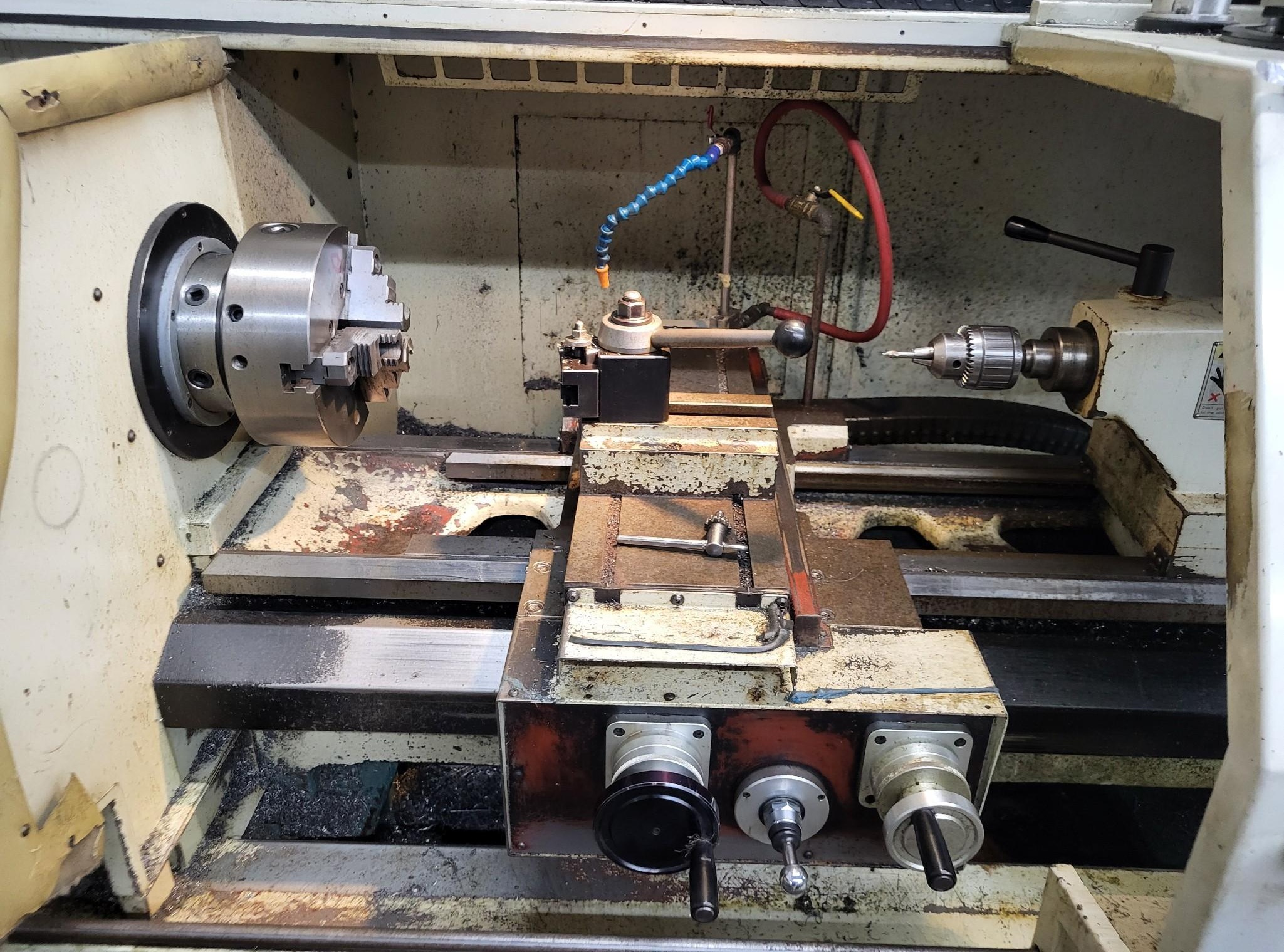

| Equipped With: |
|---|
| ProtoTRAK LX3 CNC Control |
| 3-Jaw Chuck |
| Manual Tailstock |
| Quick-Change Tool Post |
| Tool Holders |
| Coolant System |
| Auto Lubrication System |
| Full Enclosure |
| Chip Pan |
| Work Light |
| Capacity: |
|---|
| Swing Over Ways: 18.5″ |
| Swing Over Saddle Wings: 17.0″ |
| Swing Over Cross Slide: 9.0″ |
| Maximum Center Distance: 40.2″ |
| Center Height: 9.0″ |
| Tool Section Maximum: 1″ × 1″ |
| Coolant Capacity: 13 gal. |
| Travels: |
|---|
| Cross Slide Travel: 13.0″ |
| Spindle: |
|---|
| Spindle Drive: 10 HP |
| Spindle Nose: D1-6 Camlock |
| Spindle Through Hole: 2.36″ |
| Spindle Taper: MT-6 |
| Taper Reduction Sleeve: MT-4 |
| Spindle Diameter at Front Bearing: 3.35″ |
| Spindle Speed Range — Low: 50–270 RPM |
| Spindle Speed Range — Medium: 150–850 RPM |
| Spindle Speed Range — High: 450–2,500 RPM |
| Tailstock: |
|---|
| Tailstock Quill Travel: 6.3″ Manual |
| Tailstock Quill Diameter: 2.95″ |
| Tailstock Quill Taper: MT-5 |
| General: |
|---|

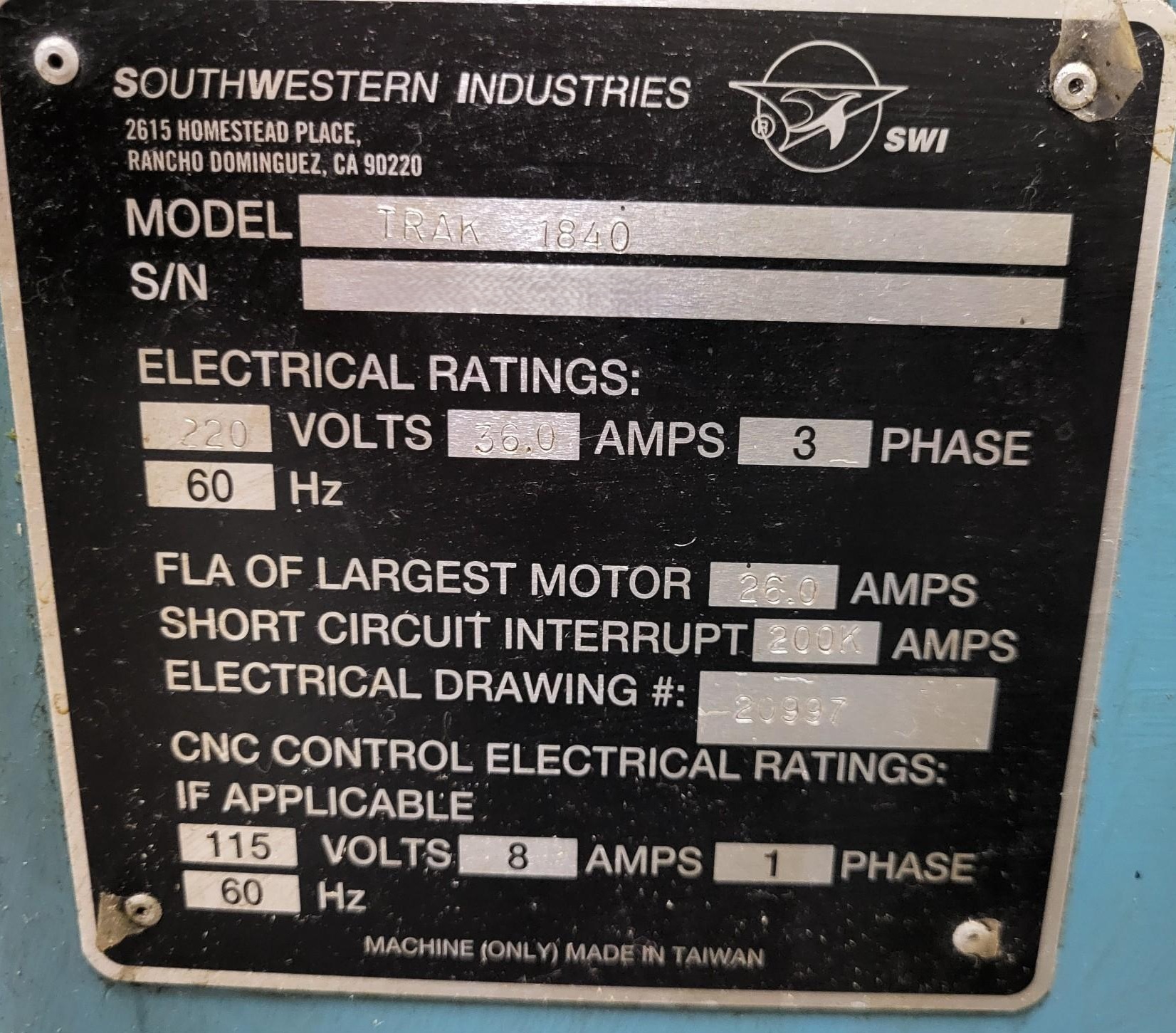

| Power Source: 220V / 3-Phase / 60 Hz |
| Machine Weight (Approx.): 4,500 lbs. |
| Machine Dimensions (Approx.): 113″ L × 53″ W × 67″ H |
