Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

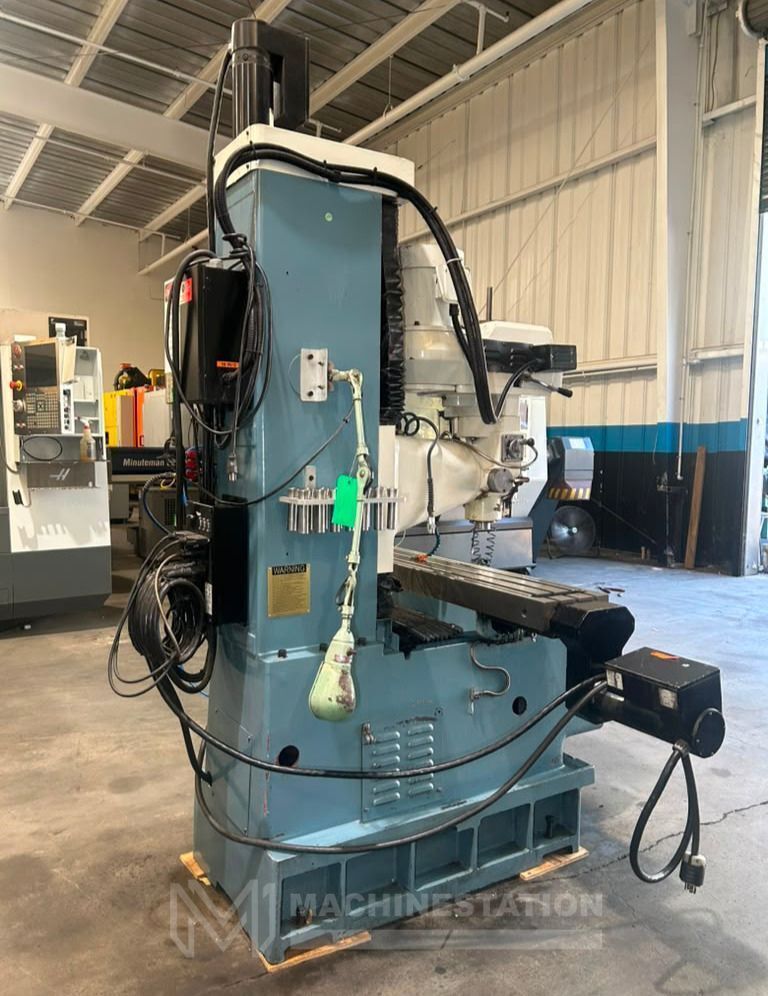

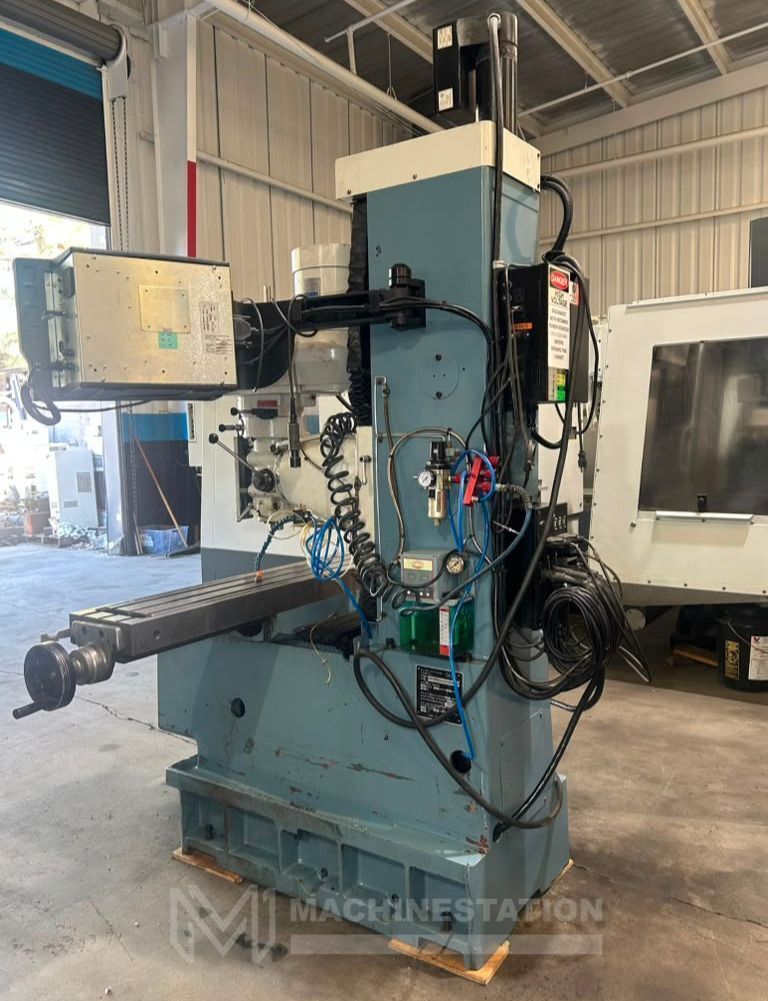

| Make: | Southwestern Industries |

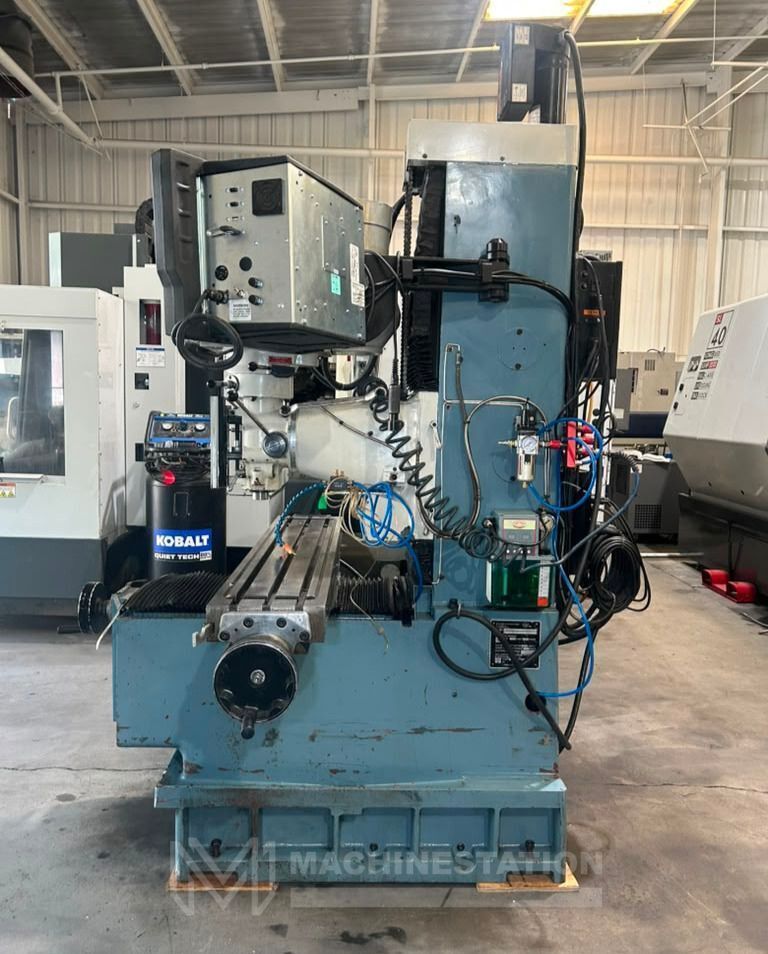

| Model: | TRAK DPM SX2 |
| Features: |
|---|

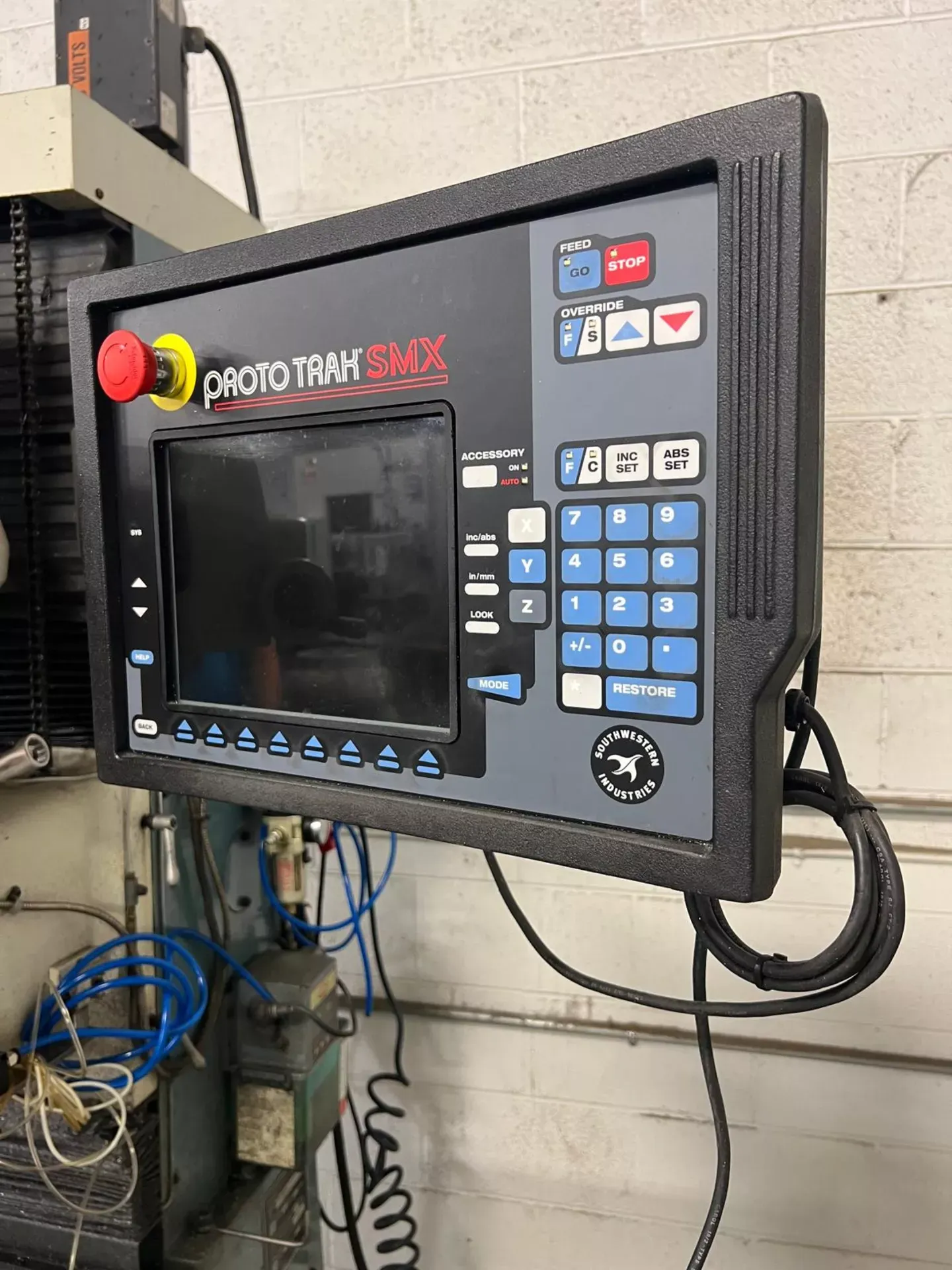

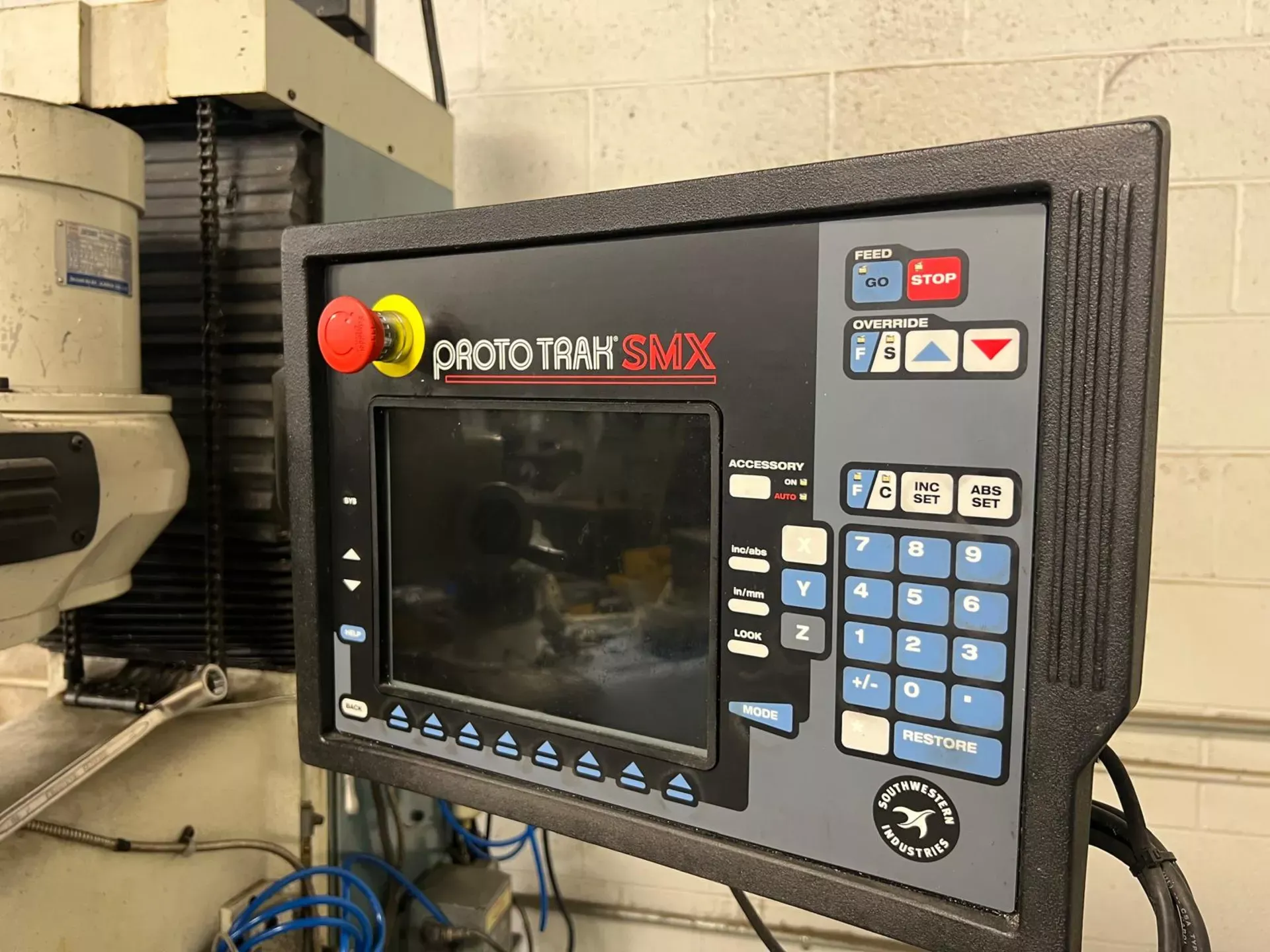

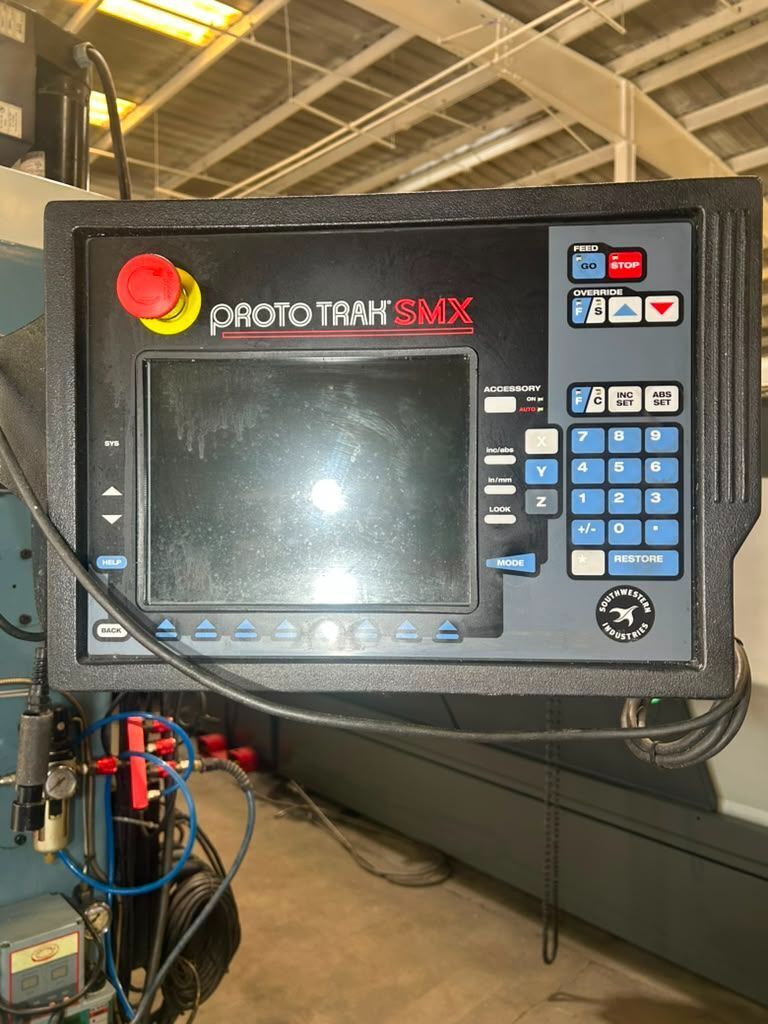

| ProtoTRAK SMX 3-Axis CNC Control |
| Electronic Handwheels |
| Two-Speed Variable-Speed Spindle Head |
| R8 Spindle Taper |
| Manual Quill with Power Feed |

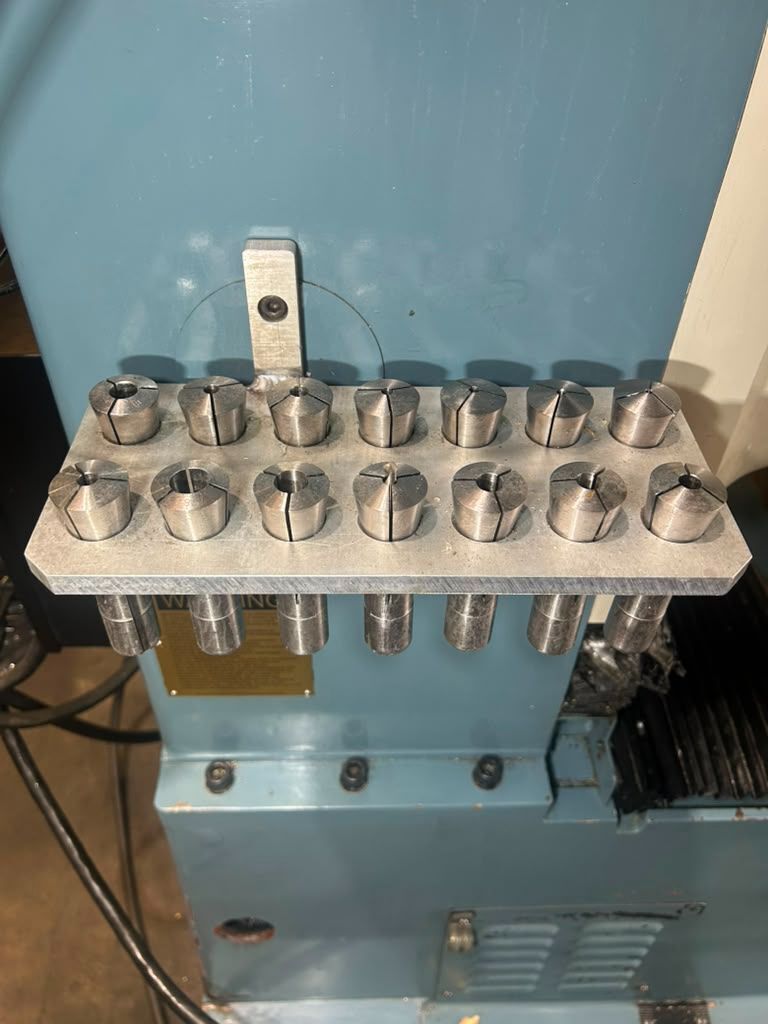

| Collet Set with Holder |

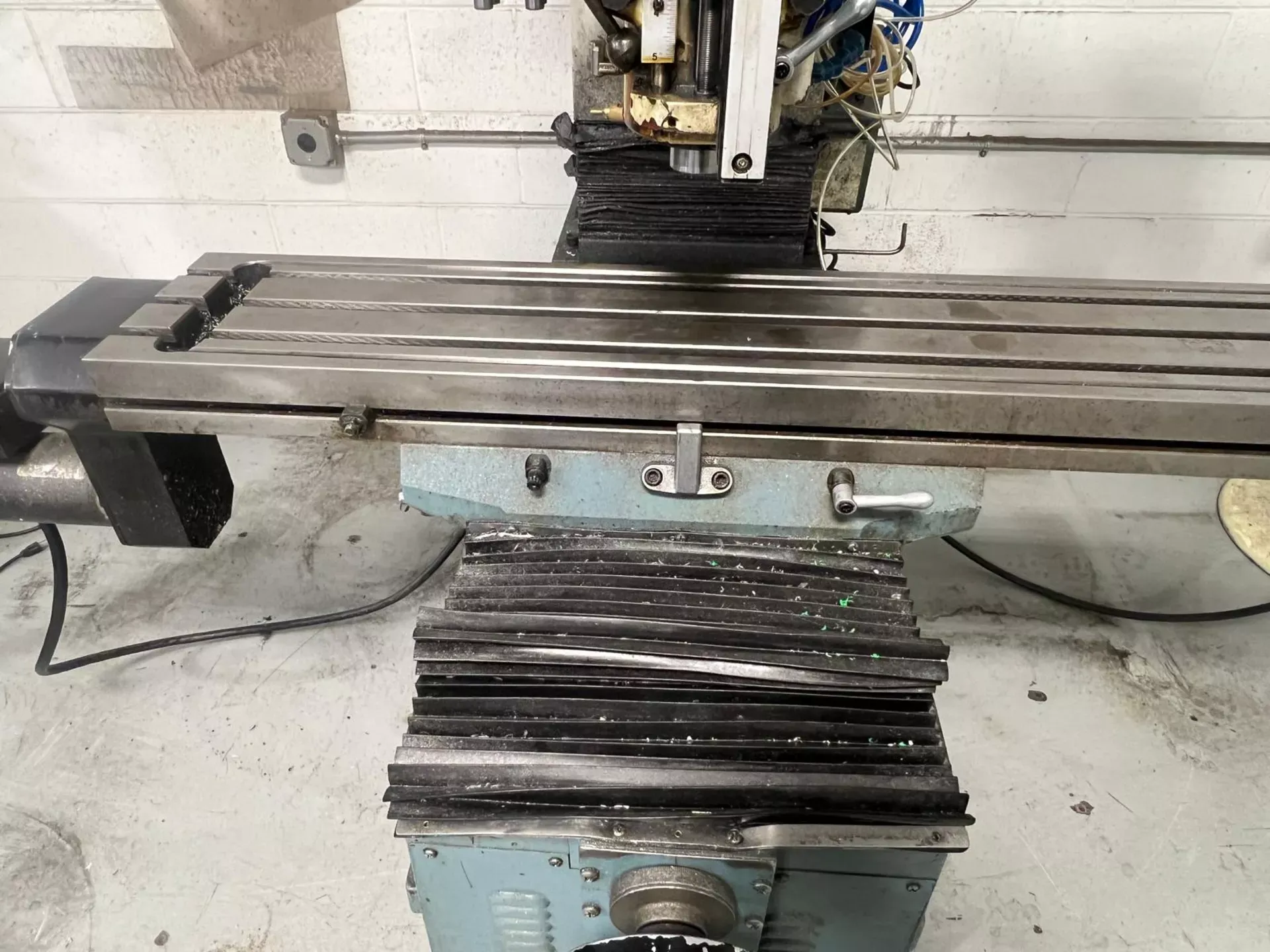

| Table: |
|---|

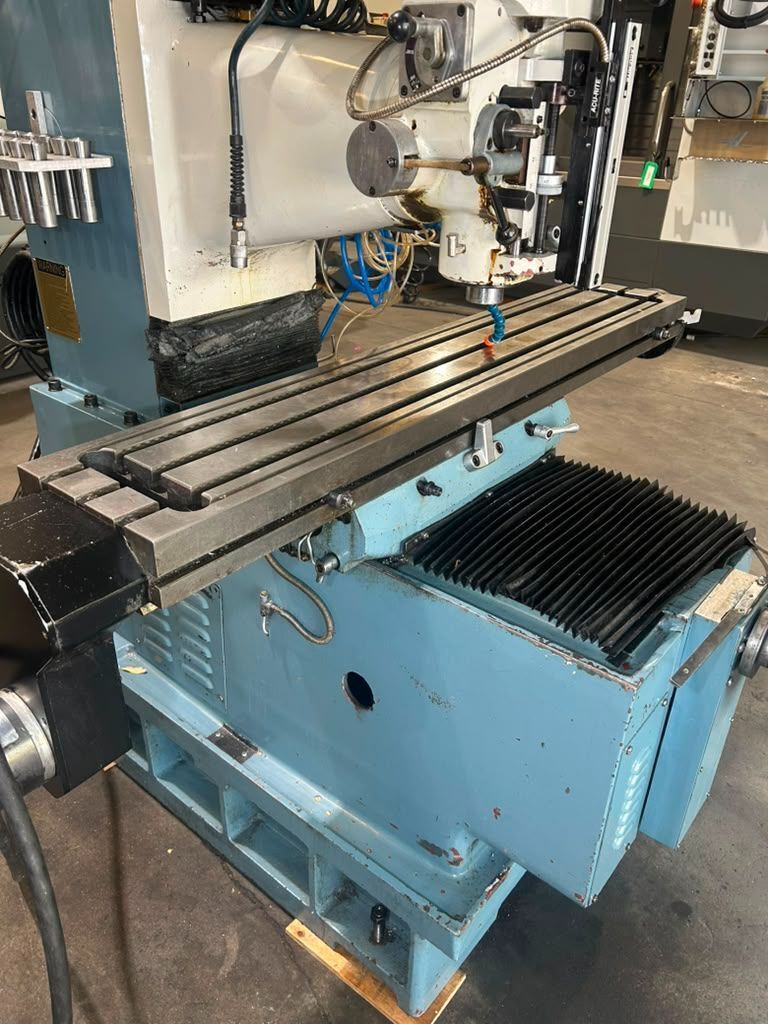

| Table Size: 49.0″ × 9.0″ |
| Number of T-Slots: 3 |
| T-Slot Width: 0.63″ |
| T-Slot Spacing: 2.50″ |
| Maximum Table Load: 1,320 lbs |
| Travels: |
|---|
| X-Axis Travel: 32.0″ |
| Y-Axis Travel: 16.0″ |
| Z-Axis Travel: 23.5″ |
| Maximum Quill Travel: 5.0″ |
| Spindle: |
|---|
| Spindle Taper: R8 |
| Spindle Speed Range: 70 – 4,200 RPM |

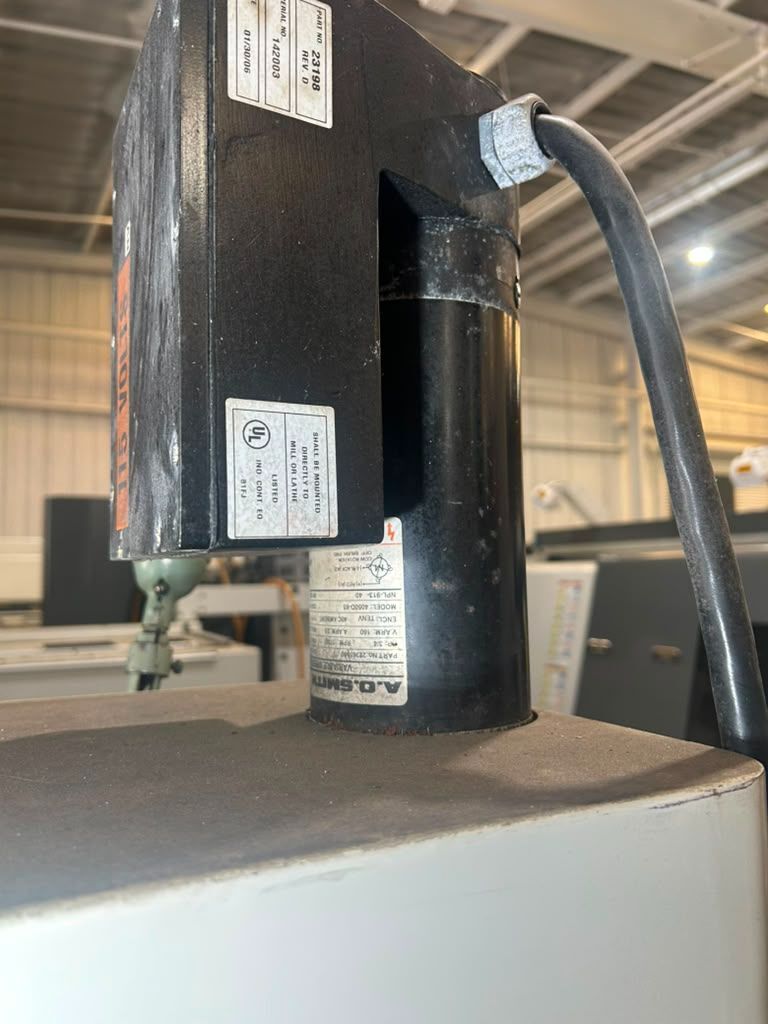

| Spindle Motor: 3 HP |
| Quill Diameter: 3.375″ |
| Spindle Center to Column Face: 18.0″ |
| Maximum Quill Travel: 5.0″ |

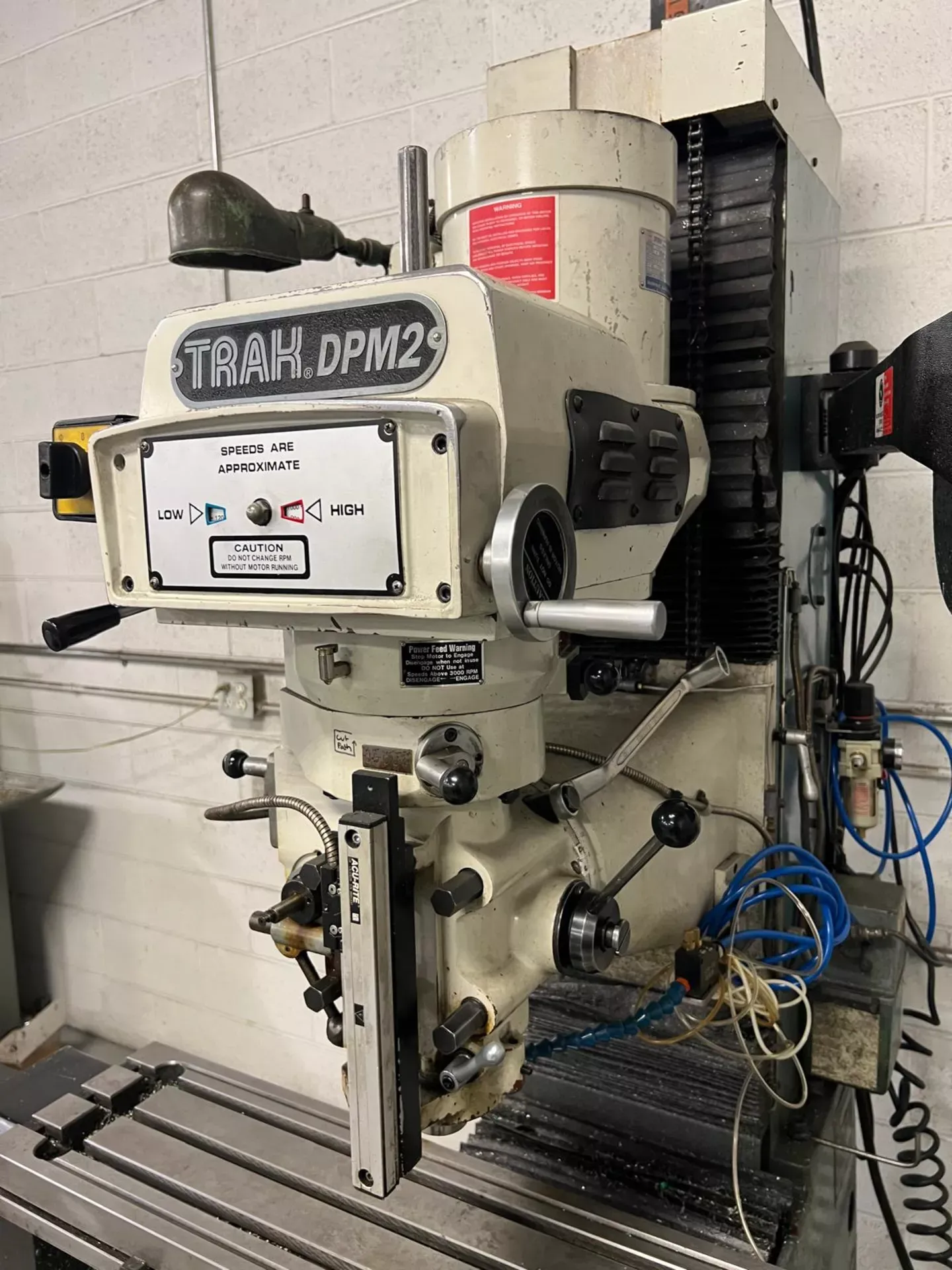

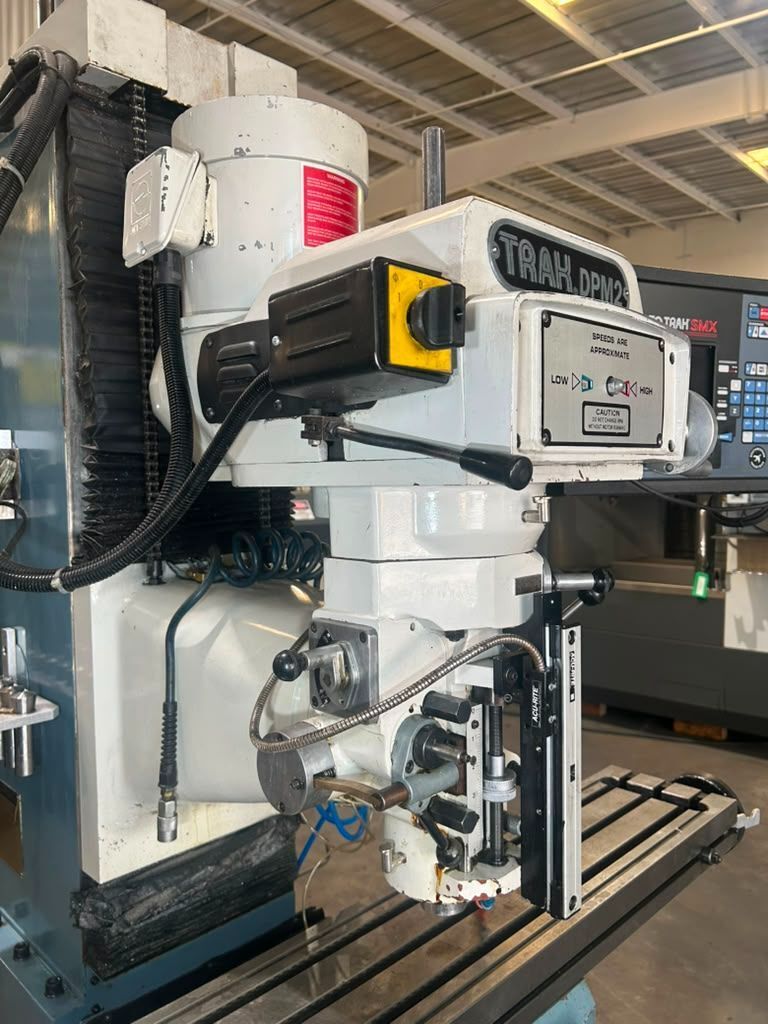

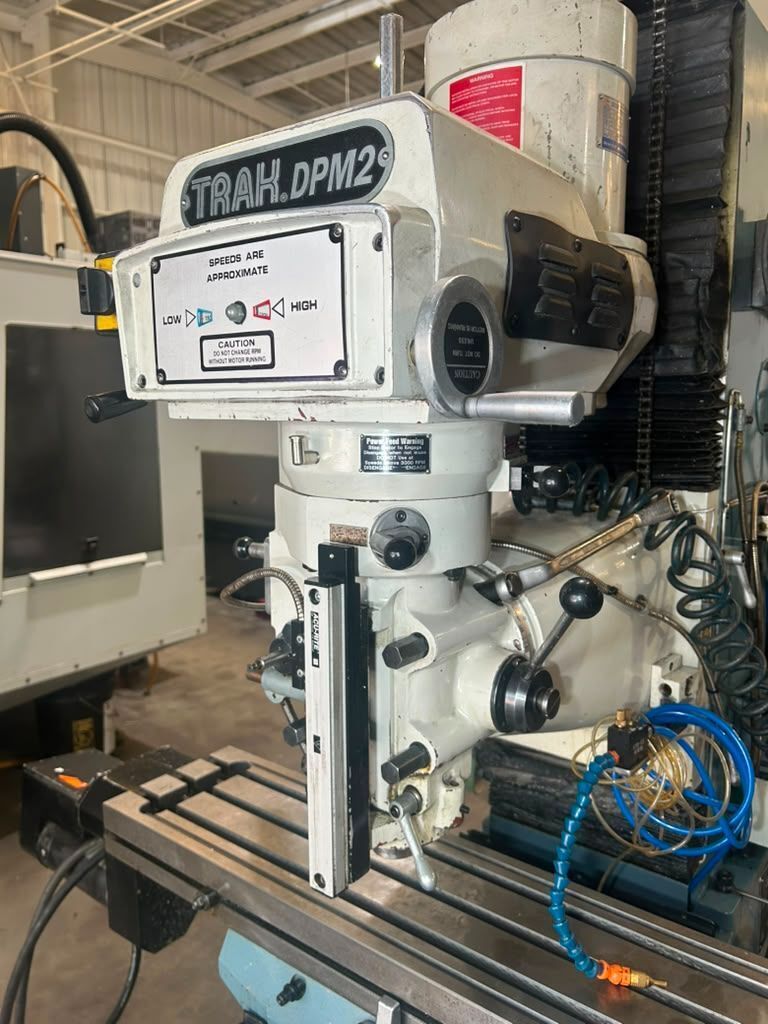

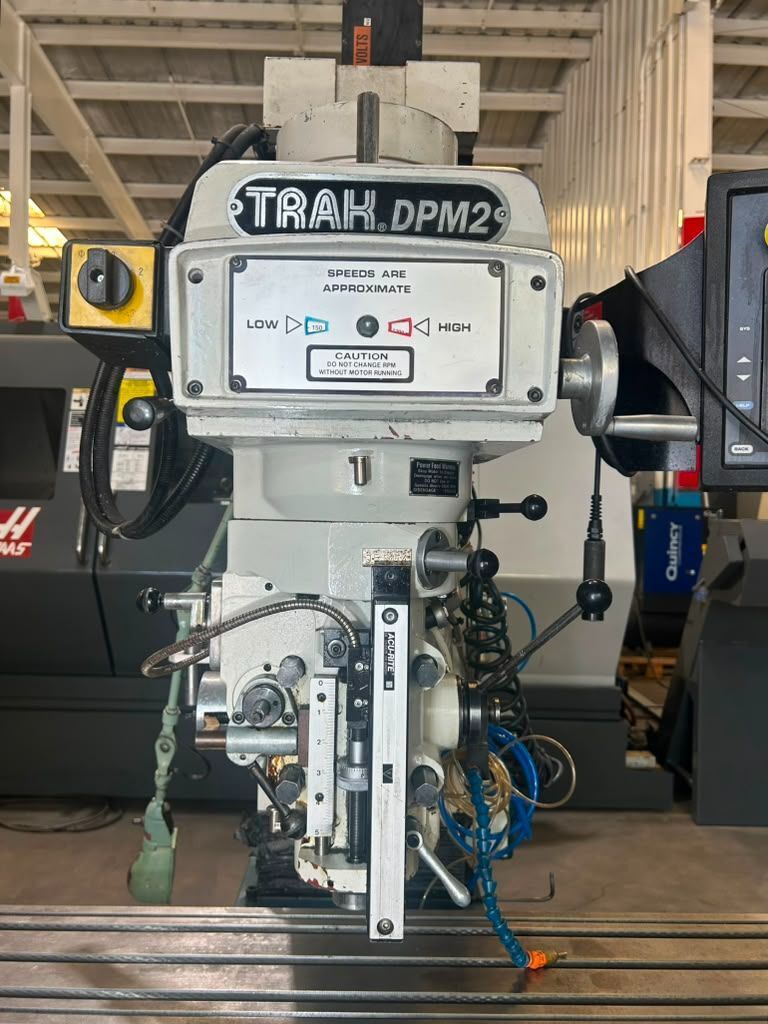

| Two-Speed Variable-Speed Head: Low / High |
| Feedrate: |
|---|
| Rapid Traverse X-Axis: 150 IPM |
| Rapid Traverse Y-Axis: 150 IPM |
| Rapid Traverse Z-Axis: 150 IPM |
| Machining Capacity: |
|---|
| Maximum Drilling Capacity: 1.0″ Diameter |
| Maximum Tapping Capacity: 5/8″ |
| Maximum Table Load: 1,320 lbs |
| General: |
|---|

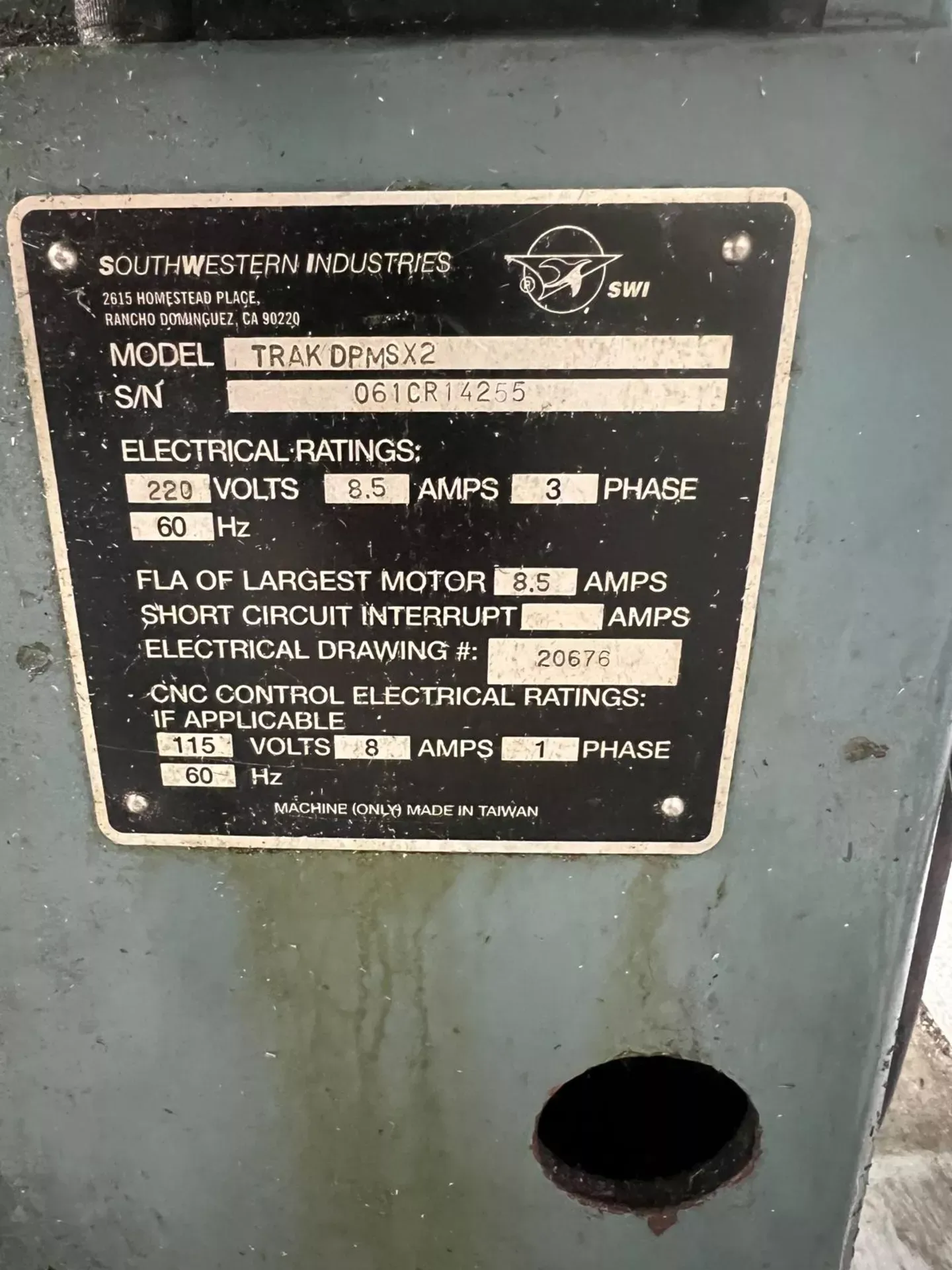

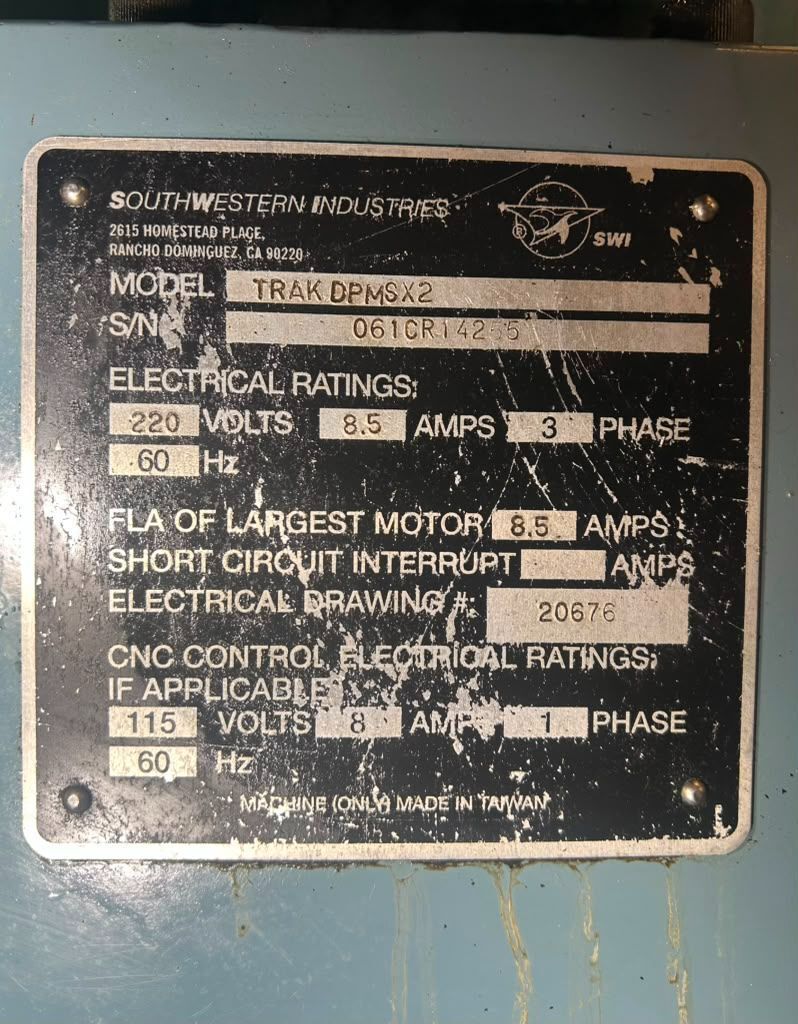

| Electrical Requirement: 220 Volts / 8.5 Amps / 3-Phase / 60 Hz |
| CNC Control Electrical Requirement: 115 Volts / 8 Amps / 1-Phase / 60 Hz |
| Approximate Overall Dimensions: 104″ W × 64″ D × 98″ H |
| Approximate Net Weight: 3,200 lbs |
