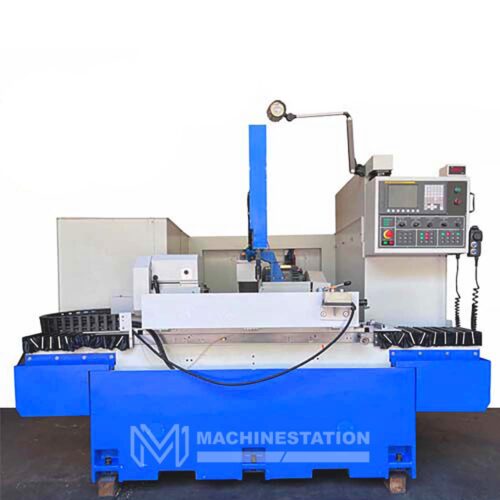

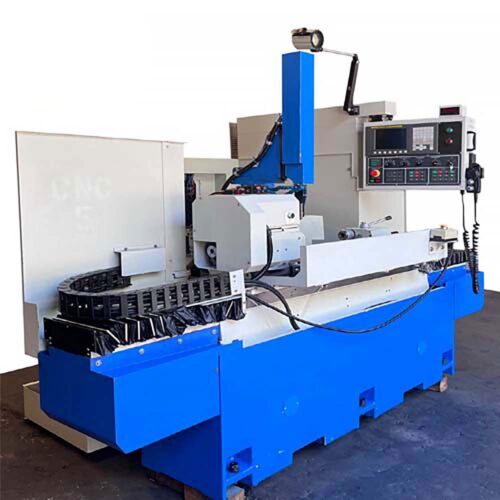

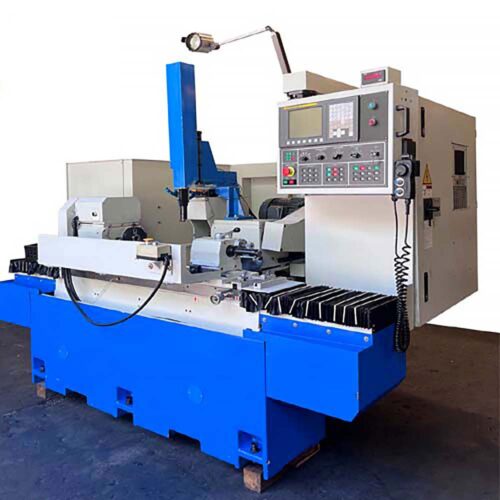

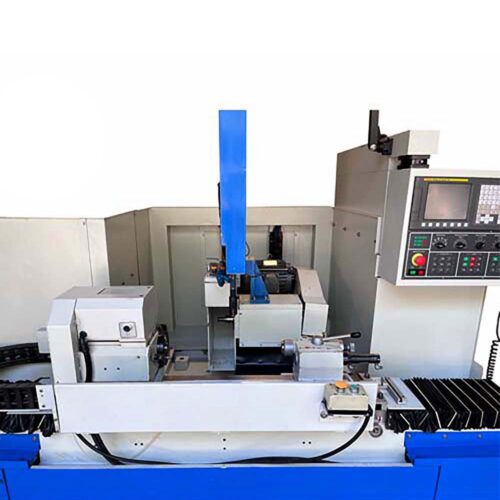

Supertec G20P-50 CNC OD Cylindrical Grinder

SUPERTEC G20P-50 CNC OD CYLINDRICAL GRINDER
SKU	2352
Make	Supertec
Model No.	G20P-50
Serial #	BC14004
Year	2015
Cutting Time:	Hours
Condition:	Very Good

*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*

Equipped With:

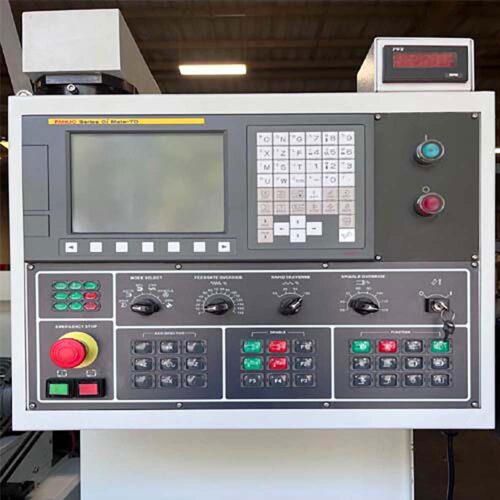

Fanuc Oi-TD Control
Absolute/Incremental Combined Programming
Swivelable Table
MPG Control
PCMCIA Card Port
Sizing Attachment
Inch / Metric Conversion
Stored Stroke Check
Auto Reference Point Return
Automatic Acceleration & Deceleration
Hydraulic Tailstock
Automatic Lubrication system

Grinding Wheel:
Speed: 1940 RPM
Wheel Size: 16″ X 2″ X 5″

Wheelhead:
X Axis Travel Distance: 6″
Swivel Angle: +/- Fixed
Least Travel Increment: 0.0001”
Rapid Feed Rate: 236 IPM
Motor: 5 HP

Tailstock:
Tailstock Quill Stroke: 1″
Tailstock Taper: MT-03

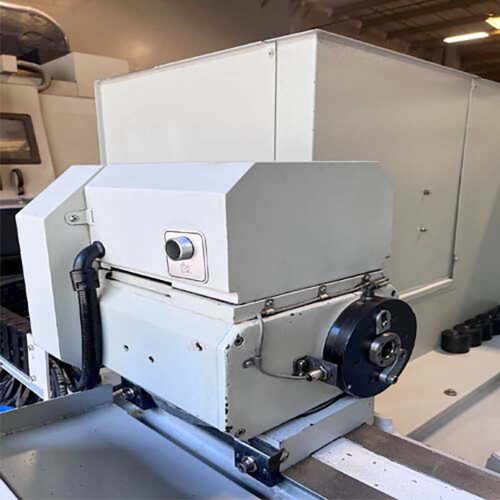

Workhead:
Swivel Angle: Fixed
Center Taper: MT-03
Spindle Bore Dia.: 0.79″
Speed: 50-500 RPM
Motor: 0.5 HP

Specifications:
Max Grinding Diameter: 8″
Max Grinding Length: 18″
Max load Capacity: 176 lbs
Swing Over Table: 8″
Distance Between Centers: 20″

Table:
Z Axis Travel Distance: 18″
Swivel Angle: 0 ~ 7 Degree
Least Travel Increment: 0.0001”
Rapid Feed Rate: 315 IPM

General:
Power Source: AC 230 V, Three Phase, 60 Hz
Power Requirement: 6.5 kva
Overall Dimensions: 110″ x 60″ x 81″ High
Weight: 5500 lbs Approx.

“No Charges for loading at list Price”
