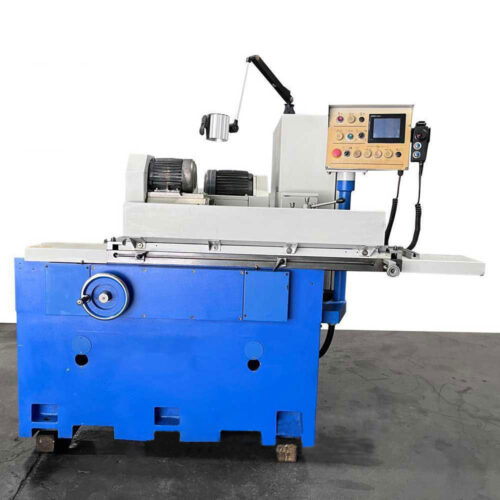

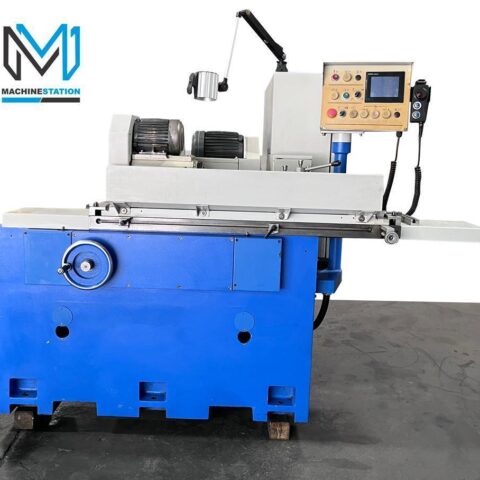

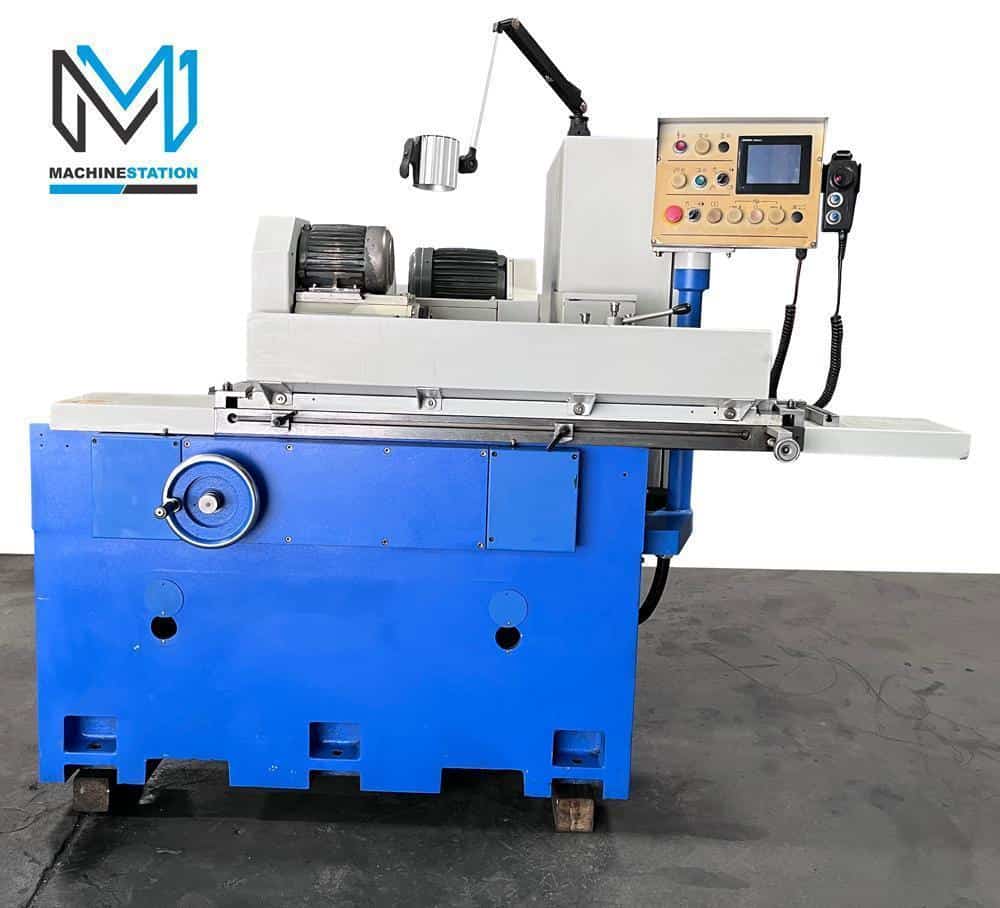

Supertec G20P-50 NC OD Cylindrical Grinder 8″ X 18″

$16,200.00

1 in stock
SKU: 2353
Make/Model: SUPERTEC G20P-50 NC
Video: On Request
SKU: 2353

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: SUPERTEC
Model: G20P-50 NC
Year: 2012
Condition: Used – Good



Equipped With:

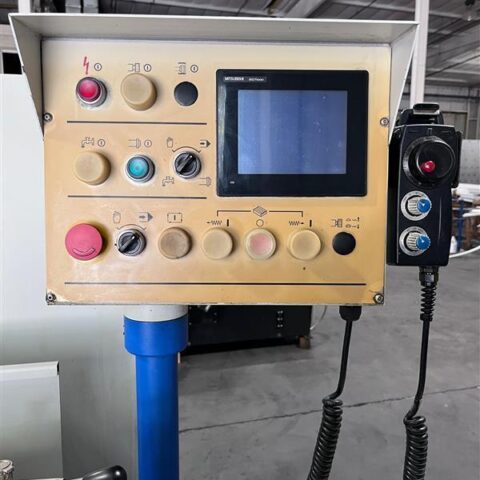

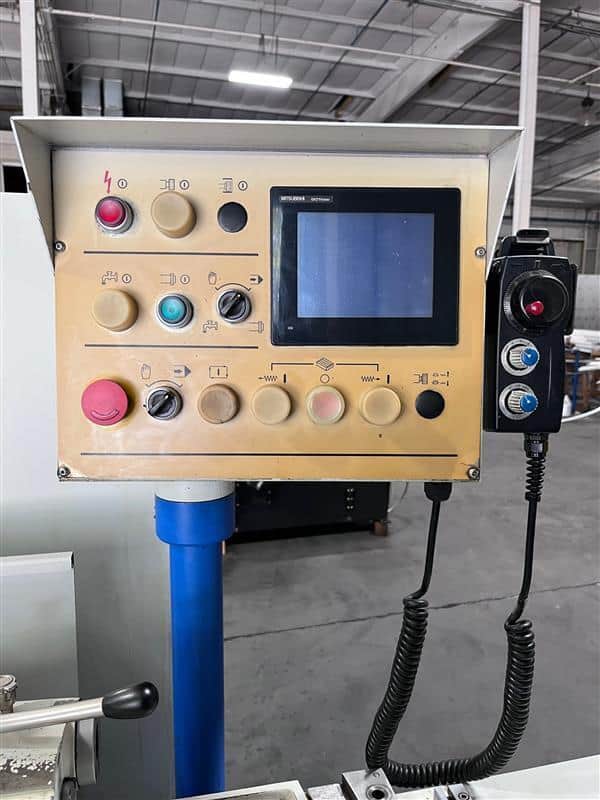

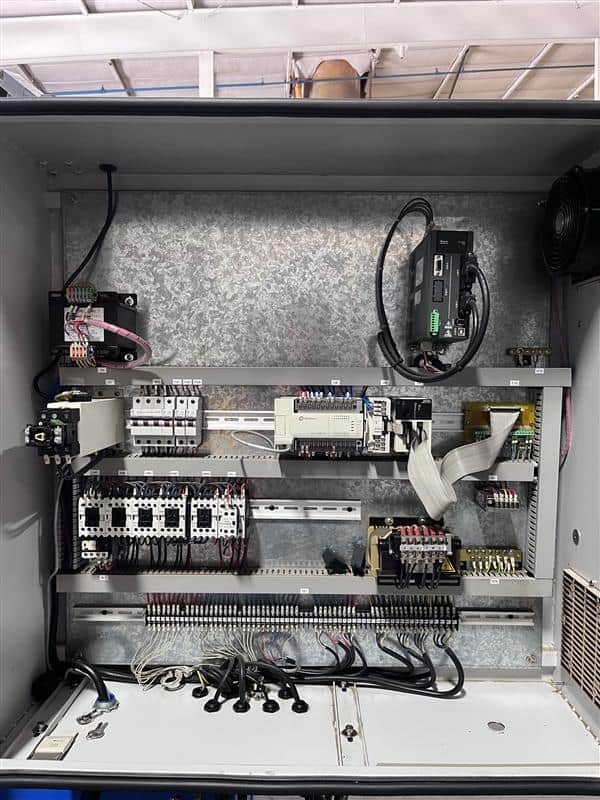

Supertec NC Control
Absolute/Incremental Combined Programming
Swivelable Table
MPG Control
Inch / Metric Conversion
Stored Stroke Check
Auto Reference Point Return
Automatic Acceleration & Deceleration
Work Light
Coolant System

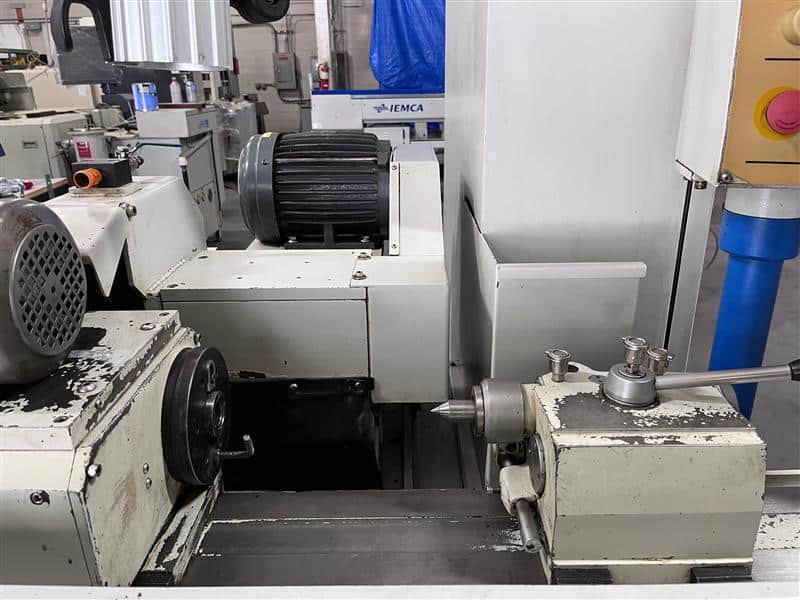

Hydraulic Tailstock
Automatic Lubrication system



Capacity:
Max Grinding Diameter: 8″
Max Grinding Length: 18″
Max load Capacity: 176 lbs
Swing Over Table: 8″
Distance Between Centers: 20″



Grinding Wheel:
Speed: 1940 RPM
Wheel Size: 16″ X 2″ X 5″



Wheelhead:
X Axis Travel Distance: 6″
Swivel Angle: +/- Fixed
Least Travel Increment: 0.0001”
Rapid Feed Rate: 236 IPM
Motor: 5 HP



Workhead:
Swivel Angle: Fixed
Center Taper: MT-03
Spindle Bore Dia.: 0.79″
Speed: 50-500 RPM
Motor: 0.5 HP



Table:
Z Axis Travel Distance: 18″
Swivel Angle: 0 ~ 7 Degree
Least Travel Increment: 0.0001”
Rapid Feed Rate: 315 IPM



Tailstock:
Tailstock Quill Stroke: 1″
Tailstock Taper: MT-03



General:
Power Source: AC 230 V / Three Phase / 60 Hz
Power Requirement: 6.5kva
Overall Dimensions: 82″ x 47″ x 78″ High
Weight: 4700 lbs Approx.
“No Charges for loading at list Price”
