*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

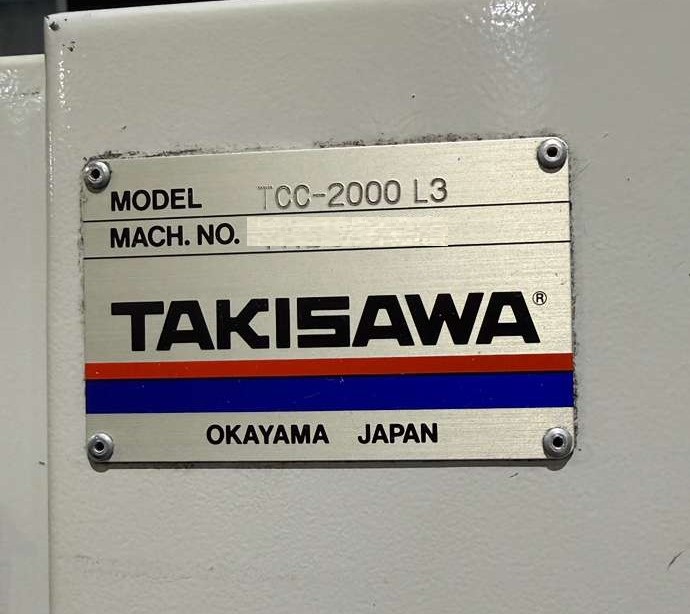

| Make: | Takisawa |
| Model: | TCC-2000 L3 |
| Year: | 2013 |
| Condition: | Used – Good |
| Equipped With: |
|---|

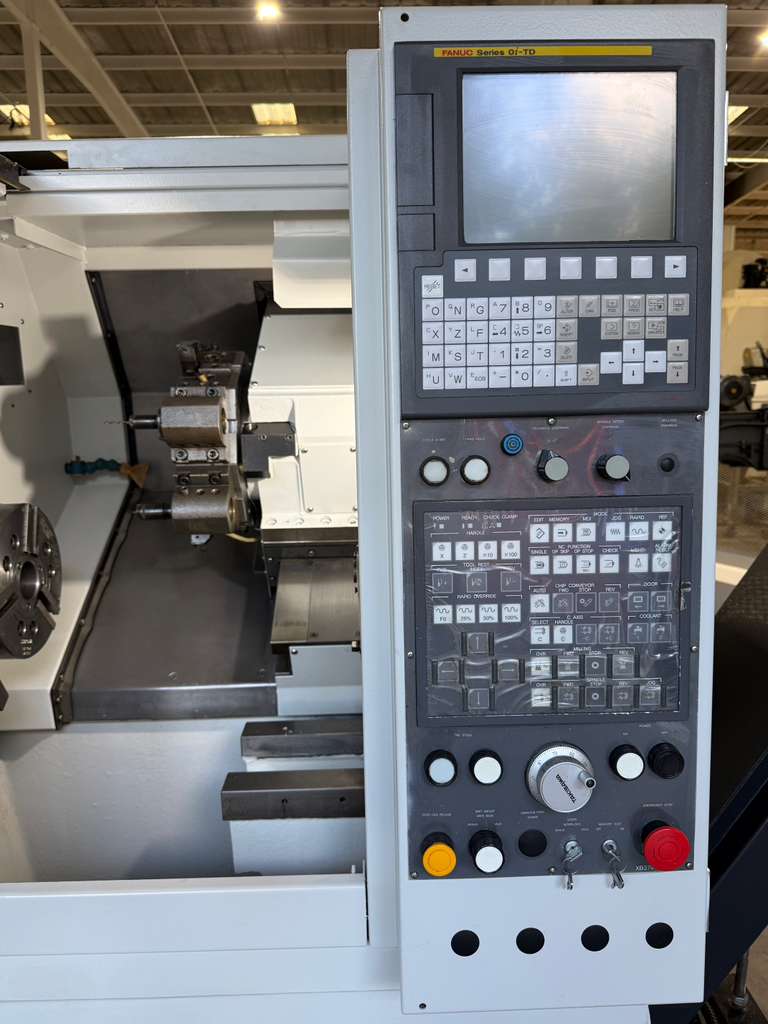

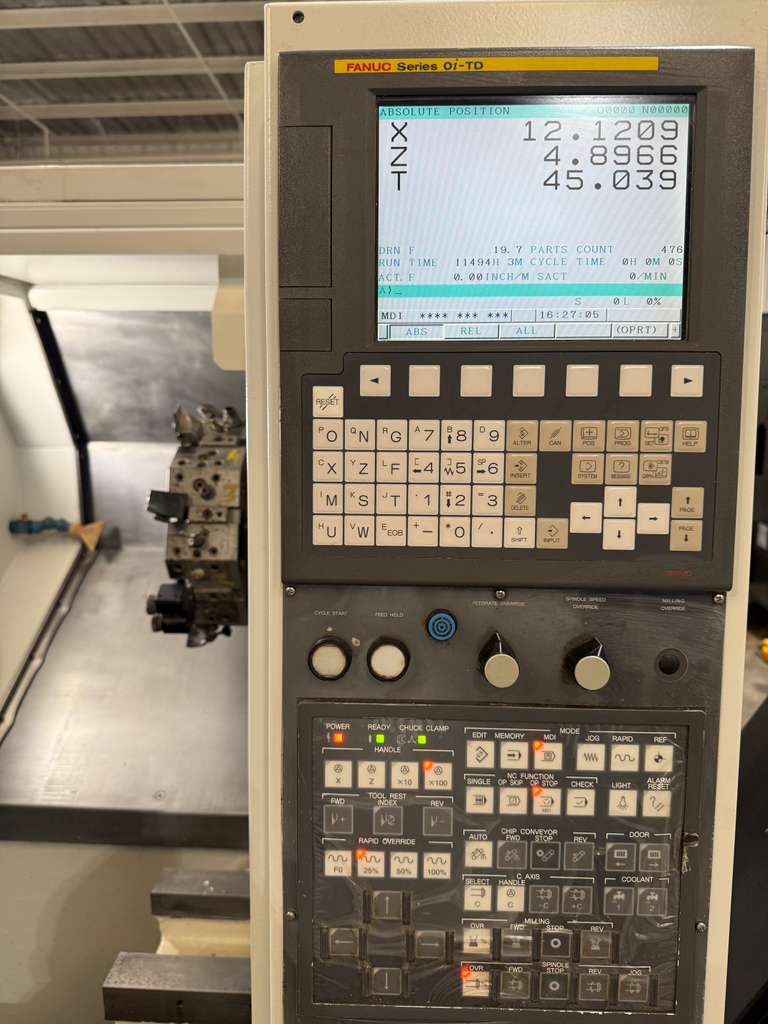

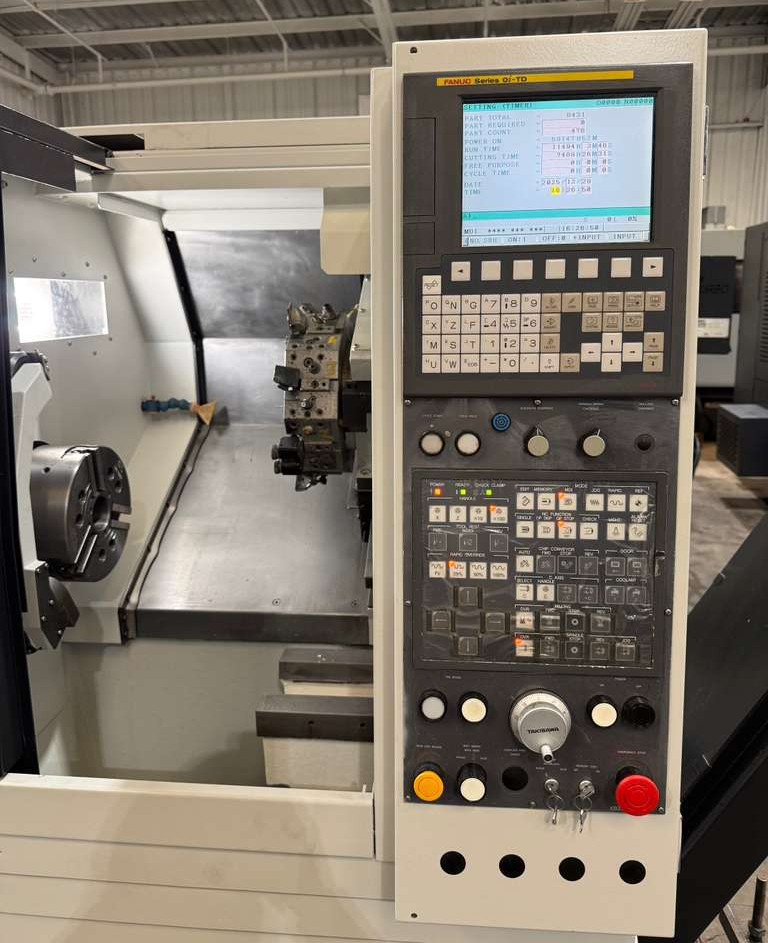

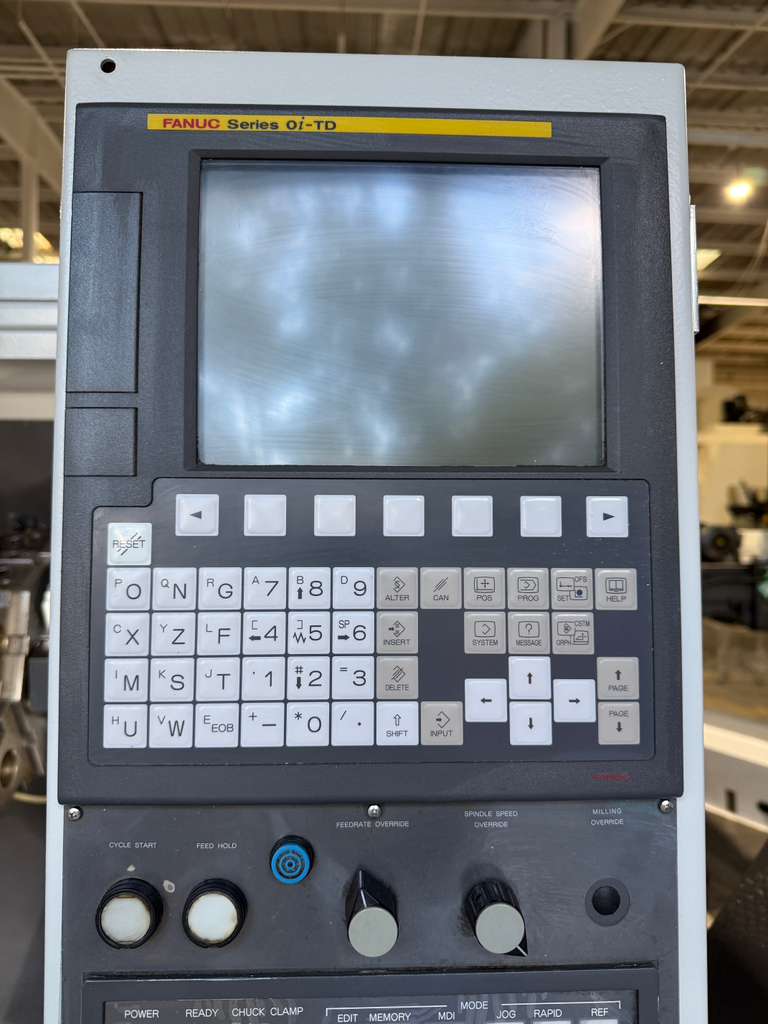

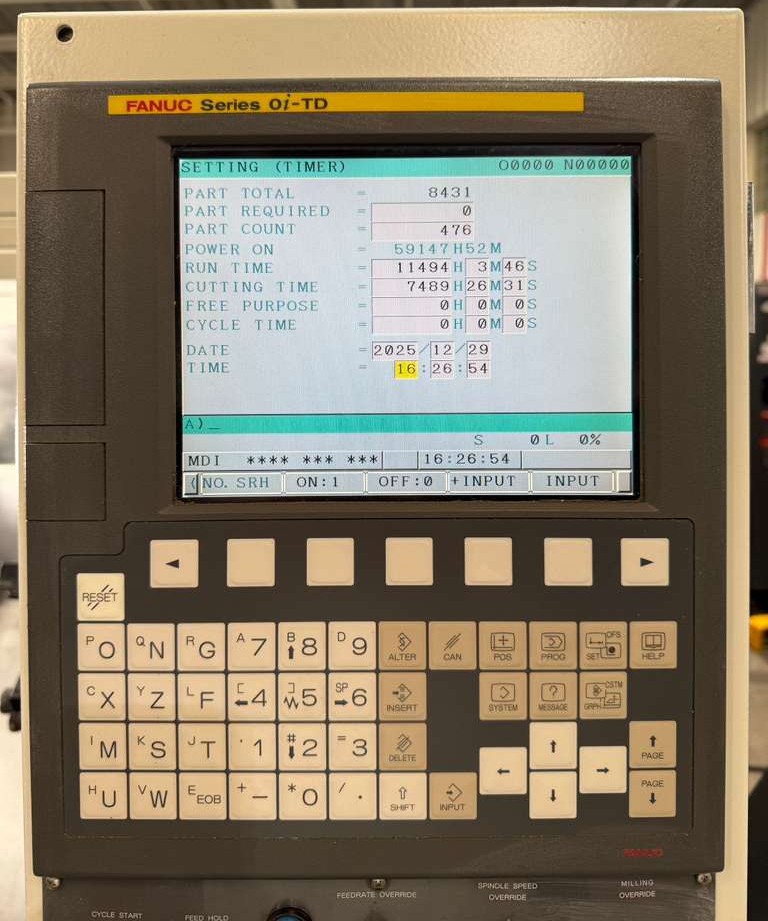

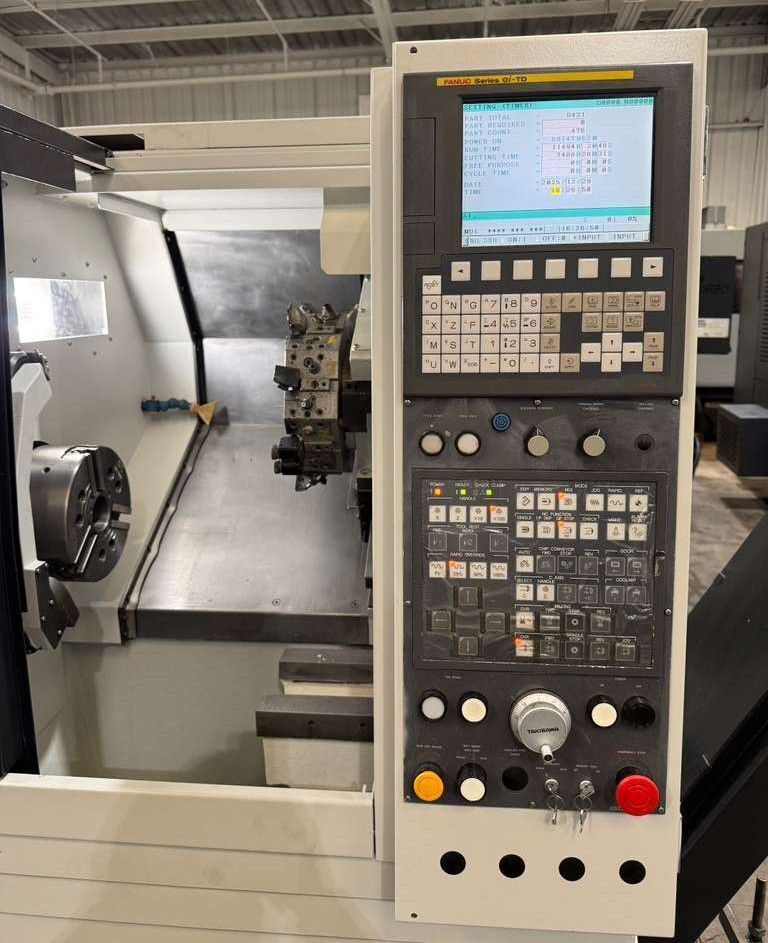

| Fanuc Oi-TD CNC Control |

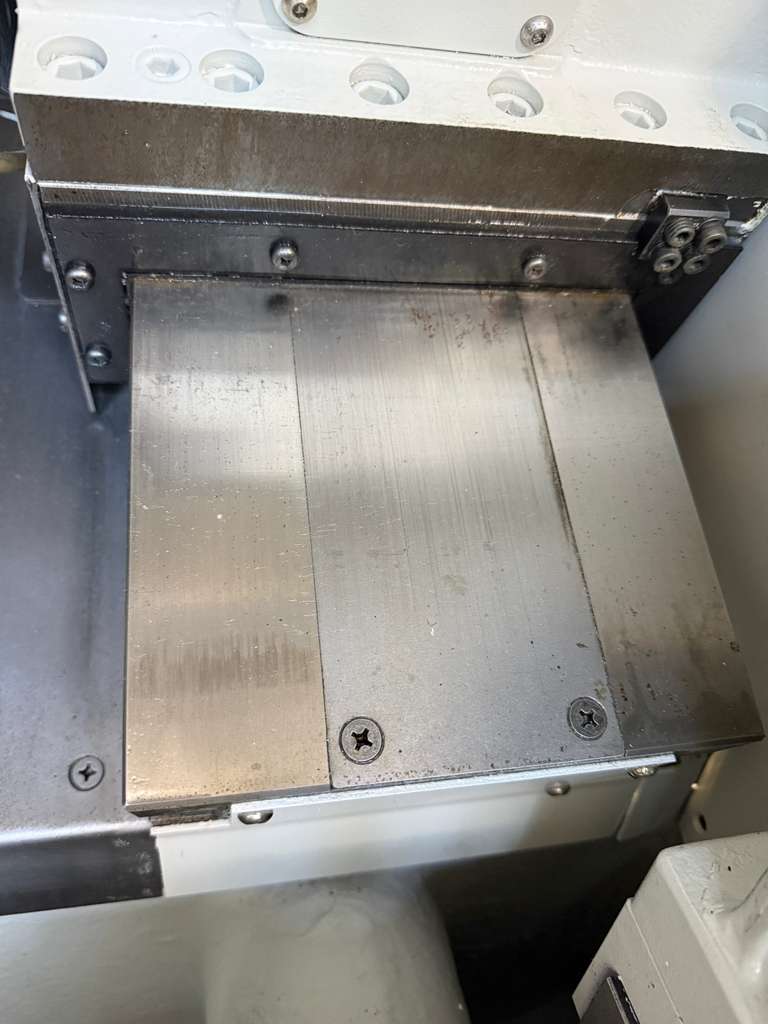

| Box Ways Construction |

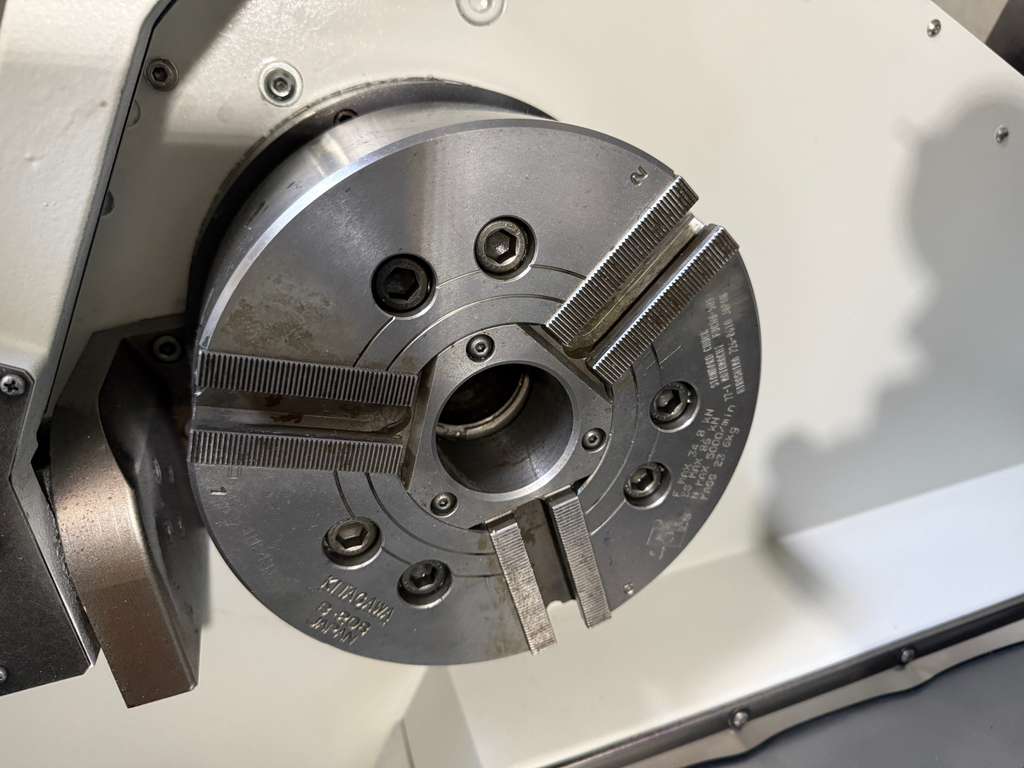

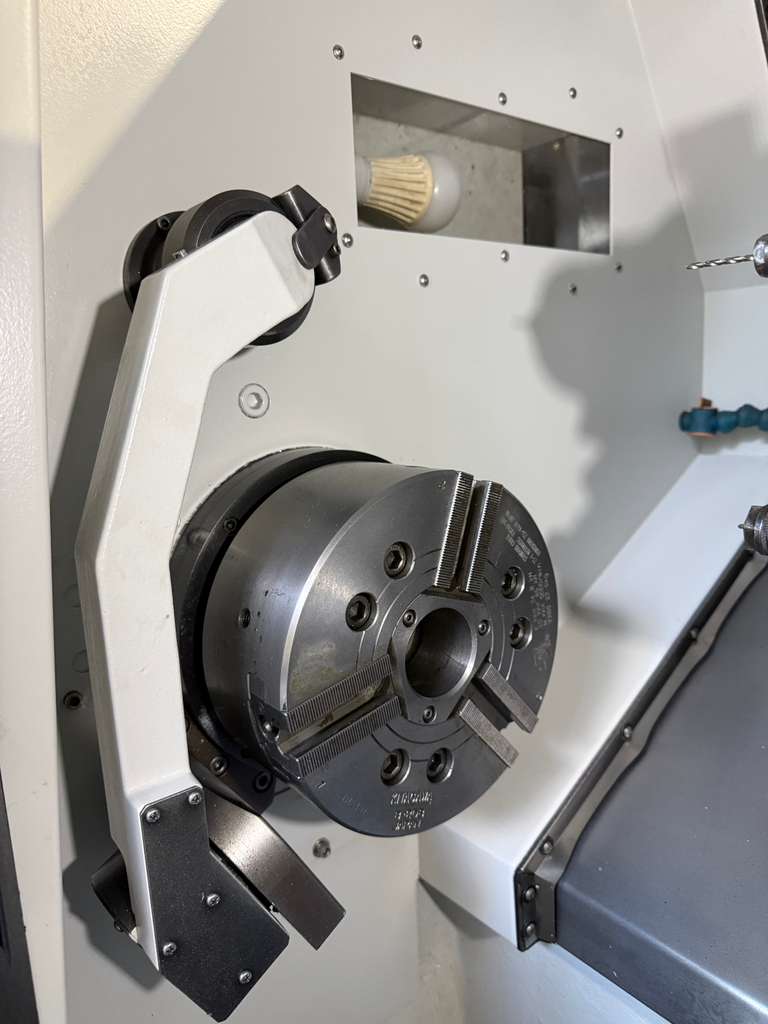

| 8” 3-Jaw Kitagawa B-208 Power Chuck |

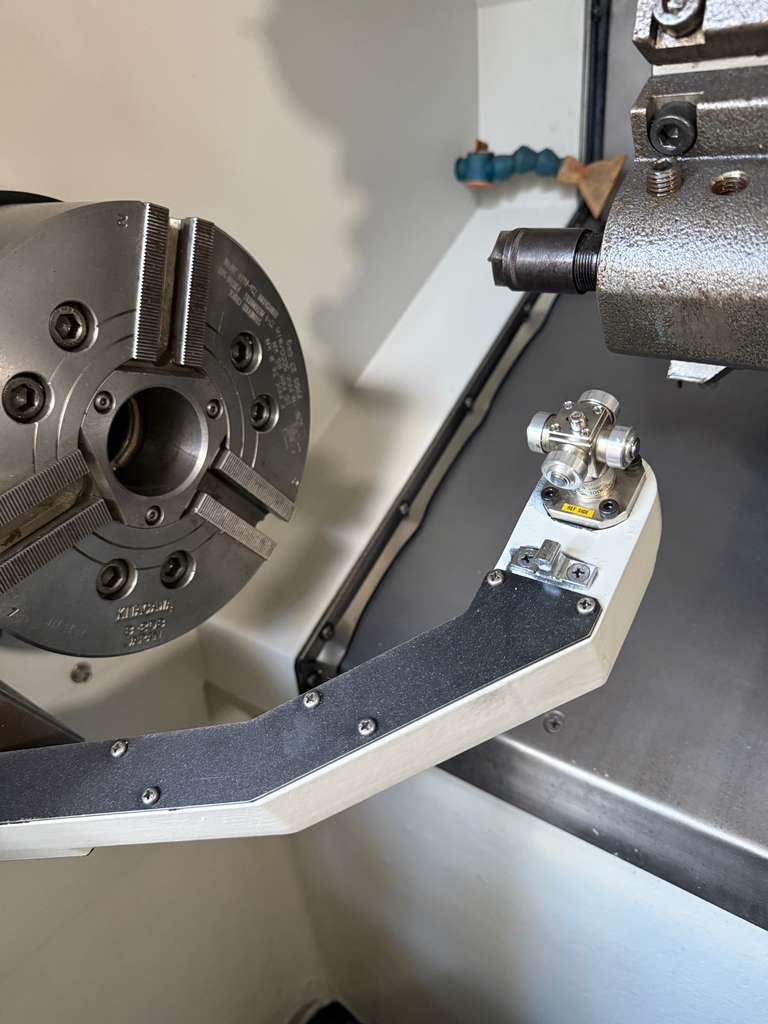

| Automatic Tool Presetter |

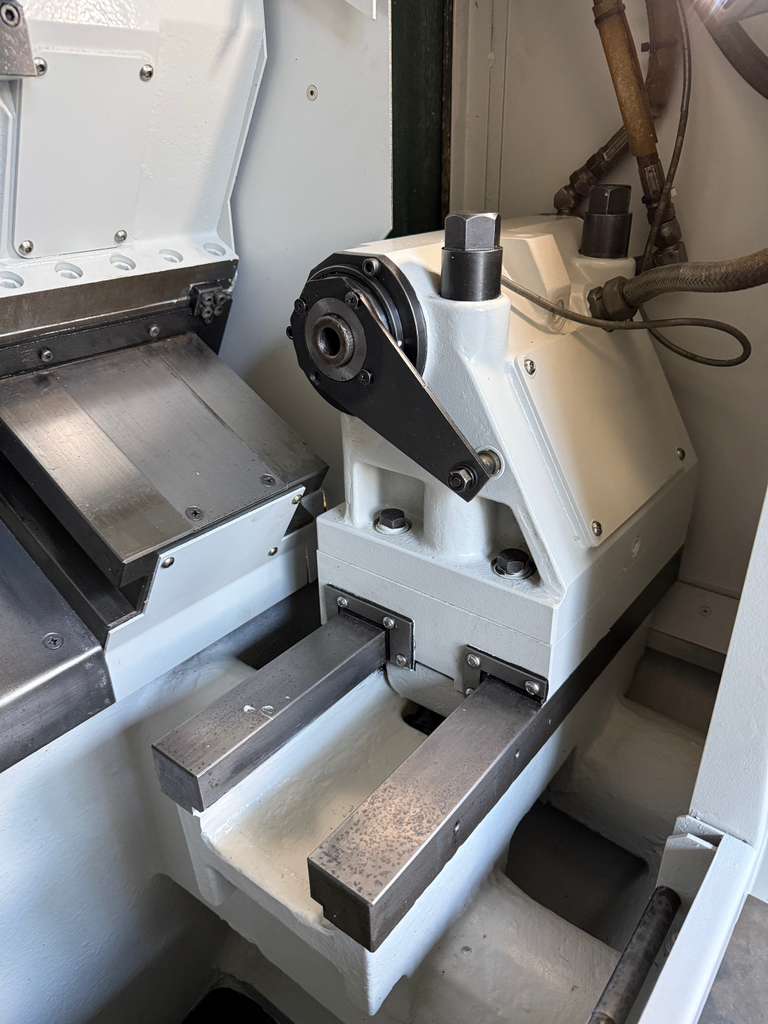

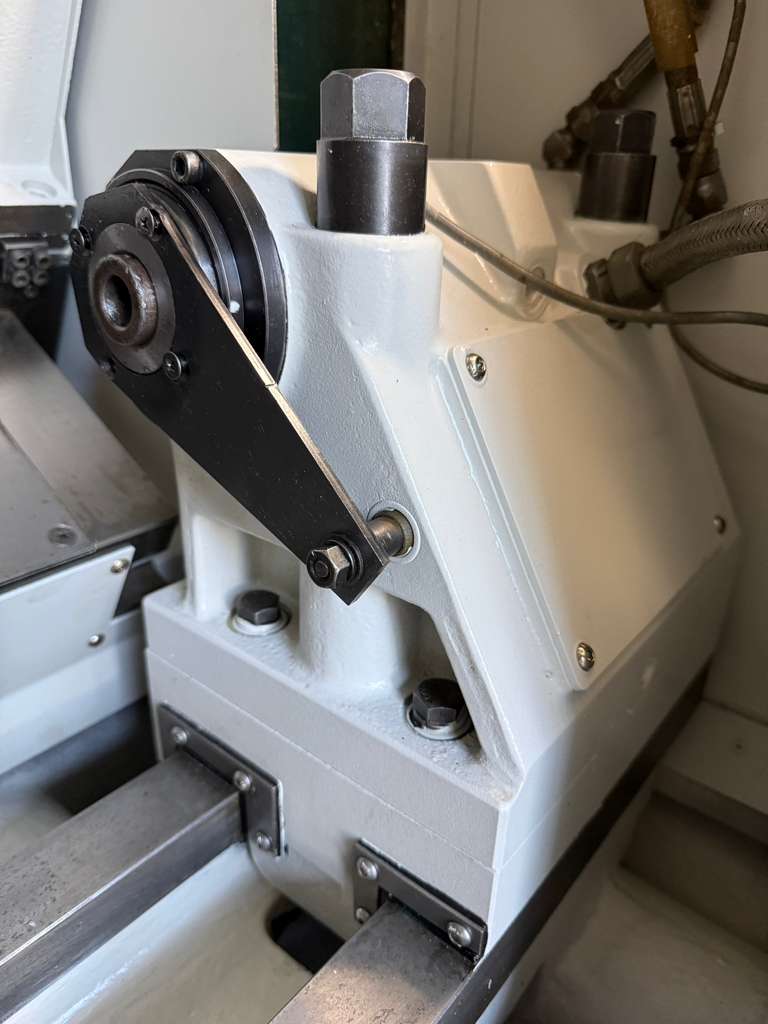

| Tailstock |

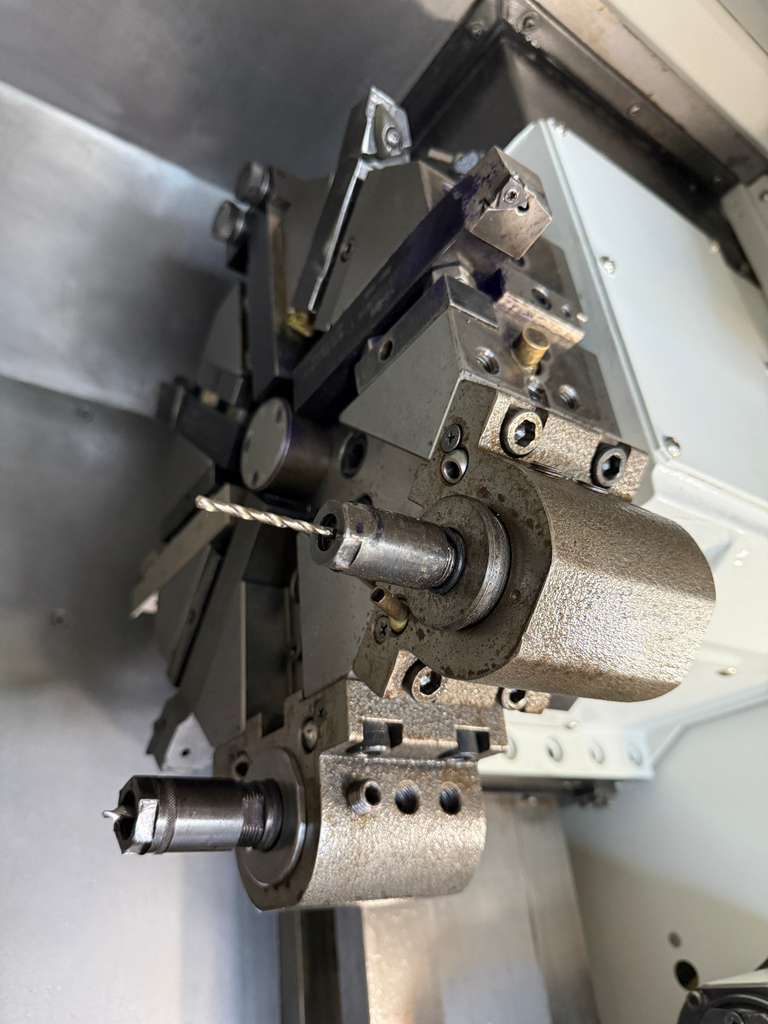

| 8-Station Automatic Turret |
| PCMCIA Card & USB Drive Interface |
| Rigid Tapping |

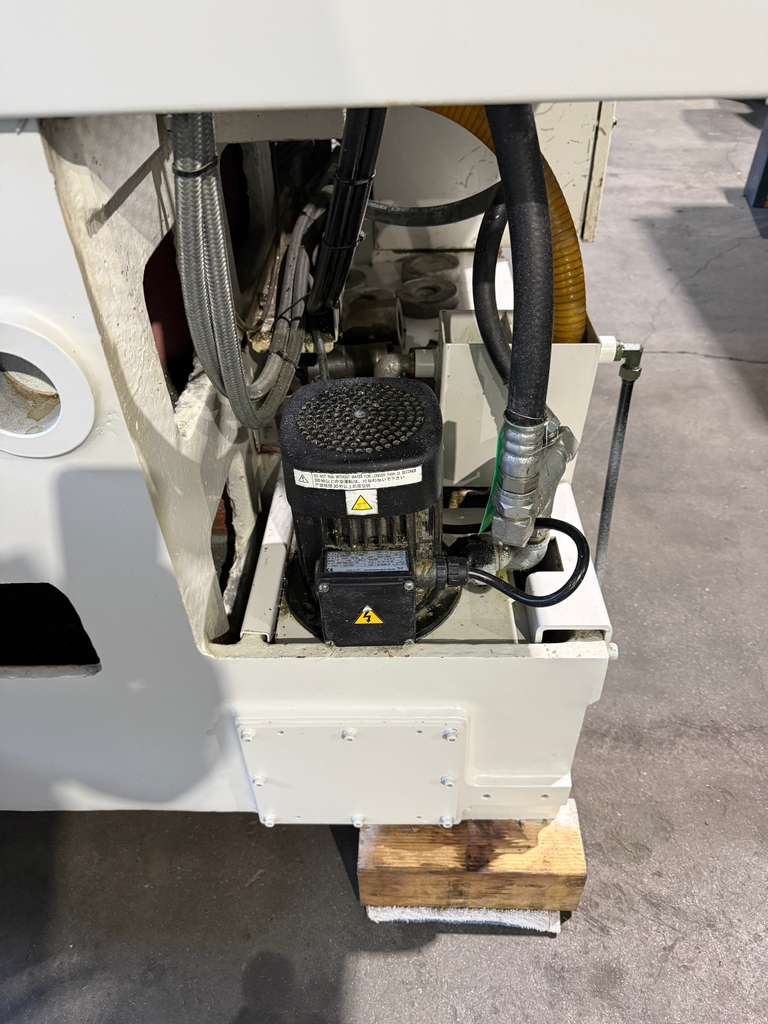

| Coolant System |

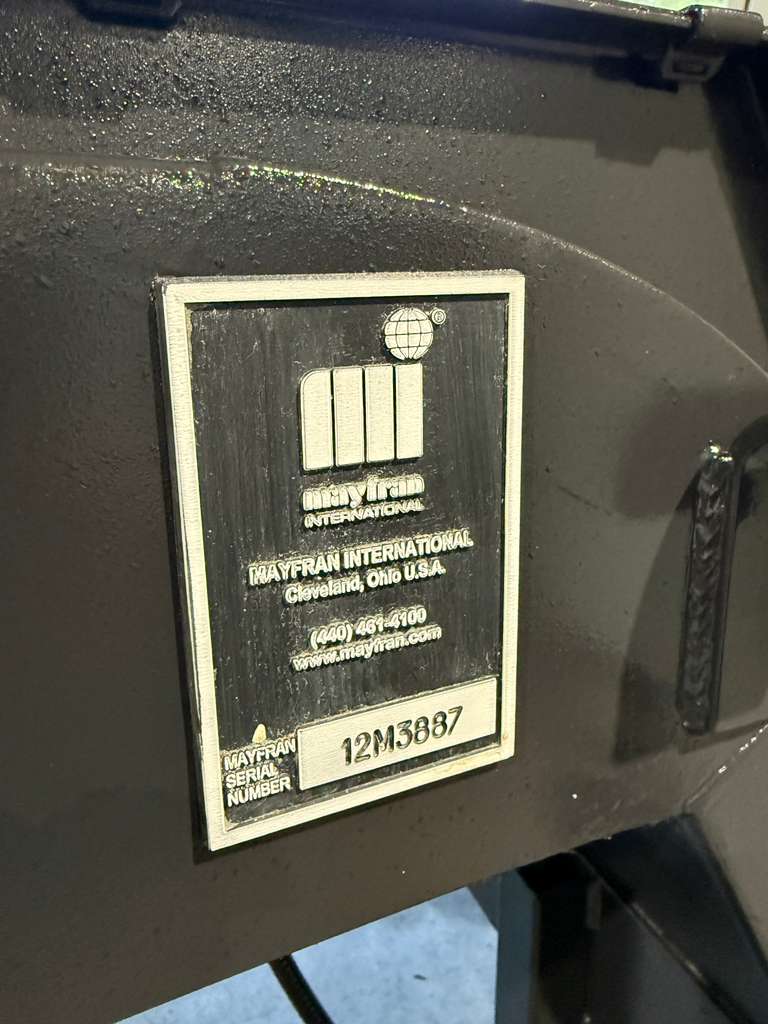

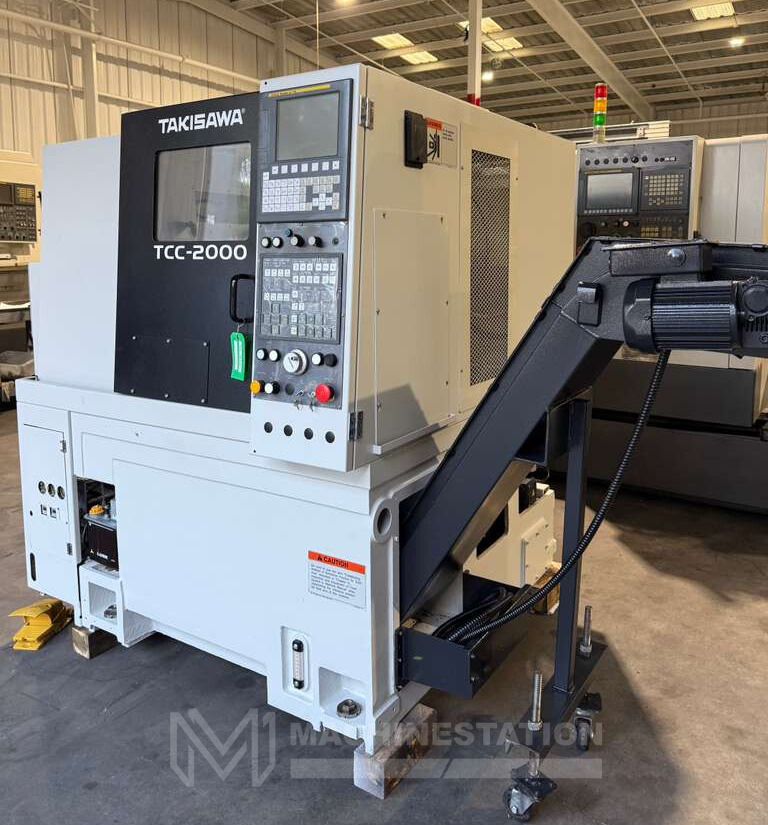

| Chip Conveyor |
| Foot Switch |

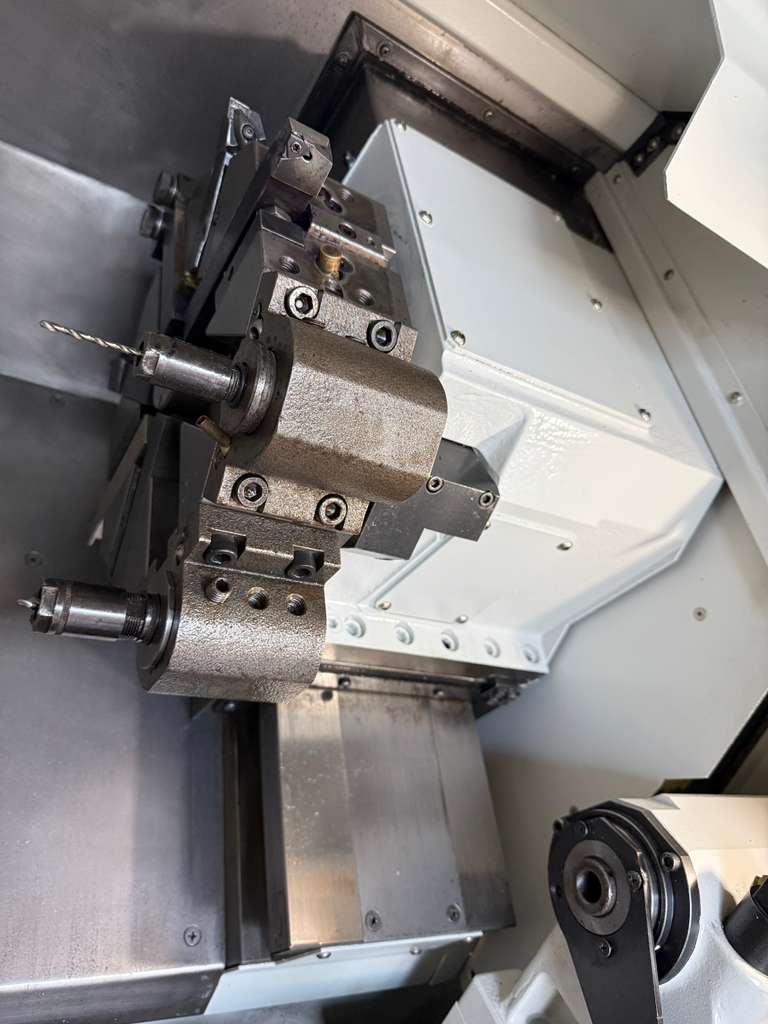

| (2) Boring Tool Holders Are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 8.86″ ? |
| Max Turning Length: 11.85″ |
| Swing Over Bed: 16.54″ |
| Max Bar Capacity: 2.00″ |
| Travels: |
|---|
| X Axis Travel: 7.48″ |
| Z Axis Travel: 13.78″ |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.5″ |
| Spindle Speed: 3200 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 8 Stations |
| Turning Tool Shank: 1″ |
| Boring Bar Shank Diameter: 1.5″ |
| Turret: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Diameter: 2.95″ |
| Tailstock Quill Travel: 3.94″ |
| General: |
|---|

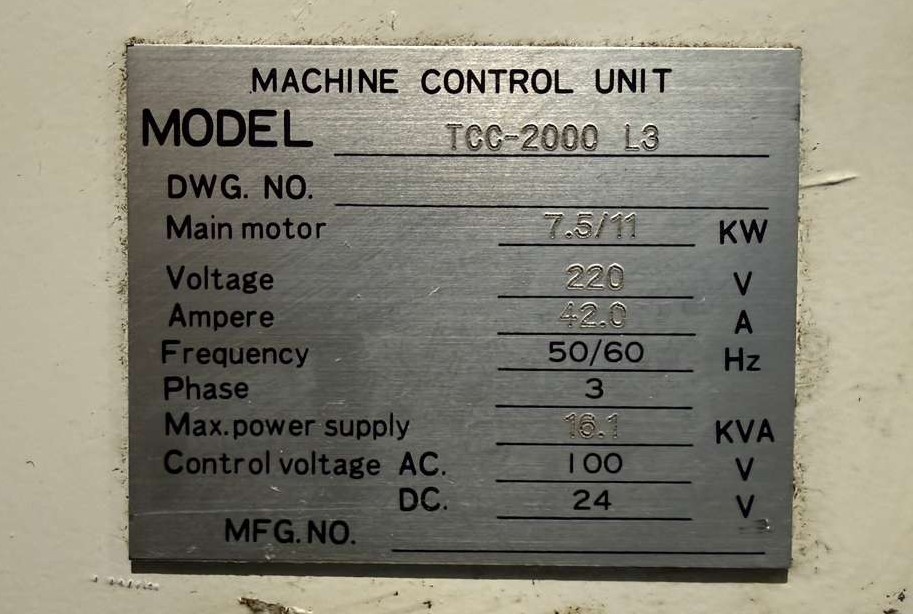

| Power Source: AC 220 V, Three Phase, 50/60 Hz |
| Power Requirement: 16.1 kva |
| Overall Dimensions: 57″ x 55″ x 65″ High Approx. |
| Weight : 5,952 lbs Approx. |
