Toshiba BMC-100E CNC Horizontal Machining Center, Tosnuc 800 Control – 1995
In stock
| SKU: | 11341 |

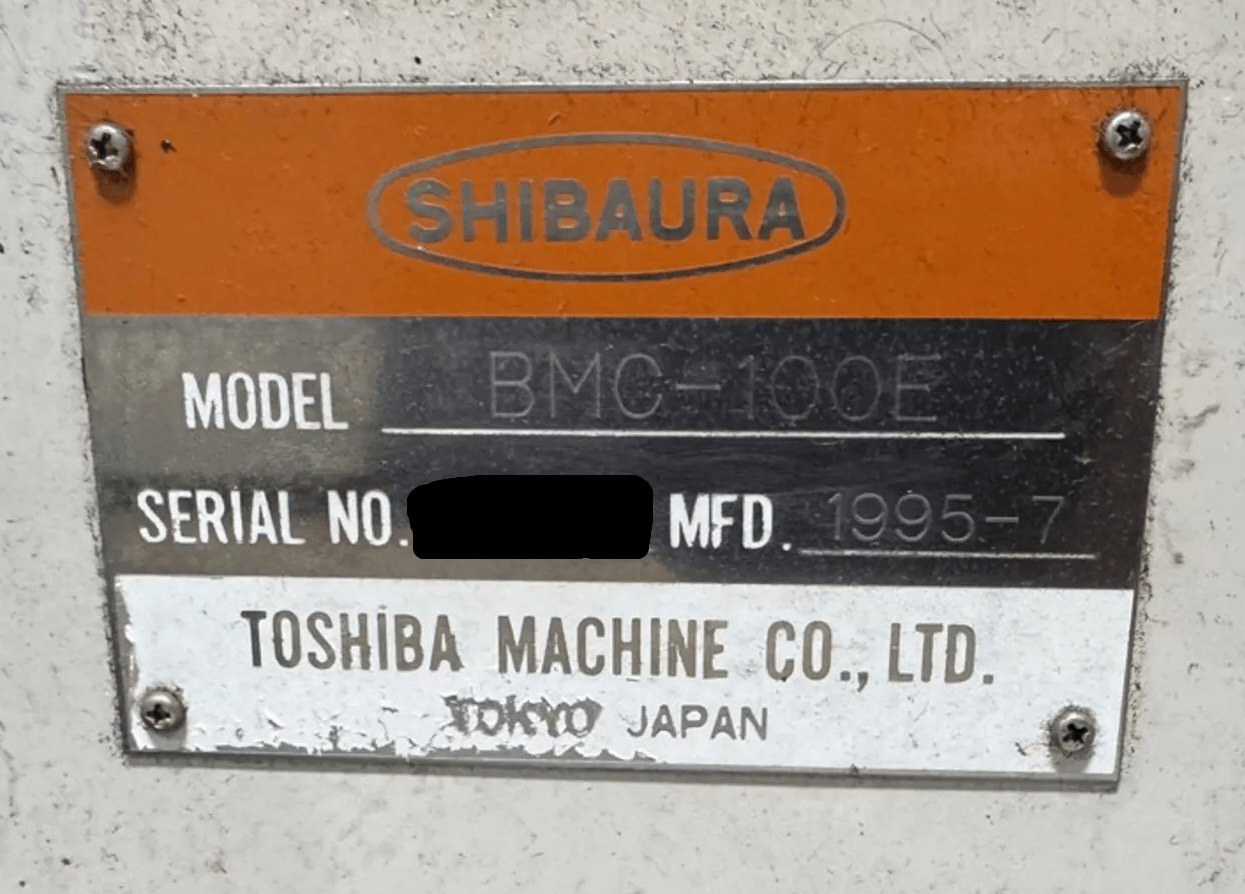

| Make/Model: | Toshiba BMC-100E |
| Year: | 1995 |
| Condition: | Used |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Toshiba |
| Model: | BMC-100E |
| Year: | 1995 |
| Condition: | Used – Good |
| Machine Type: | CNC Horizontal Machining Center |

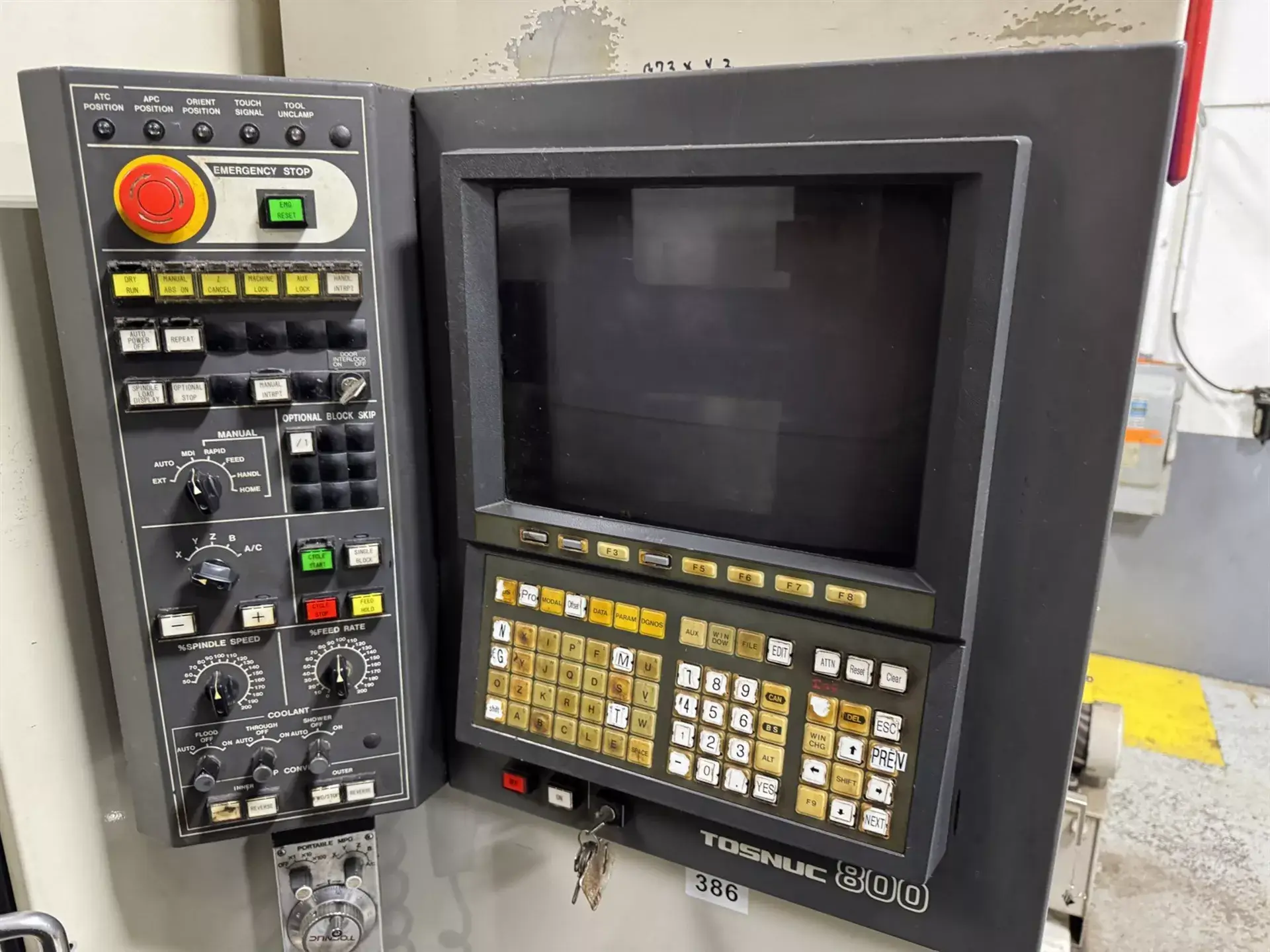

| CNC Control: | Tosnuc 800 CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Tosnuc 800 CNC Control |
| 4th Axis Rotary Table |
| Automatic Pallet Changer (2-Pallet System) |
| Chip Conveyor |
| Coolant System |
| Full Enclosure |
| Manual Pulse Generator (MPG) |
| Capacity: |
|---|
| Pallet Size: Approx. 39.4″ x 39.4″ (1000 x 1000 mm) |
| Table Load Capacity: Approx. 2,200 lbs (1,000 kg) |
| Travels: |
|---|
| X-Axis Travel: ~55″ |
| Y-Axis Travel: ~39″ |
| Z-Axis Travel: ~39″ |
| B-Axis: 360° (Indexing) |
| Spindle: |
|---|
| Spindle Speed: Up to 6,000 RPM |
| Spindle Taper: CAT 50 |
| Spindle Motor: Approx. 20-30 HP |

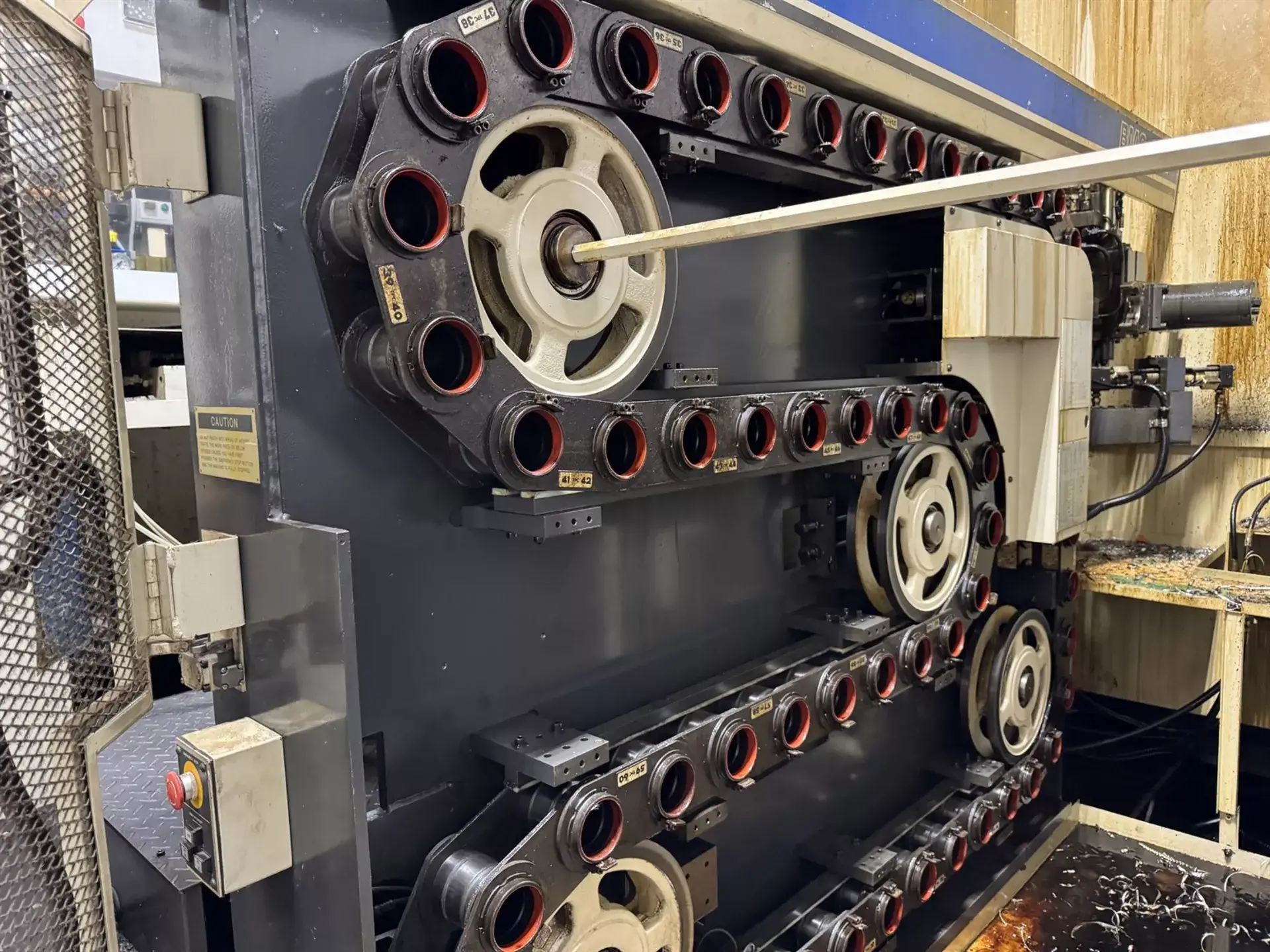

| Tool Changer: |
|---|
| Tool Capacity: 40 ATC |
| Tool Holder Type: CAT 50 |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): Approx. 600-800 IPM |
| Cutting Feed Rate: Programmable |
| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| General: |
|---|
| Air Required: 90-100 PSI |
| Power: Approx. 40-60 kVA |
| Weight: Approx. 30,000 – 35,000 lbs |
| Categories | CNC Horizontal Machining Center |
|---|---|
| Make | |
| Model | BMC-100E |
