*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Toshiba |
| Model: | BTD-13R22 |
| Machine Type: | CNC Horizontal Boring Mill |

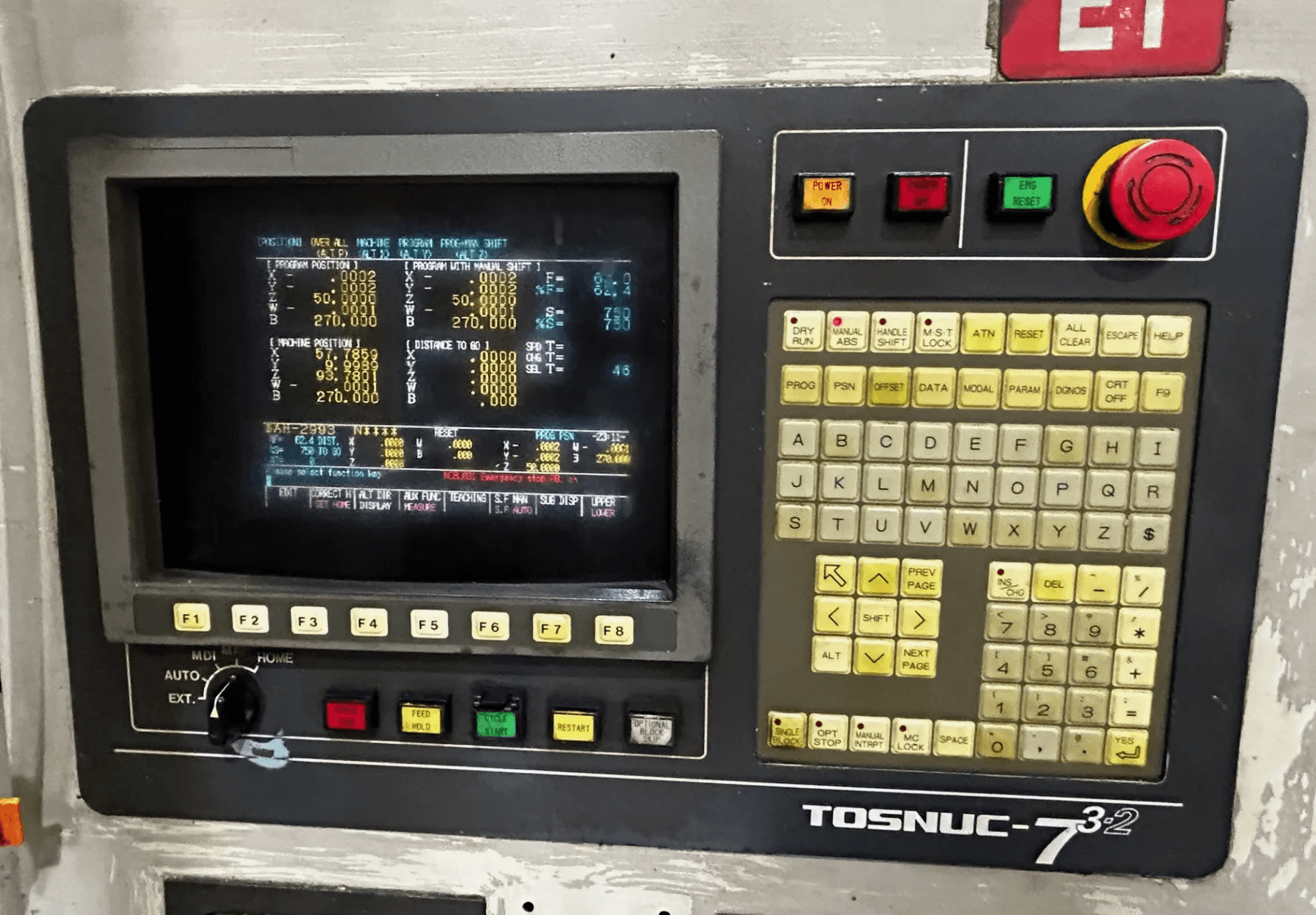

| Control: | Tosnuc 777 CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Tosnuc 777 CNC Control |

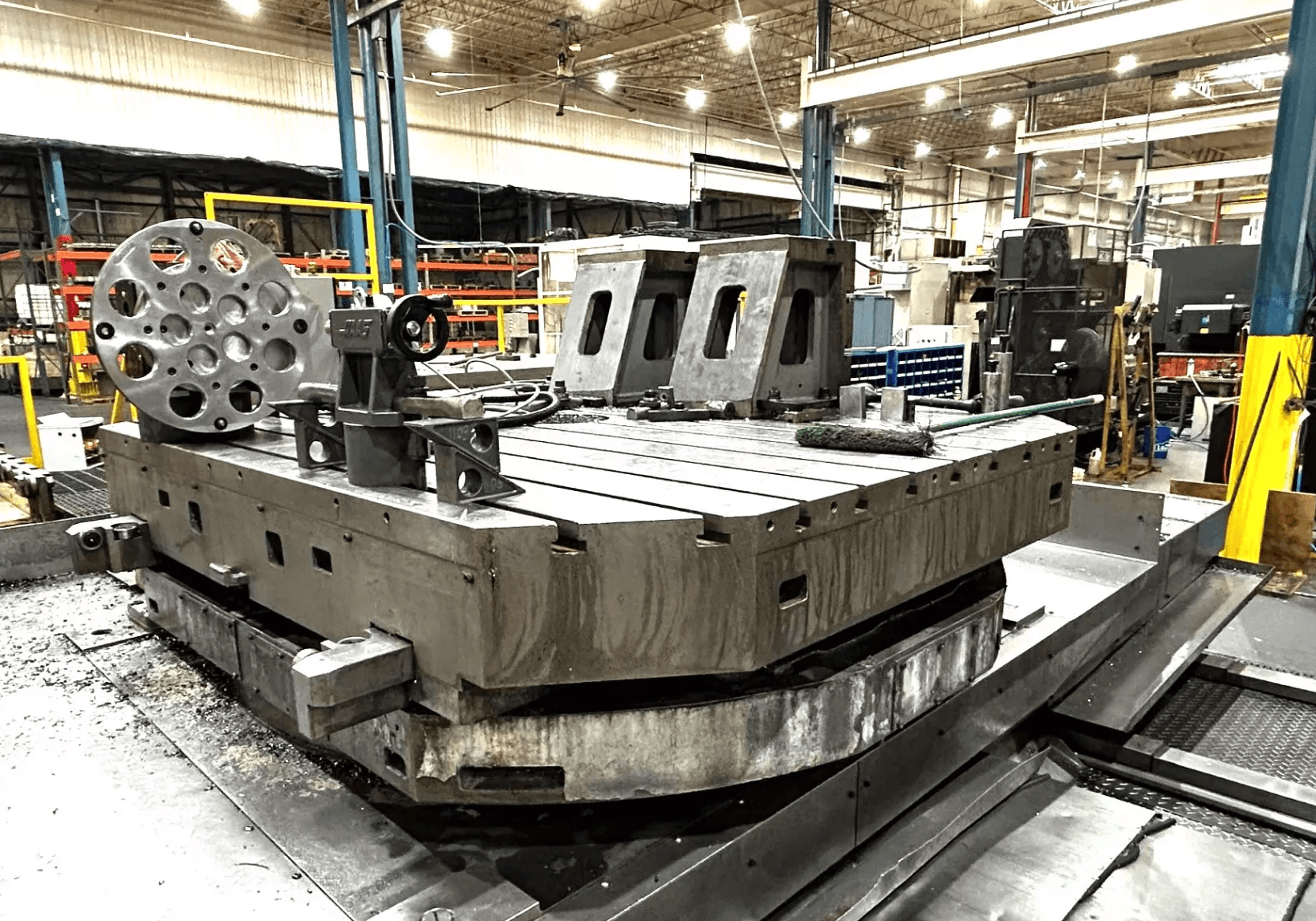

| 70.86″ x 86.6″ B-Axis Rotary Table |
| .001 Degree Table Indexing |
| 50 Taper Spindle |
| 60-Position Automatic Tool Changer |
| Pallet Shuttle System |
| Chip Conveyor |
| Heavy-Duty Box Ways |

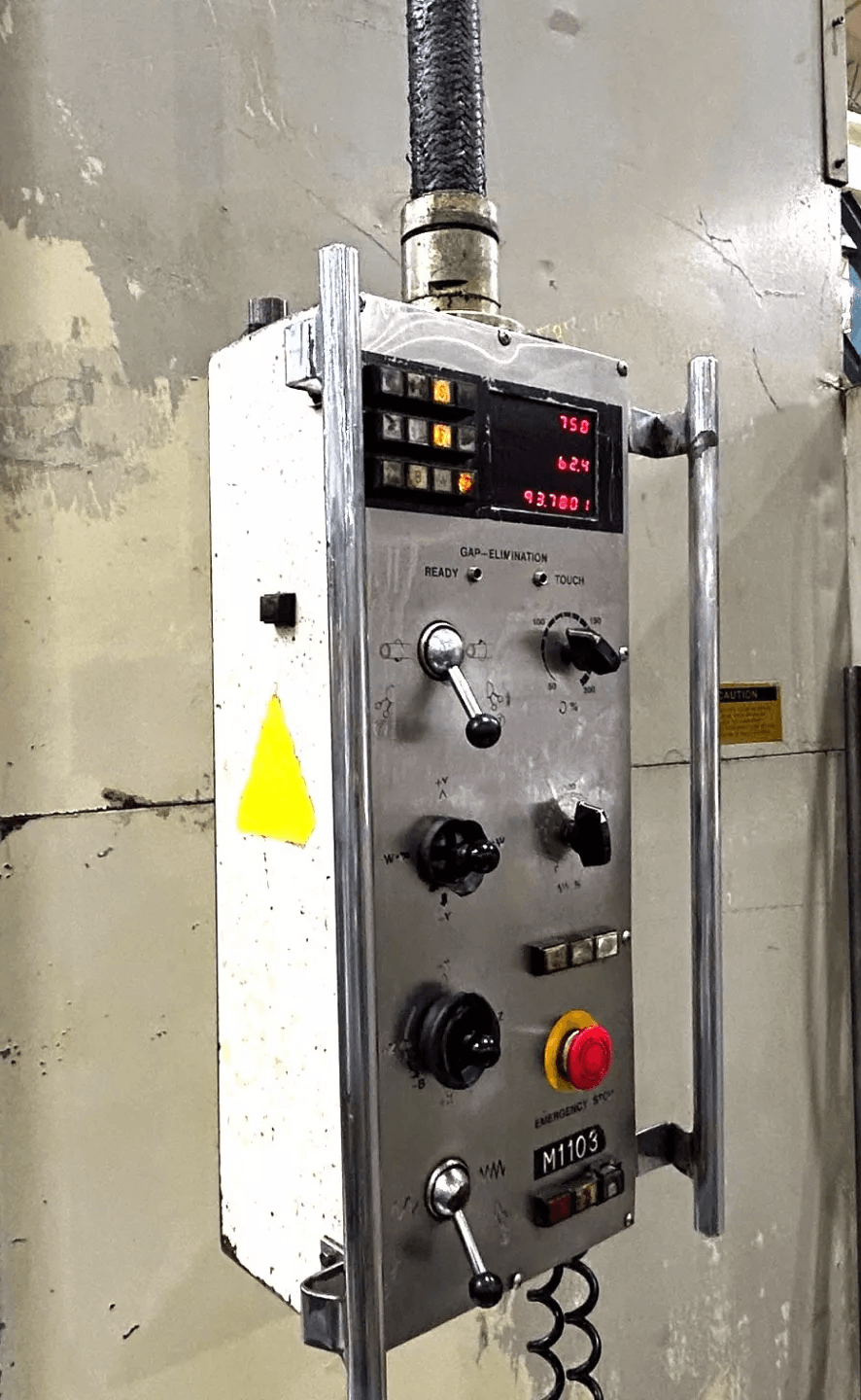

| Pendant Control Station |
| Assorted Tool Holders |
| Travels: |
|---|
| X-Axis Travel: 118″ |
| Y-Axis Travel: 90″ |
| Z-Axis Travel: 63″ |
| W-Axis Travel: 27.5″ |
| B-Axis: Full Rotary Table |
| Table: |
|---|
| Table Size: 70.86″ x 86.6″ |
| Table Type: B-Axis Rotary Table |
| Table Indexing: .001 Degree |
| Pallet System: Dual Pallet Shuttle |
| Table Load Capacity: Approx. 22,000 LBS |
| Spindle: |
|---|
| Spindle Speed Range: Up to 2500 RPM |
| Spindle Taper: 50 Taper |
| Spindle Type: Horizontal Boring Spindle |
| Quill Travel (W-Axis): 27.5″ |
| Spindle Cooling: Included |
| Automatic Tool Changer: |
|---|
| ATC Capacity: 60 Positions |
| Tool Change Type: Automatic |
| Tool Holders Included: Yes |
| Automatic Tool Changer: Included |
| General: |
|---|
| Electrical Requirement: 3-Phase |
| Machine Weight: Approx. 90,000 LBS |
| Machine Dimensions: Approx. 420″ x 300″ x 220″ |
