*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Victor |
| Model: | TNS-2 |
| Machine Type: | CNC Turning Center |
| CNC Control: | FANUC System 3T |
| Equipped With: |
|---|
| FANUC System 3T CNC Control |
| 10-Station Automatic Turret |

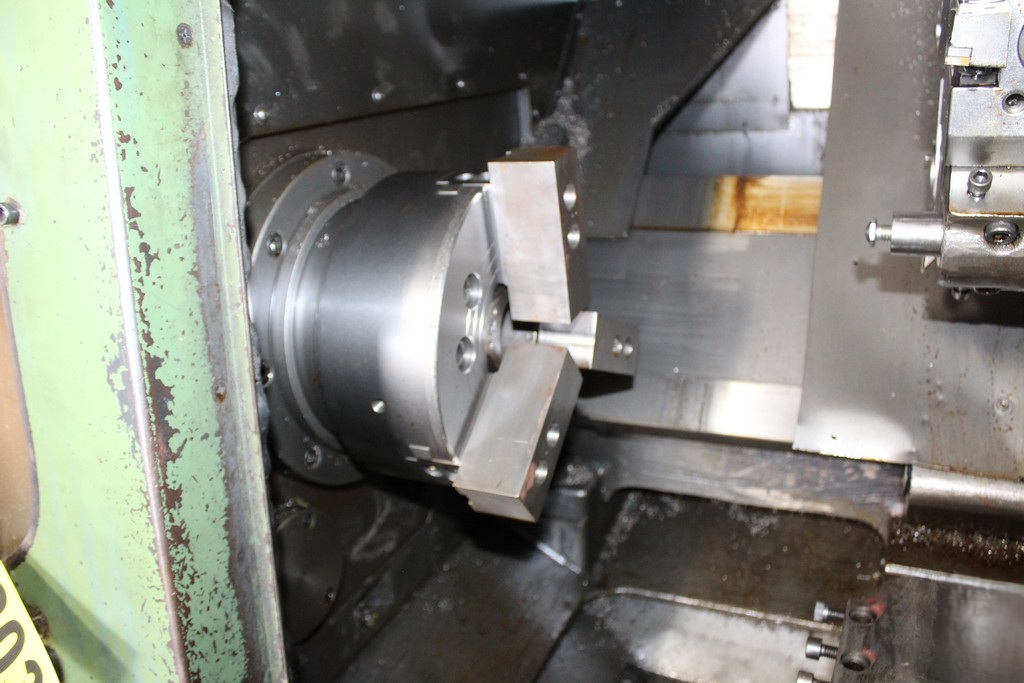

| Hydraulic 3-Jaw Chuck |
| Tailstock |
| Enclosed Work Area |
| Coolant System |
| Tooling Holders |
| Chip / Coolant Collection Area |
| Capacity: |
|---|
| Swing Over Bed: 22.4″ |
| Swing Over Carriage: 13.4″ |
| Maximum Turning Diameter: 20.0″ |
| Maximum Turning Length: 14.1″ |
| Between Centers: 20.5″ |
| Chuck Size: 10″ |
| Spindle Bore: 3.03″ |
| Chuck Through-Hole: 2.48″ |
| Travels: |
|---|
| X-Axis Travel: 6.3″ |
| Z-Axis Travel: 14.1″ |
| Rapid Traverse: 945 IPM |
| Spindle: |
|---|
| Spindle Speed Range: 25–2,500 RPM |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.03″ |
| Spindle Motor: 15 HP / 20 HP |
| Turret: |
|---|
| Turret Type: Automatic Turret |
| Tool Capacity: 10 Stations |
| Tailstock: |
|---|
| Tailstock Quill: MT-4 |
| Between Centers: 20.5″ |
| General: |
|---|
| Machine Dimensions (Approx.): 125″ L × 80″ W × 82″ H |
| Machine Weight (Approx.): 17,000 lbs. |
