Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
| Features: |
|---|

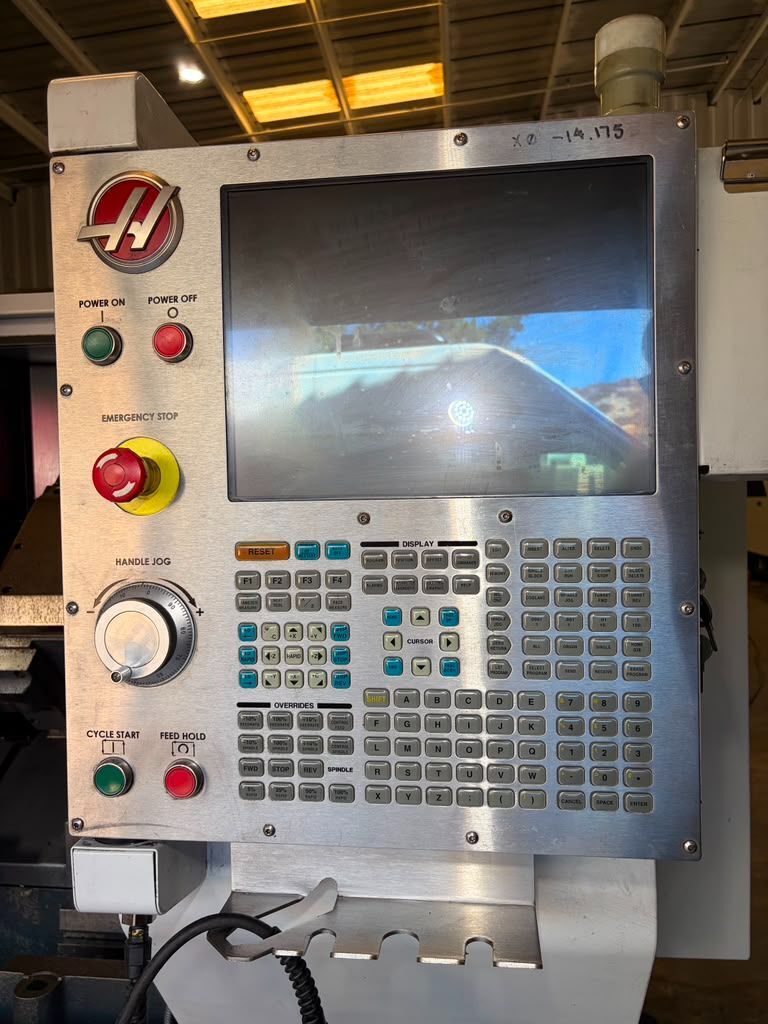

| Haas CNC Control |

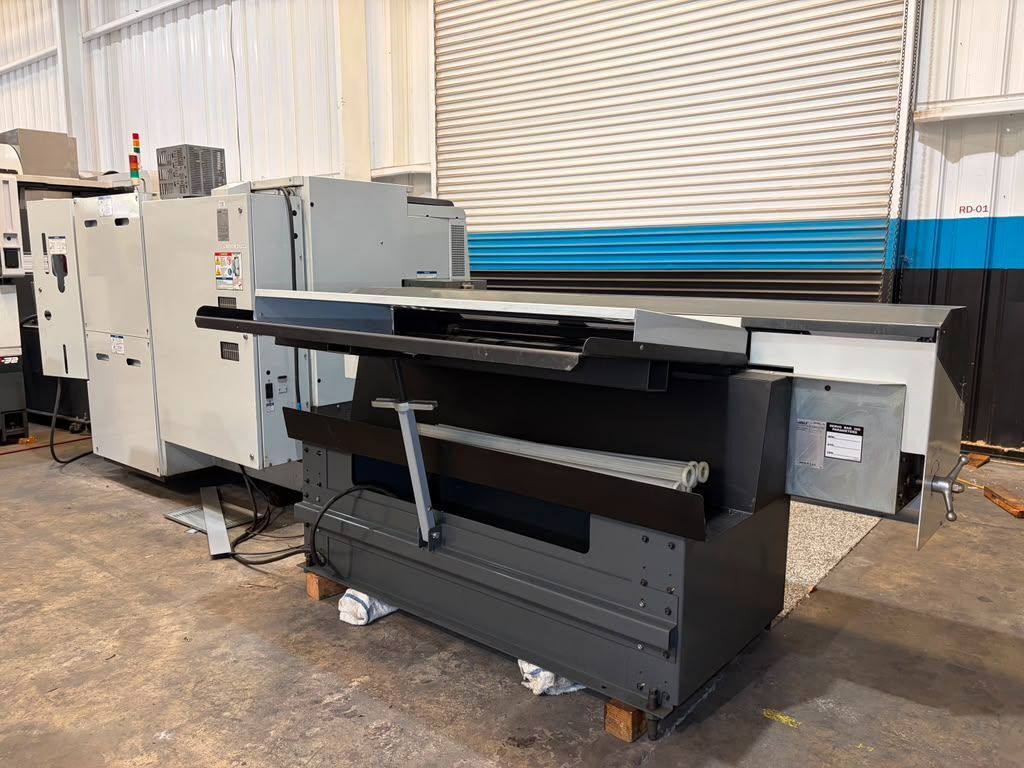

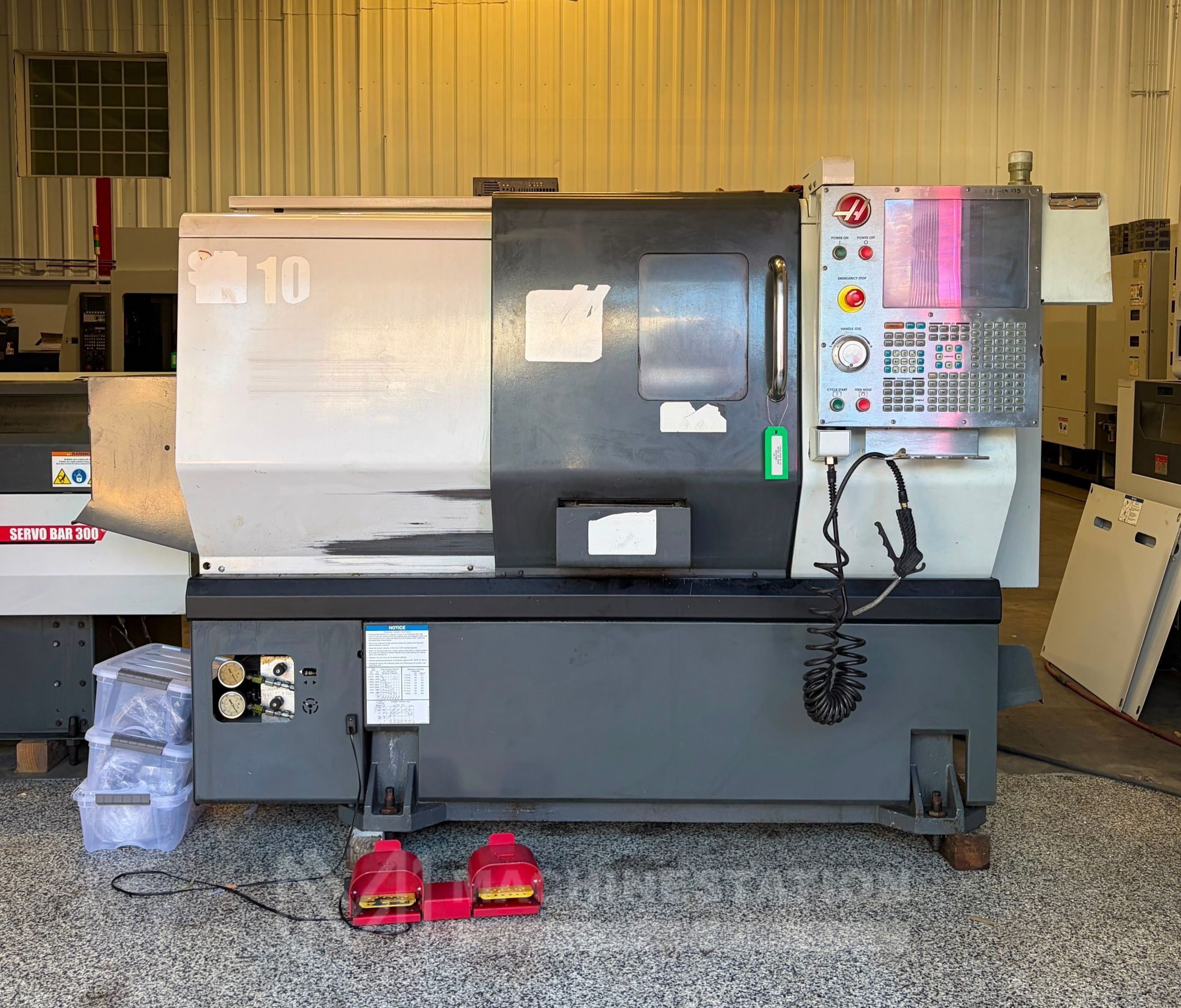

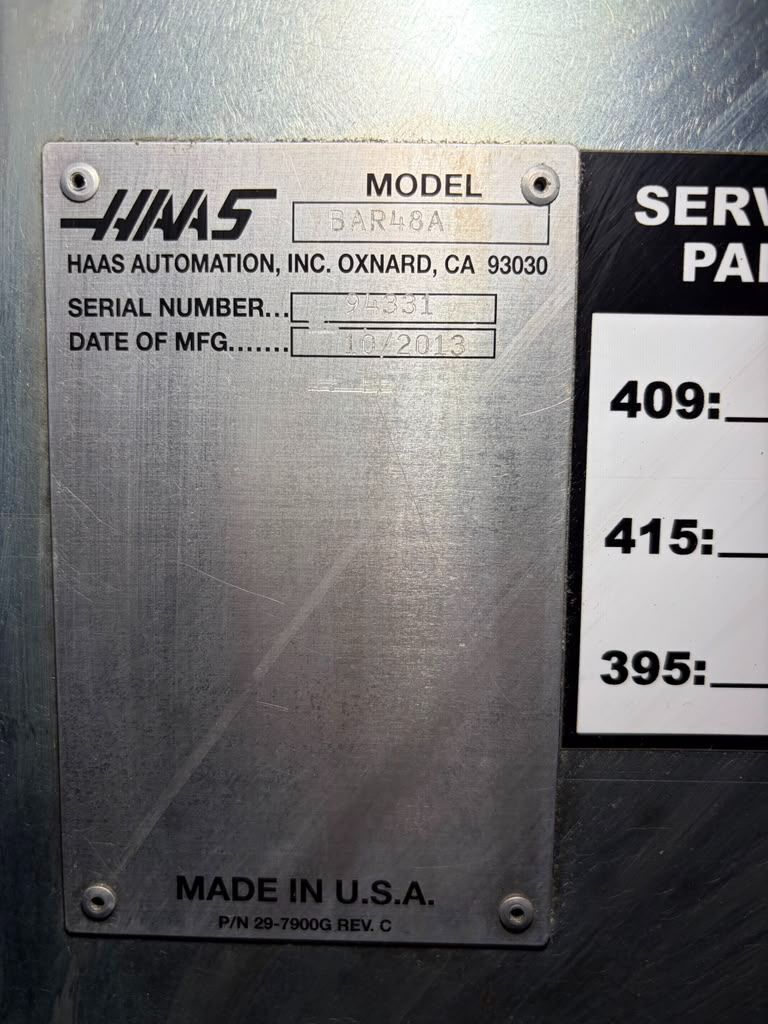

| Haas Servo Bar 300 Bar Feeder |

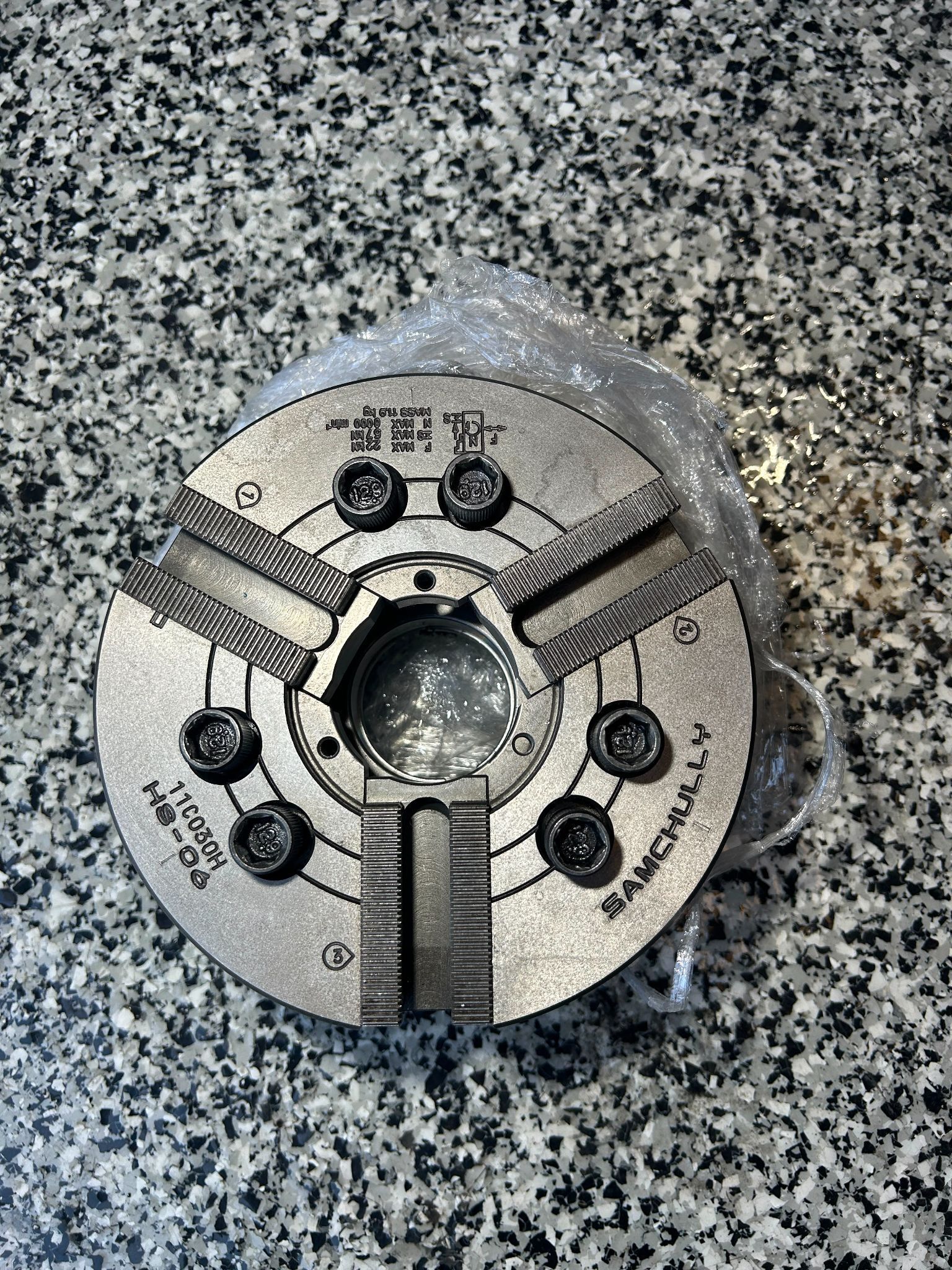

| Samchully HS-06 6″ 3-Jaw Chuck |

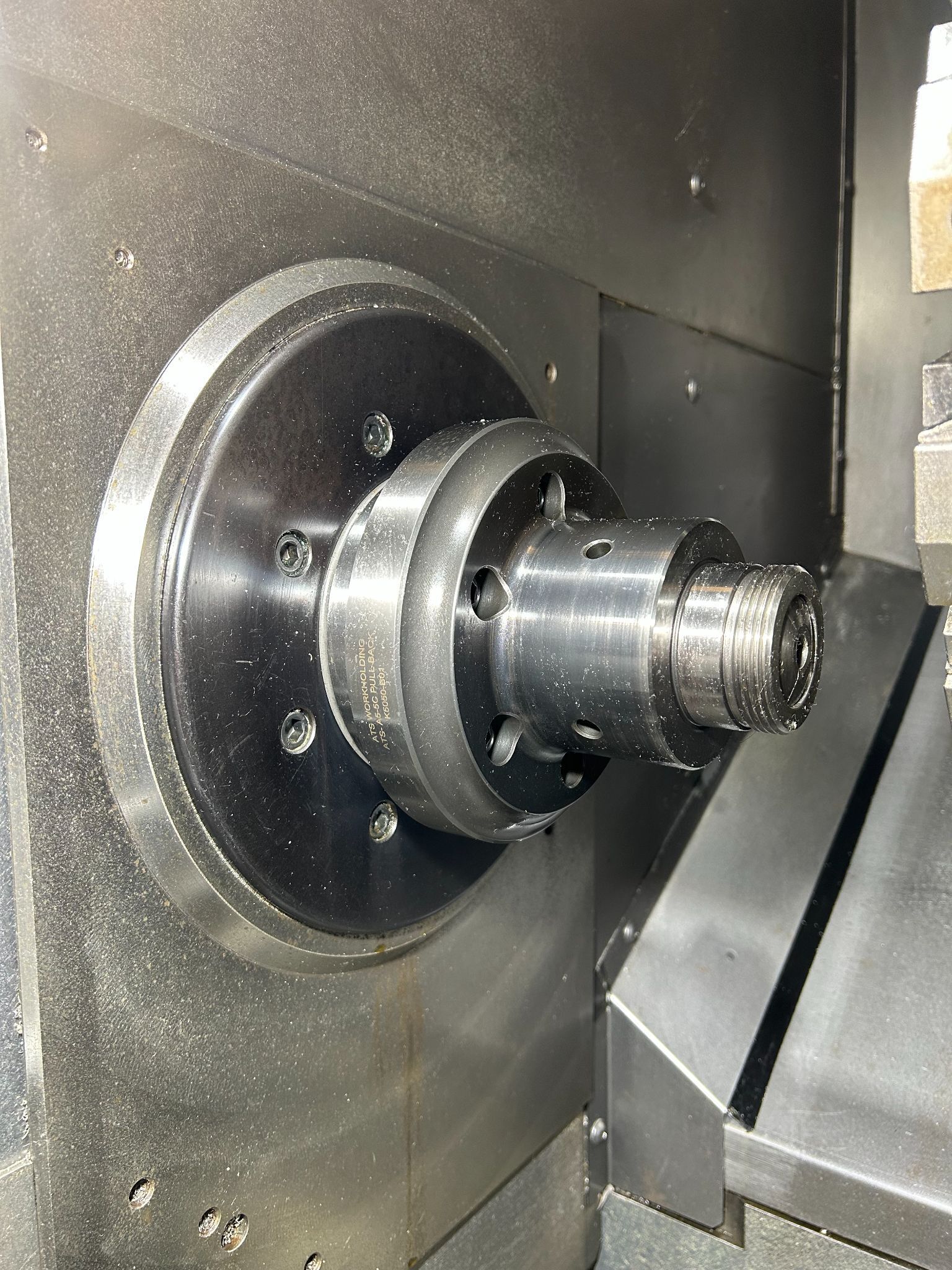

| ATS Workholding A5-5C Pull Back Collet Chuck |

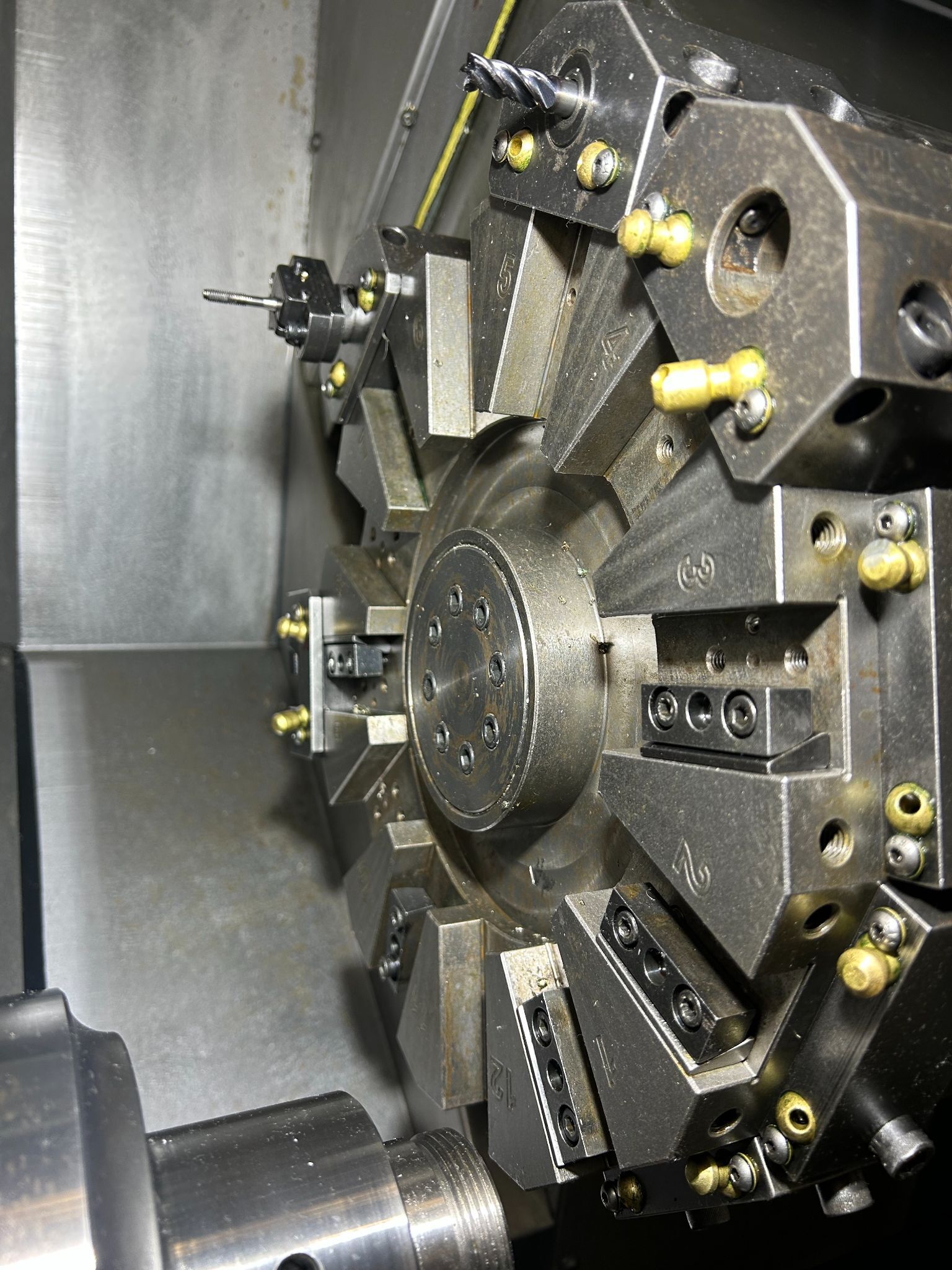

| 12-Station Automatic Turret |
| 6,000 RPM Spindle |
| A2-5 Spindle Nose |

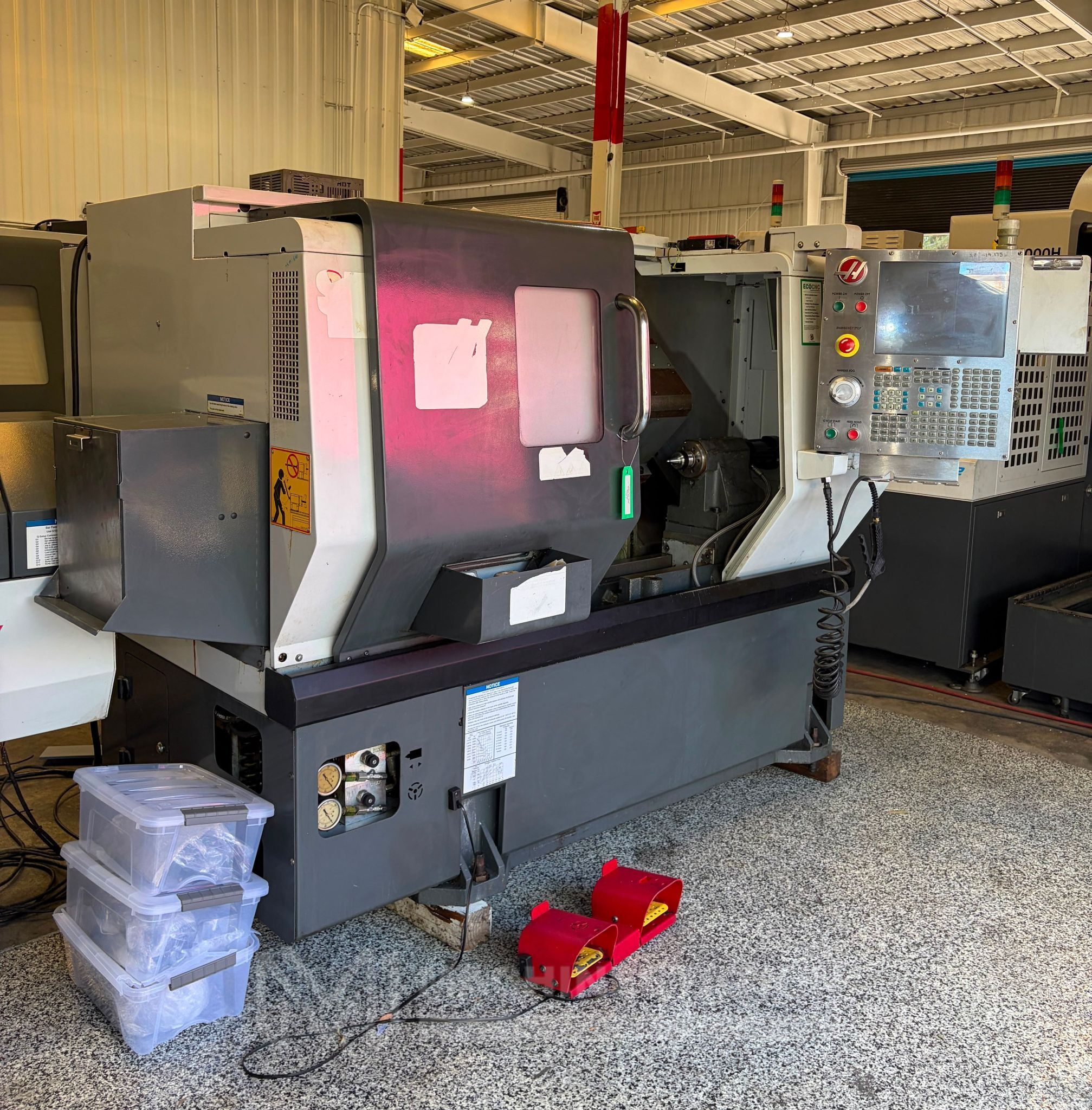

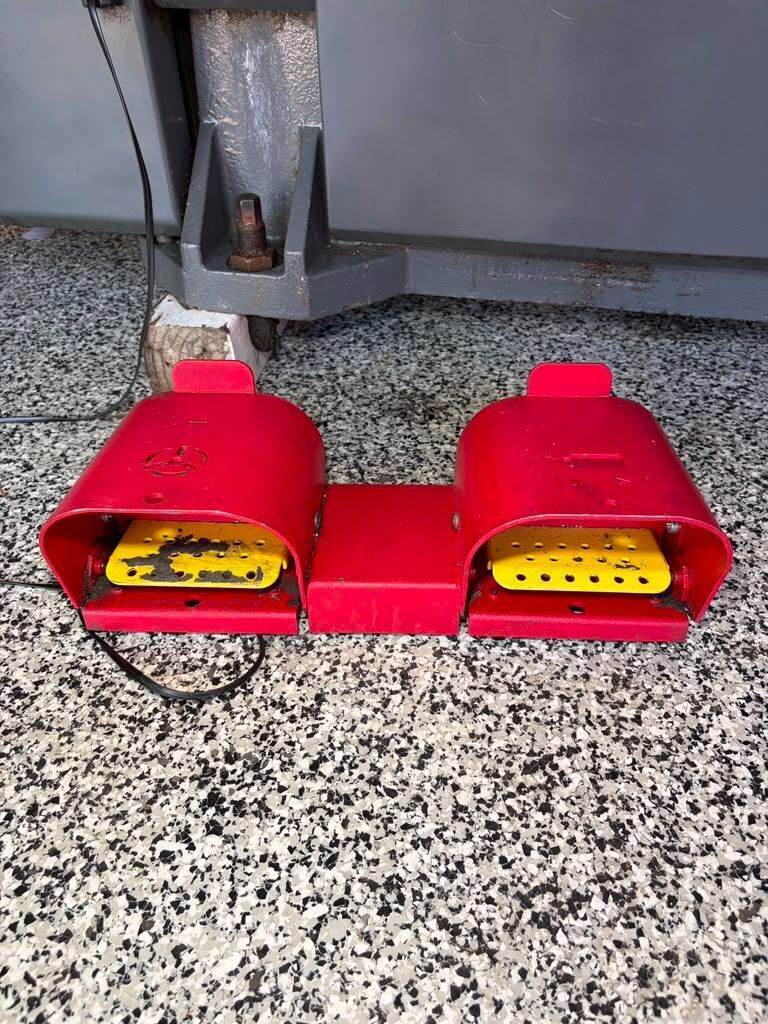

| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 12.0″ |
| Max Swing: 16.5″ |
| Max Turning Length: 16.0″ |
| Max Bar Capacity: 1.75″ |
| Travels: |
|---|
| X Axis Travel: 7.88″ |
| Z Axis Travel: 16.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1,200 IPM |
| Rapid Traverse Z Axis: 1,200 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 2.31″ |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tool Holder Type: Bolt Mounted |

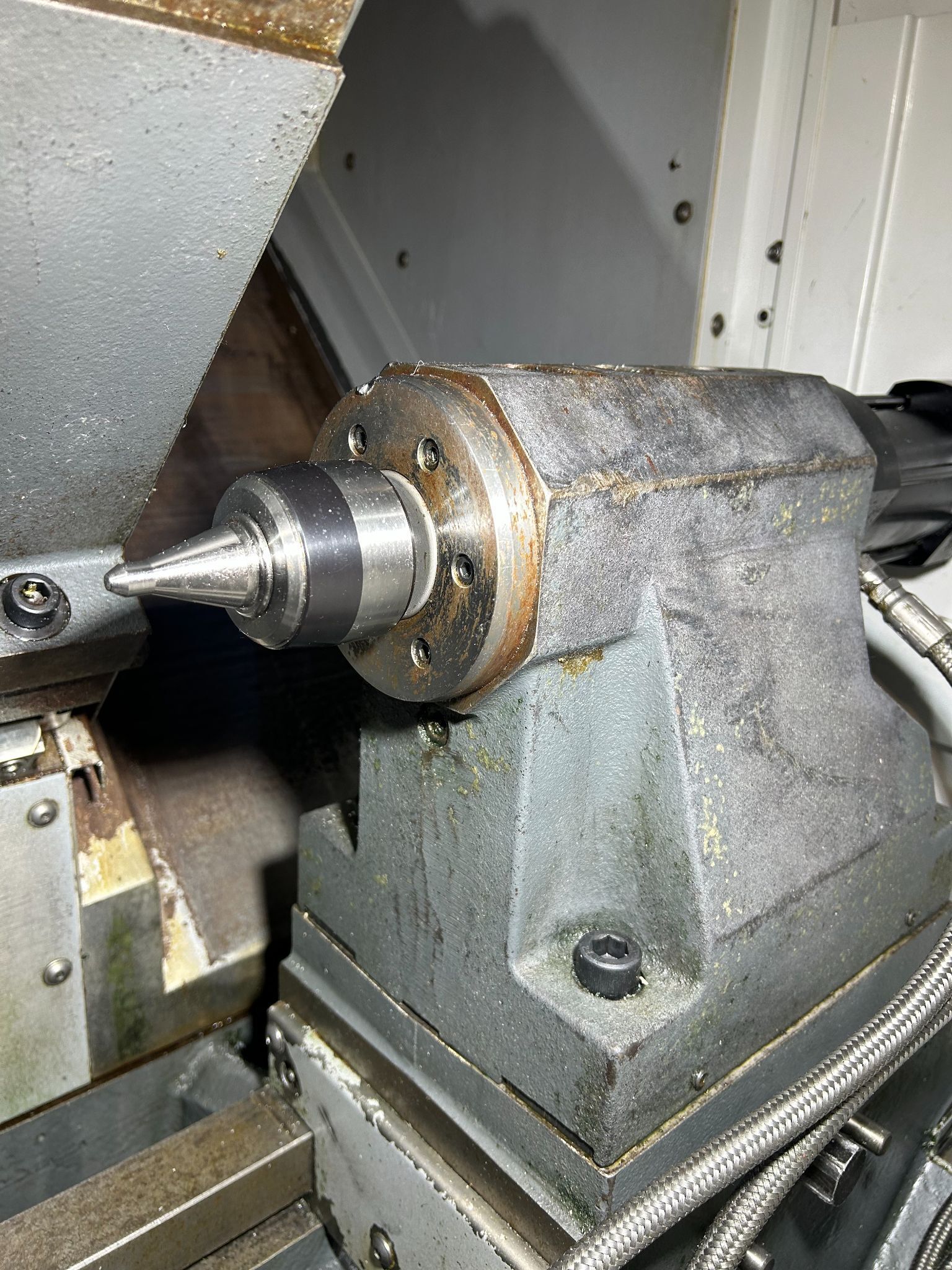

| Tailstock: |
|---|
| Tailstock Taper: MT-3 |
| Hydraulic Quill Travel: 3.8″ |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Machine Dimensions: 126″ × 70″ × 81″ High Approx. |
| Machine Weight: 7,900 lbs Approx. |
