*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

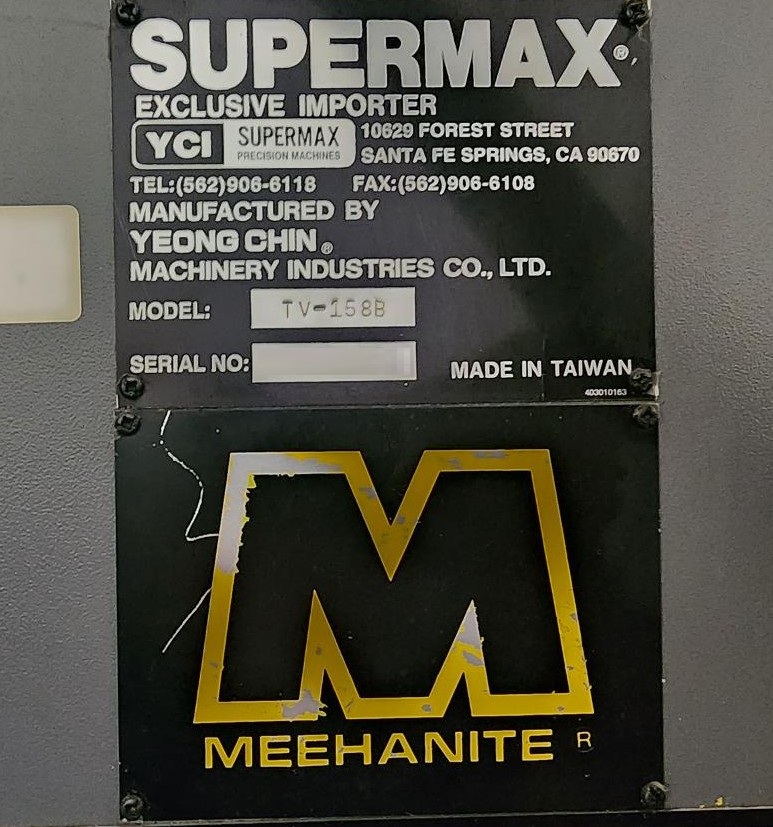

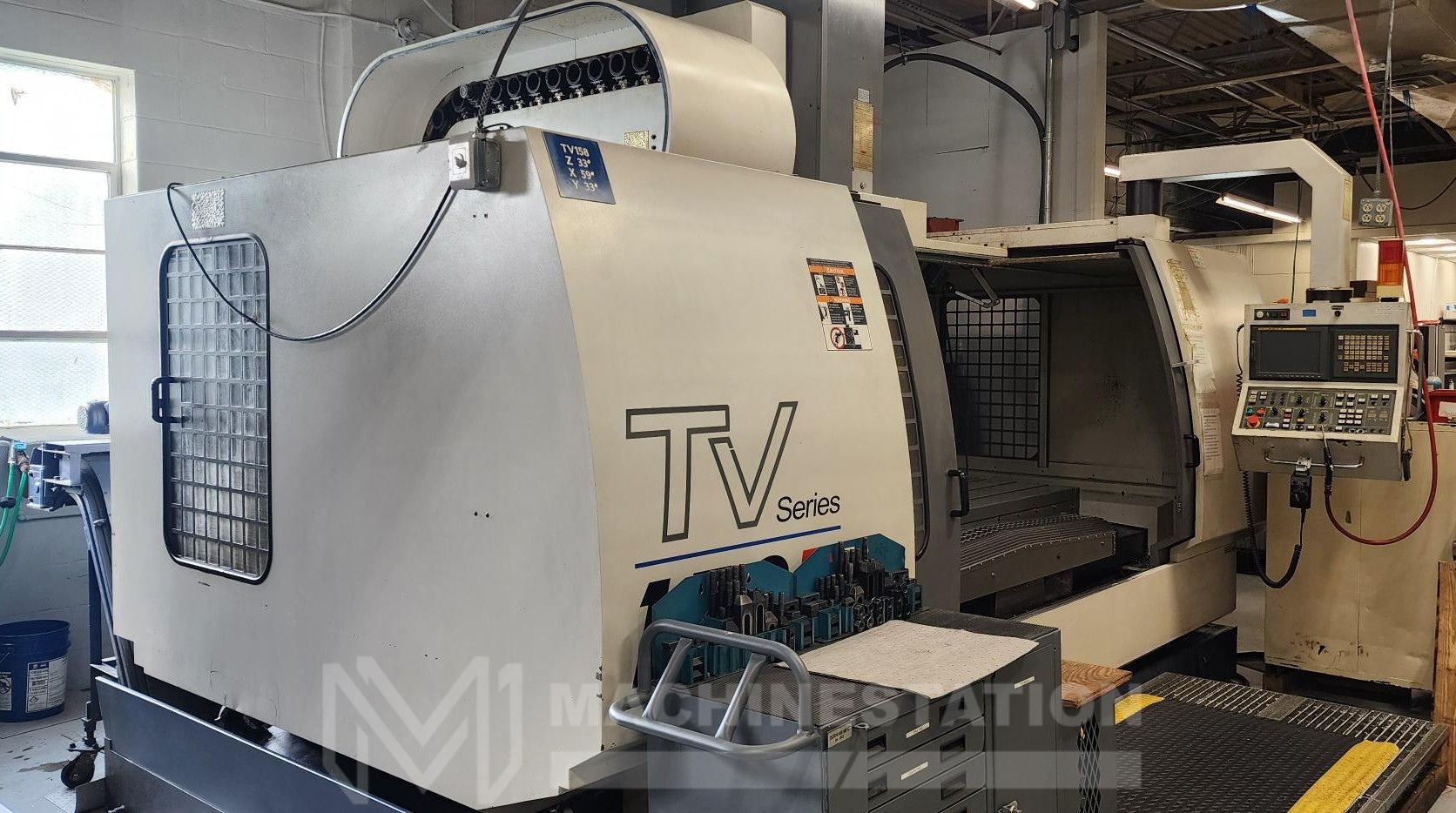

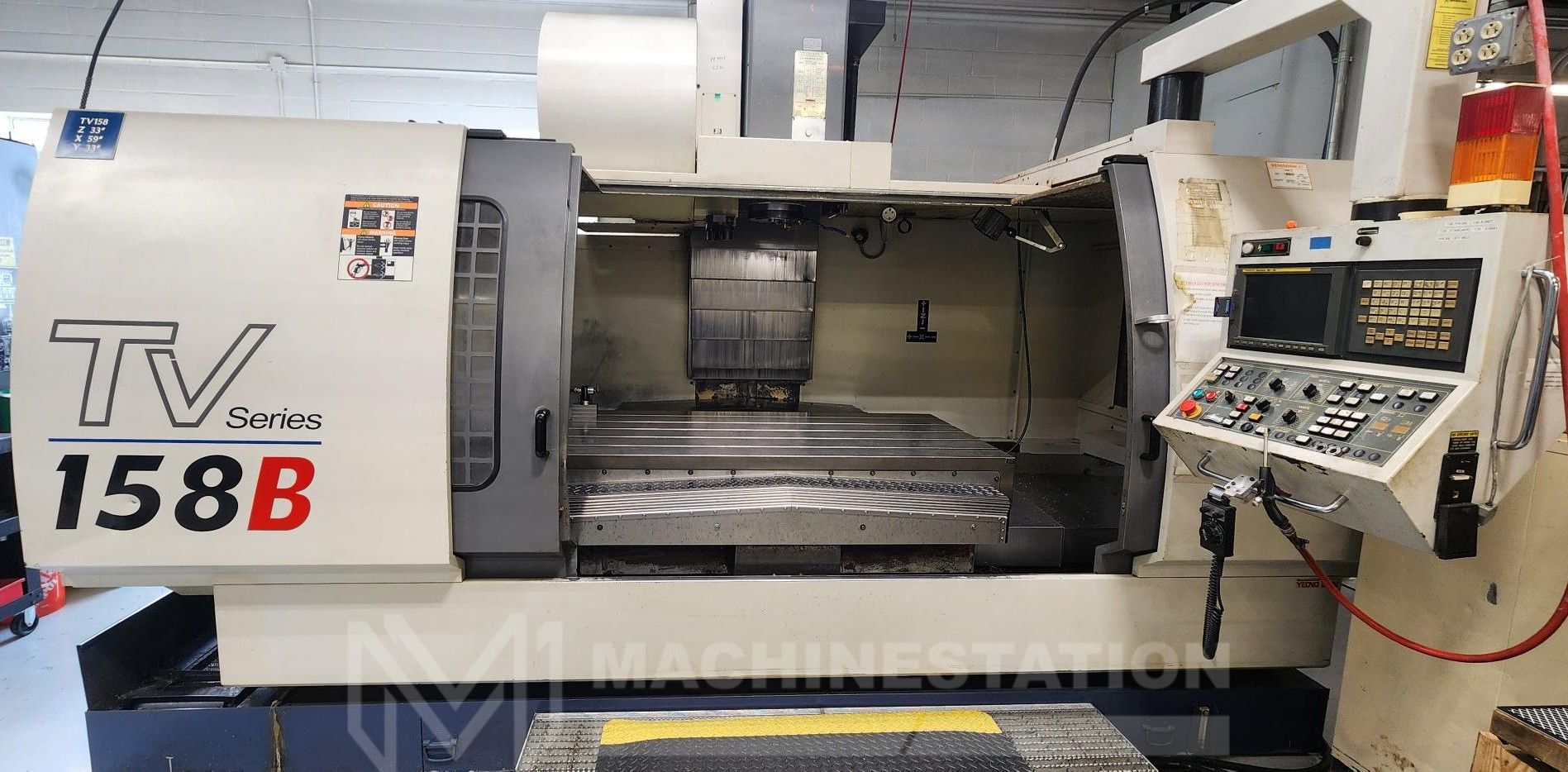

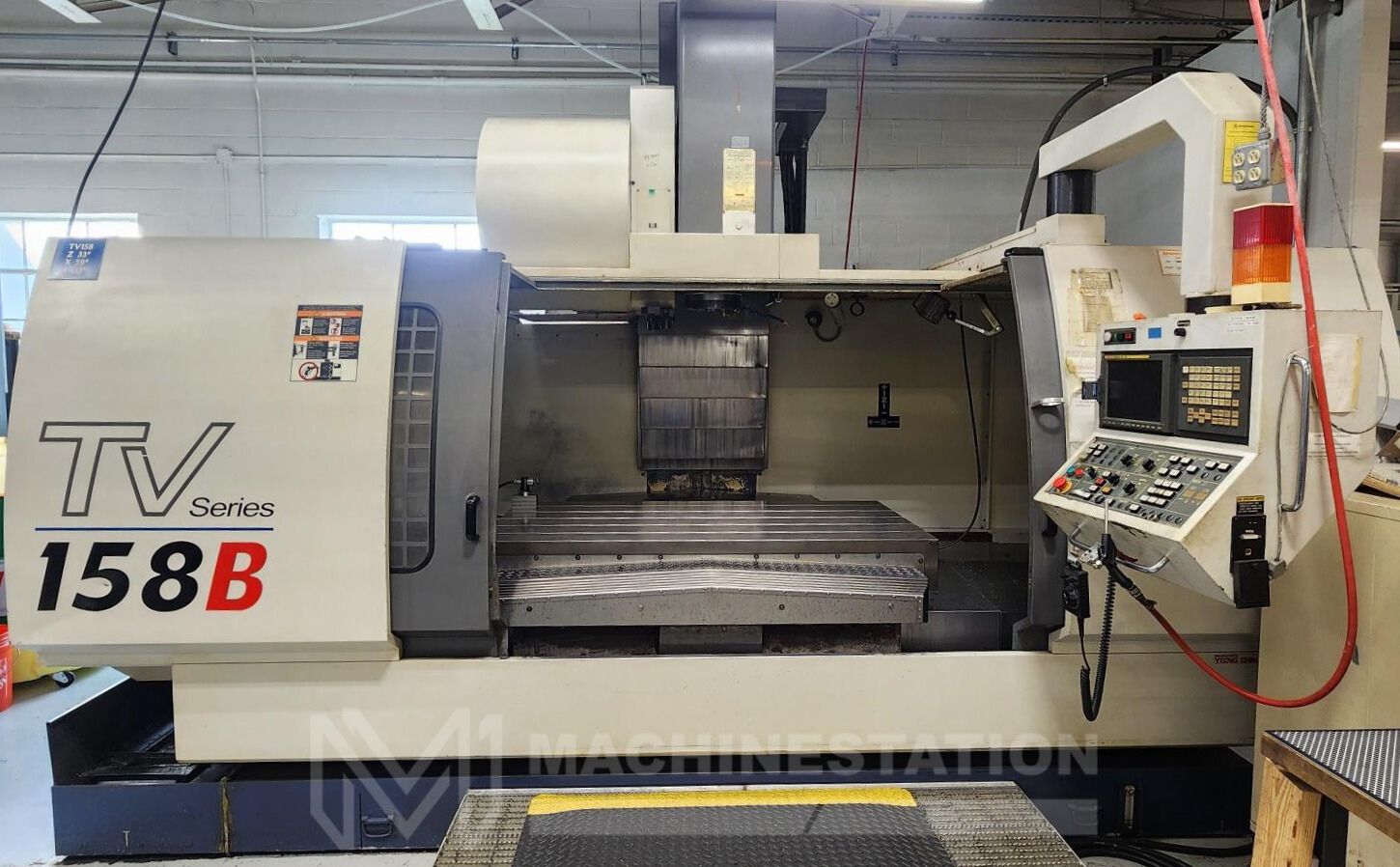

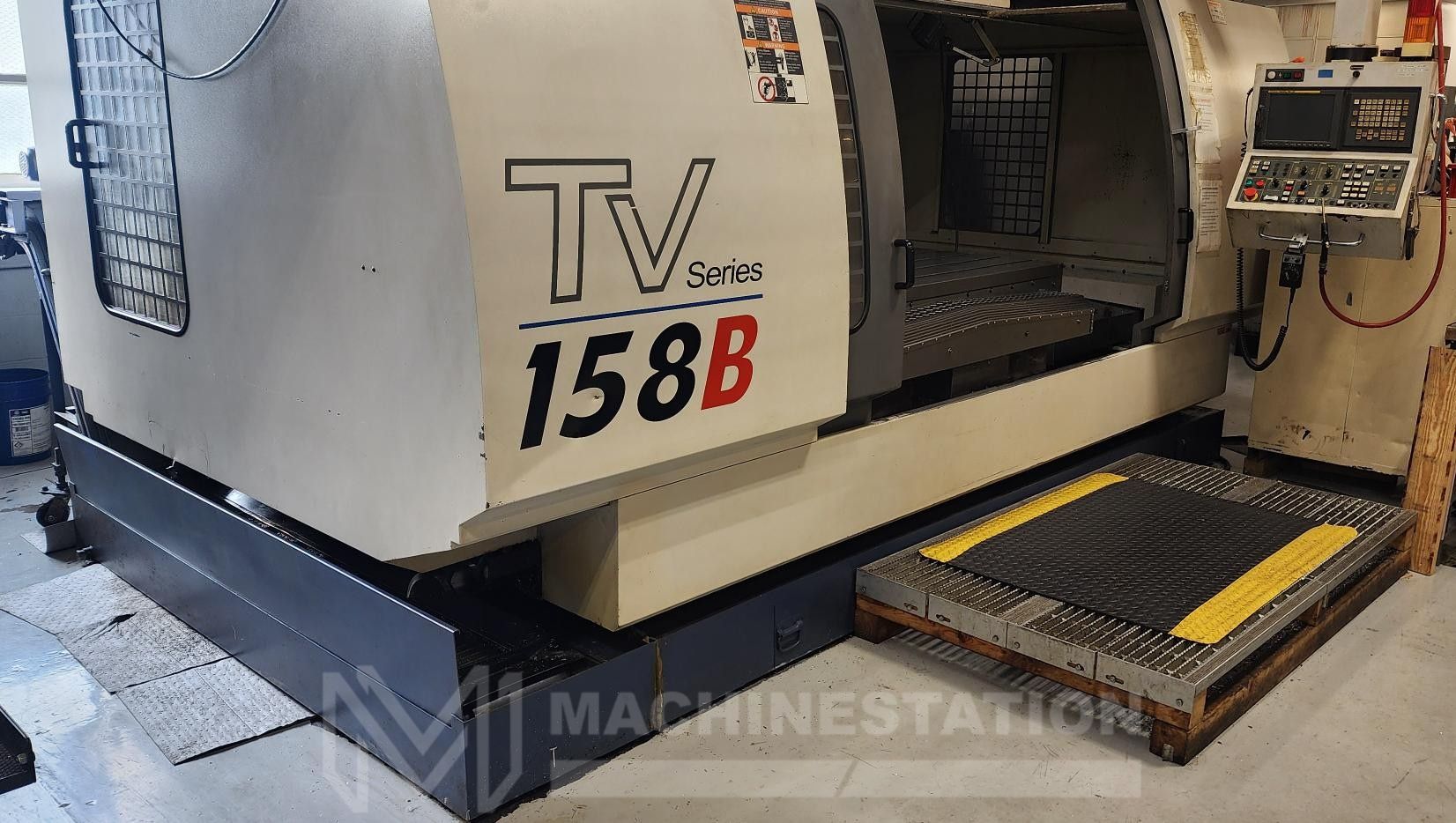

| Make: | YCM |
| Model: | TV-158B |
| Year: | 2004 |
| Condition: | Used – Good |
| Equipped With: |
|---|
| Fanuc 18i-M series CNC Control |
| Box Way construction |
| 32 Station Automatic Tool Changer |
| 50 Taper Spindle |
| 10,000 RPM Spindle |

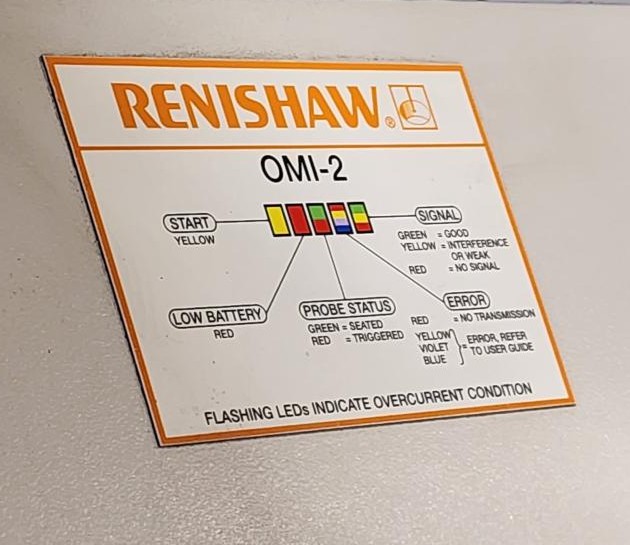

| Renishaw Probing System (Probe Needed) |
| Tool Presetter |

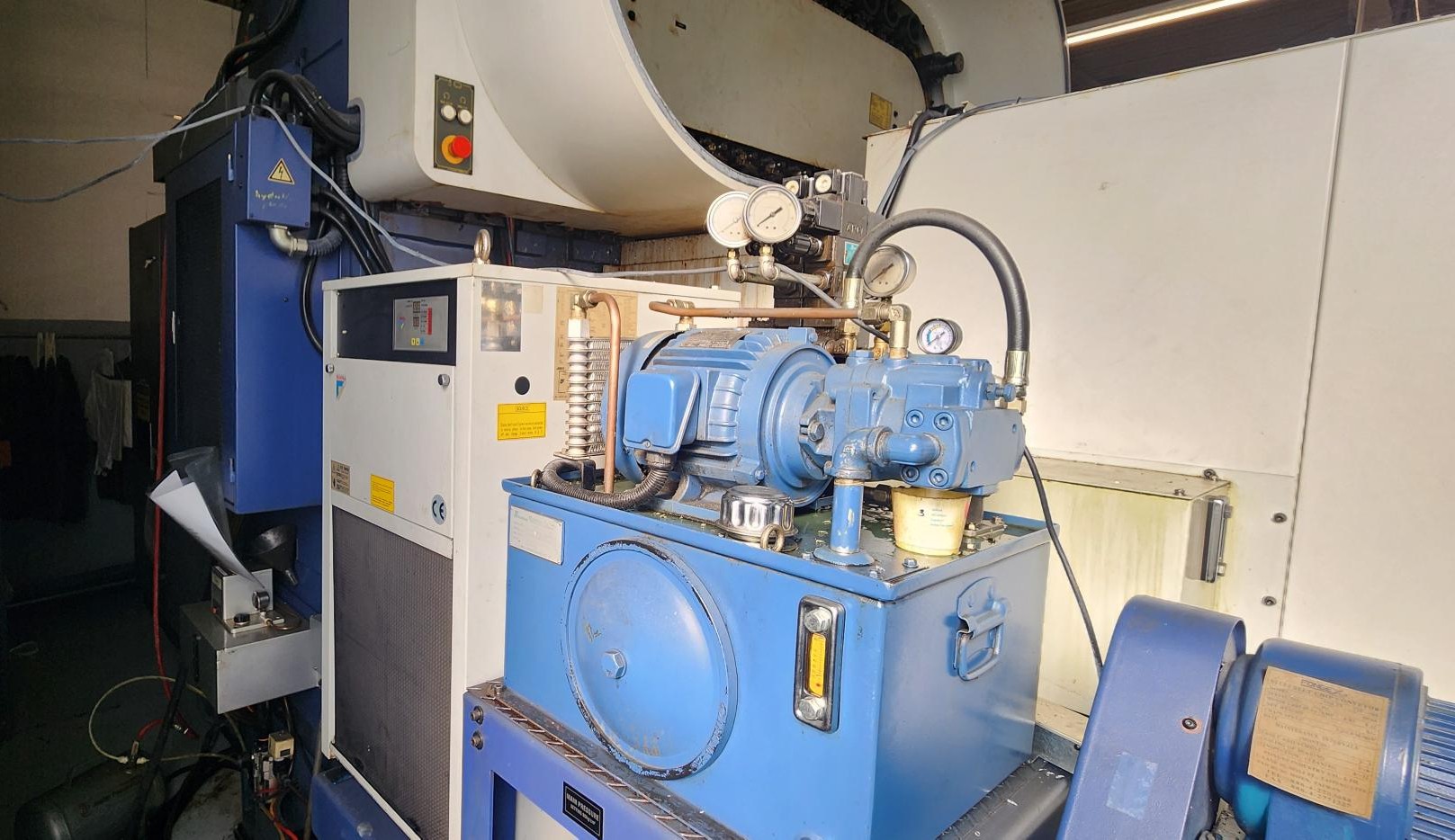

| Spindle Chiller Unit |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 59.06″ |
| Y-Axis: 33.86″ |
| Z-Axis: 29.53″ |
| X, Y Axis Rapid Traverse rates: 591 IPM |
| Z Axis Rapid Traverse rates: 472 IPM |
| Cutting Feedrate: 197 IPM |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 35.43″ |

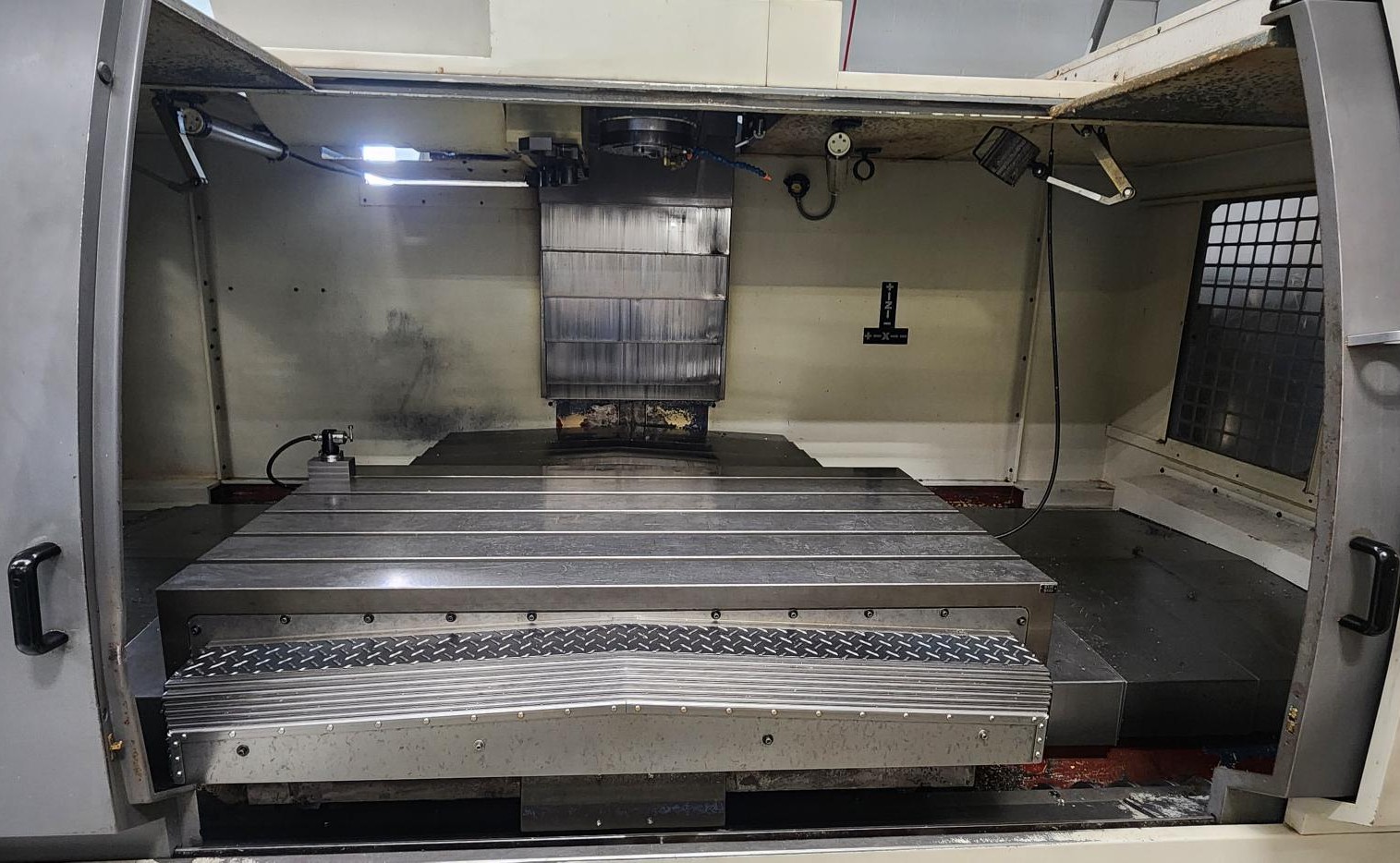

| Table: |
|---|
| Length: 66.93″ |
| Width: 33.86″ |
| T-Slot x Size x Pitch: 5 x 0.87″ x 5.91″ |
| Max Weight on Table: 4409 lbs |
| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 45 – 10,000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 32 Station Side Mounted |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 13.78″ |
| Max Tool Diameter : 4.33″ – 7.48″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 205-220v / 45 kva / 3-Phase |
| Overall Dimensions: 174″ x 131″ x 121″ High Approx. |
| Weight: 39,683 lbs. Approx. |
