*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mitsui Seiki |
| Model No.: | HU80A |
| Year: | 2002 |
| Condition: | Used – Good |
| Machine Type: | 5-Axis CNC Horizontal Machining Center |

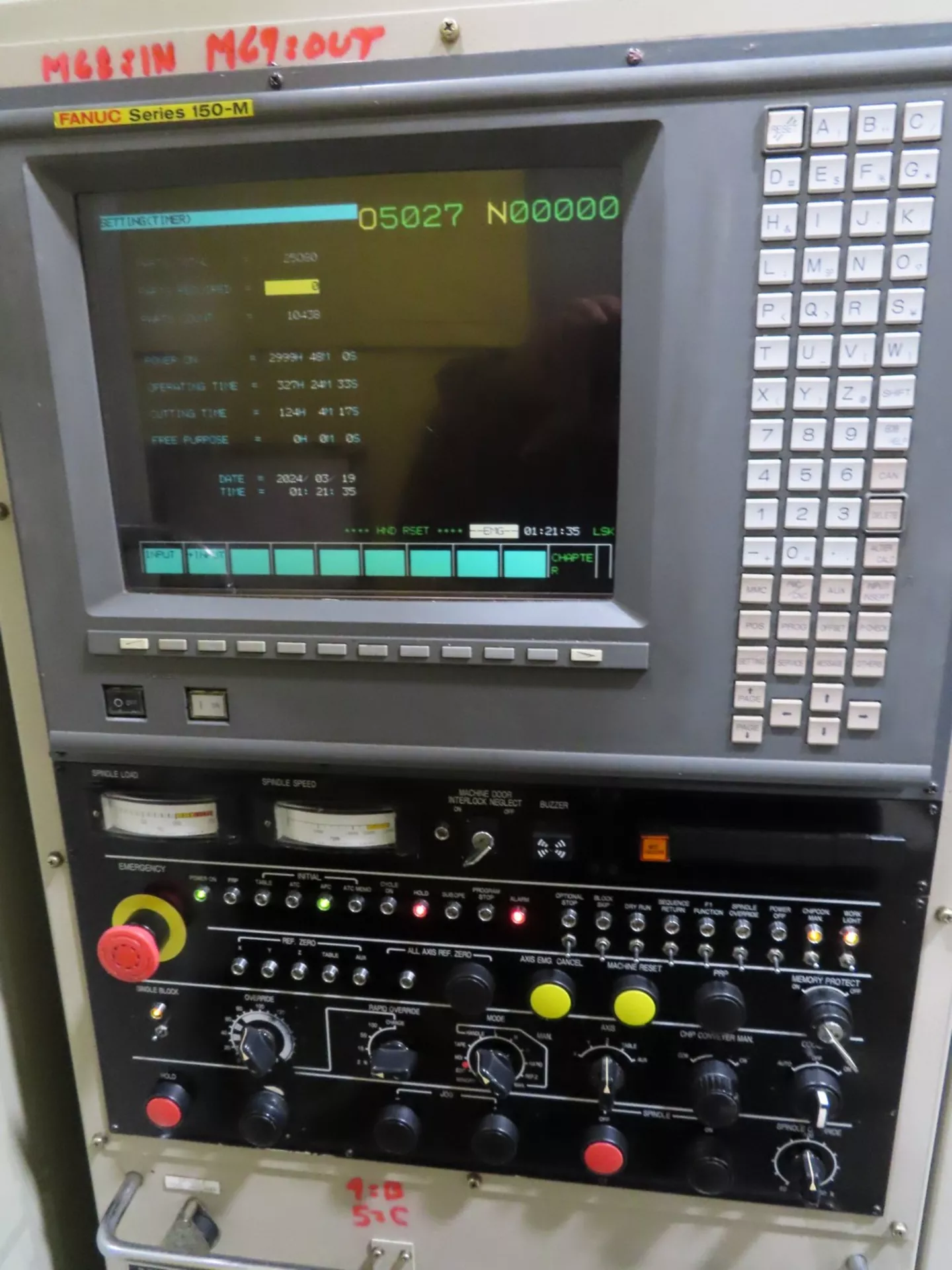

| Control: | Fanuc CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Full 5-Axis Capability (B & C Axis) |
| Dual Pallet Changer |

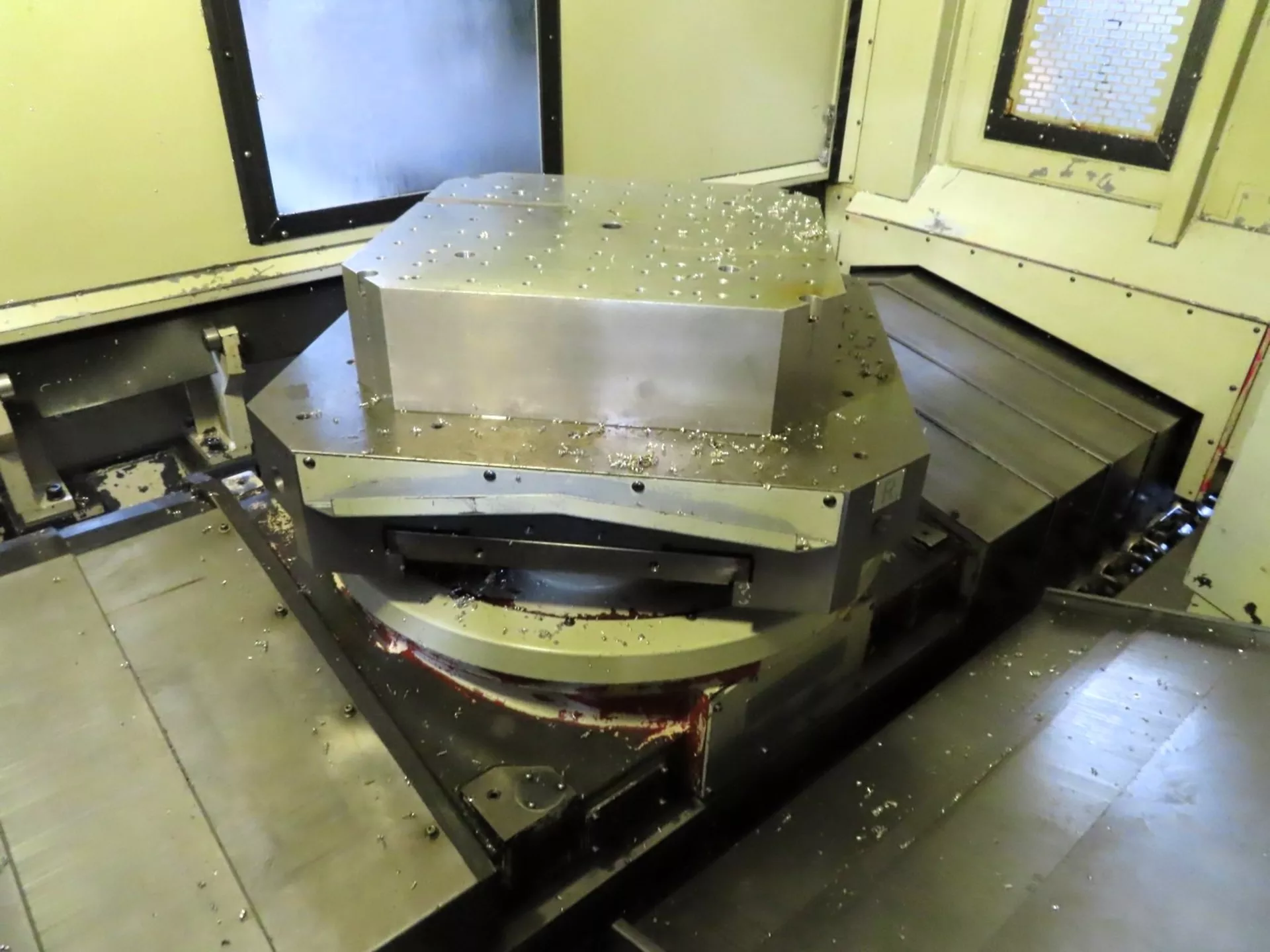

| Rotary Table (Integrated) |
| Automatic Tool Changer |
| Through Spindle Coolant |
| Chip Conveyor |
| Coolant System |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 55.1″ |
| Y-Axis Travel: 51.2″ |
| Z-Axis Travel: 55.1″ |
| B-Axis (Table Rotation): 360° |
| C-Axis (Rotary): 360° Continuous |
| Pallet: |
|---|
| Pallet Size: 31.5″ x 31.5″ (800 mm x 800 mm) |
| Number of Pallets: 2 |
| Max Pallet Load: 2,200 lbs |
| Spindle: |
|---|
| Spindle Speed: Up to 10,000 RPM |
| Spindle Taper: CAT50 |
| Spindle Motor: 30 HP (Approx.) |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 1,200 IPM (Approx.) |

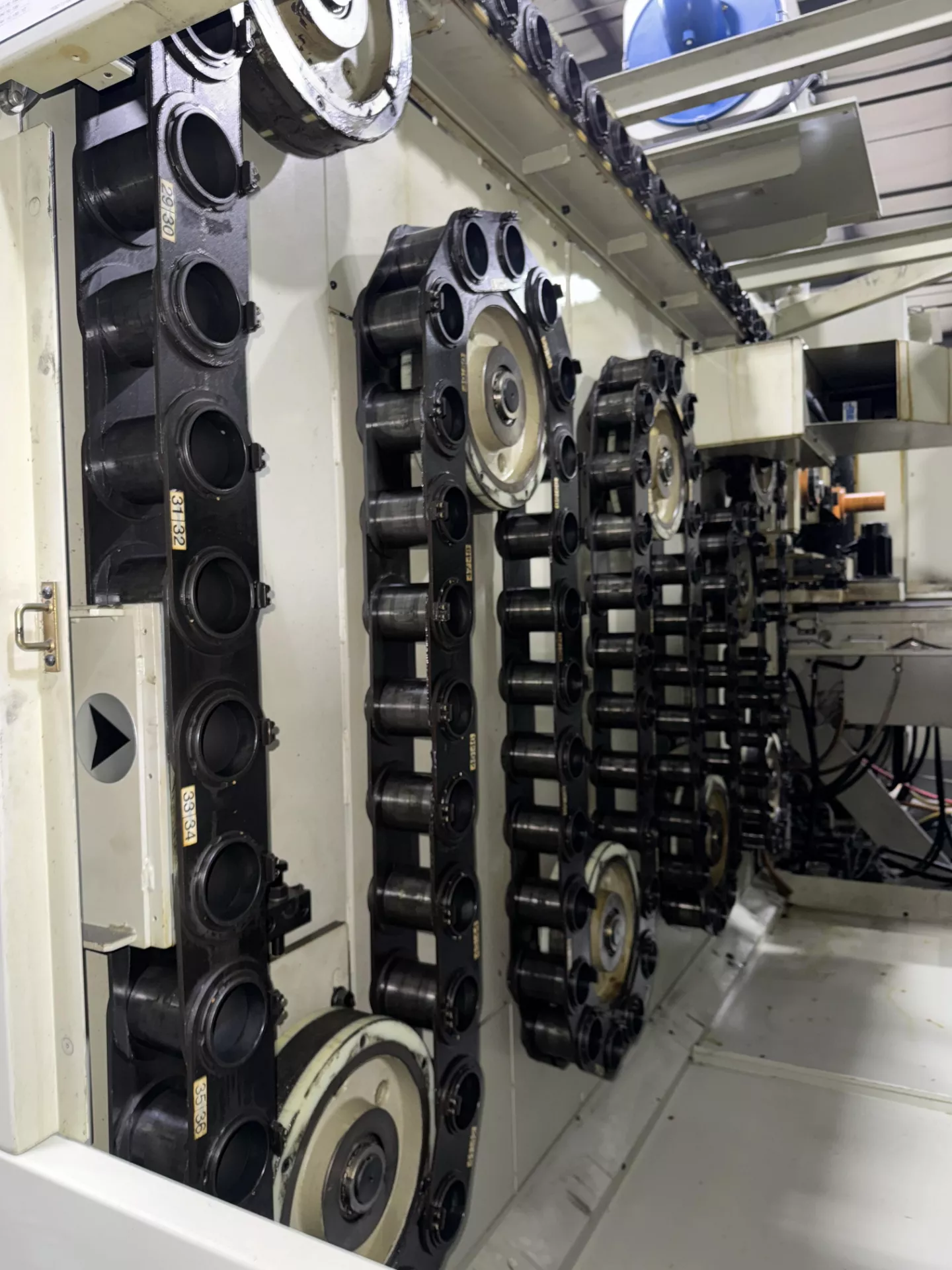

| Tool Changer: |
|---|
| Tool Capacity: 60 Tools (Typical) |
| Tool Change Type: Automatic |
| Electrical: |
|---|
| Voltage: 220 / 440 V |
| Phase: 3 |
| Frequency: 50 / 60 Hz |
| General: |
|---|
| Air Required: 90 PSI |
| Power: 220-440V / 3-Phase |
| Overall Dimensions: 200″ x 160″ x 140″ High (Approx.) |
| Weight: 55,000 lbs (Approx.) |
