Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Make: | LNS |

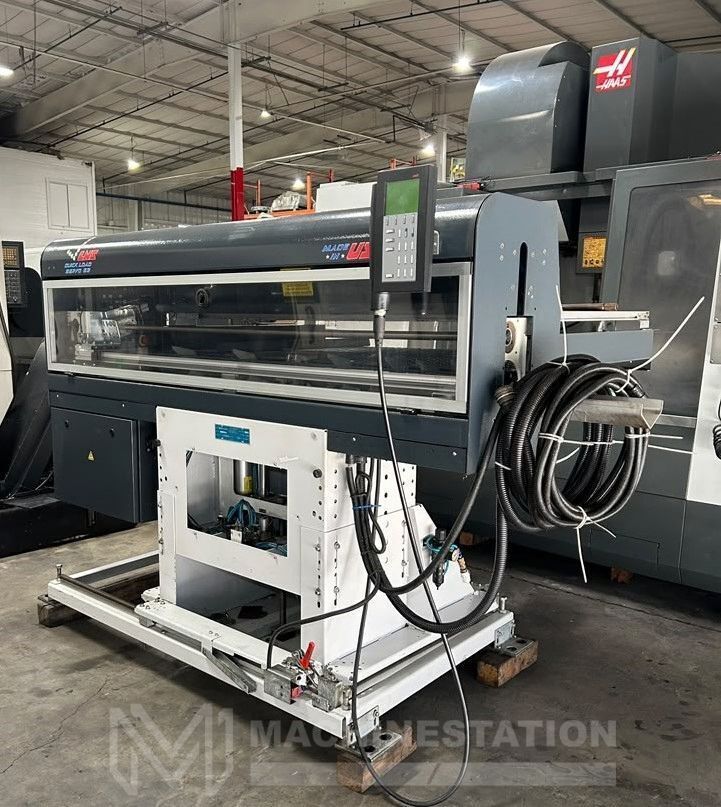

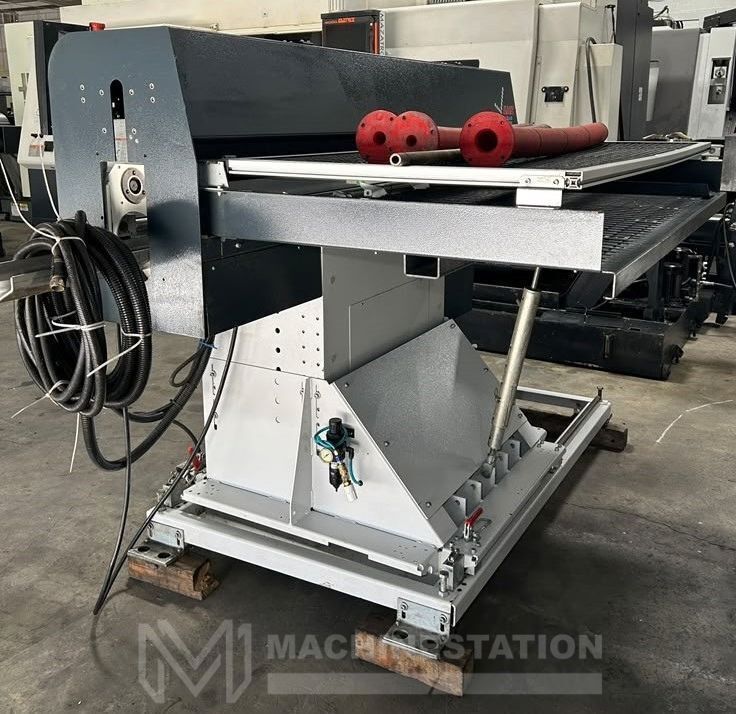

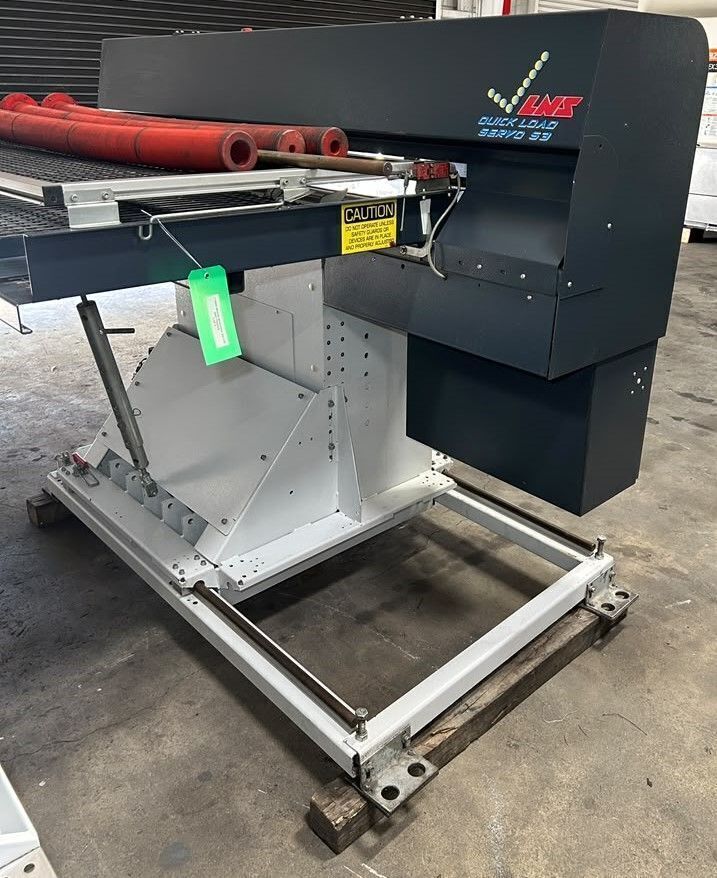

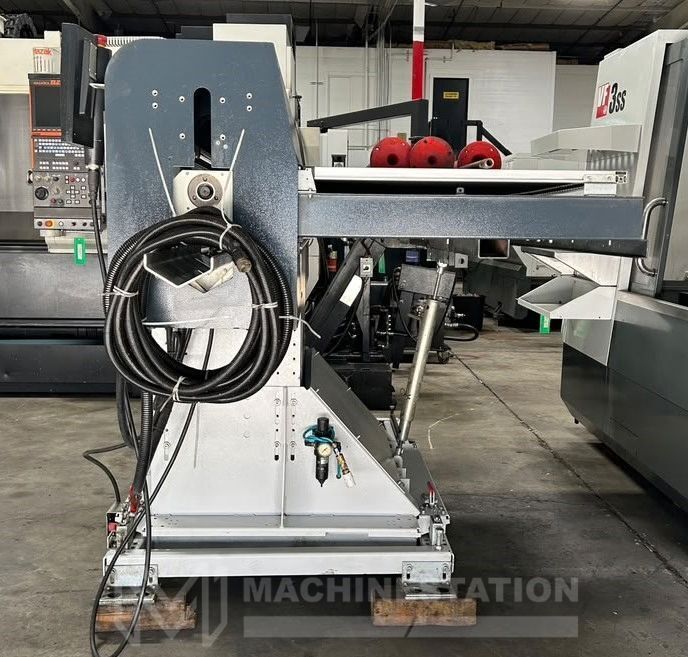

| Model: | Quick Load Servo S3 |
| Year: | 2007 |
| Features: |
|---|

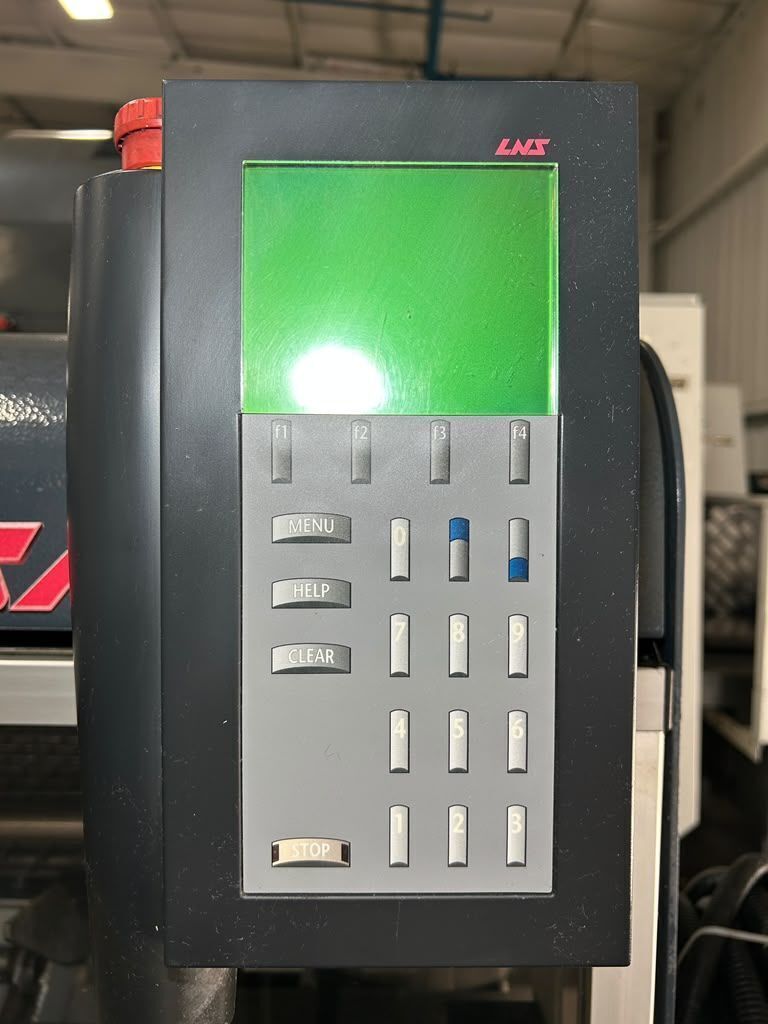

| Remote Control |
| Servo-Driven Operation |
| Quick Changeover: Fast and Easy Changeovers Between Different Bar Diameters |
| Versatile Material Handling: Accommodates Round, Hexagonal, and Square Bars |
| Automatic Bar Diameter Adjustment for Bar Selection Fingers |
| Automatic Bar Centerline Alignment |
| Automatic Torque and Speed Adjustment |
| Parts Library |
| High Speed Feed Rate |
| Large Capacity Magazine Tray |
| Front Loading of the Magazine Tray |
| Linear Ways for Smooth and Accurate Feeding |
| Safety Features |
| Capacity: |
|---|
| Bar Diameter Range (Min.-Max.): 0.23 inch – 4.7 inch |
| Bar Length Range (Min.-Max.): 5.1 inch – 63 inch |
| Max Bar Stock Weight: 147.6 lbs |
| Applications: |
|---|
| Type of Headstock: Fixed / Travelling |
| X-Axis Retraction Travel: 23.6 inch |
| Changeovers: |
|---|
| Partial Changeover |
| Complete Changeover |
| Driving Systems and Bar Support: |
|---|
| Motor: Servo |
| Drive: Notched Belt |
| General: |
|---|

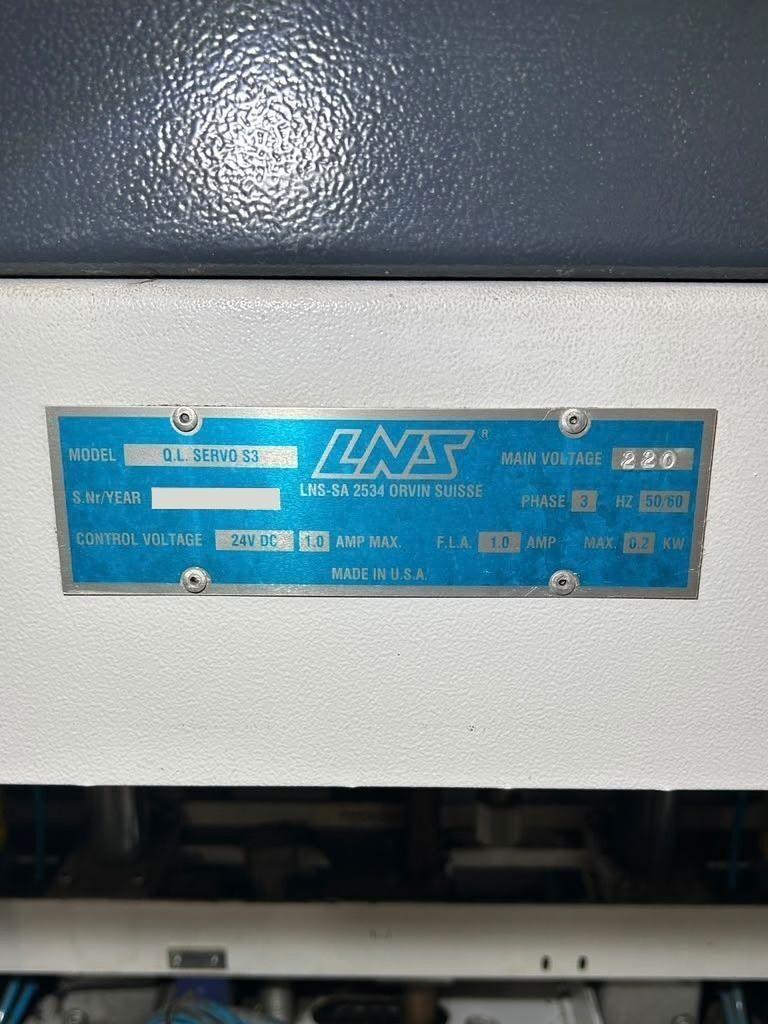

| Power: 220V / 3-Phase / 50-60 Hz |
| Overall Dimensions: 81 inch x 71 inch x 50 inch High Approx. |
| Weight: 1,750 lbs Approx. |
