*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |

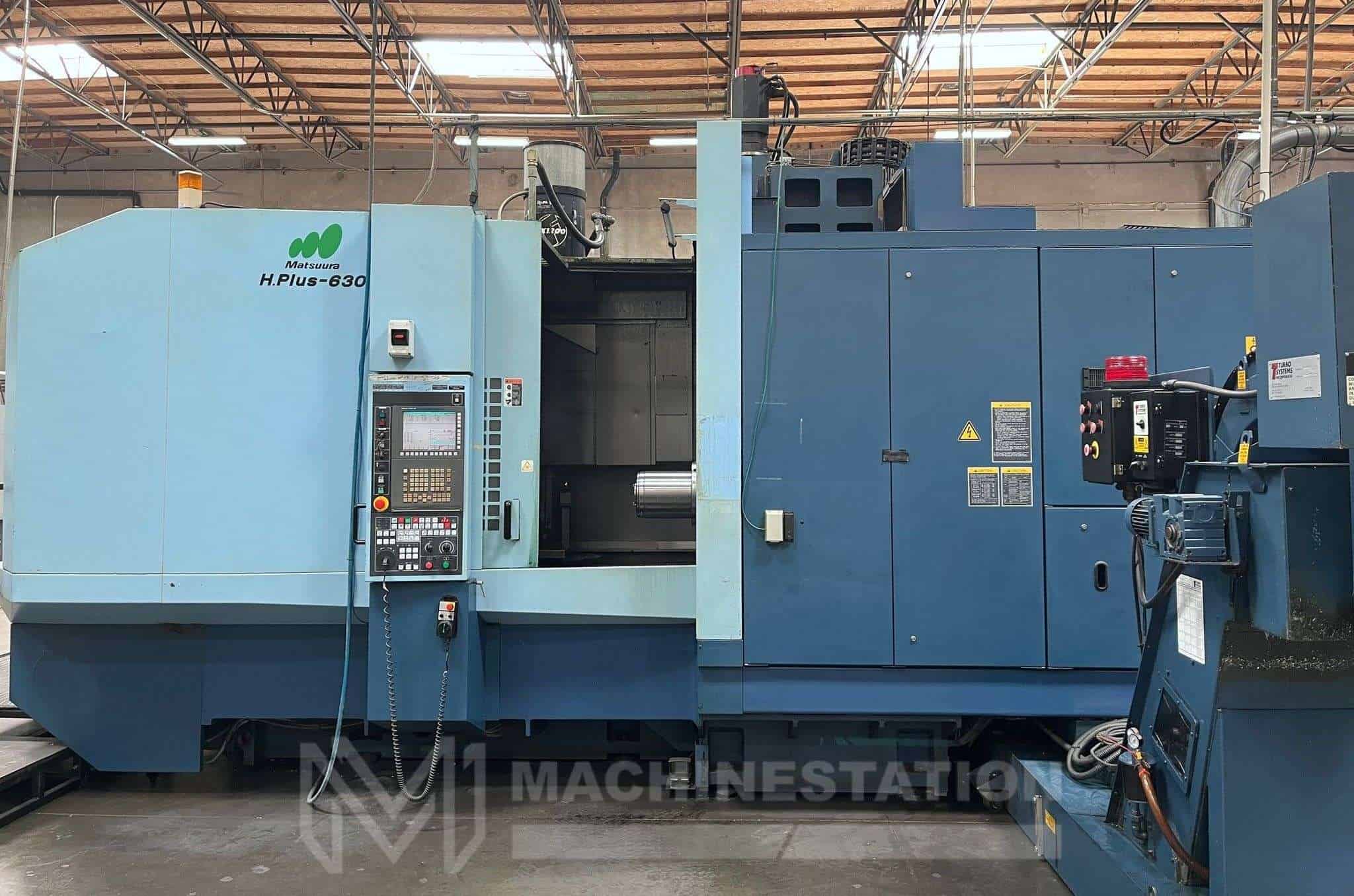

Matsuura |
| Model: |
H-Plus 630 |
| Year: |
2005 |
| Condition: |
Used – Good |
| Features: |
- Fanuc G-Tech 30i CNC Control
- Full 4th Axis
- 12,000 RPM High Precision Spindle
- Twin Pallet Changer
- 60 Station Automatic Tool Changer
- CAT-50 Taper Spindle
- Through Spindle Coolant
- Probing System Ready (Probe Needed)
- Pallet Seat Detection
- Spindle Orientation
- Rigid Tapping
- PCMCIA Card Slot
- Fast Rapid Traverse Rate
- Coolant System
- Chip Conveyor
- Books & Manuals
|
| Travels: |
- X Axis: 41.33″
- Y Axis: 36.22″
- Z Axis: 38.97″
- B Axis: 360° ( 0.001° Full 4th )
|
| Table: |
- Length: 24.80″
- Width: 24.80″
- Max Weight on Table: 2640 lbs
- Max Workpiece Diameter: 41.33″
- Max Workpiece Height: 43.89″
|
| Spindle: |
- Taper Size: CAT-50
- Max. Speed: 12,000 RPM
- Power: 40 HP
|
| Feed rates: |
- Rapid Traverse Rate: 2362 Inch Per Minute
- Cutting Feedrate : 2362 Inch Per Minute
|
| Tool changer: |
- Capacity: 60 Tools
- Taper: CAT-50
- Max Tool Size: 4.33″ – 12.59″
- Max Tool Length: 23.62″
- Max Tool Weight: 44 lbs.
- Tool Change Time: 2 Second
|
| General: |
- Air Required: 100 psi, 4 scfm
- Power: 96 kva / 220v / 3-Phase
- Overall Dimensions: 231″ X 134″ x 137″ High Approx.
- Weight: 46,000 lbs Approx.
|
