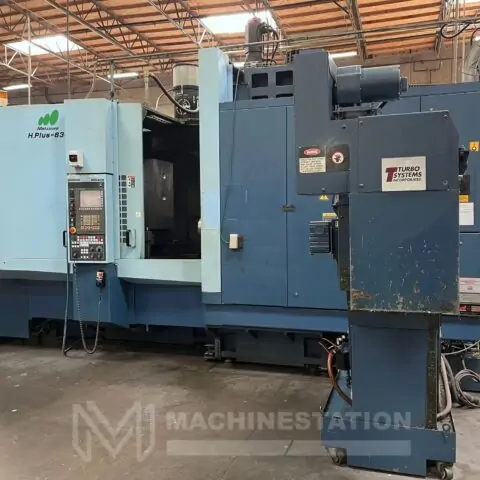

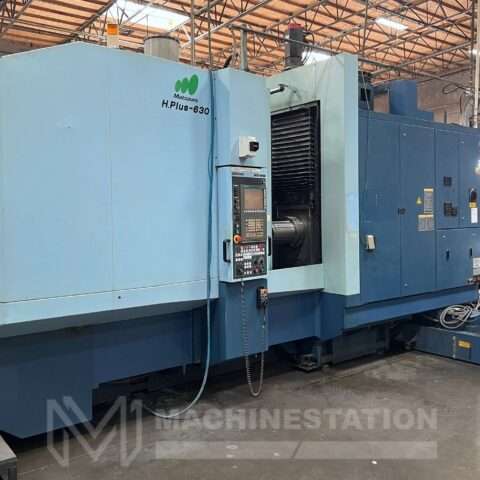

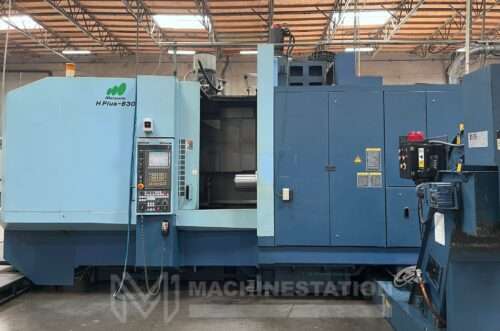

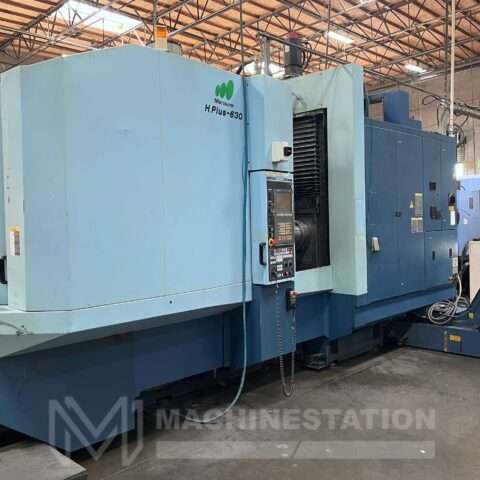

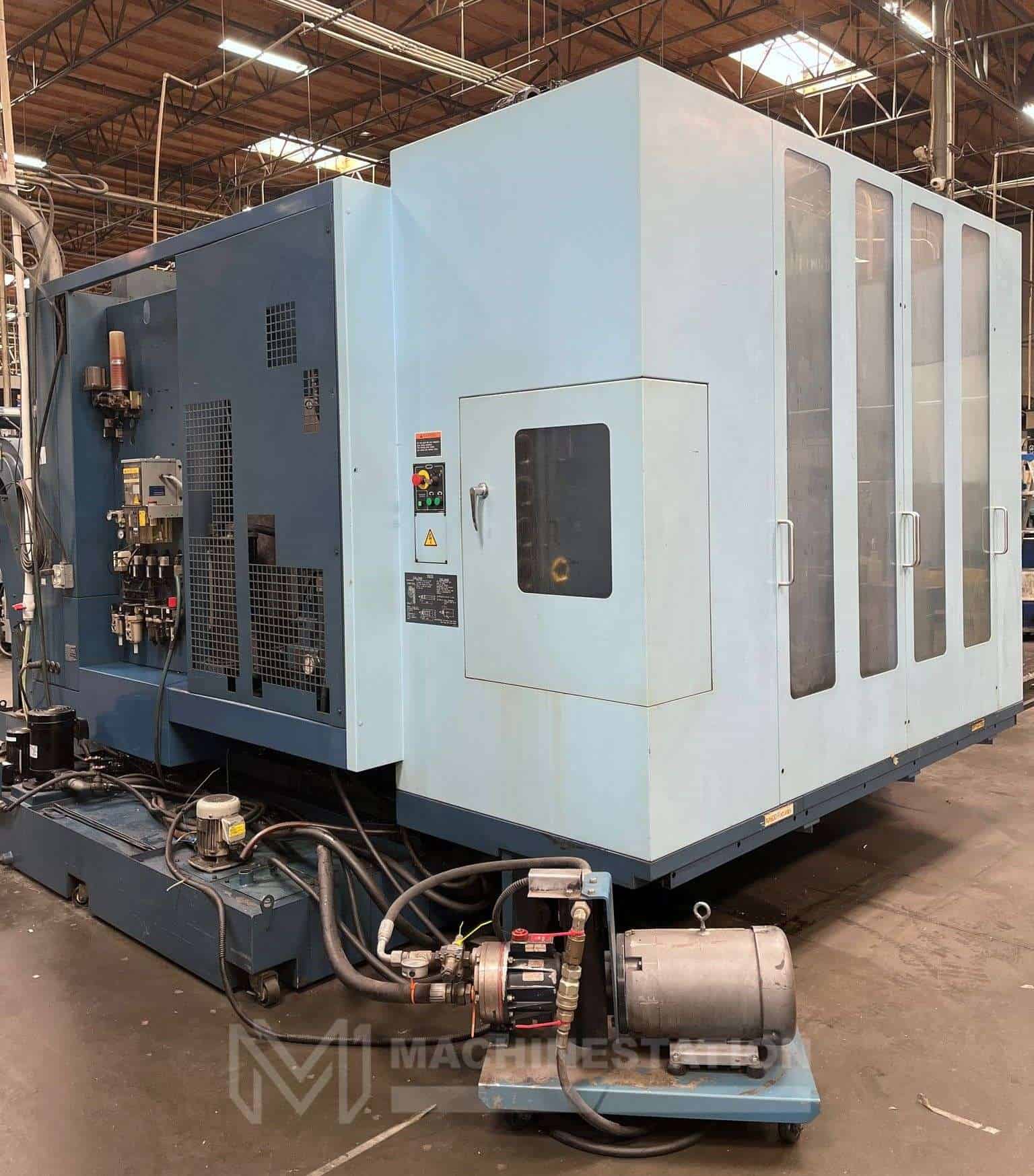

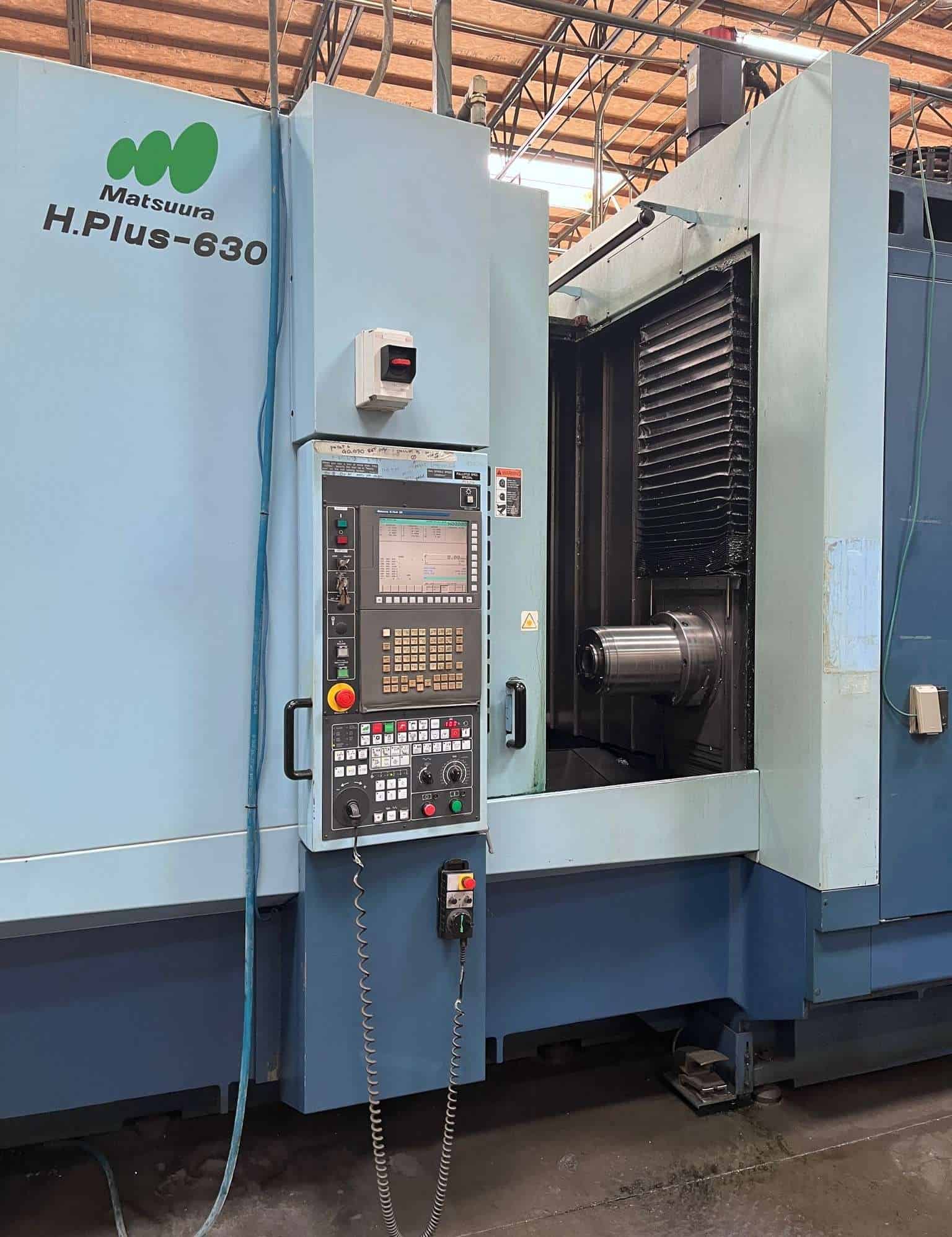

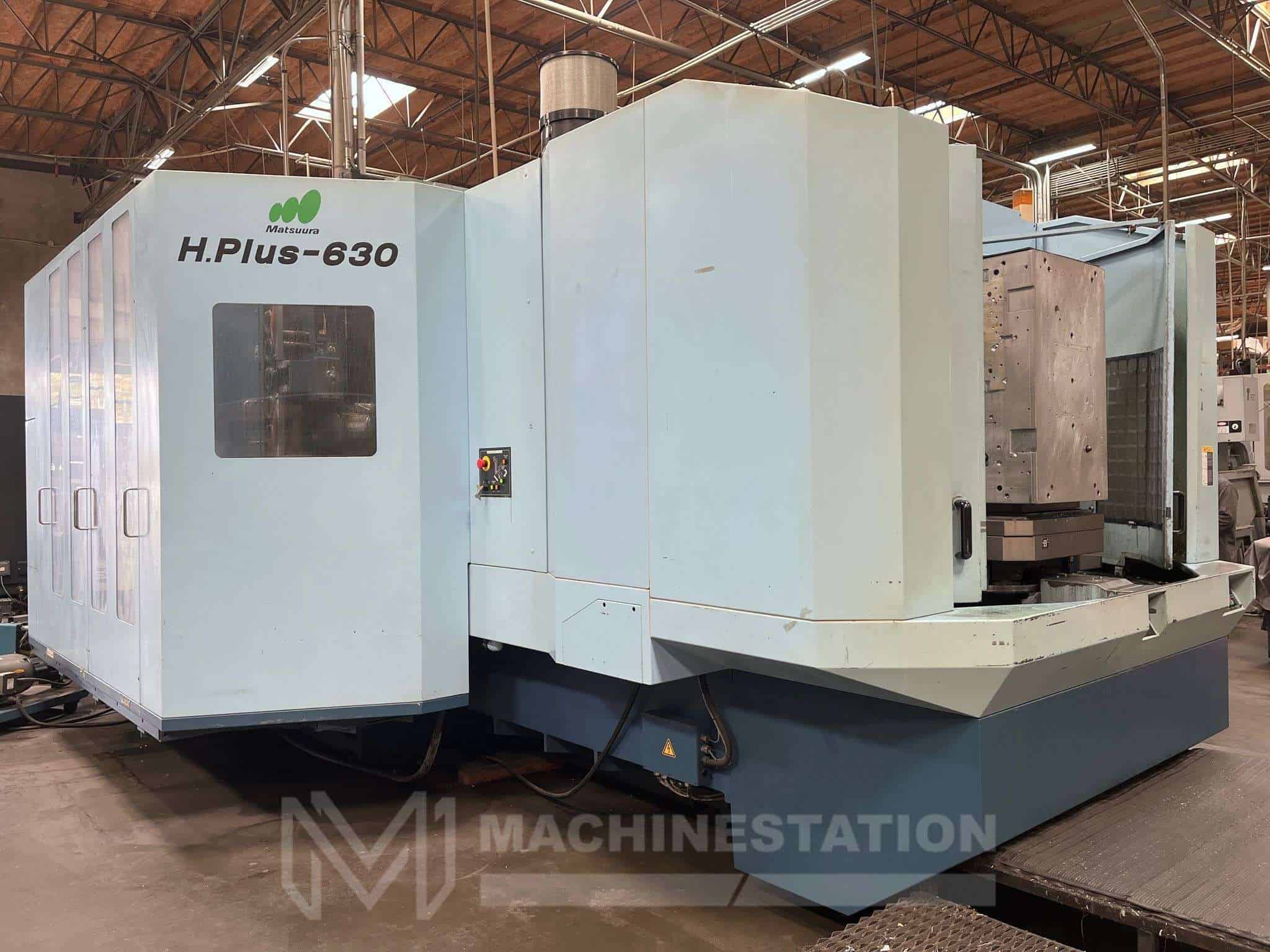

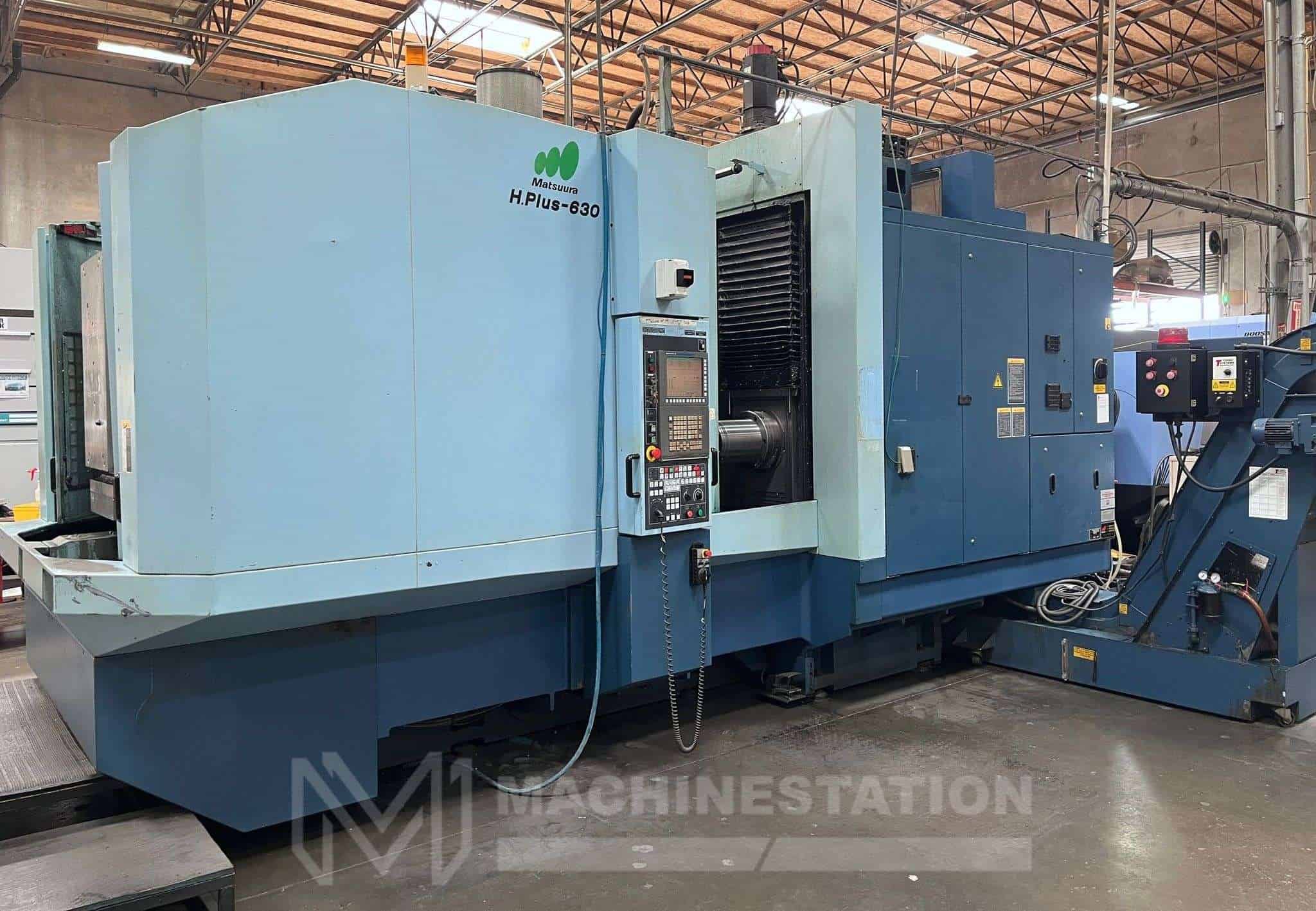

Used Matsuura H.Plus-630 CNC Horizontal Mill (2005)

Matsuura H-Plus 630 CNC Horizontal Mill – 50 Taper HMC

Location Van Nuys, CA

SKU 112727

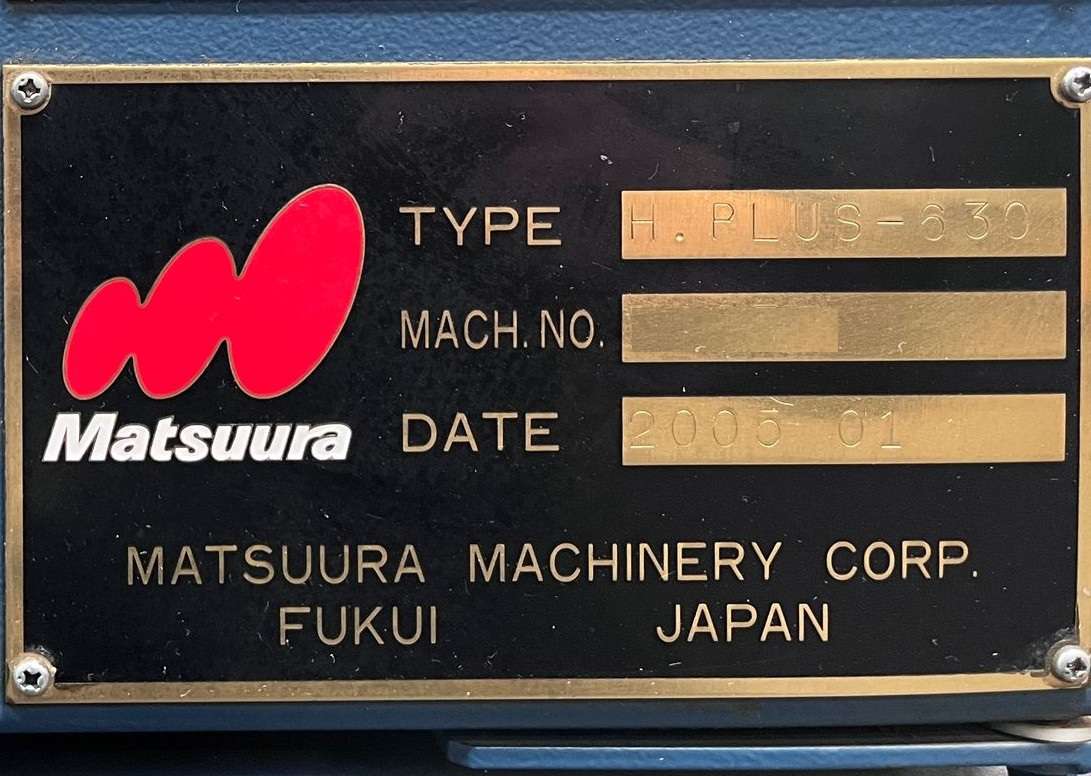

Make MATSUURA

Model H.PLUS-630

Year 2005

Cutting Time 5,444 Hours

Video On Request

Out of stock

Location:	Van Nuys, CA
SKU:	112727
Make:	MATSUURA
Model:	H.PLUS-630
Year:	2005
Cutting Time:	5,444 Hours
Video:	On Request

SKU: 112727

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Matsuura
Model:	HPlus 630
Year:	2005
Condition:	Used – Good

Features:

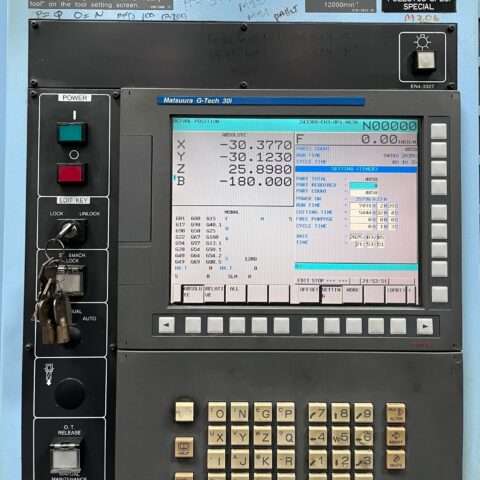

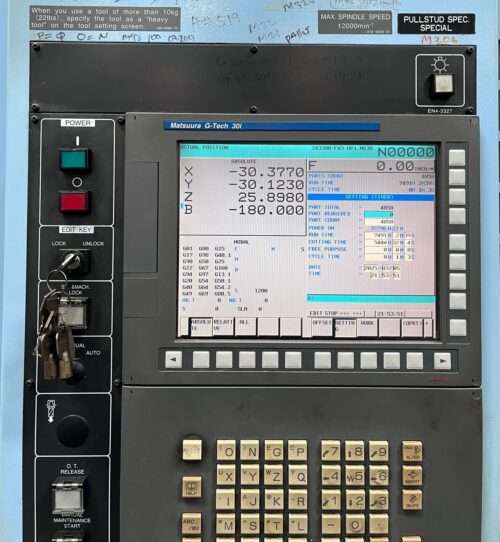

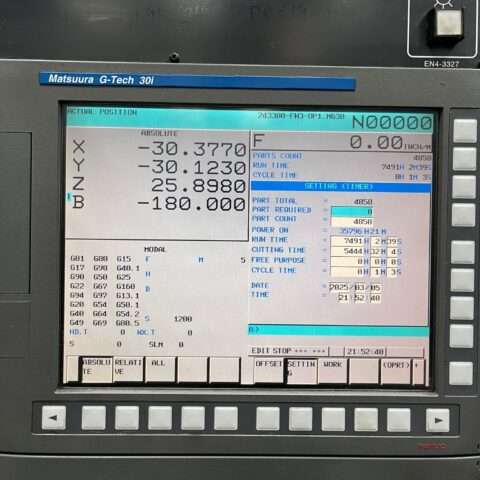

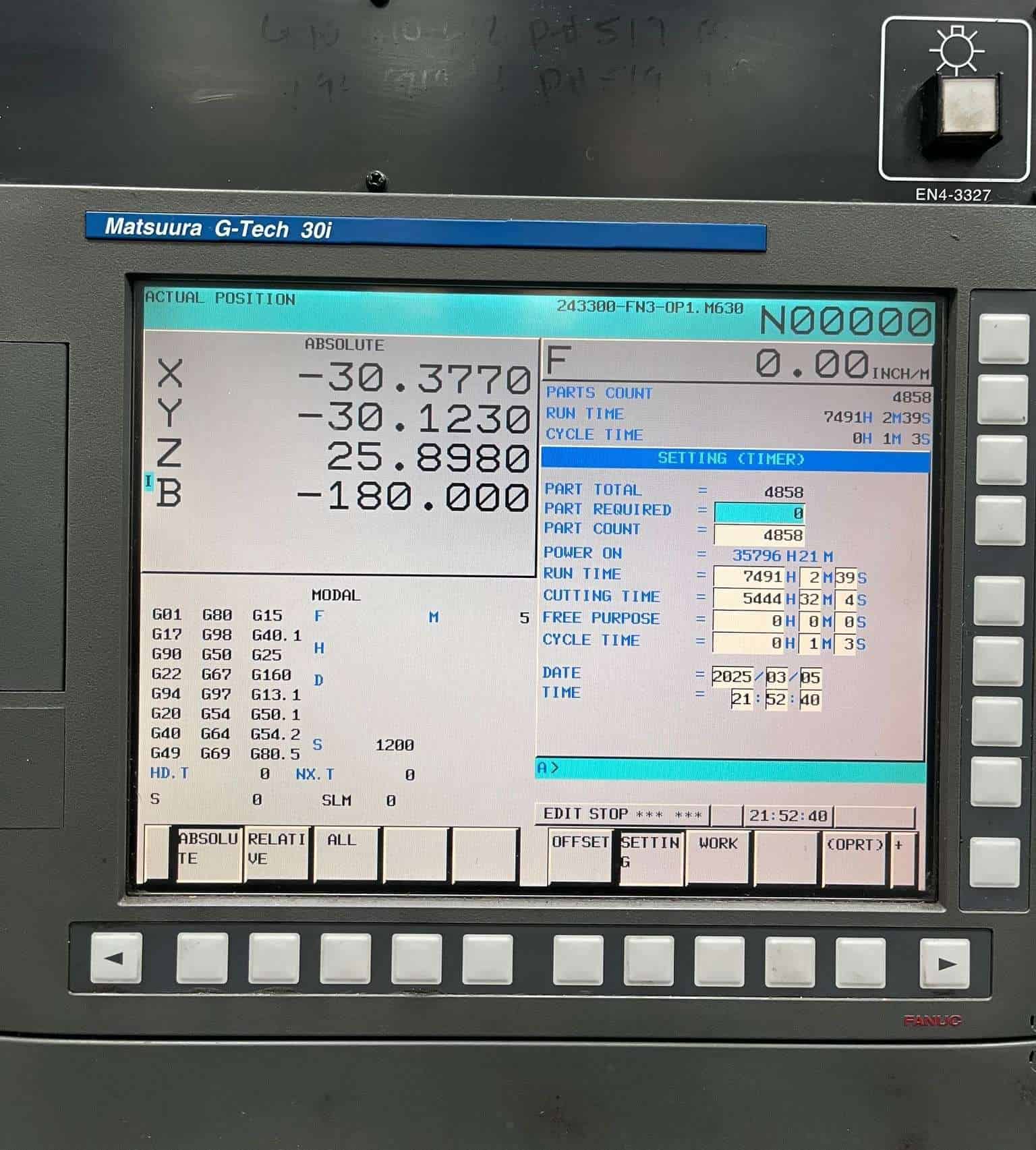

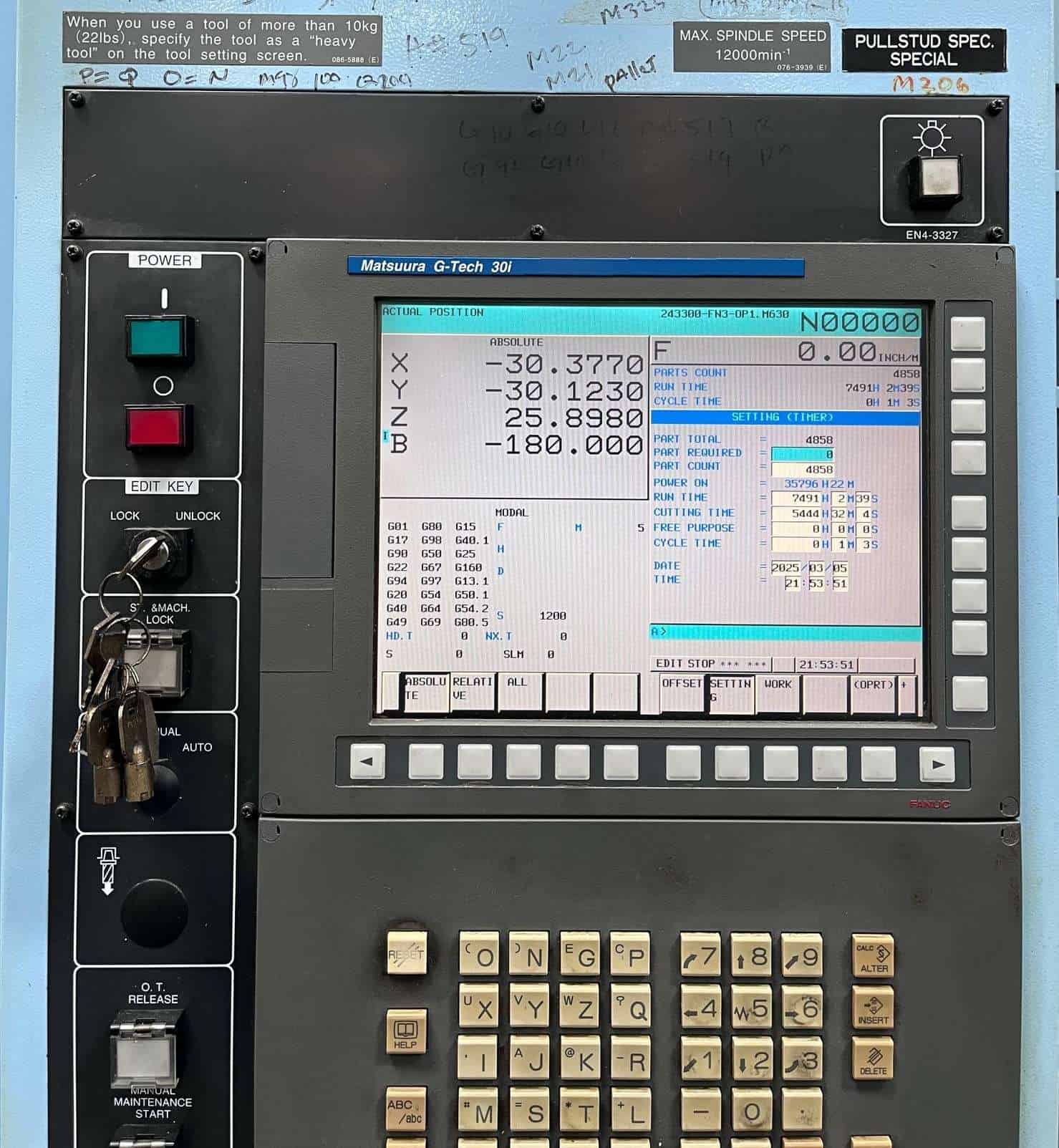

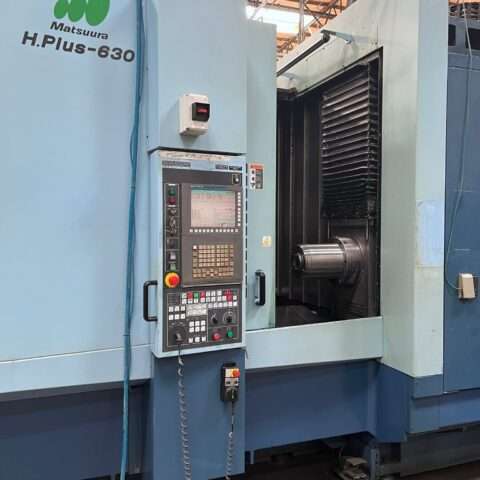

Fanuc G-Tech 30i CNC Control

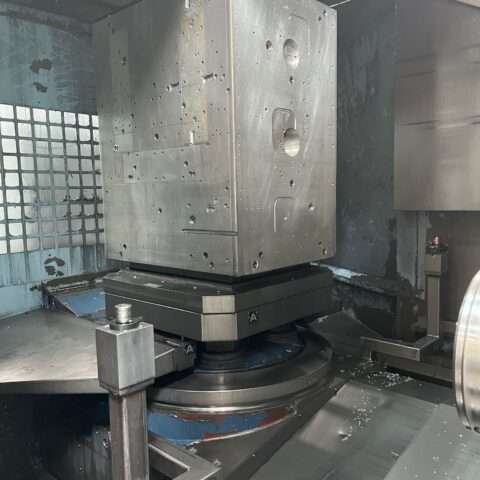

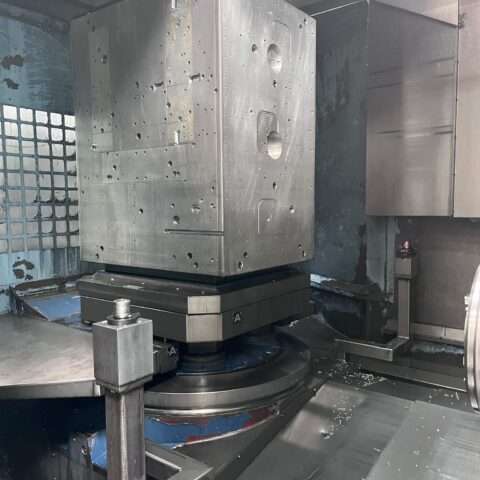

Full 4th Axis

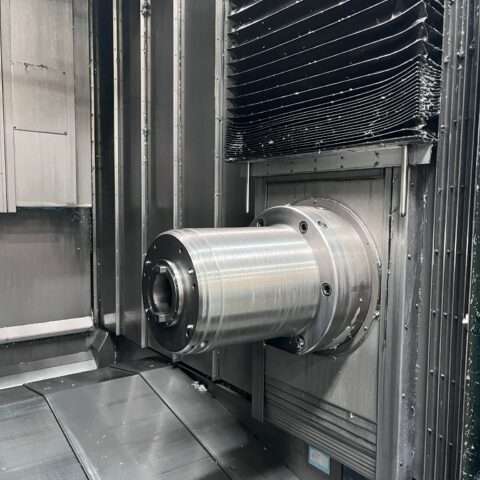

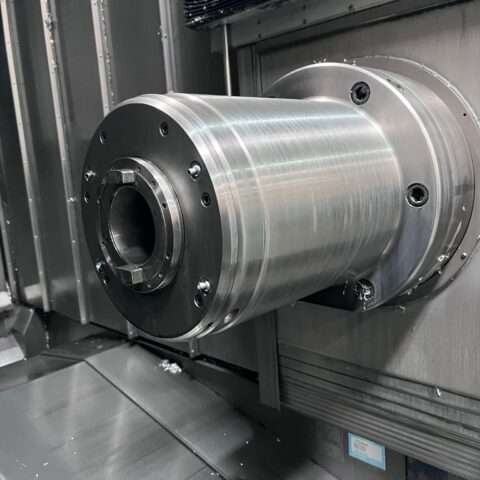

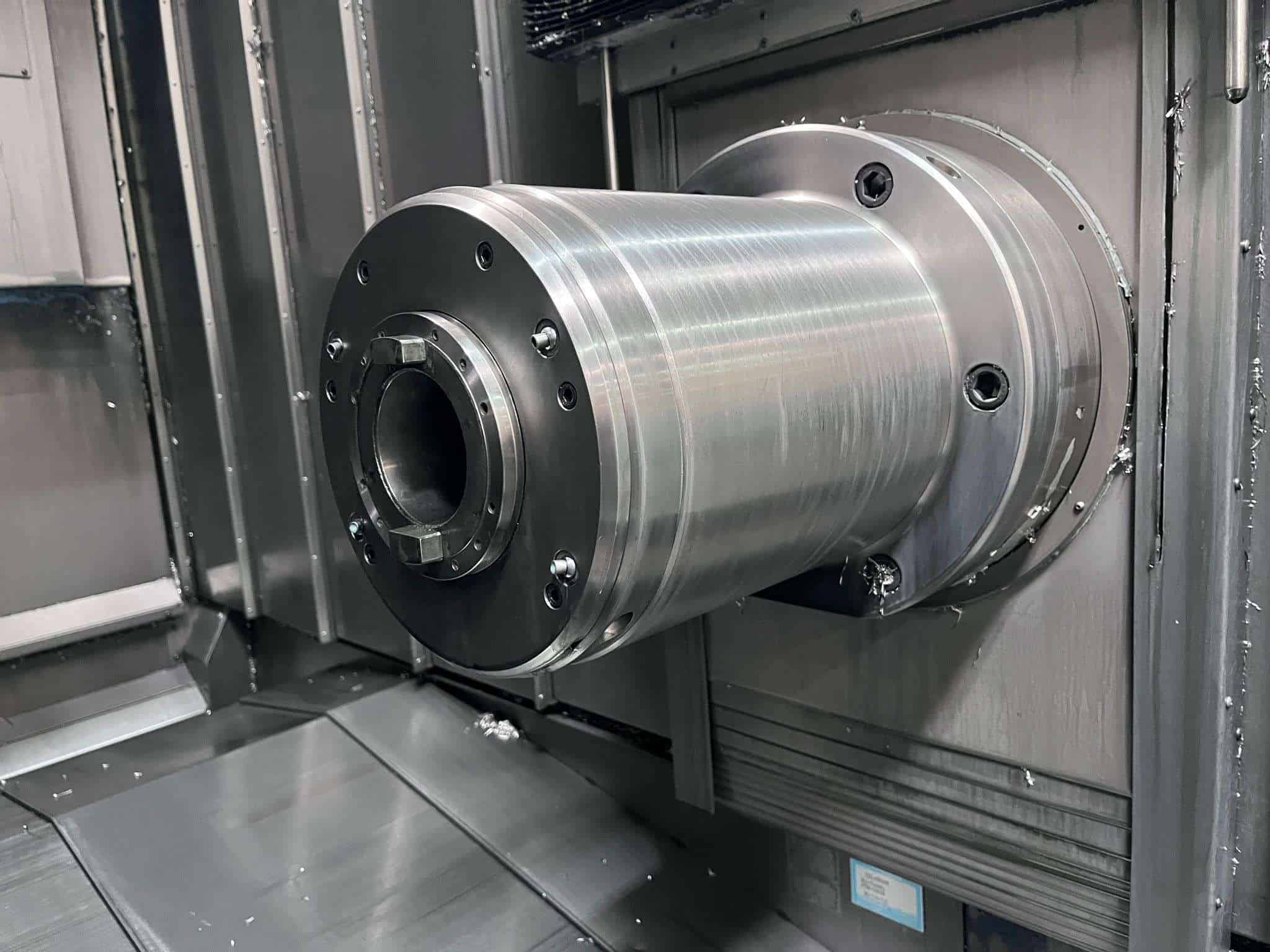

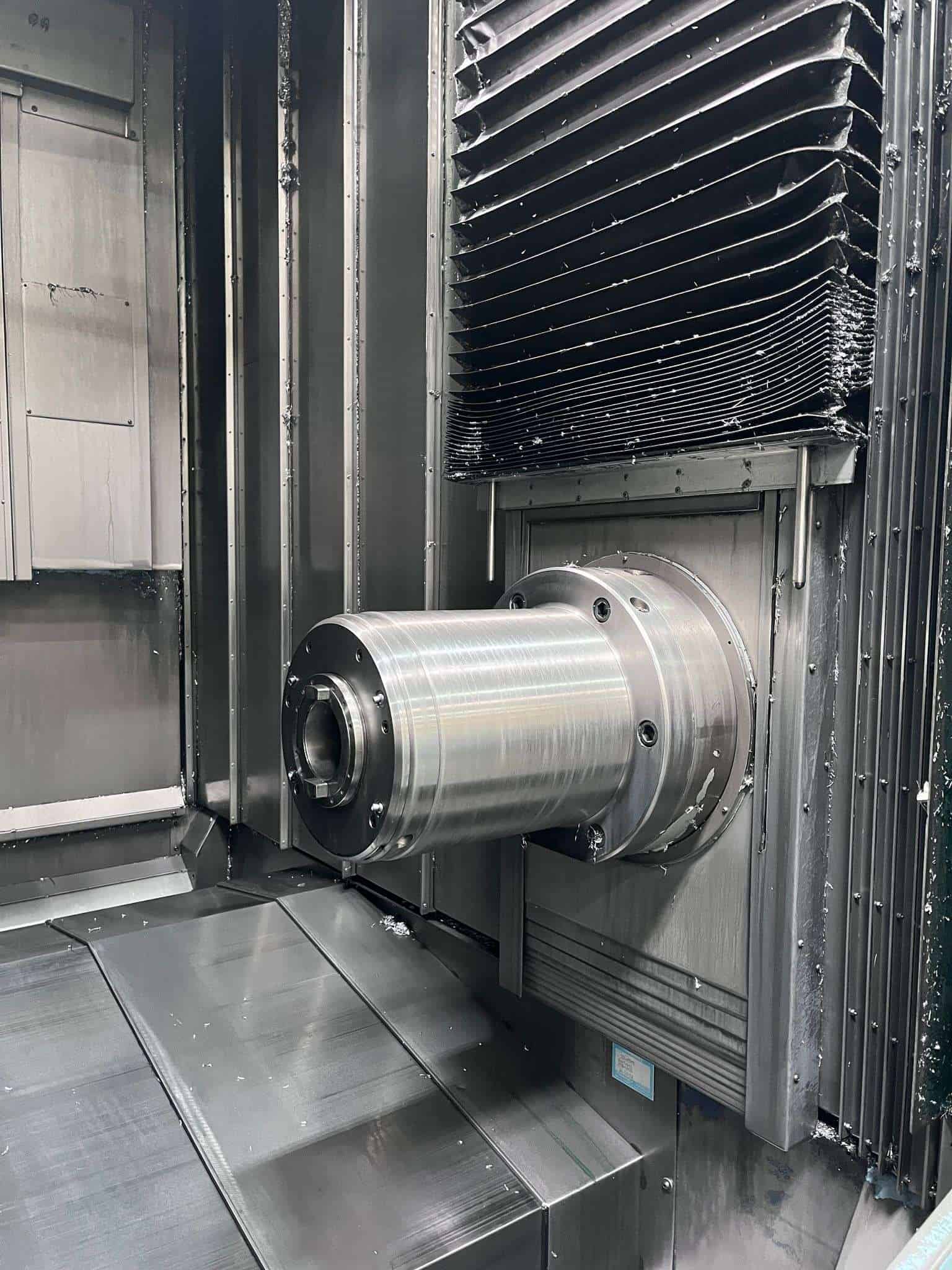

12,000 RPM High Precision Spindle

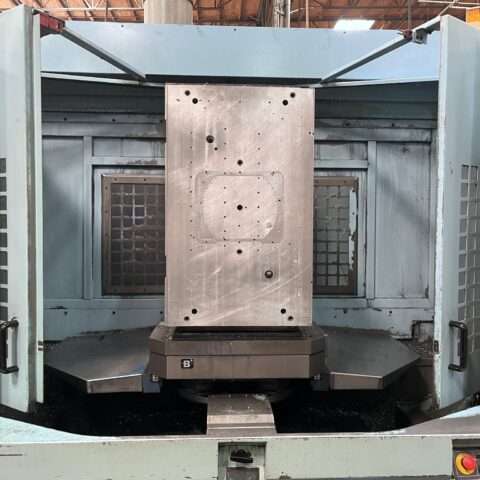

Twin Pallet Changer

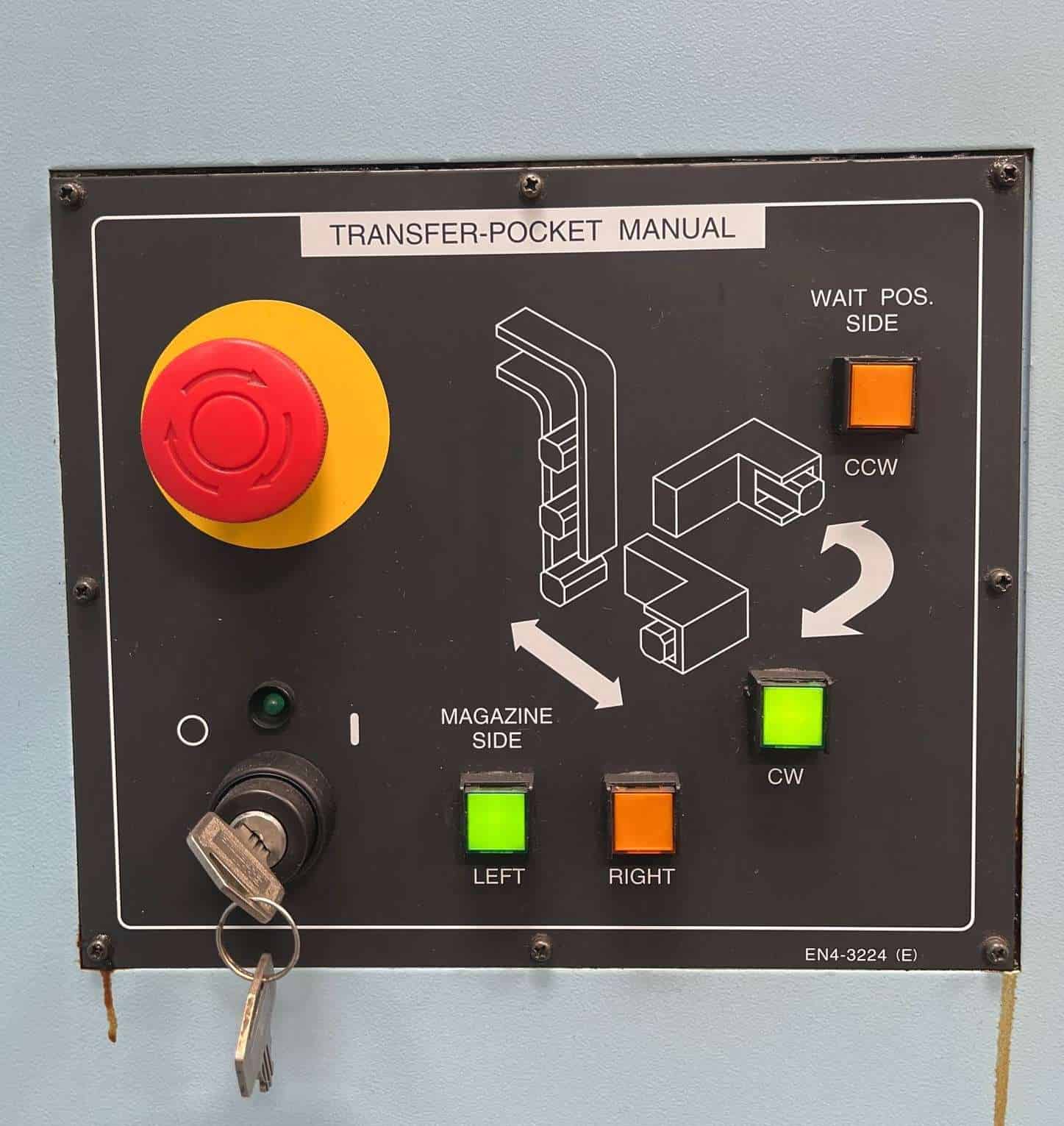

60 Station Automatic Tool Changer
CAT-50 Taper Spindle

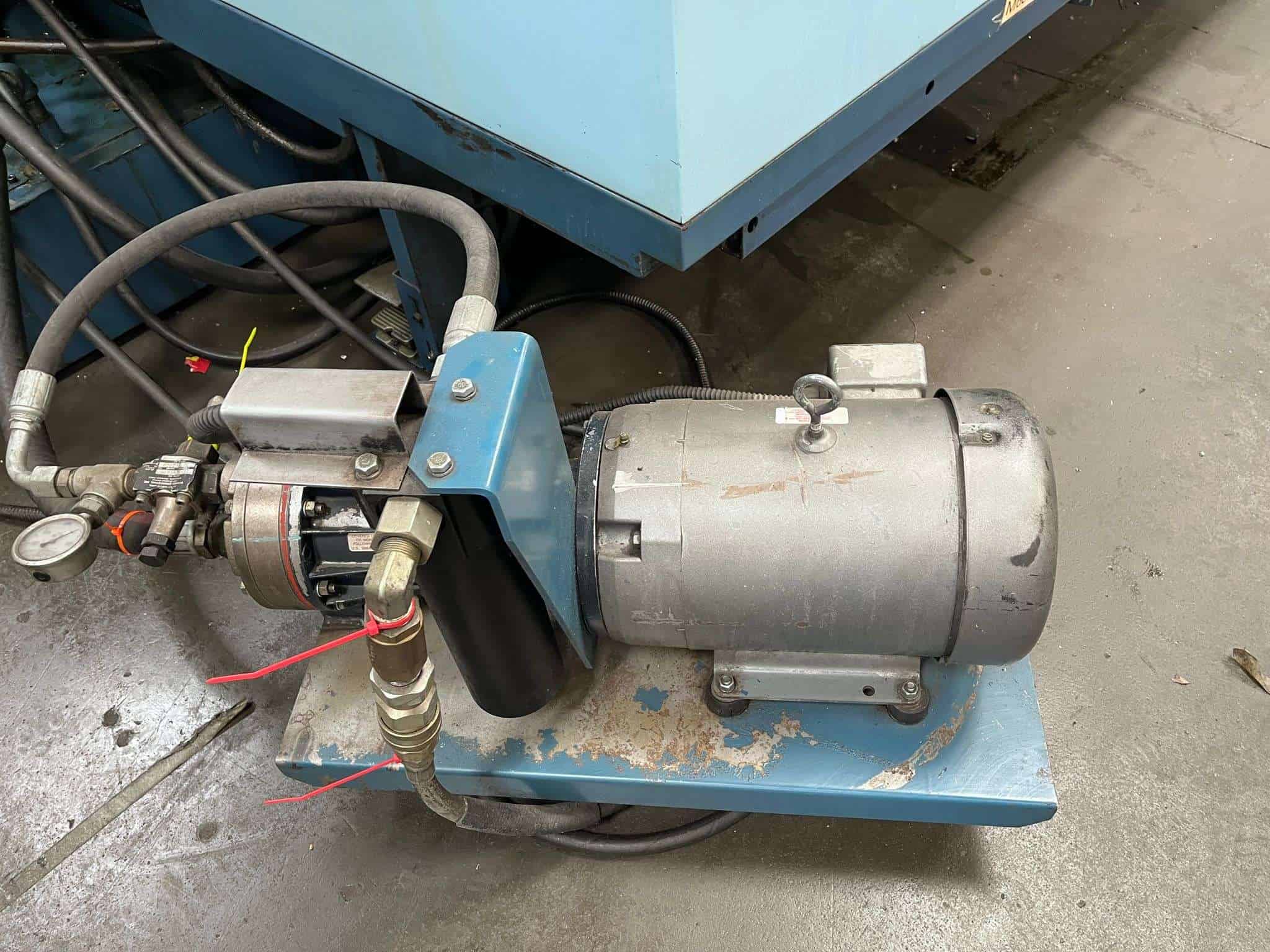

Through Spindle Coolant

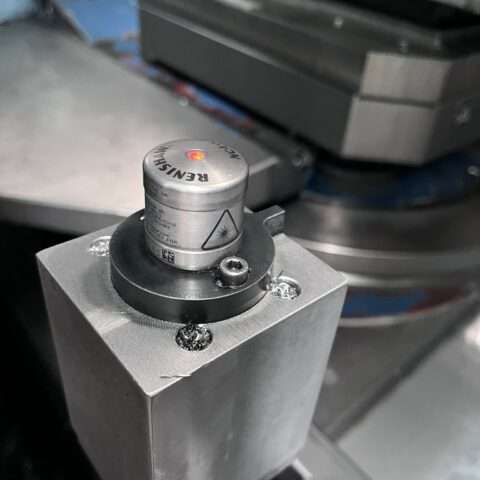

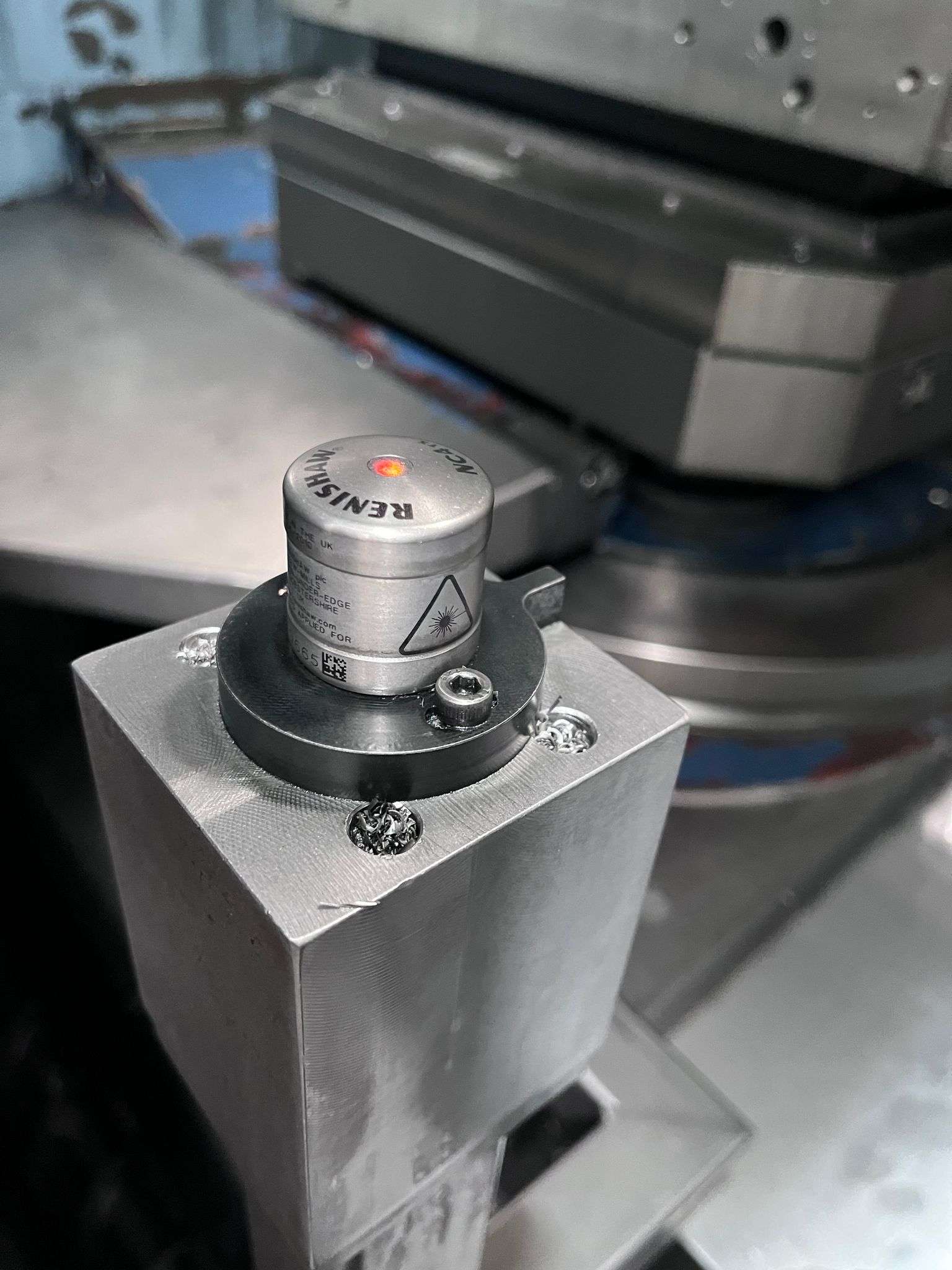

Probing System Ready (Probe Needed)
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
PCMCIA Card Slot
Fast Rapid Traverse Rate

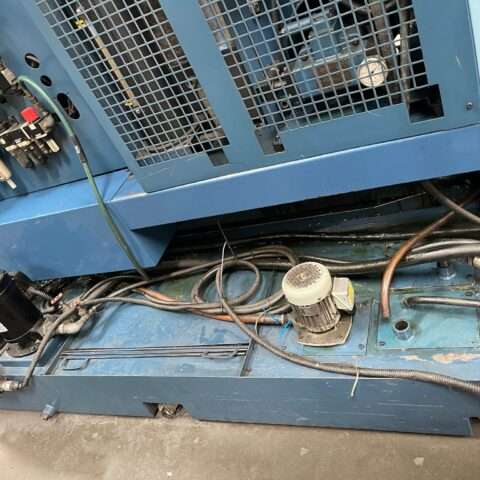

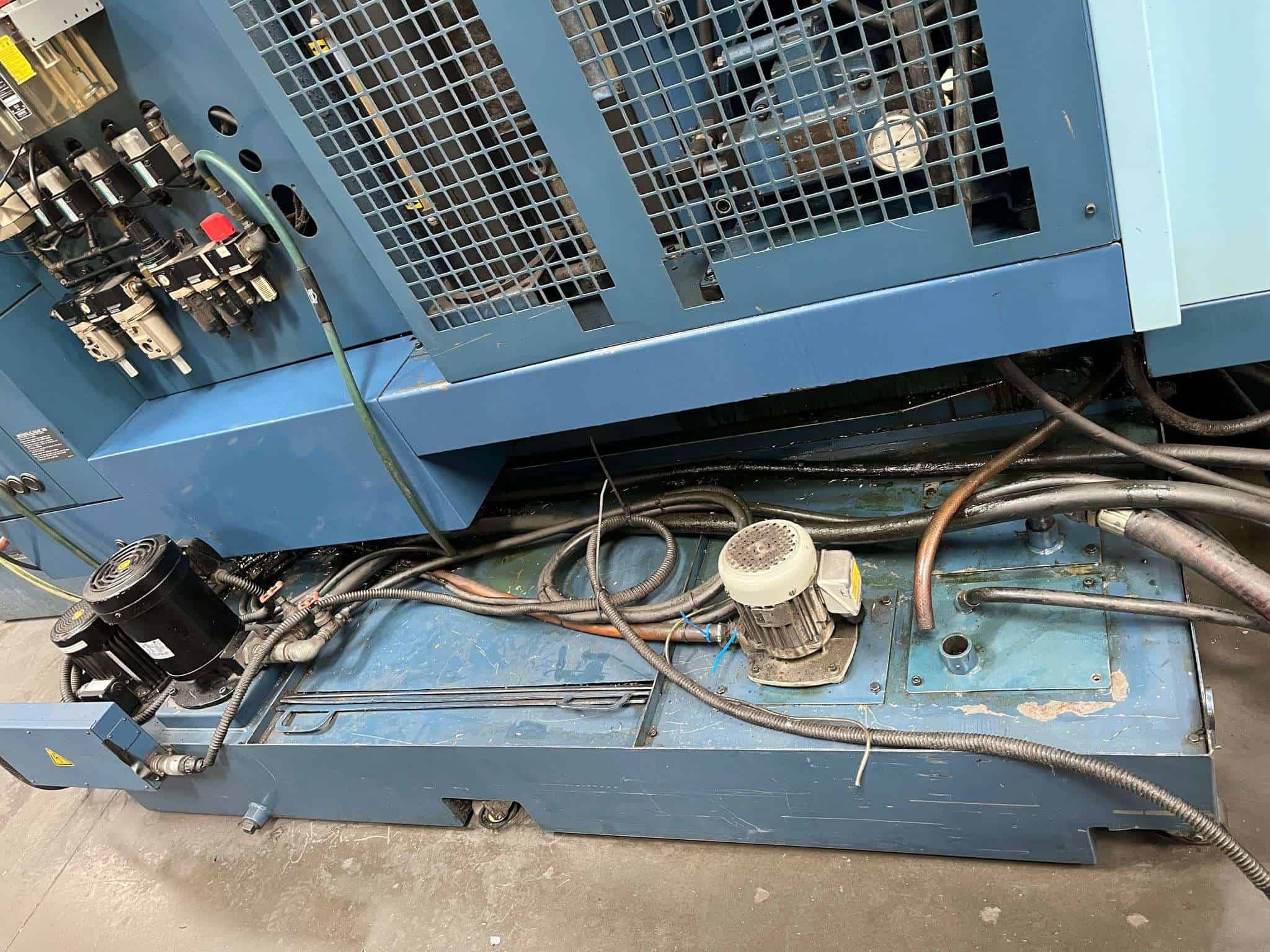

Coolant System
Chip Conveyor

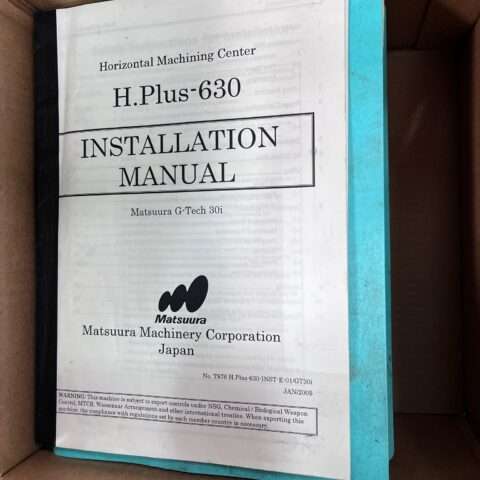

Books & Manuals

Travels:
X Axis: 41.33″
Y Axis: 36.22″
Z Axis: 38.97″
B Axis: 360° ( 0.001° Full 4th )

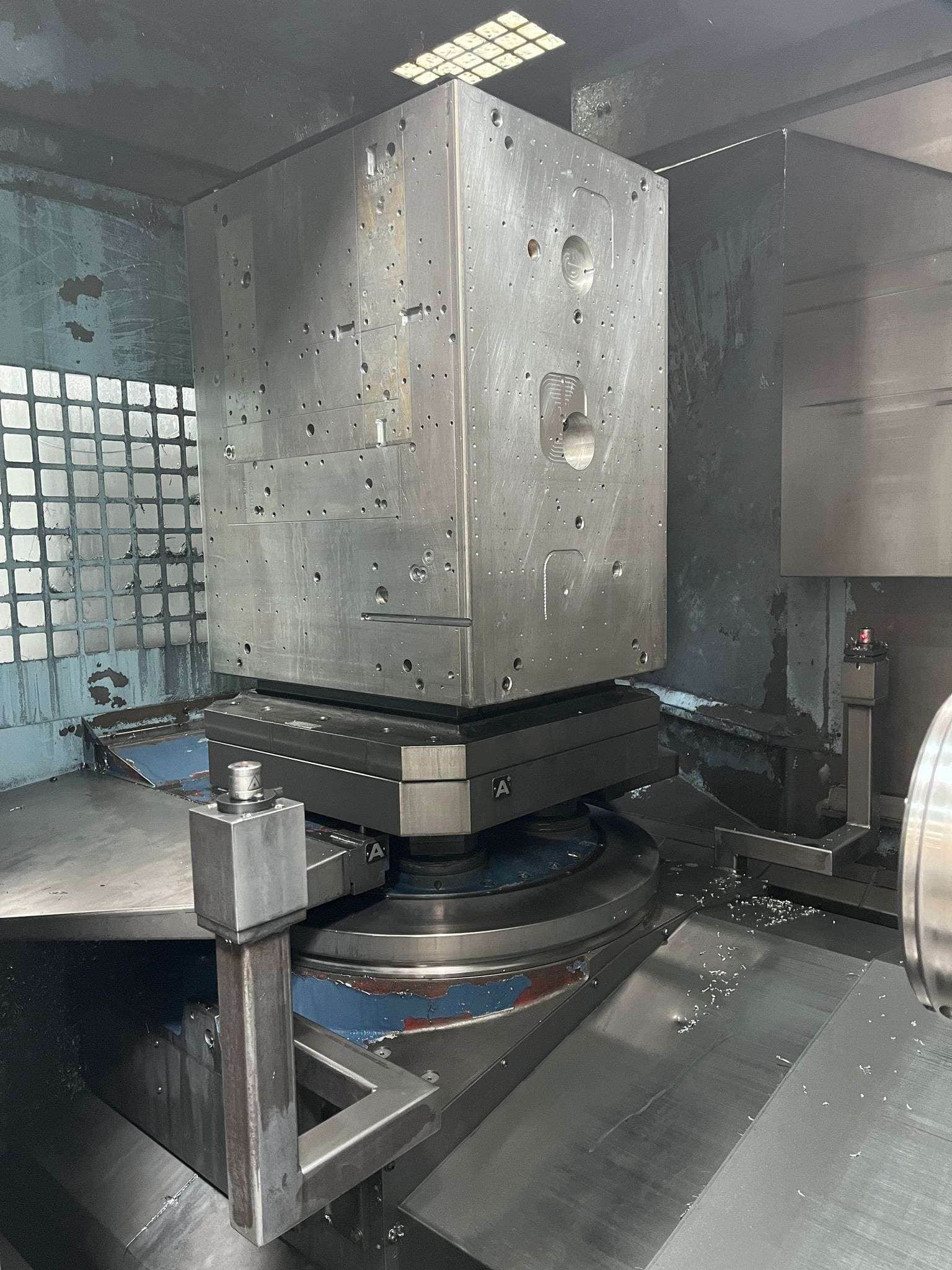

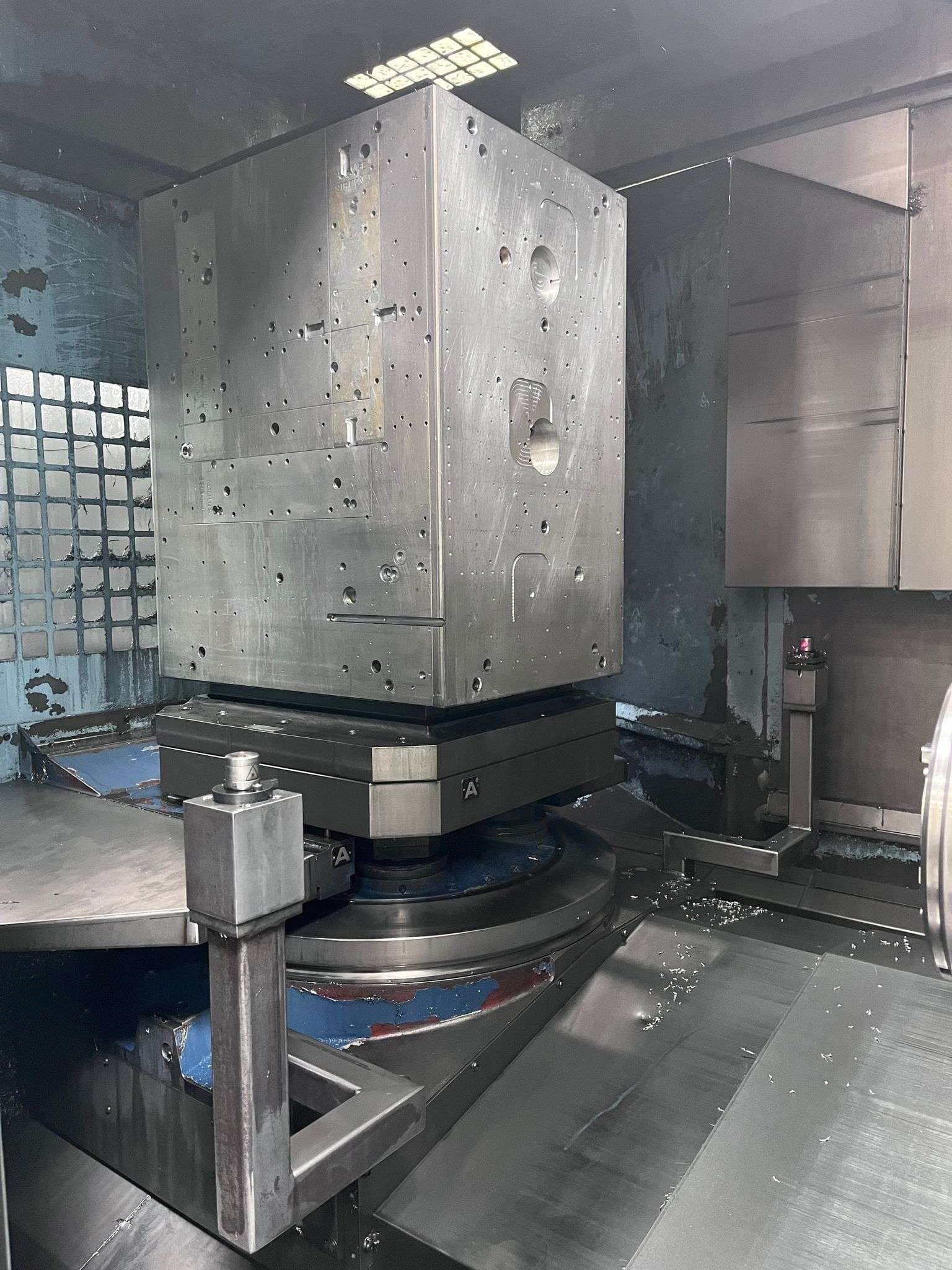

Table:
Length: 24.80″
Width: 24.80″
Max Weight on Table: 2640 lbs
Max Workpiece Diameter: 41.33″
Max Workpiece Height: 43.89″

Spindle:
Taper Size: CAT-50
Max. Speed: 12,000 RPM
Power: 40 HP

Feed rates:
Rapid Traverse Rate: 2362 Inch Per Minute
Cutting Feedrate : 2362 Inch Per Minute

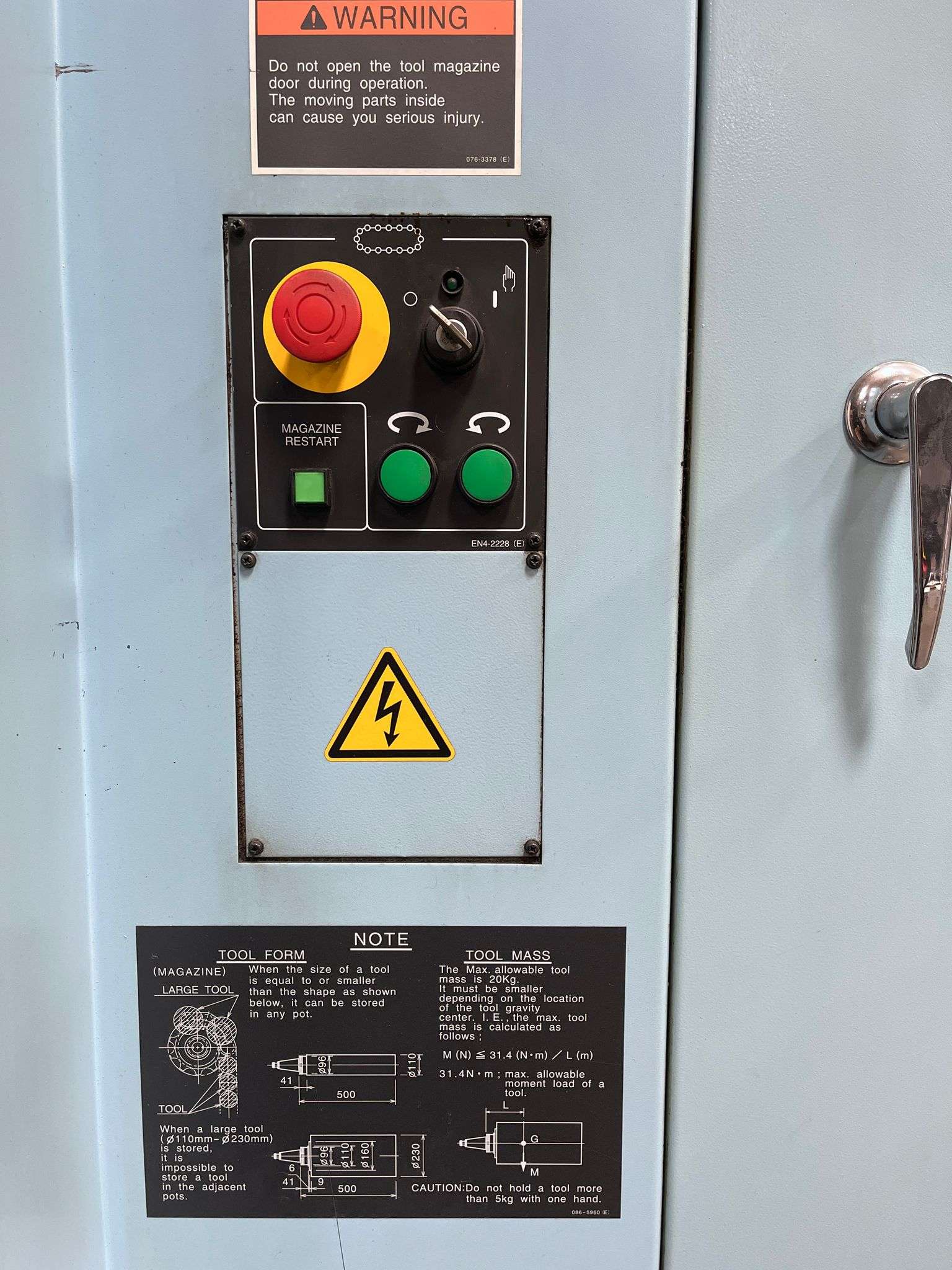

Tool changer:
Capacity: 60 Tools
Taper: CAT-50
Max Tool Size: 4.33″ – 12.59″
Max Tool Length: 23.62″
Max Tool Weight: 44 lbs.
Tool Change Time: 2 Second

General:
Air Required: 100 psi, 4 scfm

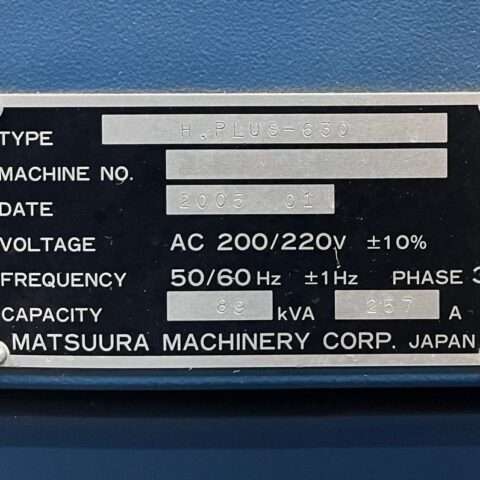

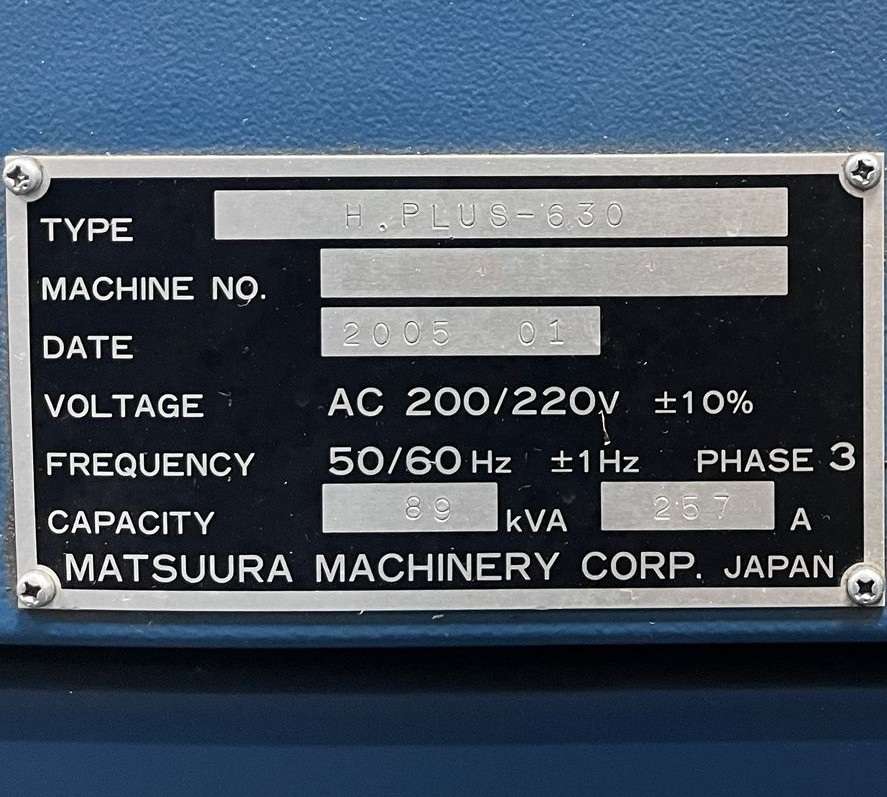

Power: 96 kva / 220v / 3-Phase
Overall Dimensions: 231″ X 134″ x 137″ High Approx.
Weight: 46,000 lbs Approx.

Travels:
X Axis: 1,050 mm
Y Axis: 920 mm
Z Axis: 990 mm
B Axis: 360° ( 0.001° Full 4th )

Table:
Length: 630 mm
Width: 630 mm
Max Weight on Table: 2640 lbs
Max Workpiece Diameter: 1,050 mm
Max Workpiece Height: 1,115 mm

Spindle:
Taper Size: CAT-50
Max. Speed: 12,000 RPM
Power: 40 HP

Feed rates:
Rapid Traverse Rate: 2362 Inch Per Minute
Cutting Feedrate : 2362 Inch Per Minute

Tool changer:
Capacity: 60 Tools
Taper: CAT-50
Max Tool Size: 110 mm – 320 mm
Max Tool Length: 600 mm
Max Tool Weight: 44 lbs.
Tool Change Time: 2 Second

General:
Air Required: 100 psi, 4 scfm
Power: 96 kva / 220v / 3-Phase
Overall Dimensions: 5,867 mm X 3,404 mm x 3,480 mm High Approx.
Weight: 46,000 lbs Approx.

Make	Matsuura
Model	H.Plus-630
Categories	CNC Horizontal Machining Center

Fanuc G-Tech 30i CNC Control
Full 4th Axis
12,000 RPM High Precision Spindle
Twin Pallet Changer
60 Station Automatic Tool Changer
CAT-50 Taper Spindle
Through Spindle Coolant
Probing System Ready (Probe Needed)
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
PCMCIA Card Slot
Fast Rapid Traverse Rate
Coolant System
Chip Conveyor
Books & Manuals

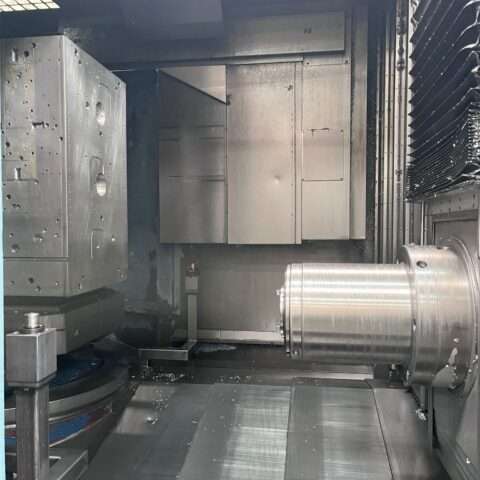

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 1

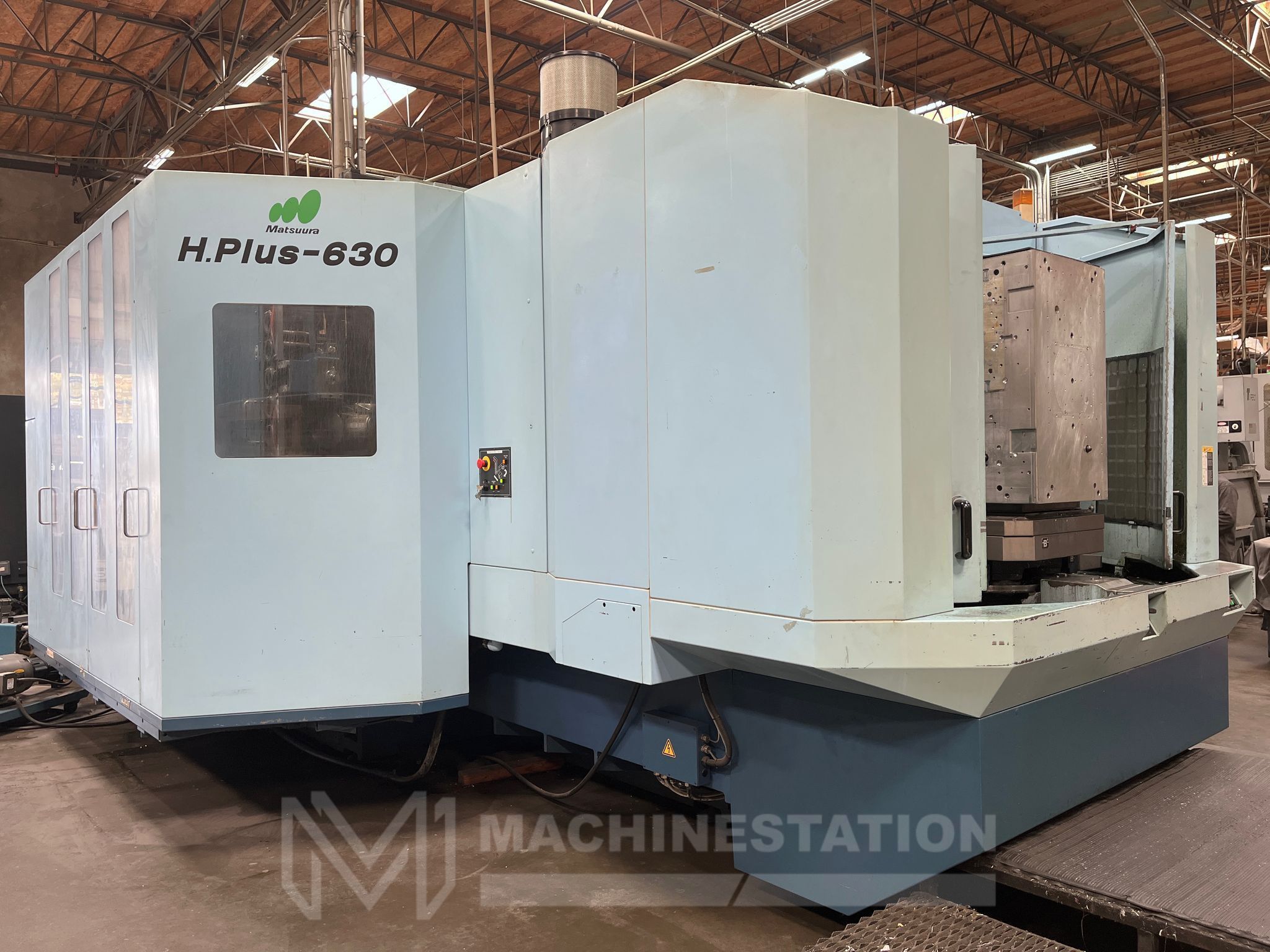

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 2

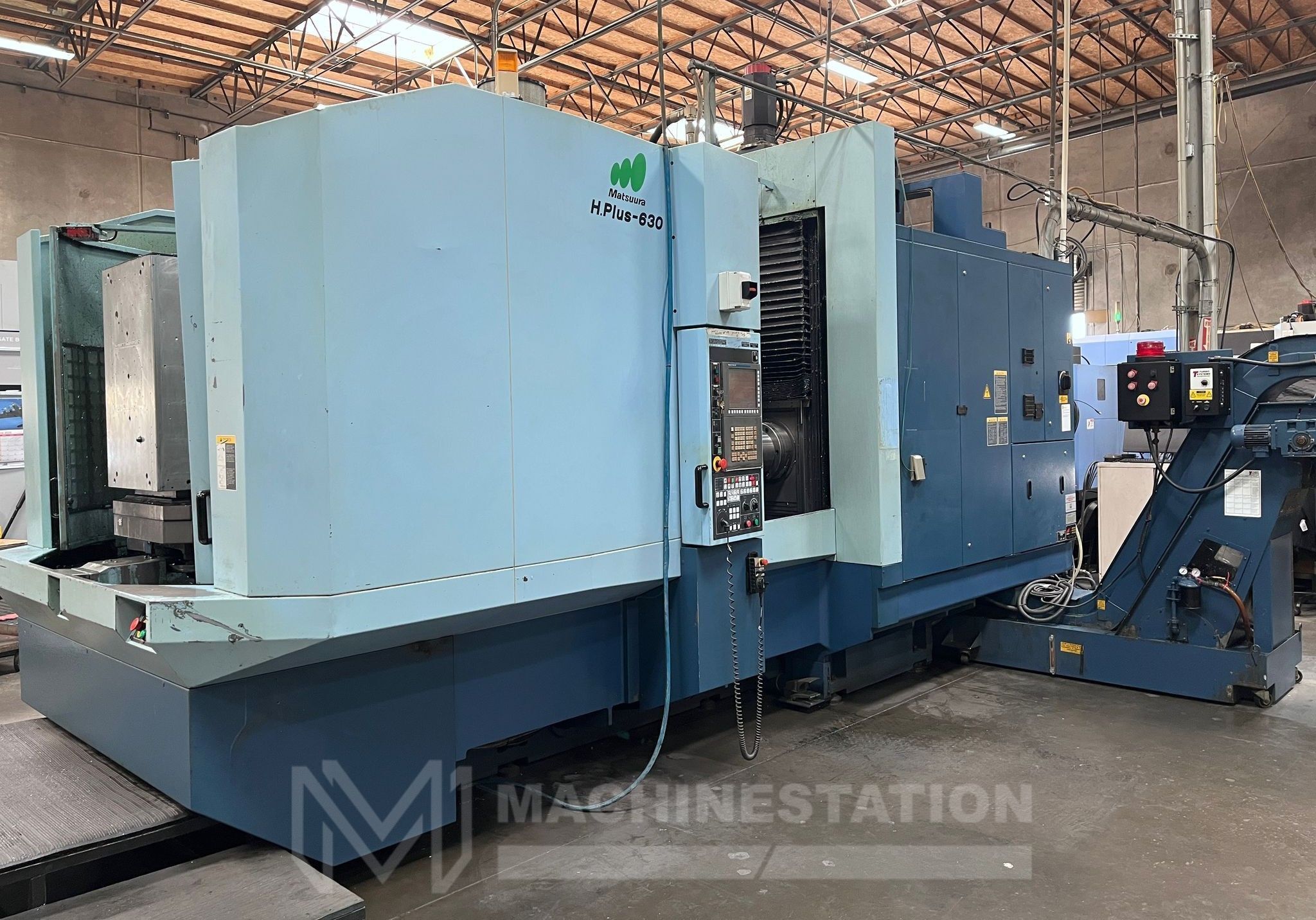

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 3

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 4

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 5

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 6

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 7

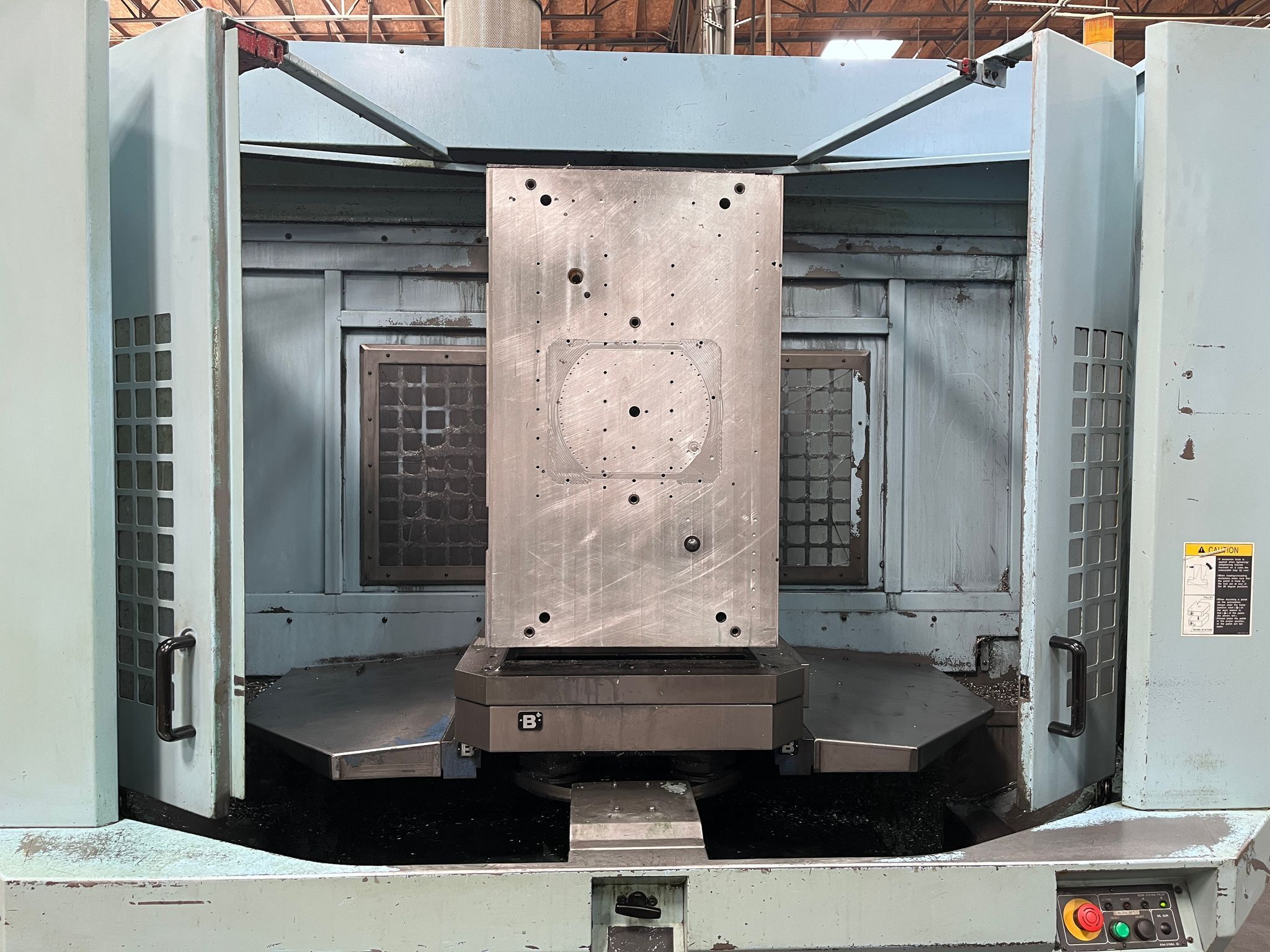

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 8

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 9

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 10

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 11

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 12

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 13

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 14

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 15

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 16

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 17

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 18

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 19

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 20

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 21

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 22

Matsuura H-Plus 630 CNC Horizontal Mill - 50 Taper HMC 23

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
