Sold

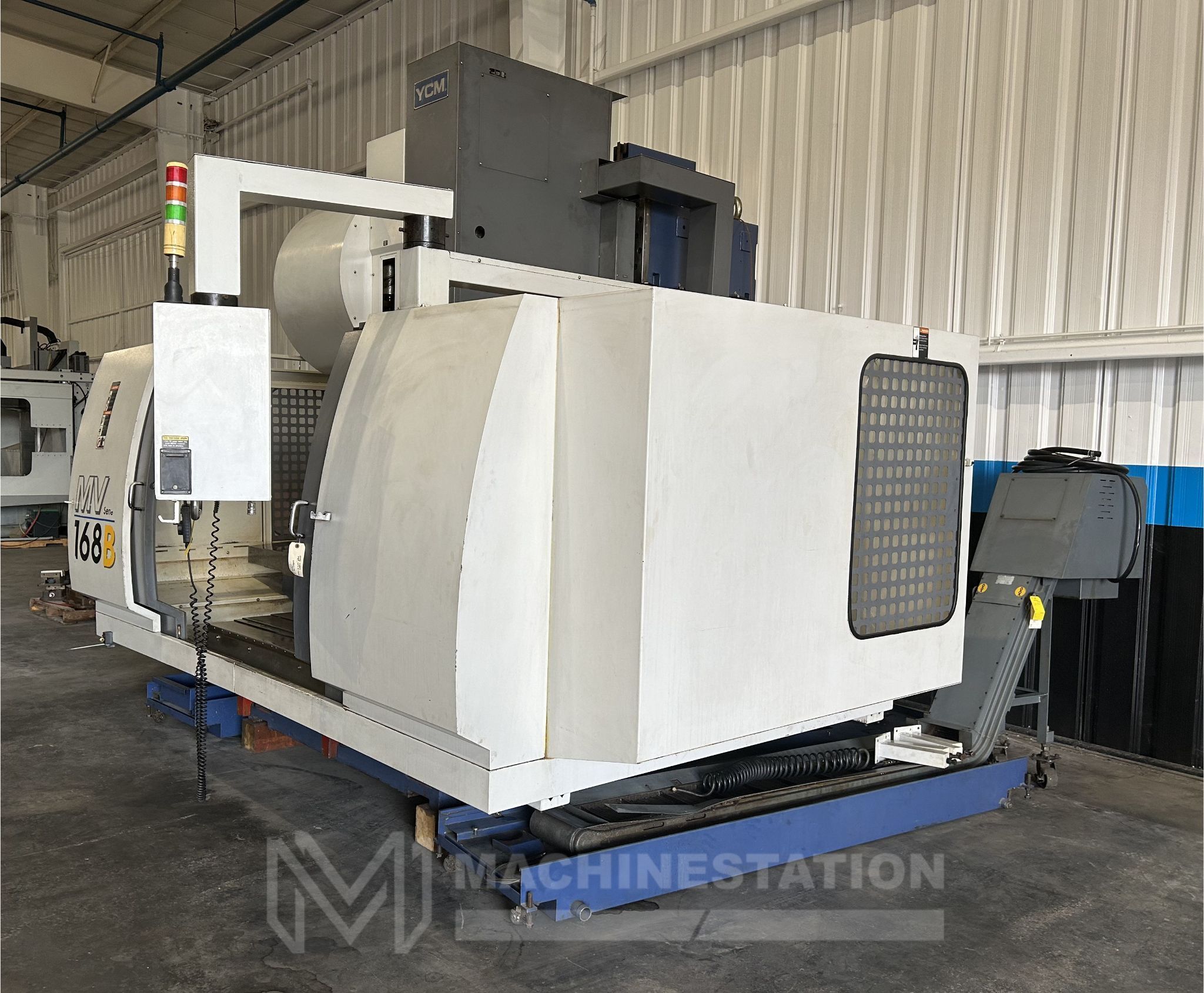

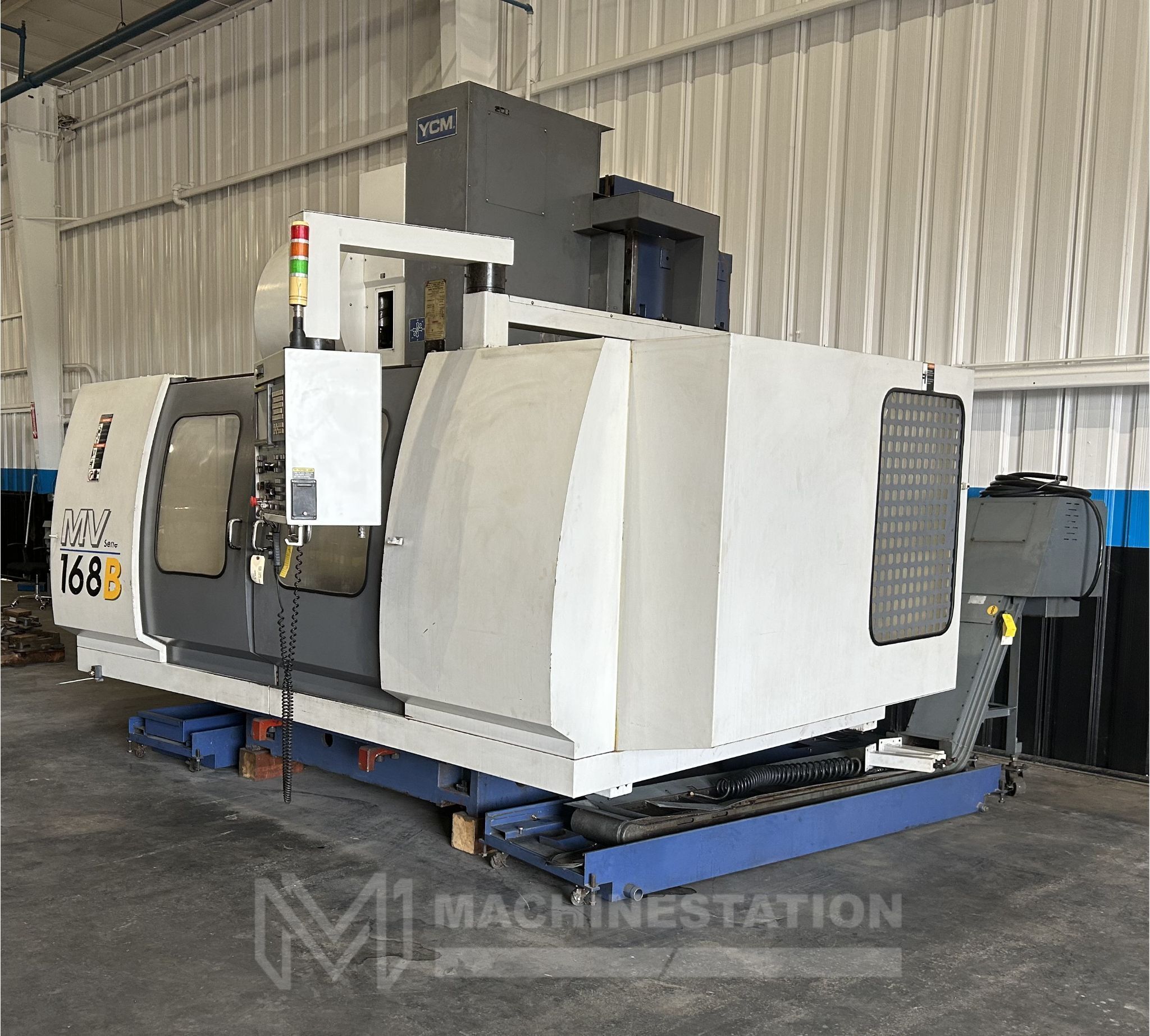

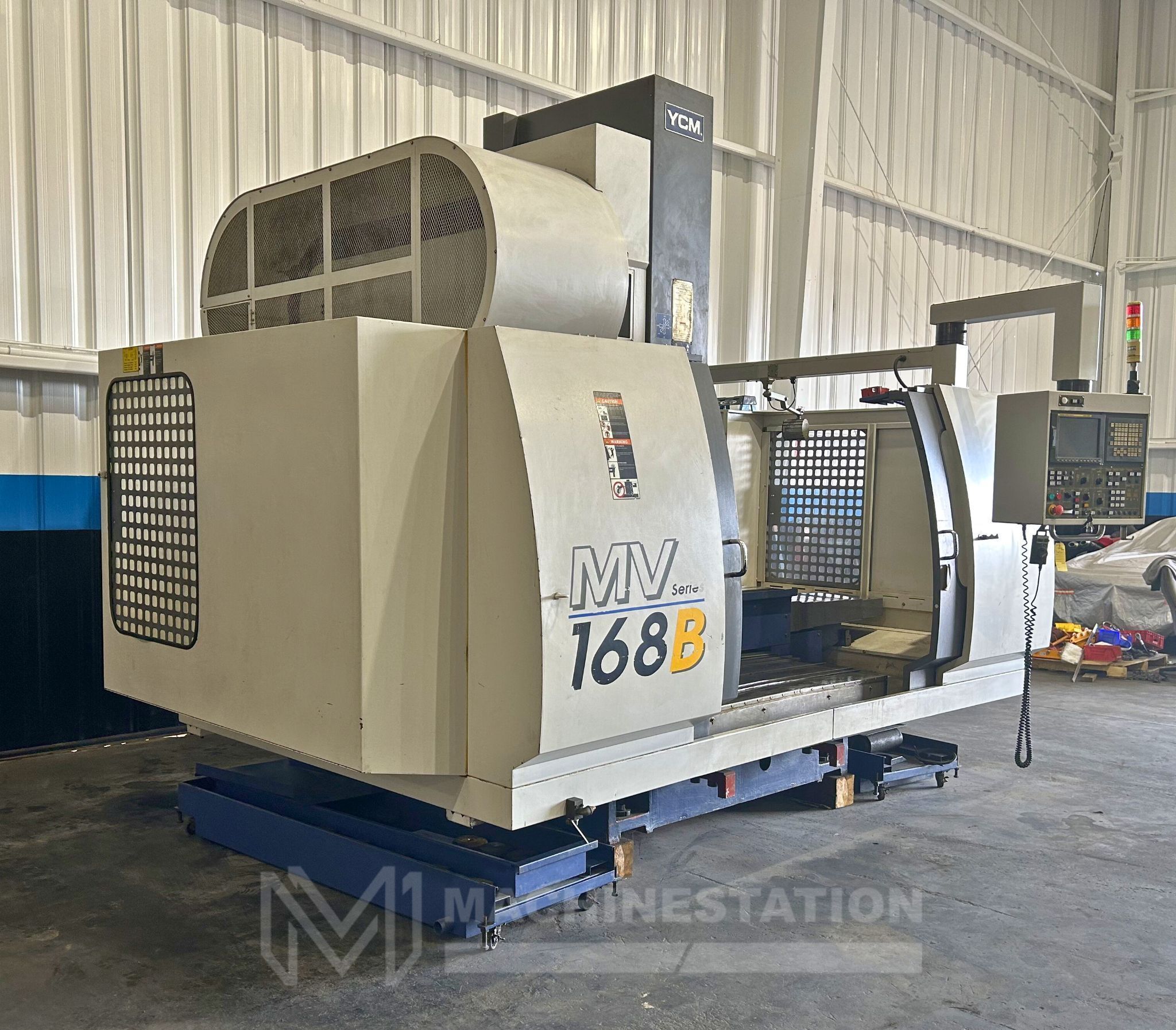

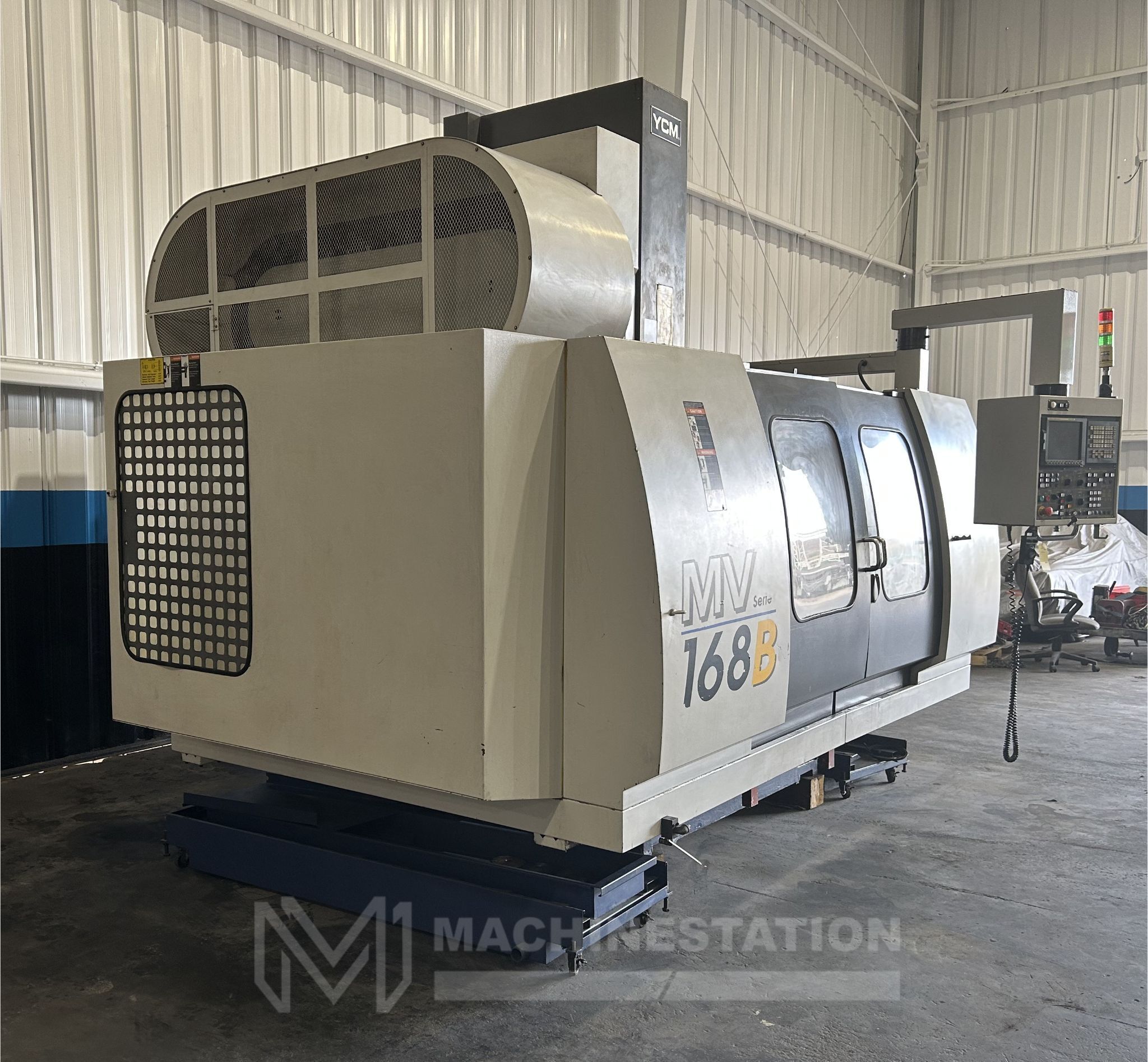

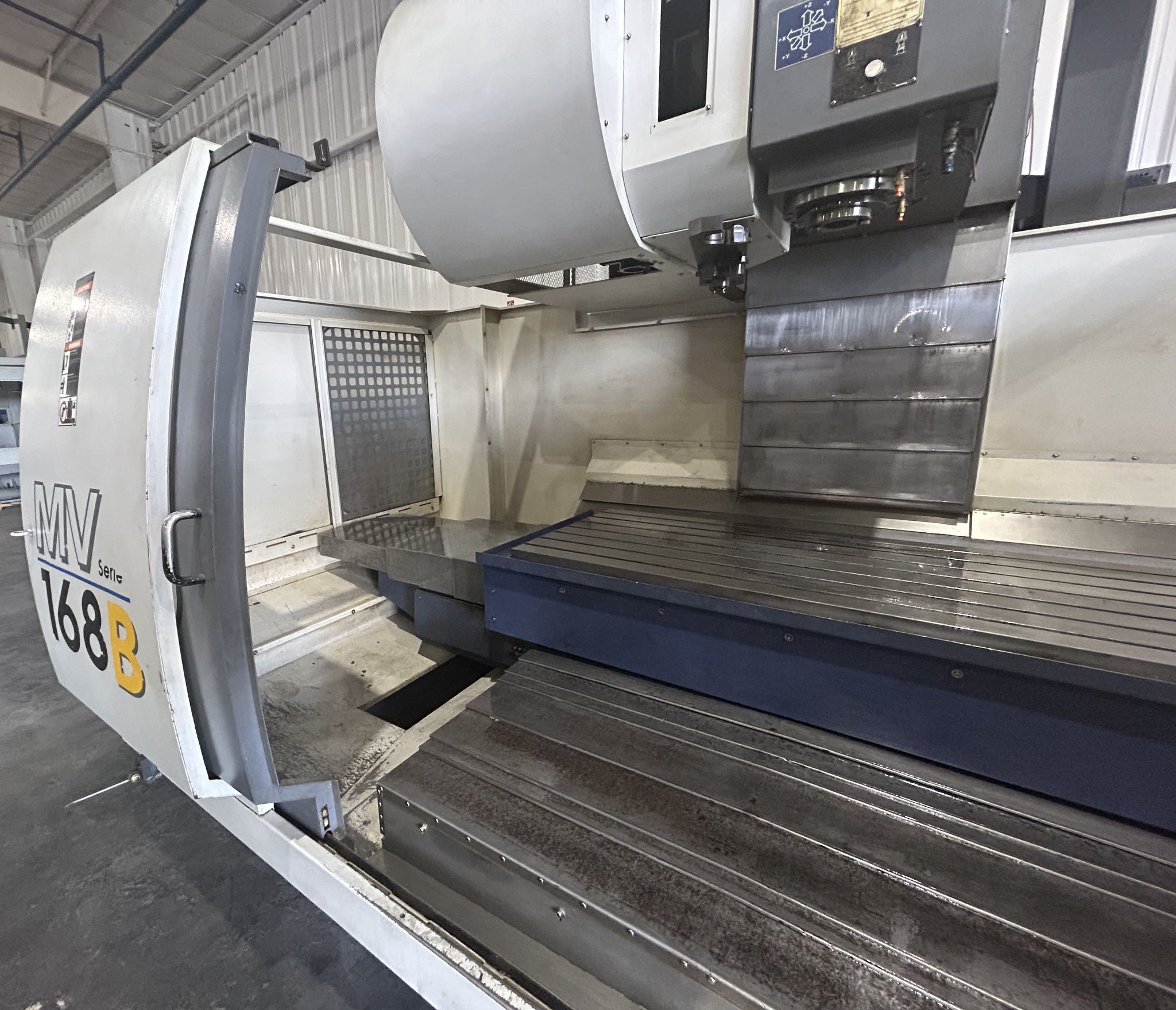

YCM MV-168B CNC Vertical Machining Center – 50 Taper Mill
Location
Milwaukee, WI
SKU
112367

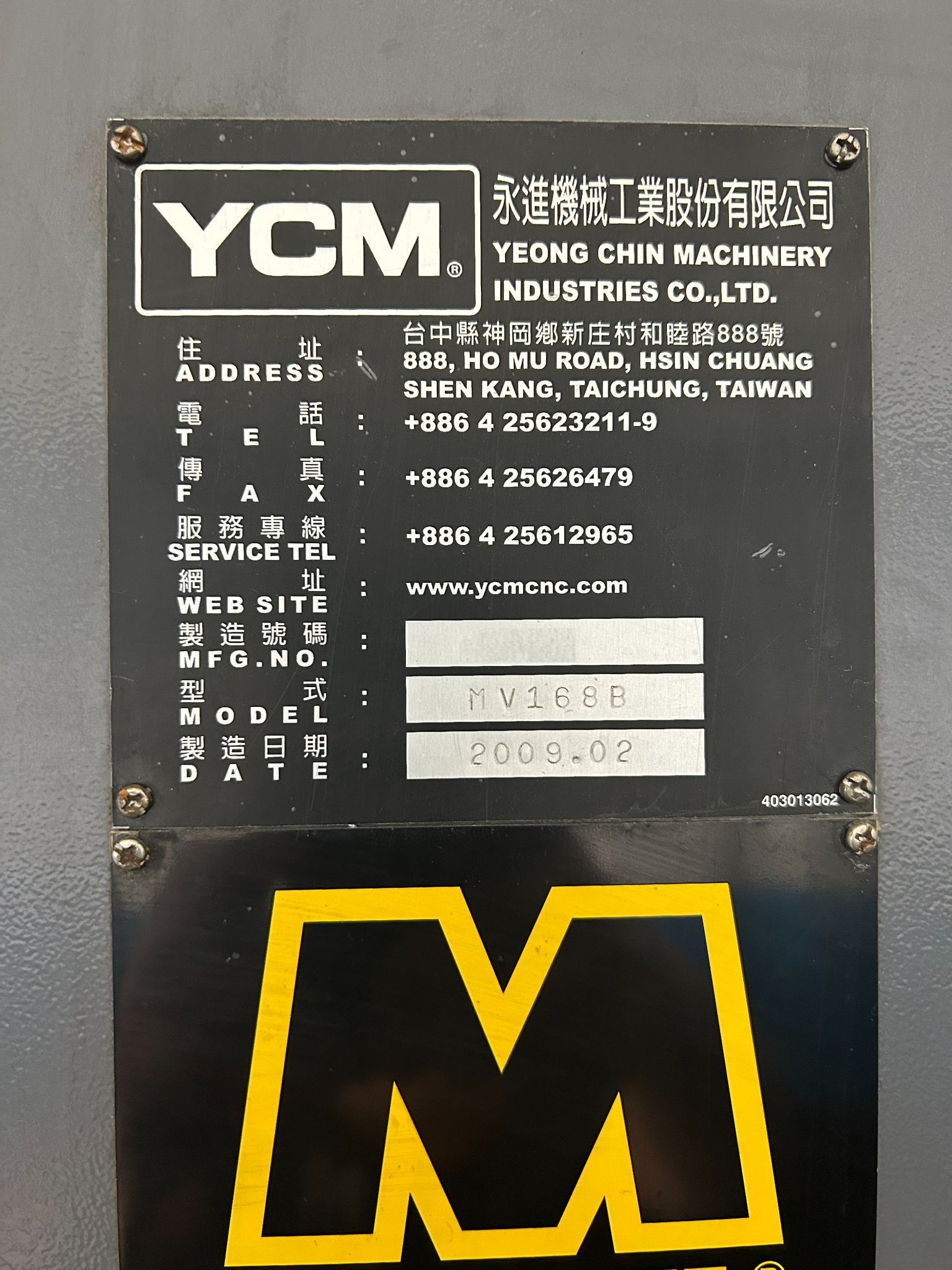

Make
YCM
Model
MV 168B
Year
2009
Out of stock
| Location: | Milwaukee, WI |
| SKU: | 112367 |
| Make: | YCM |
| Model: | MV 168B |
| Year: | 2009 |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | YCM |
| Model: | MV168B |
| Year: | 2009 |
| Equipped With: |
|---|

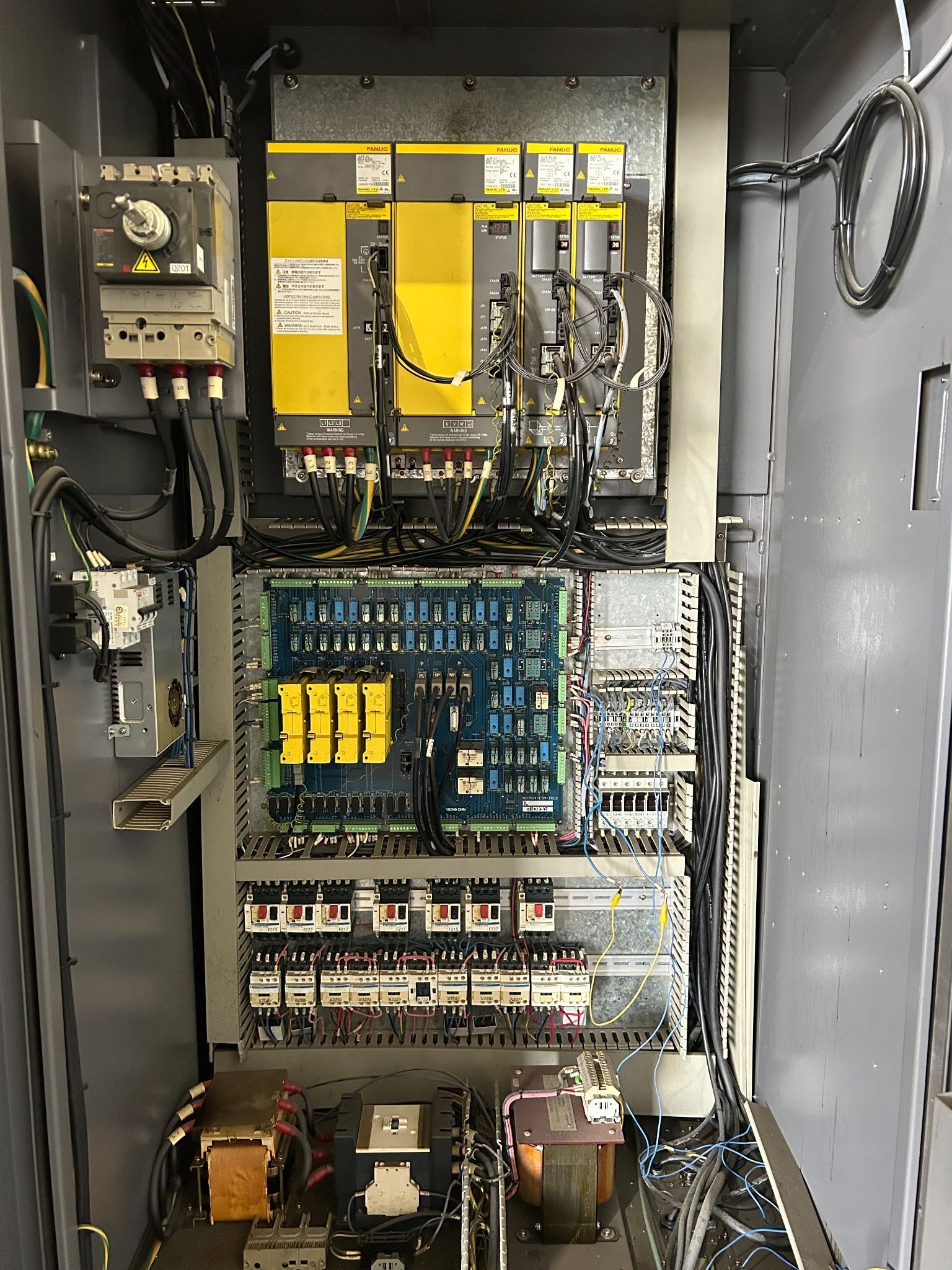

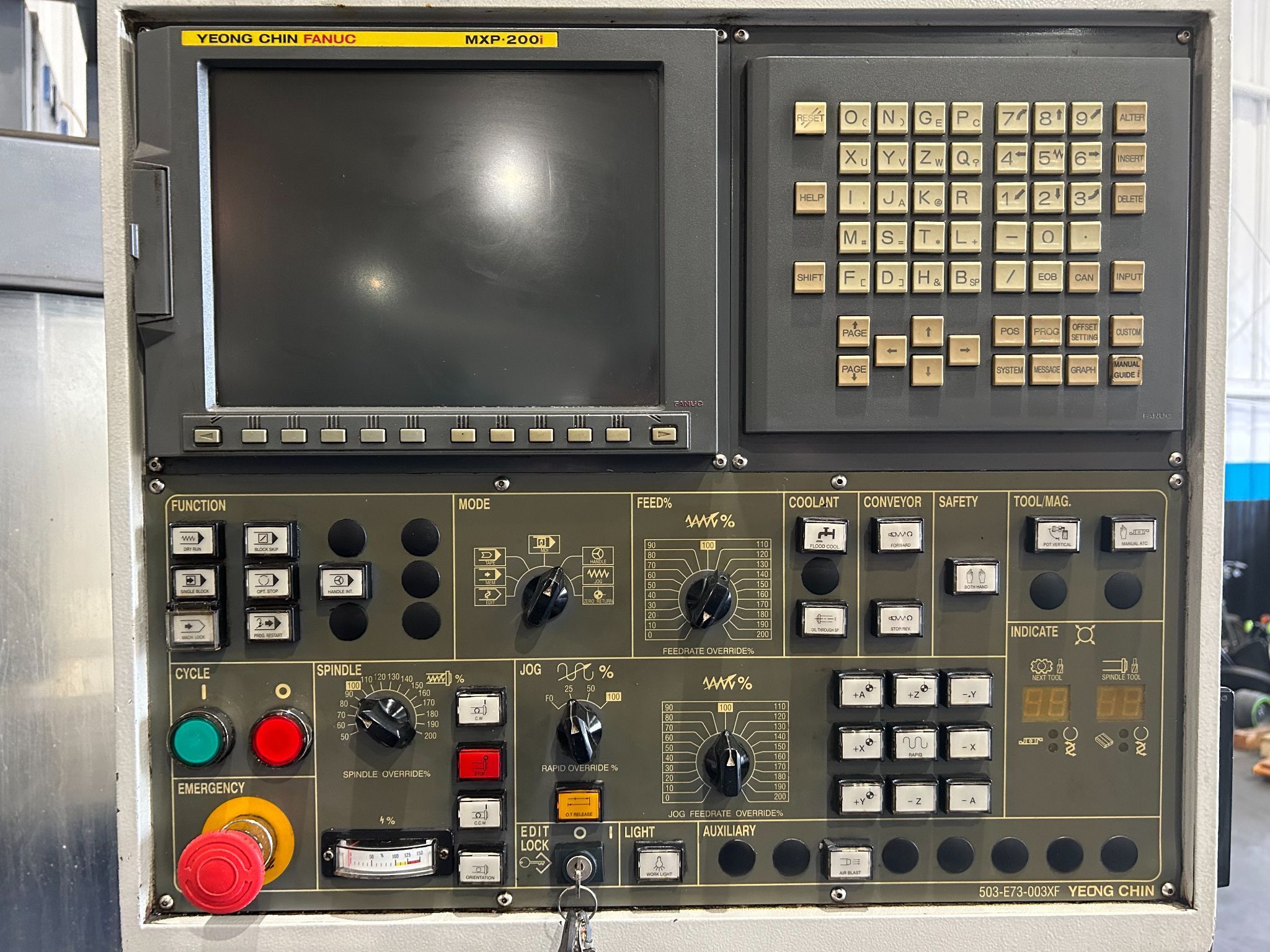

| Fanuc MXP-200i series CNC Control |
| Box Way construction |
| 32 Station Automatic Tool Changer |
| 50 Taper Spindle |
| 6,000 RPM Gear Head Spindle |

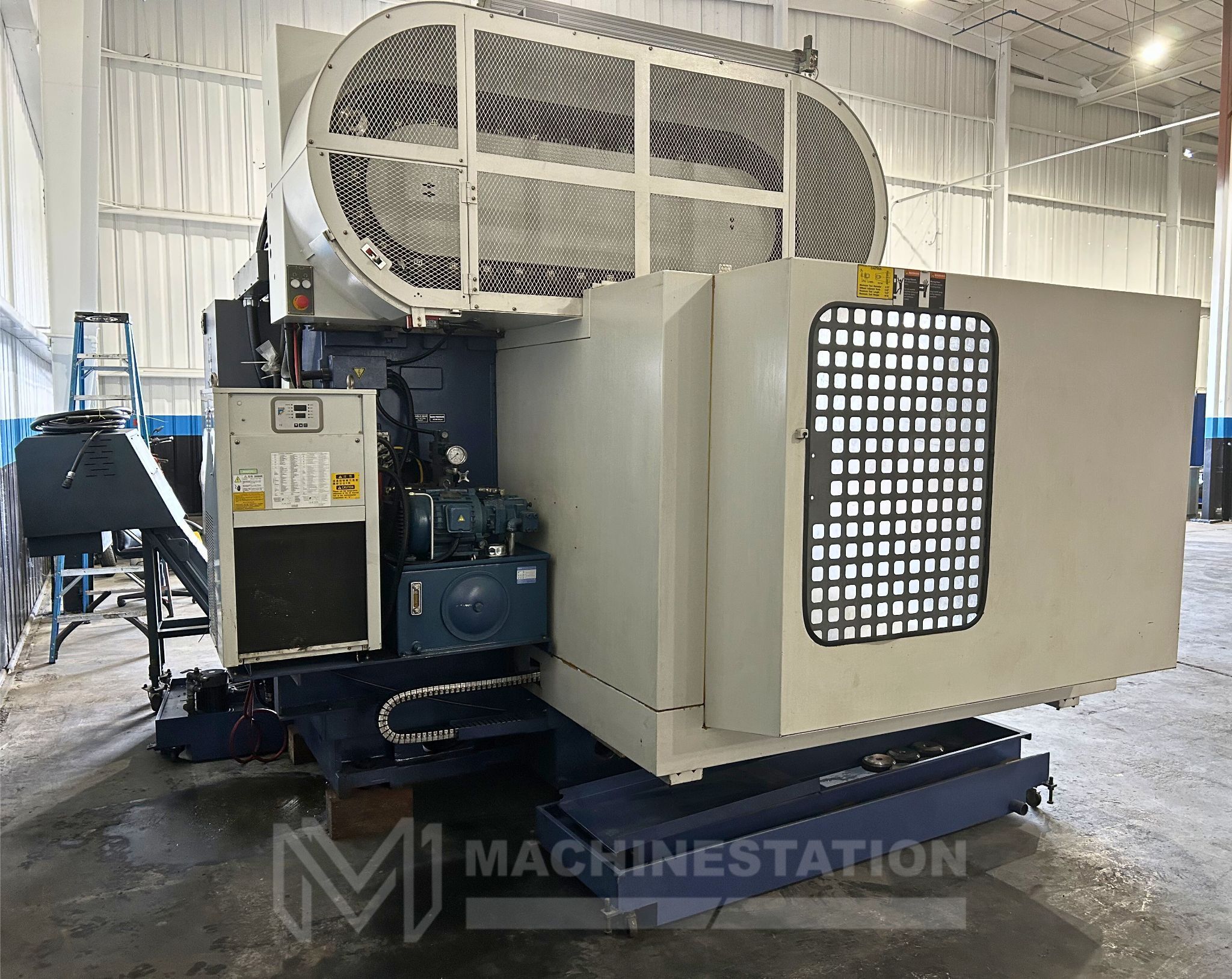

| Spindle Chiller Unit |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Telescopic Way Covers |
| Coolant System |

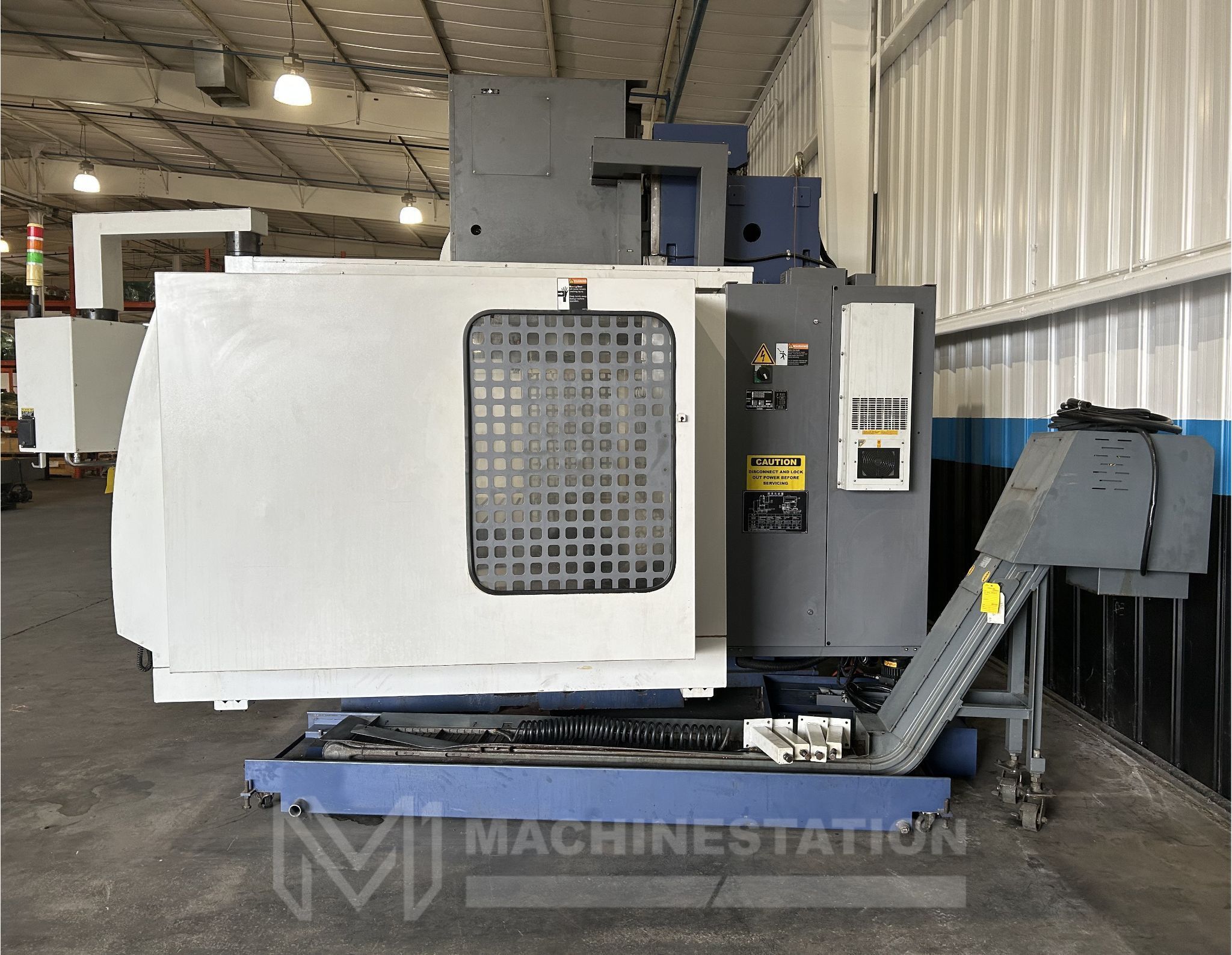

| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 64.96″ |
| Y-Axis: 29.92″ |
| Z-Axis: 27.56″ |
| X, Y Axis Rapid Traverse rates: 591 IPM |
| Z Axis Rapid Traverse rates: 472 IPM |
| Cutting Feedrate: 197 IPM |
| Spindle Nose to Table (Min.- Max.): 7.87″ – 35.43″ |

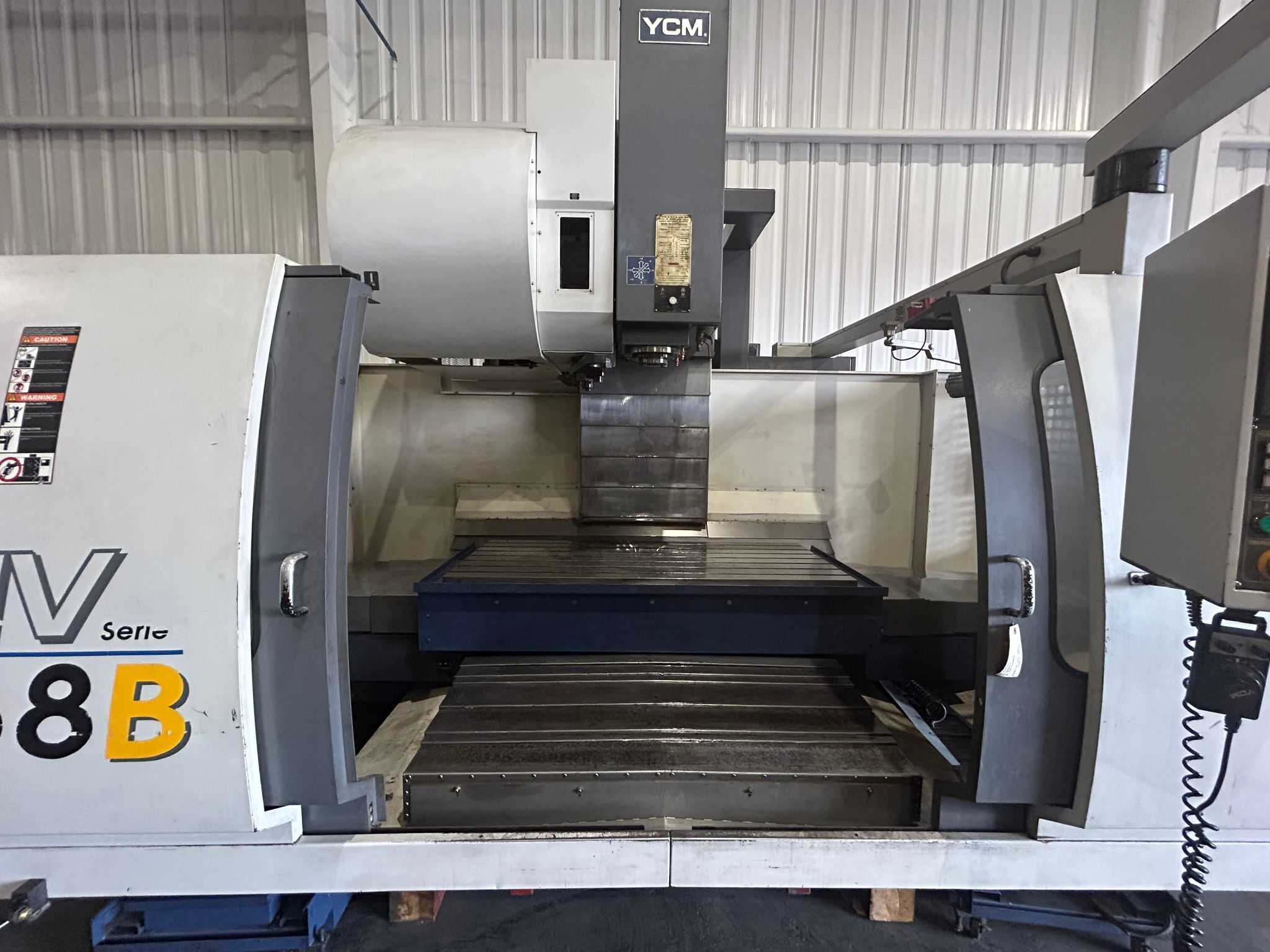

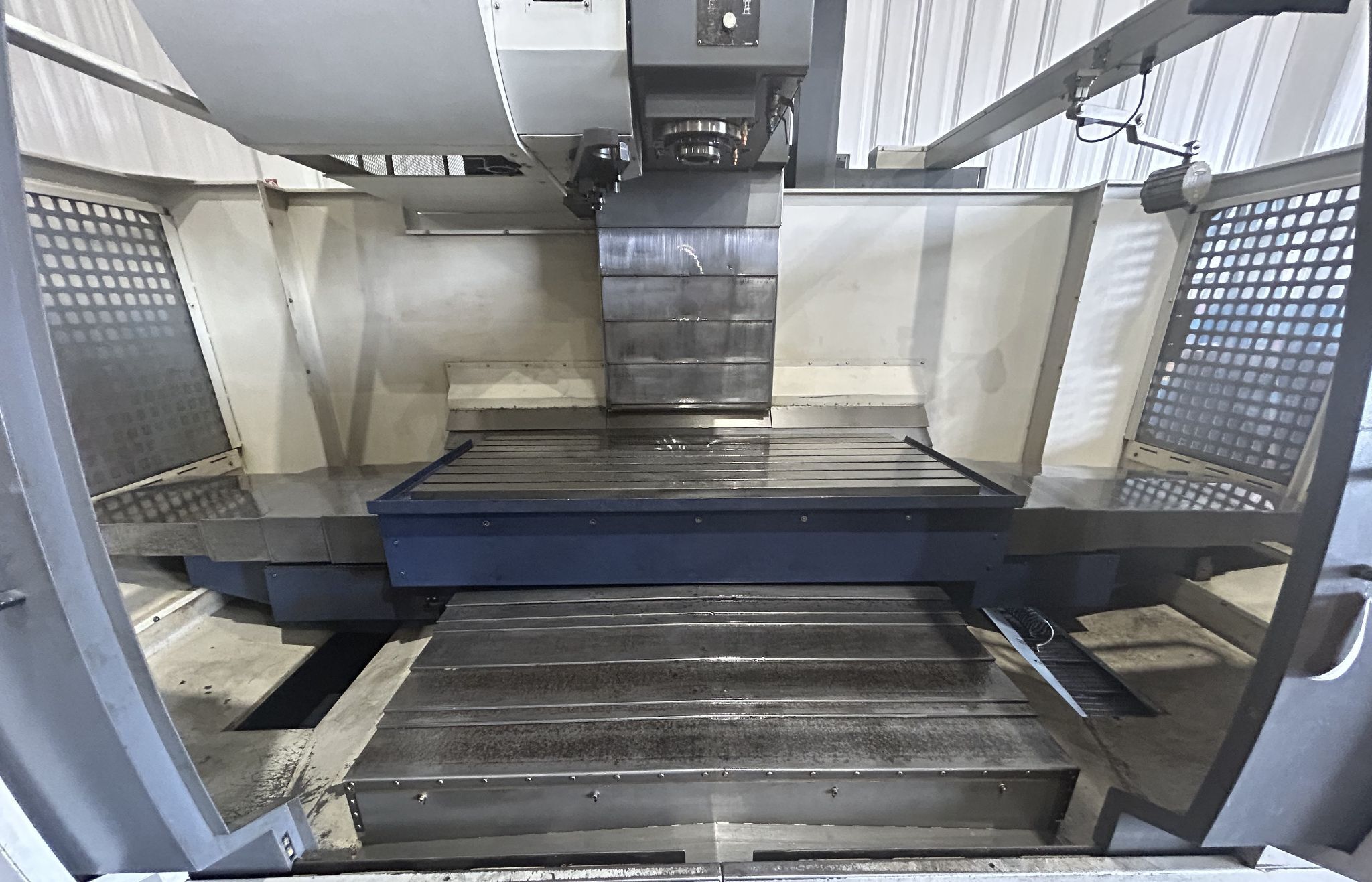

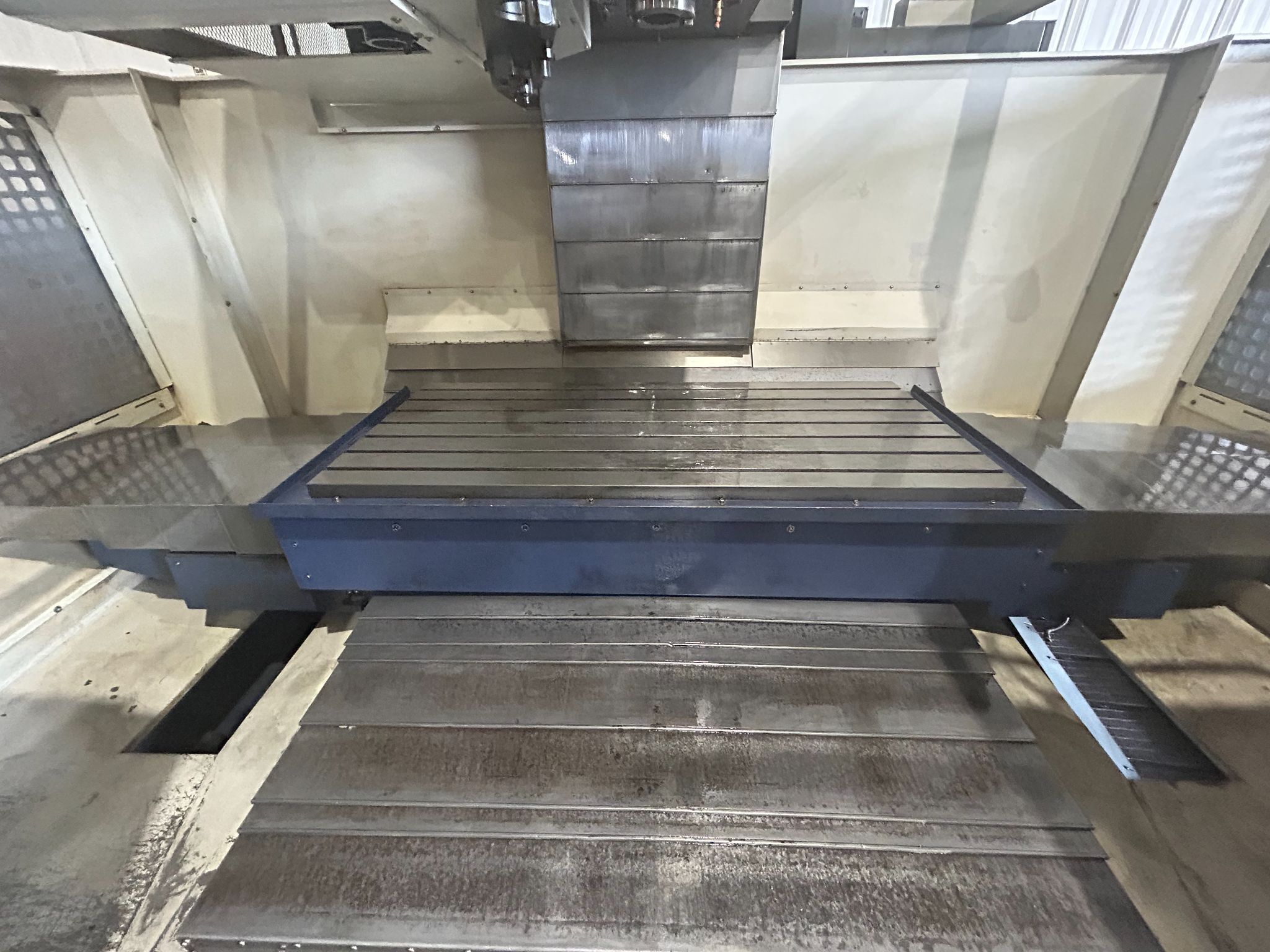

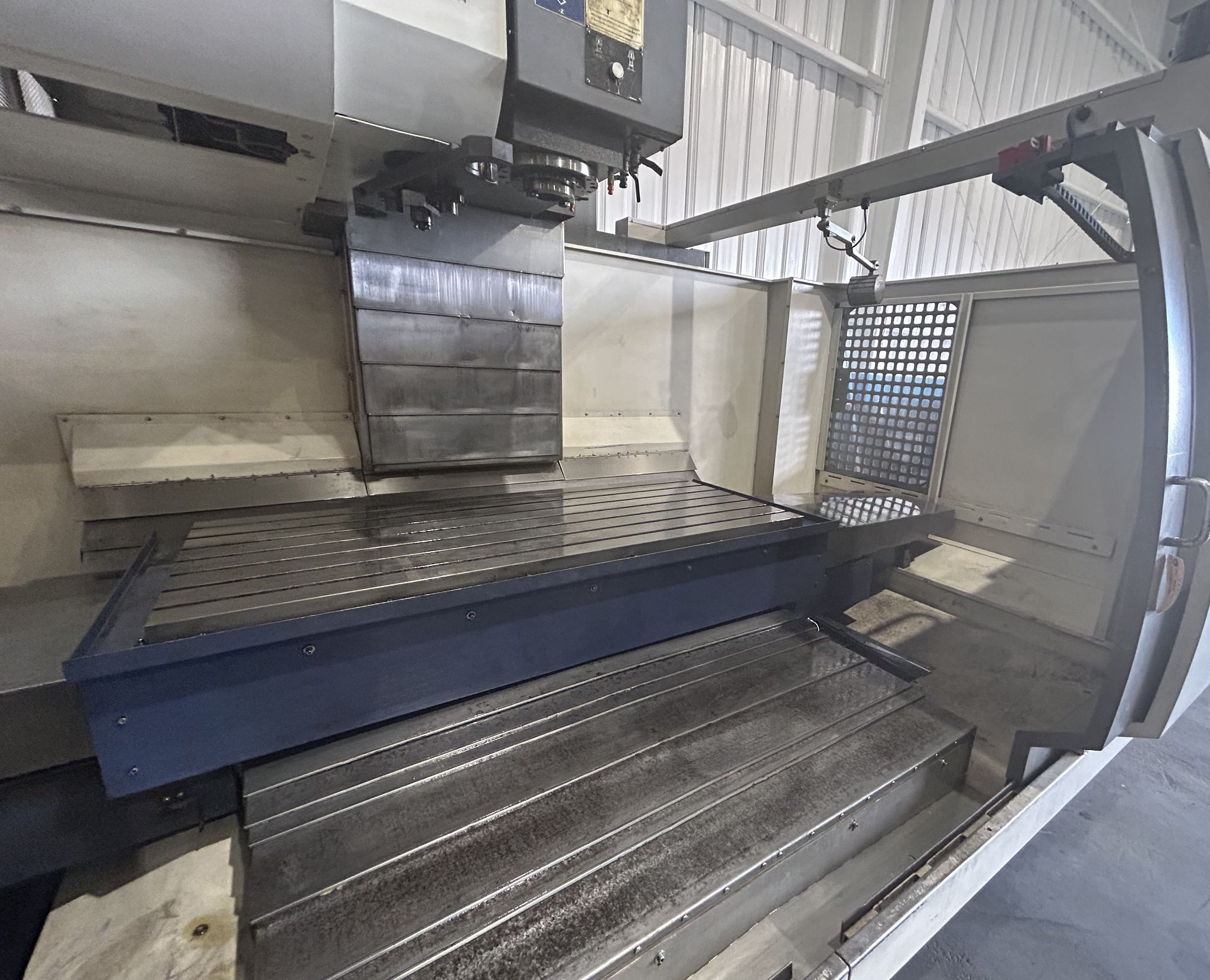

| Table: |
|---|
| Length: 66.93″ |
| Width: 29.92″ |
| T-Slot no. & Width: 7 X 0.71″ |
| Max Weight on Table: 4409 lbs |

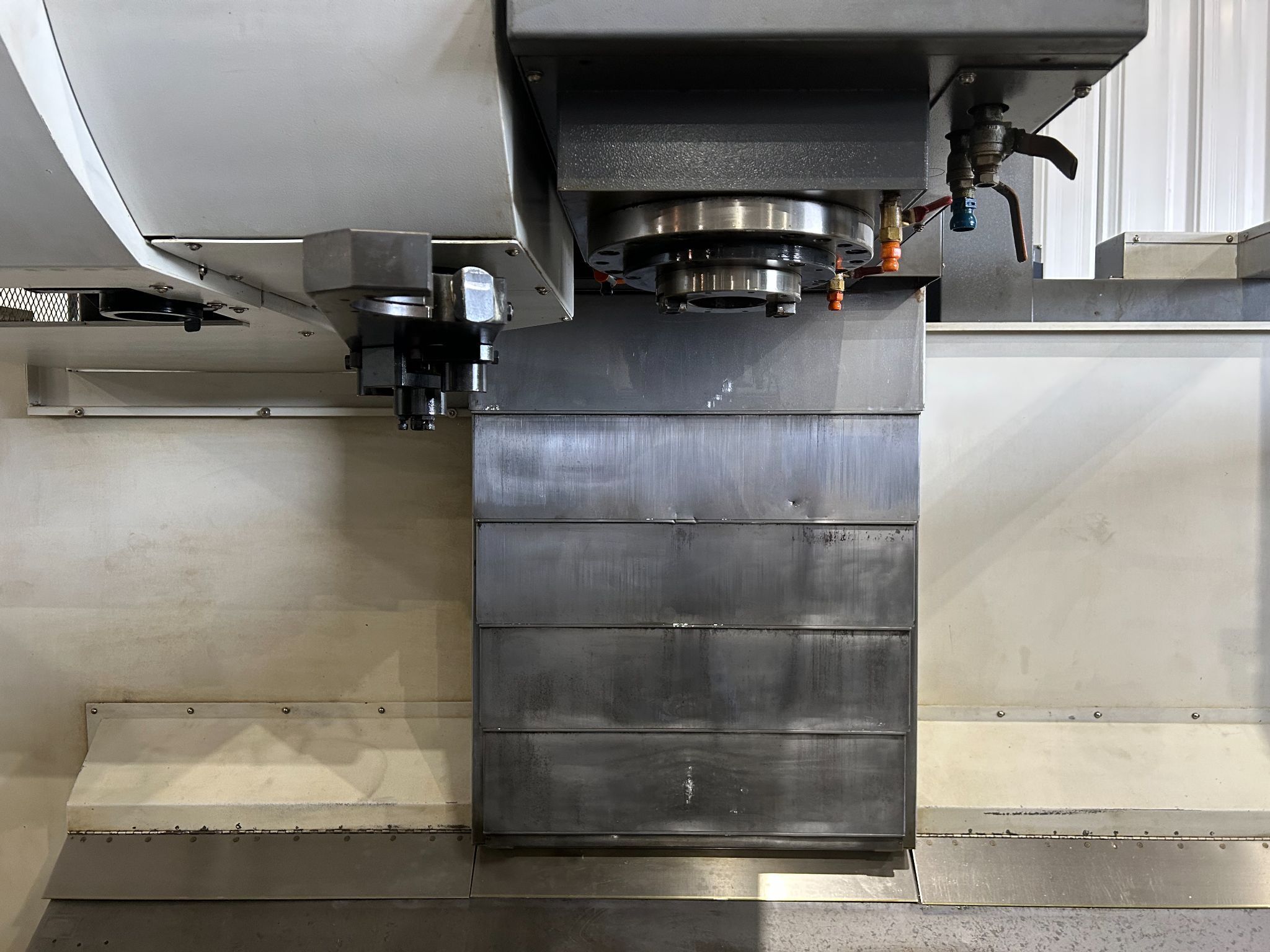

| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 45 – 6,000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 32 Station Side Mounted |
| Max Tool Weight: 44 lbs |
| Max Tool Length: 13.78″ |
| Max Tool Diameter : 4.72″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 205-220v / 40kva / 3-Phase |
| Overall Dimensions: 185″ x 128″ x 122″ High Approx. |
| Weight: 34171 lbs. Approx. |
| Equipped With: |
|---|
| Fanuc MXP-200i series CNC Control |
| Box Way construction |
| 32 Station Automatic Tool Changer |
| 50 Taper Spindle |
| 6,000 RPM Gear Head Spindle |
| Spindle Chiller Unit |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Telescopic Way Covers |
| Coolant System |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 1,650 mm |
| Y-Axis: 760 mm |
| Z-Axis: 700 mm |
| X, Y Axis Rapid Traverse rates: 591 IPM |
| Z Axis Rapid Traverse rates: 472 IPM |
| Cutting Feedrate: 197 IPM |
| Spindle Nose to Table (Min.- Max.): 200 mm – 900 mm |
| Table: |
|---|
| Length: 1,700 mm |
| Width: 760 mm |
| T-Slot no. & Width: 7 X 18 mm |
| Max Weight on Table: 4409 lbs |
| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 45 - 6,000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 32 Station Side Mounted |
| Max Tool Weight: 44 lbs |
| Max Tool Length: 350 mm |
| Max Tool Diameter : 120 mm |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 205-220v / 40kva / 3-Phase |
| Overall Dimensions: 4,699 mm x 3,251 mm x 3,099 mm High Approx. |
| Weight: 34171 lbs. Approx. |
| Make | YCM |
|---|---|
| Model | MV 168B |
| Categories | CNC Vertical Machining Centers |
