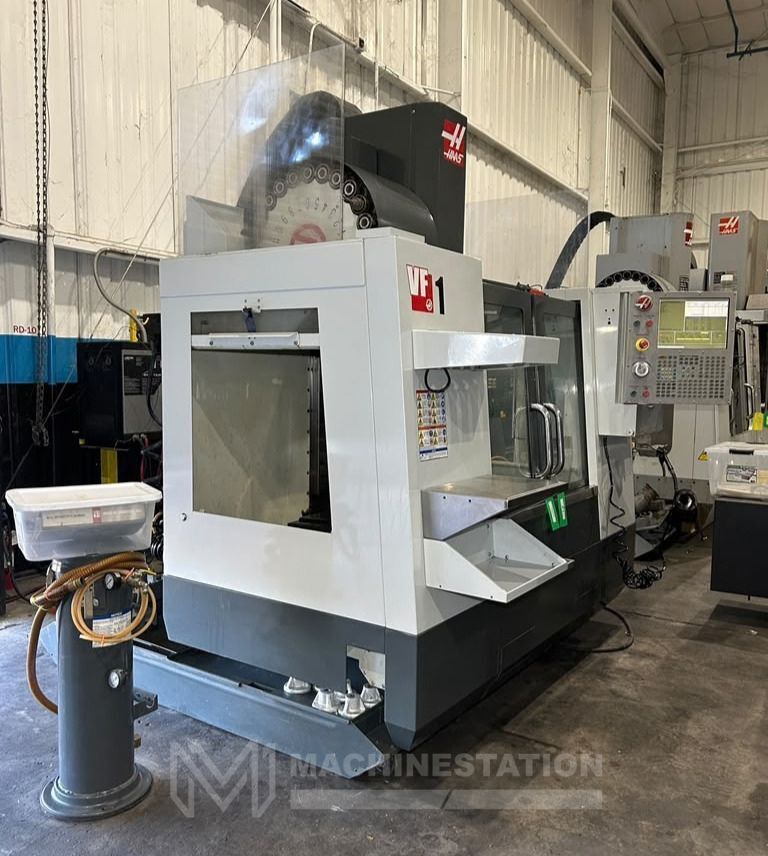

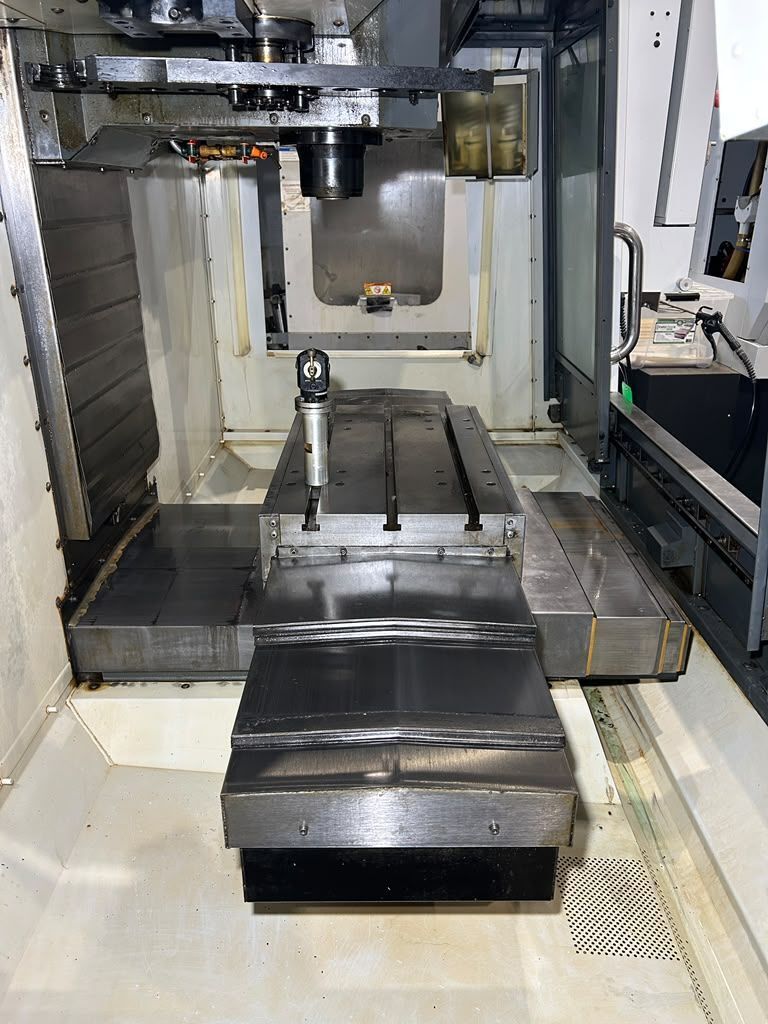

| Make: | Haas |
| Model: | VF-1 |
| Year: | 2012 |
| Features: |
|---|

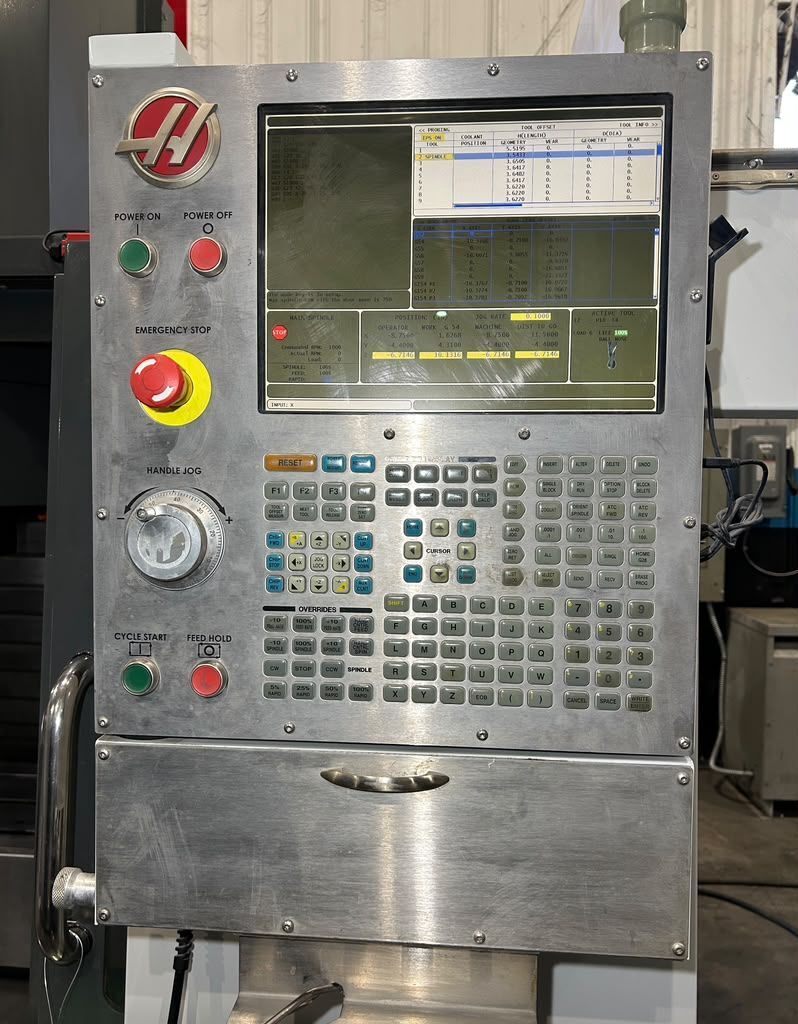

| Haas CNC Control |
| 4th Axis Ready |
| 7,500 RPM Spindle |
| 40 Spindle Taper |
| 24-Station Automatic Tool Changer |

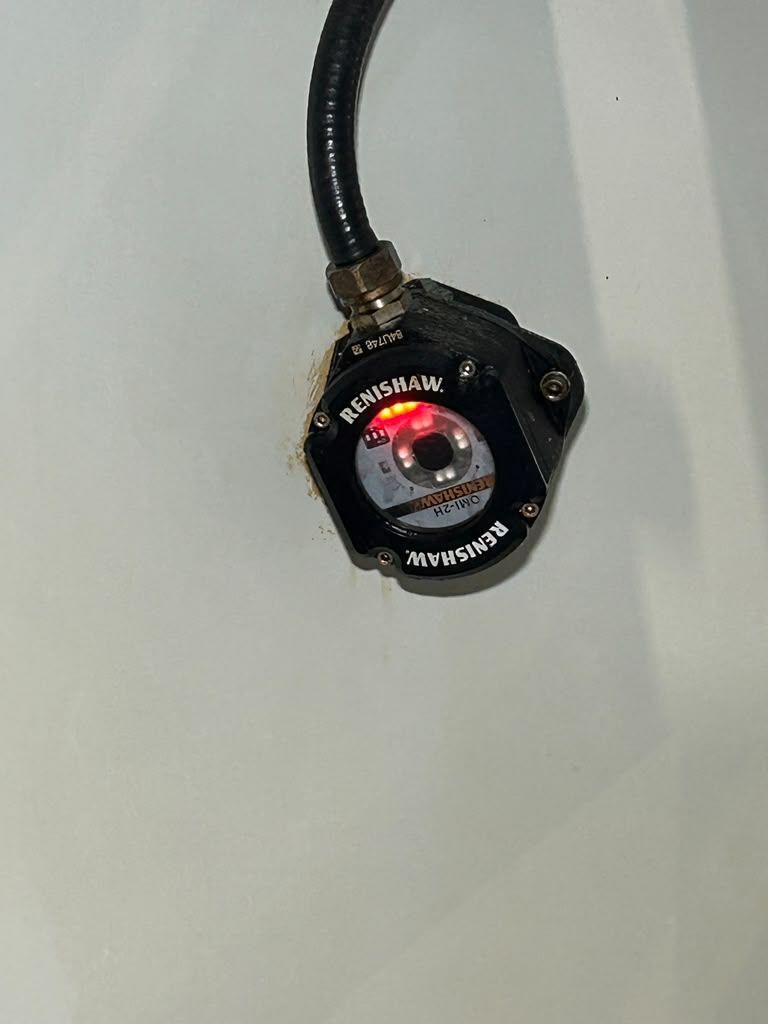

| Renishaw Receiver Installed |

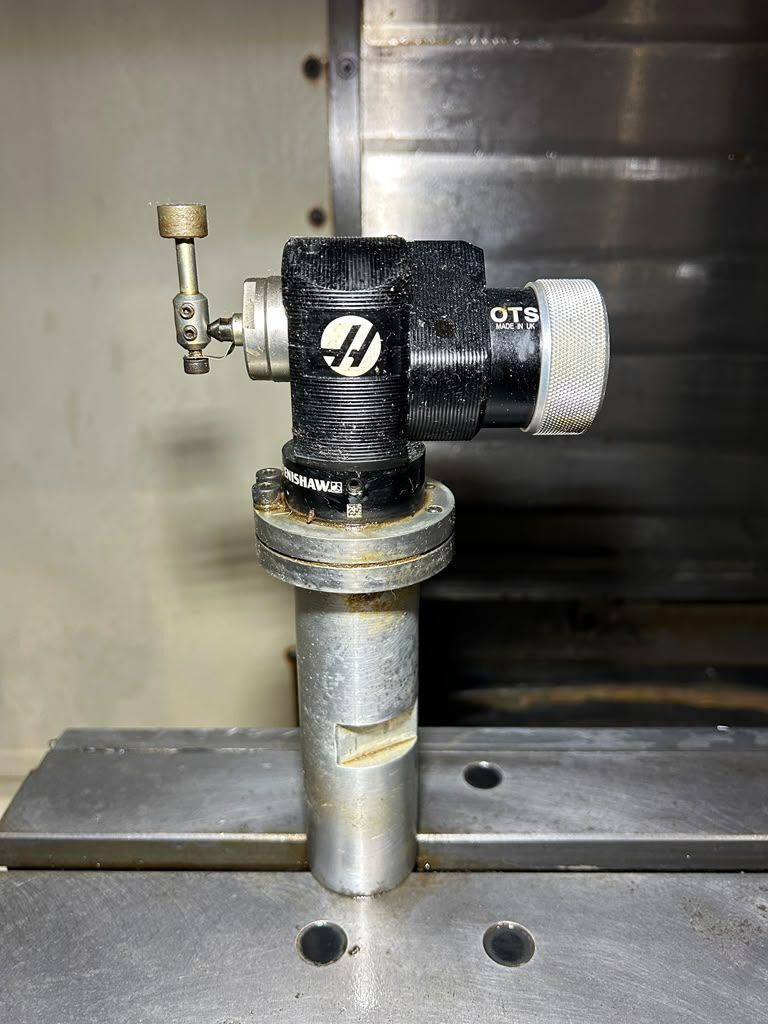

| Tool Presetter |
| Rigid Tapping |

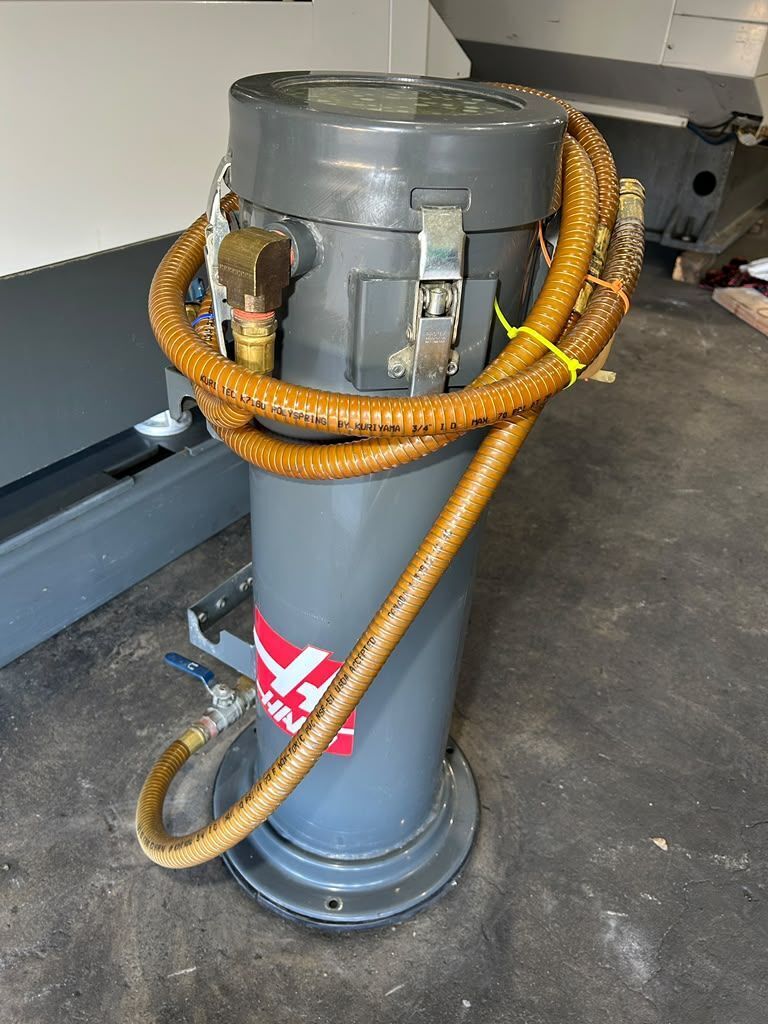

| Auxiliary Coolant Filter |

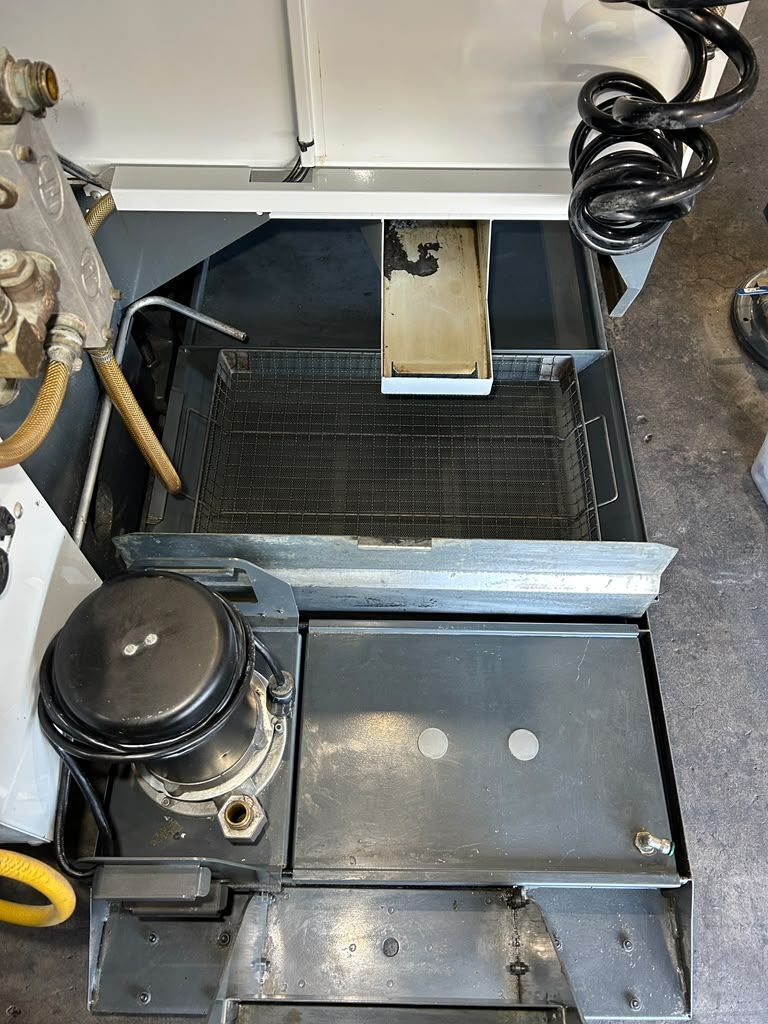

| Coolant Tank |
| Levelling Pads |

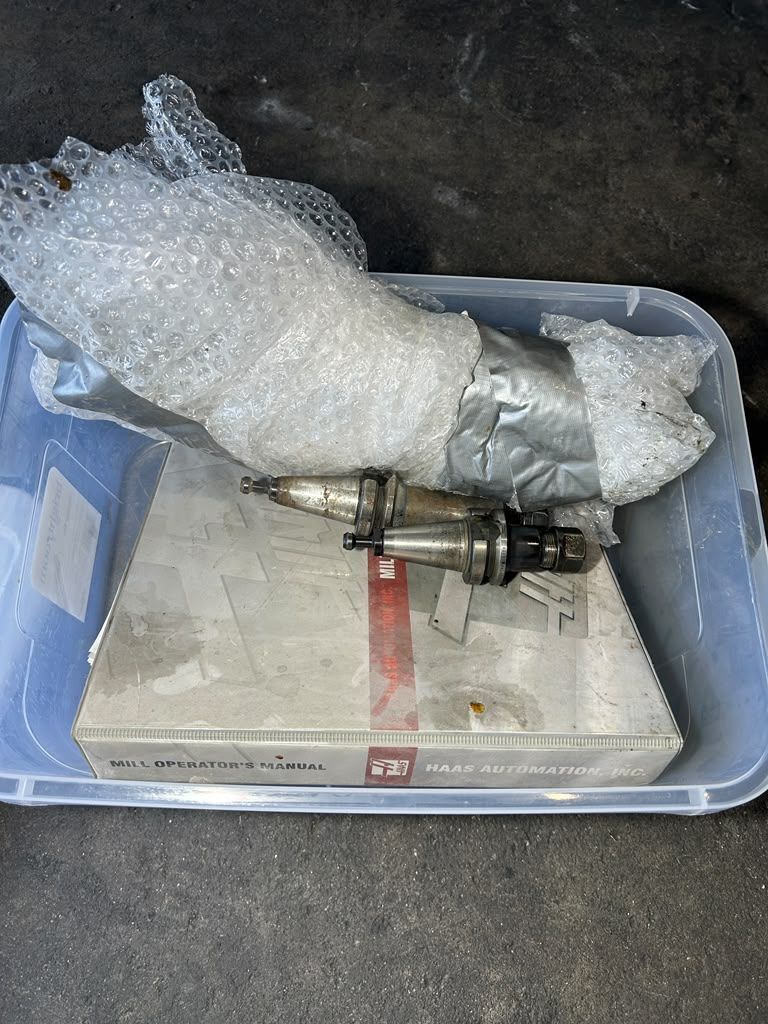

| Books & Manuals |
| (2) Tool Holders |
| Travels: |
|---|
| X-Axis Travel: 20 inch |
| Y-Axis Travel: 16 inch |
| Z-Axis Travel: 20 inch |
| Rapid Traverse Rates: 1,000 IPM |
| Cutting Feed Rates: 650 IPM |
| Spindle Nose to Table (Min.-Max.): 4 inch – 24 inch |

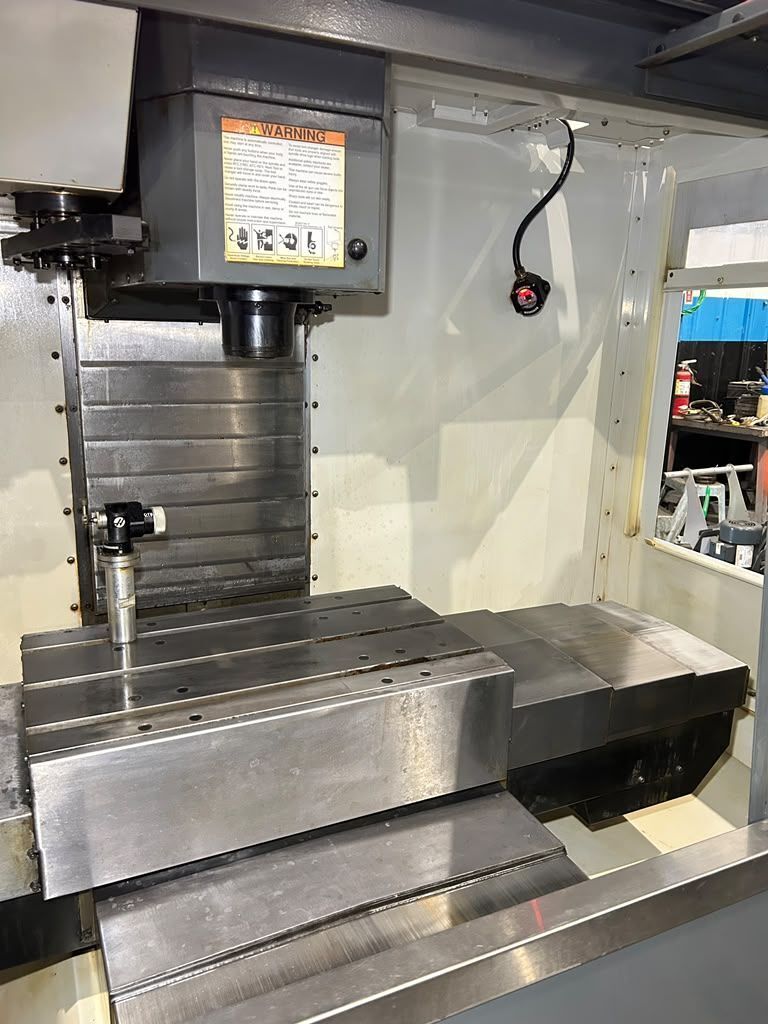

| Table: |
|---|
| Length: 26.0 inch |
| Width: 14.0 inch |
| Number of Standard T-Slots: 3 |
| T-Slot Width: 5/8 inch |
| Maximum Weight on Table: 3,000 lbs |

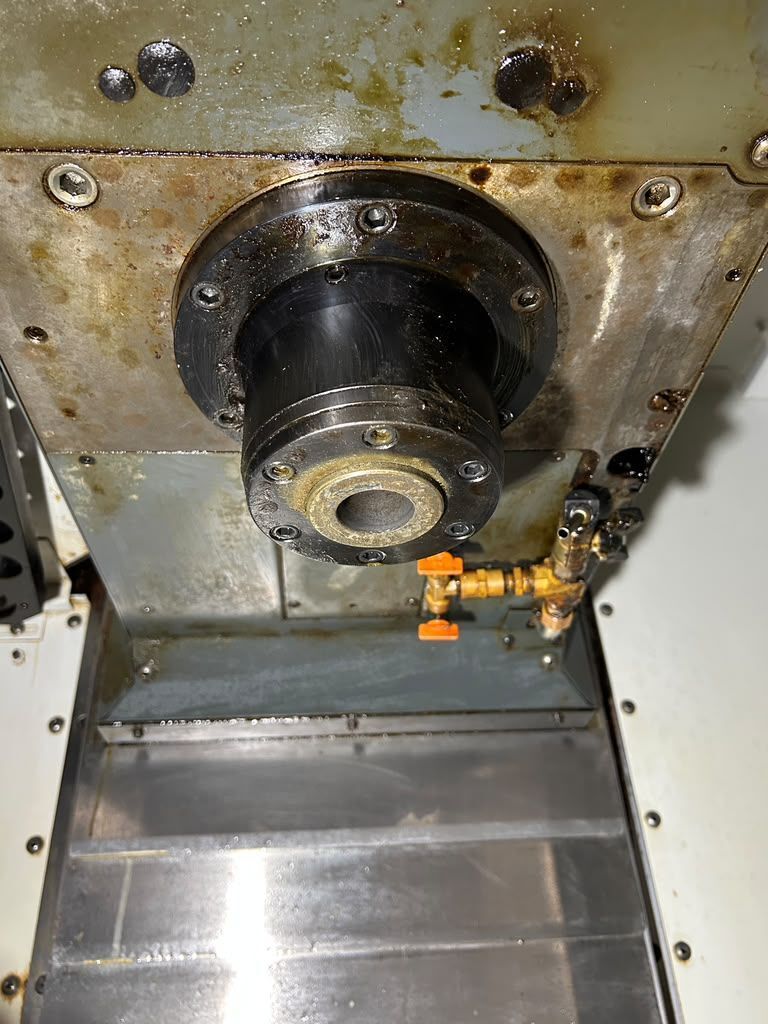

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 7,500 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Maximum Tool Weight: 12 lbs |
| Maximum Tool Diameter: 3.5 inch |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 PSI, 4 SCFM |
| Power: 220V / 66 FLA / 3-Phase |
| Overall Dimensions: 101 inch x 99 inch x 101 inch High |
| Weight: 7,800 lbs |
