Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| SKU: | 113708 |
| Make: | Mazak |

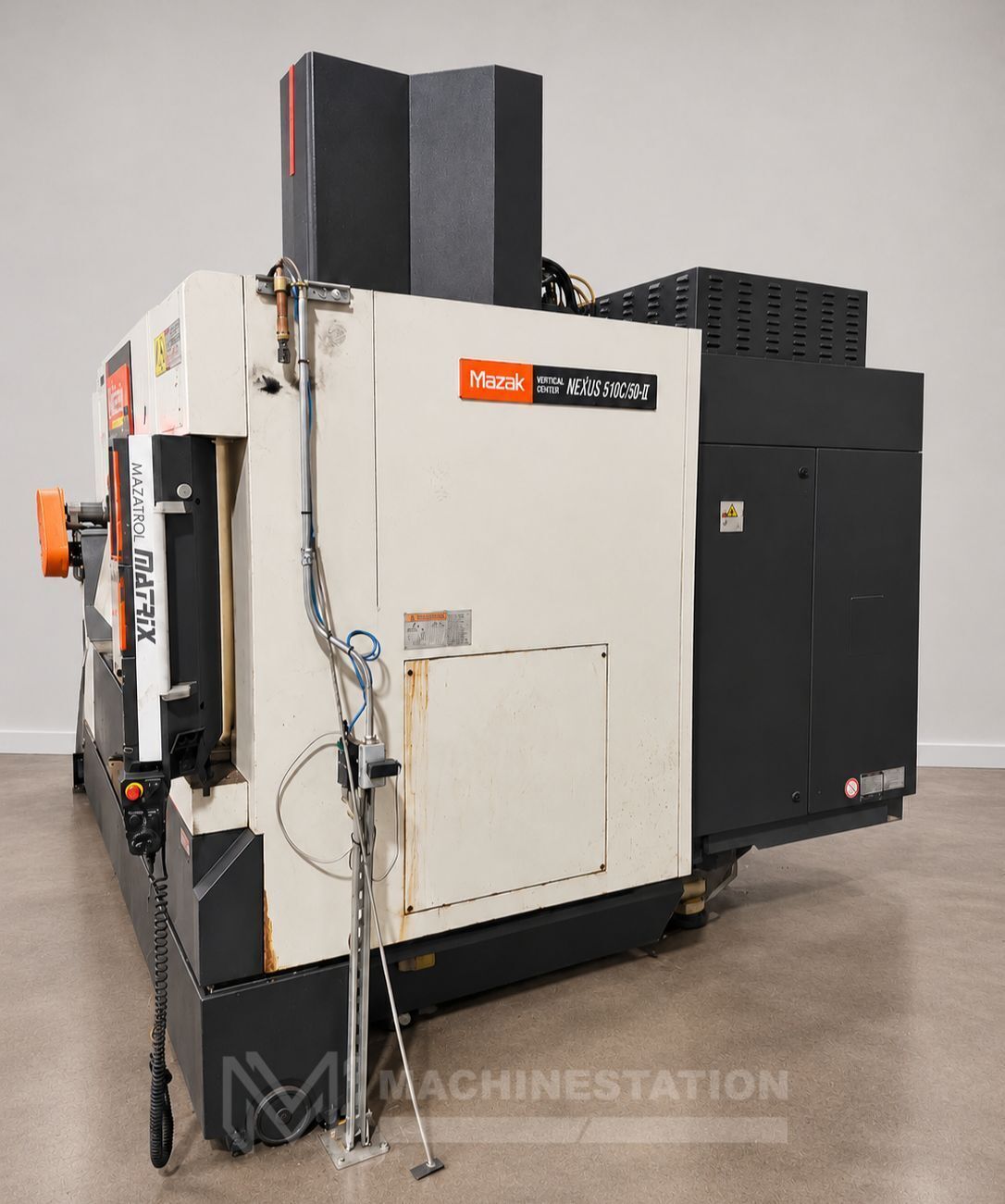

| Model: | VCN 510C/50-II |
| Year: | 2007 |
| Equipped With: |
|---|
| Mazatrol Matrix Nexus CNC Control |
| 4th Axis Ready |
| 6,000 RPM Spindle |

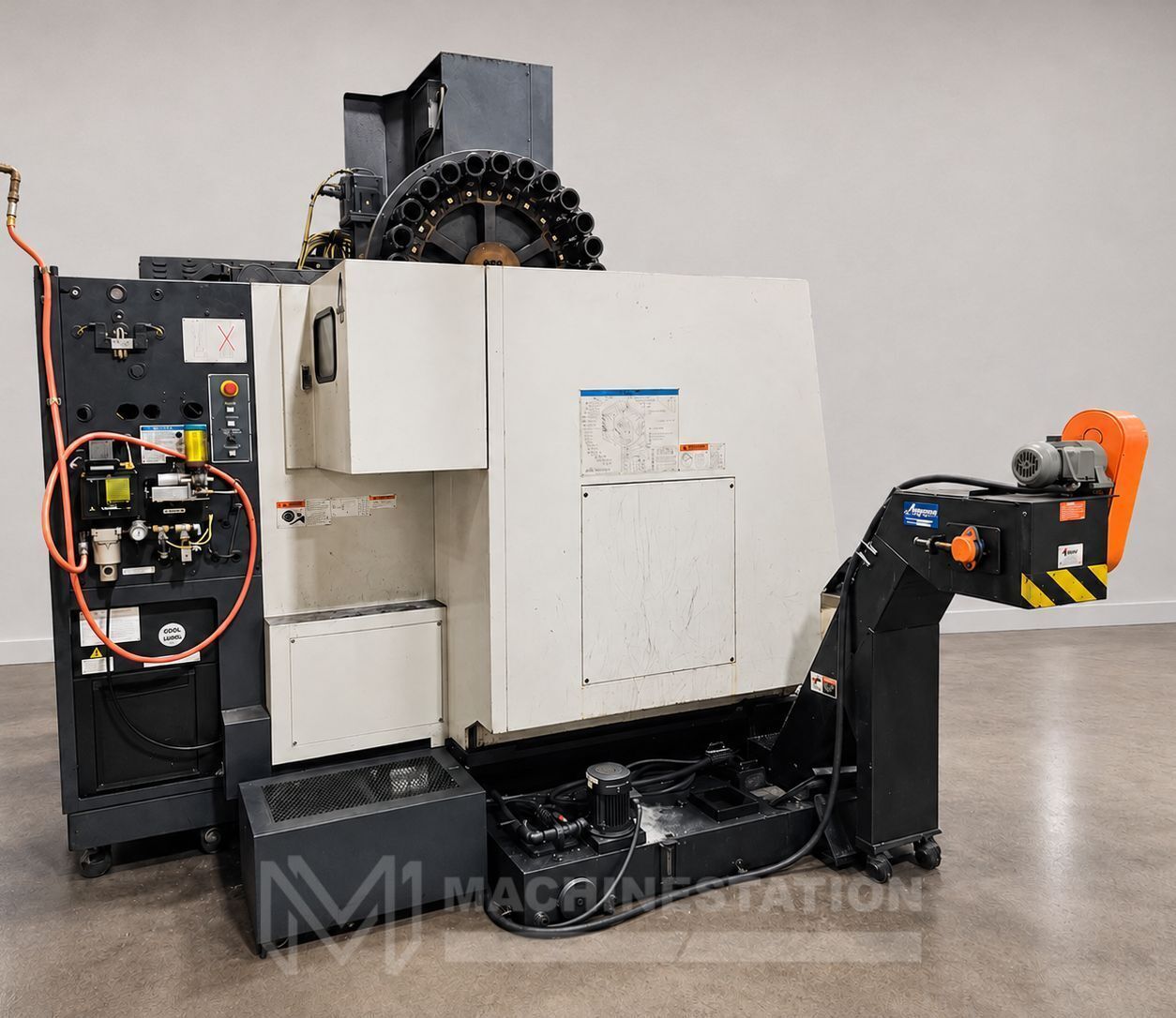

| 24 Station Automatic Tool Changer |
| CAT-50 Taper Spindle |
| 30 HP High Torque Spindle |
| MPG Handwheel Control |
| Rigid Tapping |
| Coolant Tank |
| Chip Conveyor |
| Note: 4th Axis Rotary Table Is Not Included with the Machine |
| Travels: |
|---|
| X-Axis: 41.3 inch |
| Y-Axis: 20.8 inch |
| Z-Axis: 20.8 inch |
| Rapid Traverse Rates Axis: 1,417 IPM |
| Cutting Feed Rates: 787 IPM |
| Spindle Nose to Table (Min.-Max.): 5.9 inch – 26 inch |

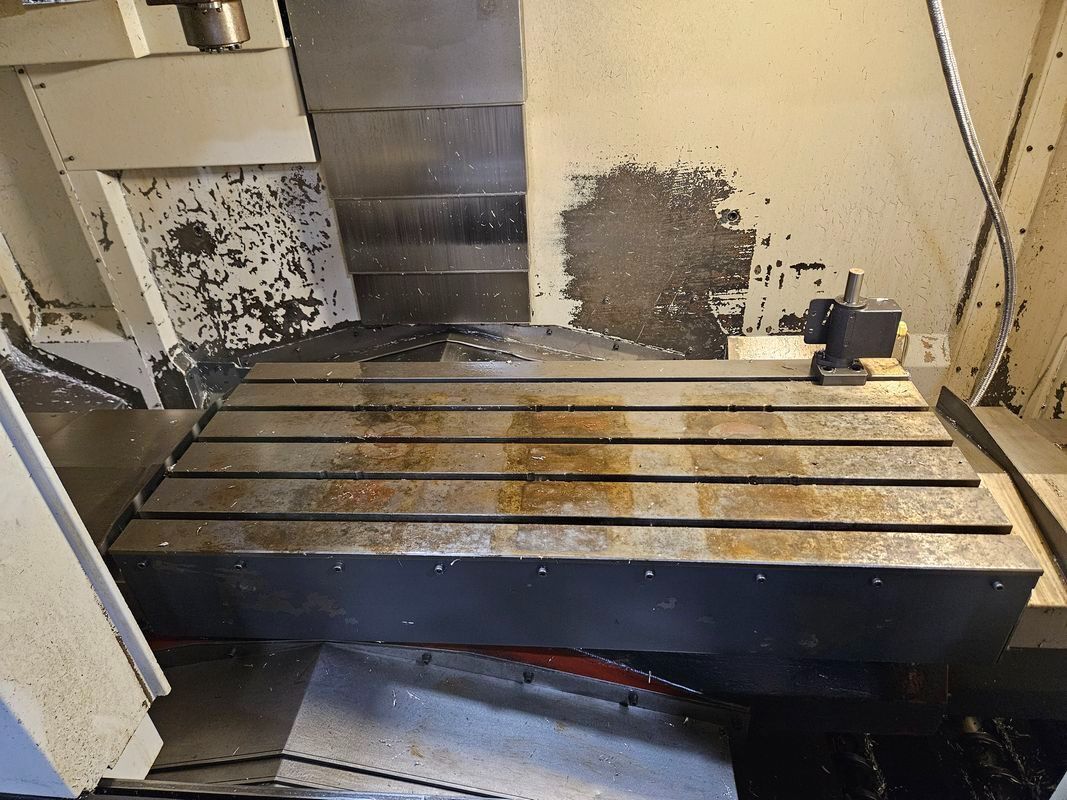

| Table: |
|---|
| Length: 51.18 inch |
| Width: 21.65 inch |
| Number of Standard T-Slots: 5 |
| T-Slot Width: 5/8 inch |
| Max Weight on Table: 2,646 lbs |

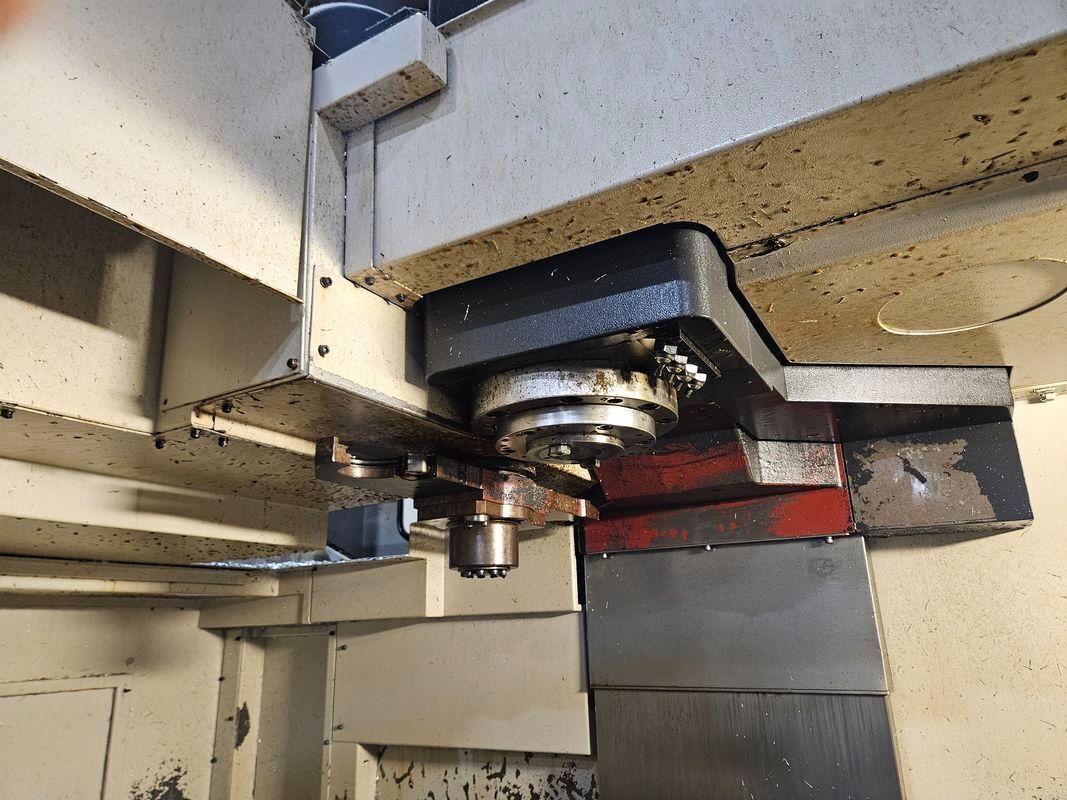

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 6,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Max Tool Weight: 13.78 lbs |
| Max Tool Diameter: 4.33 inch |
| Max Tool Length: 13.78 inch |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 80 PSI, 4 SCFM |
| Power: 220V / 50 kVA / 3-Phase |
| Overall Dimensions: 120 inch x 112 inch x 114 inch High |
| Weight: 15,500 lbs Approx. |
