*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

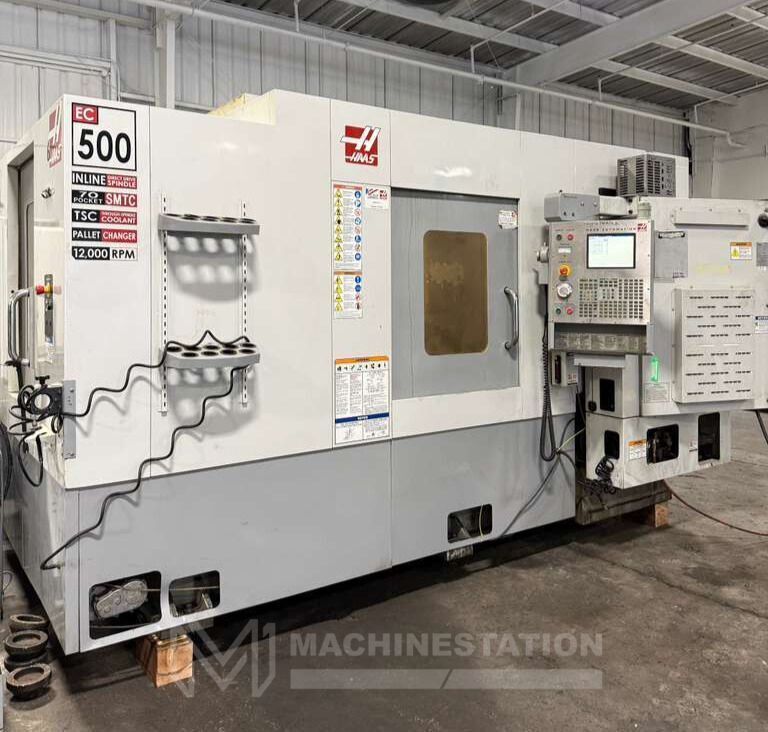

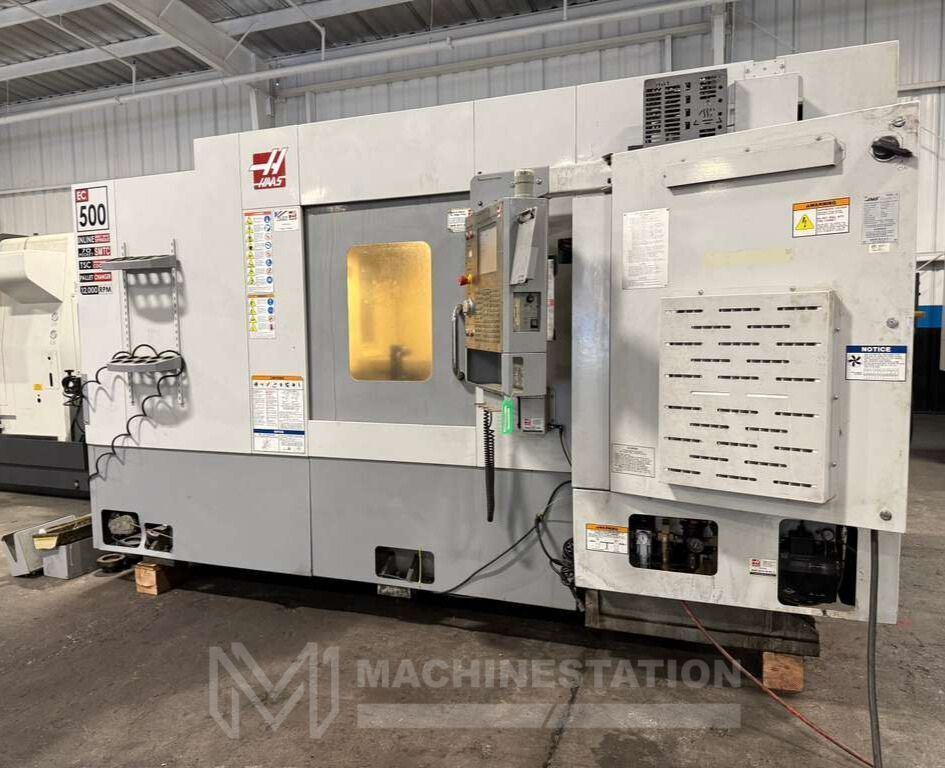

| Make: | HAAS |
| Model: | EC-500-4AX |
| Year: | 2006 |
| Features: |
|---|

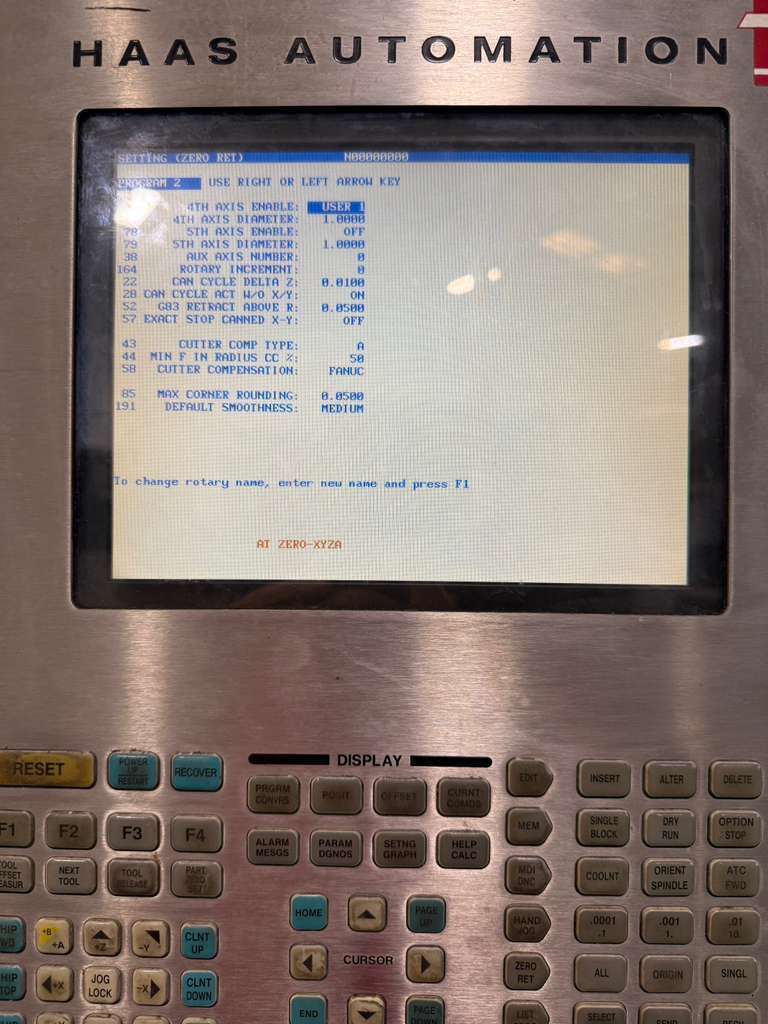

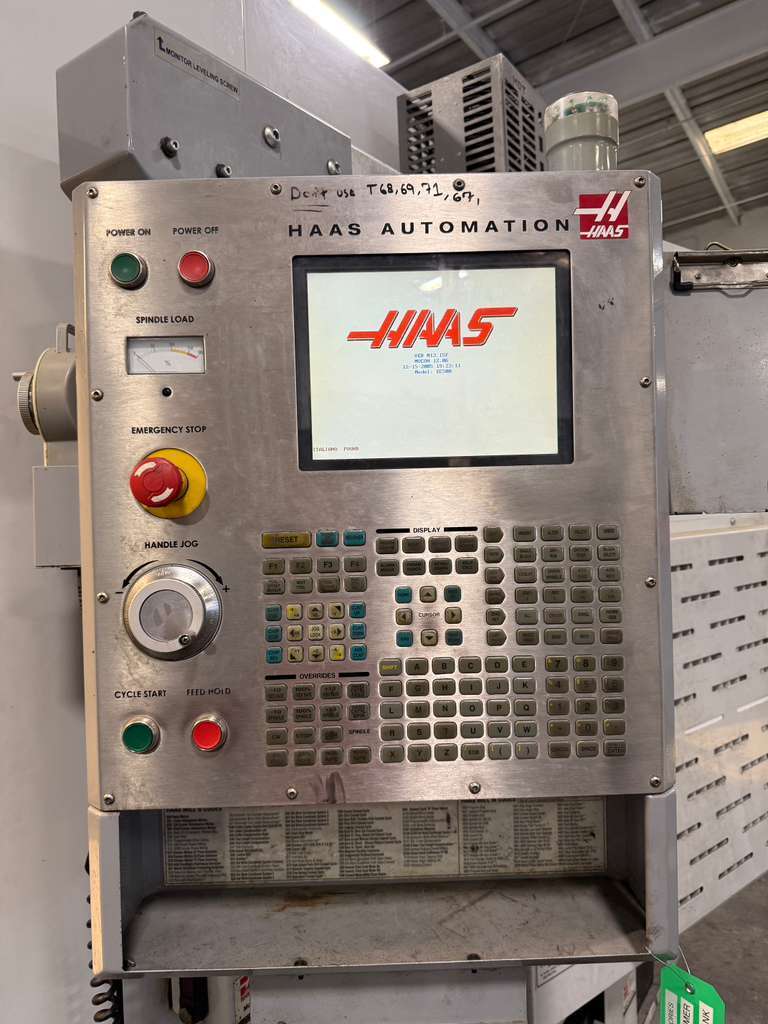

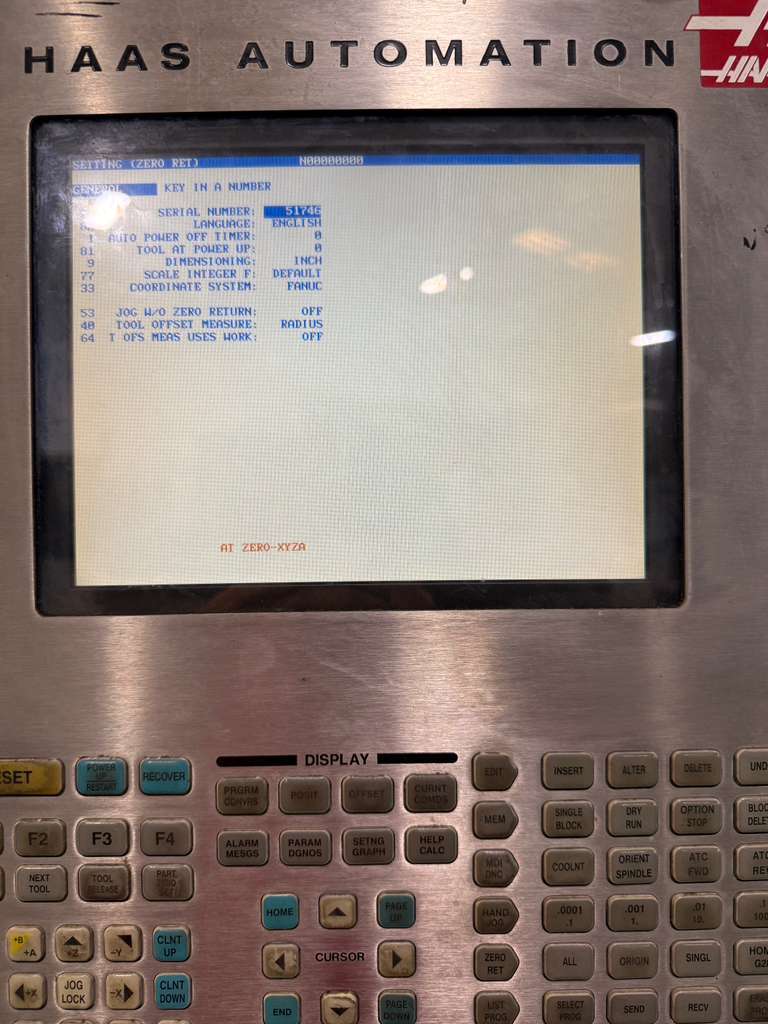

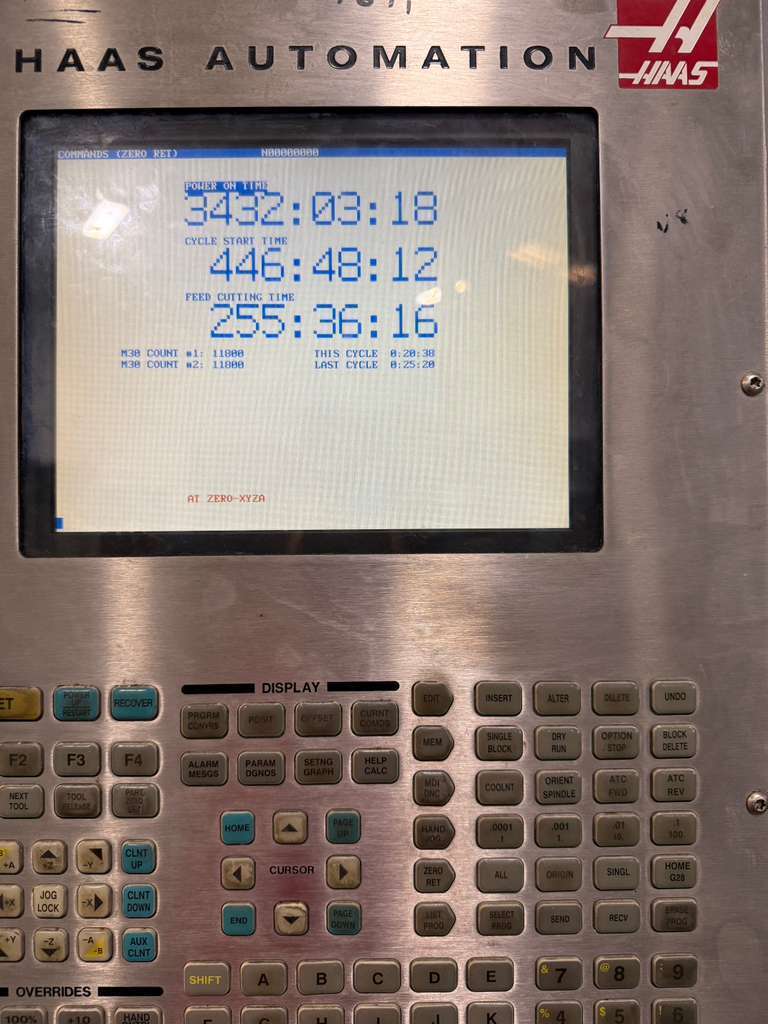

| Haas CNC Control |
| Linear Ways Guideways |
| Pallet Changer |
| Full 4th Axis |

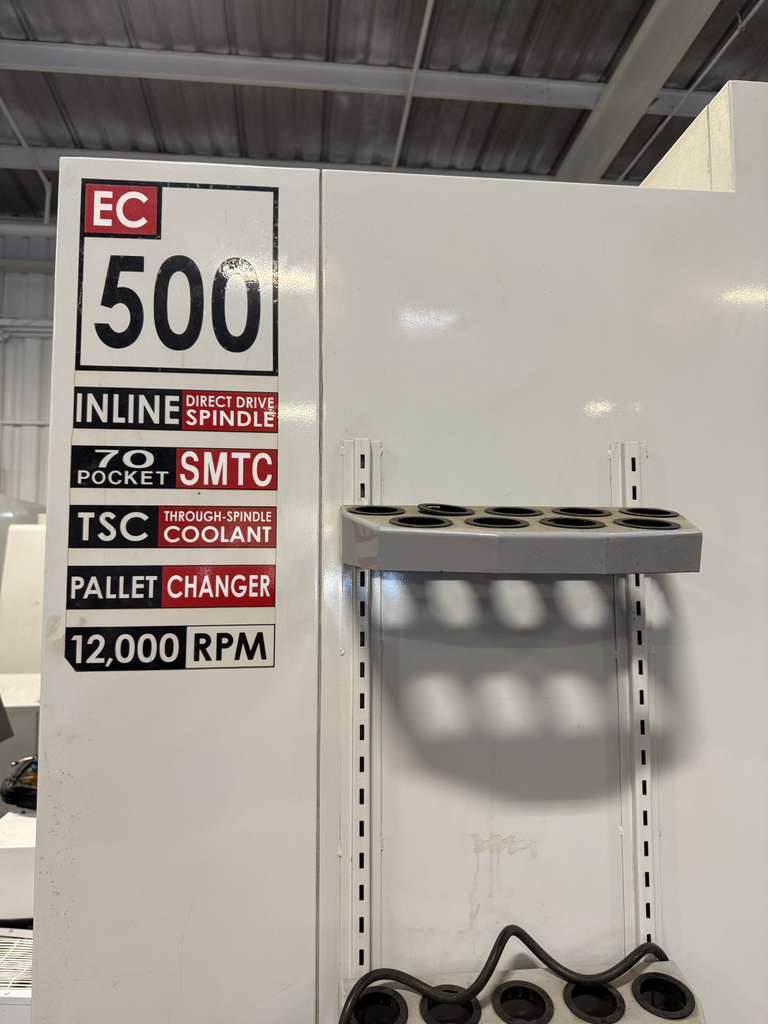

| 12000 RPM Inline Direct Drive Spindle |
| Through Spindle Coolant |
| 70 Tools Side Mount Tool Changer |
| Renishaw Probing System (Probe Needed) |
| Tool Presetter |
| MPG Handwheel Control |
| Rigid Tapping |
| Coolant system |
| Chip Auger |
| Travels: |
|---|
| X Axis: 32″ |
| Y Axis: 25″ |
| Z Axis: 28″ |
| B Axis: 0.001° Indexing ( Full 4th ) |
| Pallet: |
|---|
| Dual Pallet Changer |
| Pallet Size: 19.69″ X 19.69″ |
| Max Weight on Pallet: 880 lbs |
| Max Part Diameter: 29.5″ |
| Max Part Height: 36.5″ |
| Pallet Change Time: 15 Seconds |
| Spindle: |
|---|
| Taper Size: 40 |
| Spindle Speed: 12000 RPM |
| Spindle Power: 30 HP |
| Feed rates: |
|---|
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Tool changer: |
|---|
| Capacity: 70 Station Side Mounted |
| Max Tool Diameter: 2.5″ – 5.0″ |
| Max Tool Length: 12″ |
| Max Tool Weight: 12 lbs. |
| Tool Change Time (Tool to Tool): 2.8 Second |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

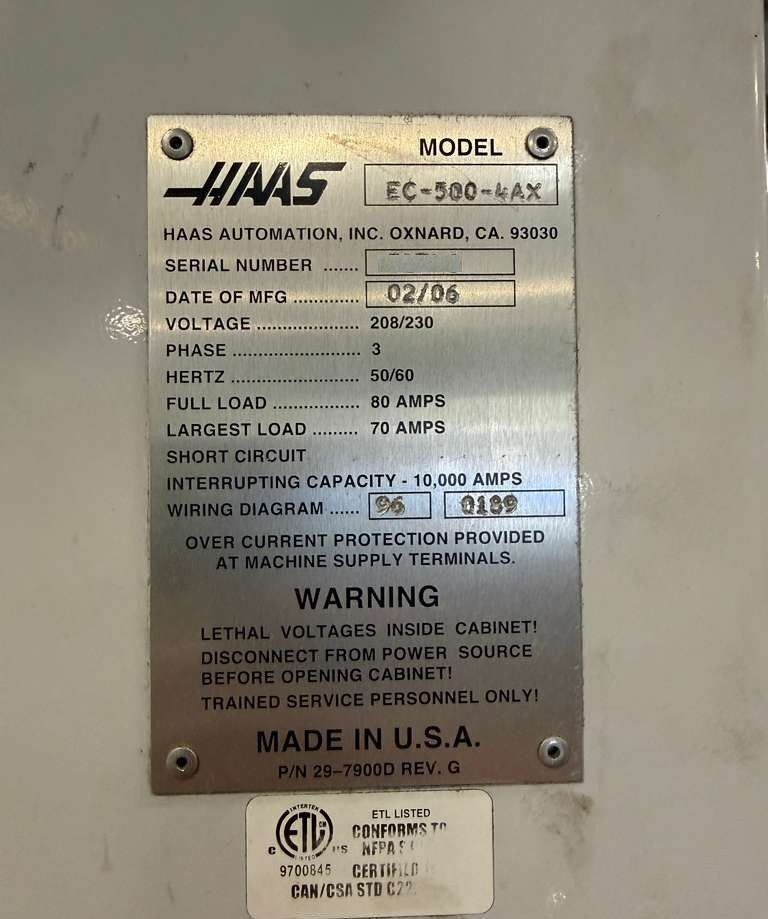

| Power: 220v / 66FLA / 3-Phase |
| Overall Shipping Dimensions: 202″ x 100″ x 111″ High Approx. |
| Weight: 20120 lbs. Approx. |
