Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

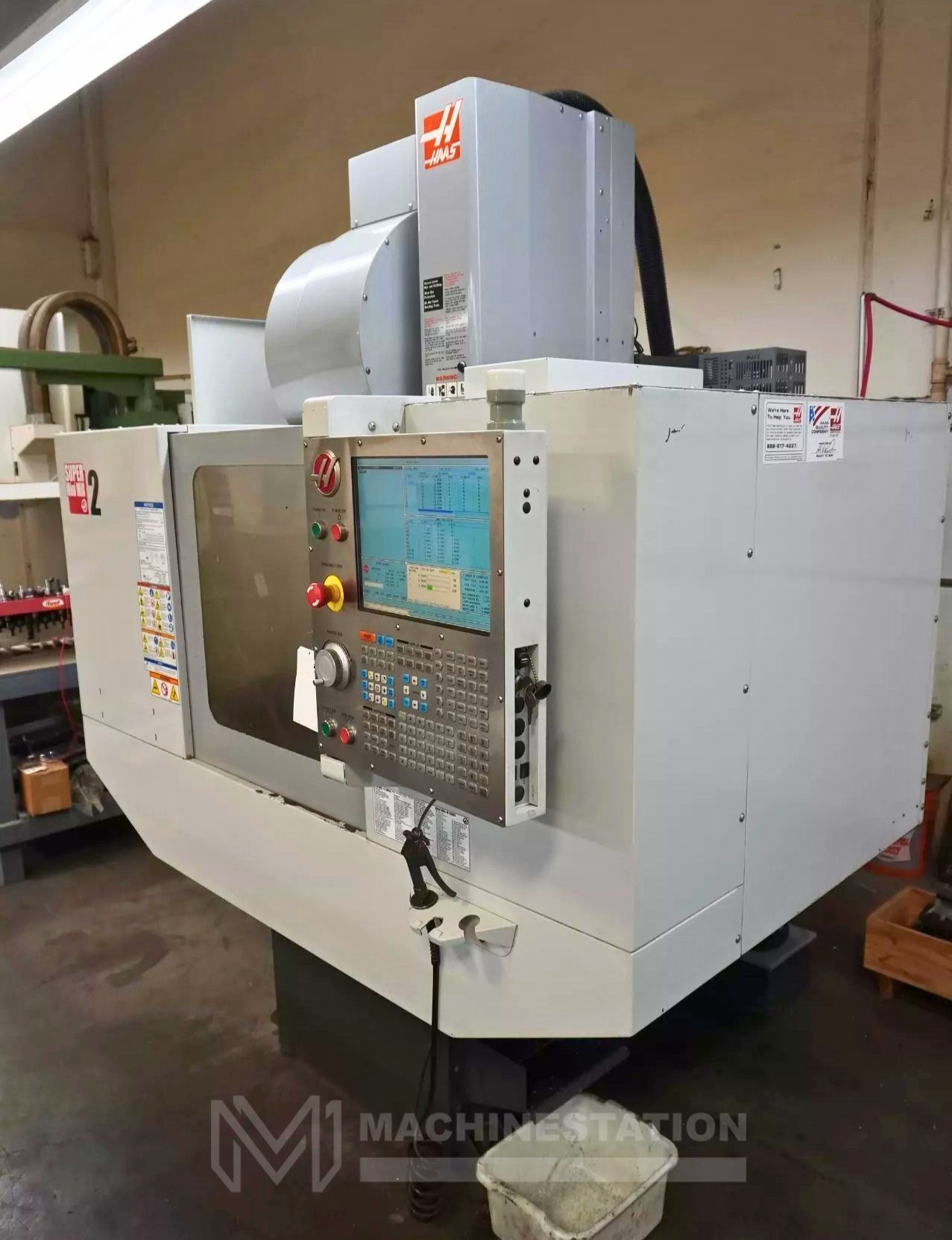

| SKU: | 113659 |

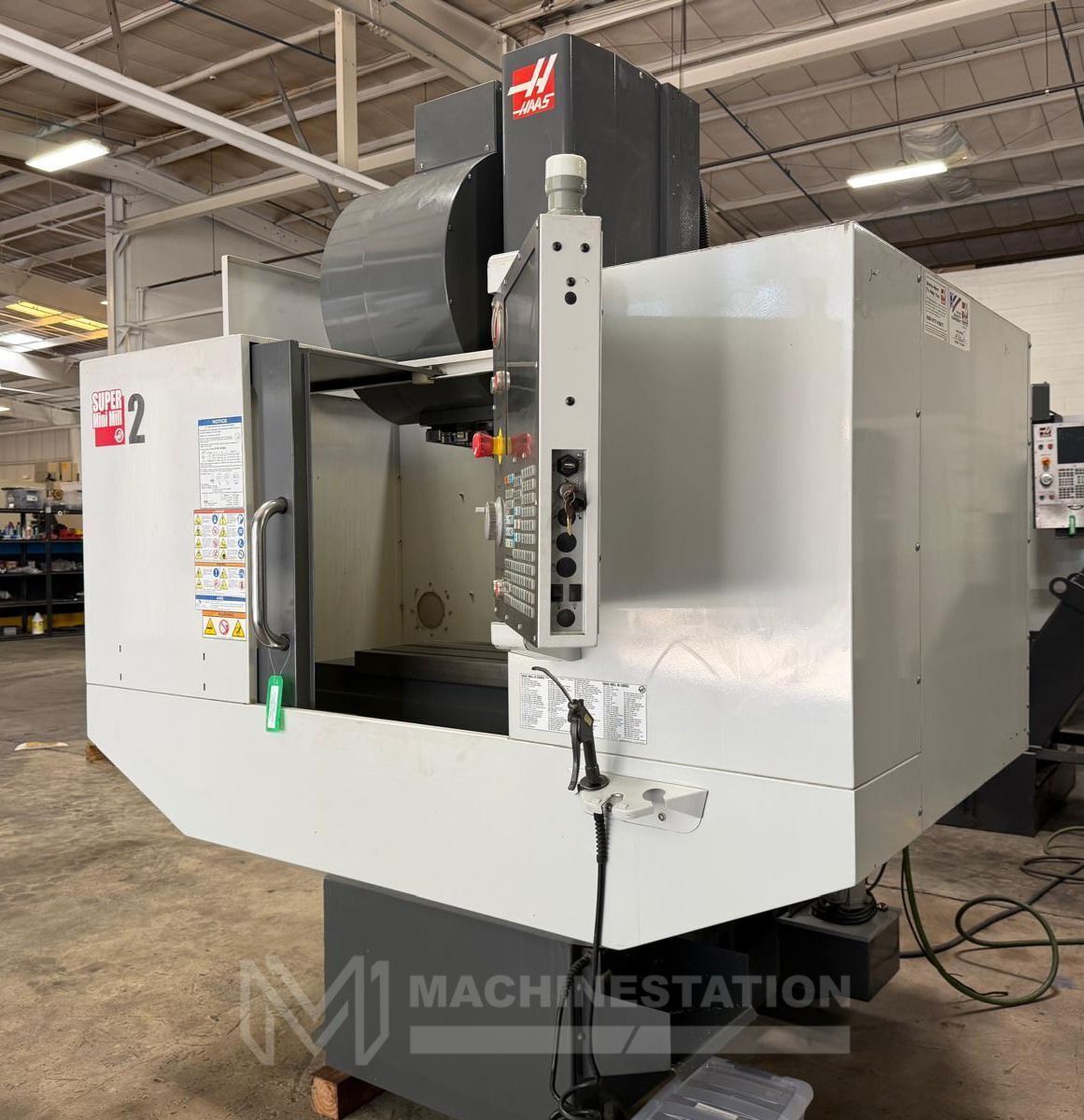

| Make: | Haas |
| Model: | Super Mini Mill 2 |
| Year: | 2010 (Sold & Installed in 2011) |
| Features: |
|---|

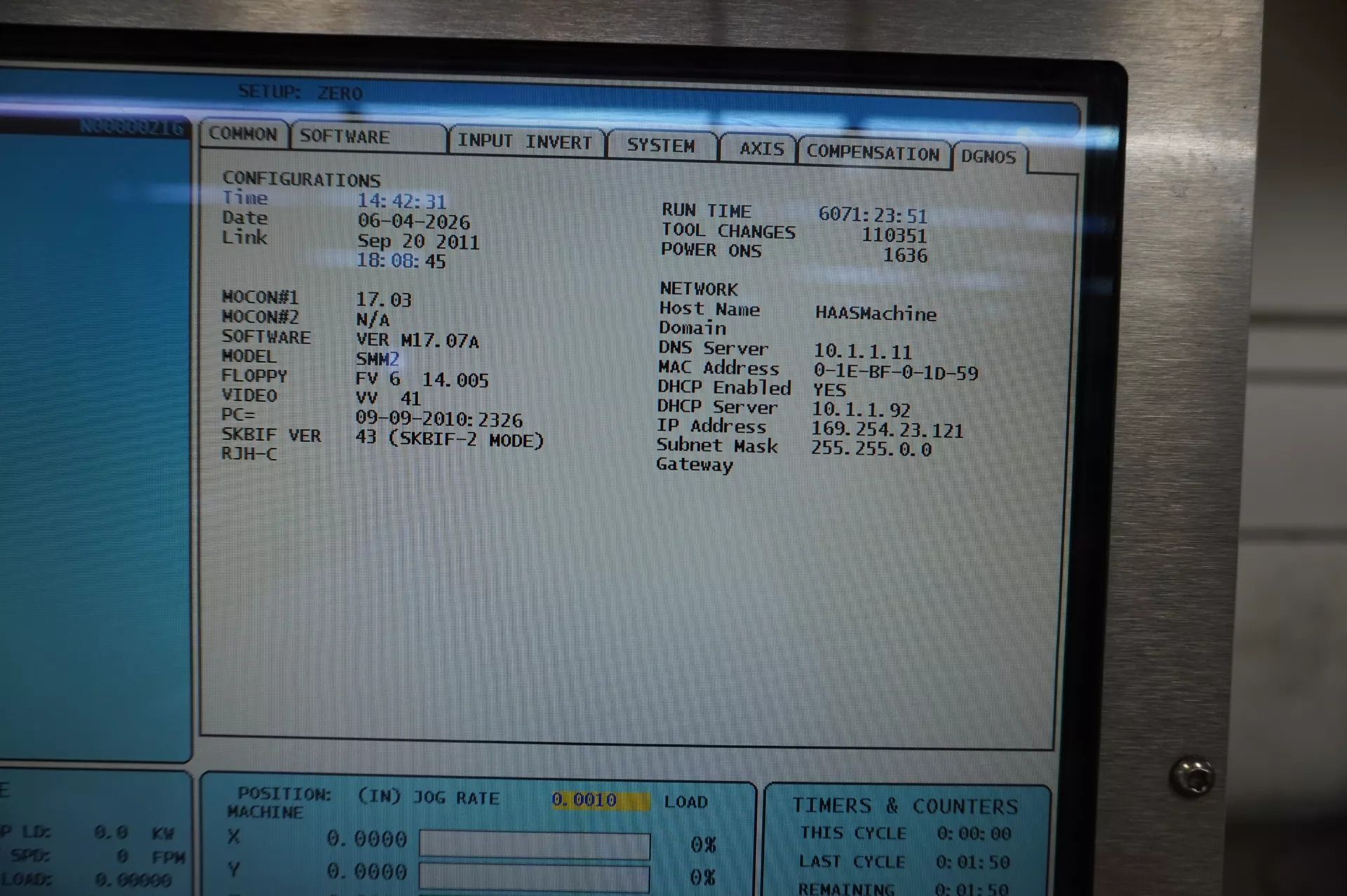

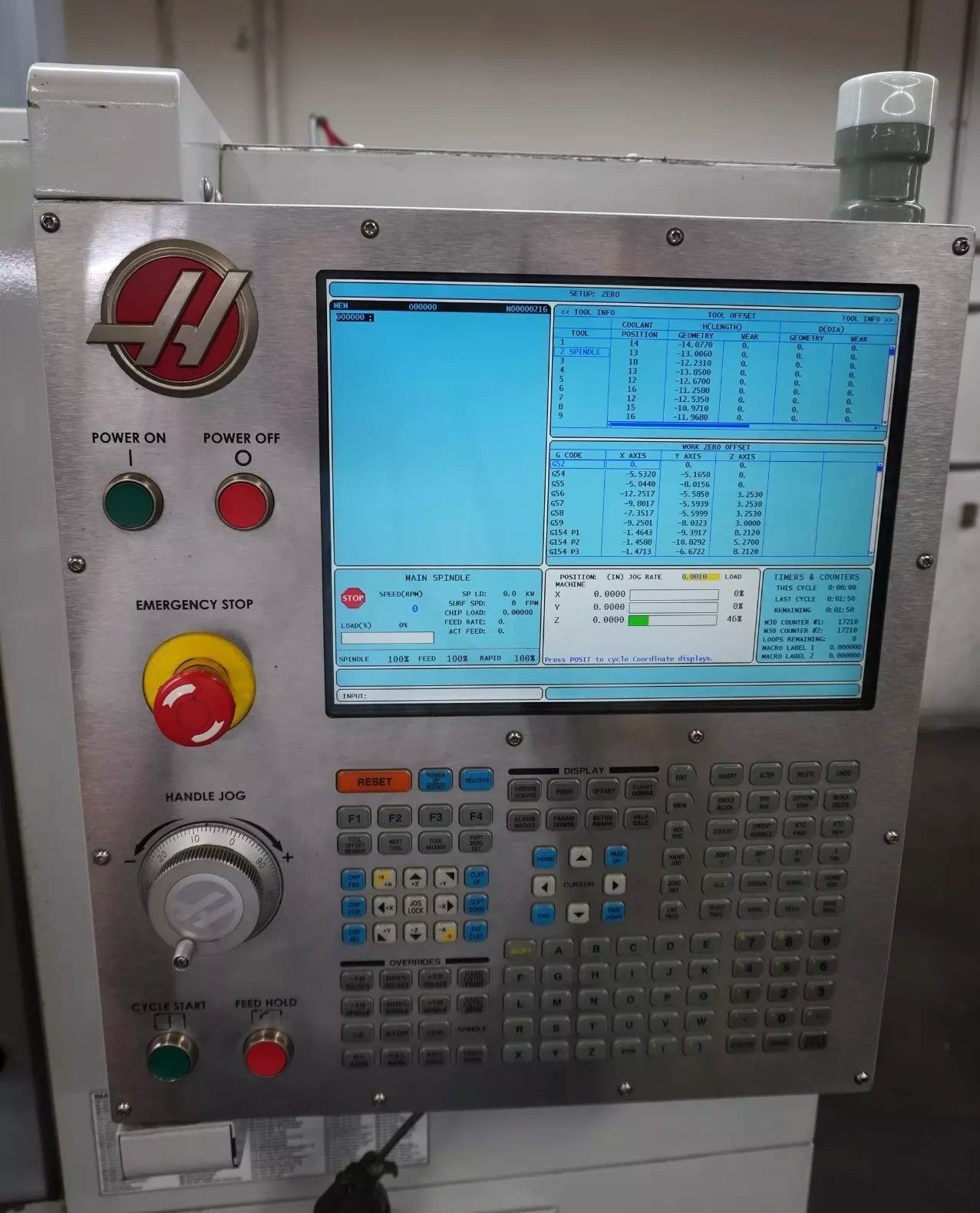

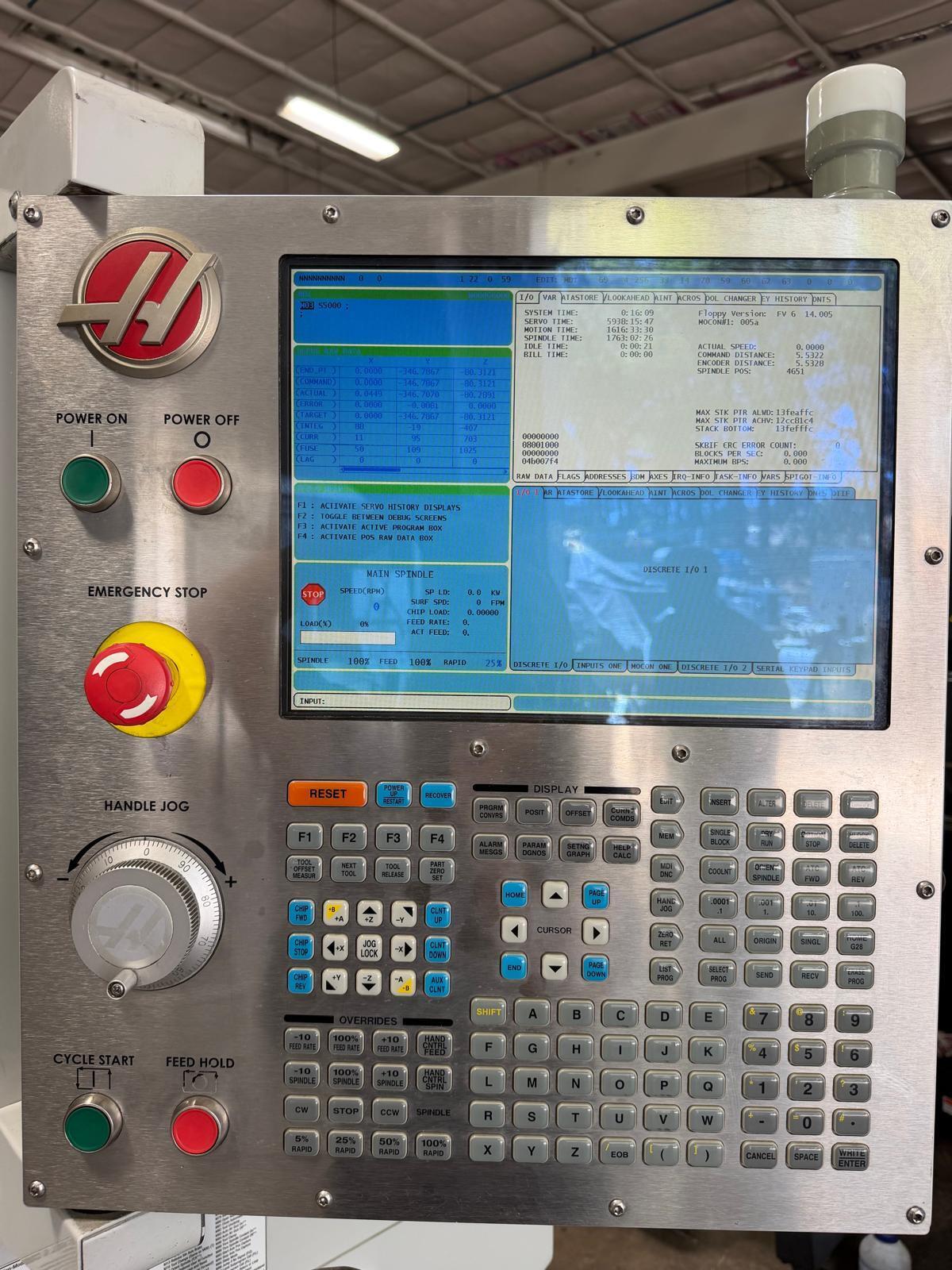

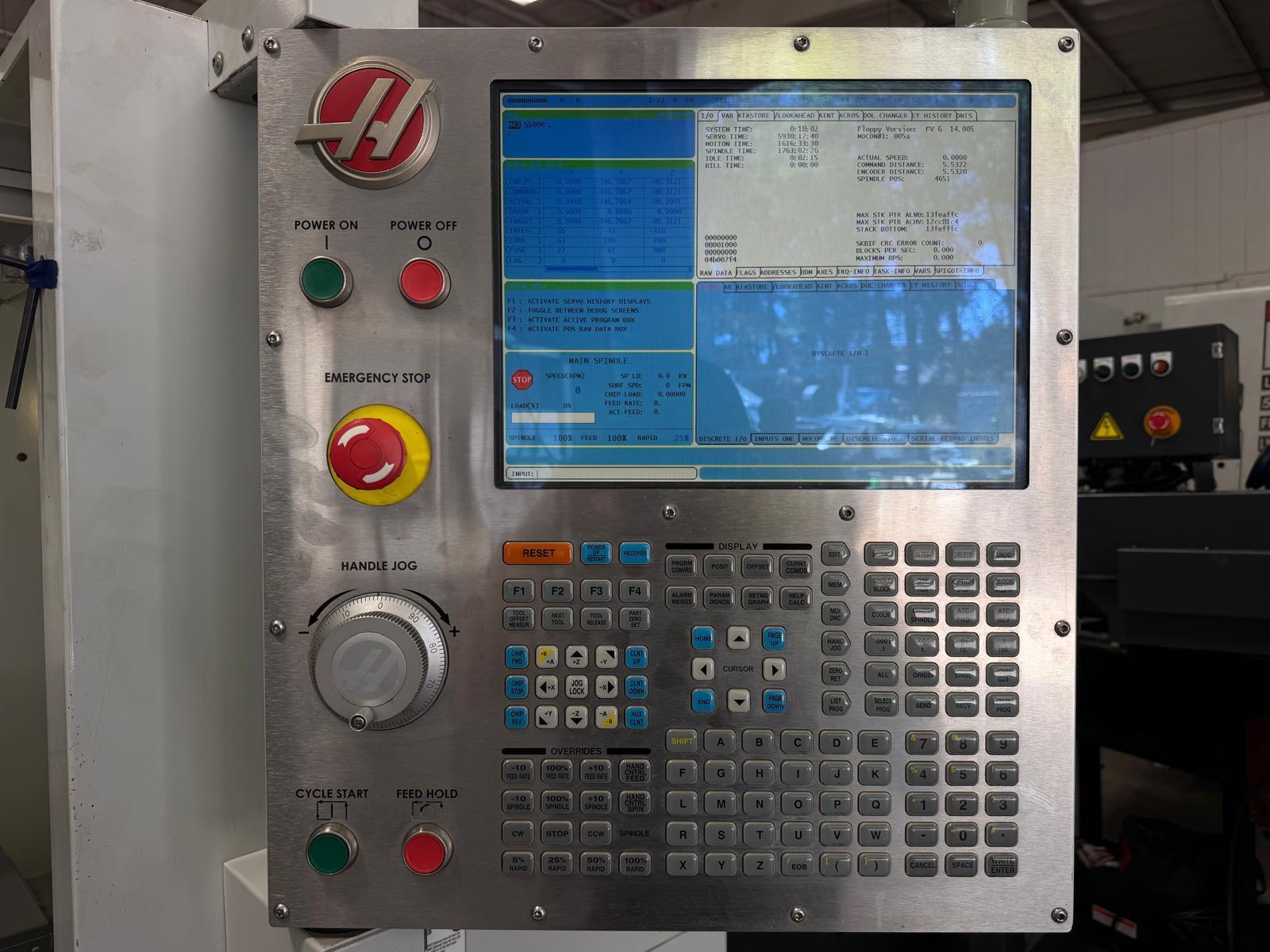

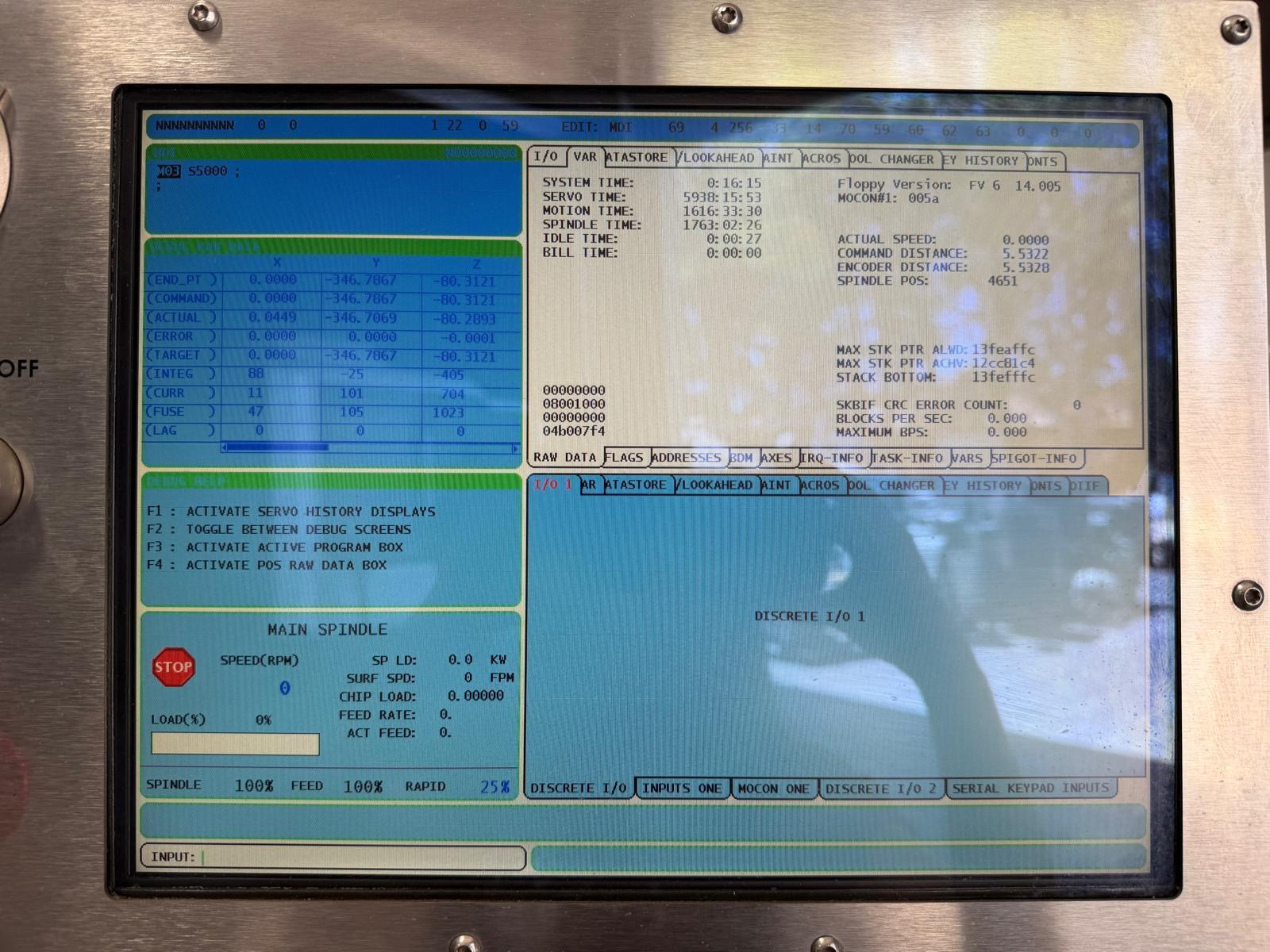

| Haas CNC Control |

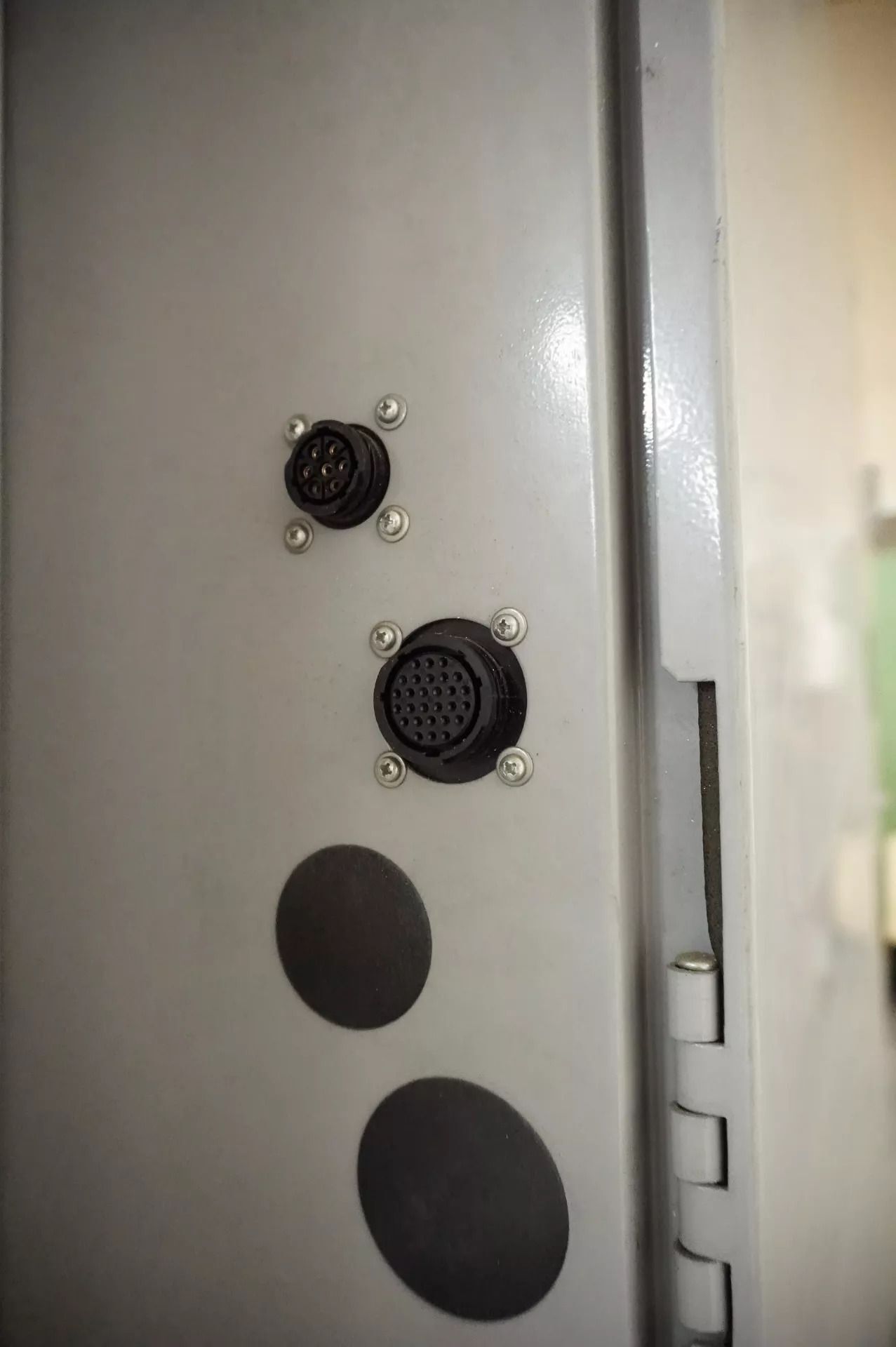

| 4th Axis Ready |
| 10,000 RPM Spindle |

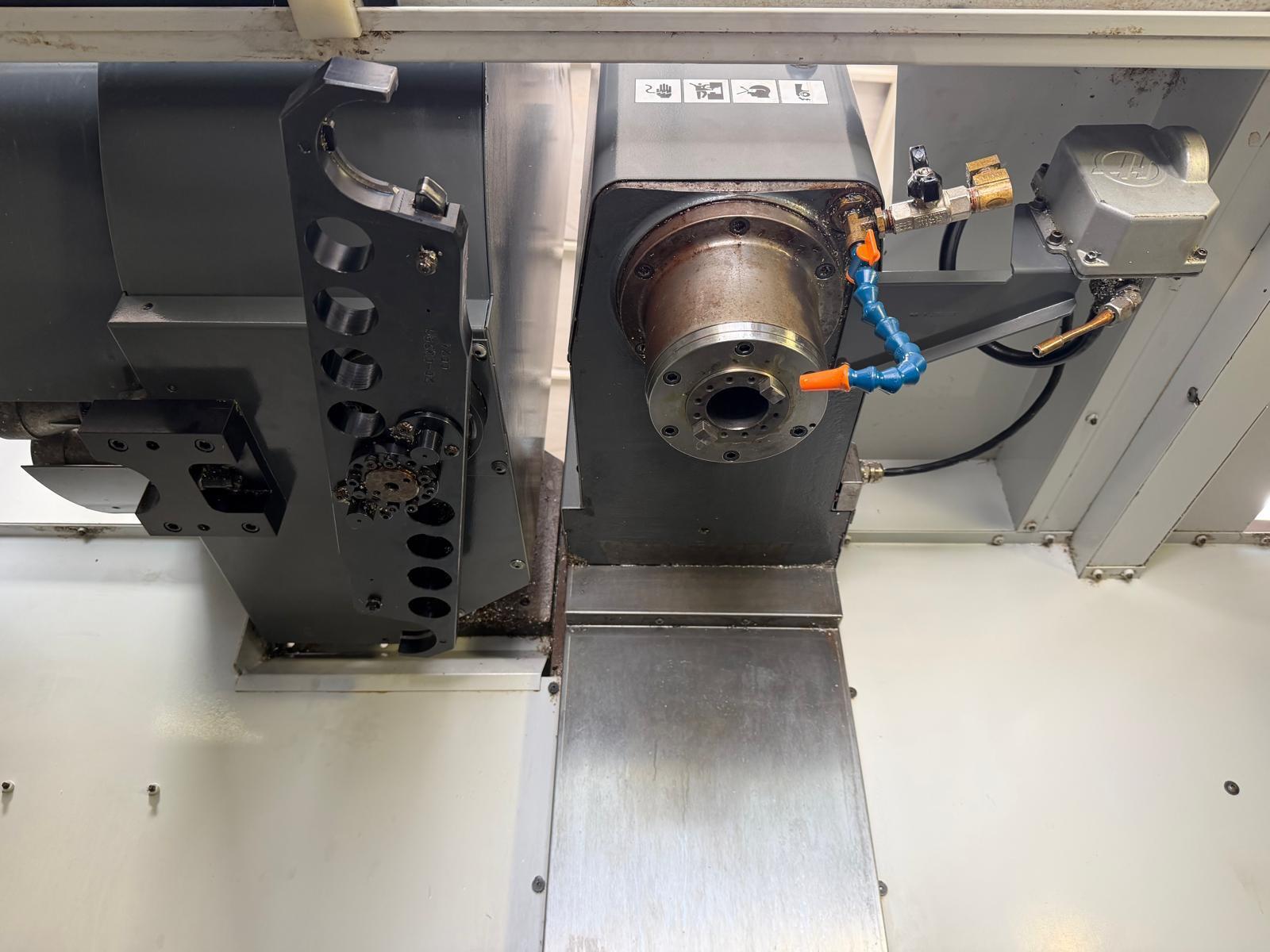

| 24 Station Side Mounted Tool Changer |
| CAT-40 Taper Spindle |
| Travels: |
|---|
| X-Axis: 20″ |
| Y-Axis: 16″ |
| Z-Axis: 14″ |
| Rapid Traverse Rates: 1200 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 18″ |

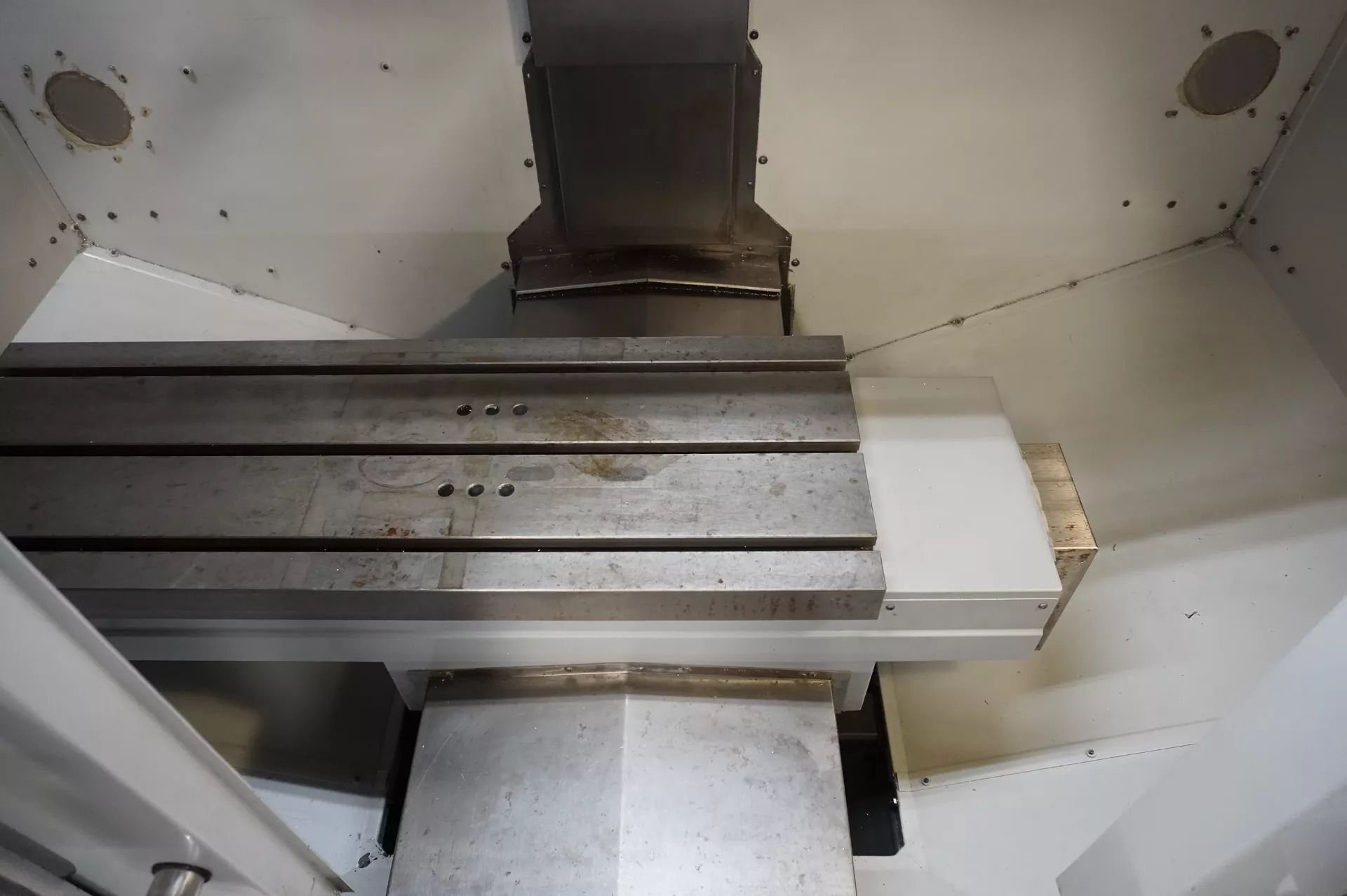

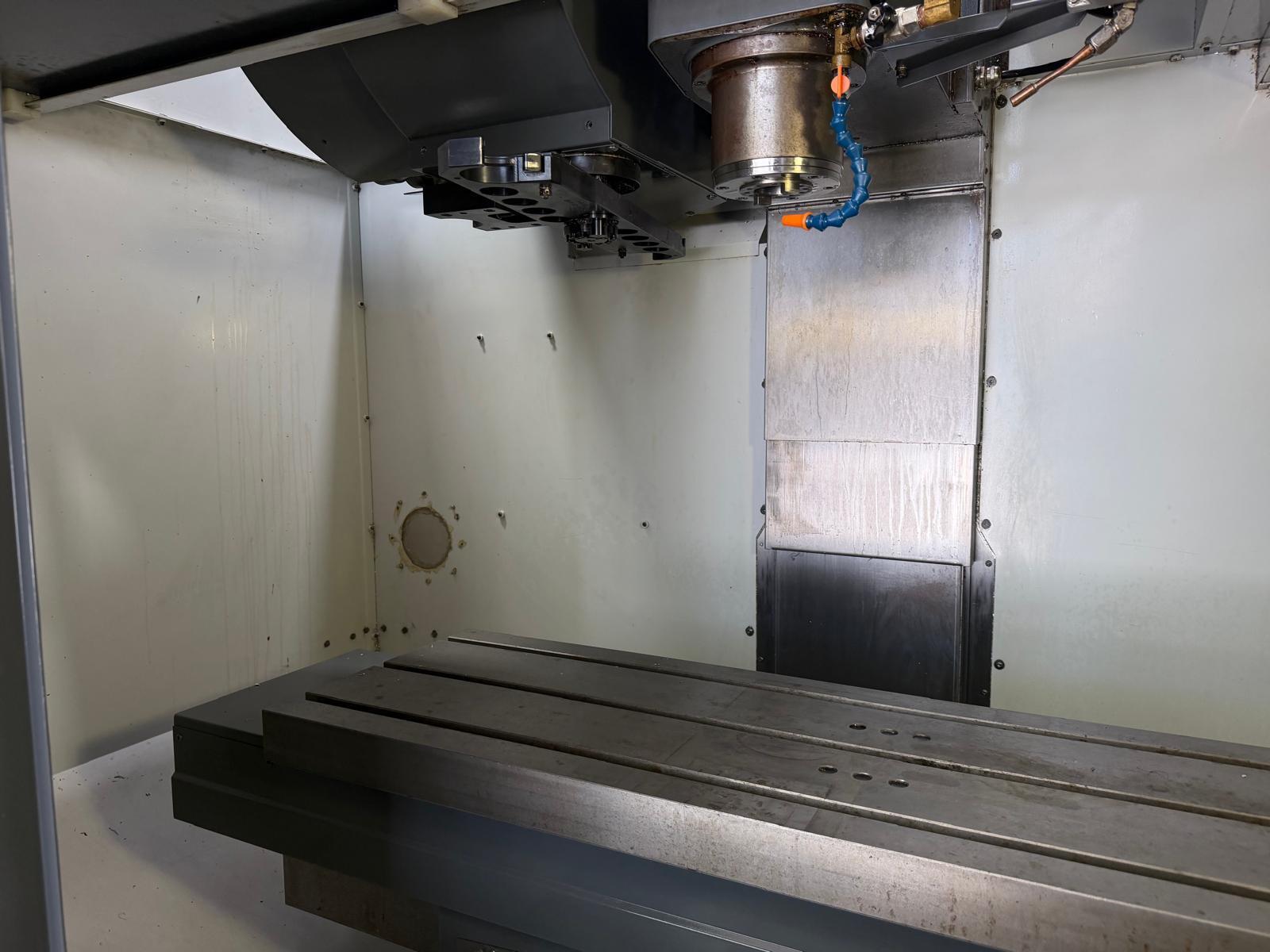

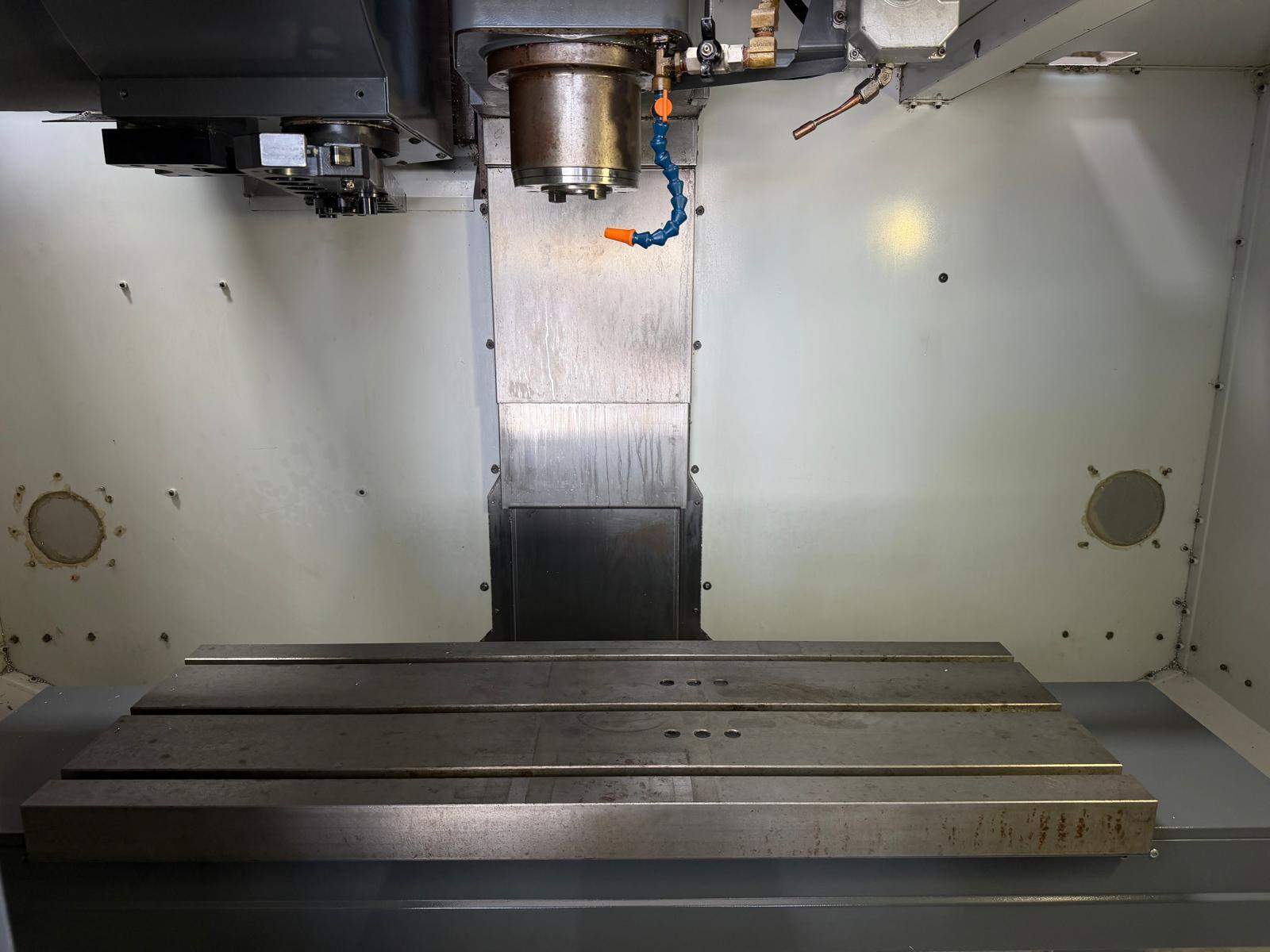

| Table: |
|---|
| Length: 40.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 500 lbs |

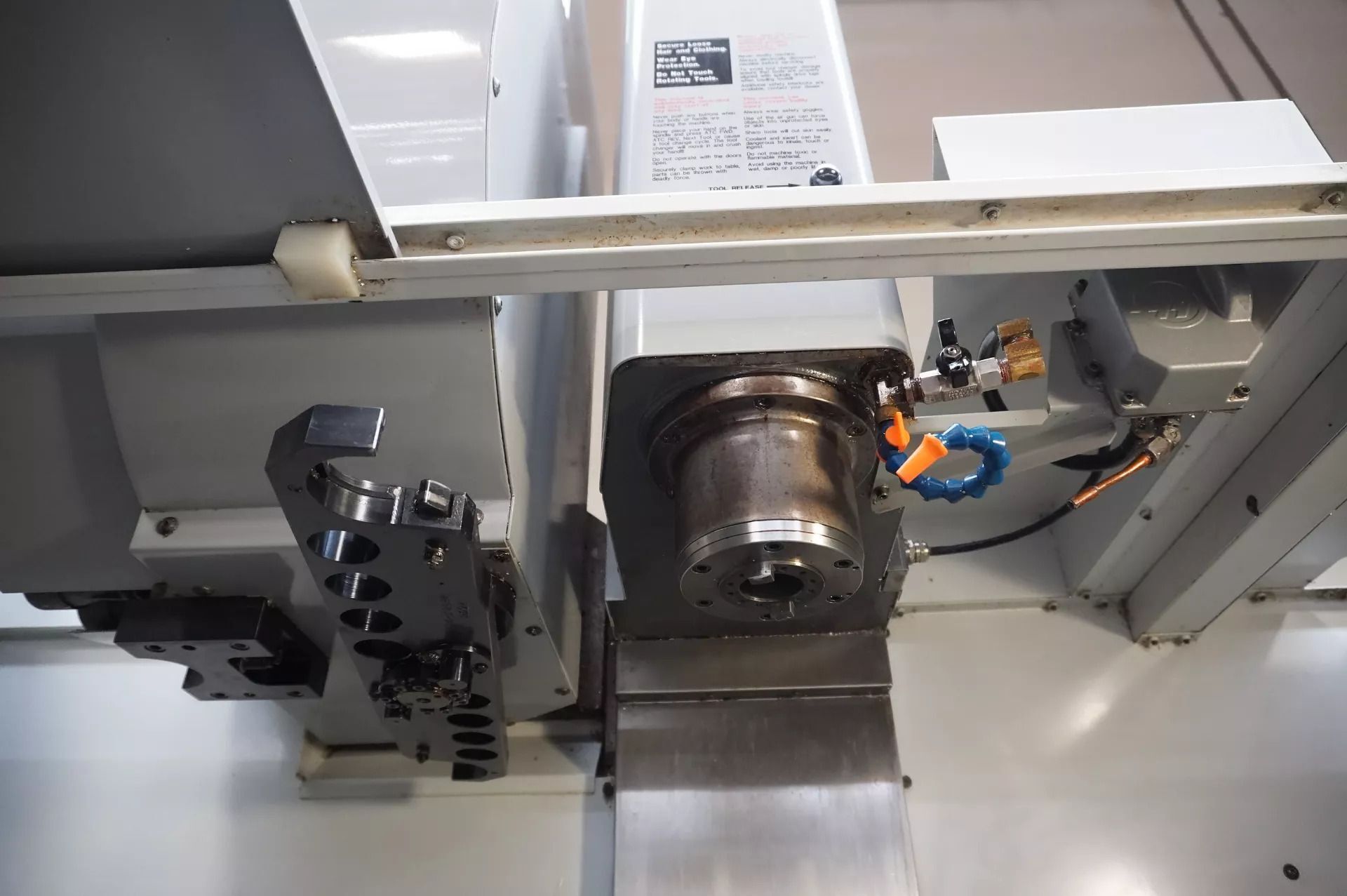

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |

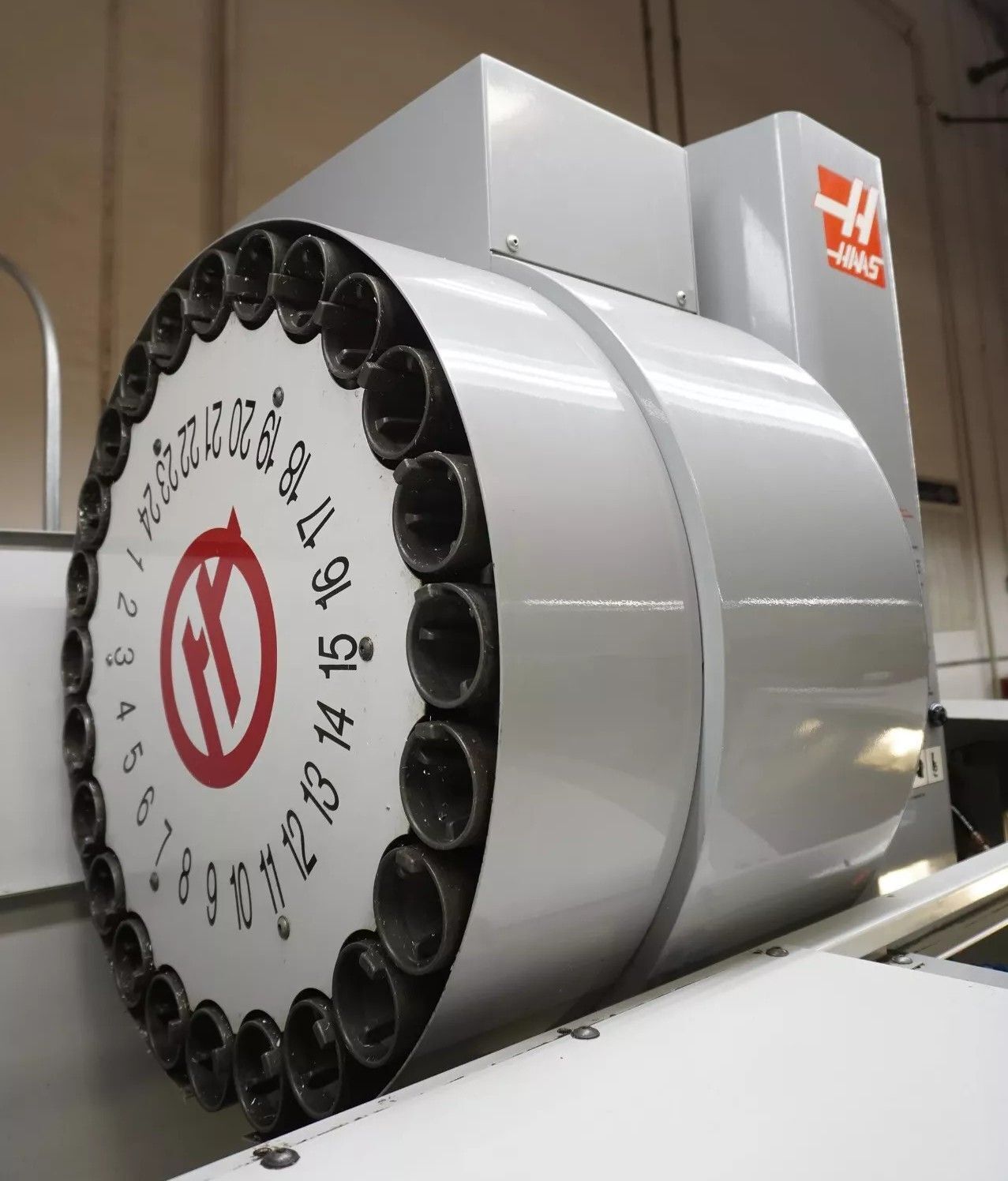

| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter: 3.5″ |
| Tool Changing Time: 3 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

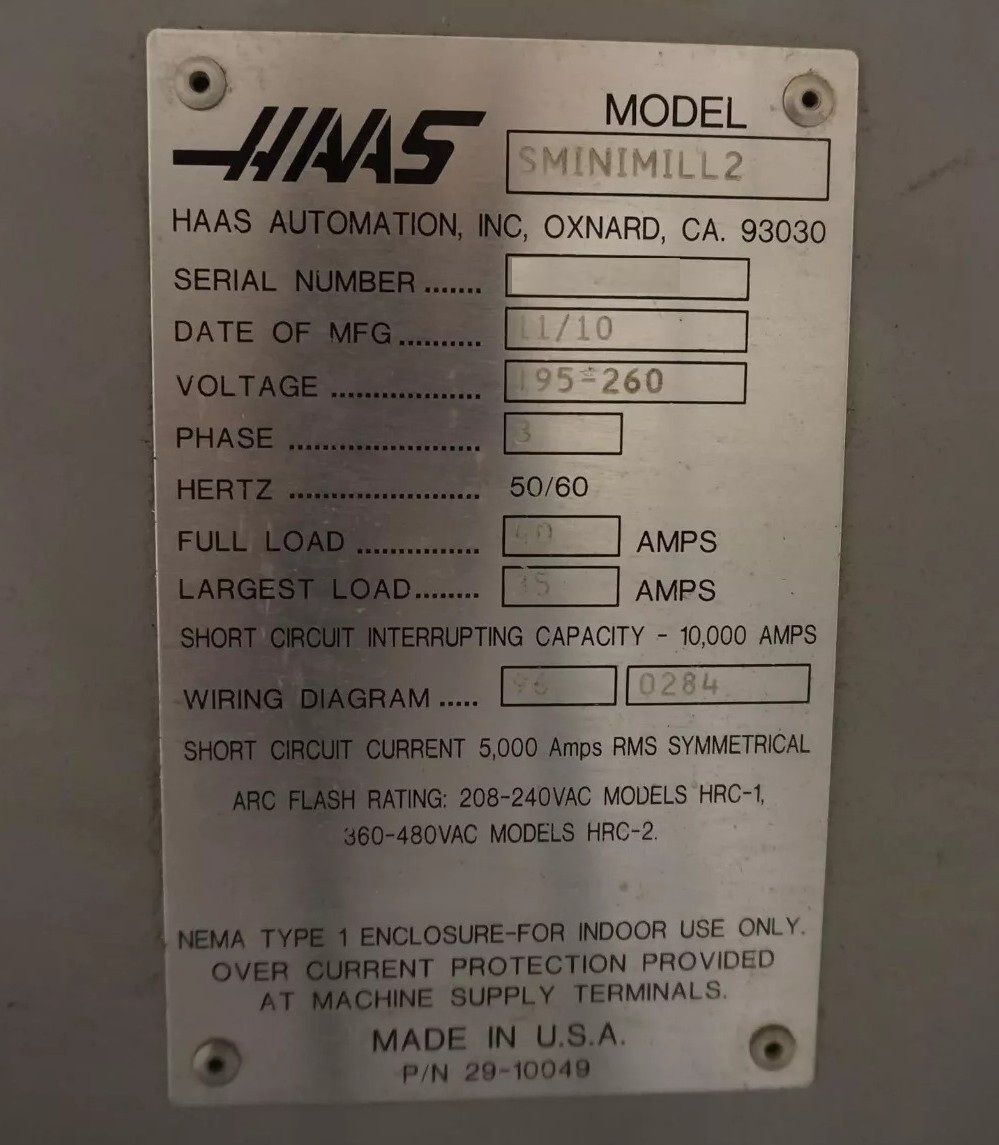

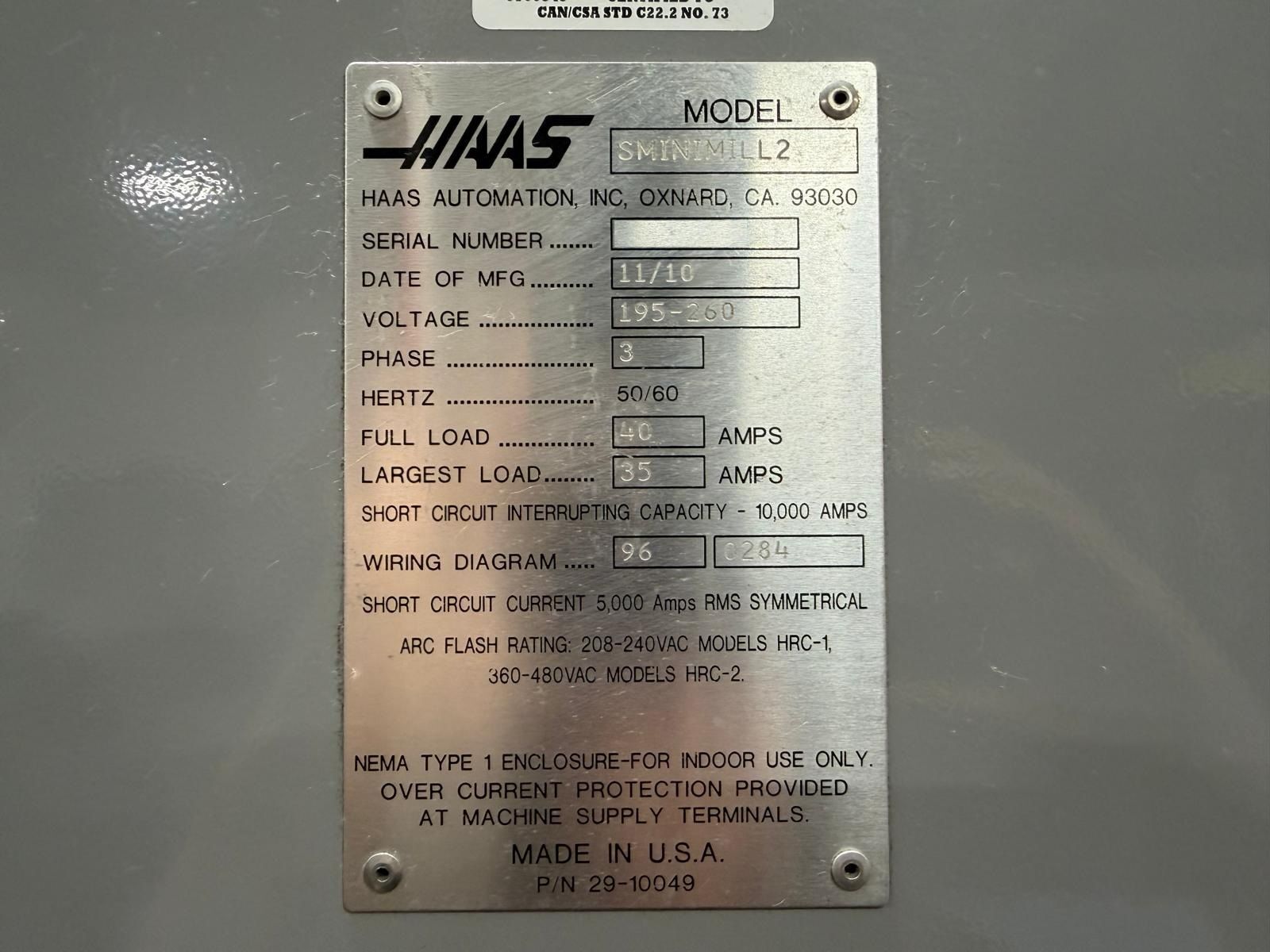

| Power: 220V / 66 FLA / 3-Phase |
| Overall Dimensions: 85″ × 93″ × 103″ High Approx. |
| Weight: 5,500 lbs Approx. |
