Sold

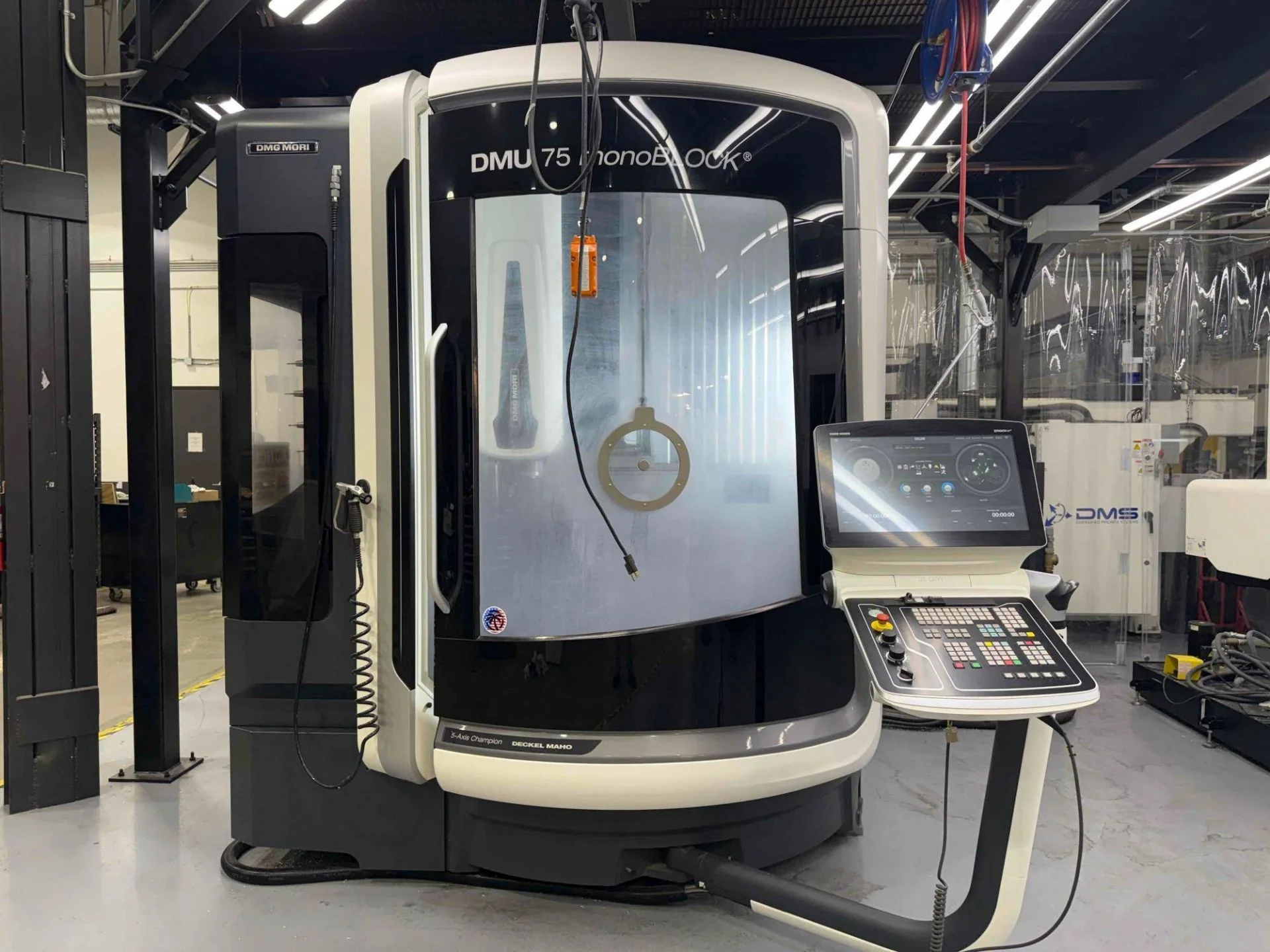

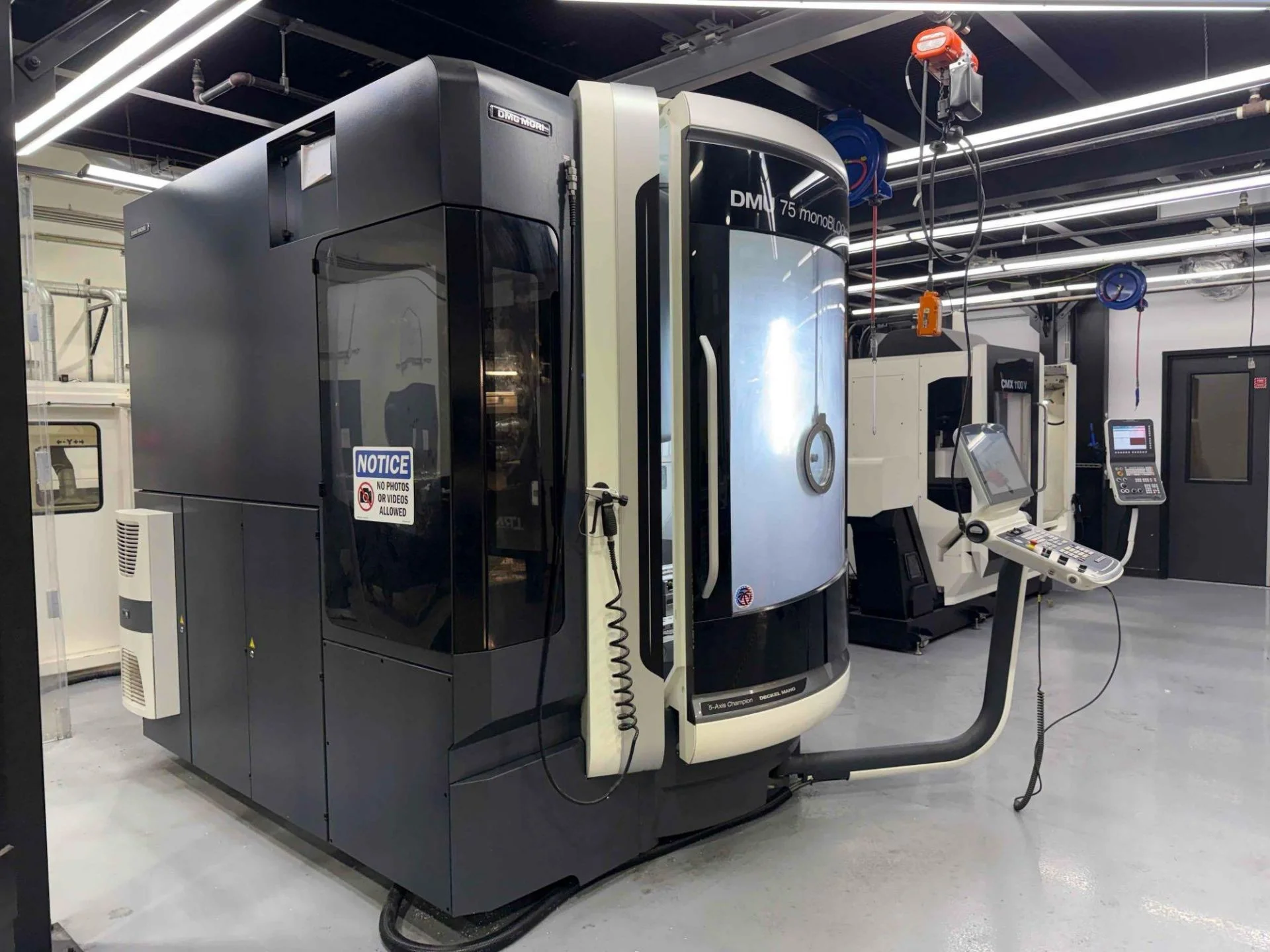

DMG Mori DMU 75 MonoBLOCK 5 AXIS MACHINING CENTER-2020
Out of stock
| SKU: | 11005 |
| Make/Model: | DMG MORI DMU 75 monoBLOCK |
| Year: | 2020 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 11005 |
| Make: | DMG MORI |
| Model: | DMU 75 monoBLOCK |
| Year: | 2020 |
| Condition: | Good |
| Equipped With: |
|---|
| DMG MORI CELOS Control (Siemens 840D sl) |
| 5-Axis Simultaneous Machining |
| Rigid monoBLOCK Machine Construction |
| Integrated NC Swivel Rotary Table |
| Cootdng System |
| Through-Spindle Coolant (TSC) |
| Chip Conveyor |
| Automatic Tool Changer |
| High-Resolution Touchscreen Panel |
| Electronic Handwheel |
| Work Area tdghting |
| Full Enclosure |
| Capacity: |
|---|
| Maximum Workpiece Diameter: 29.5″ |
| Maximum Workpiece Height: 22.0″ |
| Maximum Table Load: 1,322 lbs |
| Table Size: 31.5″ × 23.6″ |
| Travels: |
|---|
| X-Axis Travel: 29.5″ |
| Y-Axis Travel: 29.5″ |
| Z-Axis Travel: 20.5″ |
| B-Axis Swivel: -5° to +110° |
| C-Axis Rotation: 360° Continuous |
| Spindle: |
|---|
| Spindle Taper: HSK63A |
| Spindle Speed: 20,000 RPM |
| Spindle Power: 34 HP |
| Spindle Torque: 88 ft-lb |
| Feedrates: |
|---|
| Rapid Traverse (X/Y/Z): 2,362 IPM |
| Cutting Feedrate: 0.1″ – 787″/min |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 30 Tools (Standard) |
| Optional Capacity: Up to 180 Tools |
| Max Tool Diameter: 3.94″ (adjacent tools loaded) |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 17.6 lbs |
| Tool Change Time: 1.8 sec |
| General: |
|---|
| Power Requirement: 400V / 3-Phase |
| Machine Dimensions: 141″ × 118″ × 118″ H (Approx.) |
| Machine Weight: 17,500 lbs (Approx.) |
| Categories | CNC Multi Axis Machining Center |
|---|---|
| Make | |
| Model | DMU 75 monoBLOCK |
