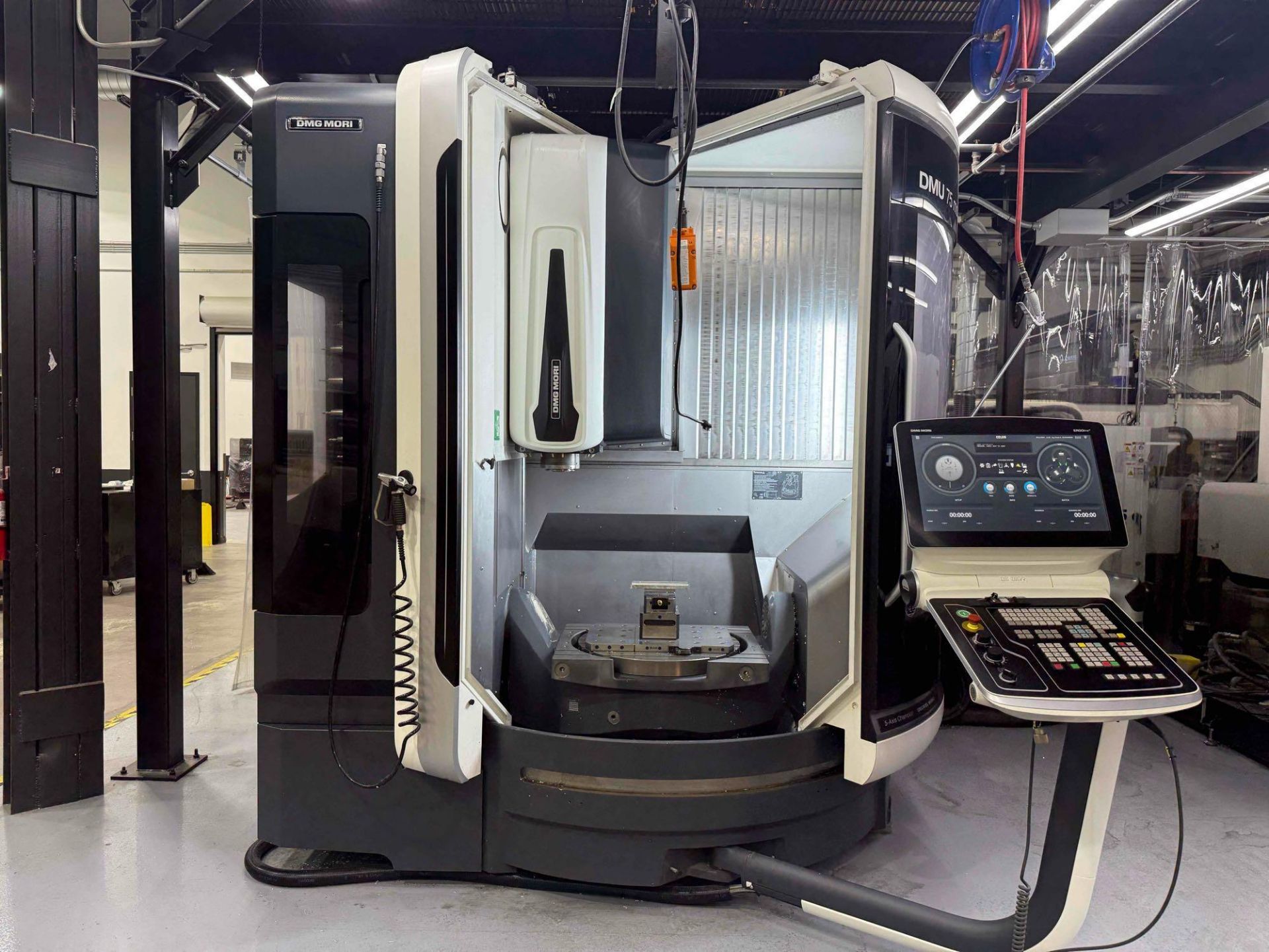

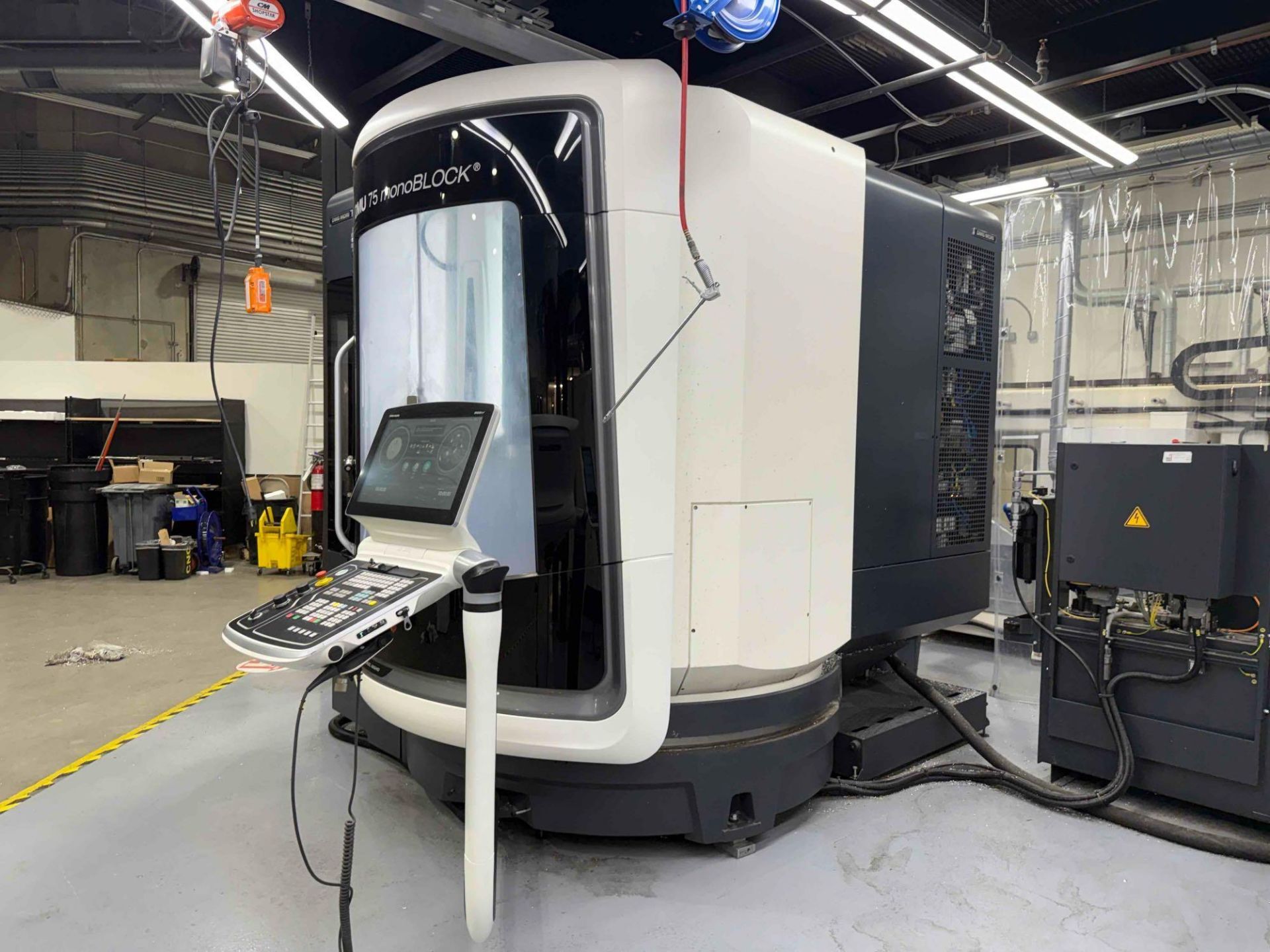

Used DMG Mori DMU 75 Mono BLOCK 5 AXIS MACHINING CENTER-2020

DMG Mori DMU 75 MonoBLOCK 5 AXIS MACHINING CENTER-2020

SKU 11005

Make/Model DMG MORI DMU 75 monoBLOCK

Year 2020

Condition Used - Good

Video On Request

Out of stock

SKU:	11005
Make/Model:	DMG MORI DMU 75 monoBLOCK
Year:	2020
Condition:	Used – Good
Video:	On Request

SKU: 11005

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	11005
Make:	DMG MORI
Model:	DMU 75 monoBLOCK
Year:	2020
Condition:	Good

Equipped With:

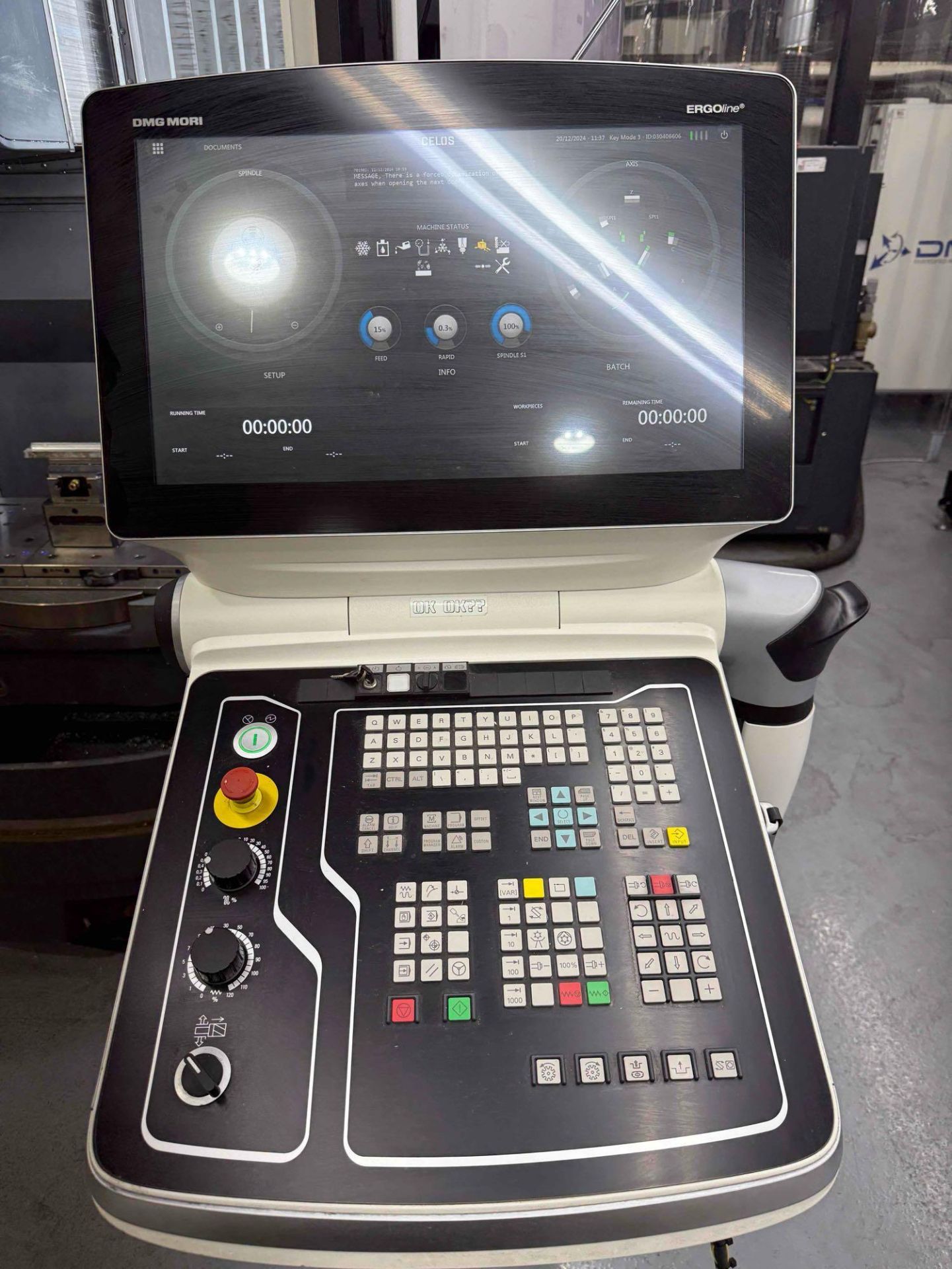

DMG MORI CELOS Control (Siemens 840D sl)
5-Axis Simultaneous Machining
Rigid monoBLOCK Machine Construction
Integrated NC Swivel Rotary Table
Cootdng System
Through-Spindle Coolant (TSC)
Chip Conveyor
Automatic Tool Changer
High-Resolution Touchscreen Panel
Electronic Handwheel
Work Area tdghting
Full Enclosure

Capacity:
Maximum Workpiece Diameter: 29.5″
Maximum Workpiece Height: 22.0″
Maximum Table Load: 1,322 lbs
Table Size: 31.5″ × 23.6″

Travels:
X-Axis Travel: 29.5″
Y-Axis Travel: 29.5″
Z-Axis Travel: 20.5″
B-Axis Swivel: -5° to +110°
C-Axis Rotation: 360° Continuous

Spindle:
Spindle Taper: HSK63A
Spindle Speed: 20,000 RPM
Spindle Power: 34 HP
Spindle Torque: 88 ft-lb

Feedrates:
Rapid Traverse (X/Y/Z): 2,362 IPM
Cutting Feedrate: 0.1″ – 787″/min

Automatic Tool Changer:
Tool Capacity: 30 Tools (Standard)
Optional Capacity: Up to 180 Tools
Max Tool Diameter: 3.94″ (adjacent tools loaded)
Max Tool Length: 11.8″
Max Tool Weight: 17.6 lbs
Tool Change Time: 1.8 sec

General:
Power Requirement: 400V / 3-Phase
Machine Dimensions: 141″ × 118″ × 118″ H (Approx.)
Machine Weight: 17,500 lbs (Approx.)

Equipped With:
DMG MORI CELOS Control (Siemens 840D sl)
5-Axis Simultaneous Machining
Rigid monoBLOCK Machine Construction
Integrated NC Swivel Rotary Table
Cootdng System
Through-Spindle Coolant (TSC)
Chip Conveyor
Automatic Tool Changer
High-Resolution Touchscreen Panel
Electronic Handwheel
Work Area tdghting
Full Enclosure

Capacity:
Maximum Workpiece Diameter: 749 mm
Maximum Workpiece Height: 559 mm
Maximum Table Load: 1,322 lbs
Table Size: 800 mm × 599 mm

Travels:
X-Axis Travel: 749 mm
Y-Axis Travel: 749 mm
Z-Axis Travel: 521 mm
B-Axis Swivel: -5° to +110°
C-Axis Rotation: 360° Continuous

Spindle:
Spindle Taper: HSK63A
Spindle Speed: 20,000 RPM
Spindle Power: 34 HP
Spindle Torque: 88 ft-lb

Feedrates:
Rapid Traverse (X/Y/Z): 2,362 IPM
Cutting Feedrate: 3 mm – 19,990 mm/min

Automatic Tool Changer:
Tool Capacity: 30 Tools (Standard)
Optional Capacity: Up to 180 Tools
Max Tool Diameter: 100 mm (adjacent tools loaded)
Max Tool Length: 300 mm
Max Tool Weight: 17.6 lbs
Tool Change Time: 1.8 sec

General:
Power Requirement: 400V / 3-Phase
Machine Dimensions: 3,581 mm × 2,997 mm × 2,997 mm H (Approx.)
Machine Weight: 17,500 lbs (Approx.)
