*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

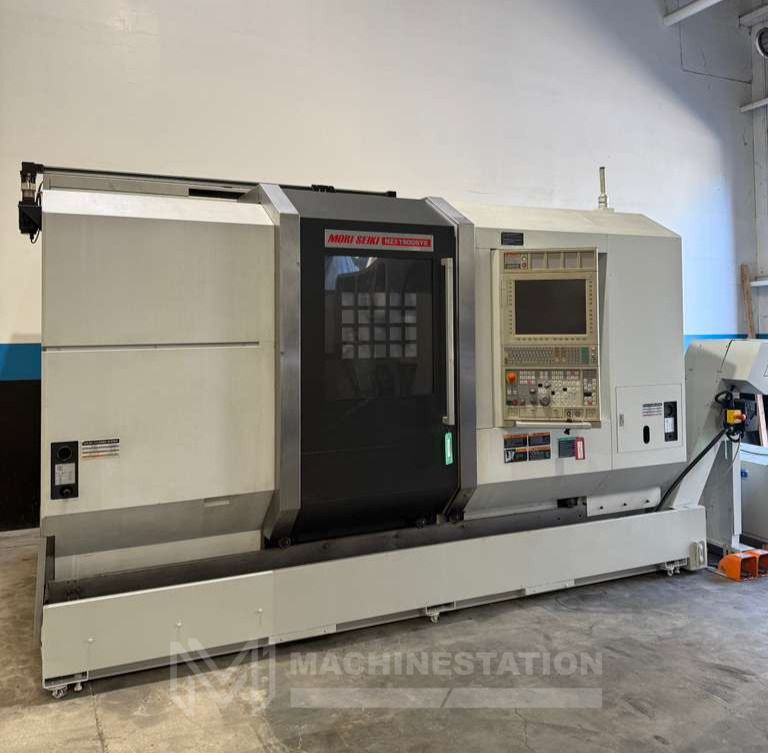

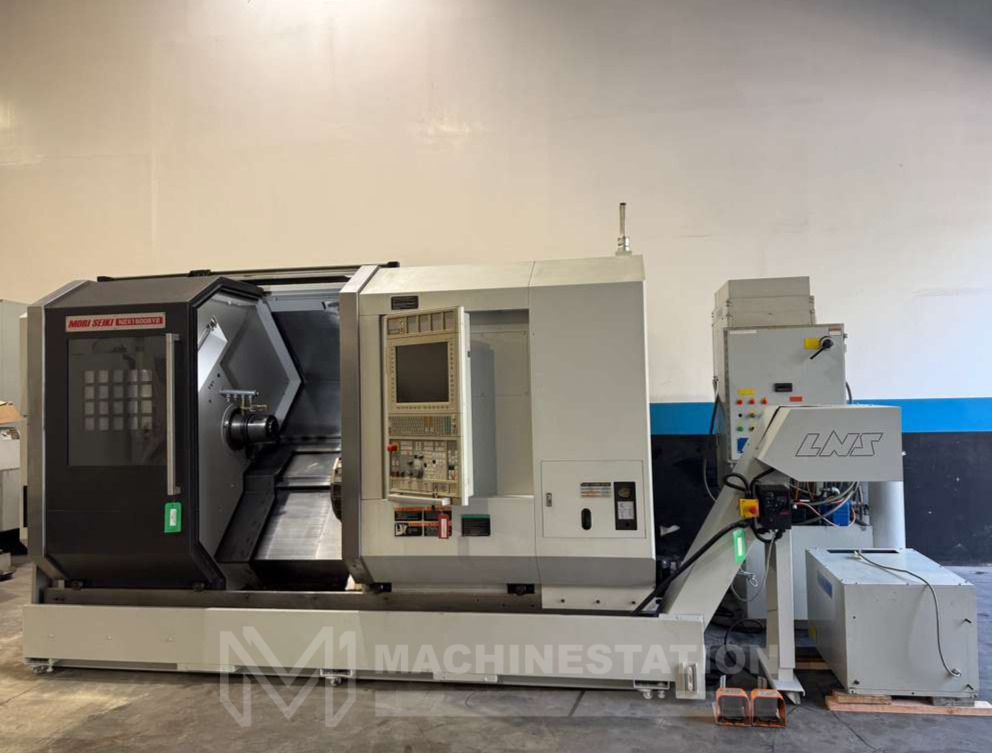

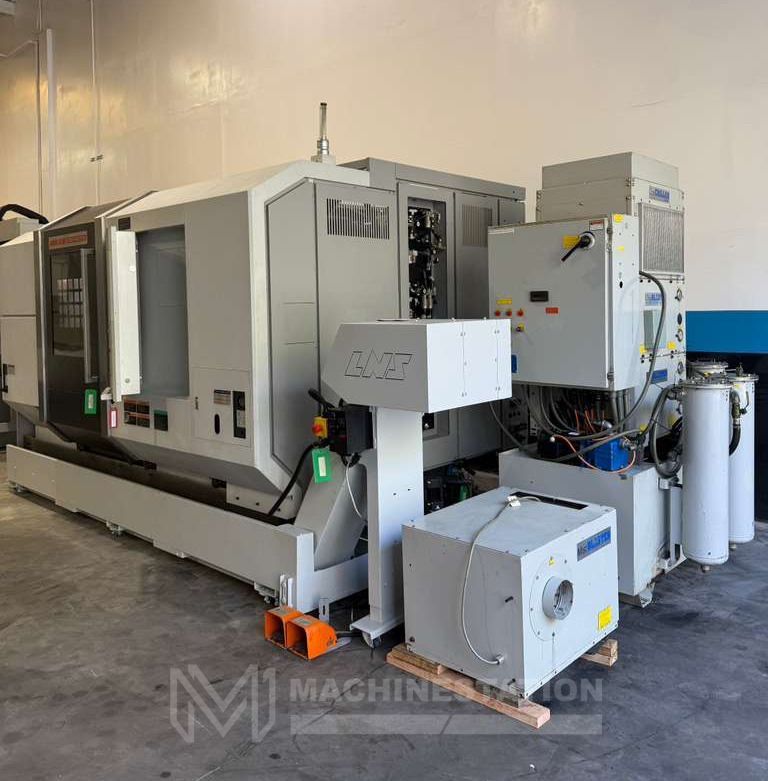

| Make: | DMG Mori Seiki |
| Model: | NZX 1500/800SY2 |
| Year: | 2012 |
| Condition: | Used – Good |
| Equipped With: |
|---|

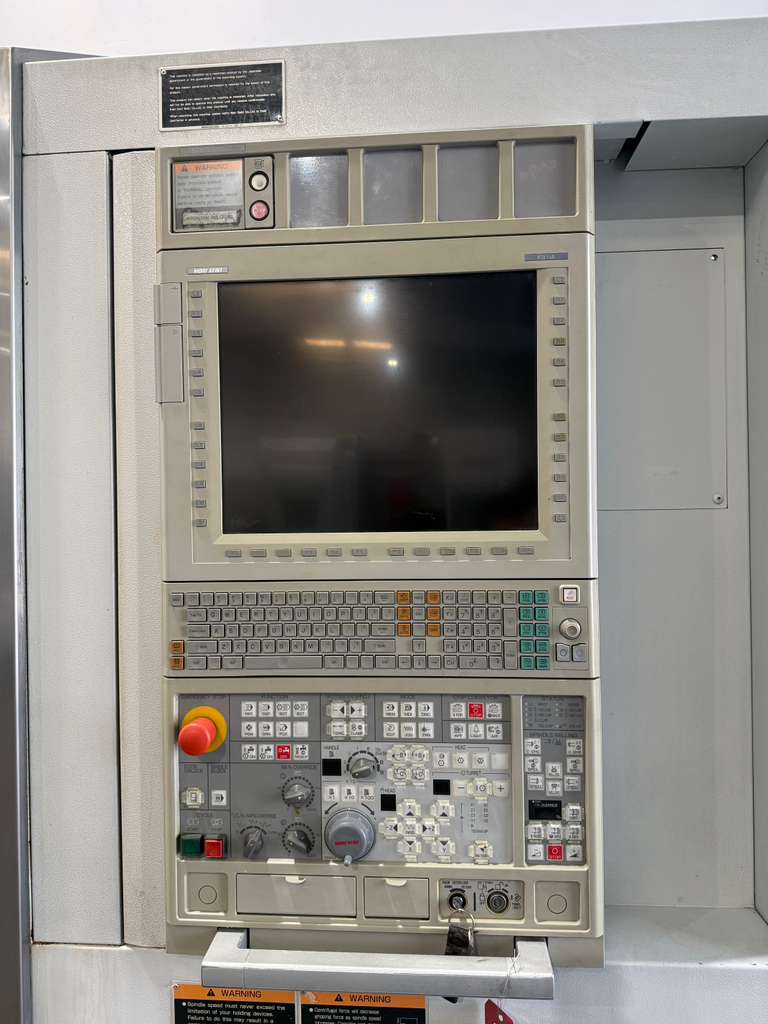

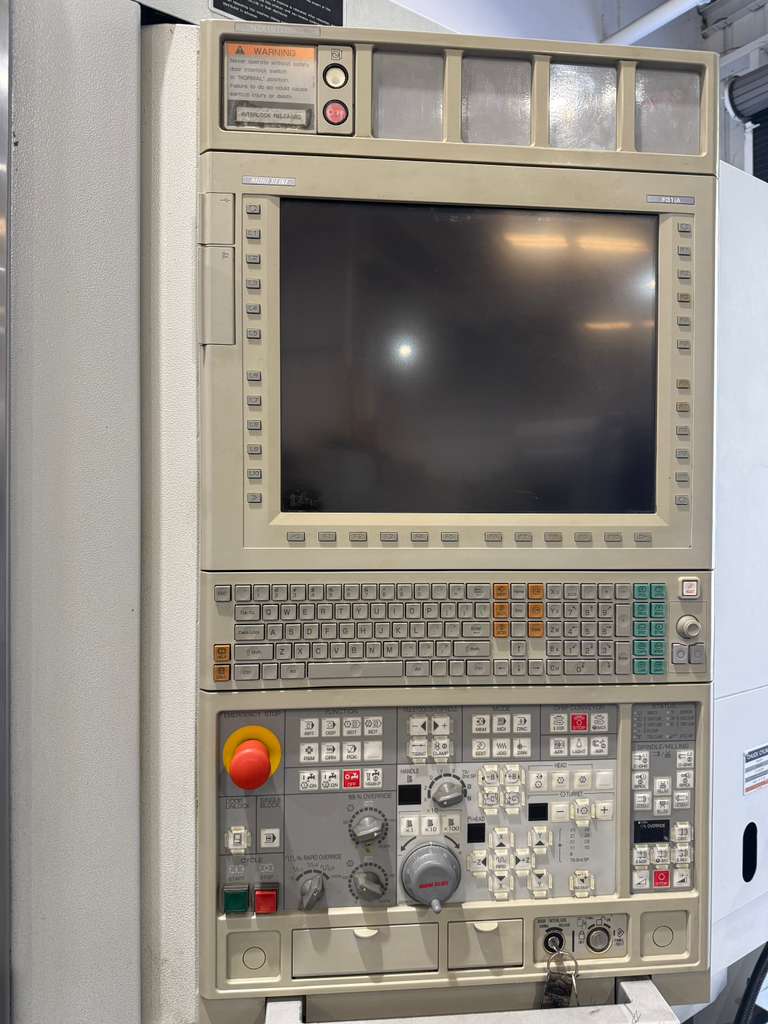

| Fanuc 31i-A Series CNC Control |

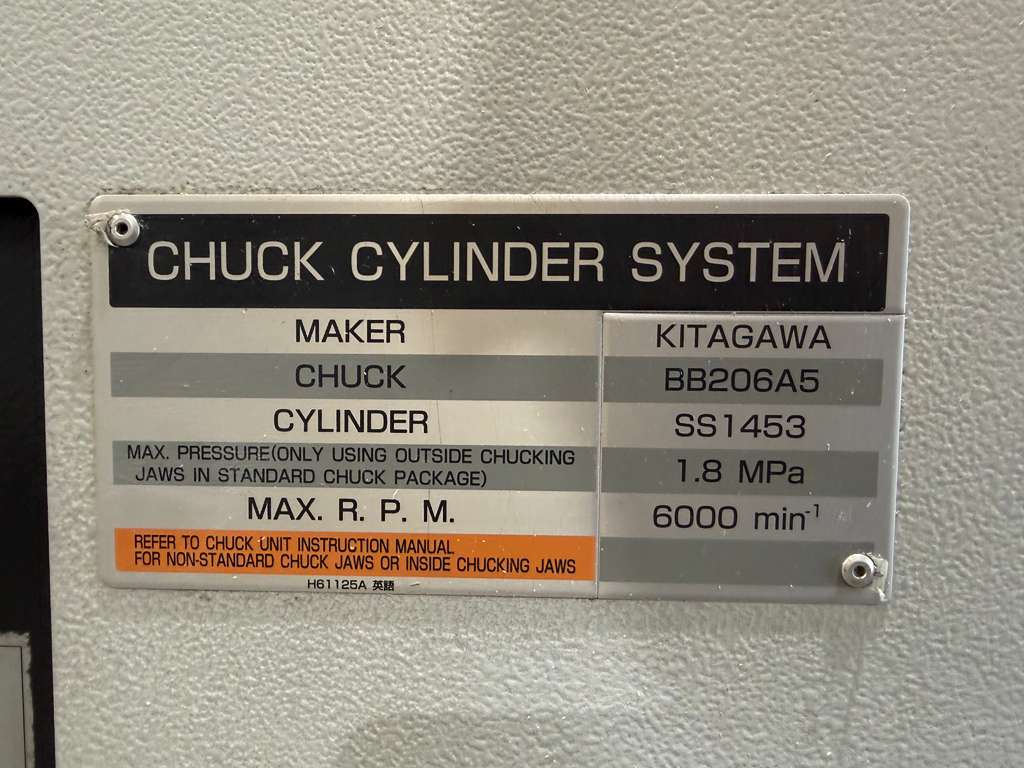

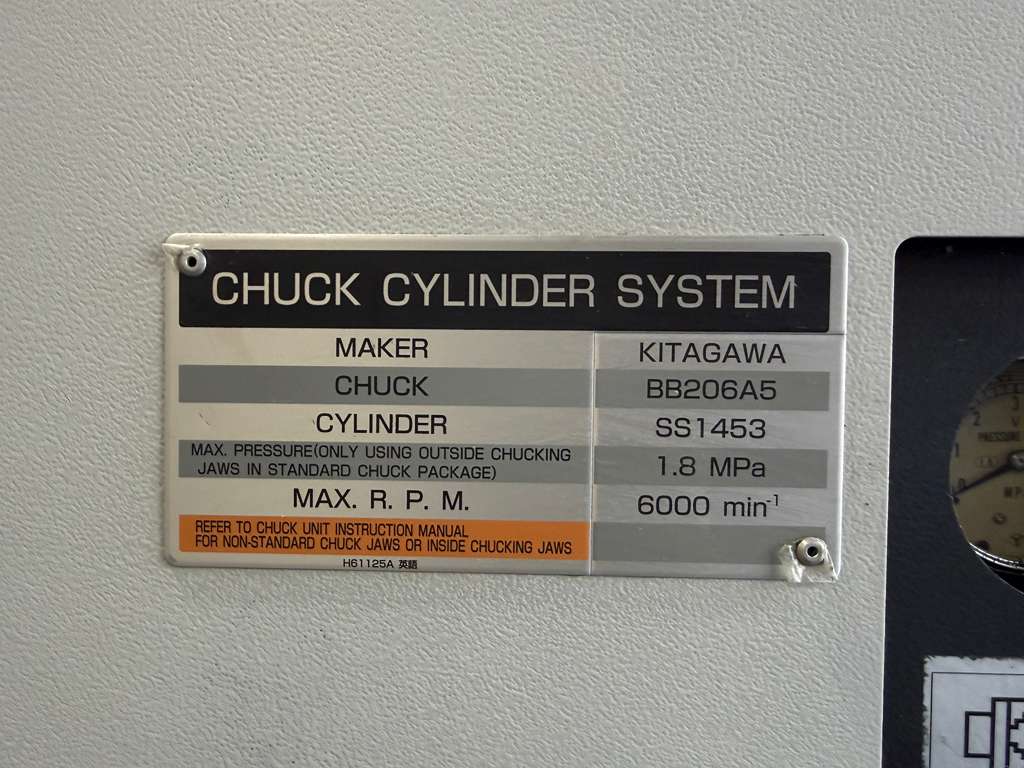

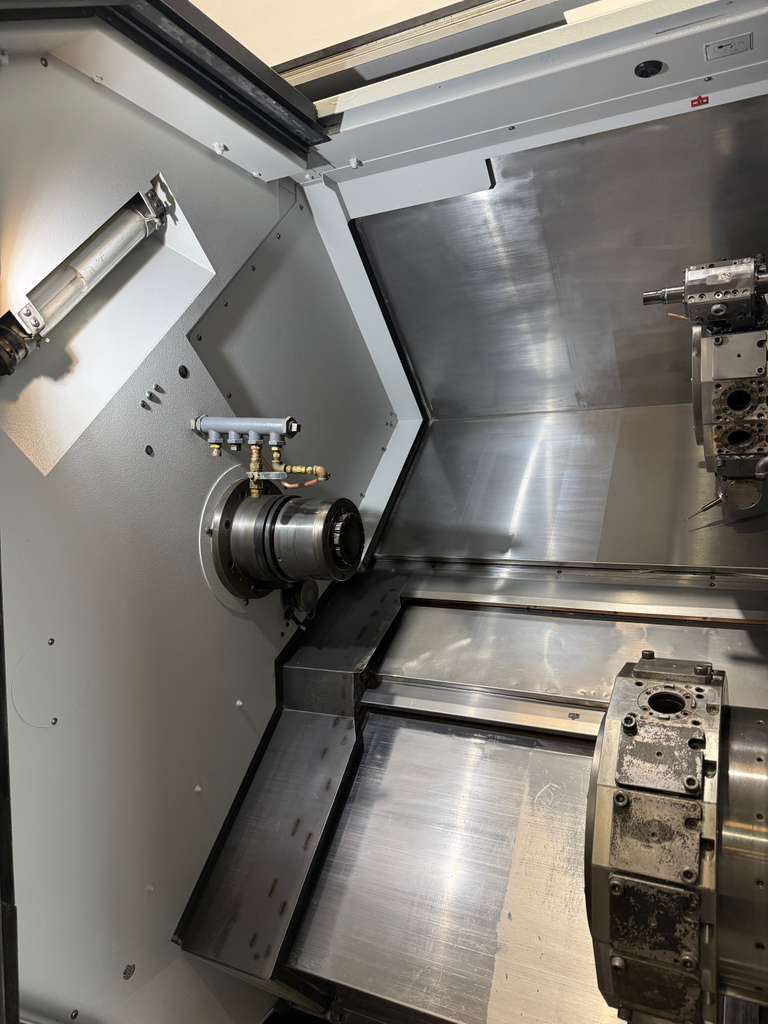

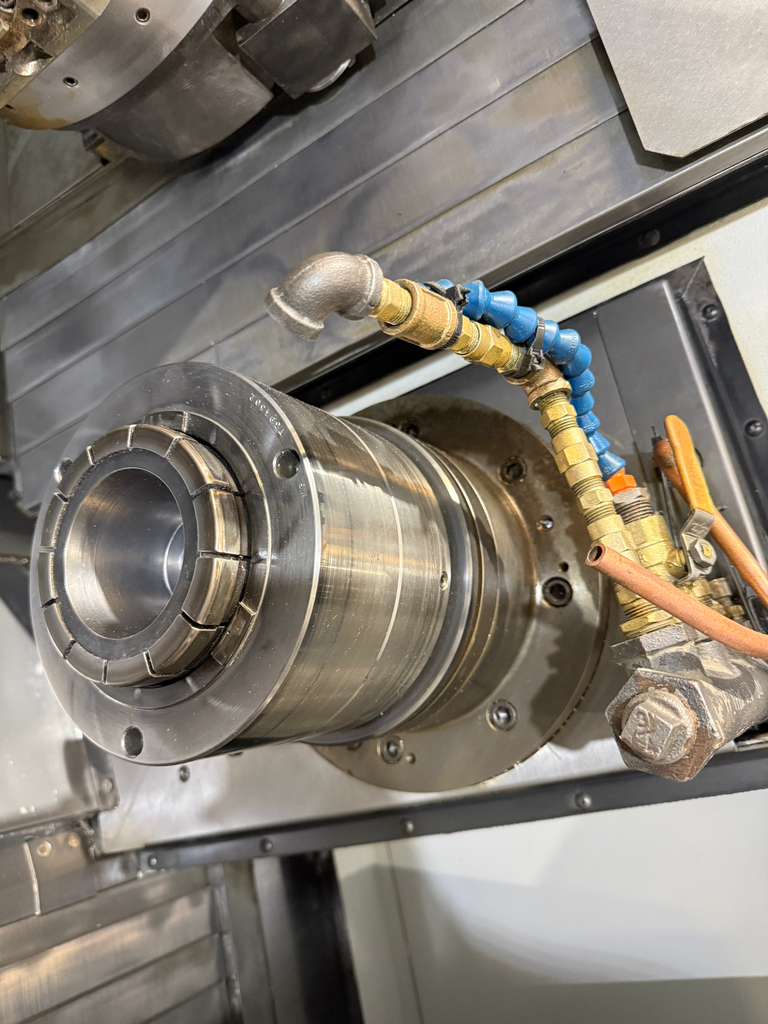

| Collet Chuck on Main Spindle |
| Collet Chuck on Sub Spindle |
| Servo Controlled C Axis on Both Spindles |

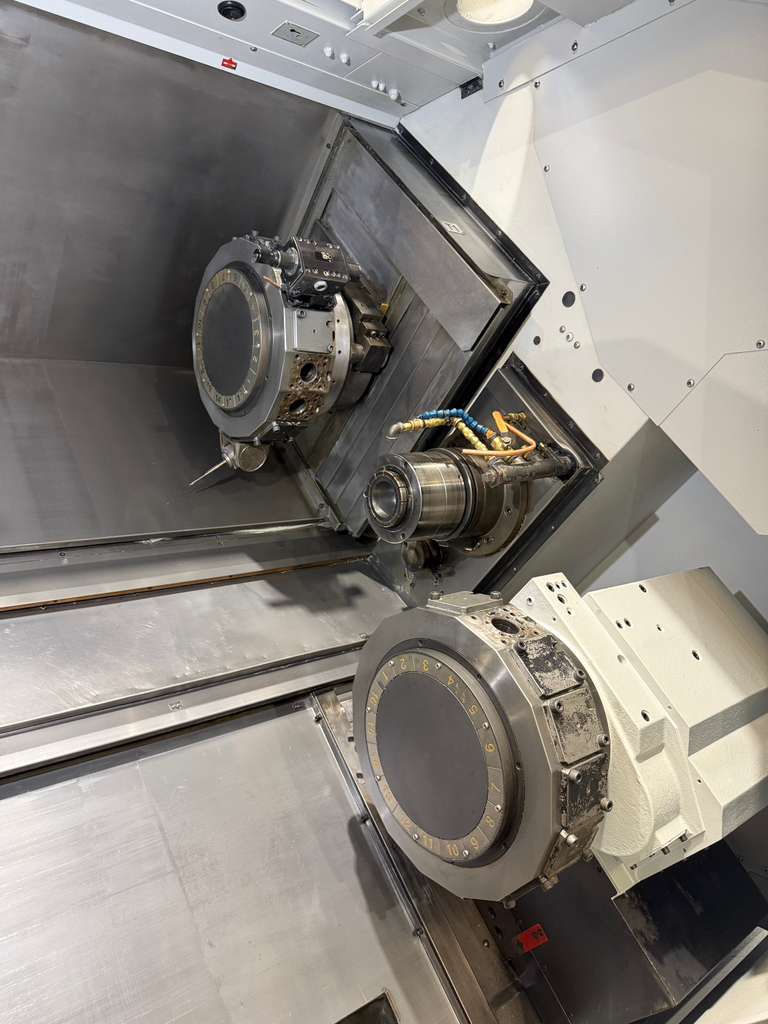

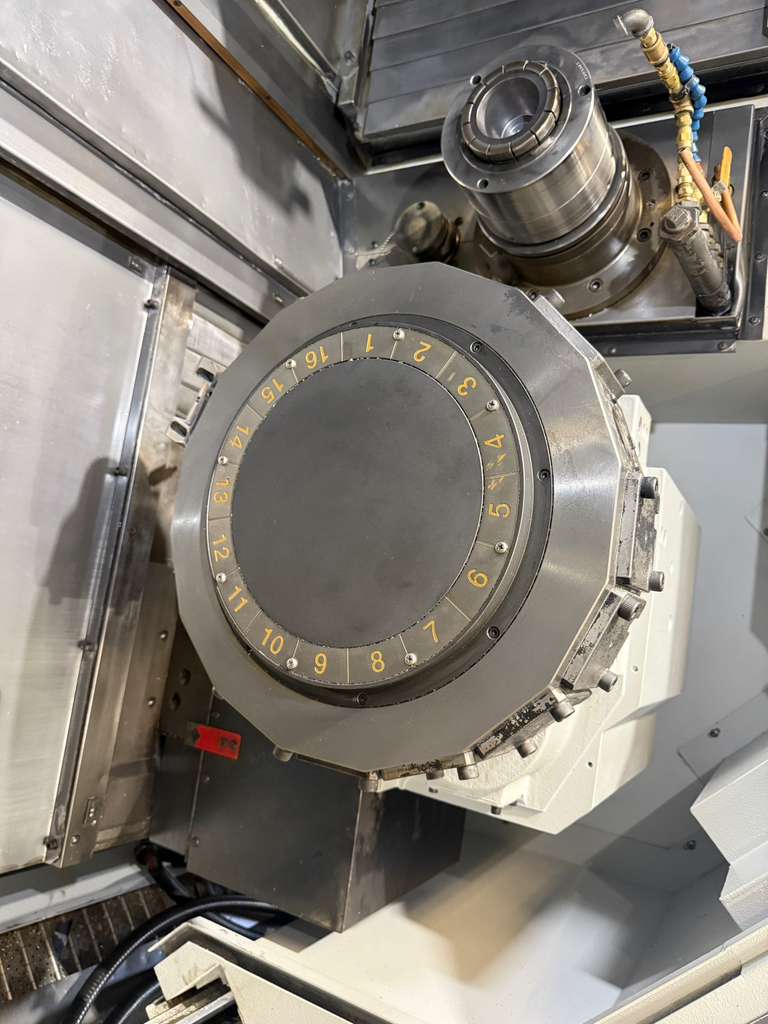

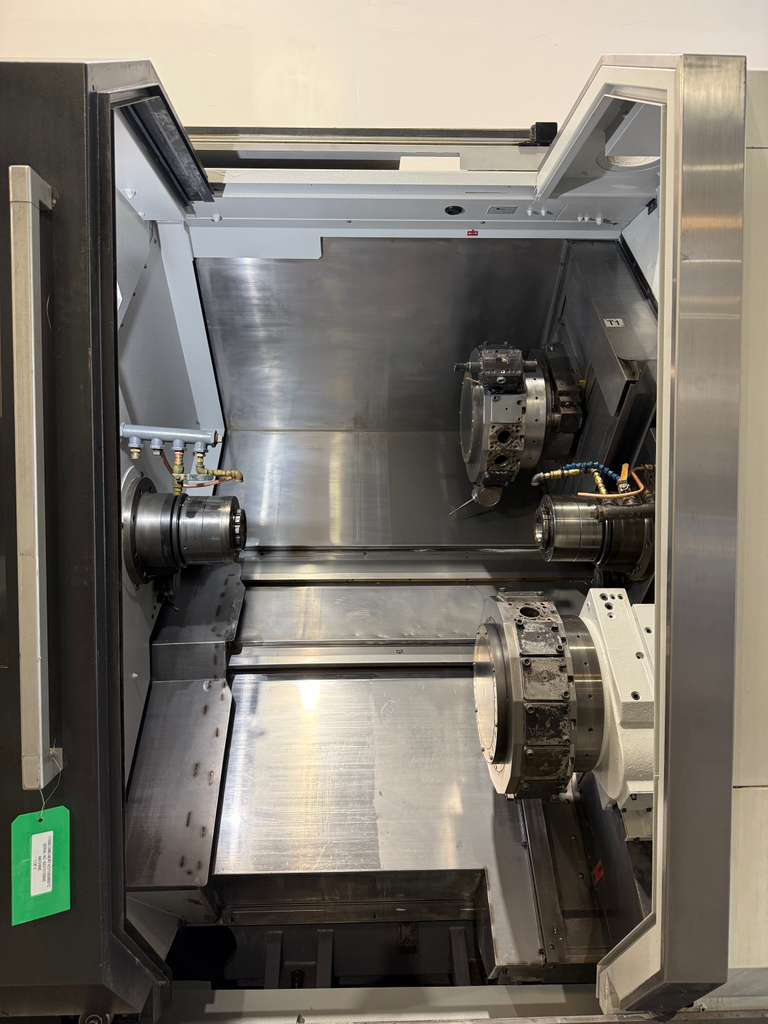

| 16 Station Live Tool Upper Turret |

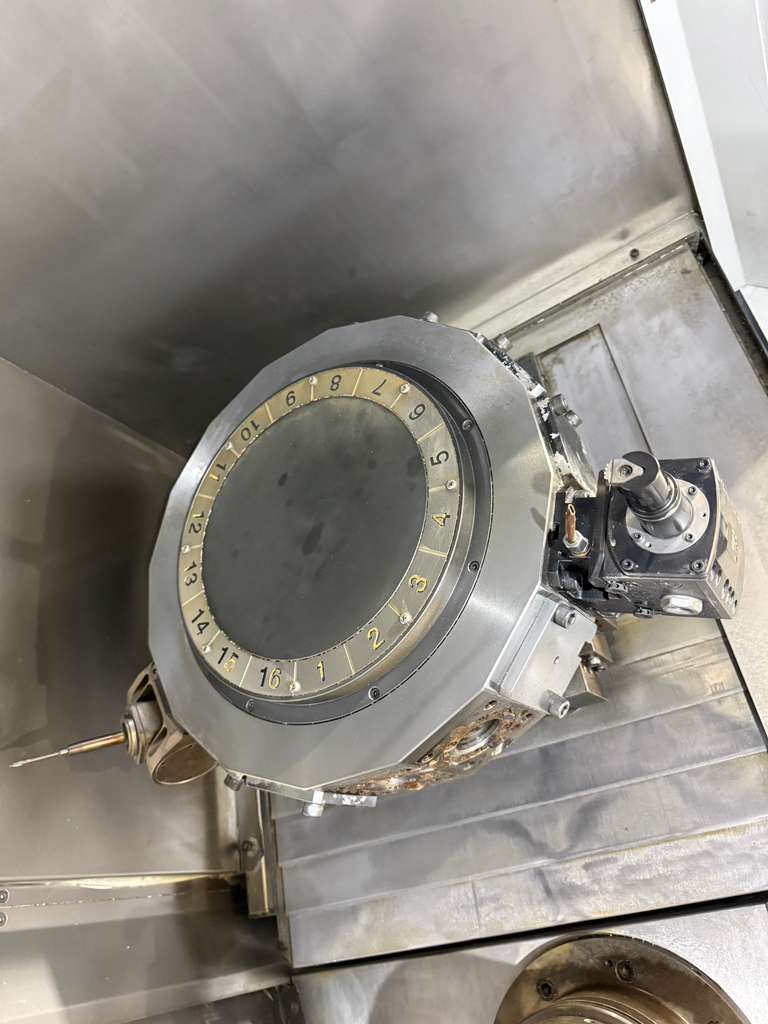

| 16 Station Live Tool Lower Turret |
| Y Axis on Both Turrets |

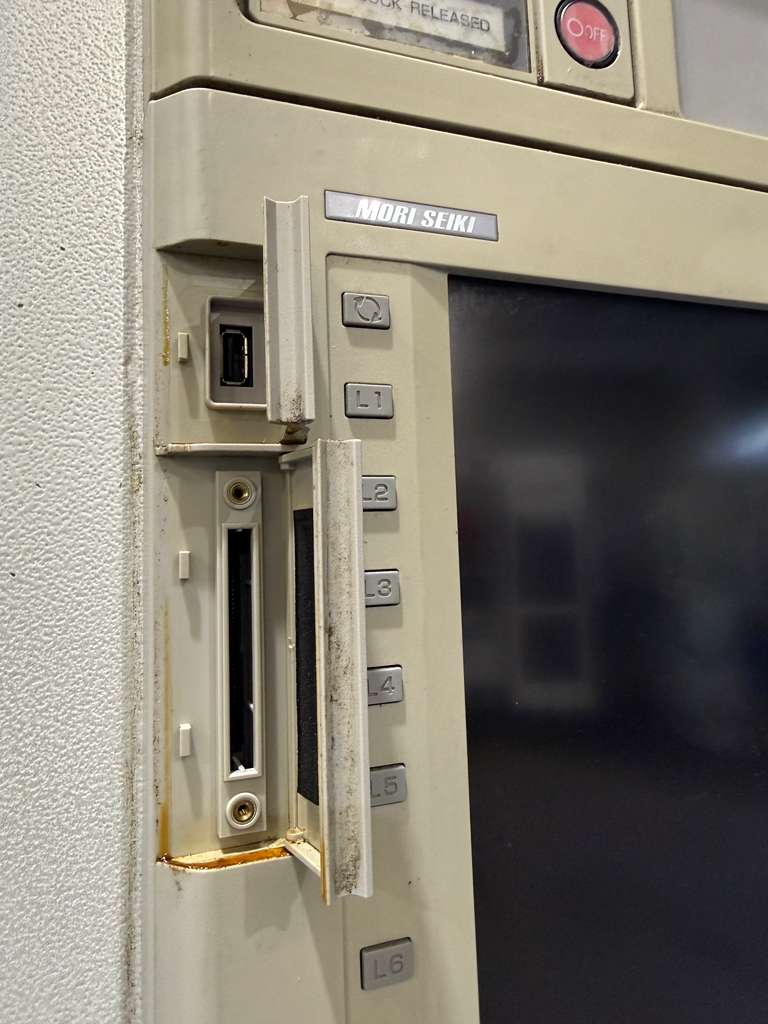

| PCMCIA Card Slot & USB Port |

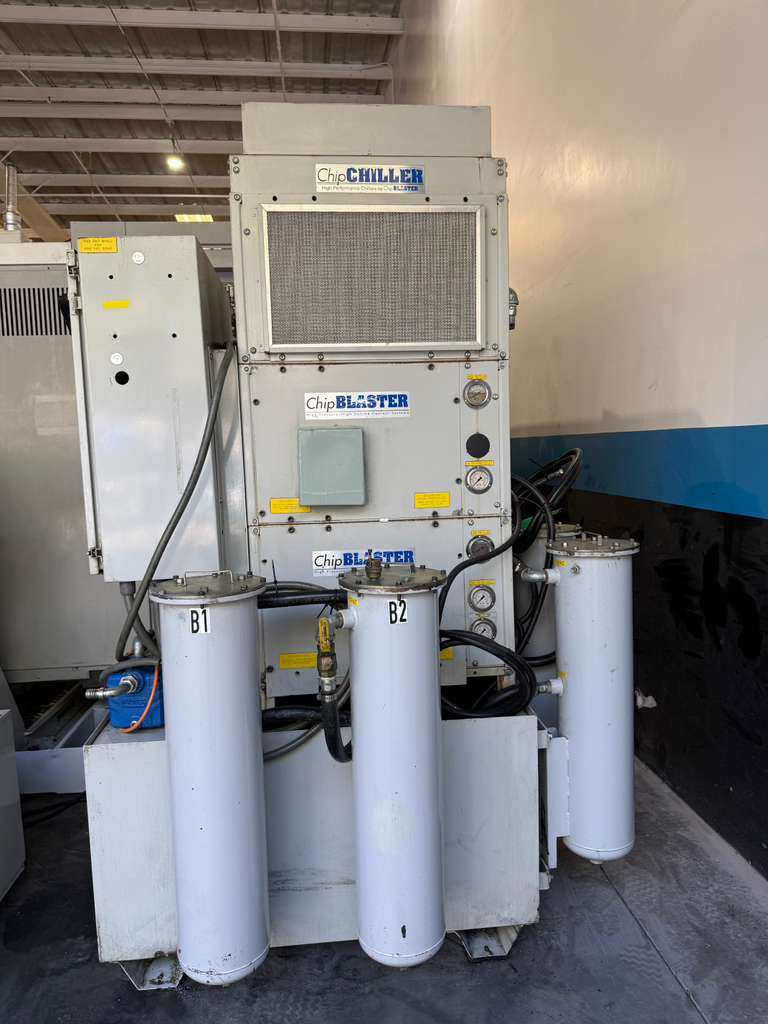

| Chip Blaster |

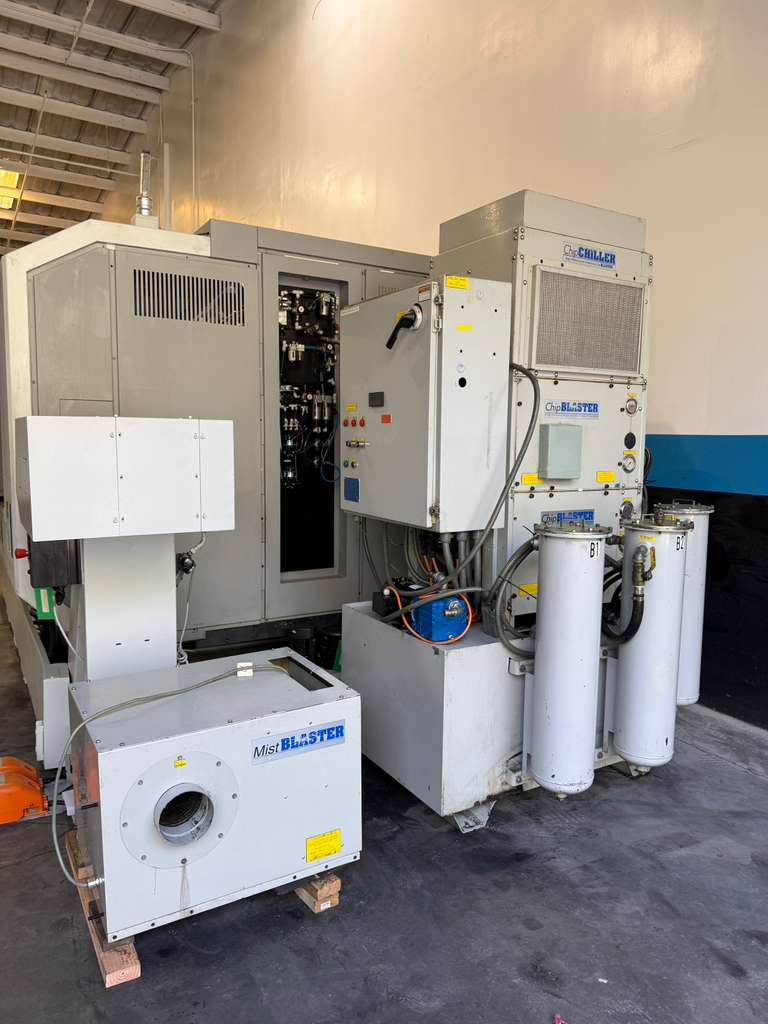

| Mist Blaster |
| Spindle Chiller Unit |
| High Pressure Coolant System |
| Chip Conveyor |

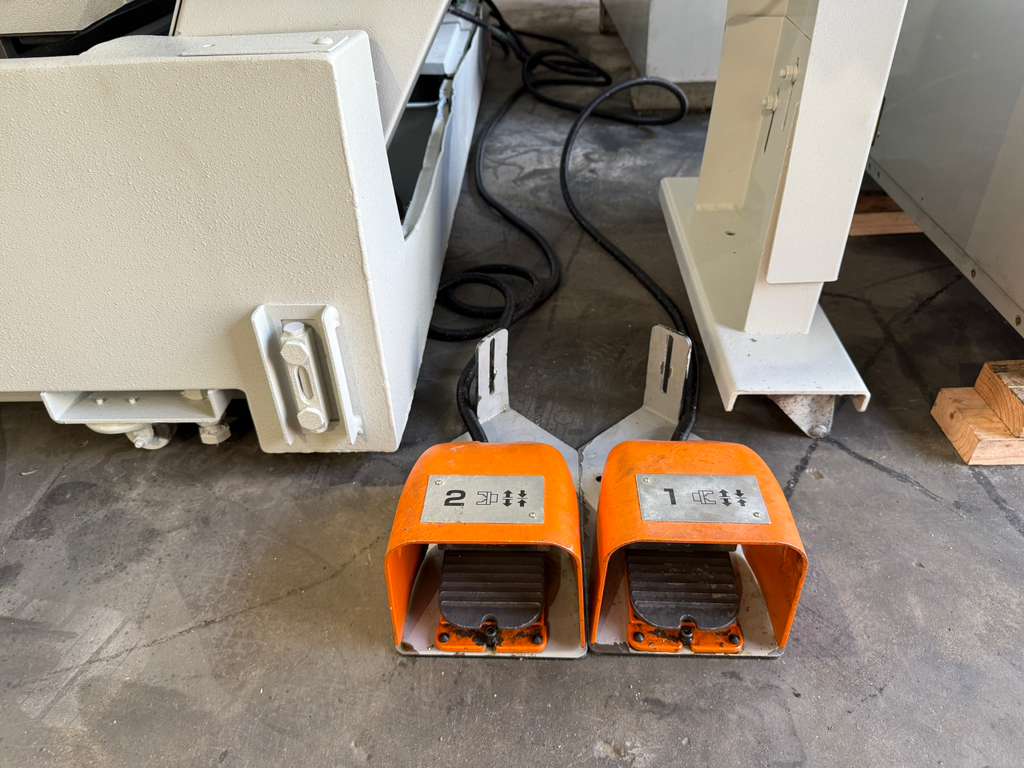

| Foot Switches |
| Capacity: |
|---|
| Max Turning Diameter: 11.8″ |
| Max Turning Length: 31.5″ |
| Max Bar Capacity: 2.0″ |
| Max Swing Over Bed: 31.5″ |
| Travels: |
|---|
| X1, X2 Axis Travel: 8.3″ |
| Y1, Y2 Axis Travel: 4.3″ (+ 2.6″/- 1.8″) |
| Z1, Z2 Axis Travel: 31.9″ |
| B Axis Travel (Sub Spindle): 35.4″ |
| C Axis Indexing: 360 Degree (0.001) |
| Rapid Traverse Rate X1, X2 Axis: 1181 IPM |
| Rapid Traverse Rate Y1, Y2 Axis: 787 IPM |
| Rapid Traverse Rate Z1, Z2 Axis: 1968 IPM |
| Main Spindle: |
|---|
| Main Spindle Nose: A2-5 |
| Main Spindle Bore: 2.4″ |
| Main Spindle Speed: 6000 RPM |
| Man Spindle Motor: 30 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 2.4″ |
| Sub Spindle Speed: 6000 RPM |
| Sub Spindle Motor: 30 HP |
| Upper Turret: |
|---|
| Turret Capacity: 16 Stations |
| Rotary Tool Speed: 6,000 RPM |
| Rotary Tool Motor: 10 HP |
| Lower Turret: |
|---|
| Turret Capacity: 16 Stations |
| Rotary Tool Speed: 6,000 RPM |
| Rotary Tool Motor: 10 HP |
| General: |
|---|

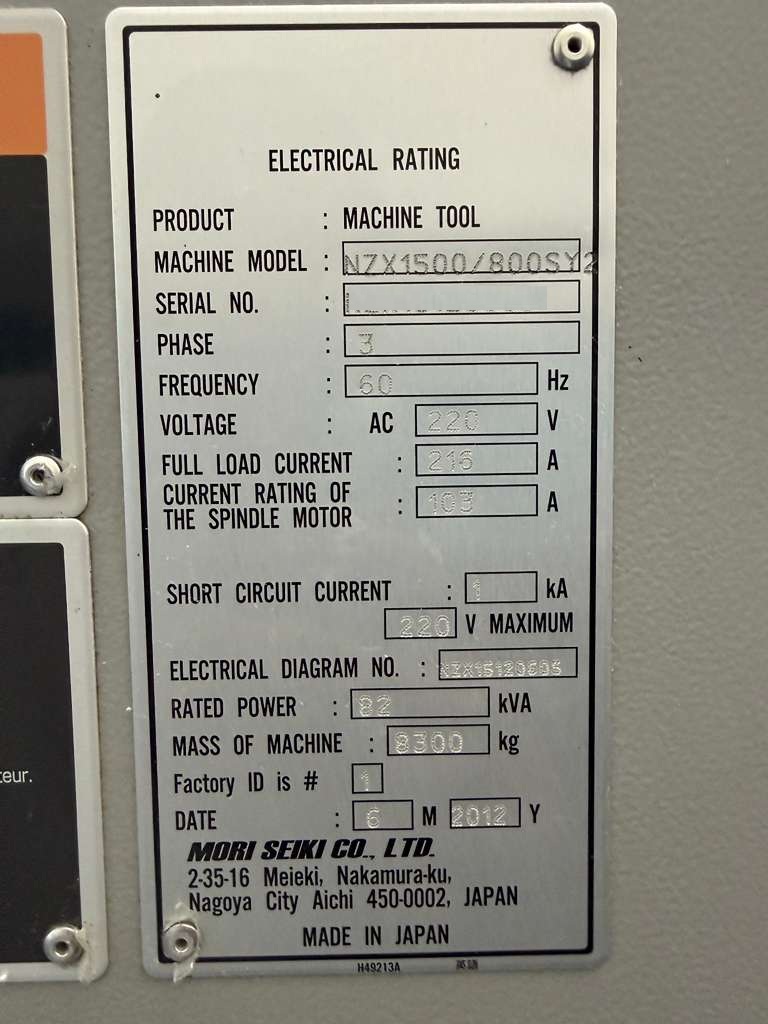

| Power Source: AC 220v, 3-Phase, 60 Hz |
| Power Requirement: 82 kva |

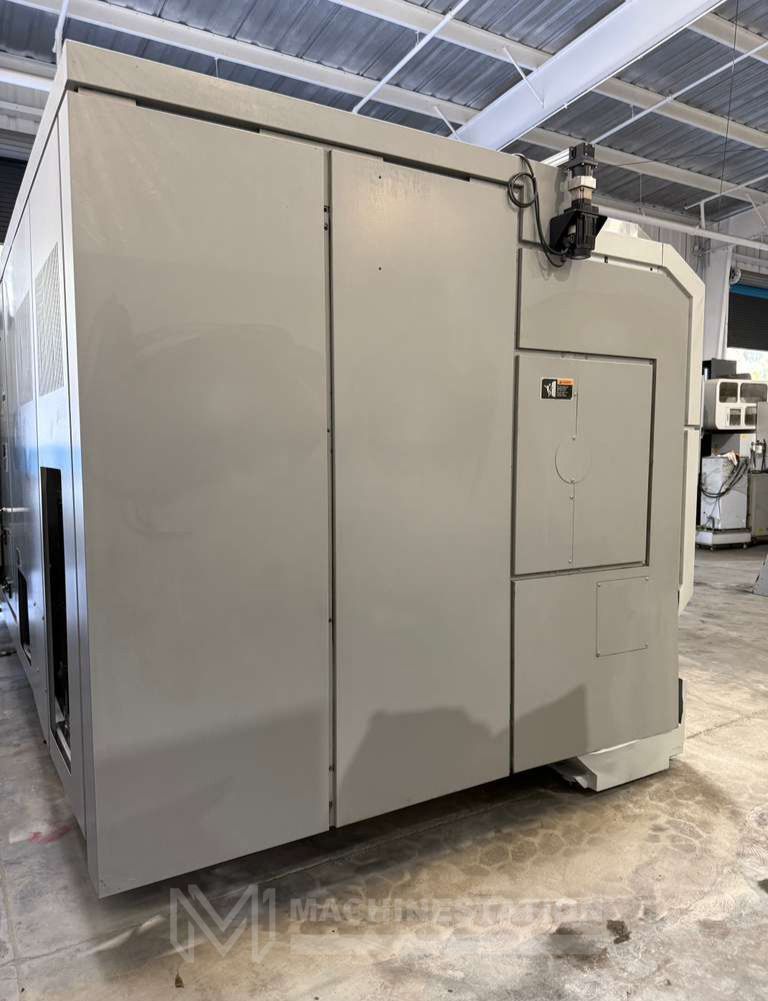

| Overall Dimensions: 173″ x 111″ x 91″ High Approx. |
| Weight : 18,300 lbs Approx. |
