Nakamura-Tome WTS-150 Multi Axis CNC Turning Center – Lathe
Reserve your machine by paying: $999 (Refundable)
(We’ll hold it for 7 business days while you inspect or finalize your purchase)
$999
Location
Lake Elsinore, CA
SKU
113014
Make
NAKAMURA-TOME
Model
WTS-150
Year
2004
Condition
Used
Cutting Time
10,320 Hours
Video
On Request
1 in stock
| Location: | Lake Elsinore, CA |
| SKU: | 113014 |
| Make: | NAKAMURA-TOME |
| Model: | WTS-150 |
| Year: | 2004 |
| Condition: | Used |
| Cutting Time: | 10,320 Hours |
| Video: | On Request |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 113014 |
| Make: | Nakamura Tome |
| Model: | WTS-150 |
| Year: | 2004 (Sold & Installed in 2007) |
| Features: |
|---|

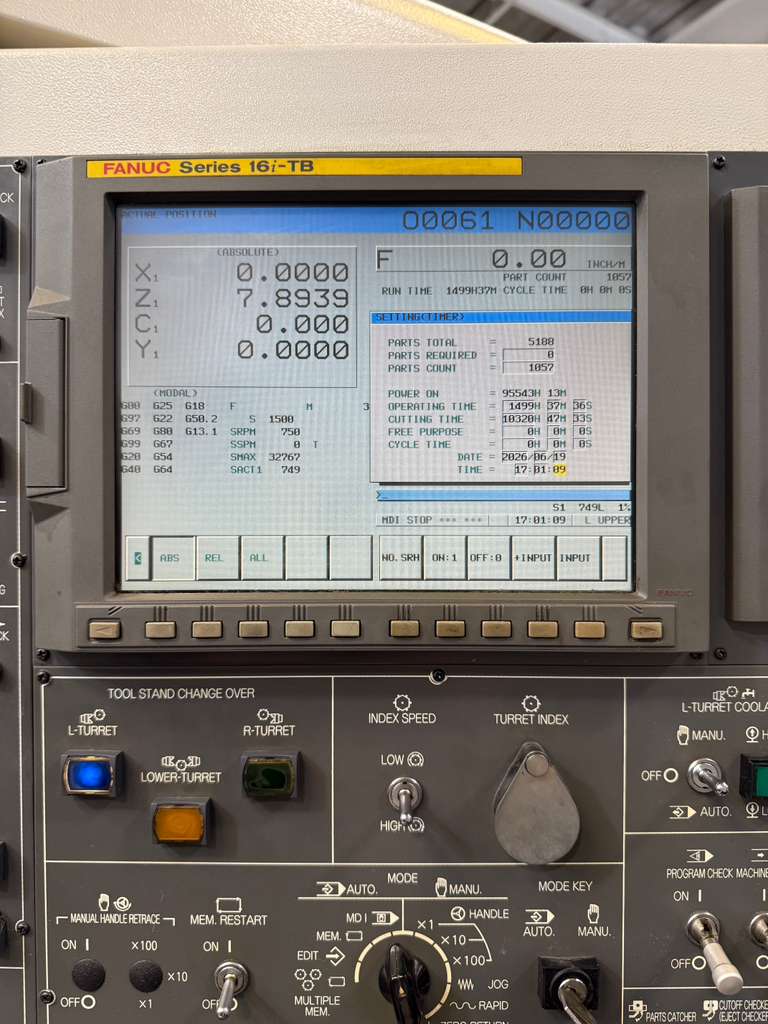

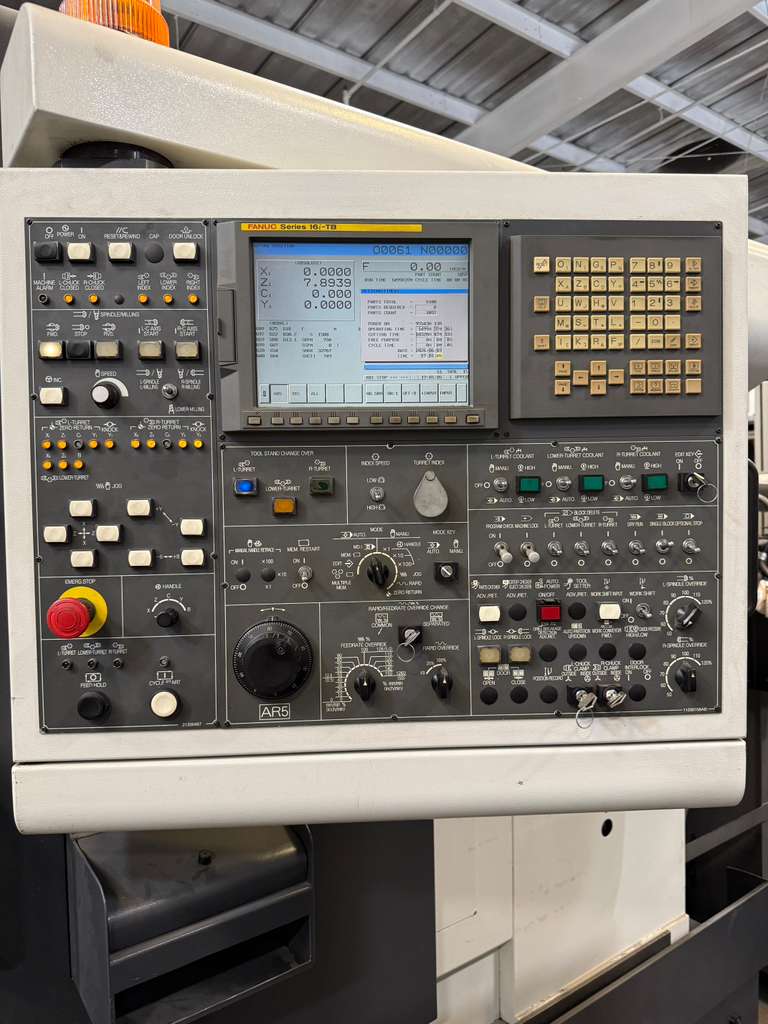

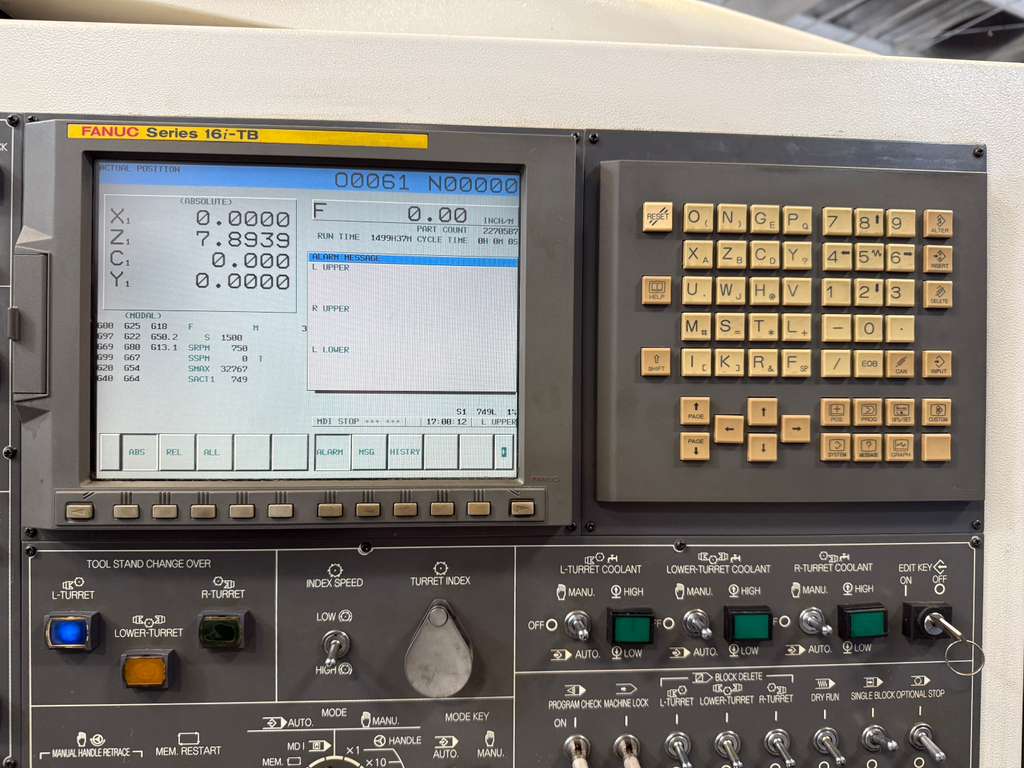

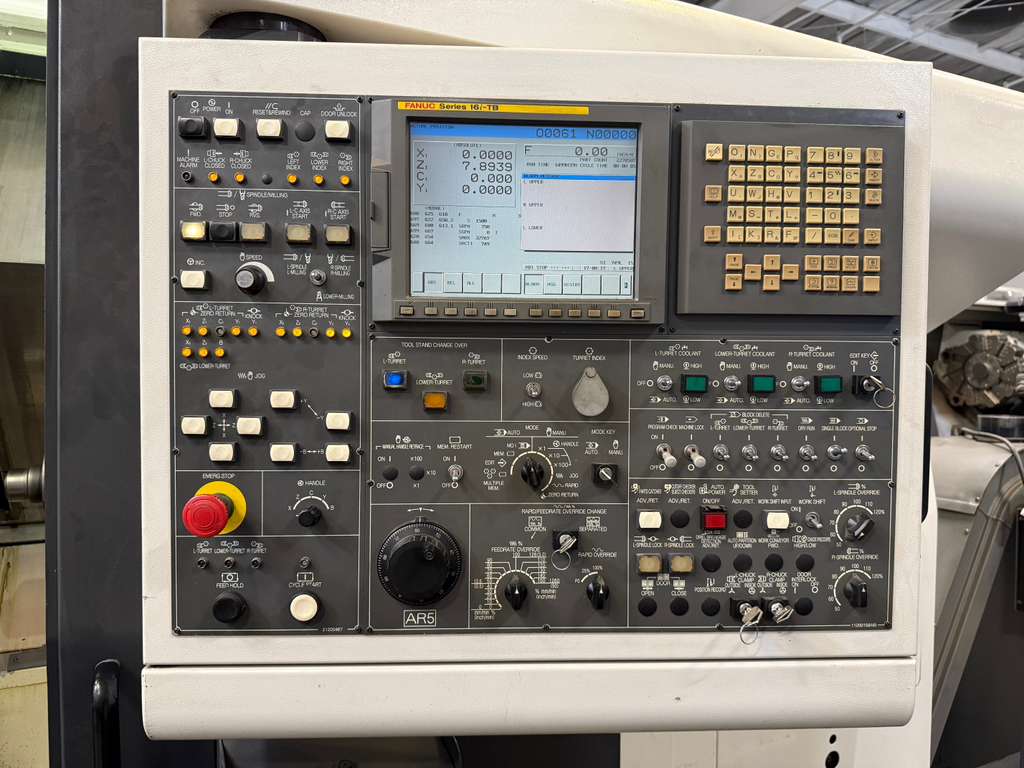

| Fanuc 16i-TB CNC Control |
| (2) 12 Station Upper Turrets With Live Milling |
| (1) 12 Station Lower Turret With Live Milling |
| Y Axis Capability Upper Turrets Only |
| Collet Chucks on Both Spindles |
| Servo Controlled Full C-Axis on Both Spindles |
| Sub Spindle |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |
| High Pressure Coolant System |
| Chiller Unit |
| Tool Presetter |
| Part Catcher |
| Chip Conveyor |
| Levelling Pads |
| Tool Holders Equipped on Turrets (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter : 12.20″ |
| Max Turning Length : 10.03″ |
| Max Bar Capacity Main Spindle : 1.65″ |
| Max Bar Capacity Sub Spindle : 1.25″ |
| Distance Between Spindle Nose : 42″ |
| Travel: |
|---|
| X Axis Travel Upper : 8.16″ |
| Z Axis Travel Upper : 11.81″ |
| Y Axis Travel Upper : 2.36″ (+/-1.18″) |
| B2 Axis Travel Upper : 34.4″ |
| X Axis Travel Lower : 8.16″ |
| Z Axis Travel Lower : 31.49″ |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| X Axis: 1181 IPM Rapid Traverse |
| Z Axis: 1181 IPM Rapid Traverse |
| Y Axis: 787 IPM Rapid Traverse |
| B Axis: 787 IPM Rapid Traverse |
| Spindle: |
|---|
| Main Spindle Bore: ″ |
| Sub Spindle Bore: ″ |
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Speed: 6000 RPM |
| Sub Spindle Speed: 8000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle Power: 20 HP |
| Turret: |
|---|
| (2) Upper Turret Capacity: 12 Stations |
| (1) Lower Turret Capacity: 12 Stations |
| Live Tool Speed: 6000 RPM |
| Live Tool Power: 5 HP |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 92 kva |
| Overall Dimensions: 152″ x 92″ x 92″ High |
| Weight: 22,000 lbs Approx. |
| Capacity: |
|---|
| Max Turning Diameter : 310 mm |
| Max Turning Length : 255 mm |
| Max Bar Capacity Main Spindle : 42 mm |
| Max Bar Capacity Sub Spindle : 32 mm |
| Distance Between Spindle Nose : 1,067 mm |
| Travel: |
|---|
| X Axis Travel Upper : 207 mm |
| Z Axis Travel Upper : 300 mm |
| Y Axis Travel Upper : 60 mm (+/-30 mm) |
| B2 Axis Travel Upper : 874 mm |
| X Axis Travel Lower : 207 mm |
| Z Axis Travel Lower : 800 mm |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| X Axis: 1181 IPM Rapid Traverse |
| Z Axis: 1181 IPM Rapid Traverse |
| Y Axis: 787 IPM Rapid Traverse |
| B Axis: 787 IPM Rapid Traverse |
| Spindle: |
|---|
| Main Spindle Bore: ″ |
| Sub Spindle Bore: ″ |
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Speed: 6000 RPM |
| Sub Spindle Speed: 8000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle Power: 20 HP |
| Turret: |
|---|
| (2) Upper Turret Capacity: 12 Stations |
| (1) Lower Turret Capacity: 12 Stations |
| Live Tool Speed: 6000 RPM |
| Live Tool Power: 5 HP |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 92 kva |
| Overall Dimensions: 3,861 mm x 2,337 mm x 2,337 mm High |
| Weight: 22,000 lbs Approx. |
| Make | NAKAMURA-TOME |
|---|---|
| Model | WTS-150 |
| Categories | CNC Lathes & Turning Centers |
- Fanuc 16i-TB CNC Control
- (2) 12 Station Upper Turrets With Live Milling
- (1) 12 Station Lower Turret With Live Milling
- Y Axis Capability Upper Turrets Only
- Collet Chucks on Both Spindles
- Servo Controlled Full C-Axis on Both Spindles
- Sub Spindle
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck
- High Pressure Coolant System
- Chiller Unit
- Tool Presetter
- Part Catcher
- Chip Conveyor
- Levelling Pads
- Tool Holders Equipped on Turrets (As shown in the images)
