Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Features: |
|---|

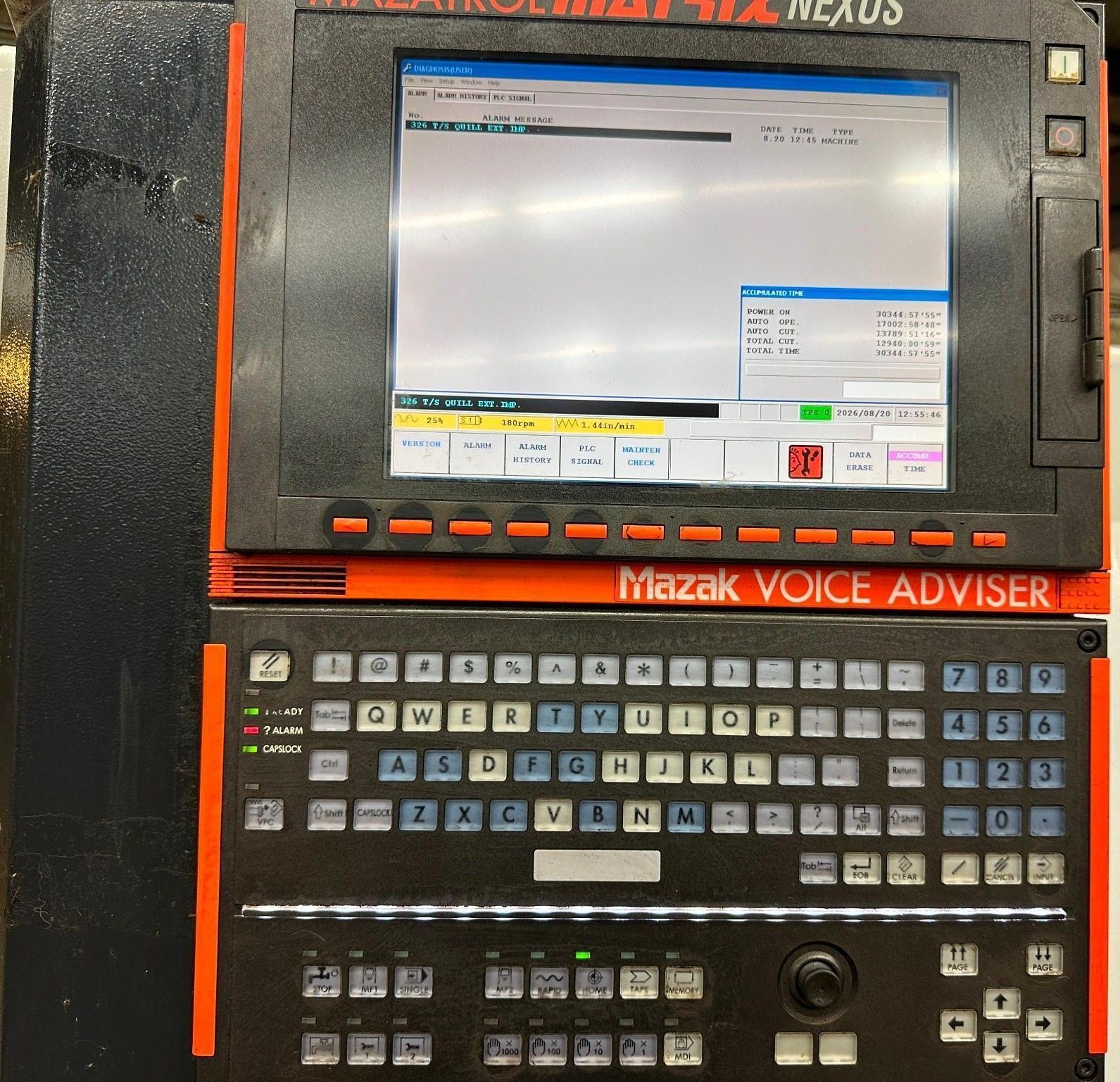

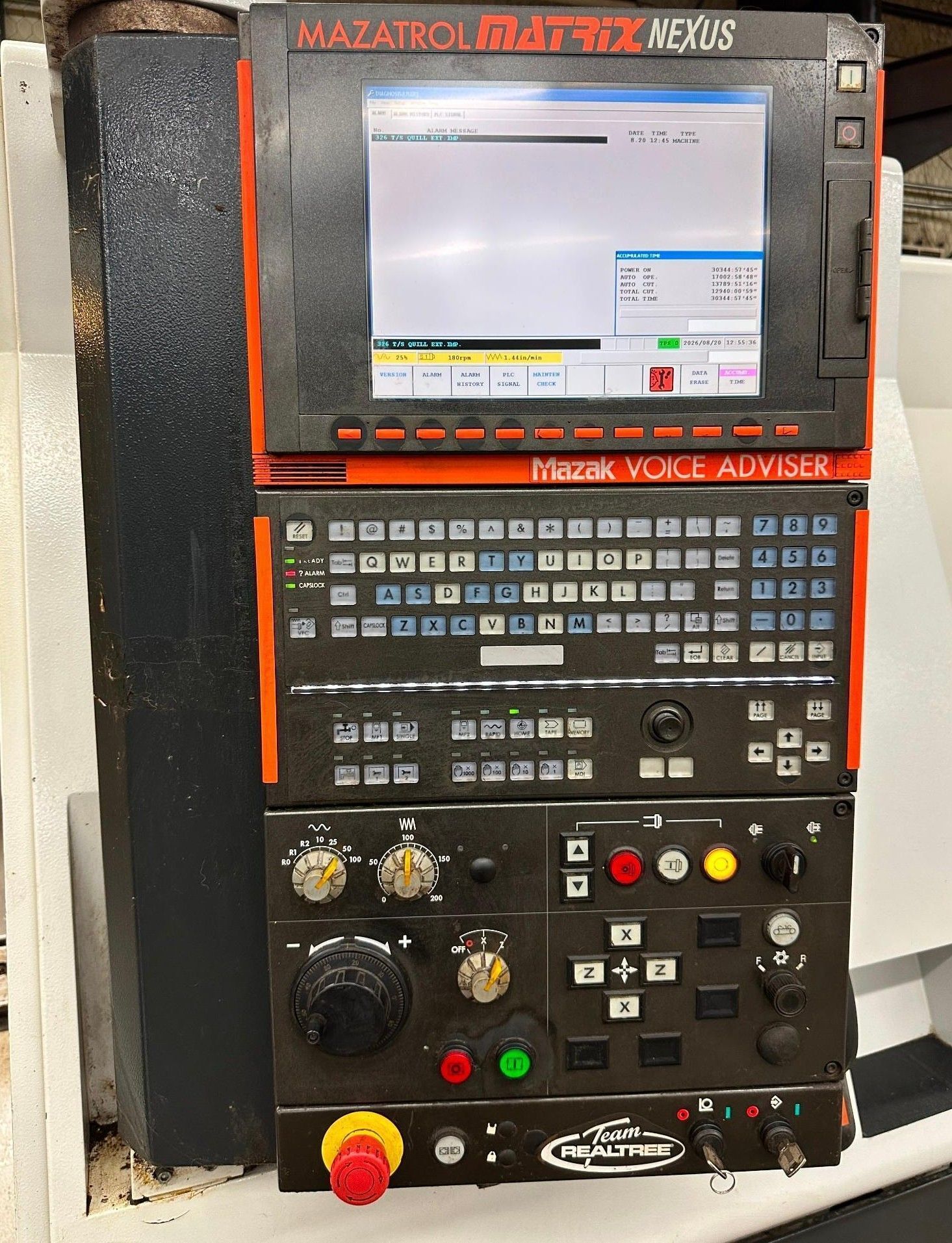

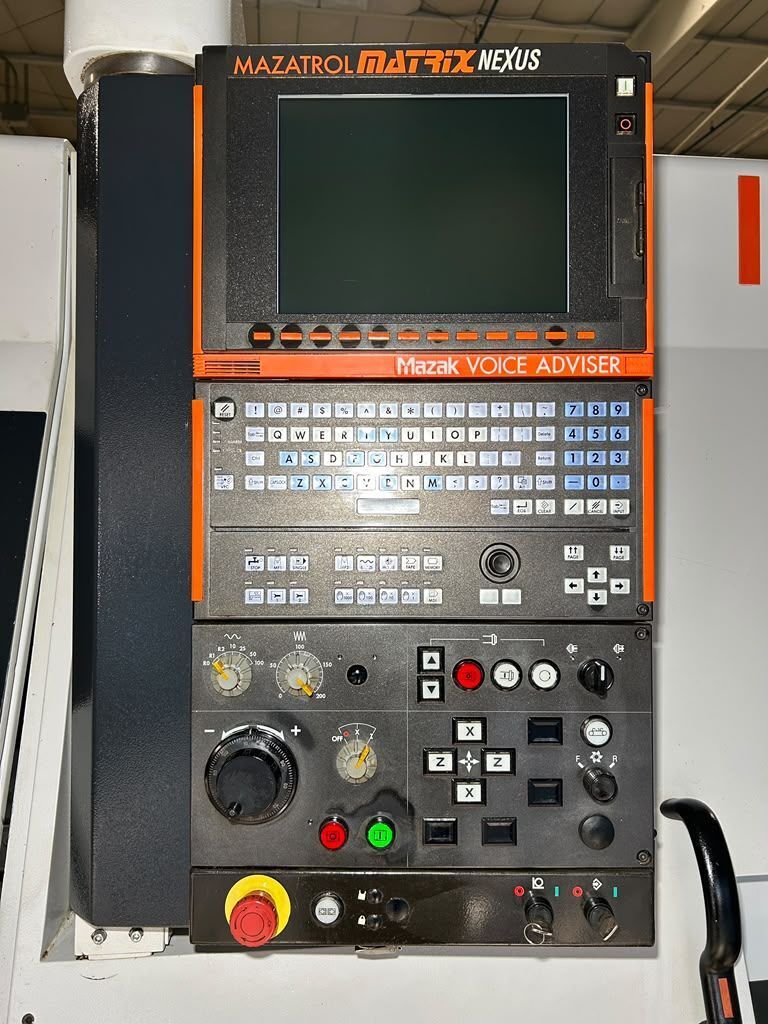

| Mazatrol Matrix Nexus CNC Control |

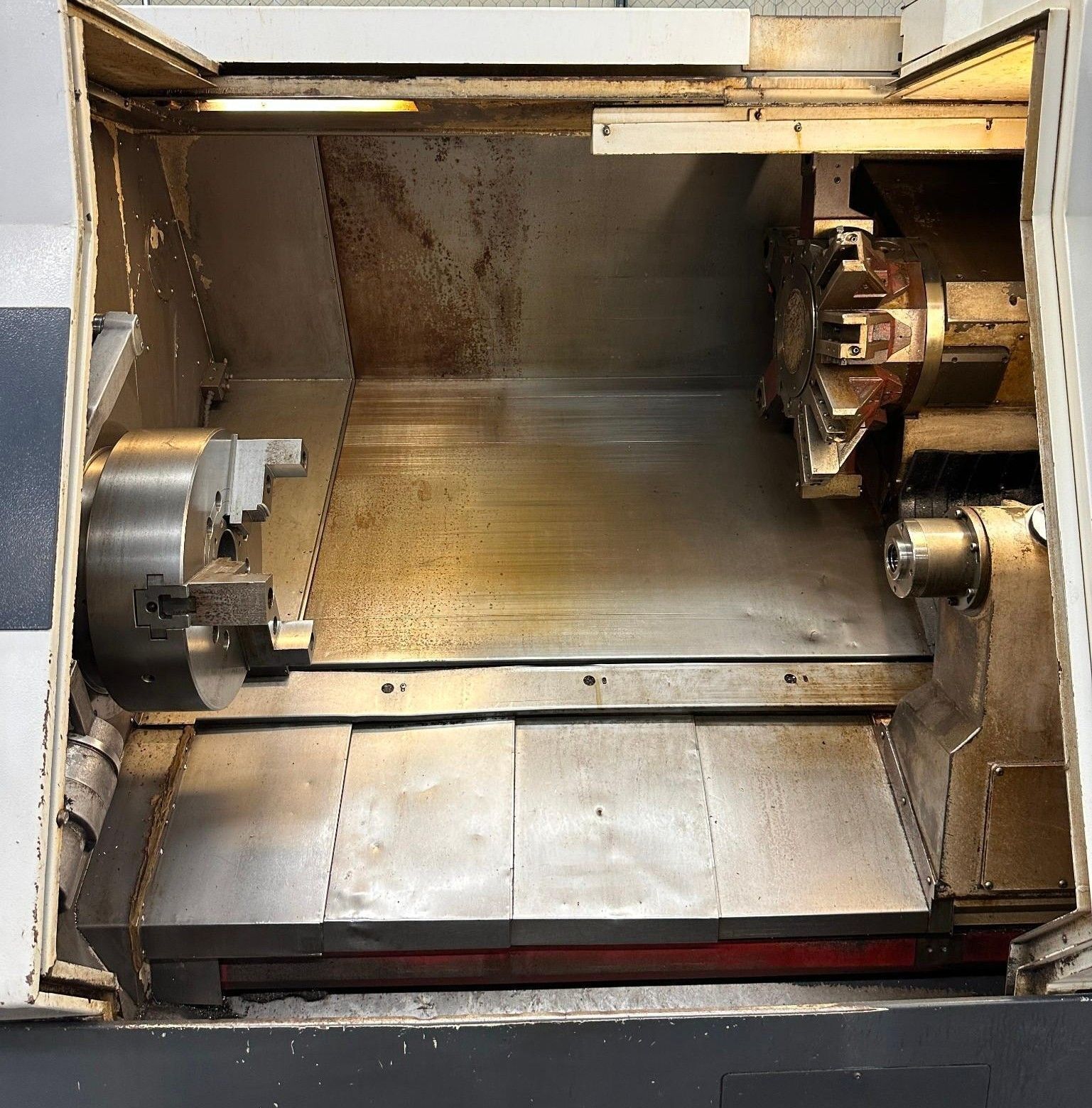

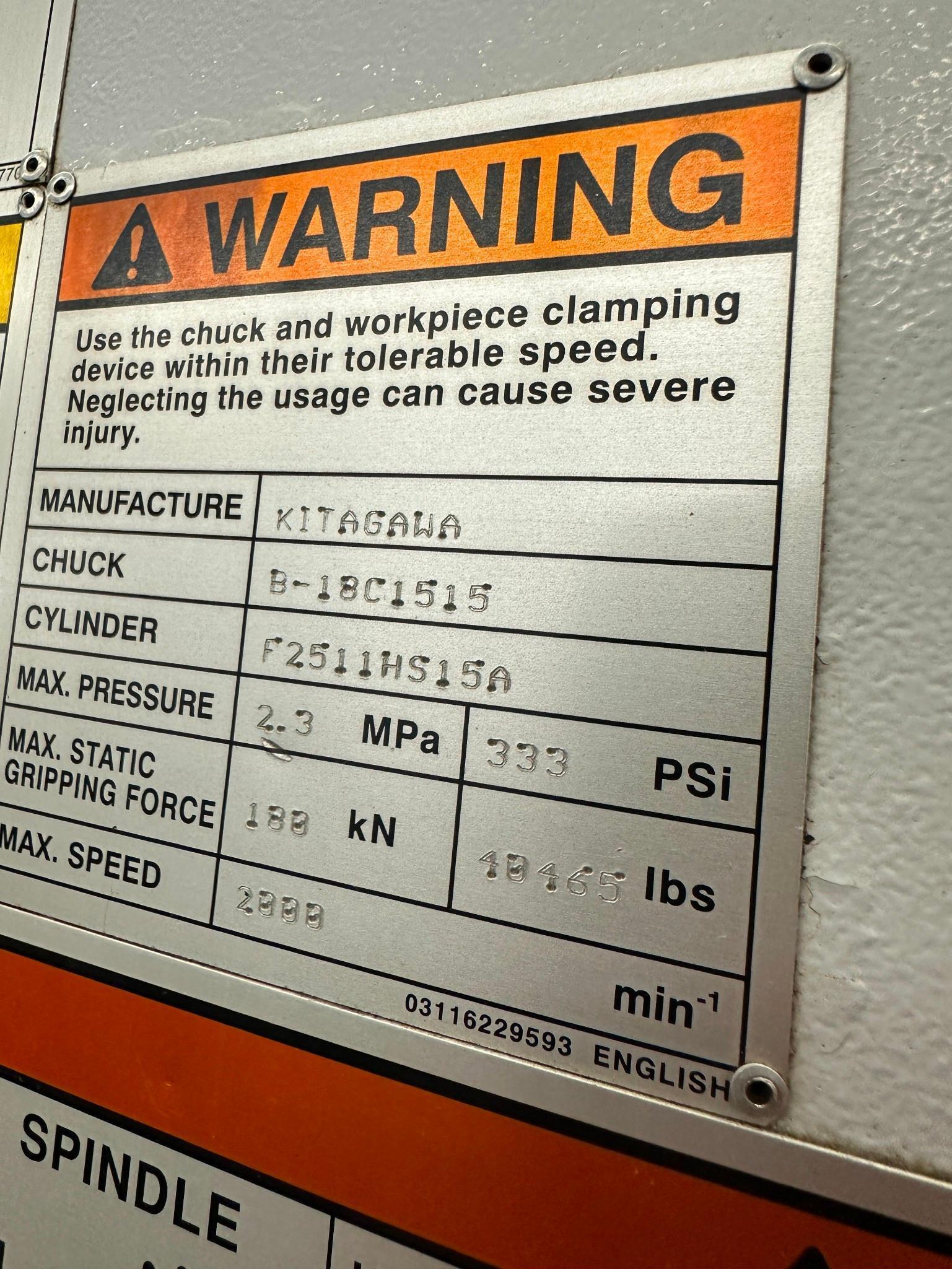

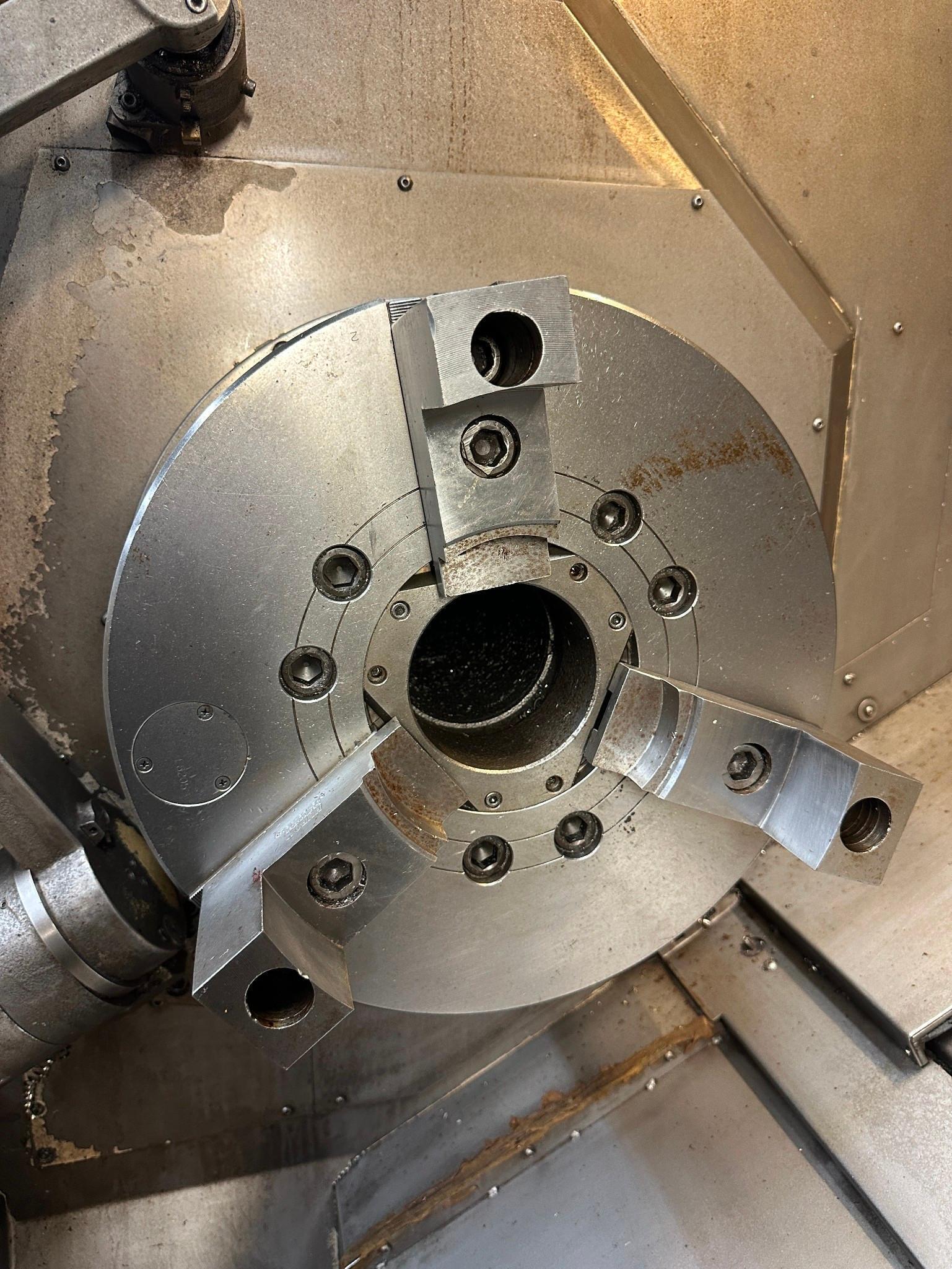

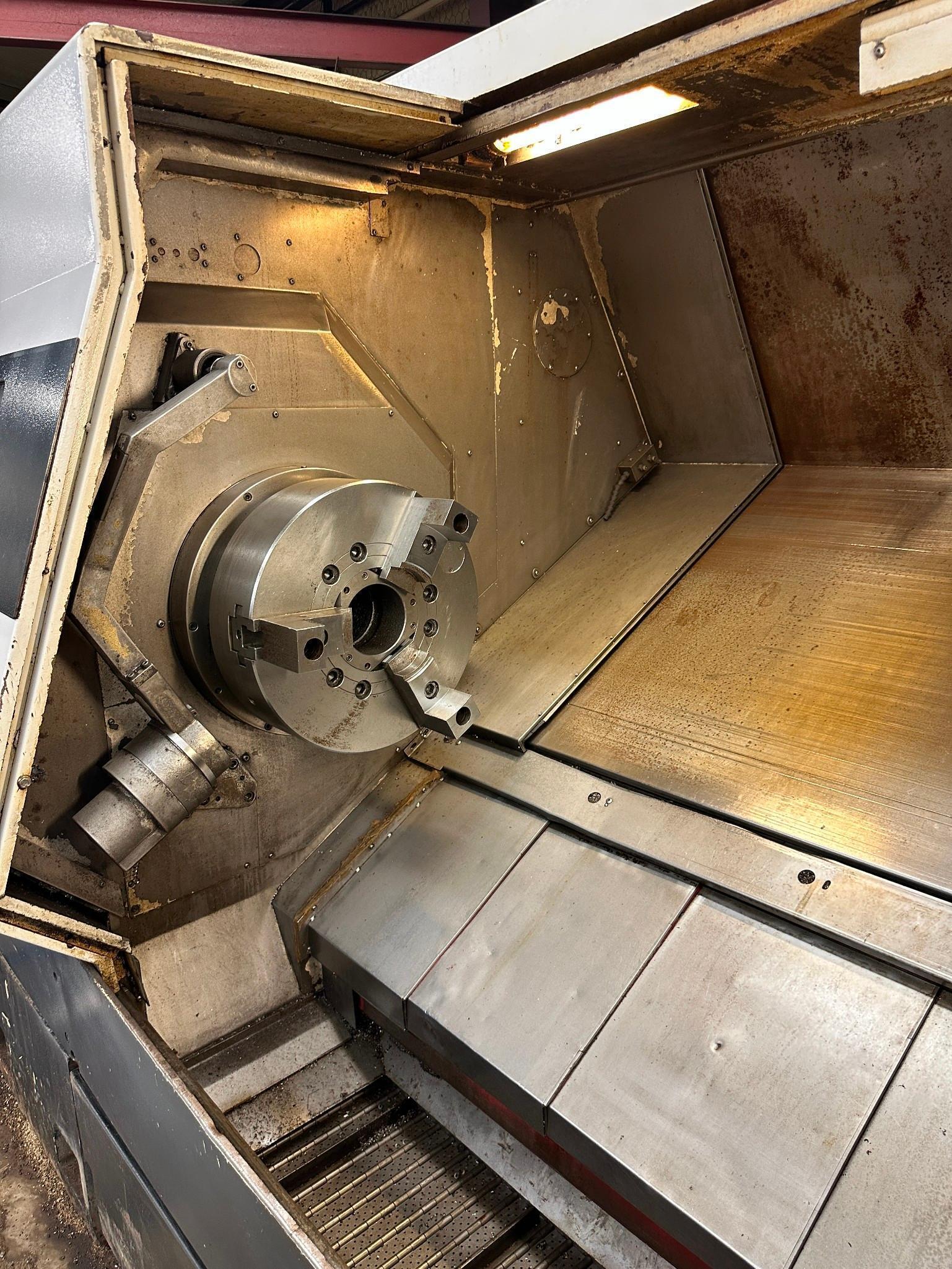

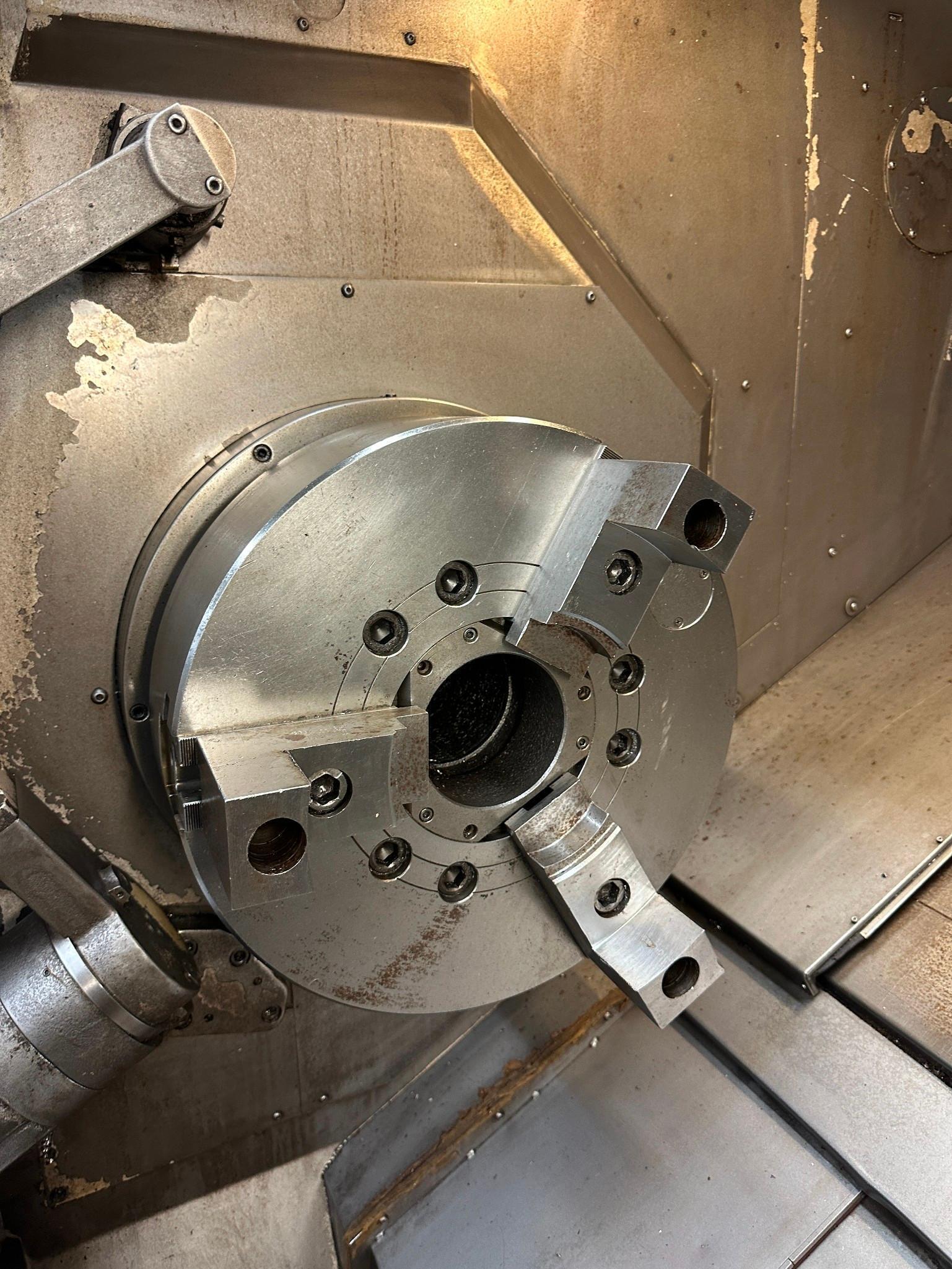

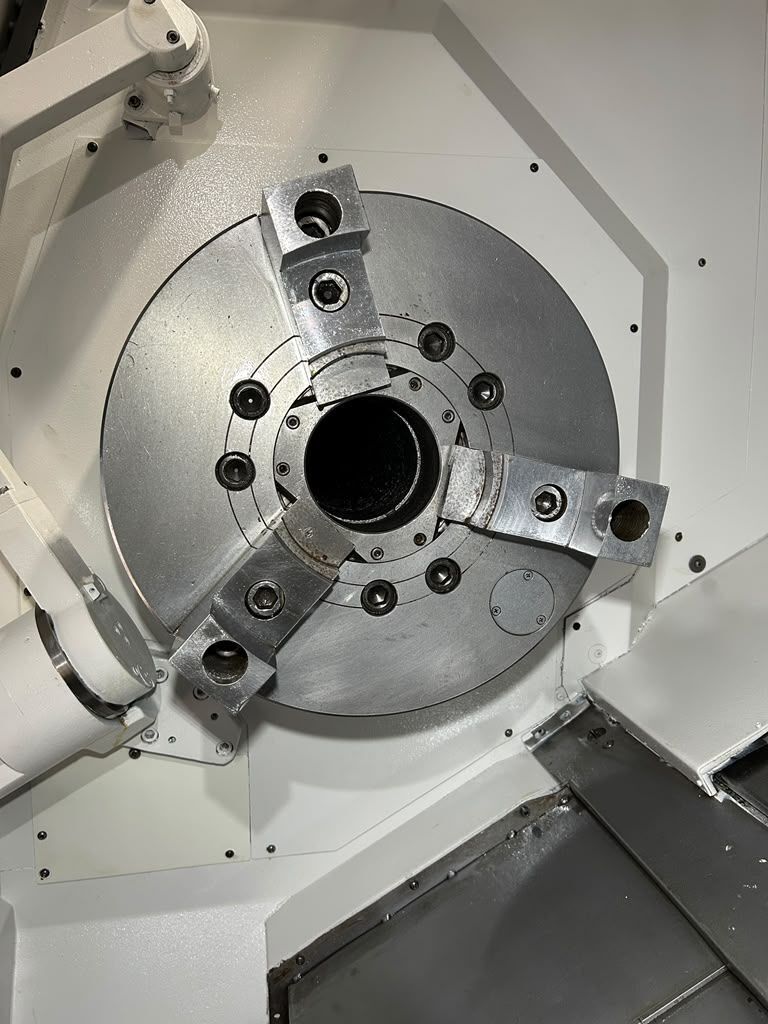

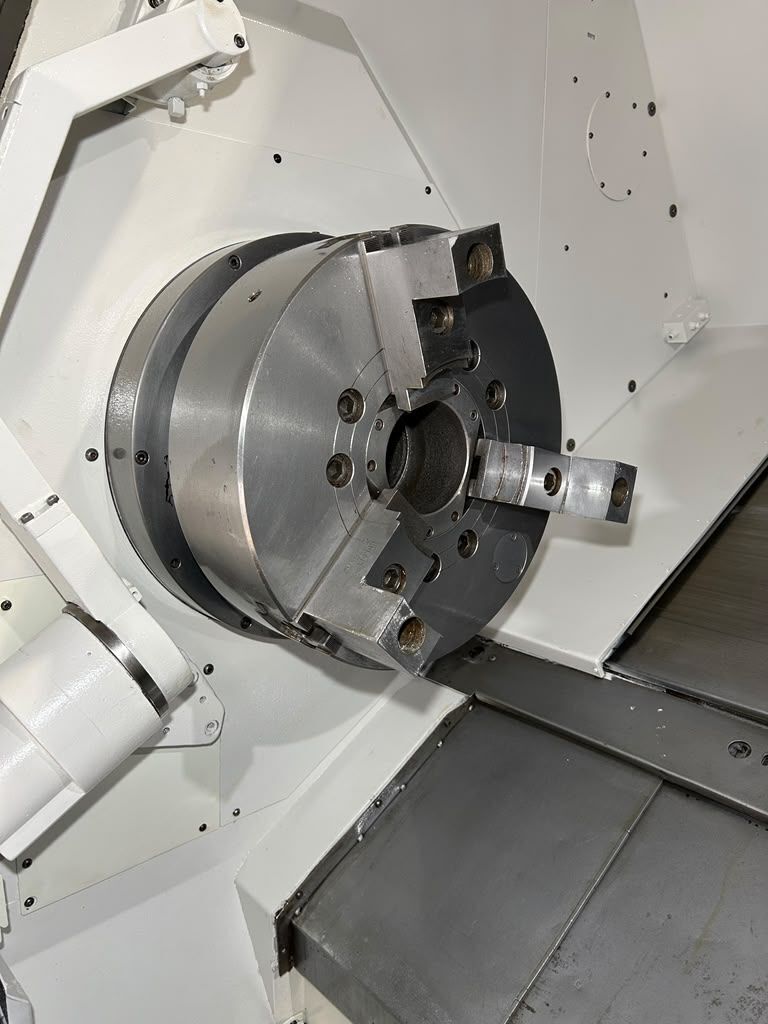

| 18″ 3-Jaw Kitagawa B-18C1515 Hydraulic Thru-Hole Chuck |

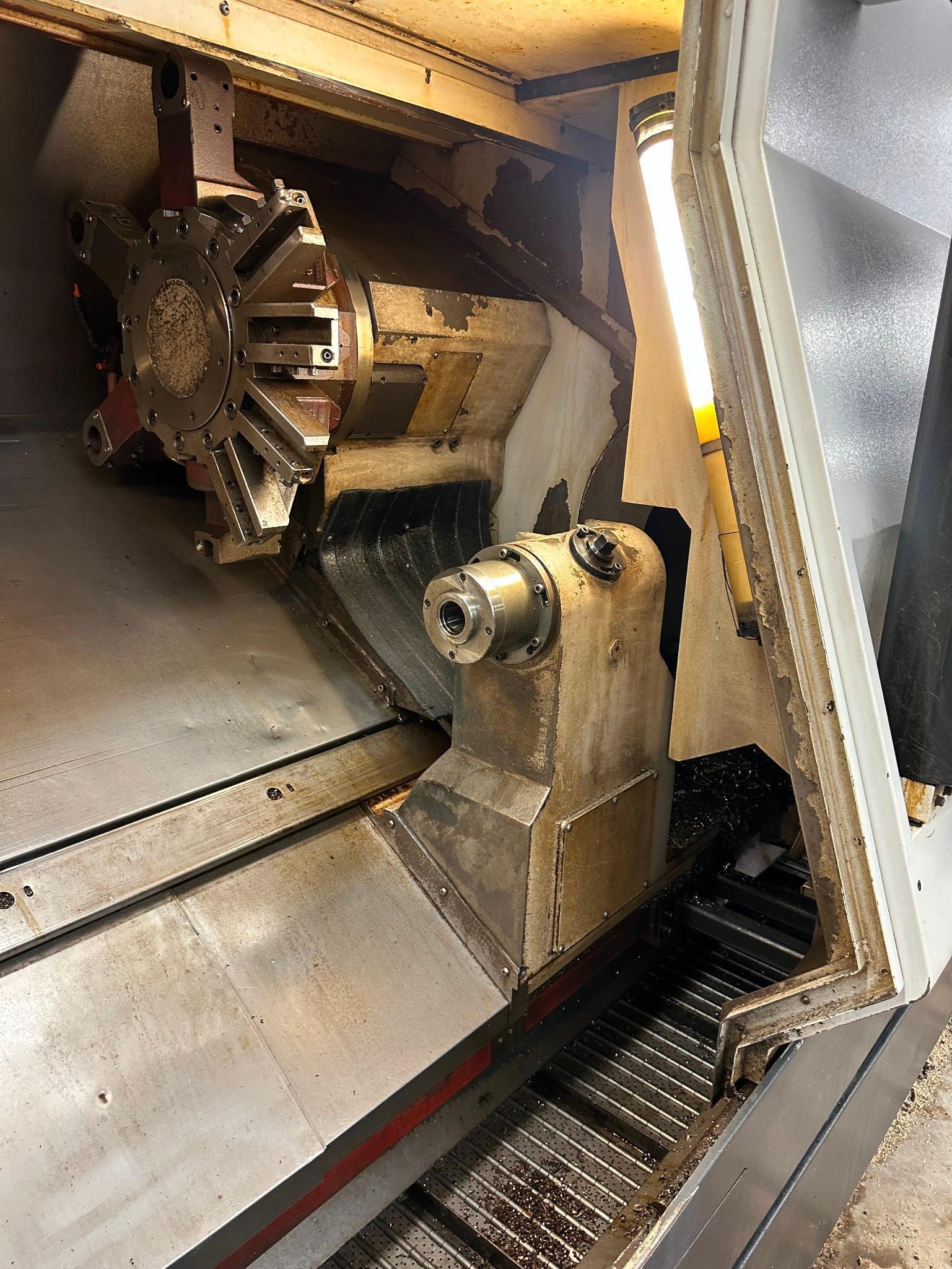

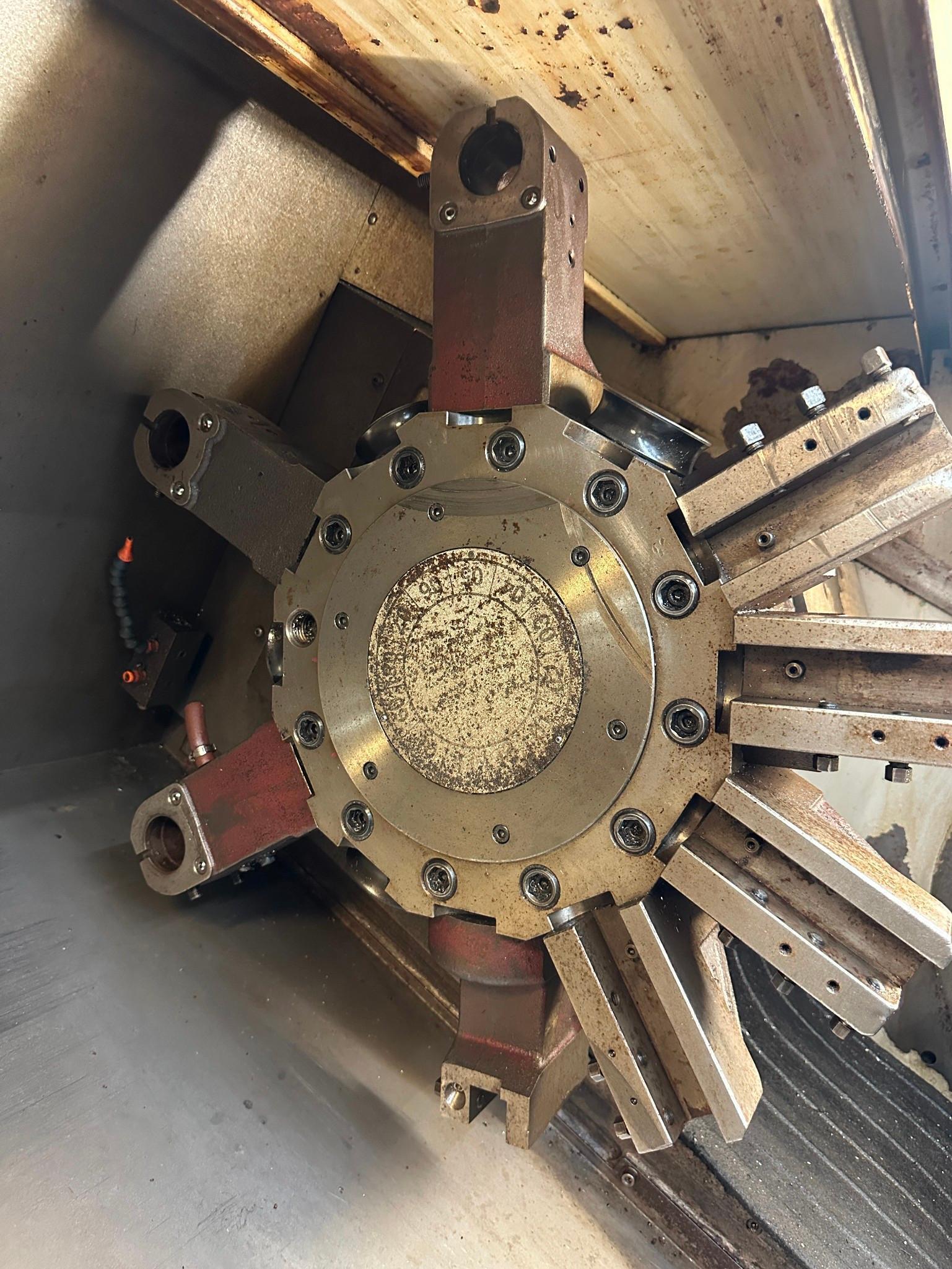

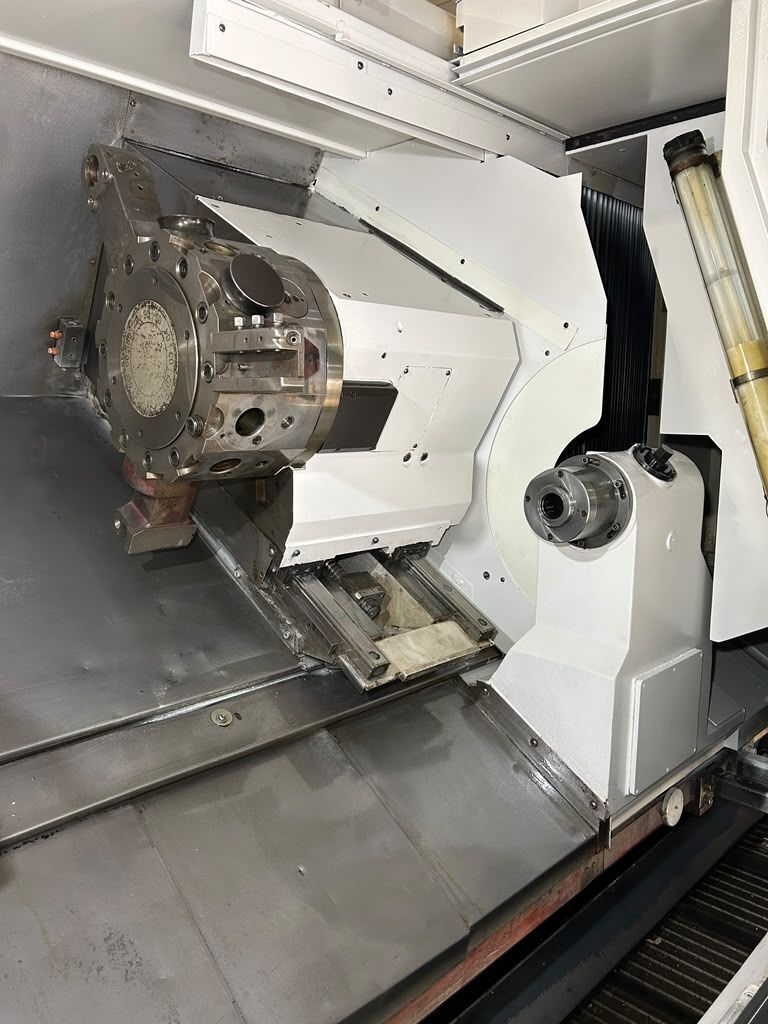

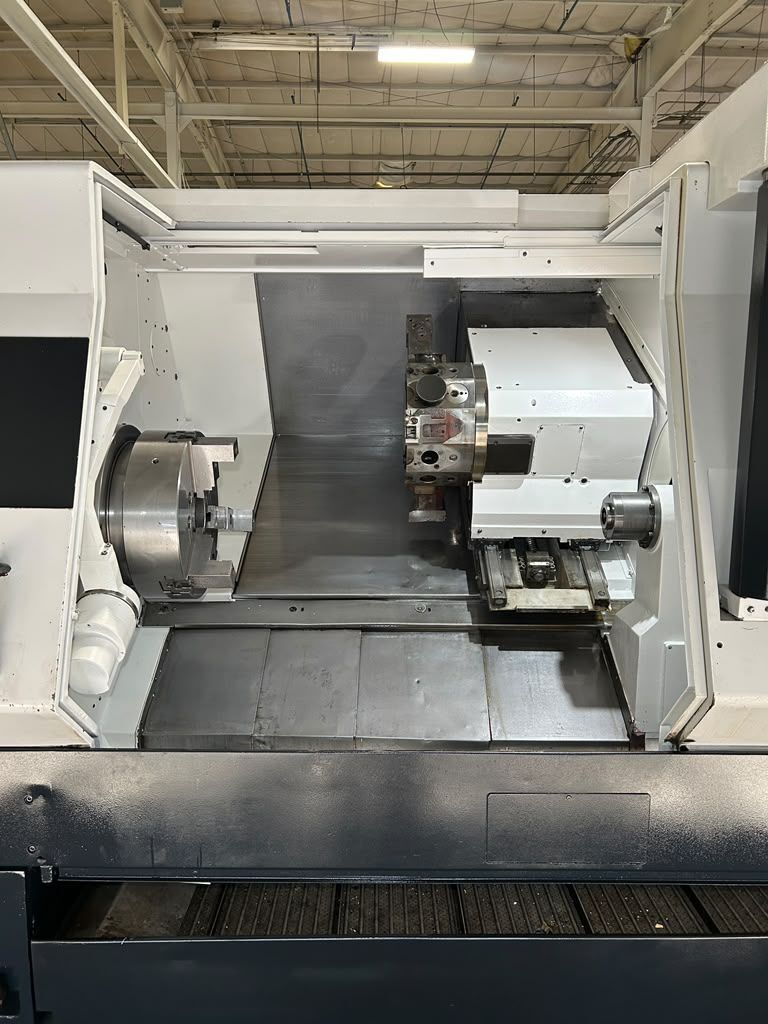

| 12-Station Automatic Turret |
| Tool Presetter |
| Programmable NC Servo Tailstock |
| Rigid Tapping |

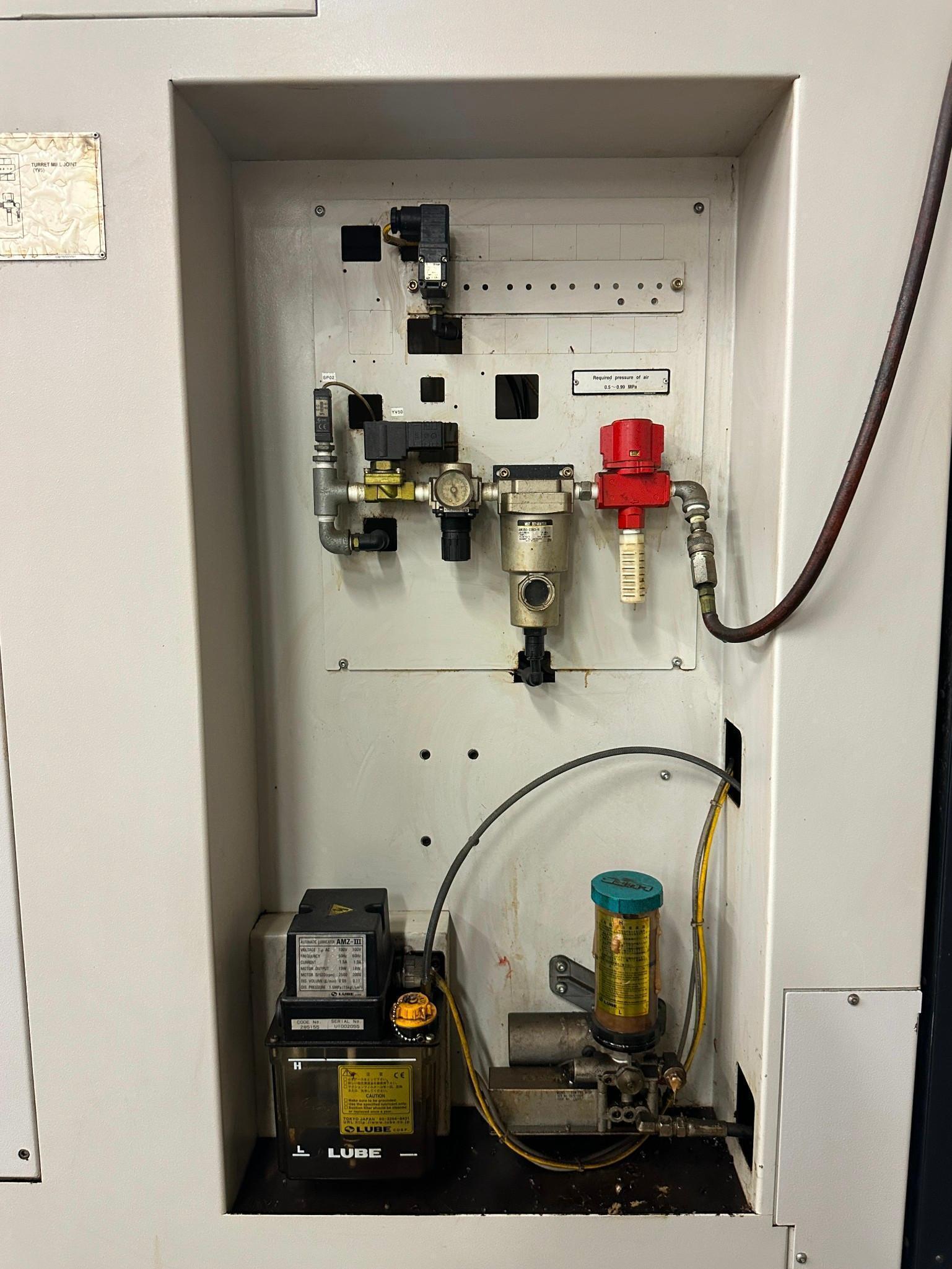

| Automatic Lubrication Unit |

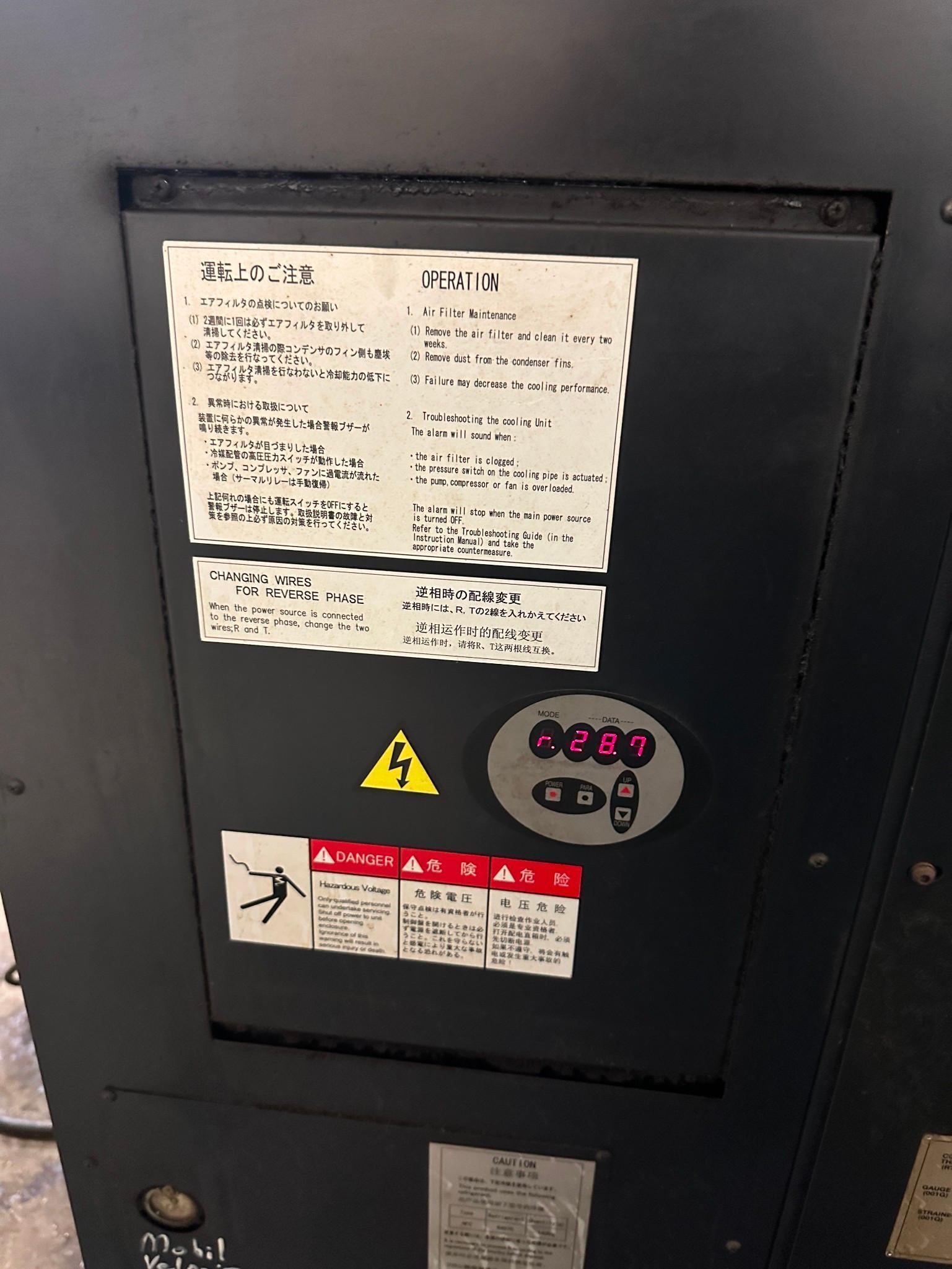

| Spindle Chiller Unit |

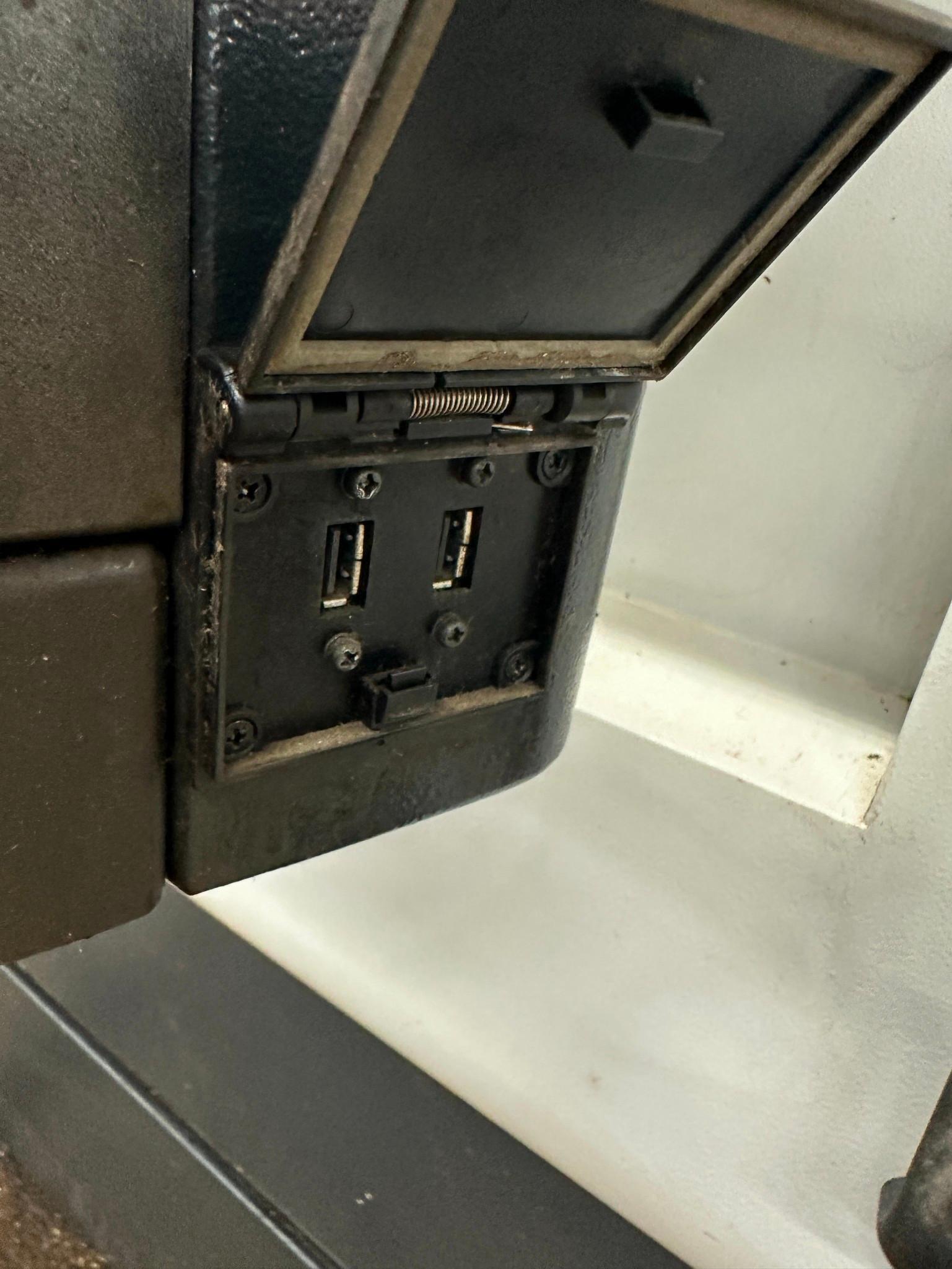

| USB Ports |

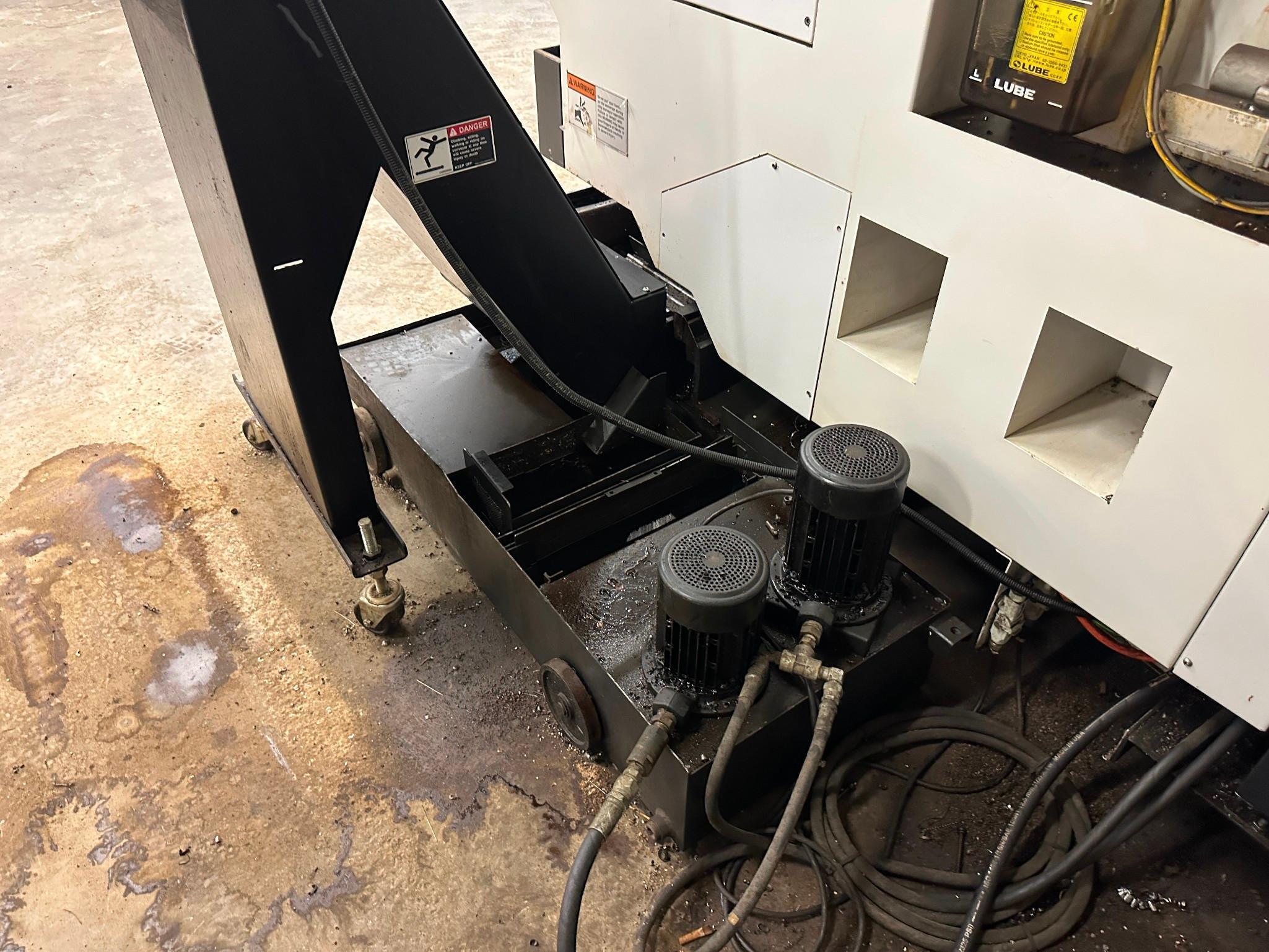

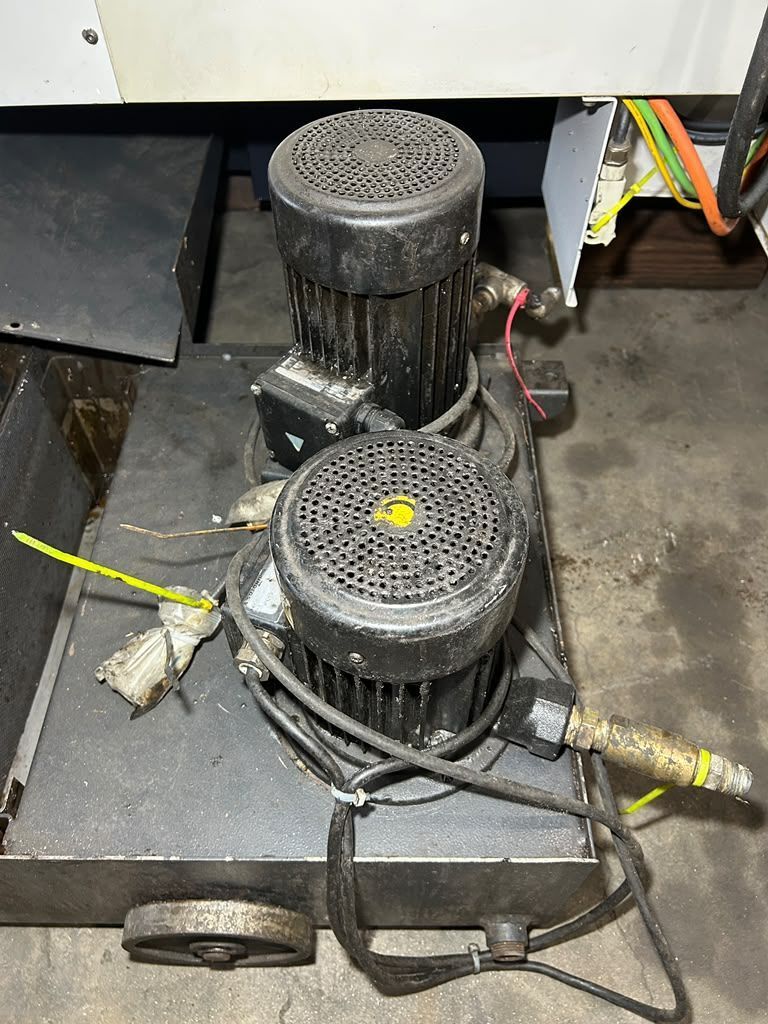

| Coolant Tank |

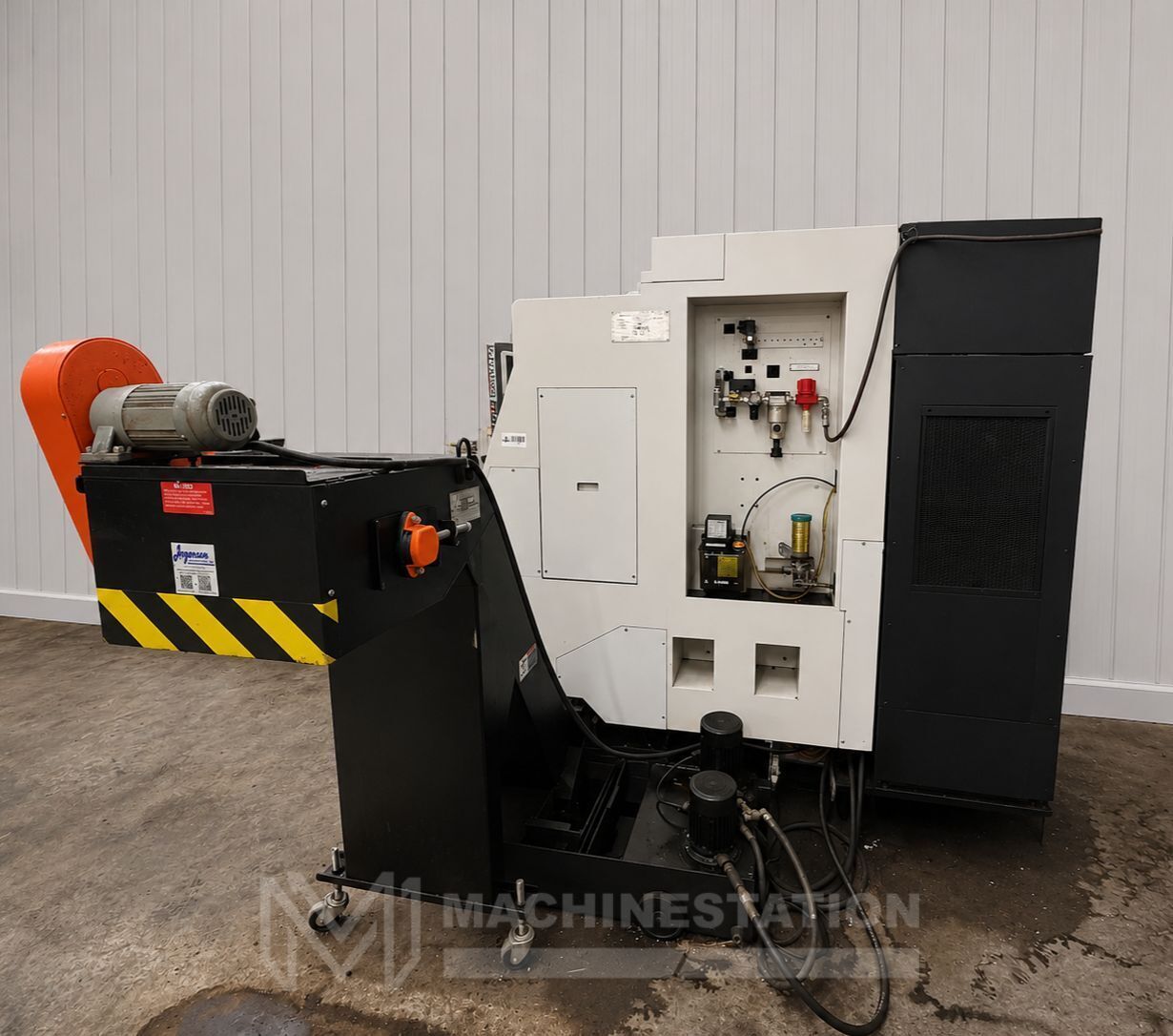

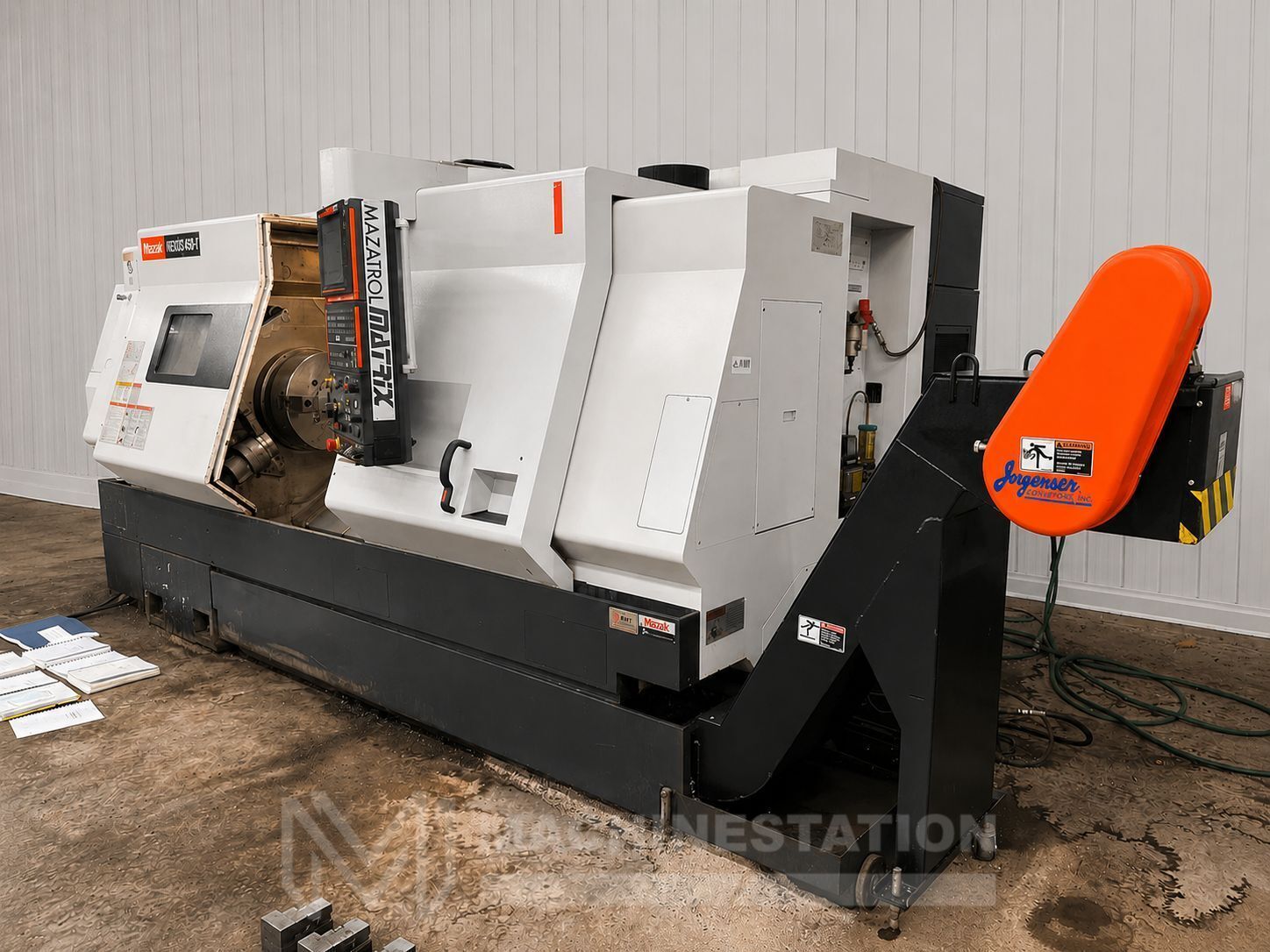

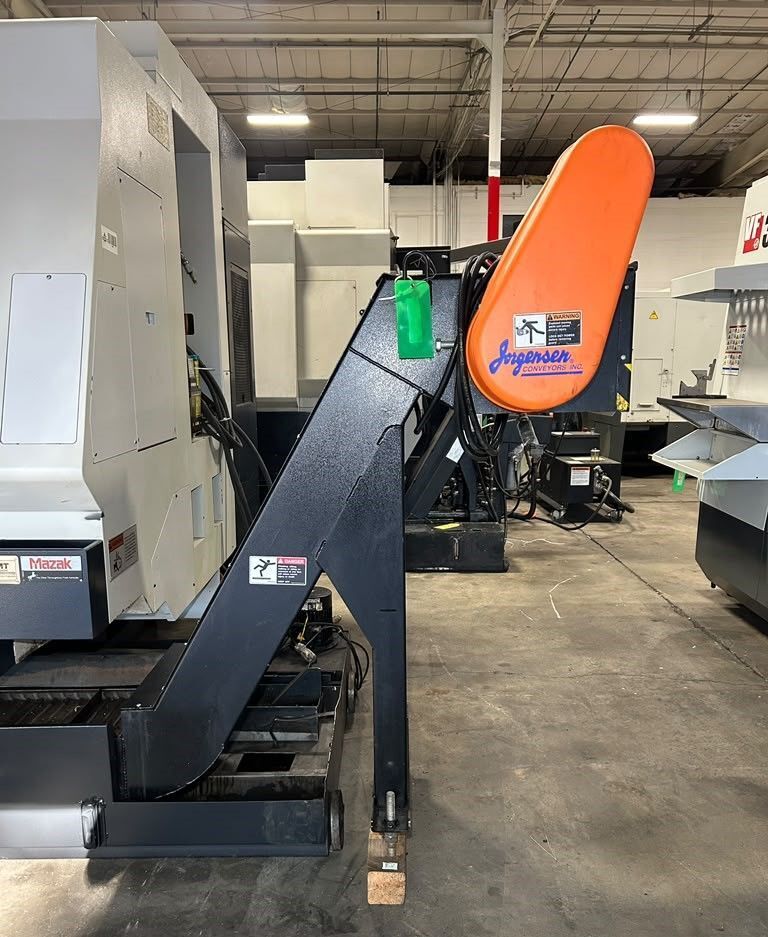

| Jorgensen Chip Conveyor |
| Books & Manuals |
| Foot Switches |
| Capacity: |
|---|
| Maximum Turning Diameter: 22.83″ |
| Maximum Turning Length: 39.37″ |
| Maximum Swing Over Bed: 33.26″ |
| Maximum Bar Capacity: 4.02″ |
| Travels: |
|---|
| X-Axis Travel: 12.20″ |
| Z-Axis Travel: 42.13″ |
| Feedrate: |
|---|
| Rapid Traverse X-Axis: 1,181 IPM |
| Rapid Traverse Z-Axis: 1,181 IPM |
| Spindle: |
|---|
| Spindle Bore: 4.60″ |
| Spindle Nose: A2-11 |
| Spindle Speed: 2,000 RPM |
| Spindle Power: 50 HP |
| Maximum Boring Bar Shank Diameter: 2.0″ |
| Turning Tool Shank Size: 1.26″ |

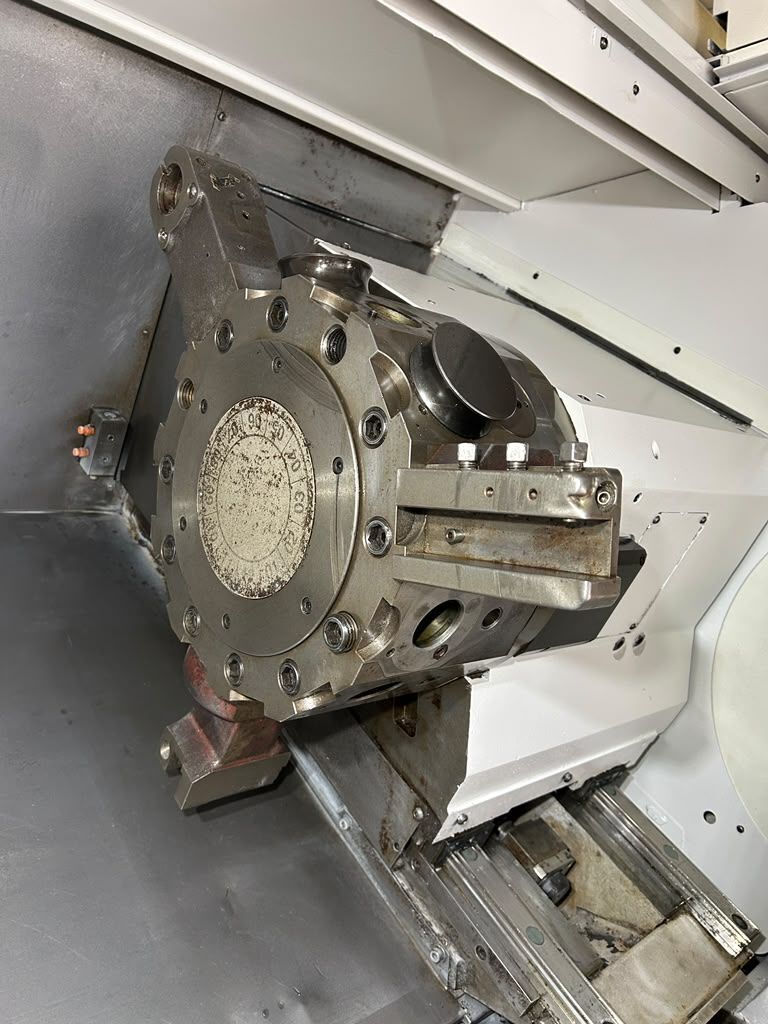

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.2 Seconds |

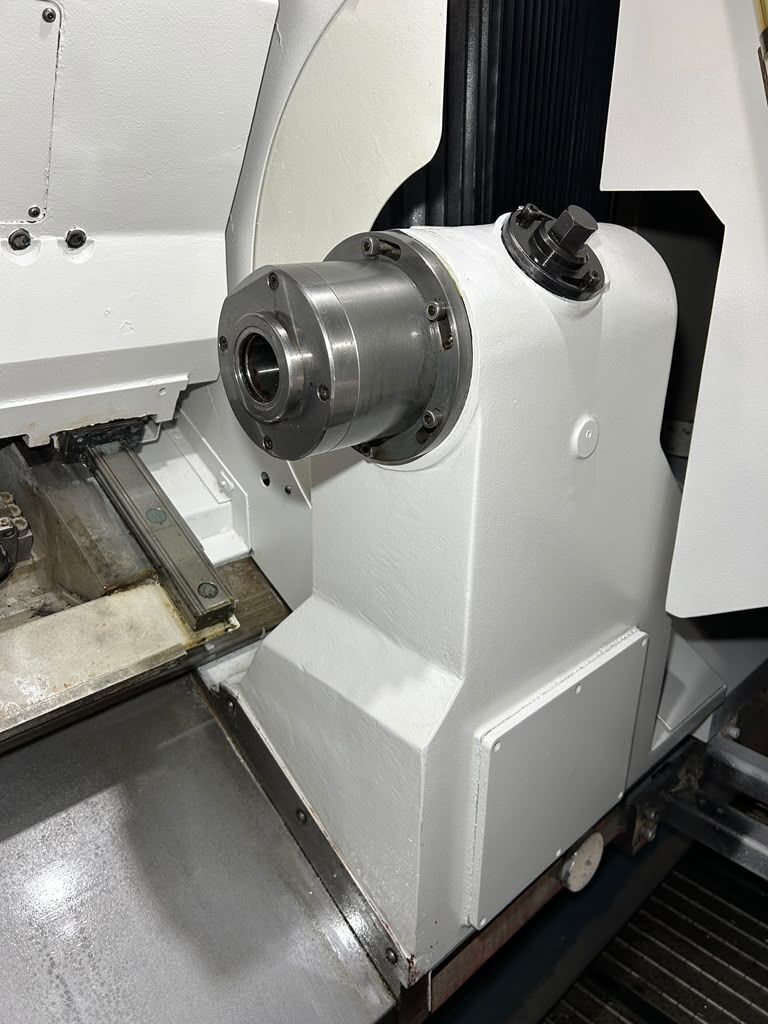

| Tailstock: |
|---|

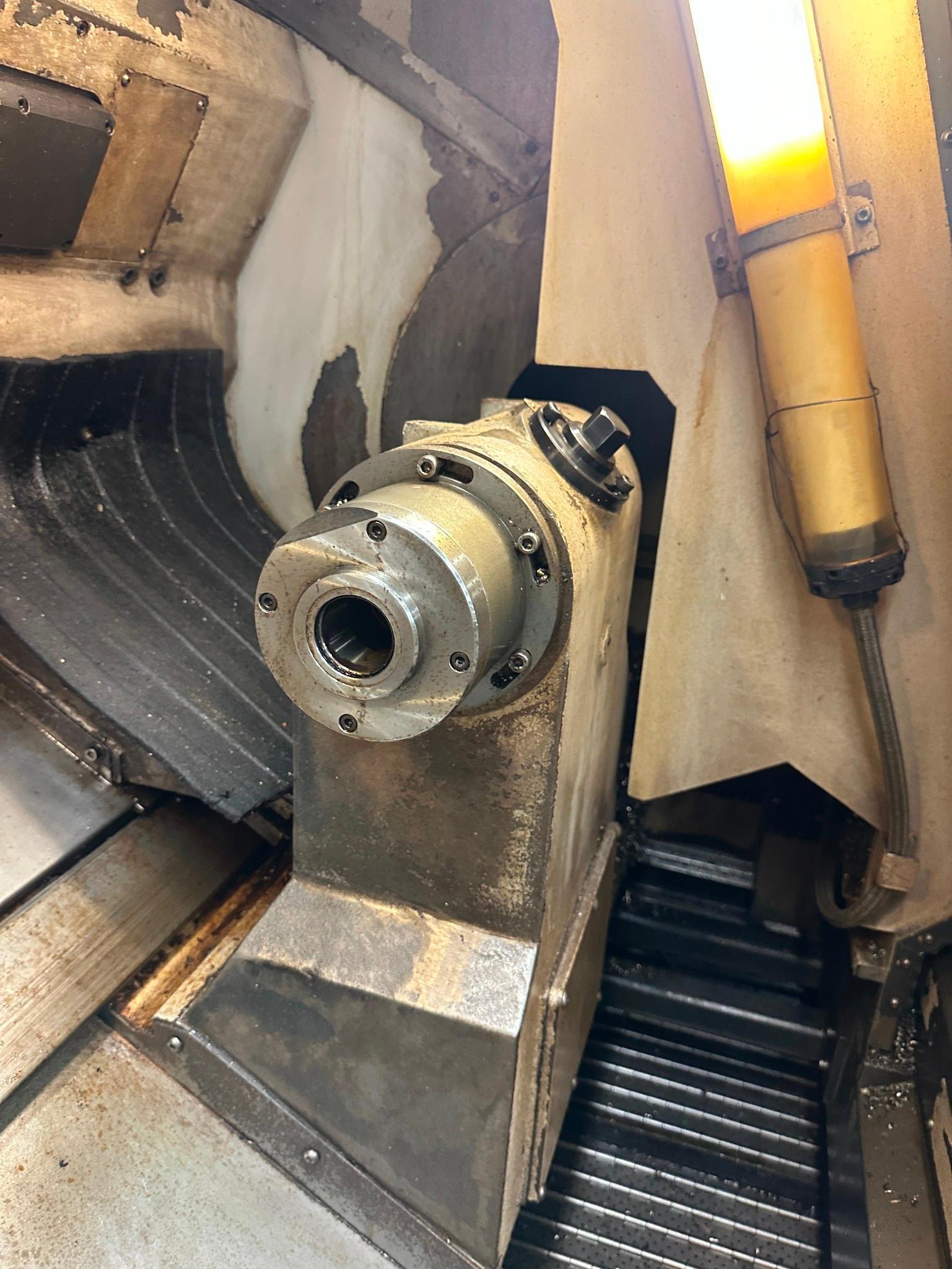

| Tailstock Type: Programmable NC Servo Tailstock |
| Tailstock Taper: MT-5 |
| Tailstock Travel: 40.35″ |
| General: |
|---|

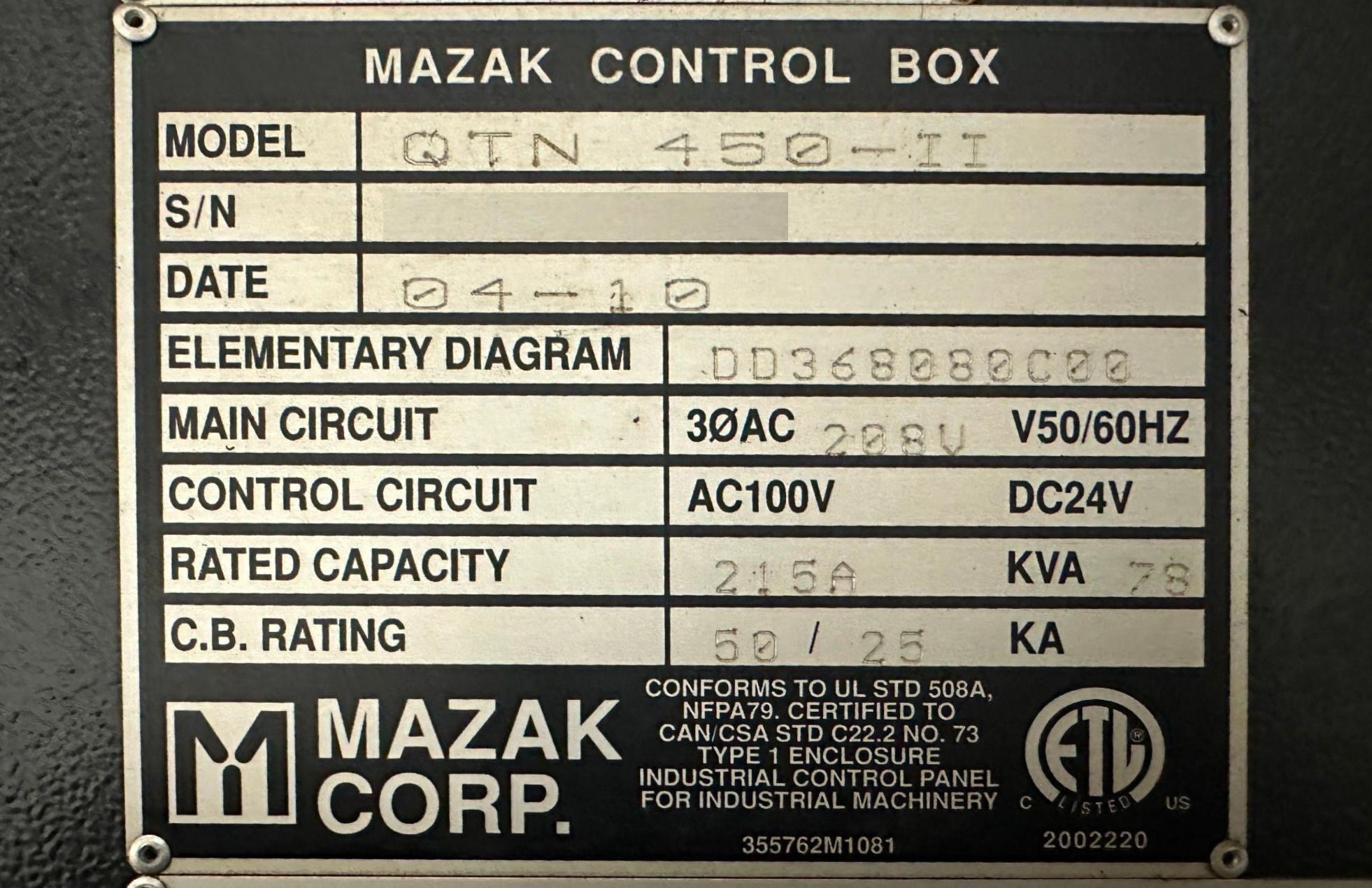

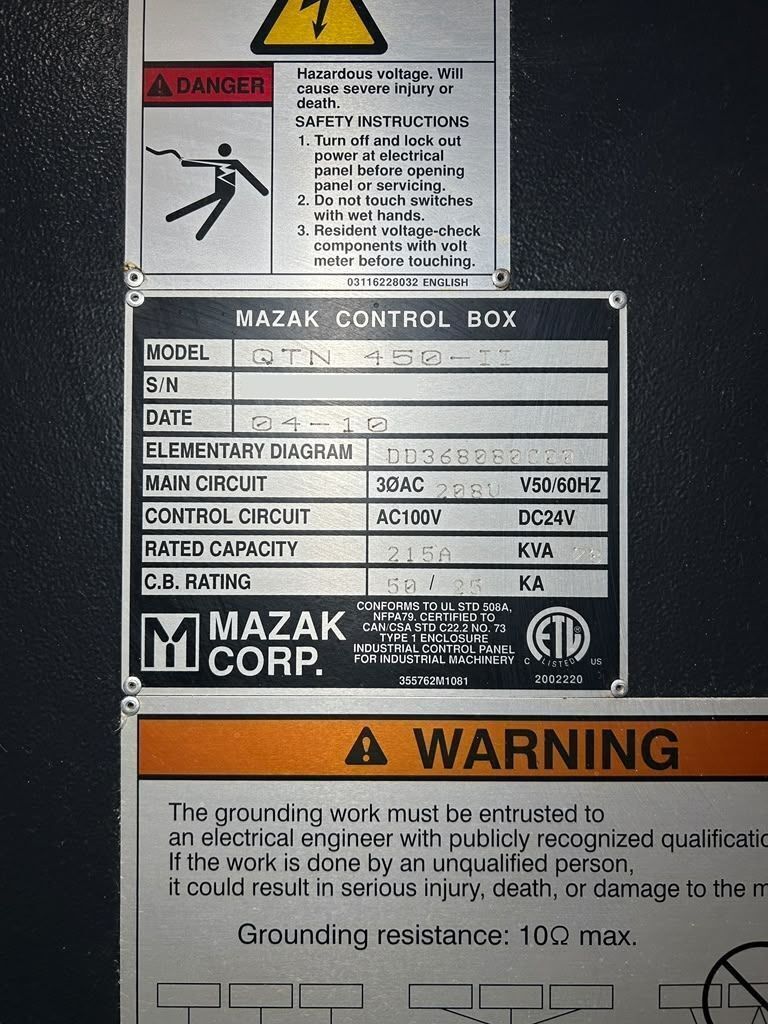

| Power Source: 208V / 50/60 Hz / 3-Phase / 78 kVA |
| Overall Dimensions: 159″ × 90″ × 80″ High |

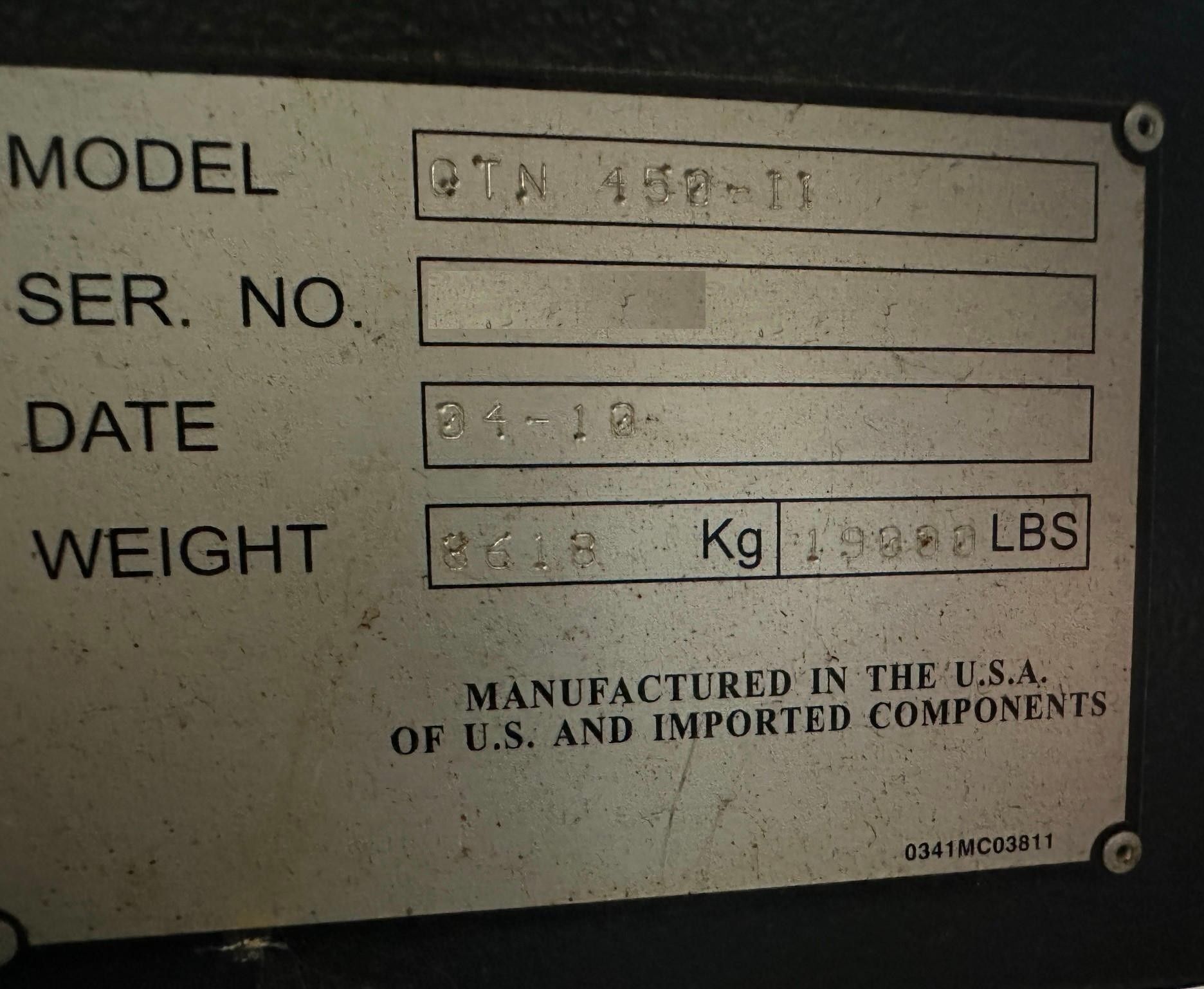

| Weight: 19,000 lbs Approx. |
