Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

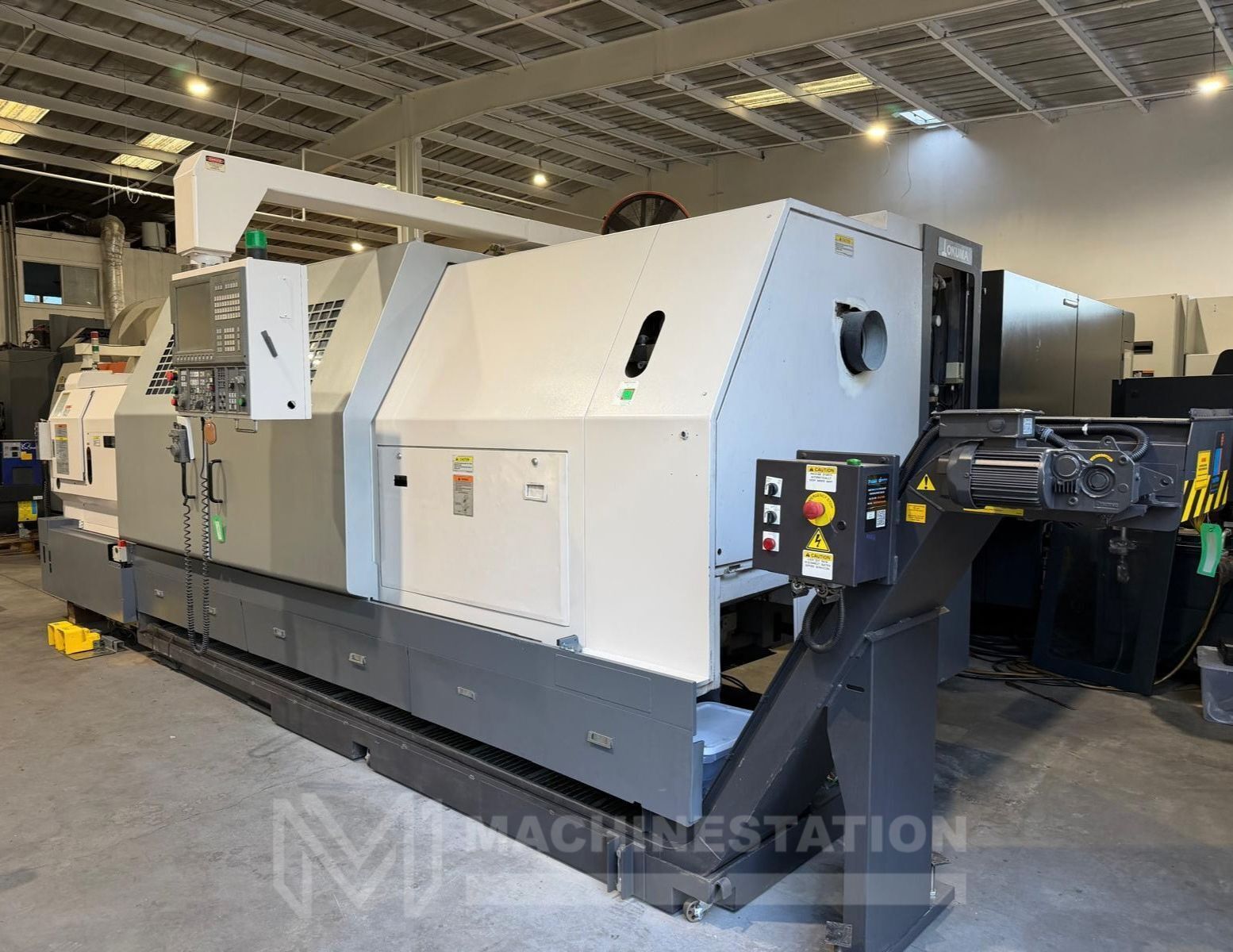

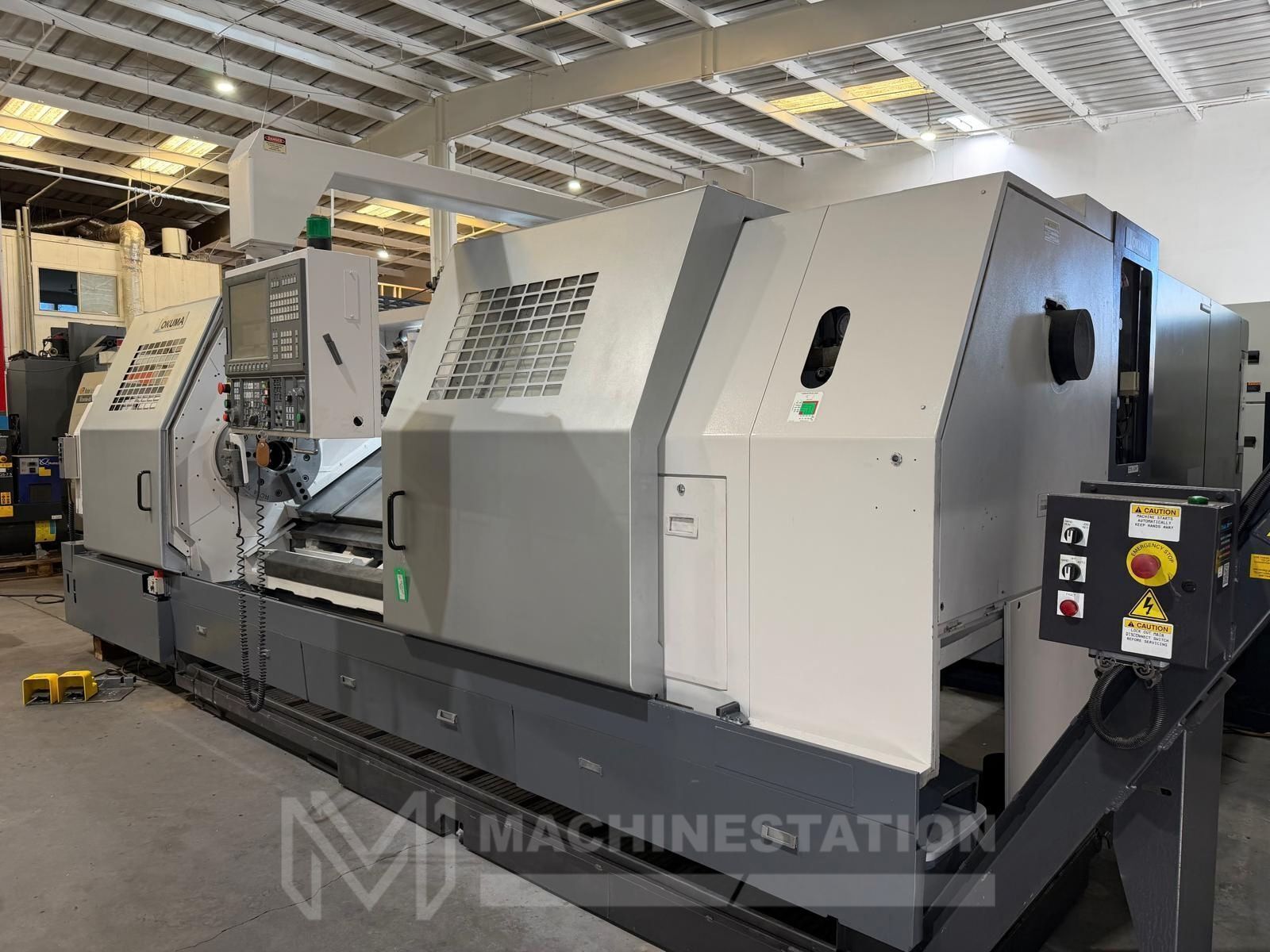

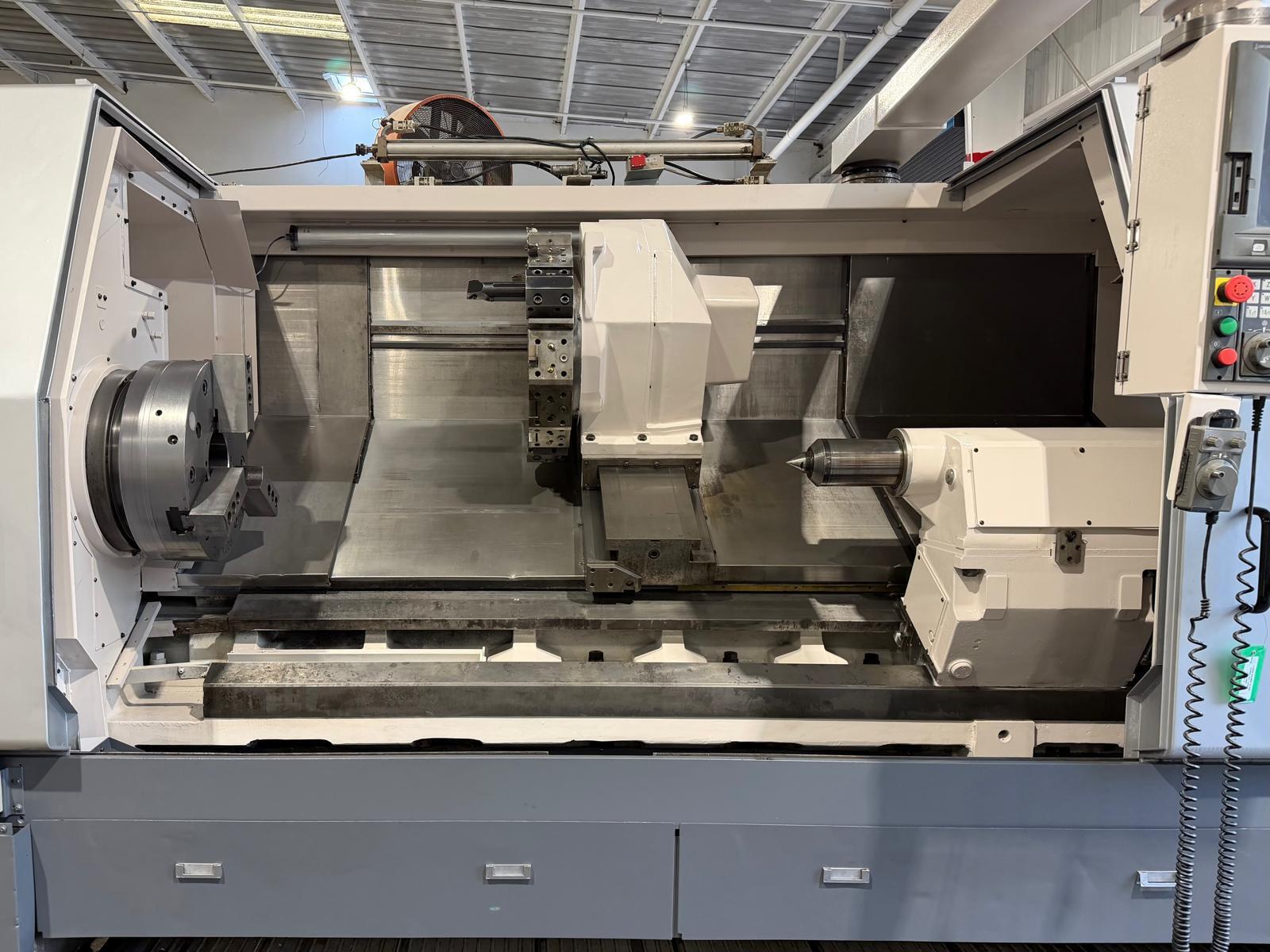

| Make: | Okuma |
| Model: | LB-35II |
| Year: | 2010 |
| Equipped With: |
|---|

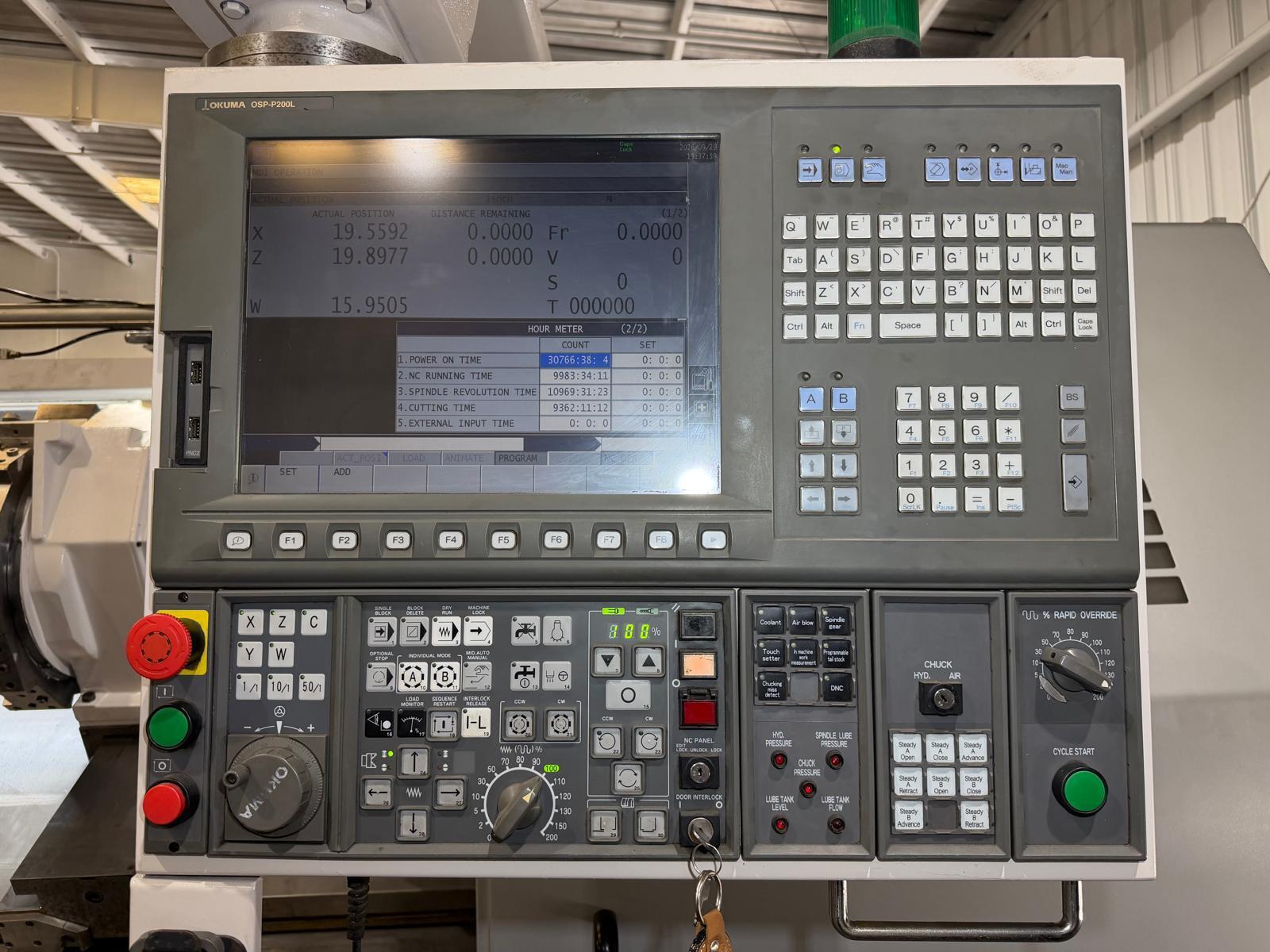

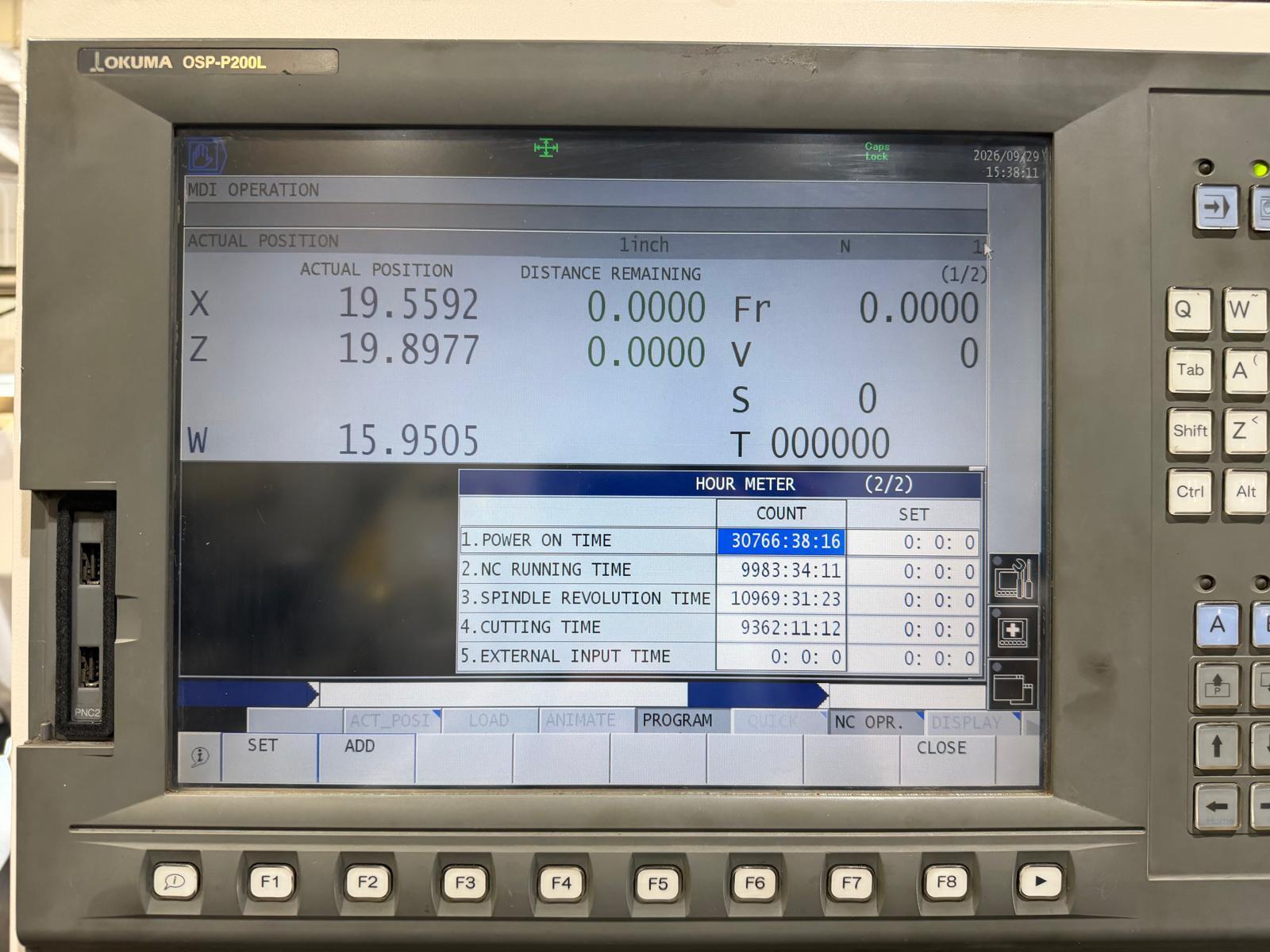

| Okuma OSP-P200L CNC Control |
| Box Way Construction |

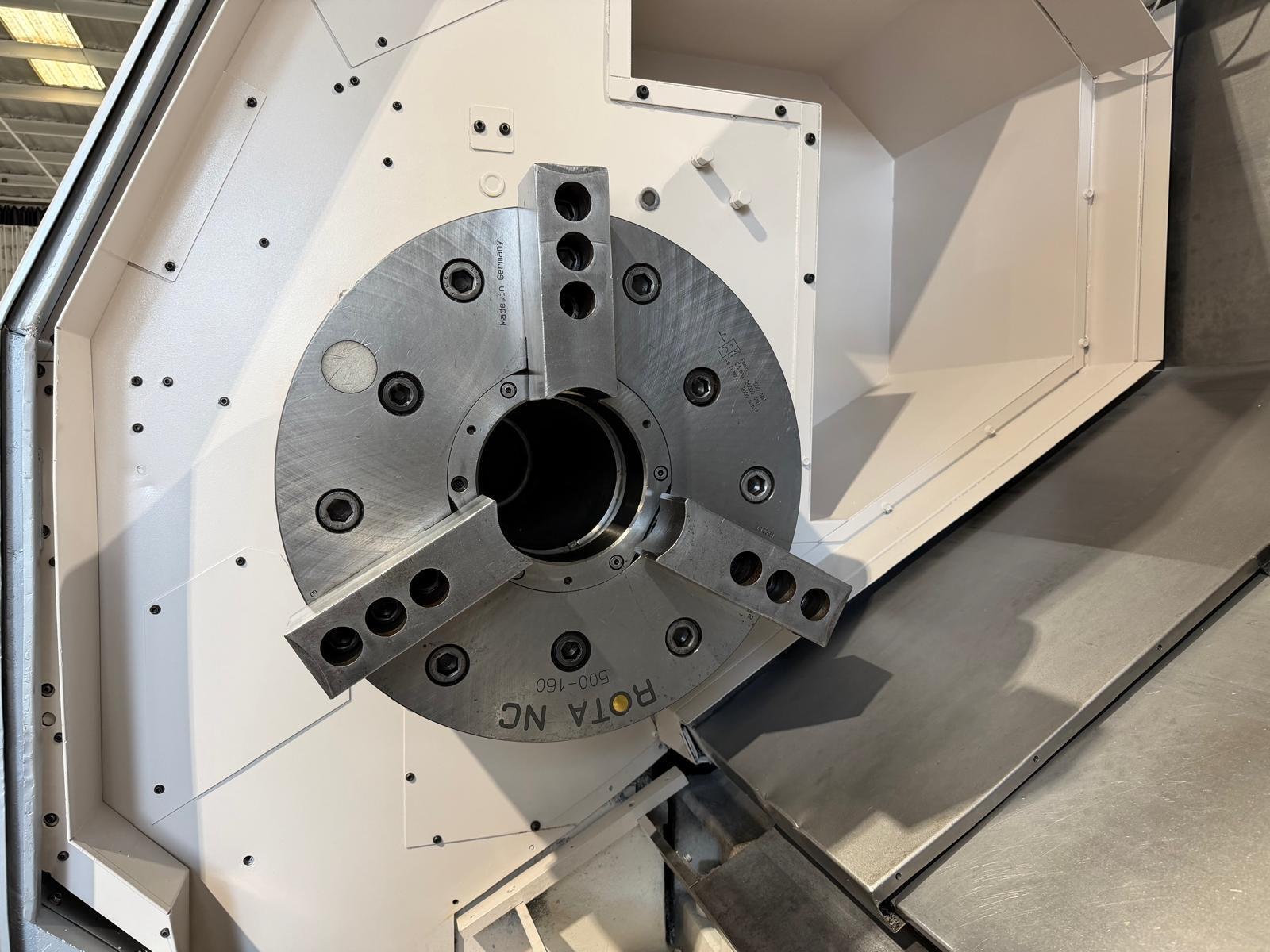

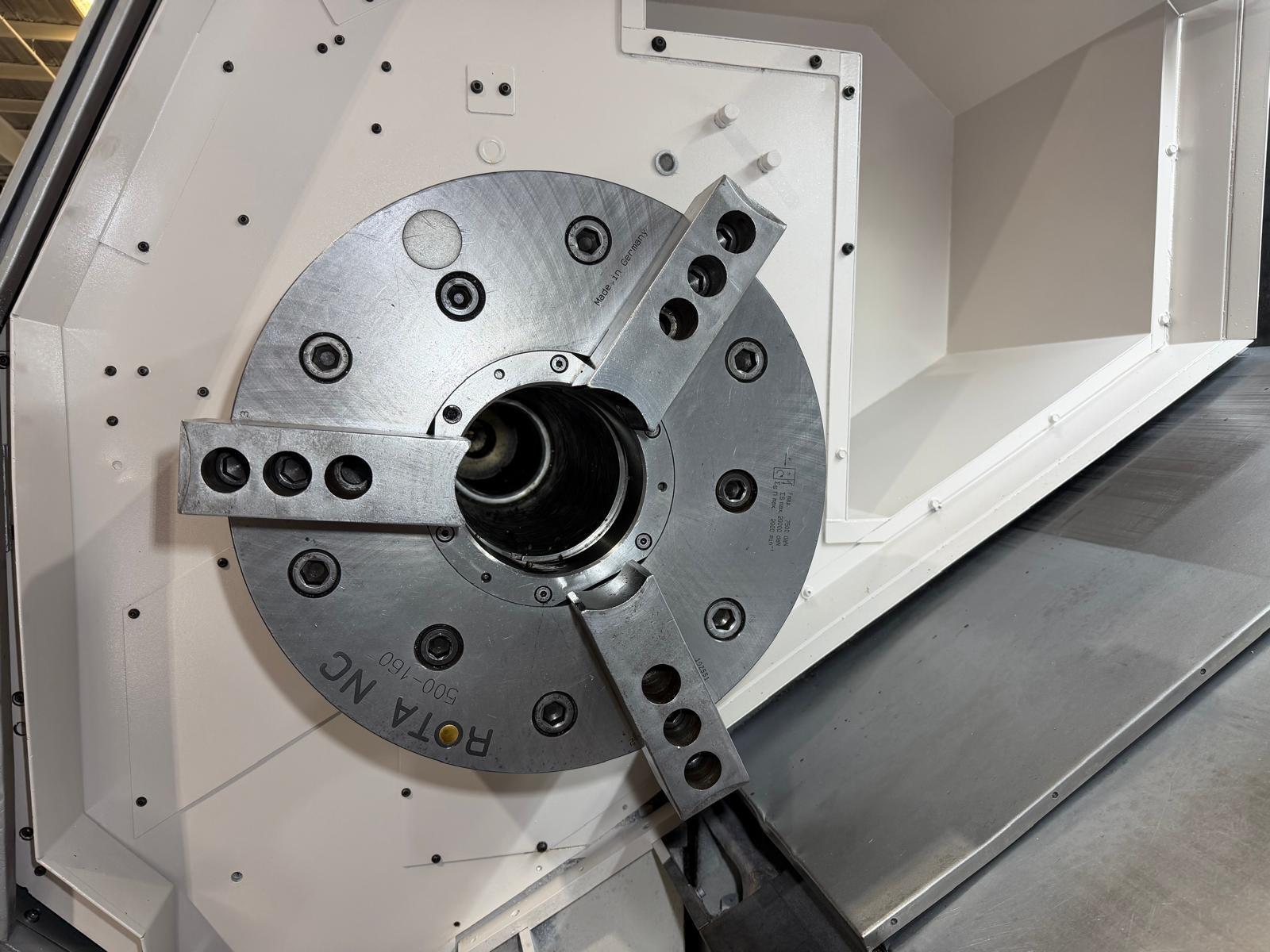

| 20″ 3-Jaw Schunk Rota NC 500-160 Chuck with Through Hole 6 inch |
| A2-15 Spindle |
| 40 HP High-Torque Spindle |

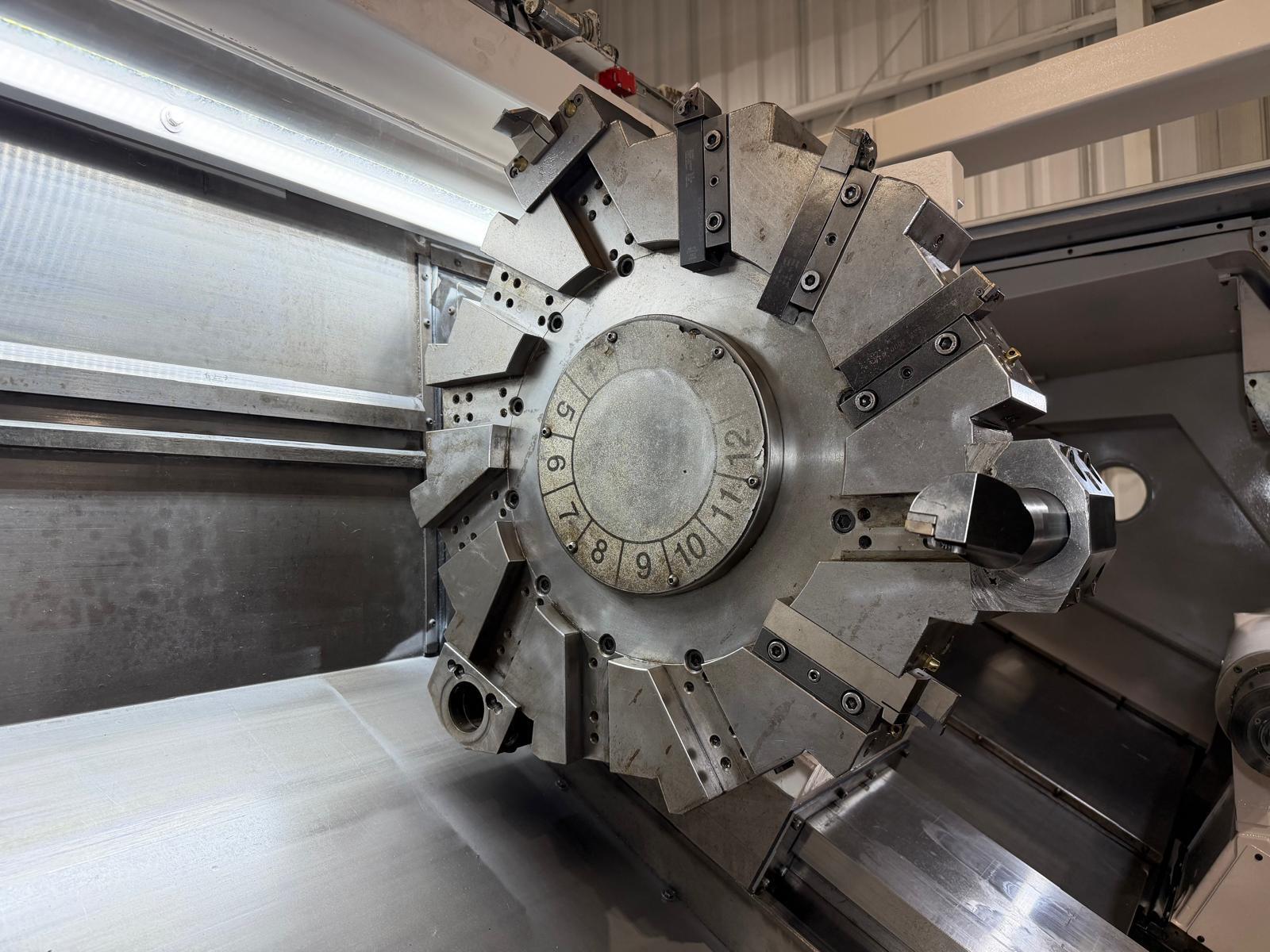

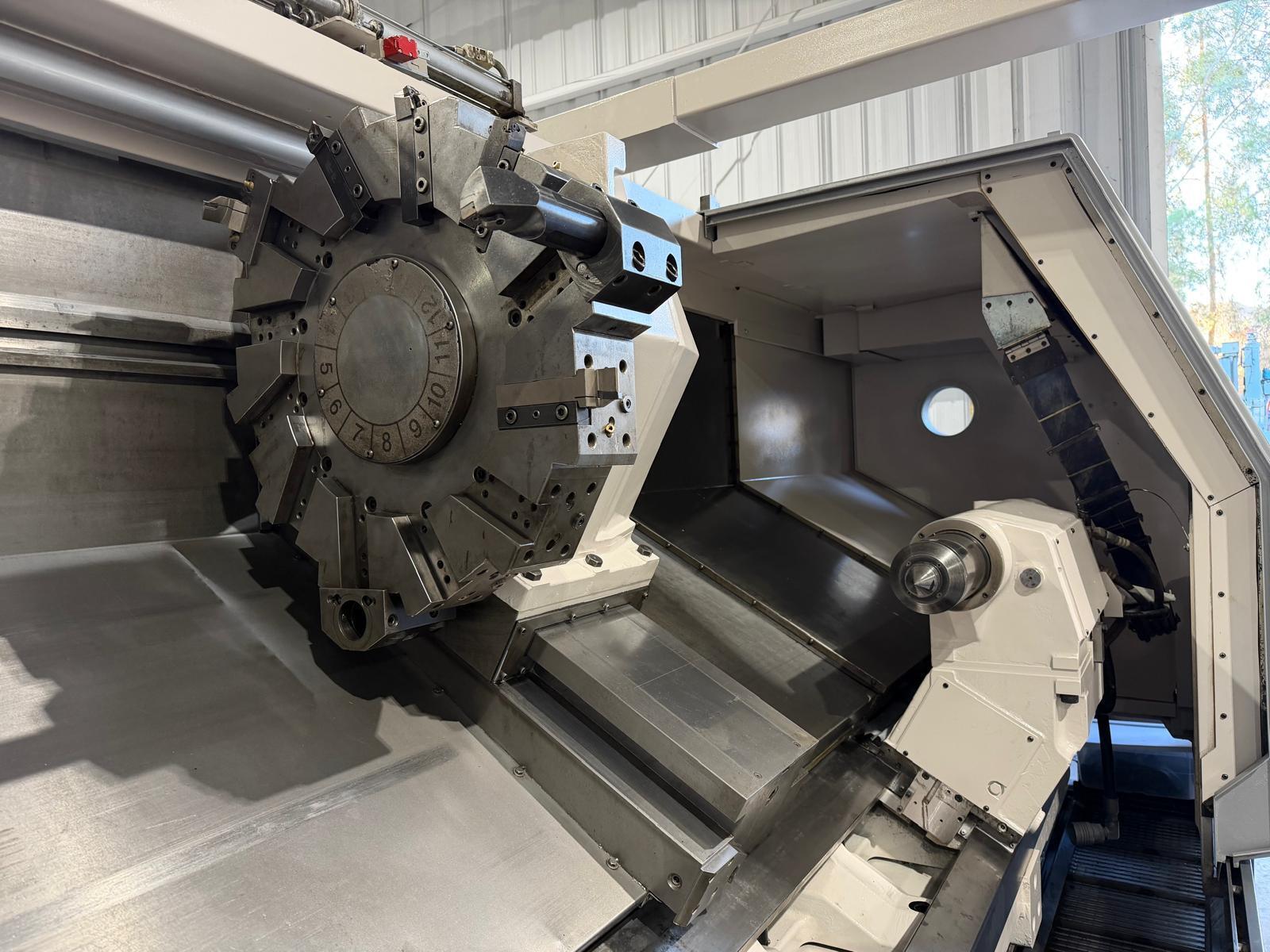

| 12-Station Automatic Turret |

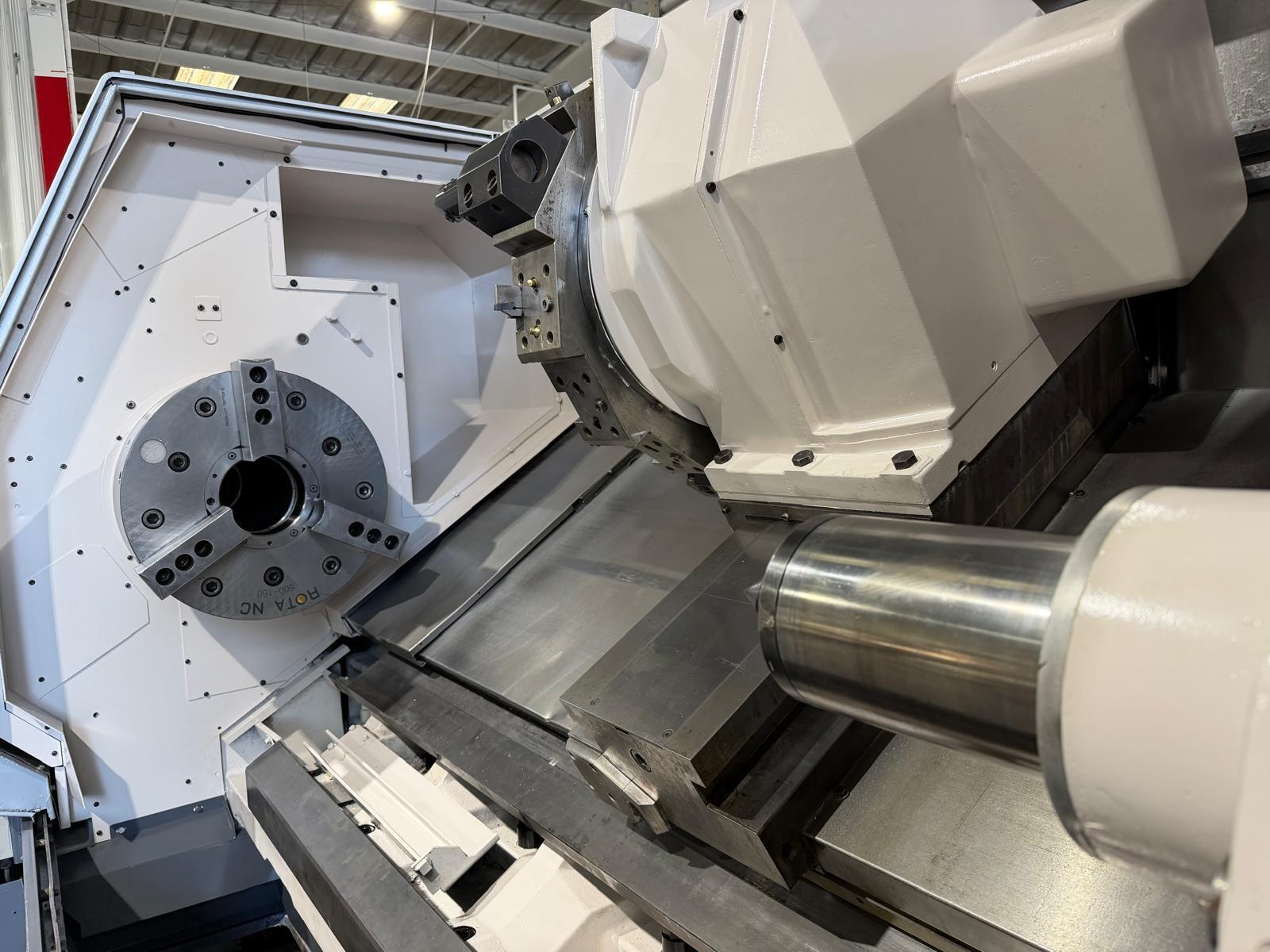

| Tailstock |
| MPG Handwheel Control |
| USB Ports |
| Coolant Tank |

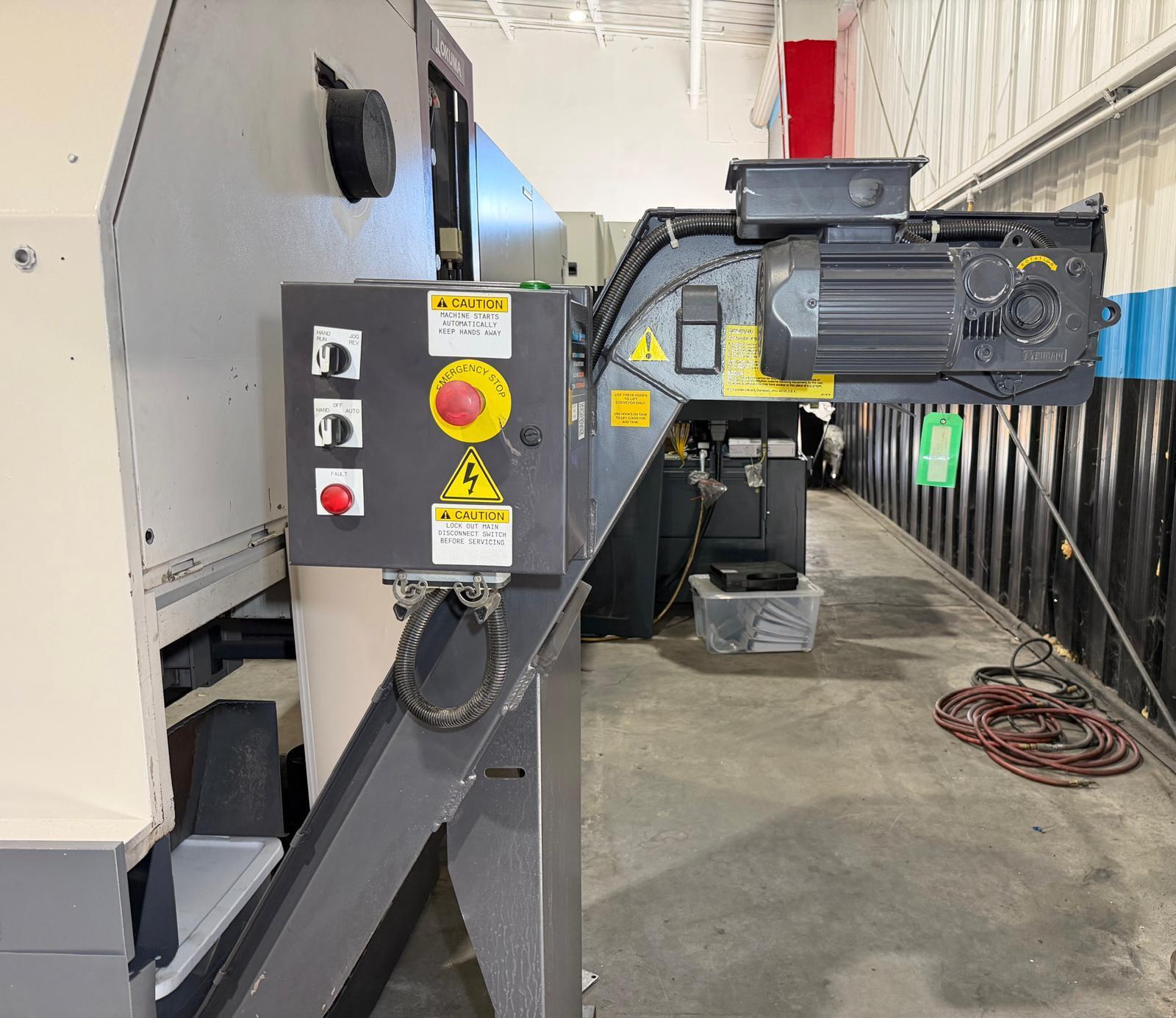

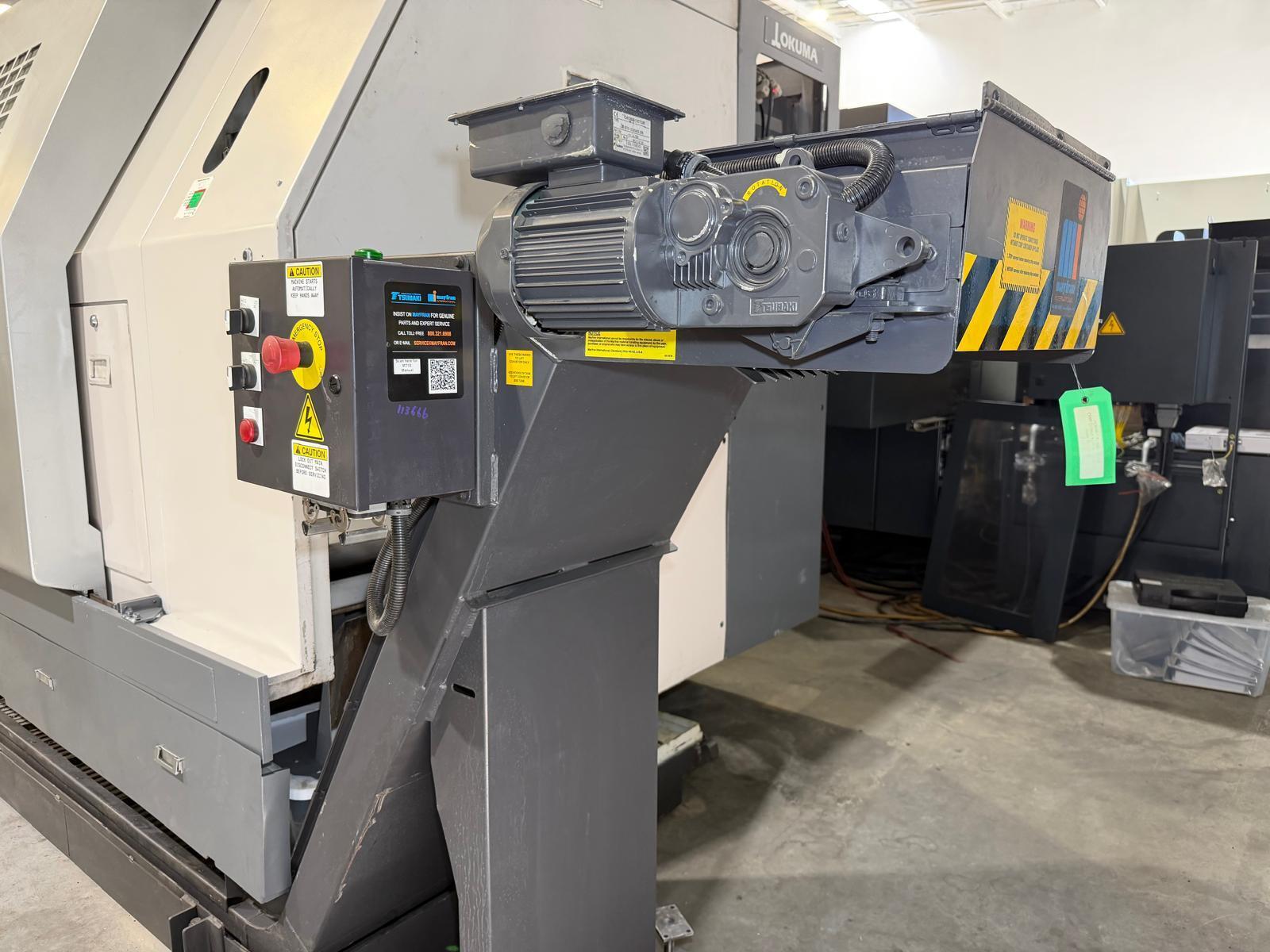

| Chip Conveyor |
| Foot Switches |
| Capacity: |
|---|
| Maximum Turning Diameter: 18.11″ |
| Maximum Turning Length: 118.0″ |
| Swing Over Bed: 27.56″ |
| Maximum Swing Over Saddle: 16.93″ |
| Maximum Bar Capacity: 3.0″ |
| Travel: |
|---|
| X-Axis Travel: 13.0″ |
| Z-Axis Travel: 120.0″ |
| Rapid Traverse X-Axis: 591 IPM |
| Rapid Traverse Z-Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Speed: 1,400 RPM |
| Spindle Motor: 40 HP |
| Turret: |
|---|
| Capacity: 12 Stations |
| Turning Tool Shank: 1.0″ |
| Boring Bar Shank Diameter: 2.0″ |
| Tool Change Time: 0.3 Sec. |

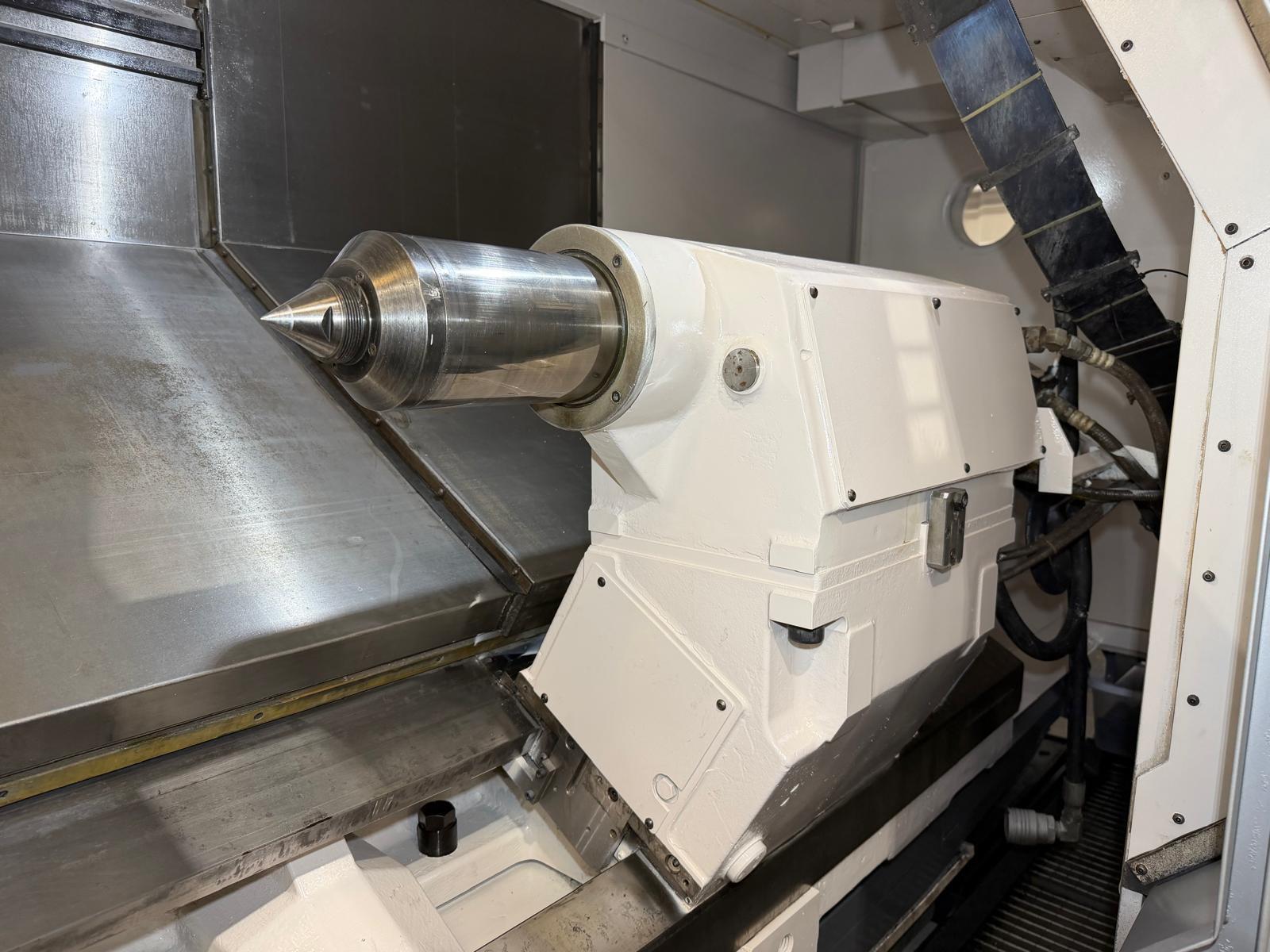

| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quill Diameter: 4.72″ |
| Tailstock Quill Travel: 6.70″ |
| General: |
|---|

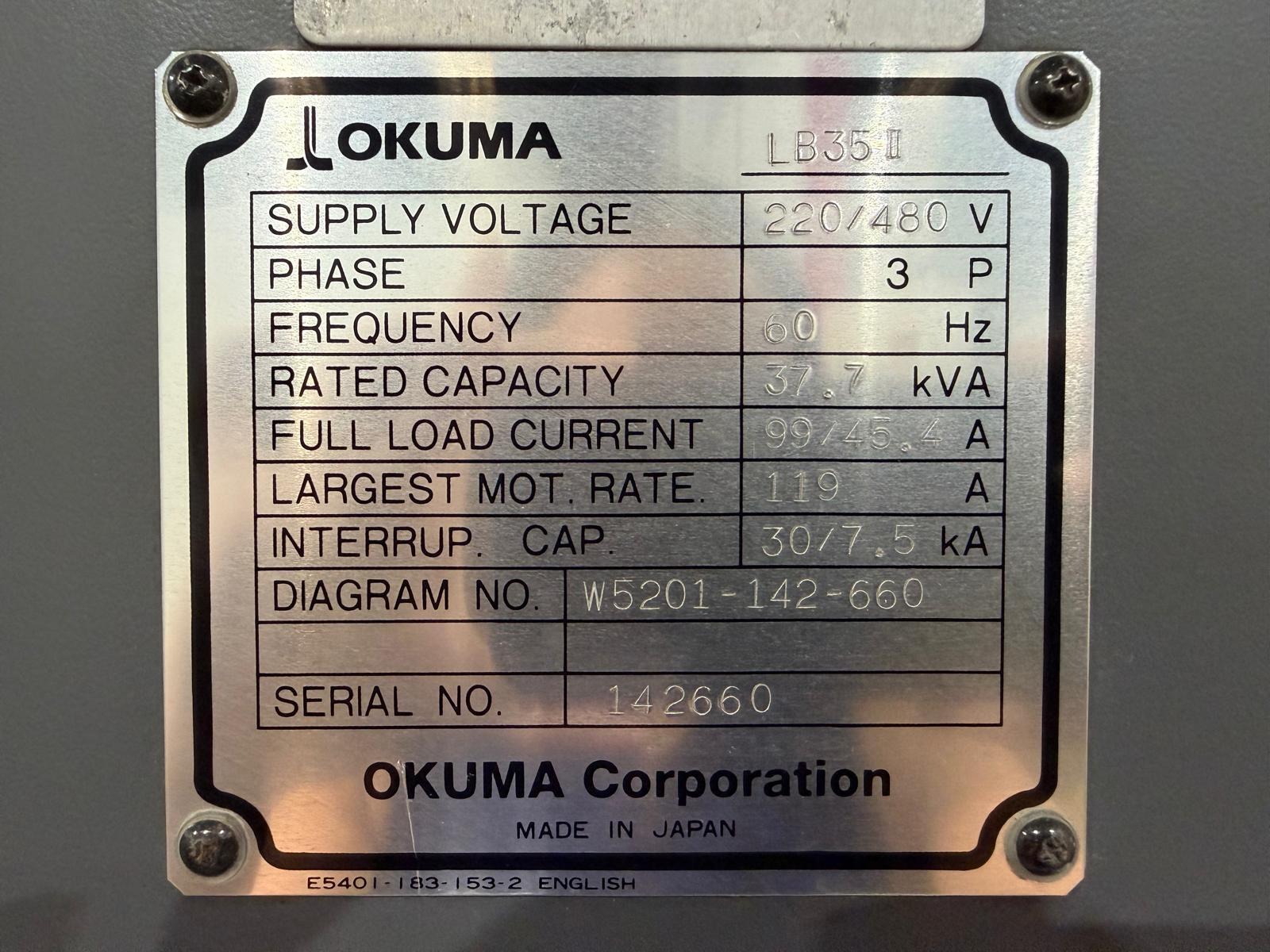

| Power: 220V / 480V / 37.7 kVA / 3-Phase |
| Overall Dimensions: 275″ × 105″ × 92″ High Approx. |
| Weight: 28,380 lbs Approx. |
