Used 5x CAT40 3/4″ End Mill Holder x 1-3/4″ Gage Length, TSC Haas Part #: 04-0004

5x CAT40 3/4″ End Mill Holder x 1-3/4″ Gage Length, TSC Haas Part #: 04-0004

Location Lake Elsinore, CA

SKU 24125

Make HAAS

Model C40-EM.75-1.75 04-0004

Condition Used

Out of stock

Location:	Lake Elsinore, CA
SKU:	24125
Make:	HAAS
Model:	C40-EM.75-1.75 04-0004
Condition:	Used

SKU: 24125

Brand: HAAS

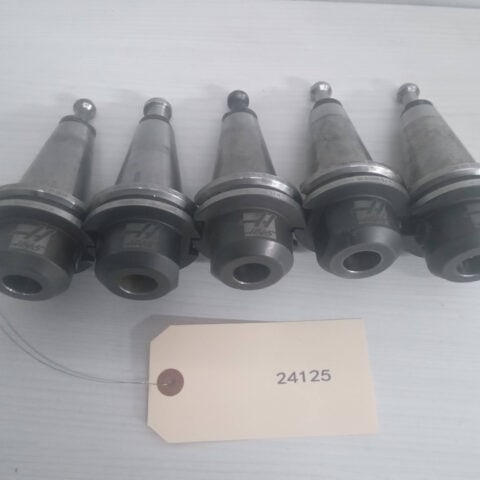

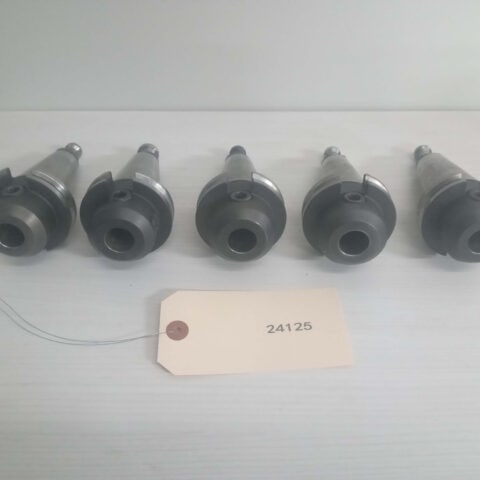

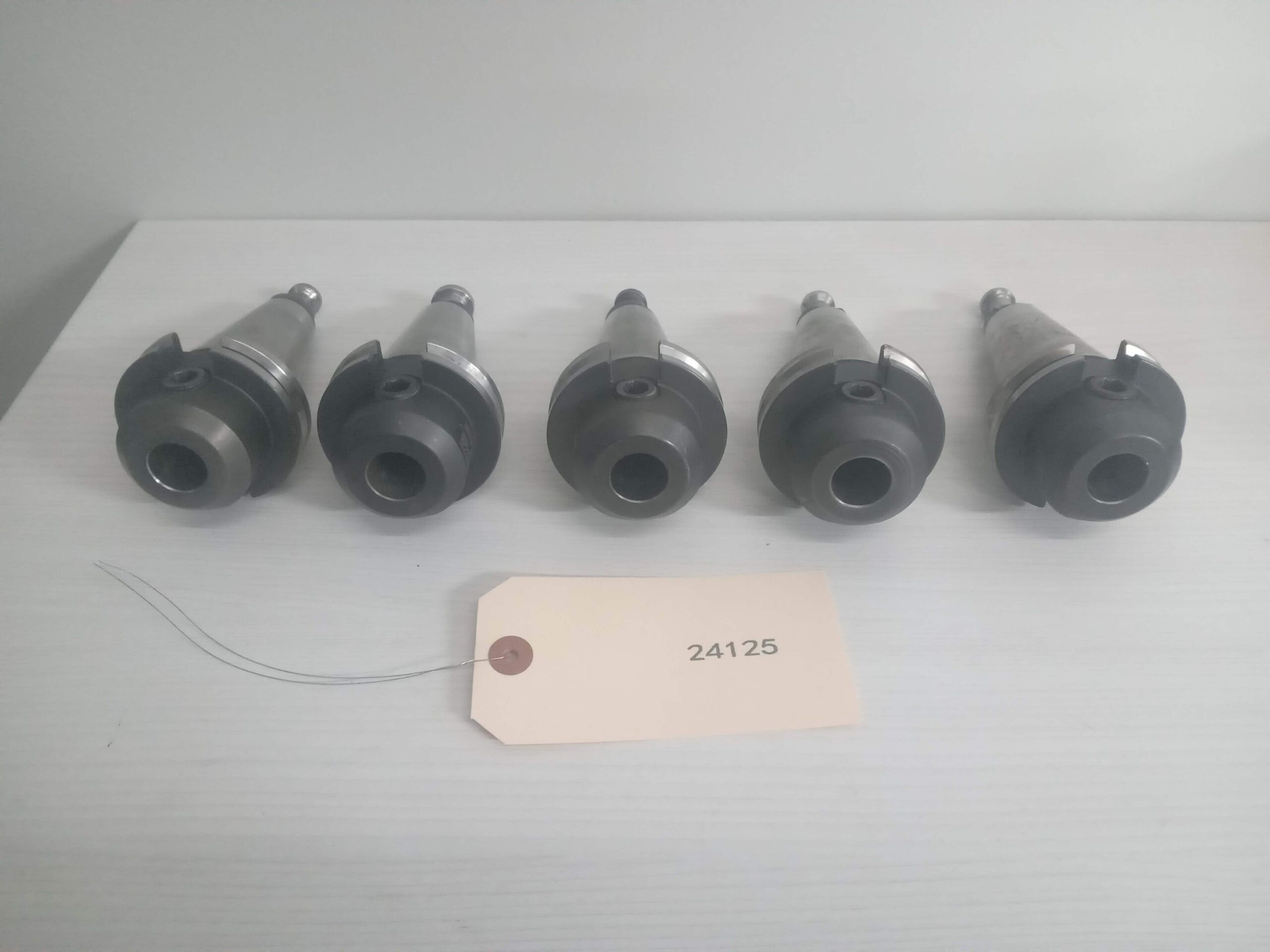

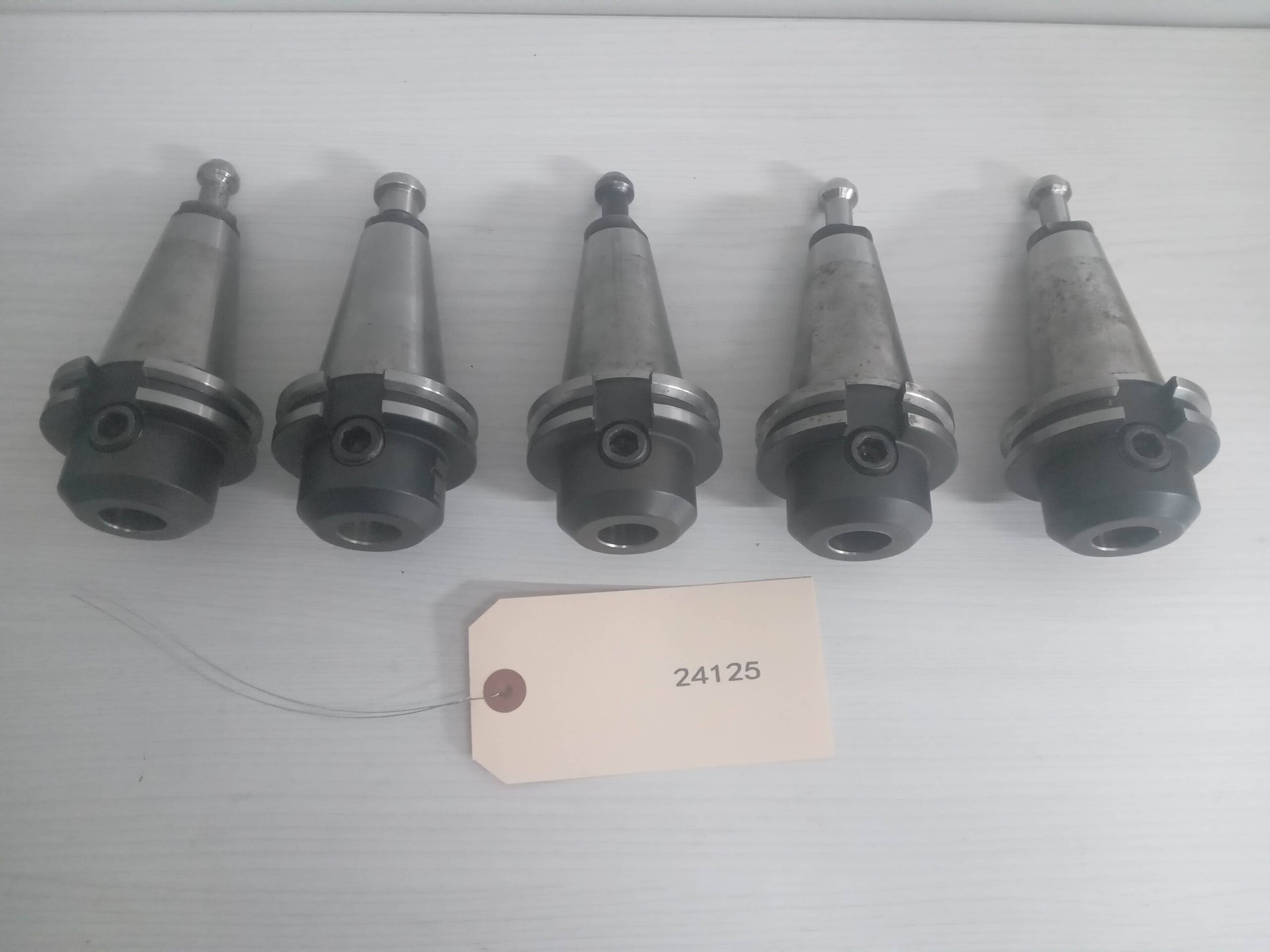

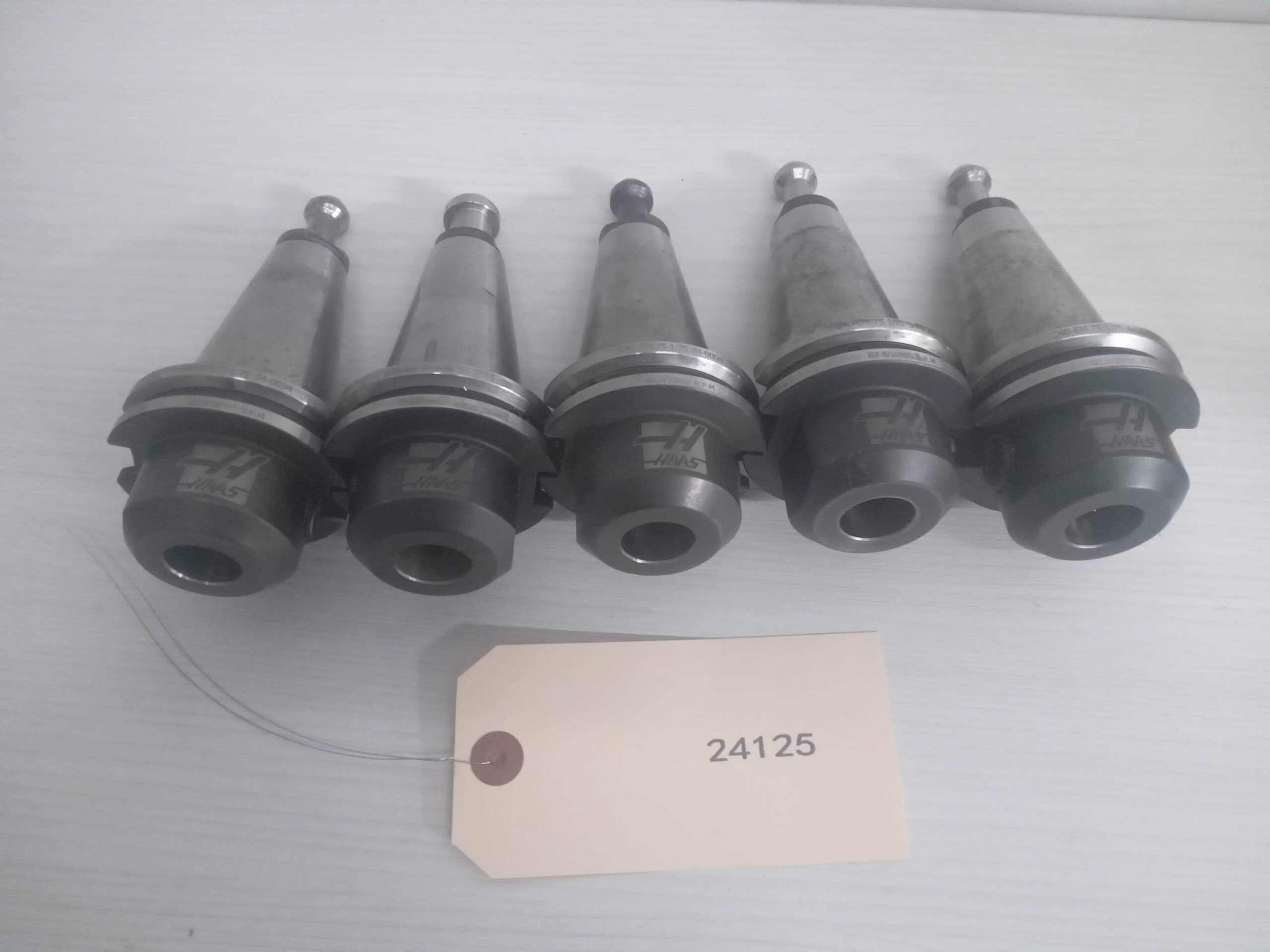

Lot of five (5) Cat40 Tool Holders from Haas Haas Part #: 04-0004

One holder has a Mori Style retention knob, Other 4 are included, please verify that these are proper for your machine prior to use. they are not the Through Spindle Coolant type.

*The tool holders support through spindle coolant themselves, but the pull studs will need to be changed to pull studs that do support TSC*

C40-EM.75-1.75 04-0004
G2.5/20000 RPM

CAT40 3/4″ End Mill Holder x 1-3/4″ Gage Length, TSC
Haas Part #: 04-0004

This CAT40 end mill holder has a 0.75 in 3/4″ bore diameter and a 1-3/4″ gage length. It uses the Weldon flat standard with side-lock clamping for secure clamping of cutting tools. It is through-tool coolant (TSC) capable, with a 5/8″-11 pull stud/retention knob thread.

System of Measurement Inch – ANSI
Taper CT40
[ØD] Bore Diameter 0.75 in 3/4″
[ØBD] Body Diameter 1.75 in
[GL] Gage Length 1.75 in
[BL] Body Length 1.0 in
[TP1] Thread 5/8″-18
Concentricity 0.0002 in
Balanced to RPM 20,000
Bore Tolerance H5
Retention Knob Thread Size 5/8″-11
Through Tool Coolant Yes
Spindle Drive Slots Yes
Weight 2.3 lbs 1.1 kg

Lot of five (5) Cat40 Tool Holders from Haas Haas Part #: 04-0004

One holder has a Mori Style retention knob, Other 4 are included, please verify that these are proper for your machine prior to use. they are not the Through Spindle Coolant type.

*The tool holders support through spindle coolant themselves, but the pull studs will need to be changed to pull studs that do support TSC*

C40-EM.75-1.75 04-0004

G2.5/20000 RPM

CAT40 3/4″ End Mill Holder x 1-3/4″ Gage Length, TSC

Haas Part #: 04-0004

System of Measurement Inch – ANSI

Taper CT40

[ØD] Bore Diameter 0.75 in 3/4″

[ØBD] Body Diameter 1.75 in

[GL] Gage Length 1.75 in

[BL] Body Length 1.0 in

[TP1] Thread 5/8″-18

Concentricity 0.0002 in

Balanced to RPM 20,000

Bore Tolerance H5

Retention Knob Thread Size 5/8″-11

Through Tool Coolant Yes

Spindle Drive Slots Yes

Weight 2.3 lbs 1.1 kg

No detailed specifications listed for this machine yet — call us for full specs.

Make	Haas
Model	C40-EM.75-1.75 04-0004
