*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

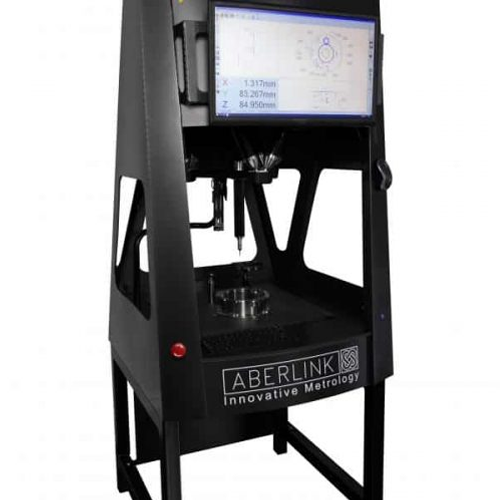

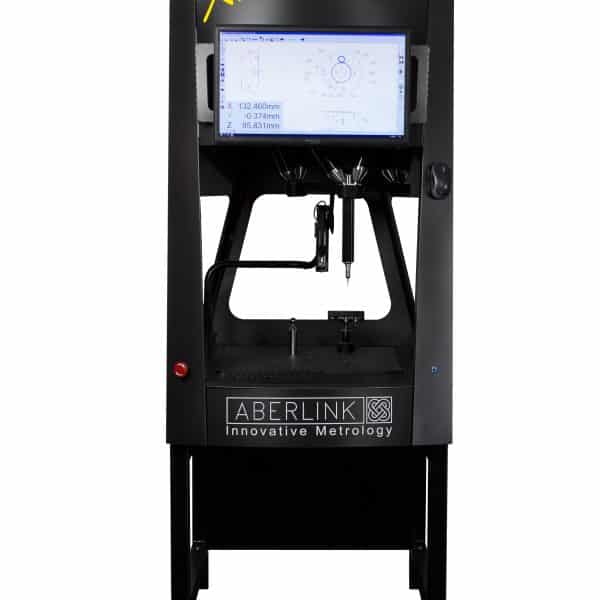

| Make: | Aberlink |
| Model: | XTREME500 |
| Condition: | Brand New |
| Features: |
|---|
| Renishaw GC High Speed Dedicated Control System |
| Aberlink 3D geometric measurement software for CNC |

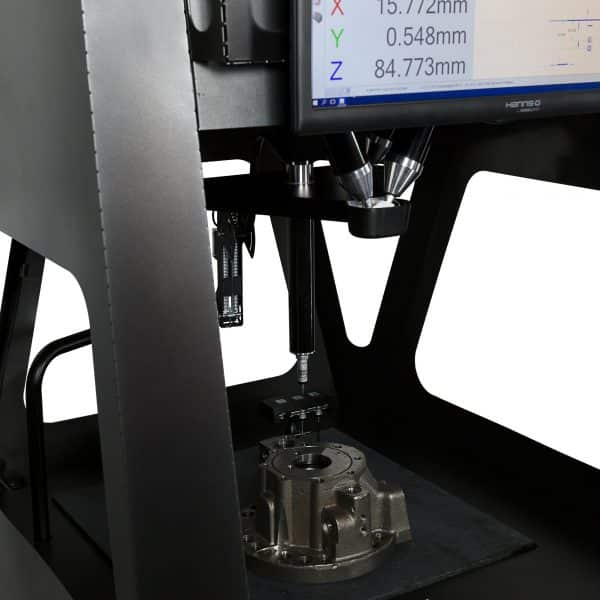

| Renishaw TP20 Probe Body and TP20 Probe Module |
| MCR20-3 probe module change rack |

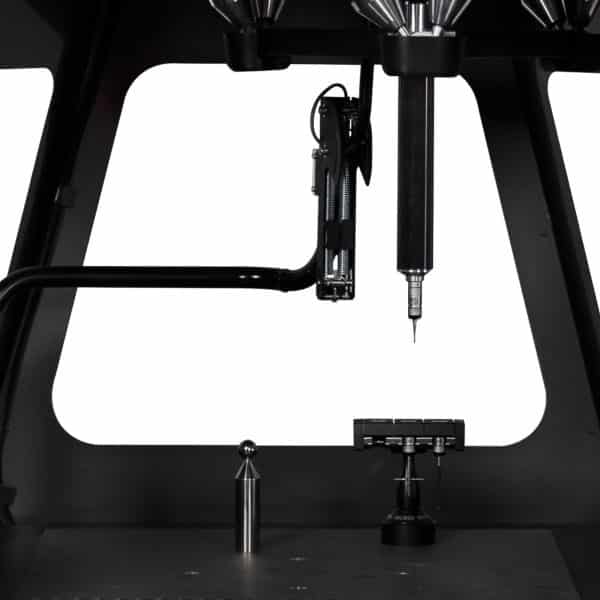

| Carbide reference ball for the calibration of probe positions |
| Xtreme CMM bench |
| Two Fixturing Templates |
| Also Included 2-day training course for up to 4 operators, held at customer site after the installation |
| Specification: |
|---|
| Measurement Volume 350 |
| X Axis: 400mm |
| Y Axis: 400mm |
| Z Axis: 270mm |
| Resolution: 0.0005mm (Renishaw Scale & Readhead) |
| Component Load Capacity: 100Kg |
| Max. velocity vector: 500mm/sec |
| Max. Acceleration Vector: 750mm/sec |
| Air Consumption: Not Required |
| Volumetric Accuracy: 3 -L/250 um (ISO 10360-2) |
| Options Available: |
|---|
| Programming from CAD software module $2,600.00 |
| Aberlink CAD Comparison software module $2,600.00 |
| Additional TP20 Probe Module $951.00 |
| Dual Monitor $450.00 |
| Top Mount Touch Screen Monitor $300.00 |
| Industrial Joystick – Deva 044 $670.00 |
| Fixlogix flexible fixturing kit $1,620.00 |
