*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

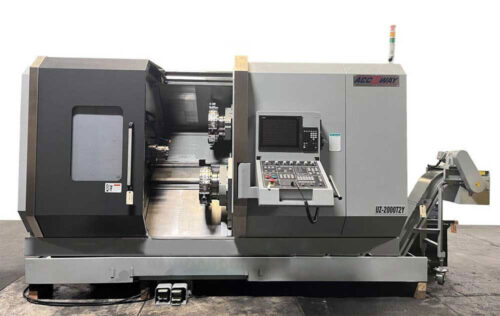

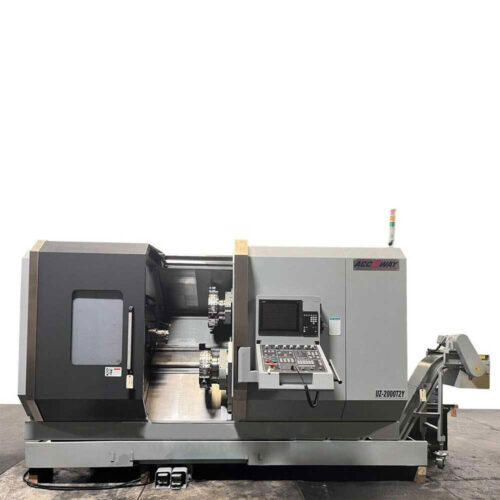

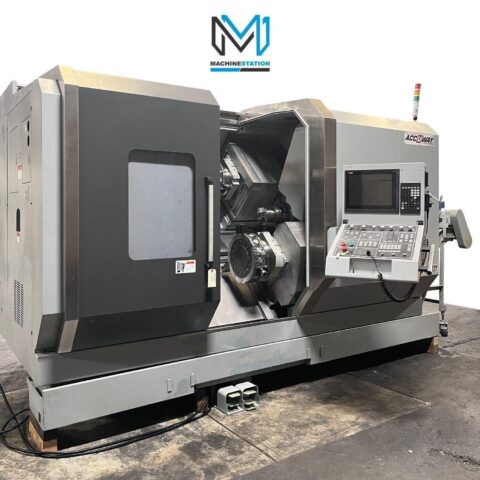

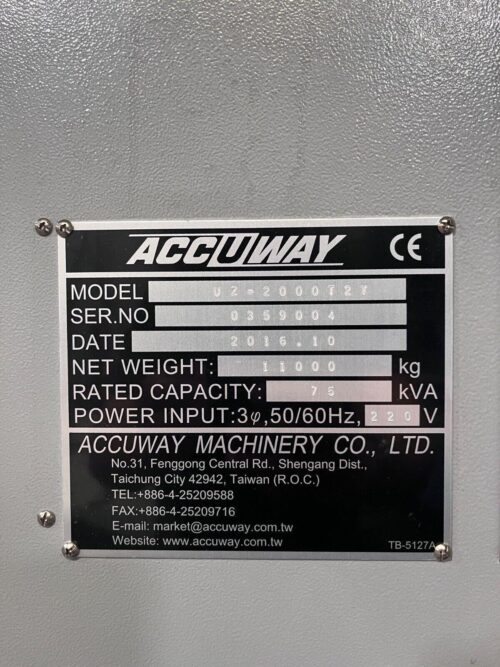

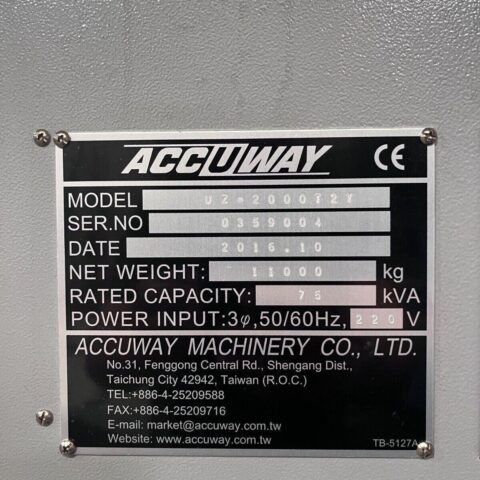

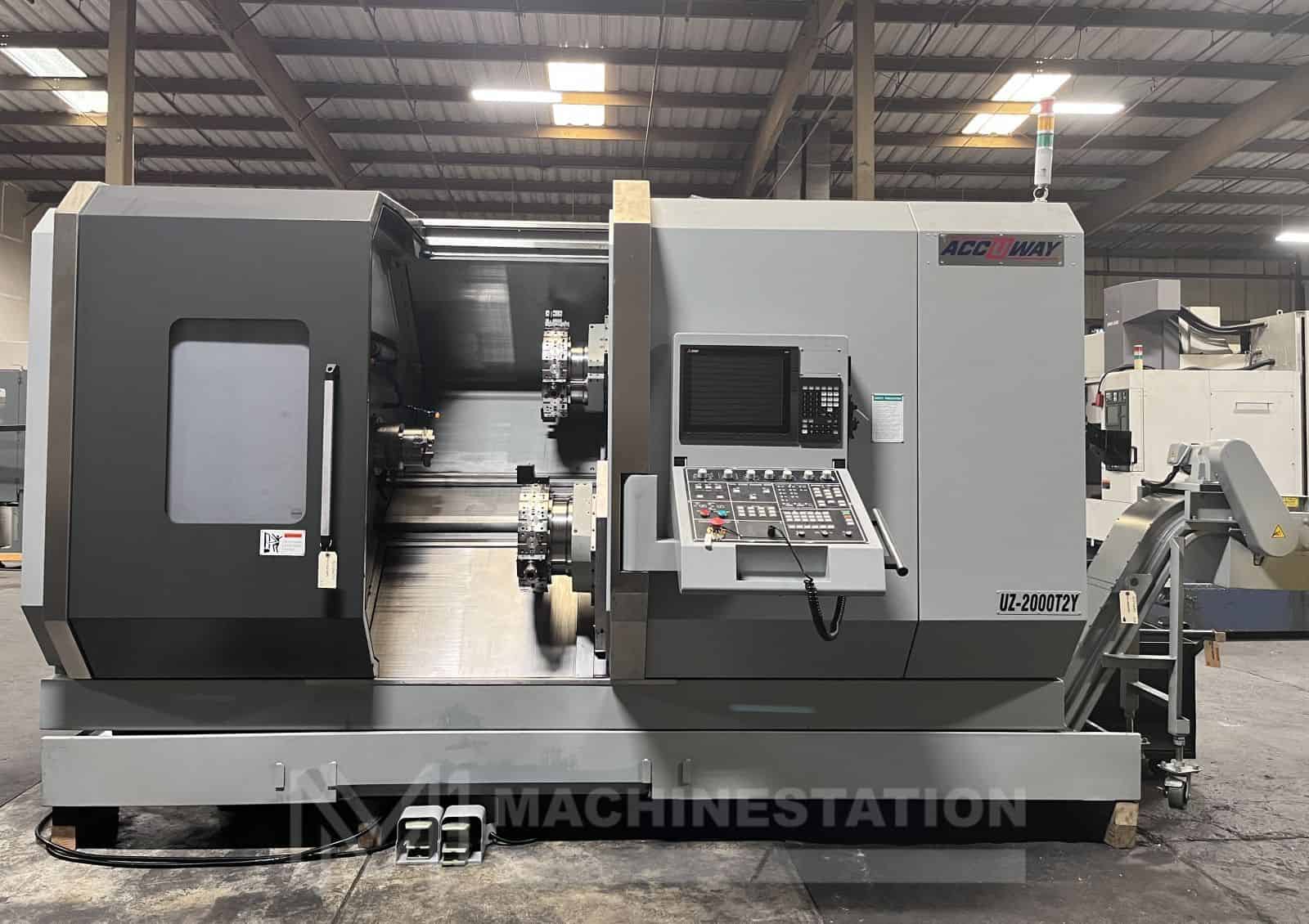

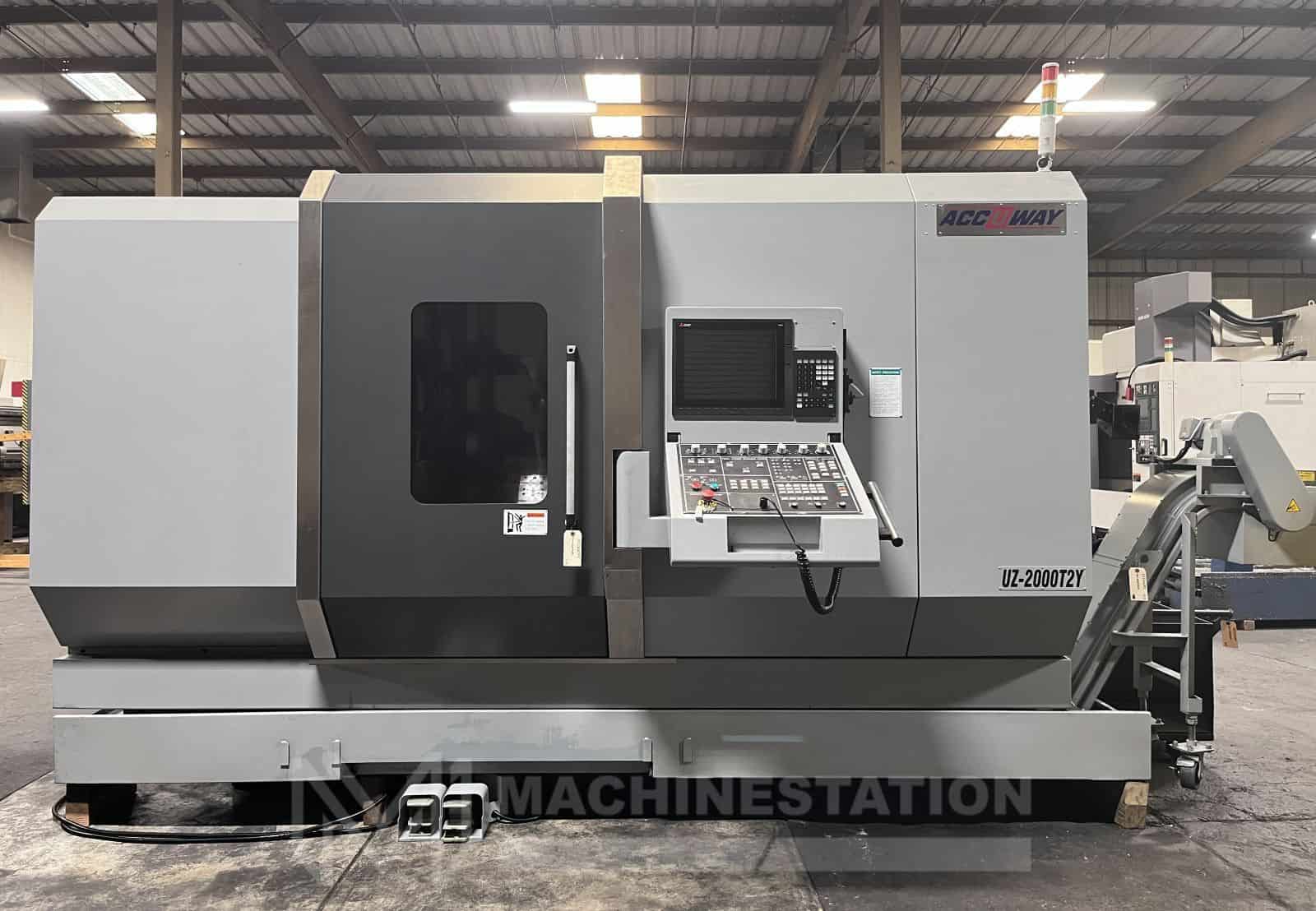

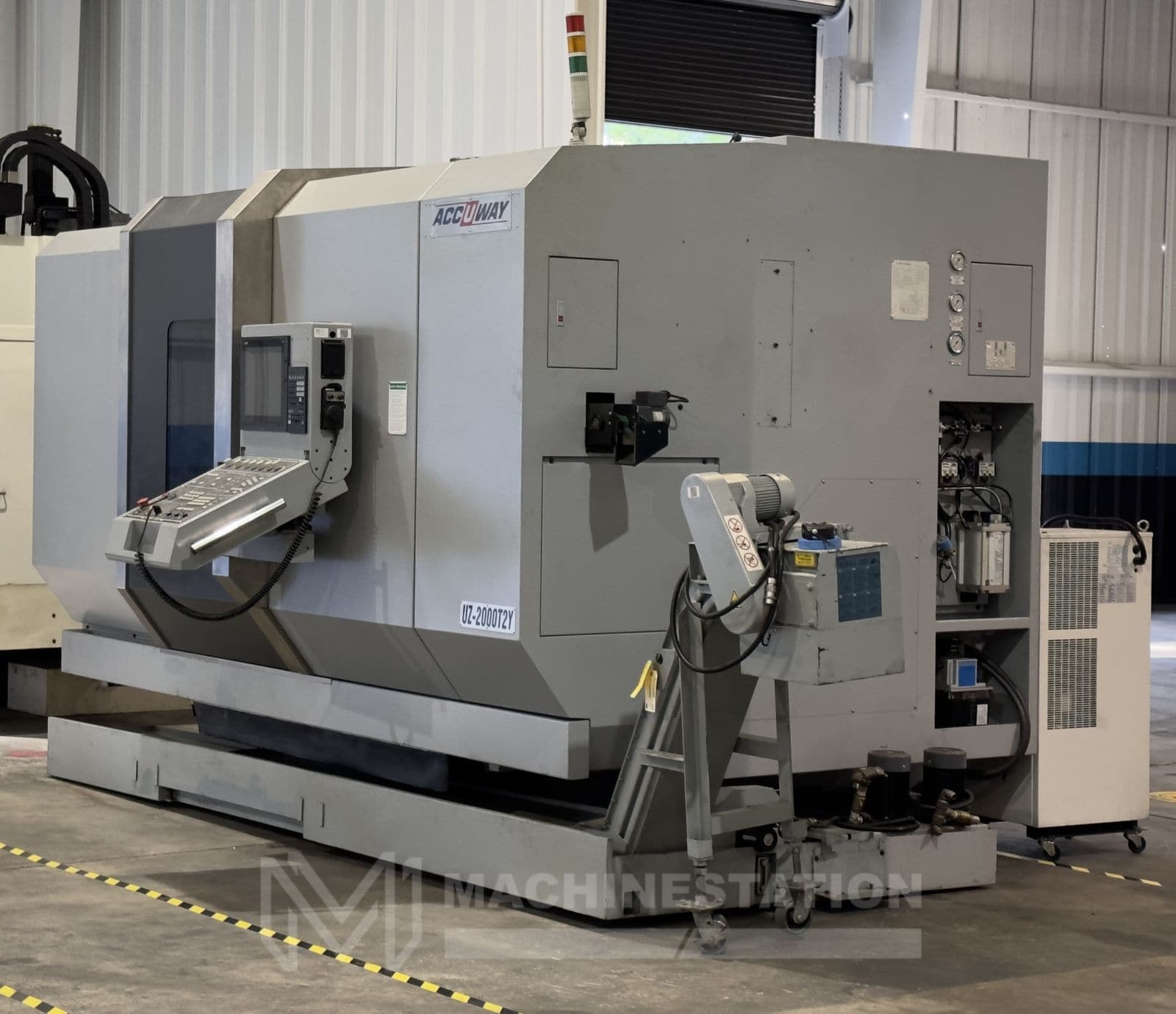

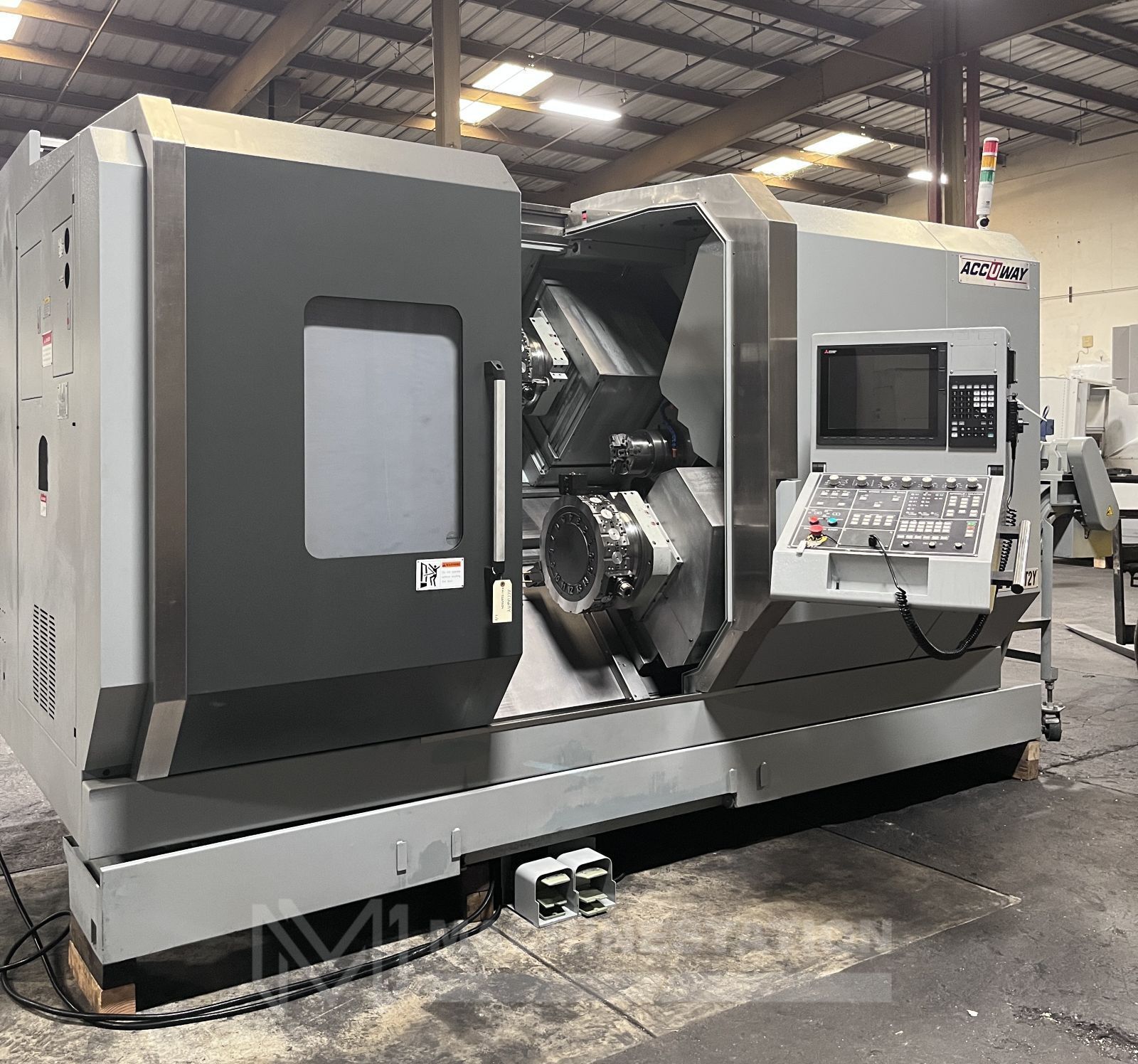

| Make: | Accuway |

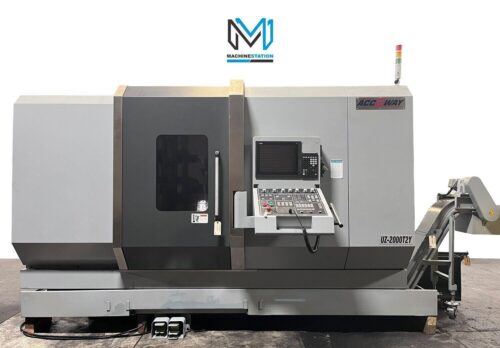

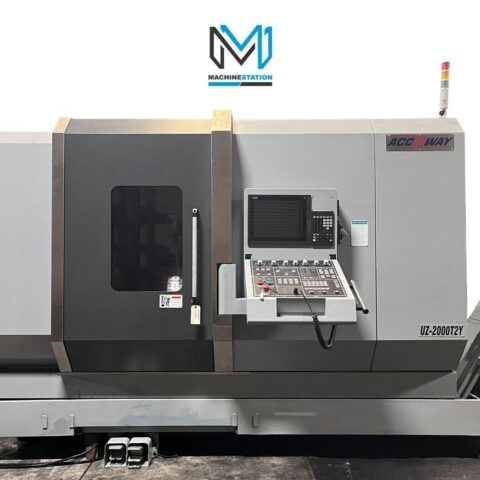

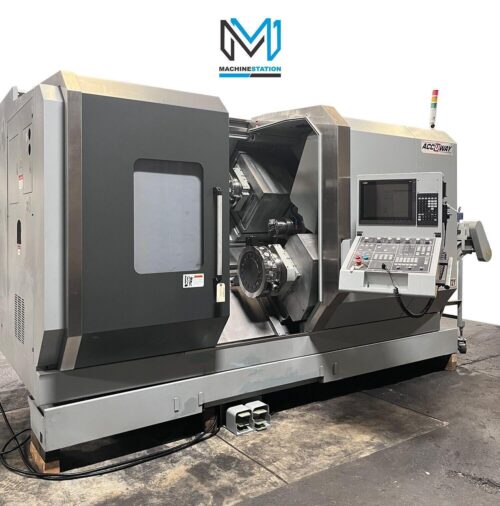

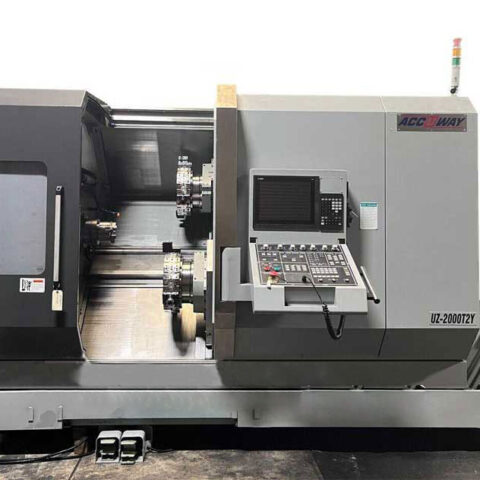

| Model: | UZ-2000T2Y |
| Year: | 2016 (Sold & Installed in 2018) |
| Condition: | Used – Excellent (Almost New) |
| Equipped With: |
|---|

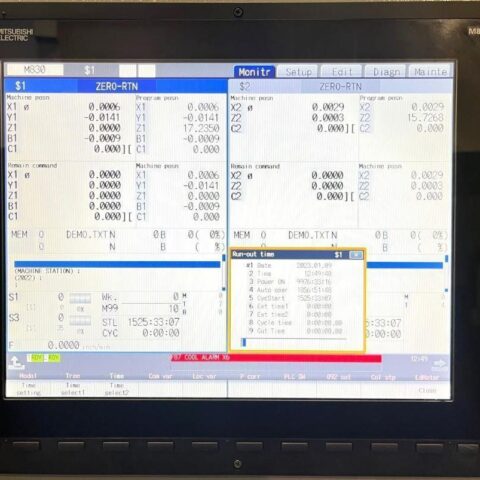

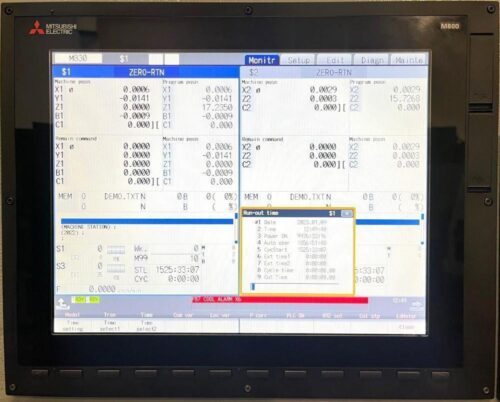

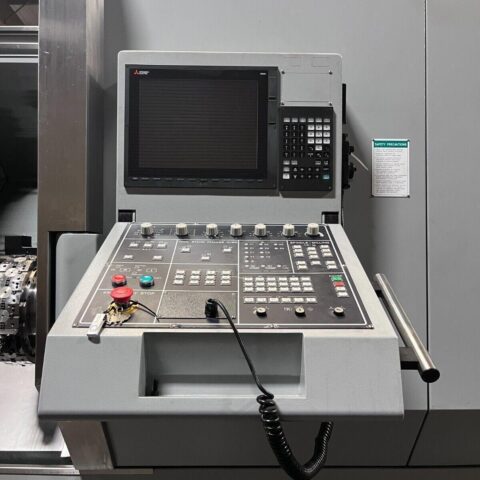

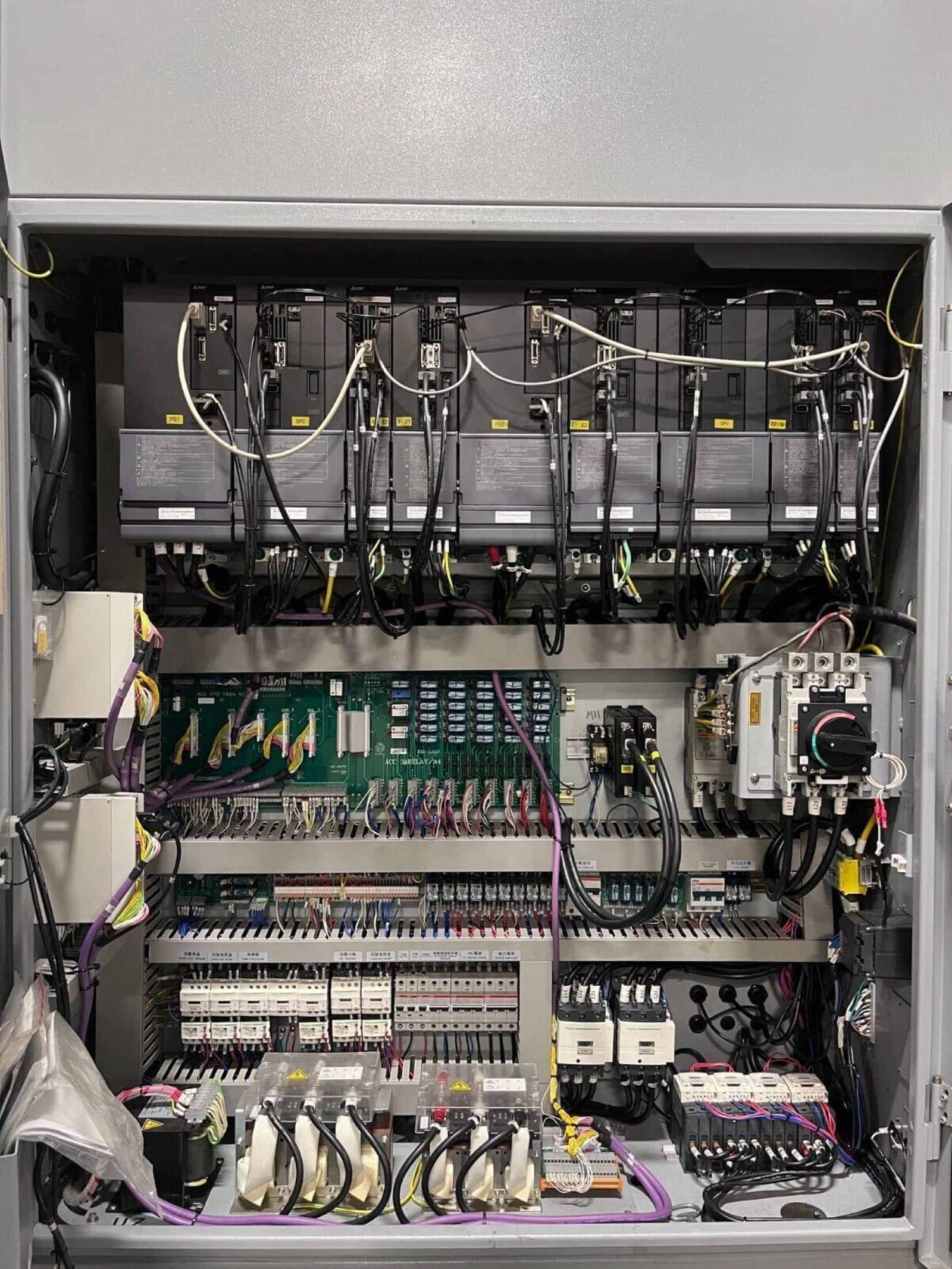

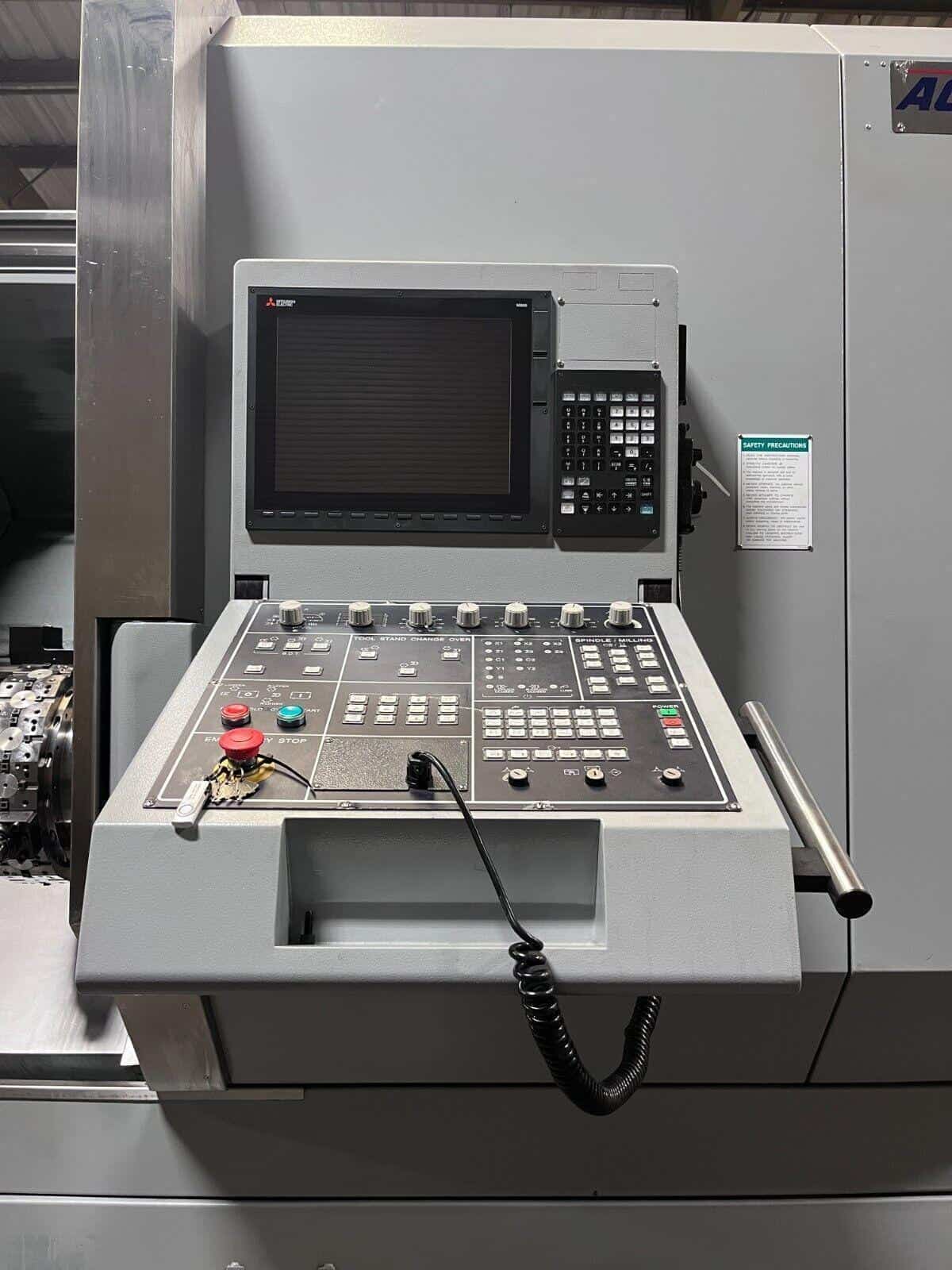

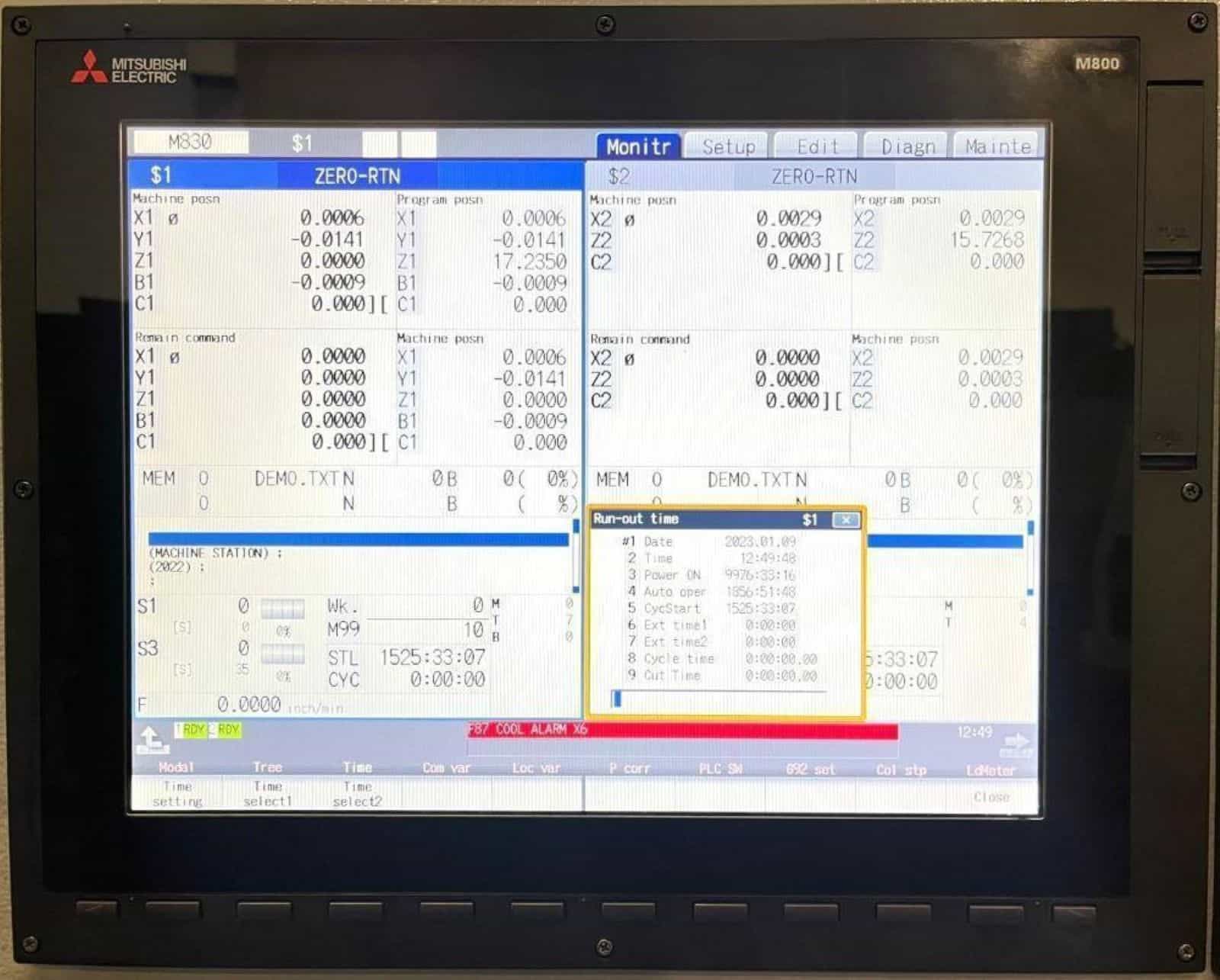

| Mitsubishi M800 Series 8 Axis CNC Control |

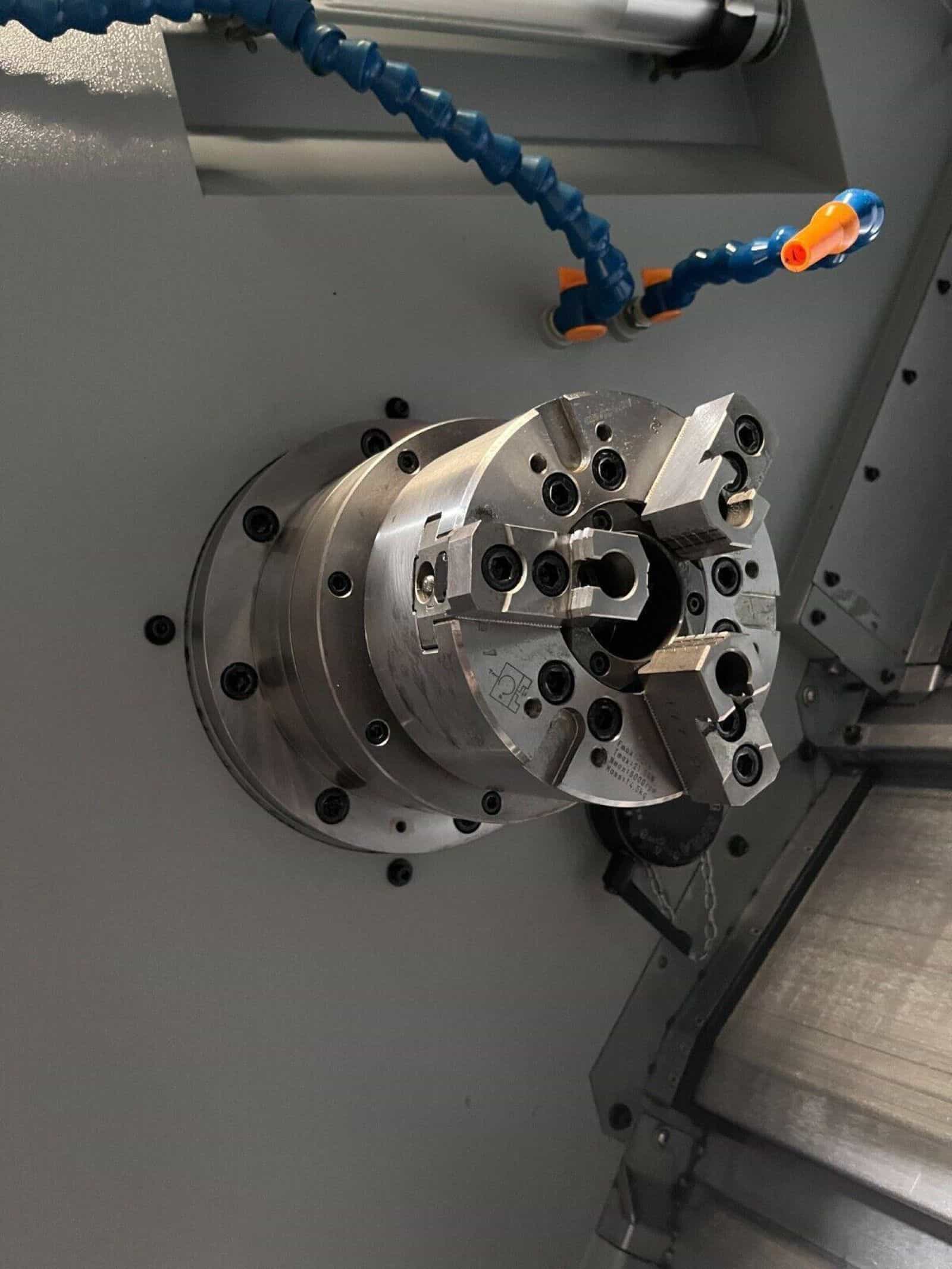

| 6″ 3-Jaw Chuck on Main Spindle (Capable 8″ Chuck) |
| 6″ 3-Jaw Chuck on Sub Spindle |
| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |
| Both Spindle Synchronization |

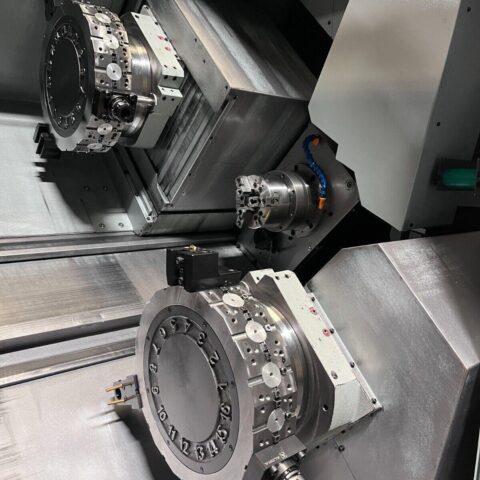

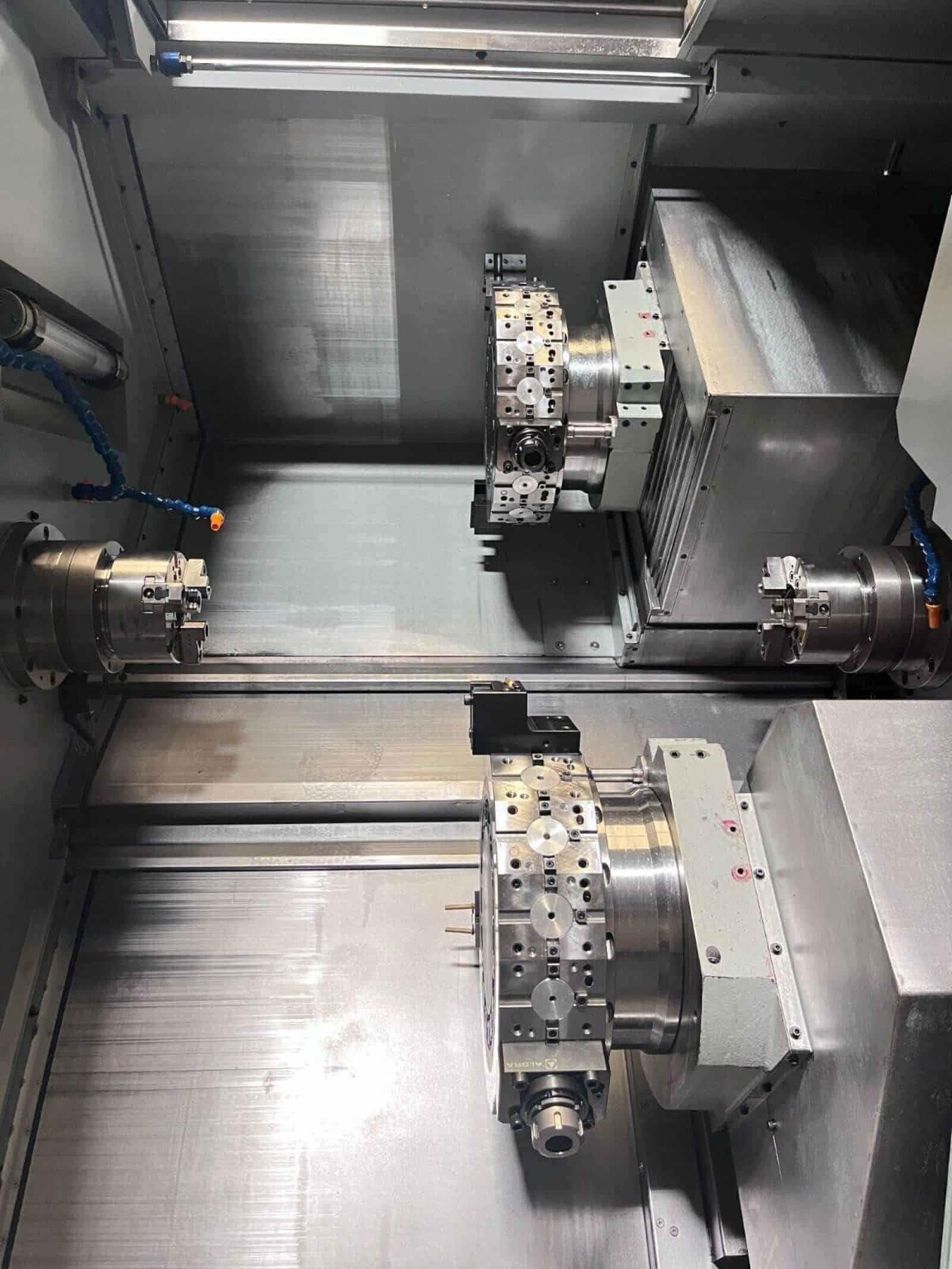

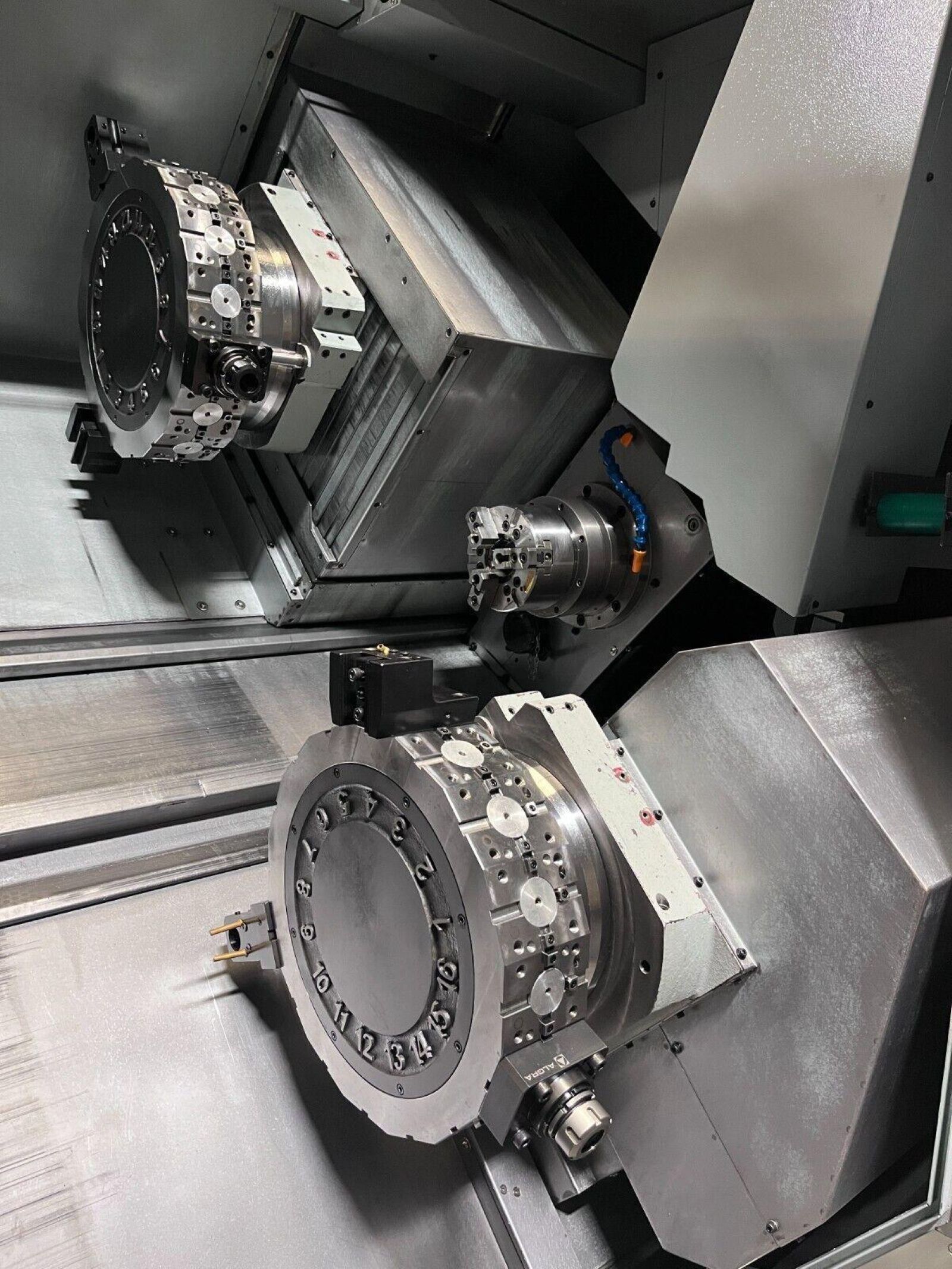

| 16 Station Live Tool Upper Turret |
| 16 Station Live Tool Lower Turret |
| Y Axis Capability on Upper Turret |
| Auto Parts Catcher |
| Parts Conveyor |

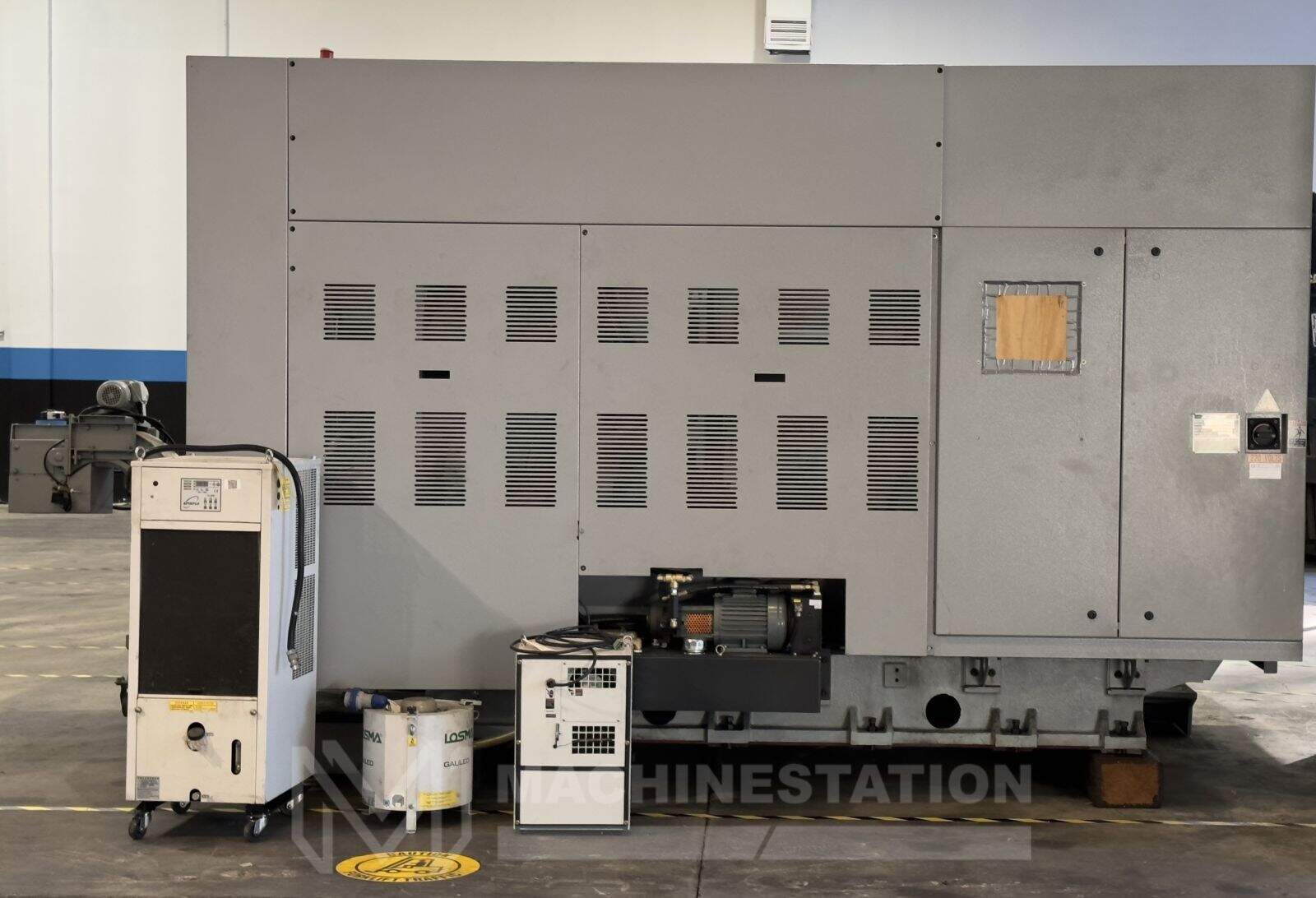

| High Pressure Coolant System |
| Coolant Tank |

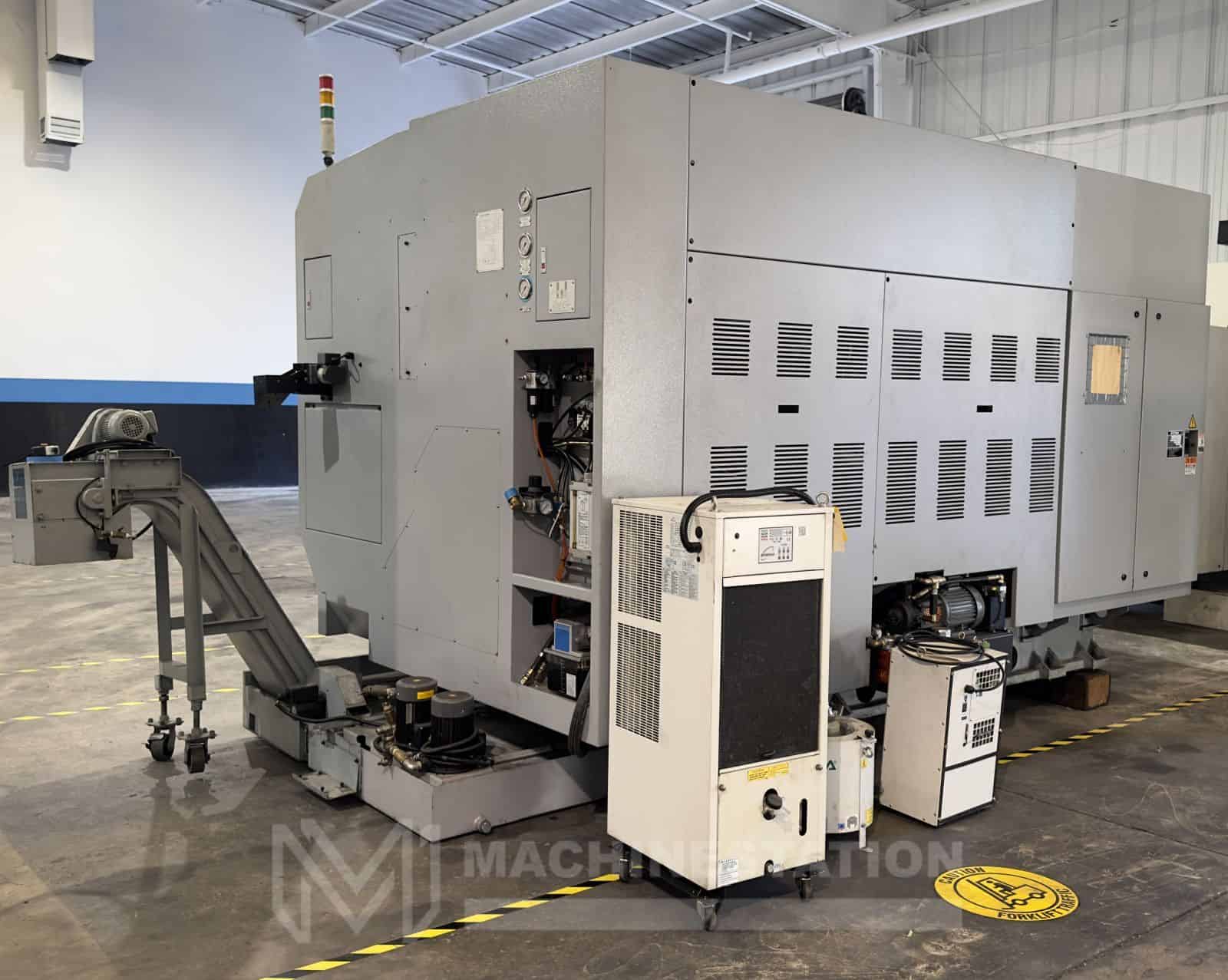

| Chip Conveyor |
| Books and Manuals |
| Foot Switches |
| Automatic Lubrication System |
| Misc. Tool Holders (Mounted on Turrets as shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter Upper Turret : 12.59″ |
| Max Turning Diameter Lower Turret : 12.59″ |
| Max Swing Over Bed : 25.98″ |
| Max Swing Over Saddle: 24.40″ |
| Max Turning Length: 31.10″ |
| Max Bar Capacity Main Spindle : 2.04″ |
| Max Bar Capacity Sub Spindle : 2.04″ |
| Distance Between Spindle Centers: 45.2″ |
| Travels: |
|---|
| X1 Axis Travel Upper Turret: 8.26″ |
| X2 Axis Travel Lower Turret : 8.26″ |
| Y1 Axis Travel Upper Turret: -1.77″/+2.55″ |
| Z1 Axis Travel Upper Turret: 33.07″ |
| Z2 Axis Travel Lower Turret : 33.07″ |
| B Axis Travel: 36.22″ ( Sub Spindle ) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| X1/X2 Axis: 1181 IPM Rapid Traverse |
| Y1 Axis: 1181 IPM Rapid Traverse |
| Z1/Z2 Axis: 1181 IPM Rapid Traverse |
| B Axis: 1574 IPM Rapid Traverse |
| Main Spindle: |
|---|
| Main Spindle Nose: A2-5 |
| Main Spindle Bore: 2.5″ |
| Main Spindle Speed: 5,000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 2.5″ |
| Sub Spindle Speed: 5,000 RPM |
| Sub Spindle Power: 20 HP |
| Turret: |
|---|
| Upper Turret Capacity: 16 Stations |
| Lower Turret Capacity: 16 Stations |
| Live Milling Speed: 6000 RPM |
| Live Milling Motor: 7.5 HP |
| Turret Index Time (Tool to Tool): 0.2 sec |
| Turret Type: BMT-40 |
| General: |
|---|

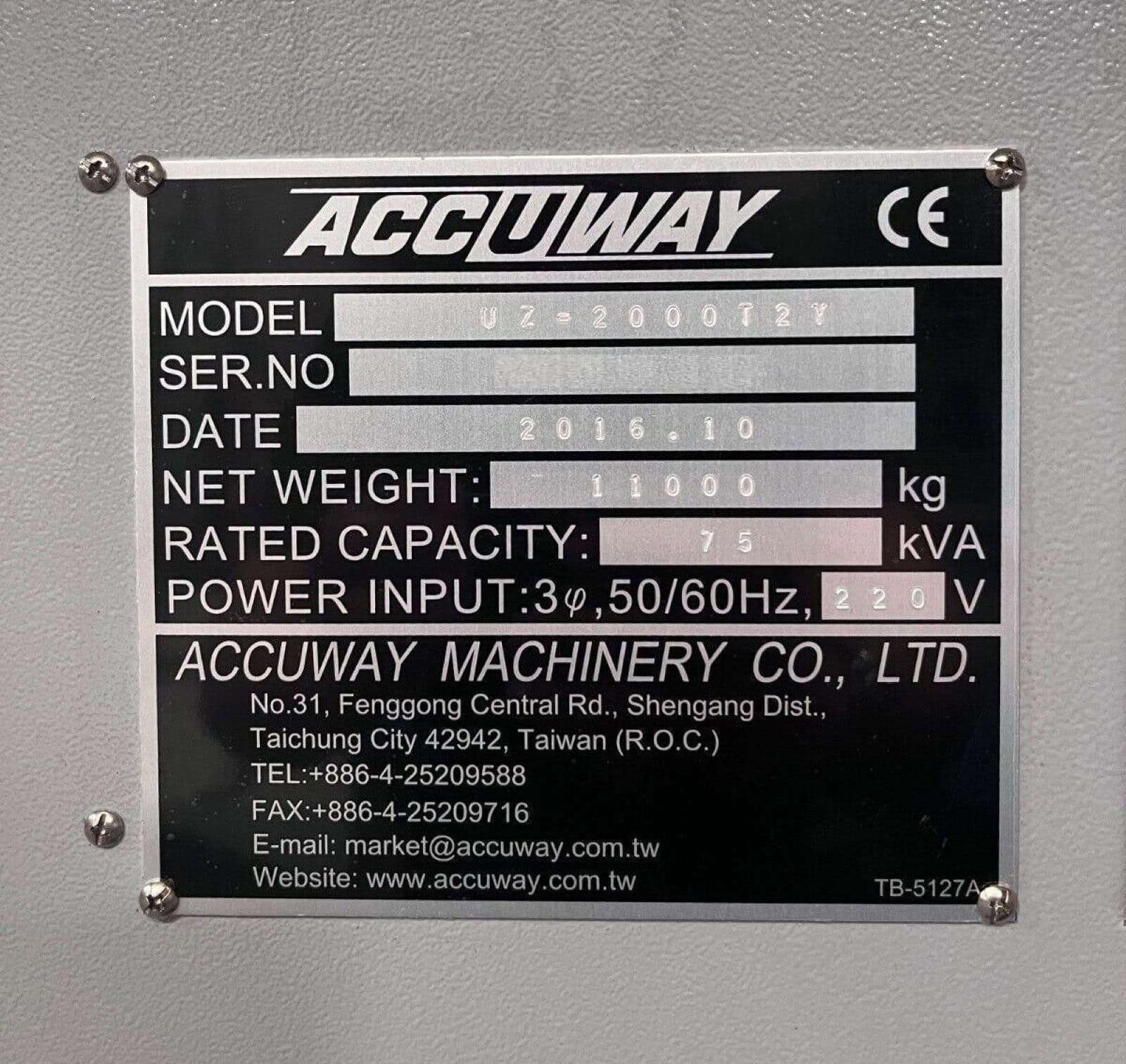

| Power Source: AC 220v / 3-Phase / 50/60 Hz |
| Power Requirement: 75 kva |
| Machine Dimensions: 185″ x 95″ x 91″ Height |
| Machine Dimensions: 210″ x 95″ x 91″ Height (With Chip Conveyor) |
| Machine Weight: 24,251 lbs Approx. |
