Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

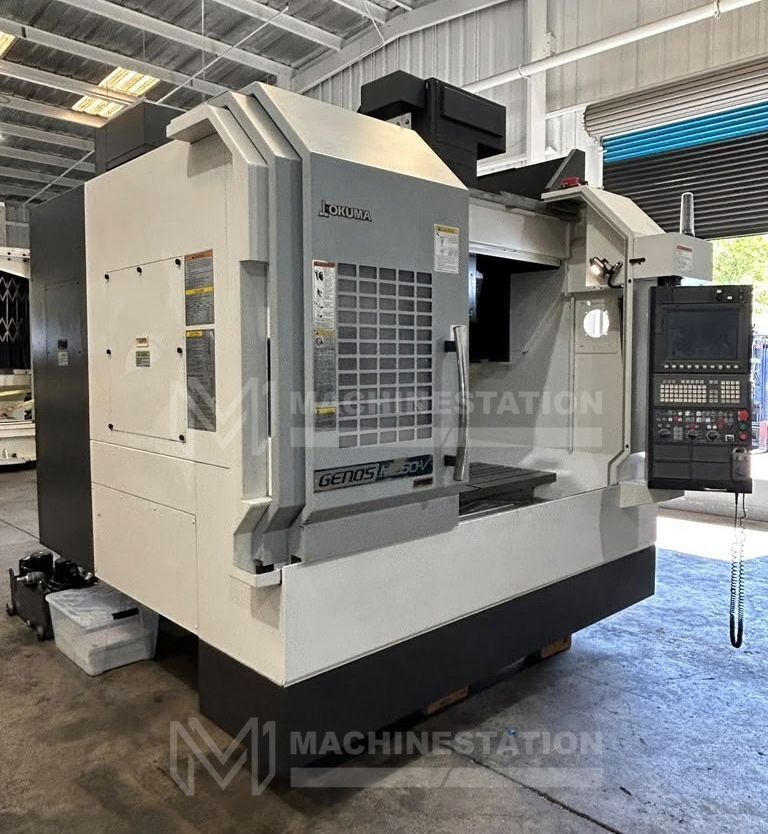

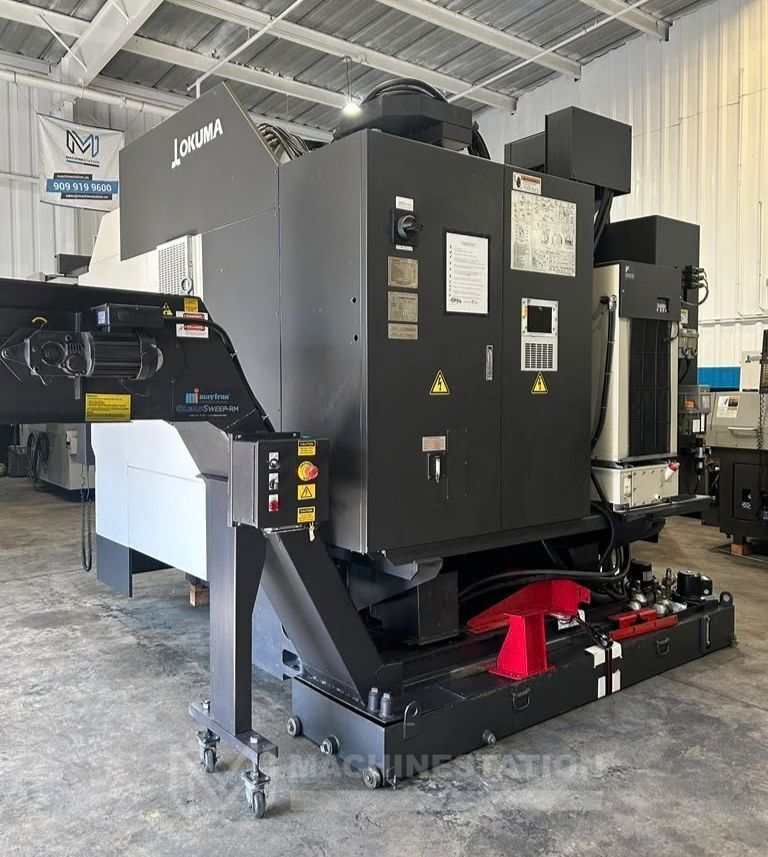

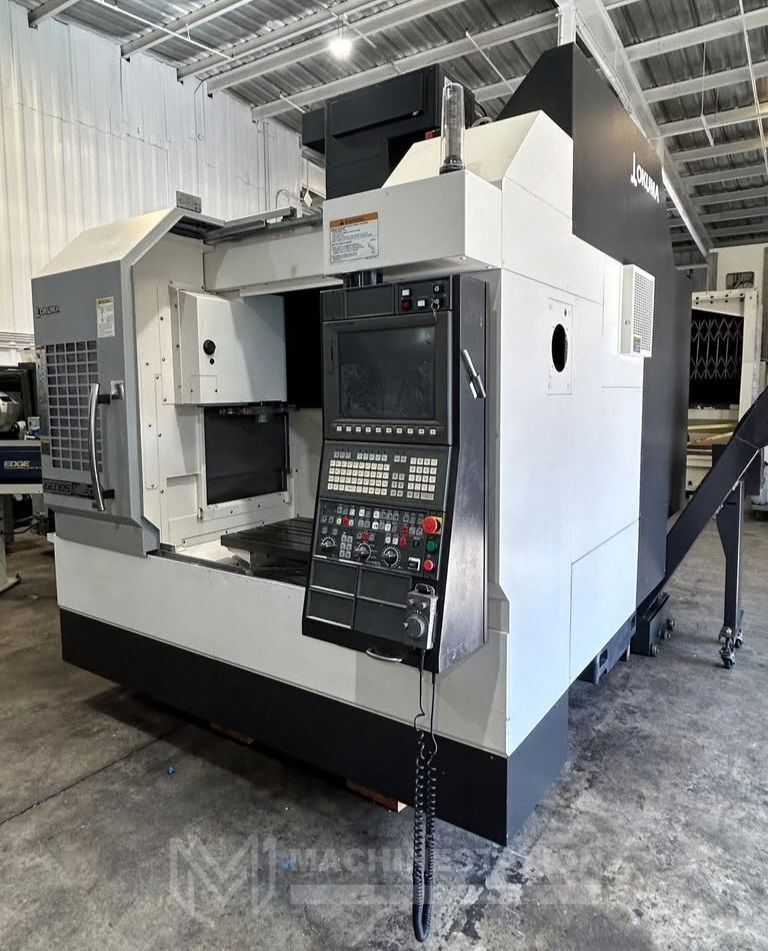

| Make: | Okuma |
| Model: | Genos M560-V |
| Year: | 2016 |
| Features: |
|---|

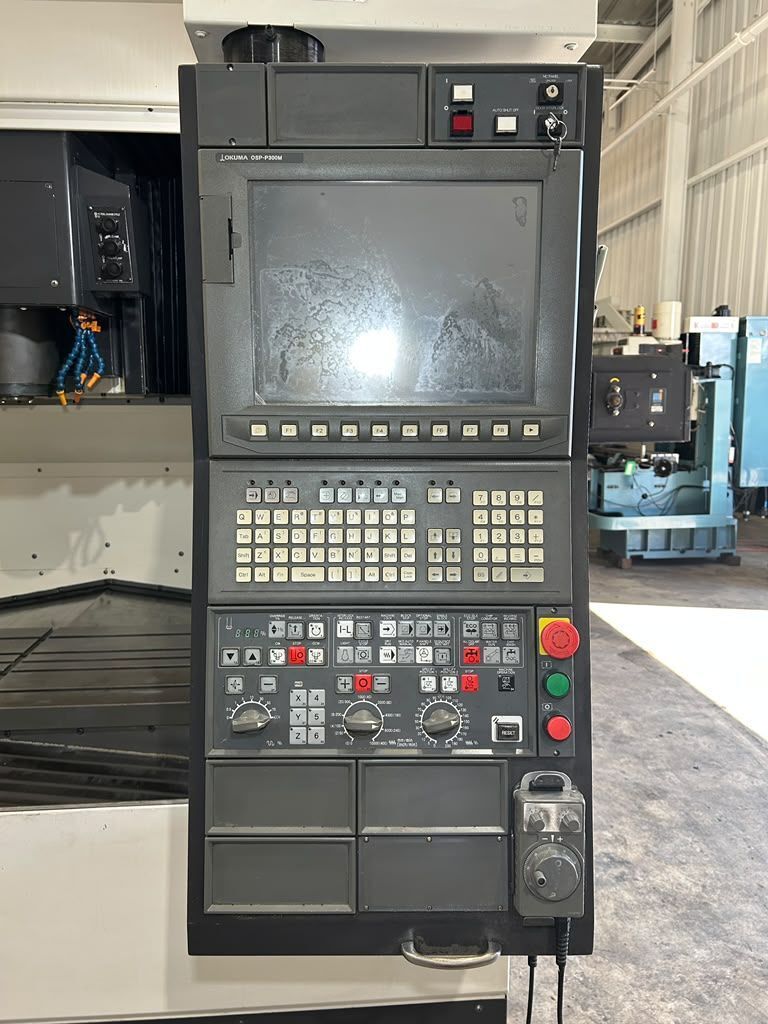

| Okuma OSP-P300M CNC Control |
| 8,000 RPM Spindle |

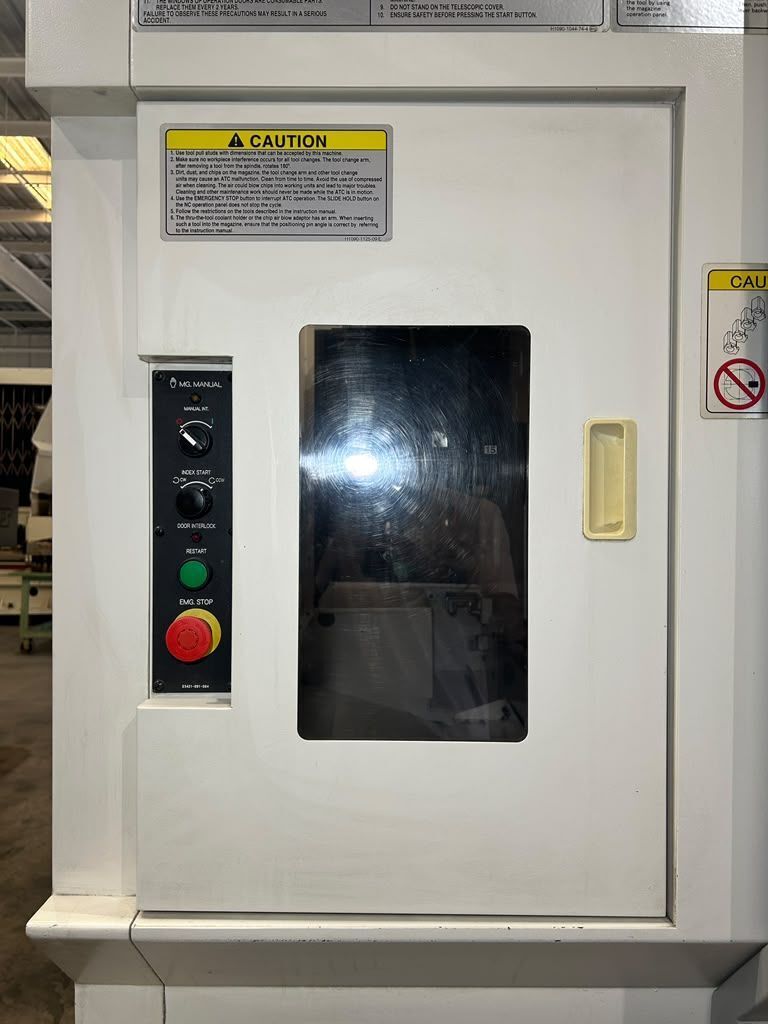

| 32-Station Automatic Tool Changer |
| CAT-40 Taper Spindle |

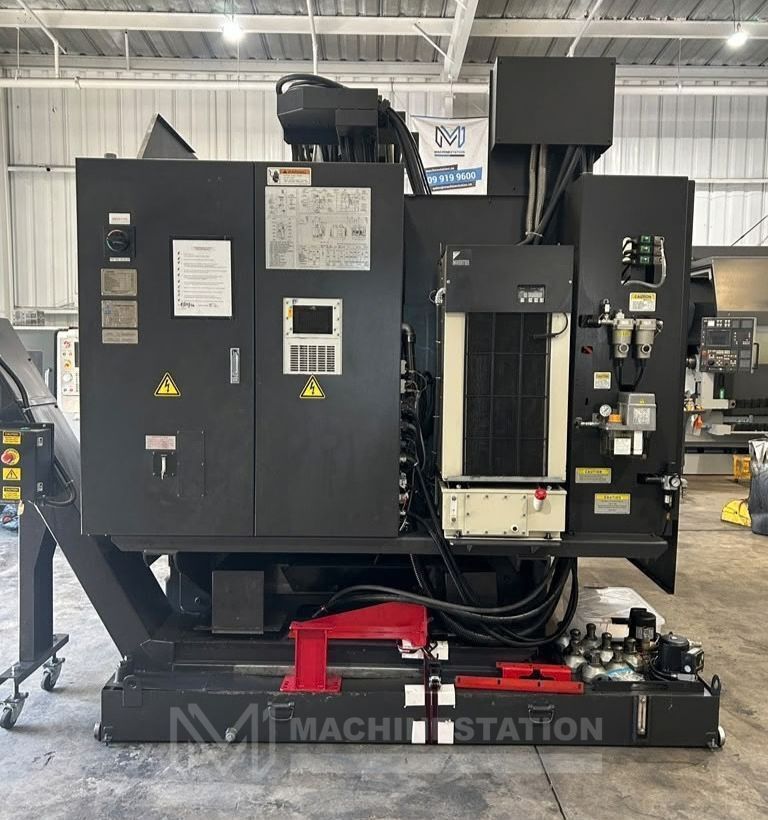

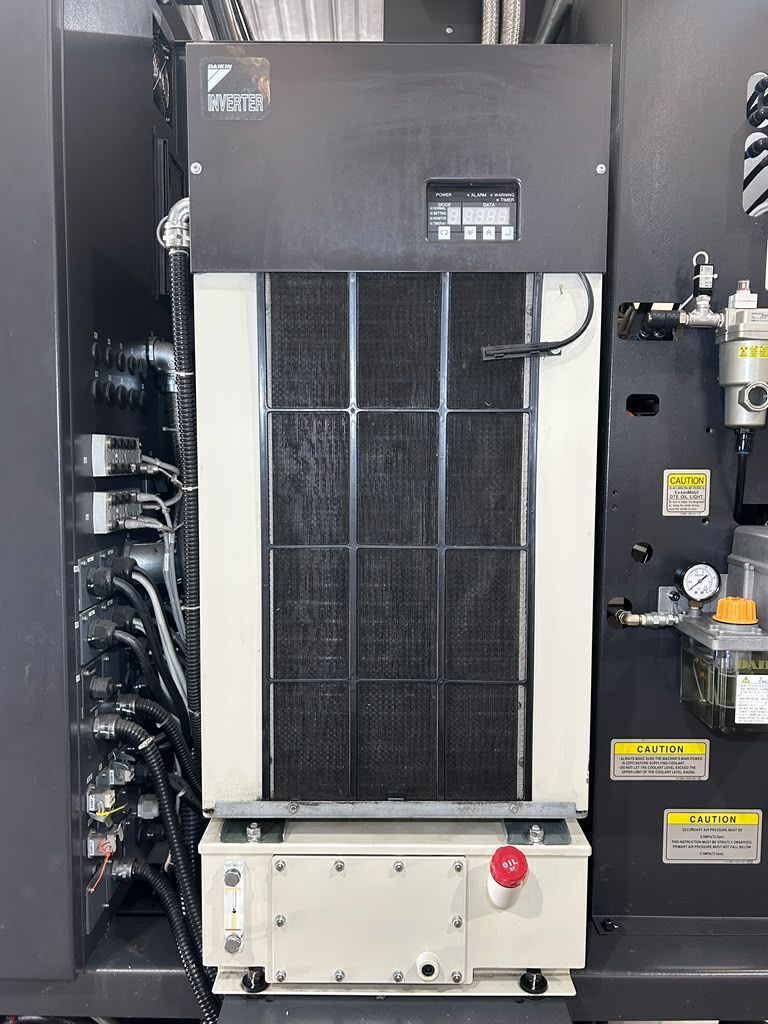

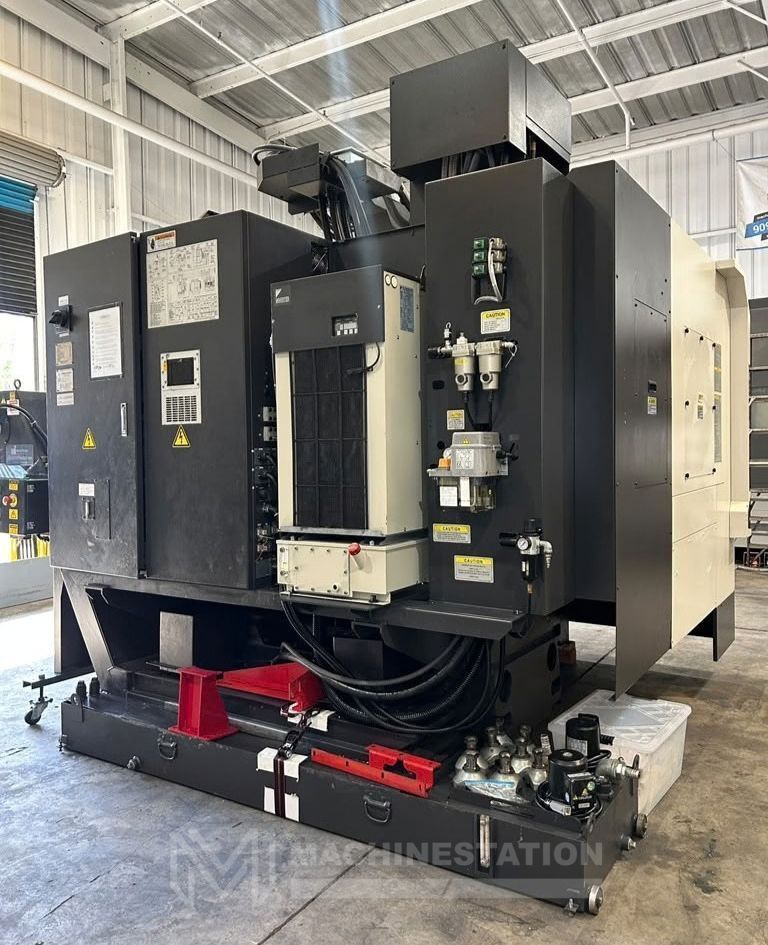

| Spindle Chiller Unit |
| MPG Handwheel Control |
| Automatic Lubrication Unit |

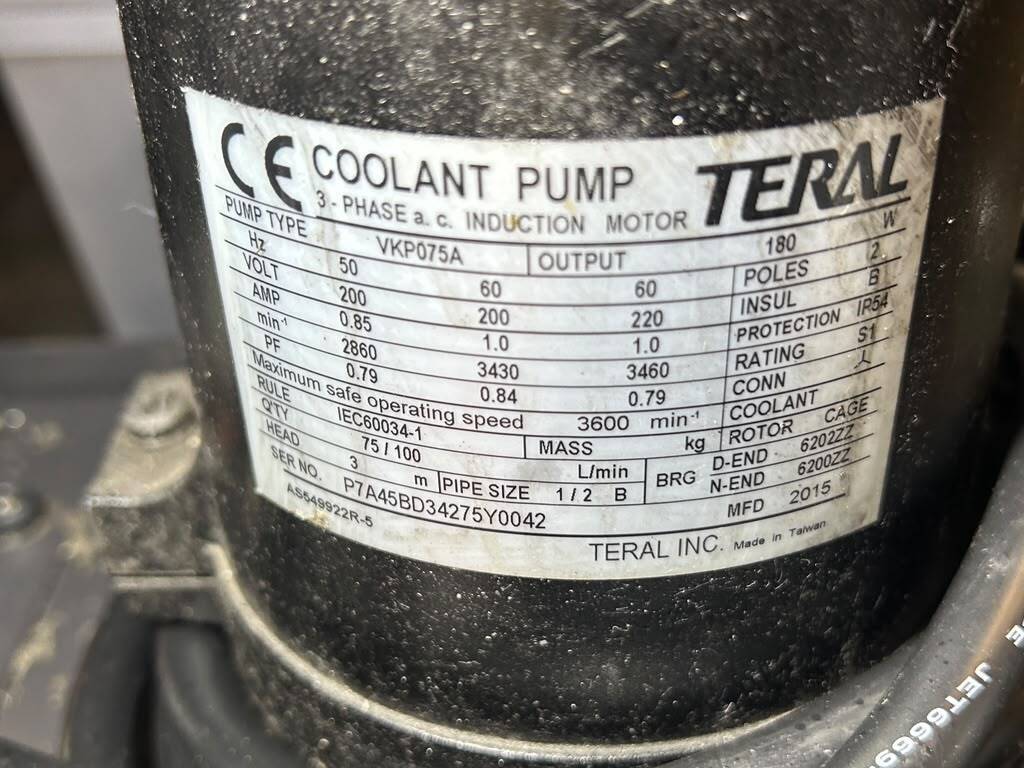

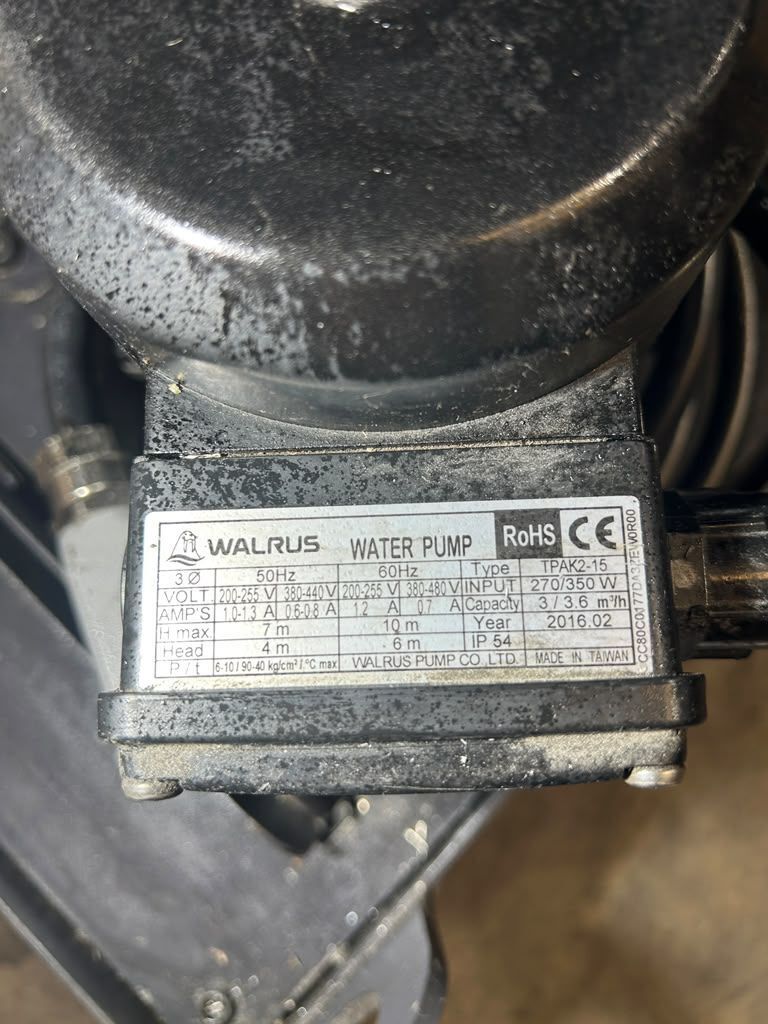

| Coolant Tank |

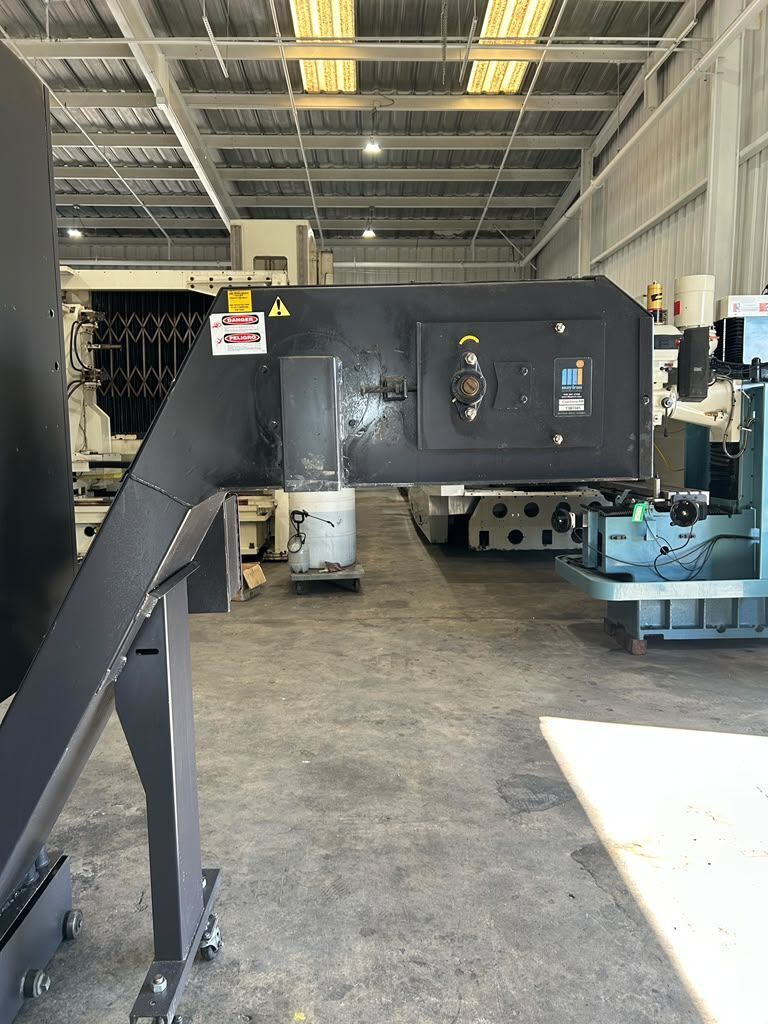

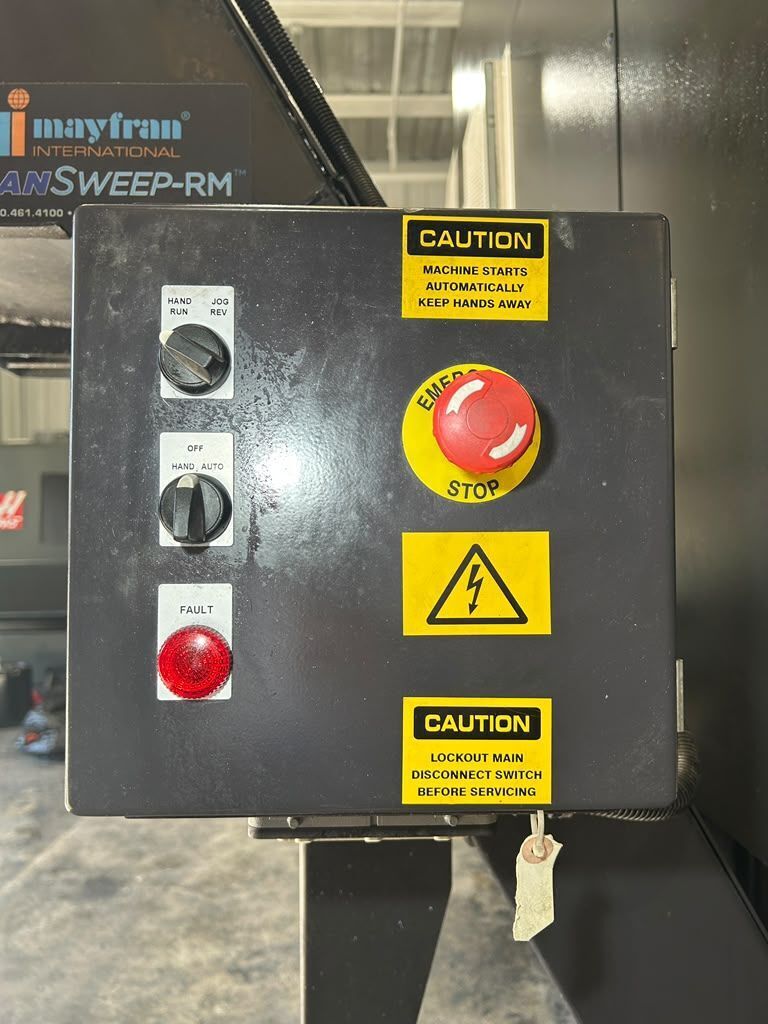

| Chip Conveyor |

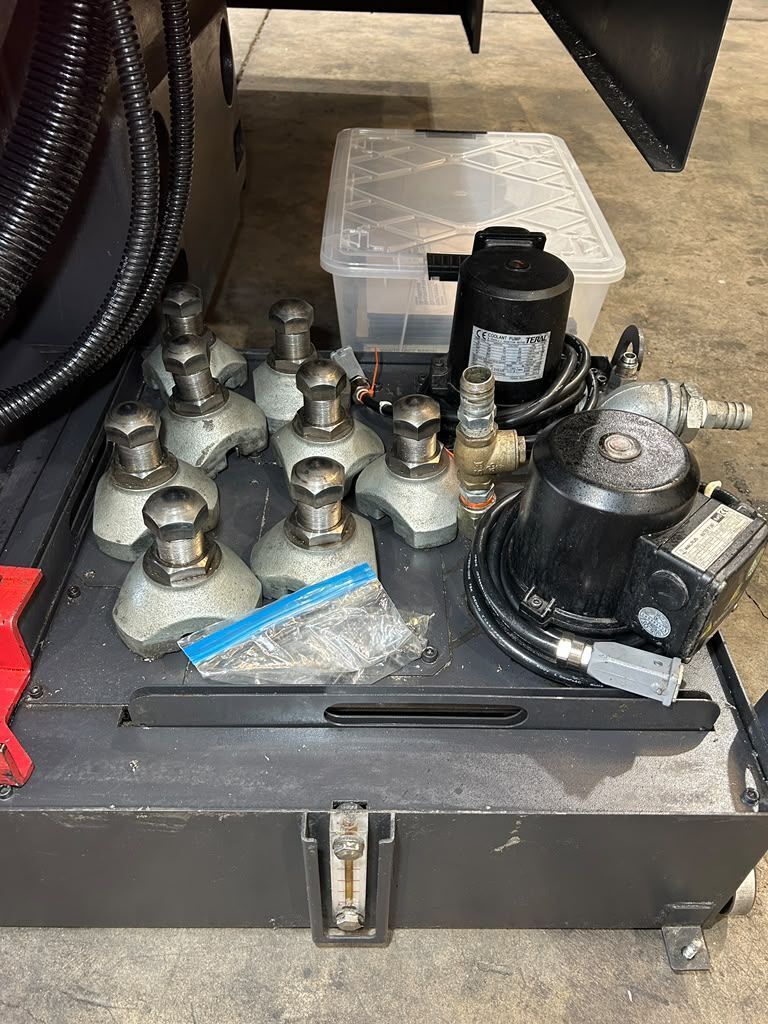

| Leveling Pads |

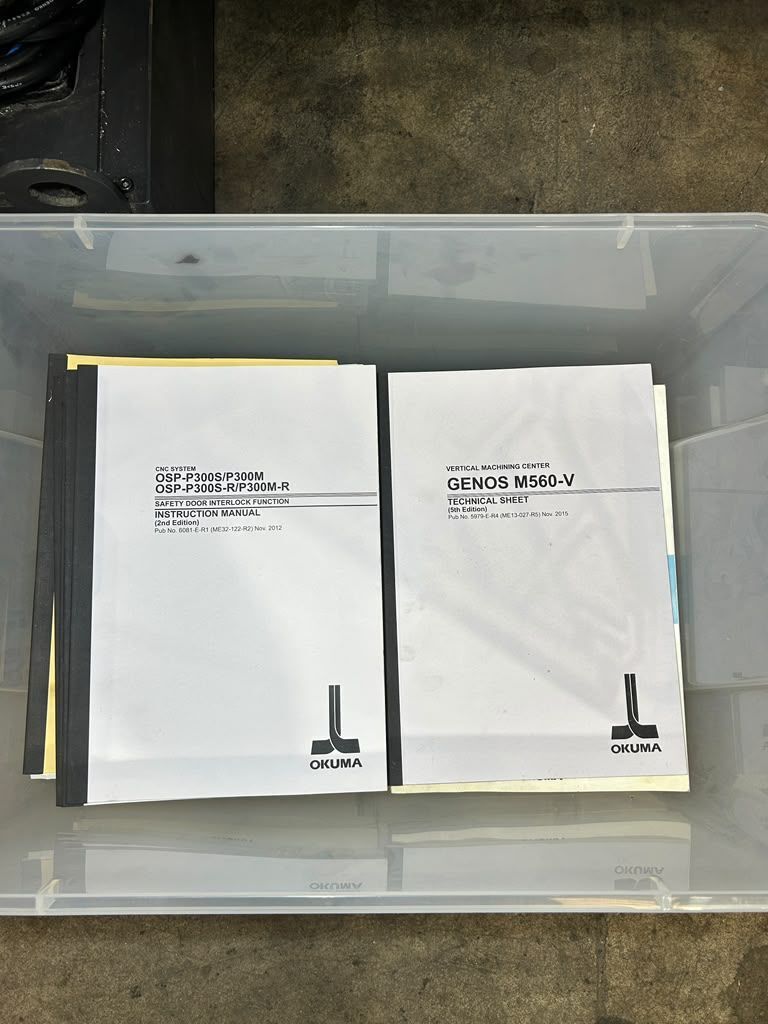

| Books & Manuals |
| Travels: |
|---|
| X-Axis Travel: 41.34″ |
| Y-Axis Travel: 22.05″ |
| Z-Axis Travel: 18.11″ |
| X & Y-Axis Rapid Traverse Rates: 1,575 IPM |
| Z-Axis Rapid Traverse Rate: 1,260 IPM |
| Cutting Feed Rate: 1,260 IPM |
| Spindle Nose to Table (Min.-Max.): 5.91″ – 24.02″ |

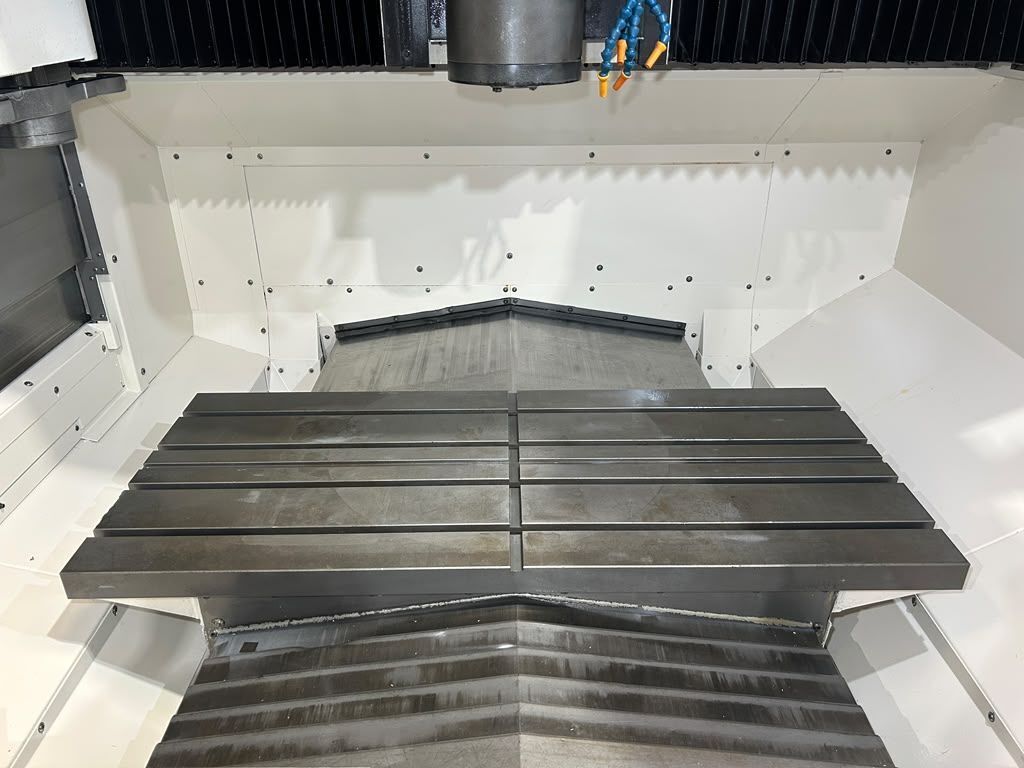

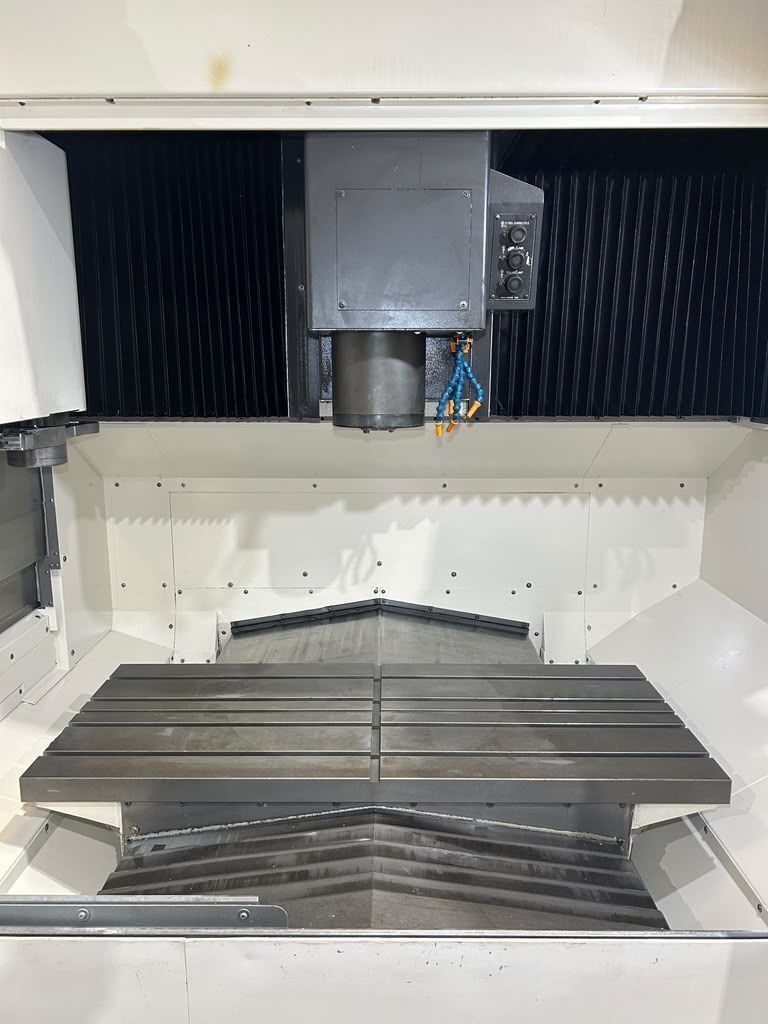

| Table: |
|---|
| Length: 51.18″ |
| Width: 22.05″ |
| Maximum Weight on Table: 1,980 lbs |

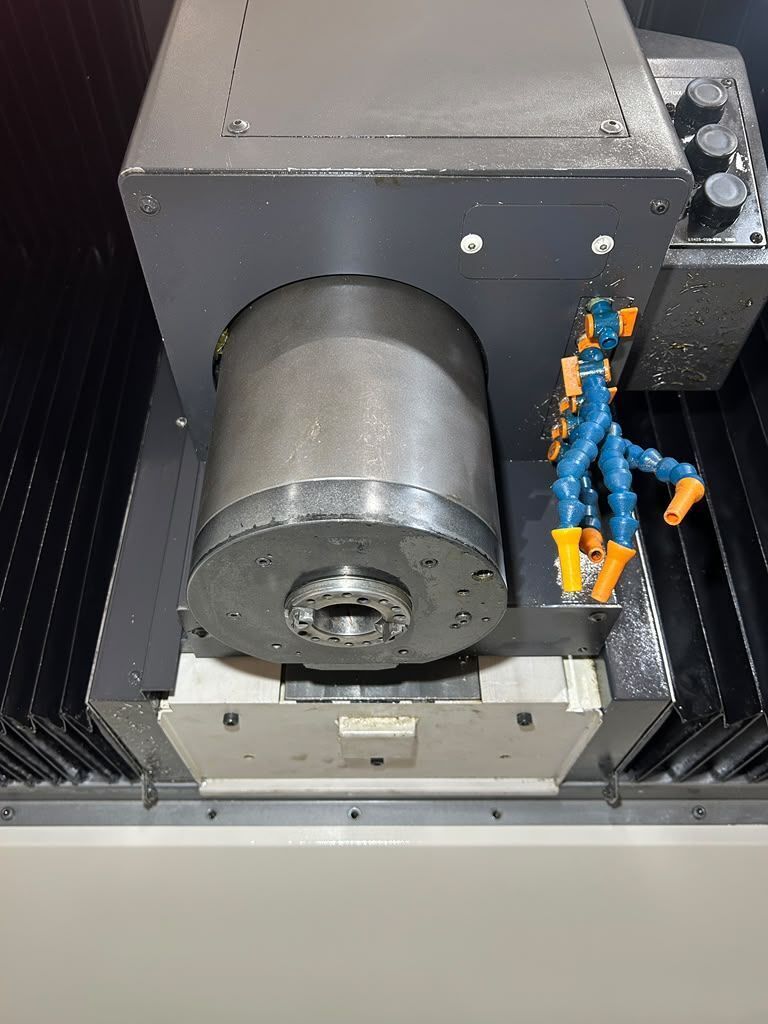

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 15 HP |

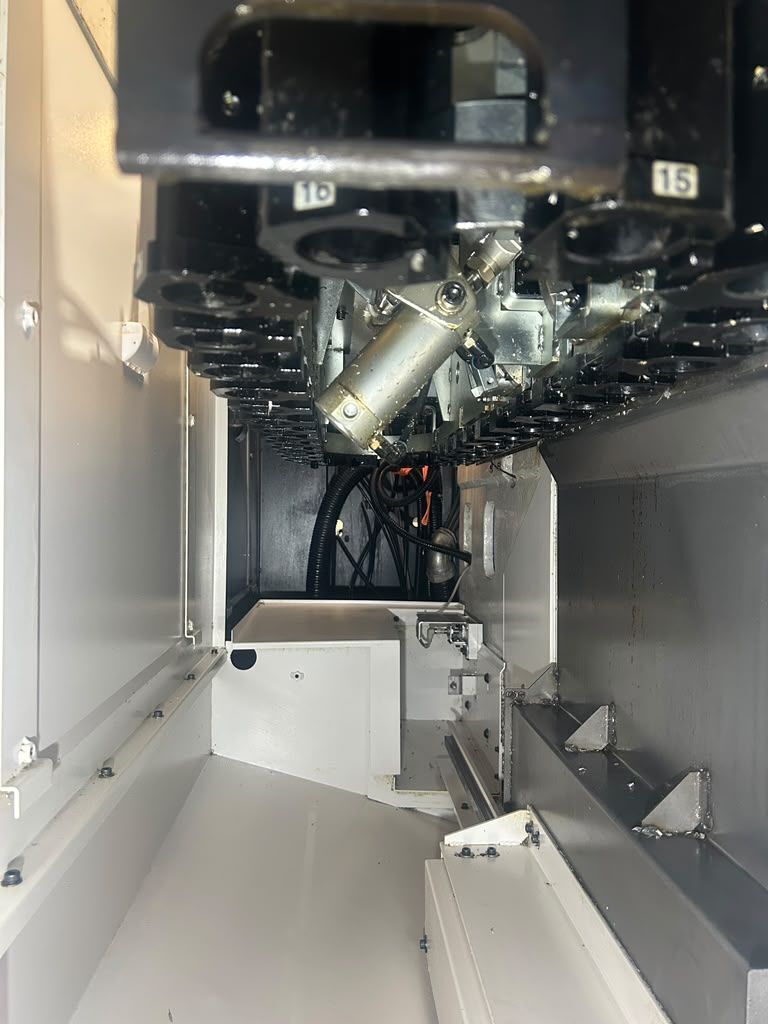

| Automatic Tool Changer: |
|---|
| Capacity: 32-Station Side Mounted |
| Maximum Tool Weight: 18 lbs |
| Maximum Tool Length: 11.81″ |
| Maximum Tool Diameter: 3.54″ |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

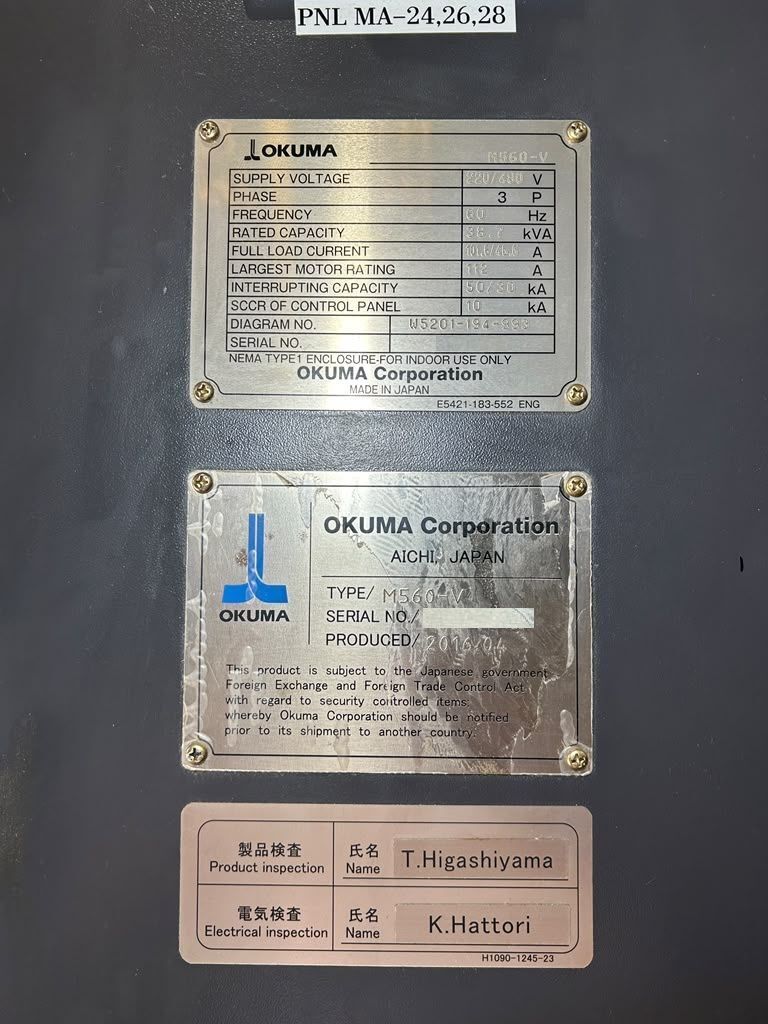

| Power: 220V / 480V / 38.7 kVA / 3-Phase |
| Overall Dimensions: 100″ × 123″ × 108″ High Approx. |
| Machine Weight: 16,500 lbs |
