Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

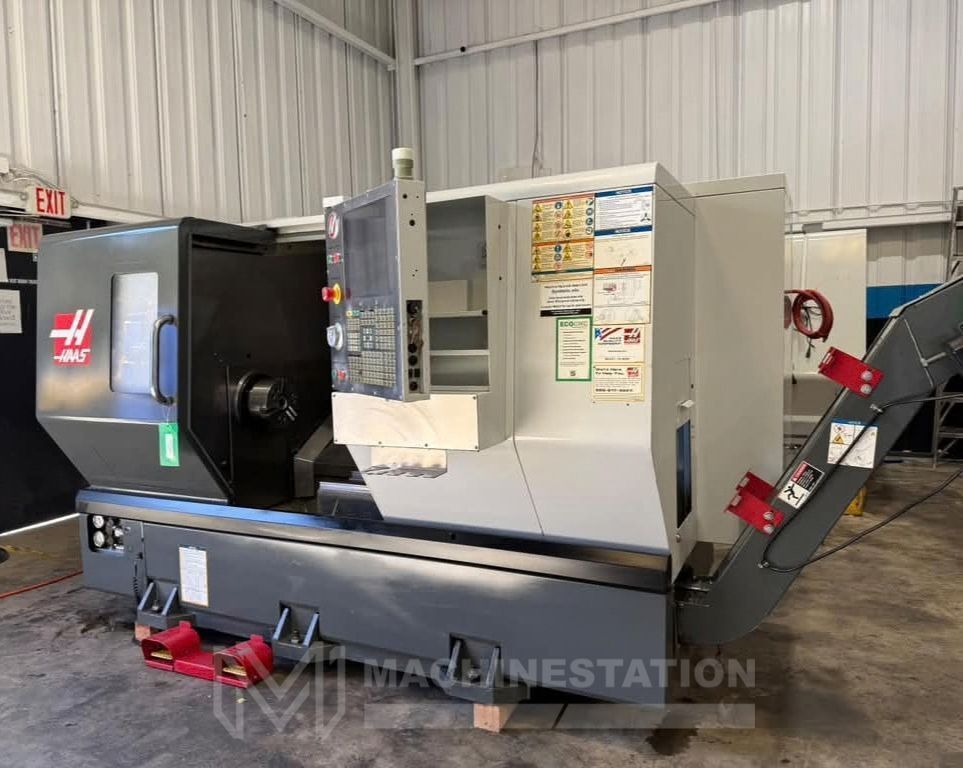

| Make: | Haas |
| Model: | ST-20 |
| Year: | 2011 |
| Equipped With: |
|---|
| Haas CNC Control |

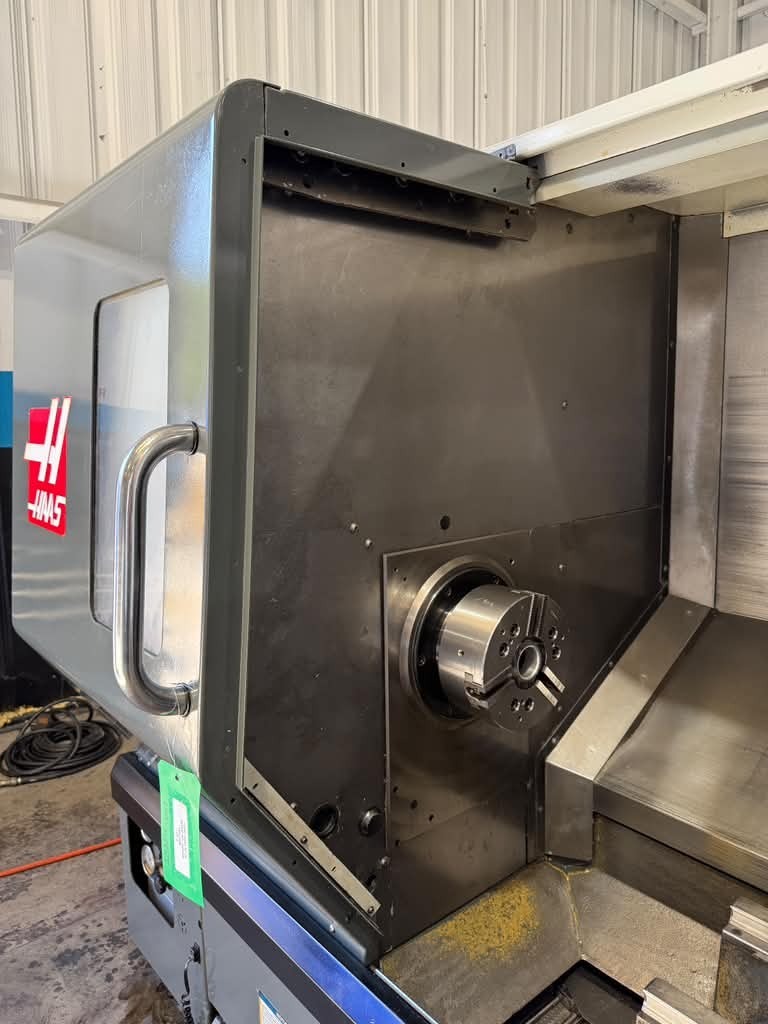

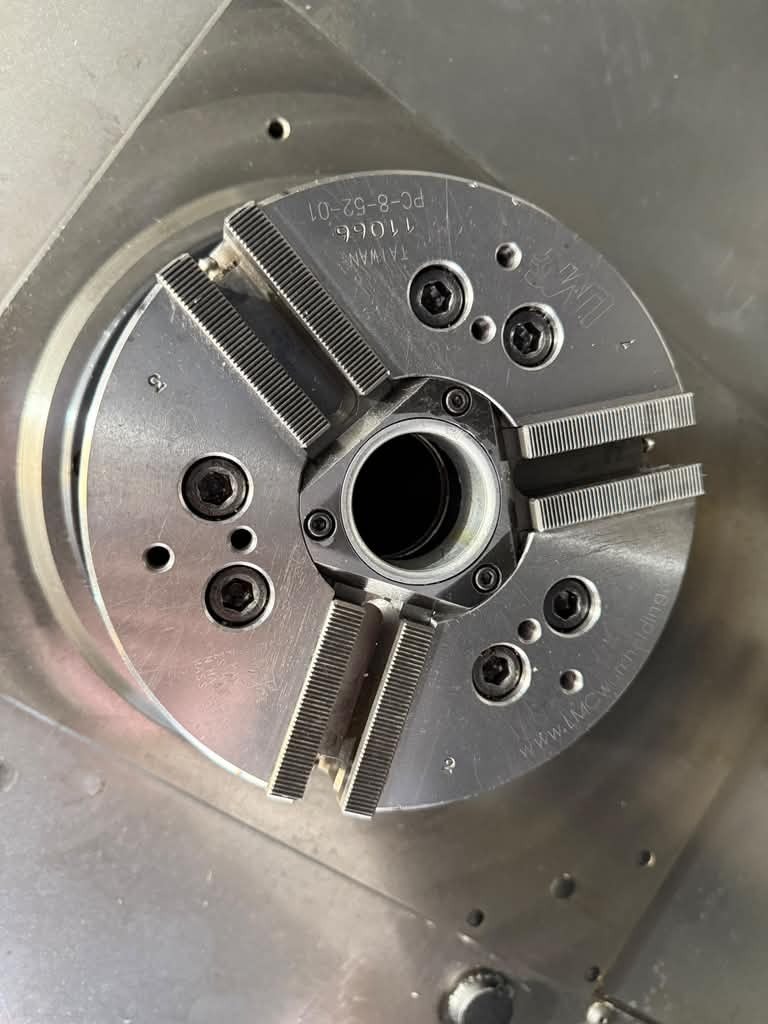

| 8″ 3-Jaw Hydraulic Chuck |
| A2-6 Spindle Nose |

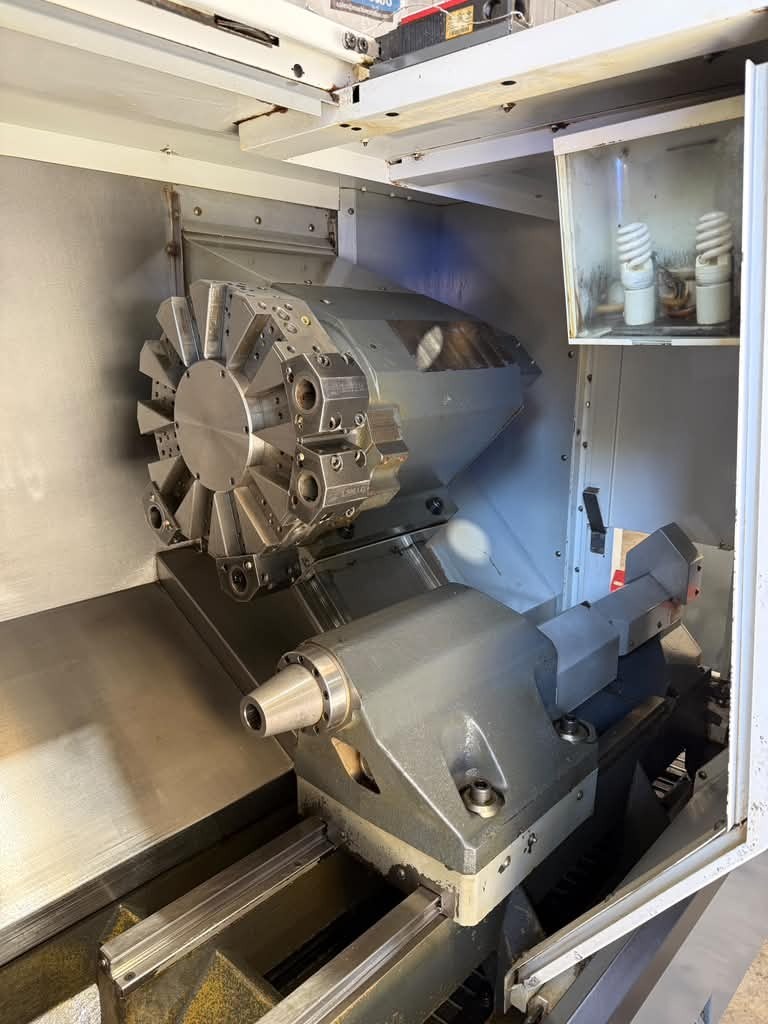

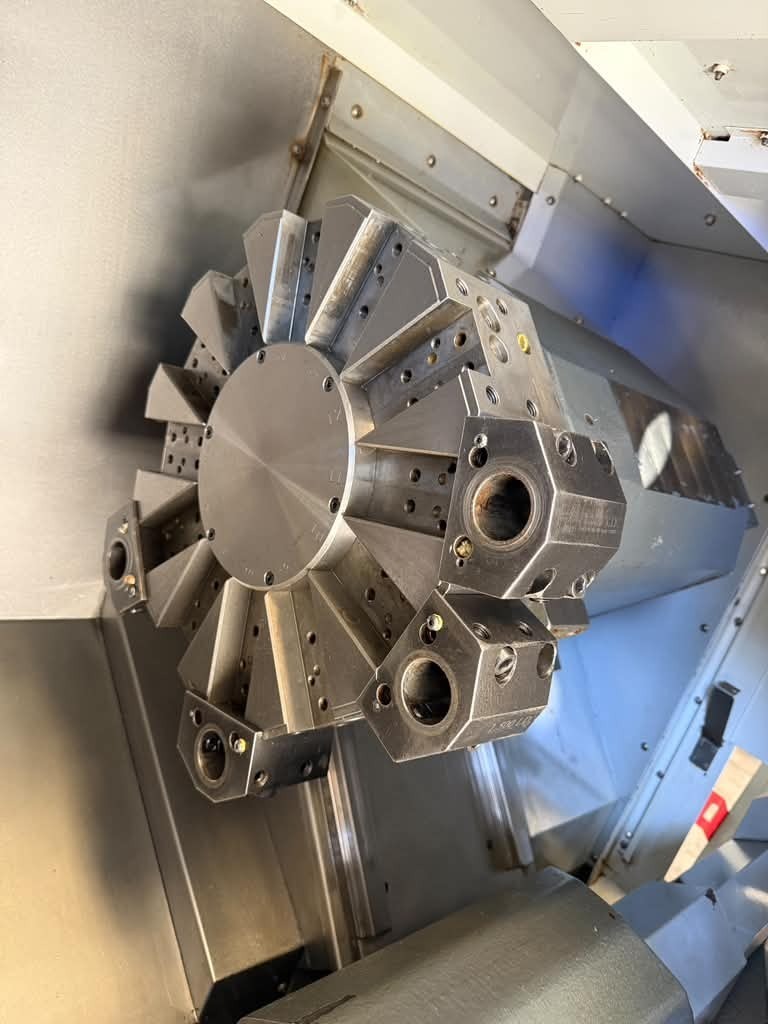

| 12-Station Automatic Turret |
| Rigid Tapping |

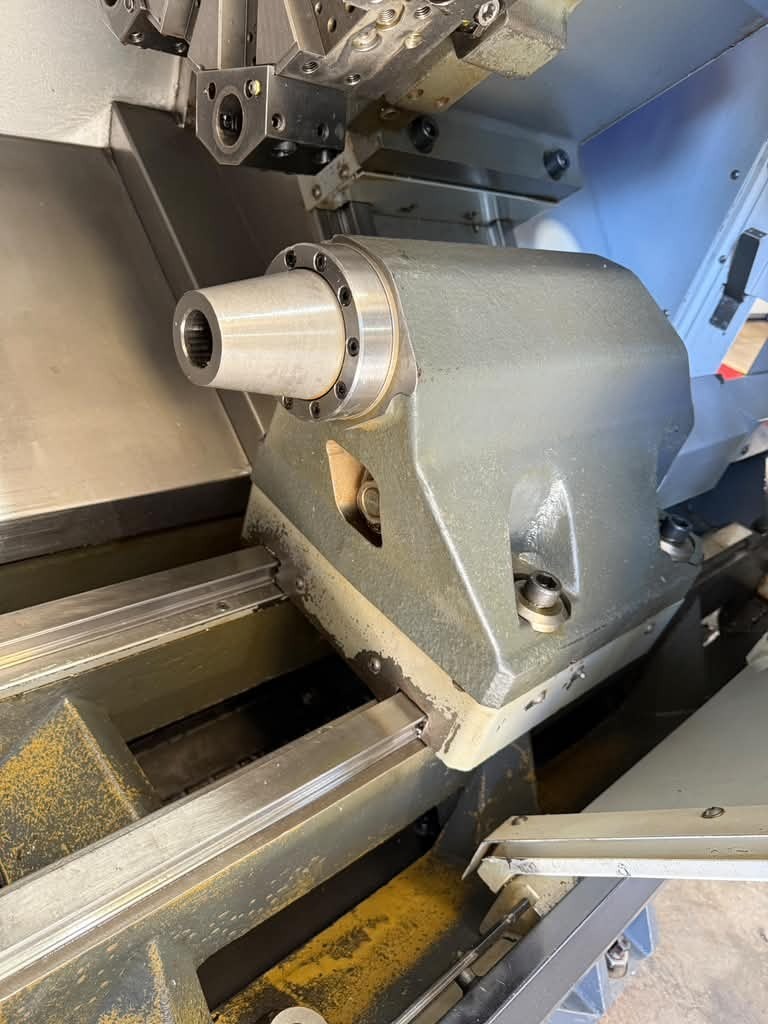

| Programmable Tailstock (Upgraded $8,695 Value Included) – Excellent for Longer Parts |

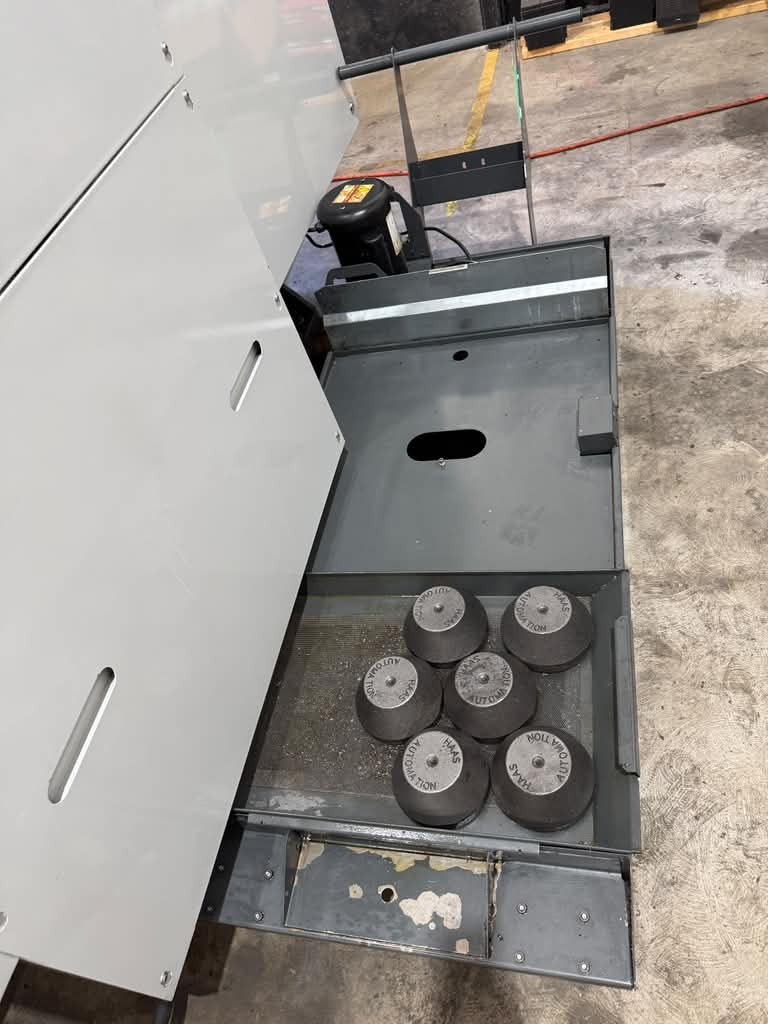

| Coolant Tank |

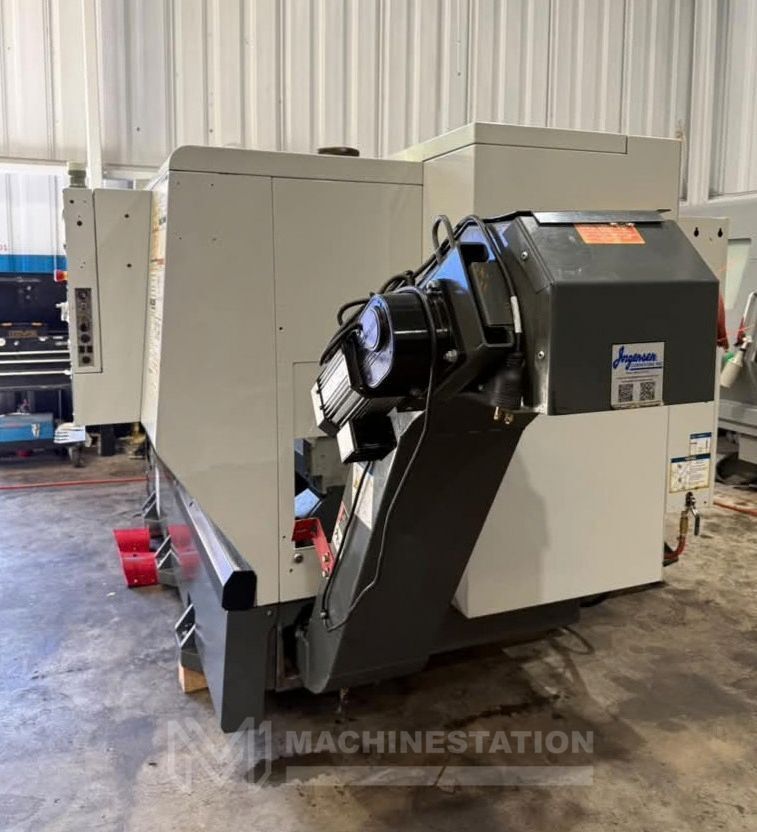

| Belt Type Chip Conveyor (Upgraded $6,195 Value Included) – For Efficient Chip Removal |

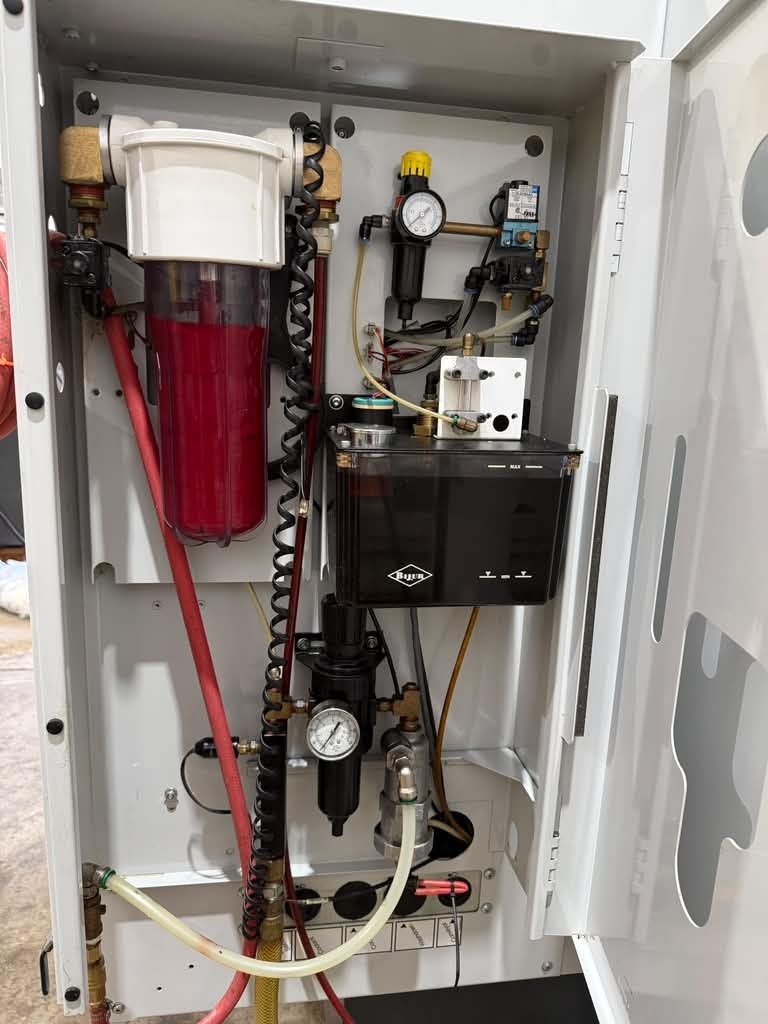

| Automatic Lubrication Unit |

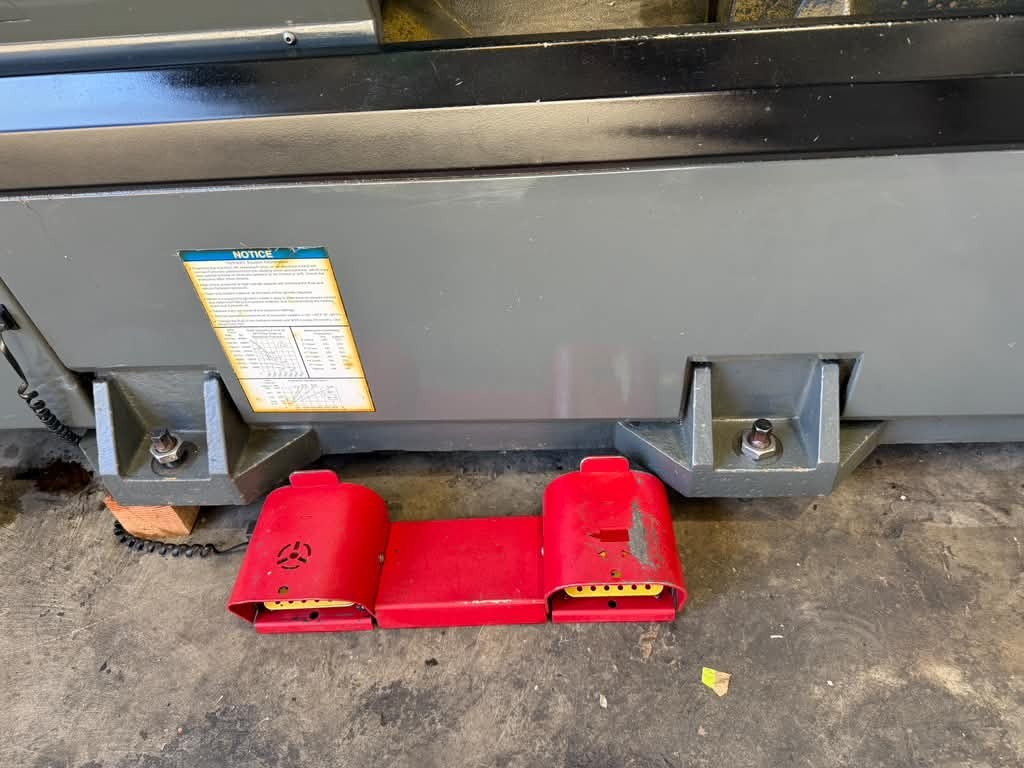

| Foot Switches |
| Leveling Pads |
| (4) Boring Tool Holders Mounted on Turret (As Shown in the Images) |
| Capacity: |
|---|
| Maximum Turning Diameter: 13.0″ |
| Maximum Swing Over Bed: 21.0″ |
| Maximum Turning Length: 22.5″ |
| Maximum Bar Capacity: 2.00″ |
| Travels: |
|---|
| X-Axis Travel: 8.4″ |
| Z-Axis Travel: 22.5″ |
| Feedrate: |
|---|
| Rapid Traverse X-Axis: 945 IPM |
| Rapid Traverse Z-Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.5″ |
| Spindle Speed: 4,000 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Turret Type: Bolt-On Tool Turret |
| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Air Requirement: 4 scfm @ 100 psi |

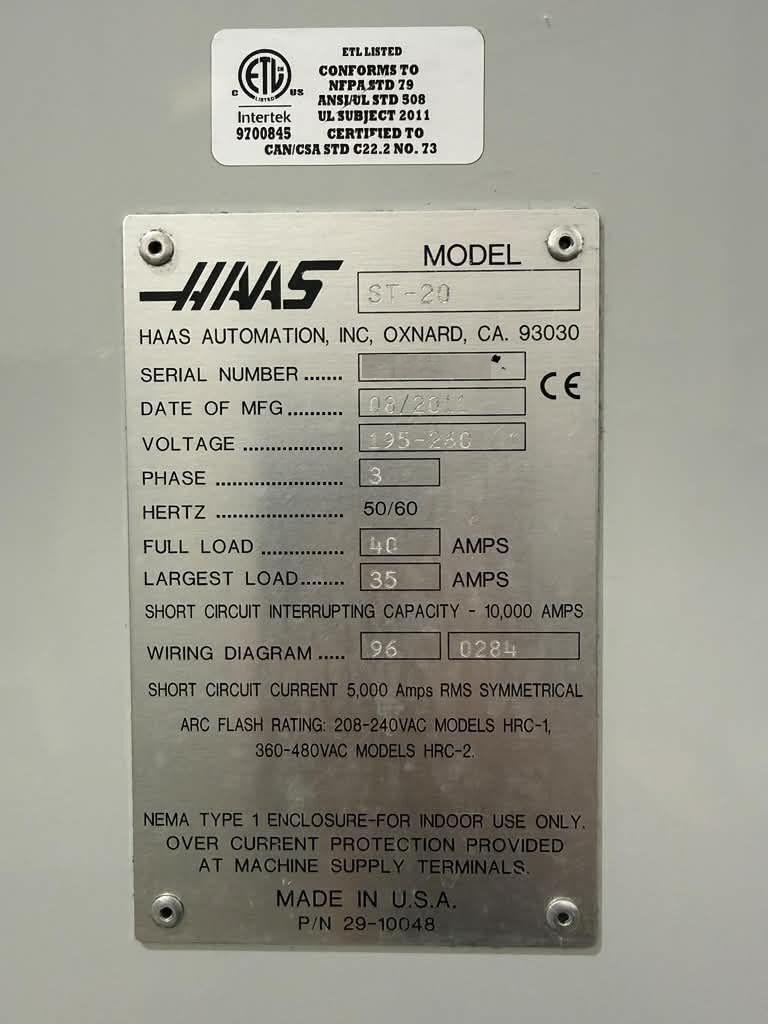

| Power Source: AC 195V – 260V / 3-Phase / 50/60 Hz |
| Machine Dimensions: 142.5″ × 90″ × 92″ High |
| Machine Weight: 8,820 lbs Approx. |
