Name: Accuway UZ-2000T2Y CNC Lathe - Y Axis Twin Spindle Twin Turret
SKU: 112362
Availability: InStock

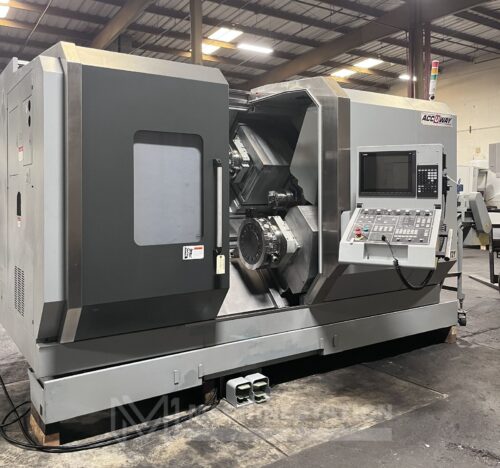

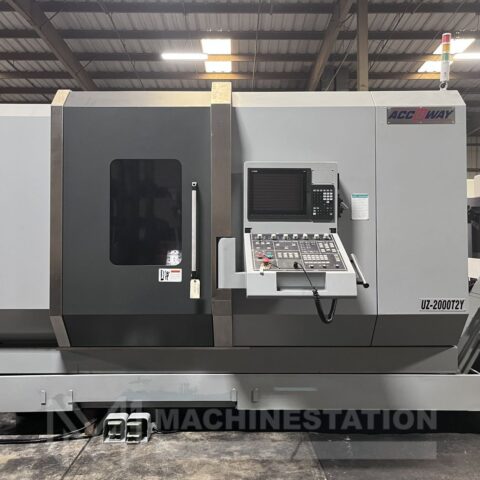

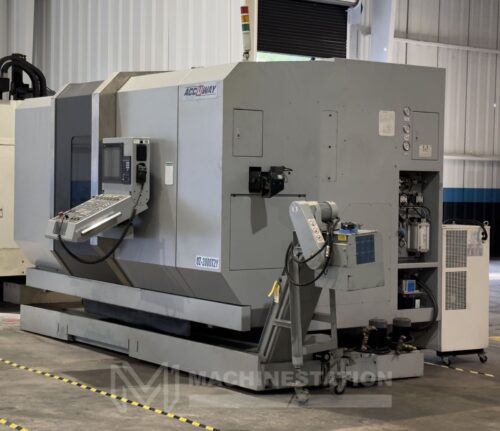

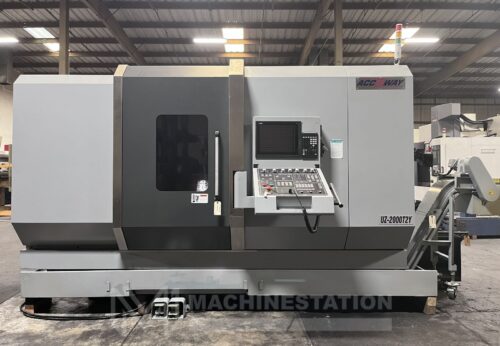

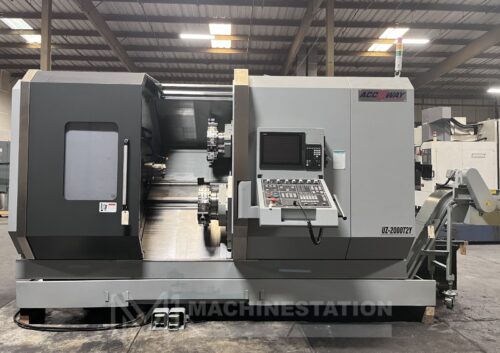

Accuway UZ-2000T2Y CNC Lathe – Y Axis Twin Spindle Twin Turret

Monthly Price: $1,422

1 in stock

Location:	Lake Elsinore, CA
SKU:	112362

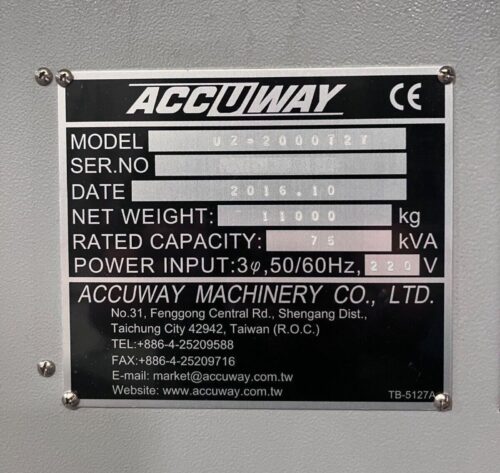

Make & Model:	Accuway UZ-2000T2Y
Year:	2016 (Sold & Installed in 2018)
Condition:	Used – Excellent (Almost New)

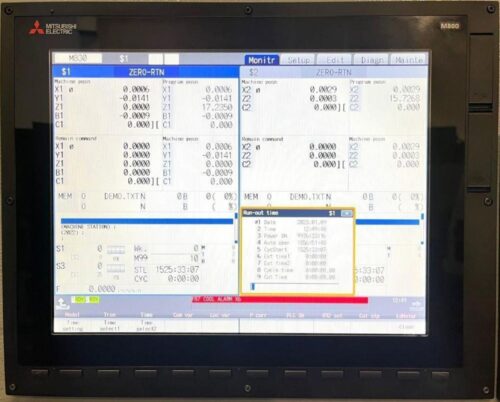

Cycle Time:	1,525 Hours
Video:	On Request

Tags: Accuway

SKU: 112362

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Accuway
Model:	UZ-2000T2Y
Year:	2016 (Sold & Installed in 2018)
Condition:	Used – Excellent (Almost New)

Equipped With:

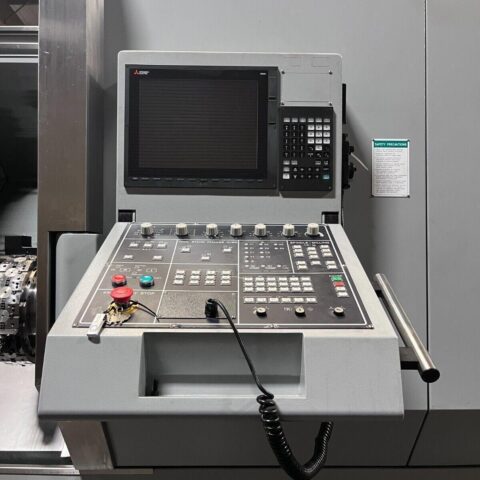

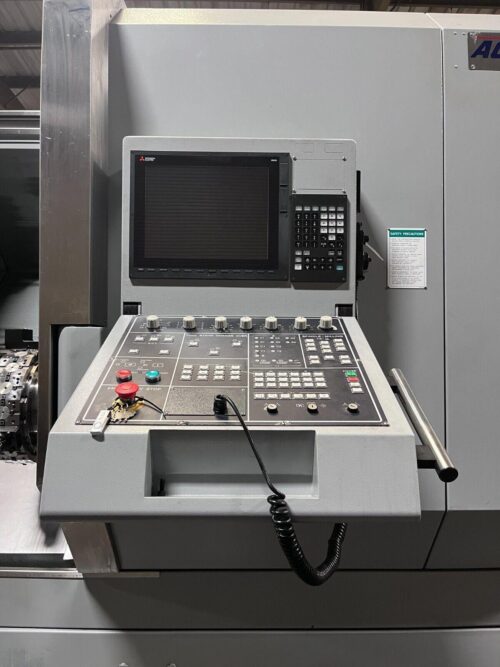

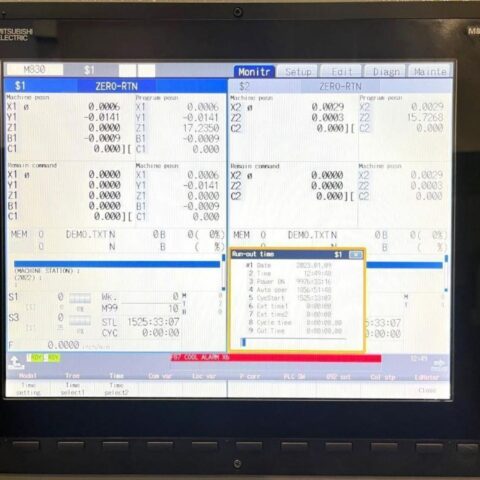

Mitsubishi M800 Series 8 Axis CNC Control

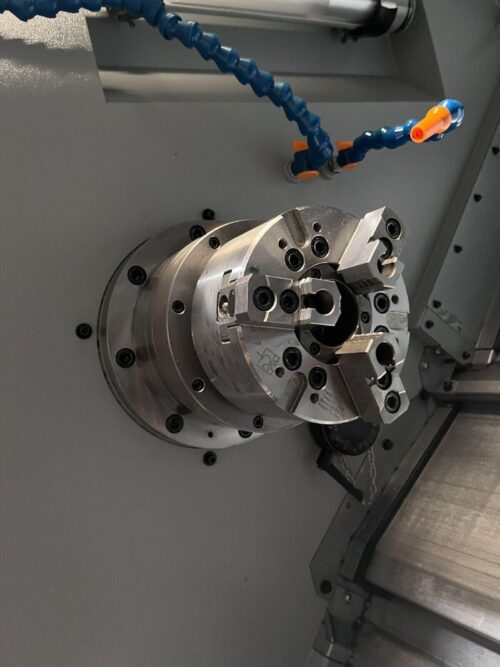

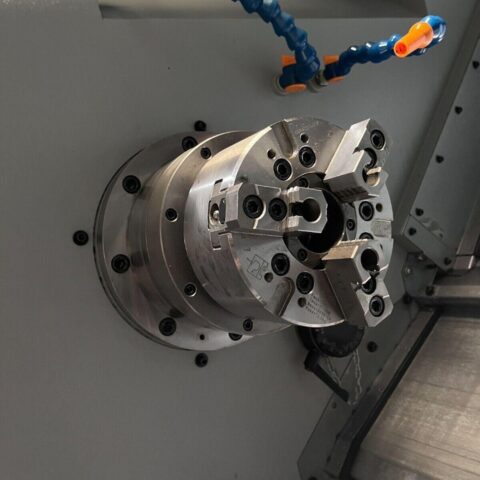

6″ 3-Jaw Chuck on Main Spindle
6″ 3-Jaw Chuck on Sub Spindle
Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
Both Spindle Synchronization

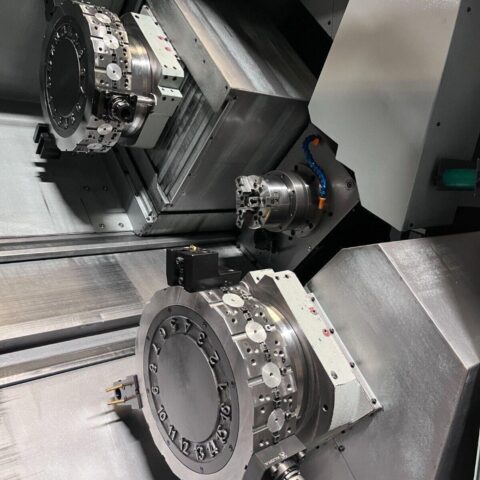

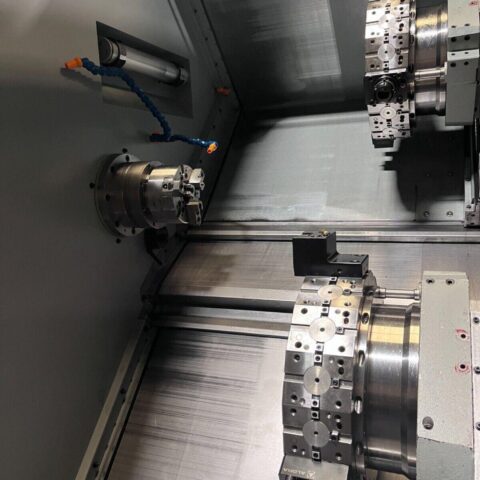

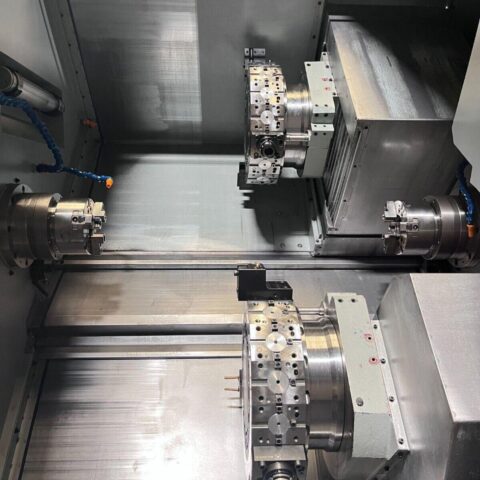

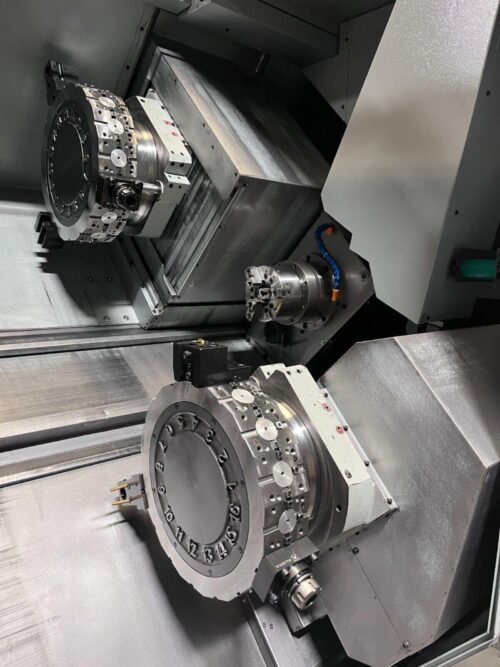

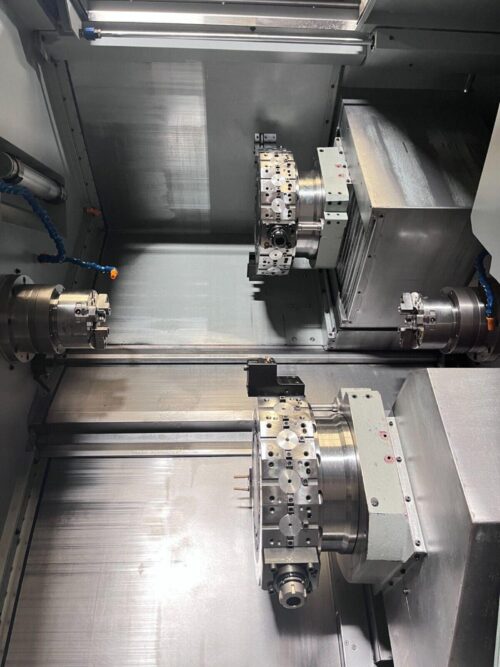

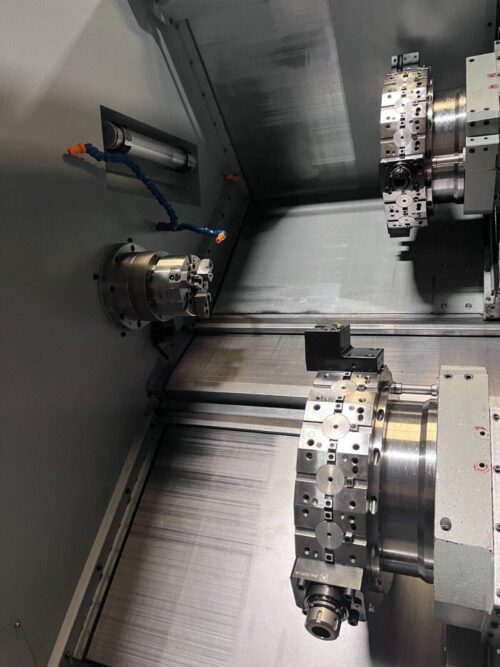

16 Station Live Tool Upper Turret
16 Station Live Tool Lower Turret
Y Axis Capability on Upper Turret
Auto Parts Catcher
Parts Conveyor
High Pressure Coolant System
Coolant Tank

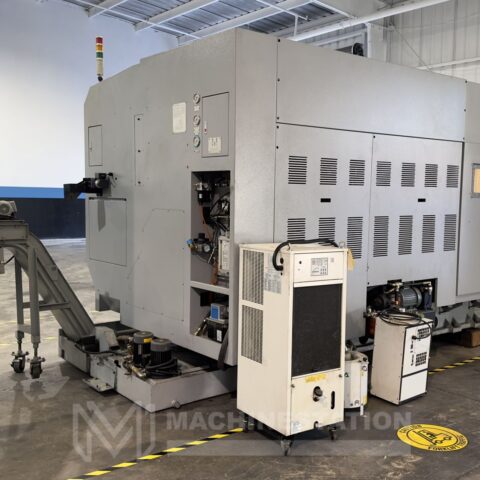

Chip Conveyor
Books and Manuals
Foot Switches
Automatic Lubrication System
Misc. Tool Holders (Mounted on Turrets as shown in the images)

Capacity:
Max Turning Diameter Upper Turret : 12.59″ Max Turning Diameter Lower Turret : 12.59″ Max Swing Over Bed : 25.98″ Max Swing Over Saddle: 24.40″ Max Turning Length: 31.10″ Max Bar Capacity Main Spindle : 2.04″ Max Bar Capacity Sub Spindle : 2.04″ Distance Between Spindle Centers: 45.2″

Travels:
X1 Axis Travel Upper Turret: 8.26″ X2 Axis Travel Lower Turret : 8.26″ Y1 Axis Travel Upper Turret: -1.77″/+2.55″ Z1 Axis Travel Upper Turret: 33.07″ Z2 Axis Travel Lower Turret : 33.07″ B Axis Travel: 36.22″ ( Sub Spindle ) C Axis: 360° (0.001°) Both Spindle

Feedrate:
X1/X2 Axis: 1181 IPM Rapid Traverse Y1 Axis: 1181 IPM Rapid Traverse Z1/Z2 Axis: 1181 IPM Rapid Traverse B Axis: 1574 IPM Rapid Traverse

Main Spindle:
Main Spindle Nose: A2-5 Main Spindle Bore: 2.5″ Main Spindle Speed: 5,000 RPM Main Spindle Power: 20 HP

Sub Spindle:
Sub Spindle Nose: A2-5 Sub Spindle Bore: 2.5″ Sub Spindle Speed: 5,000 RPM Sub Spindle Power: 20 HP

Turret:
Upper Turret Capacity: 16 Stations Lower Turret Capacity: 16 Stations Live Milling Speed: 6000 RPM Live Milling Motor: 7.5 HP Turret Index Time (Tool to Tool): 0.2 sec Turret Type: BMT-40

General:
Power Source: AC 220v / 3-Phase / 50/60 Hz Power Requirement: 75 kva Machine Dimensions: 185″ x 95″ x 91″ Height Machine Dimensions: 210″ x 95″ x 91″ Height (With Chip Conveyor) Machine Weight: 24,251 lbs Approx.
