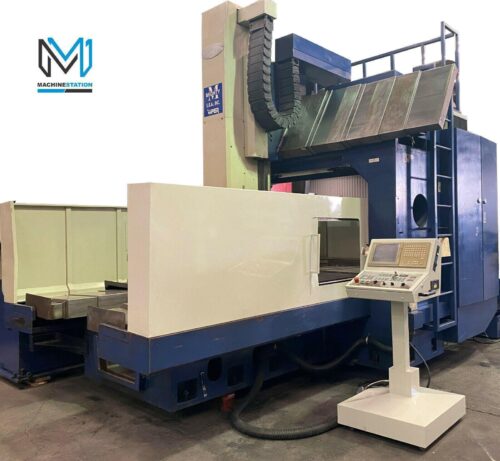

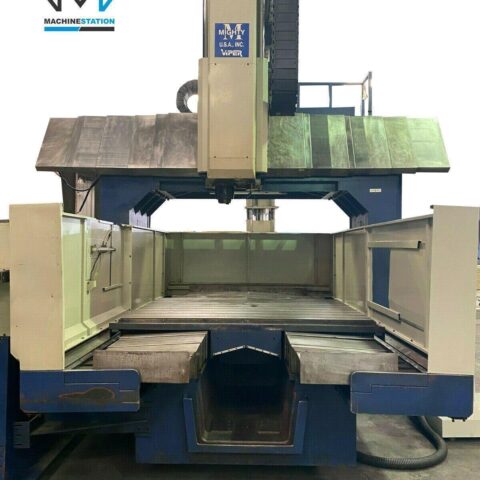

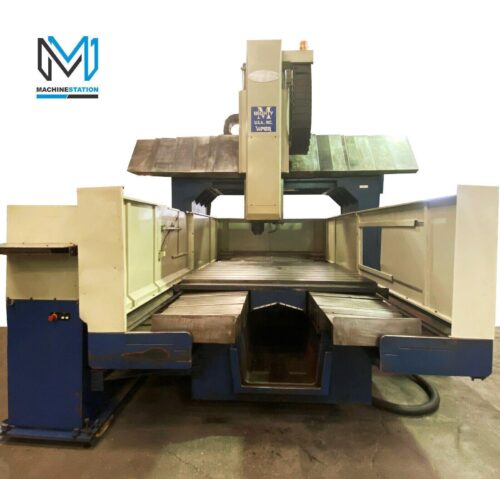

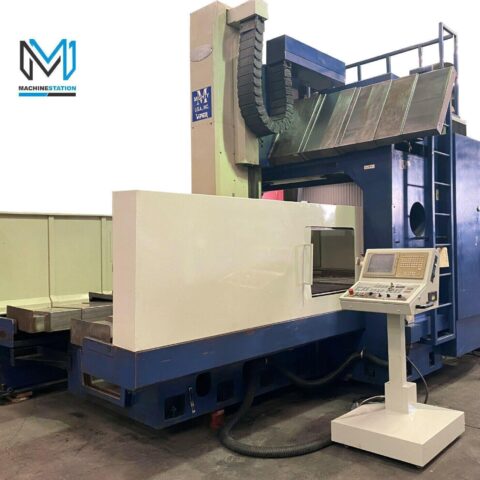

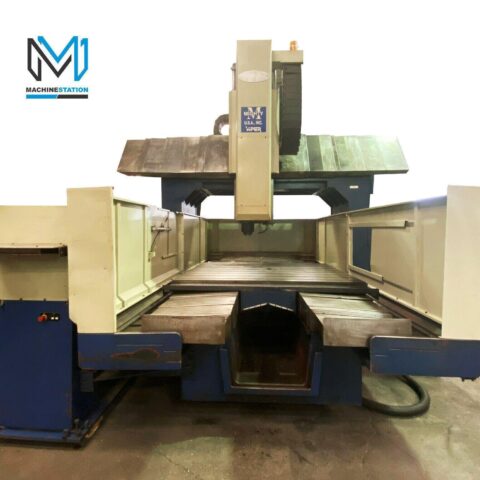

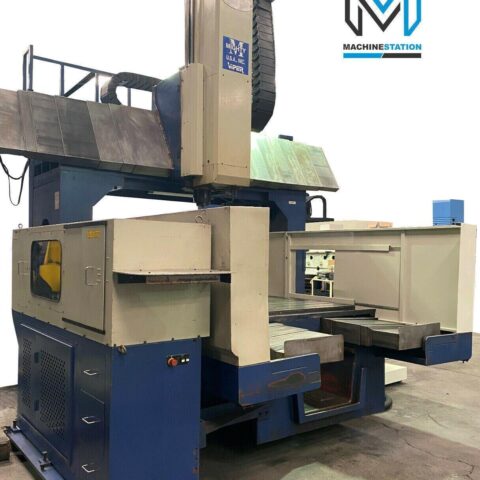

Mighty Viper DM-100 CNC Bridge Die Mold Milling


“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”


Qty =

Product Description


Make:   Mighty Viper
Model #:   DM-100
Year: 08/2002  Installed : 2004
 Serial #:  003445
Condition: Very Good
All specifications are approximations, and are subject to verification.
Mighty Viper DM-100 Equipped With:

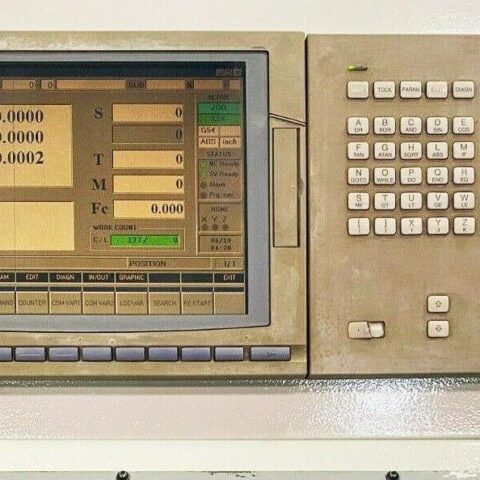

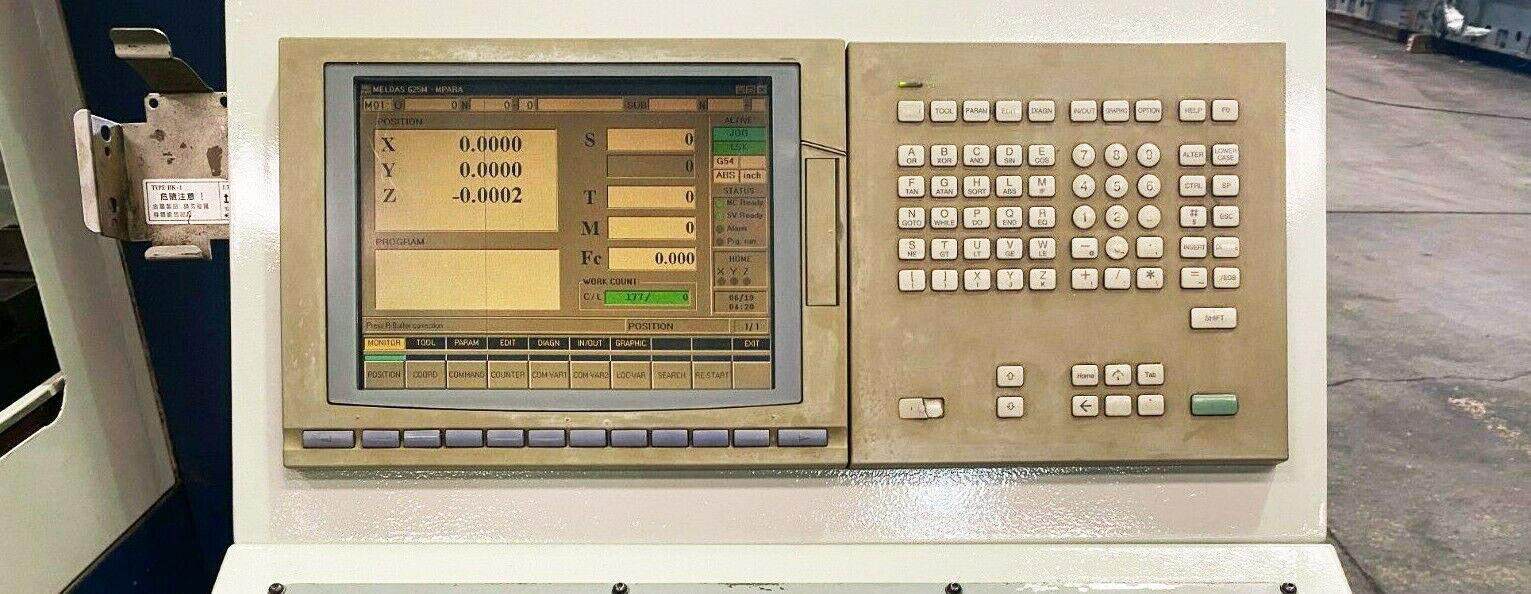

Mitsubishi 600M CNC Control
64″ X 80″ Table for Die Mold Applications
30 Station Side Mount Tool Changer
50 Taper Geared Head
6000 RPM Spindle
Powerful 35 HP high torque spindle motor
PCMCIA Card Slot
RS-252 Port
Spindle Orientation
Box Way Construction
Portable manual pulse generator
Flood coolant with large separate coolant tank Base
Flush Chip Disposal with Dual Auger

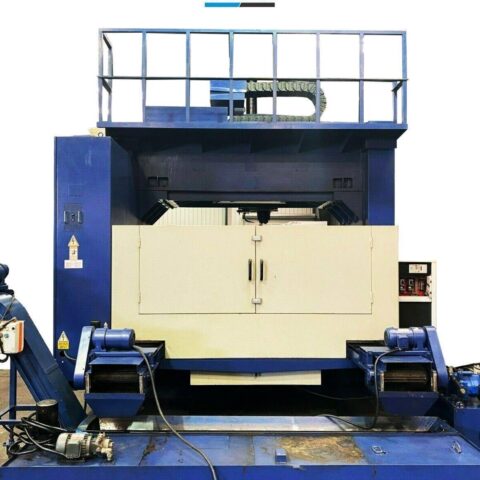

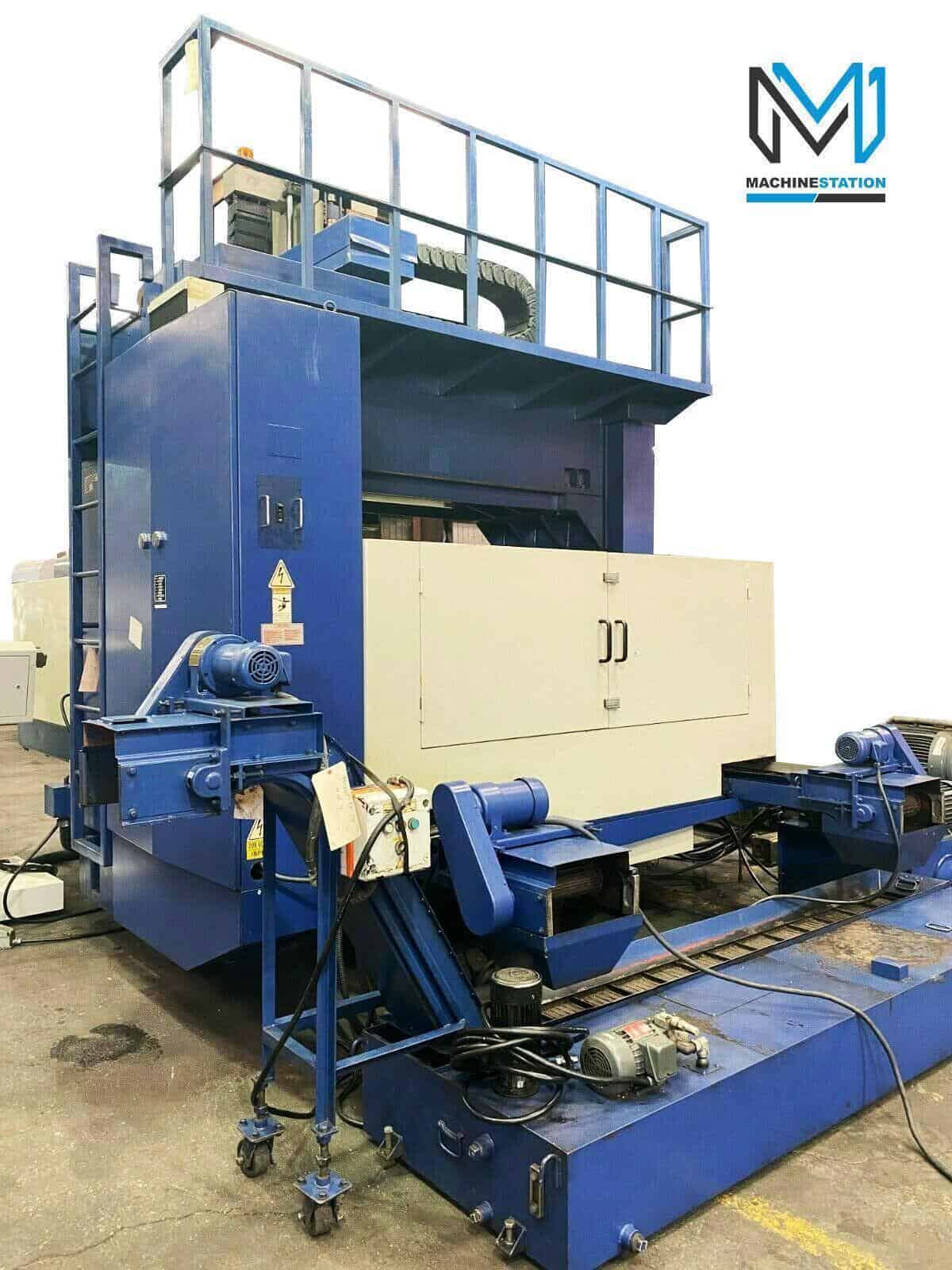

Chip Conveyor
Chiller Unit
Books and Manuals
Replacement Cost over $300,000.00
Mighty Viper DM-100 Specifications:
 X-Axis: 61.75″
Y-Axis: 86.66″
Z-Axis: 36.22″
Distance Between Columns: 102.36″
Spindle Nose to Table (Min.- Max.): 7.4″- 43.7″
Feed rates: Rapid X,Y & Z: 590 inch per minute
Cutting Feedrate: .04″ – 376″ inch per minute
Length: 64.96″
Width: 80.31″
T-Slot: 0.87″ Wide X 20 X 7.87″
Max Weight on Table: 22,000 lbs
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 35 HP
Automatic Arm Type Tool Changer:
50 Taper
Capacity: 30
Max Tool Weight: 43 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 5.2 – 7.7″
Air Required: 100 psi, 4 scfm
Power: 220v / 3-Phase, 65 Kva
Floor Dimensions: 224″ X 144″ x 130″ High

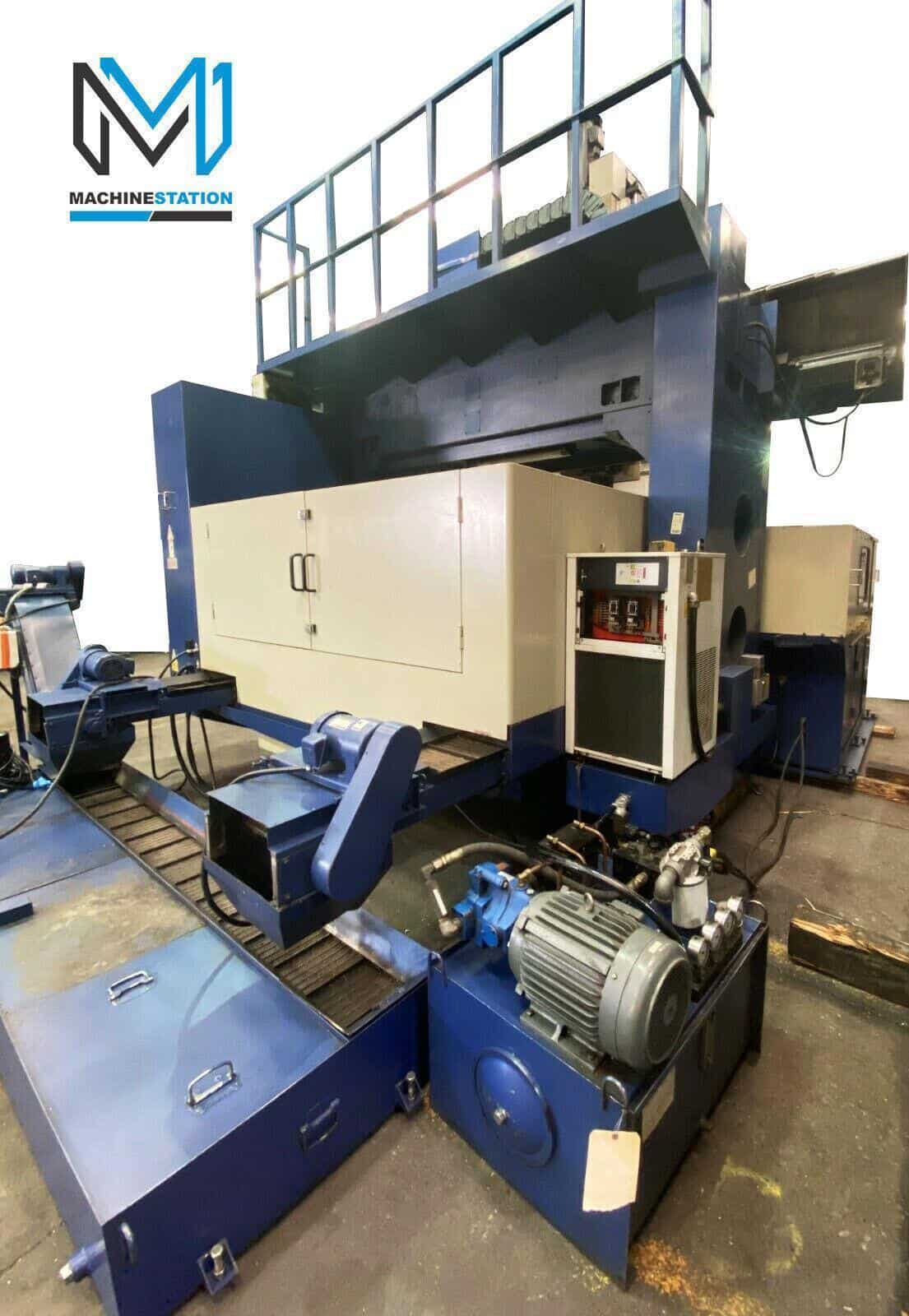

with Hydraulic Unit, Chip Conveyor, Chiller unit
Weight: 55000 lbs.

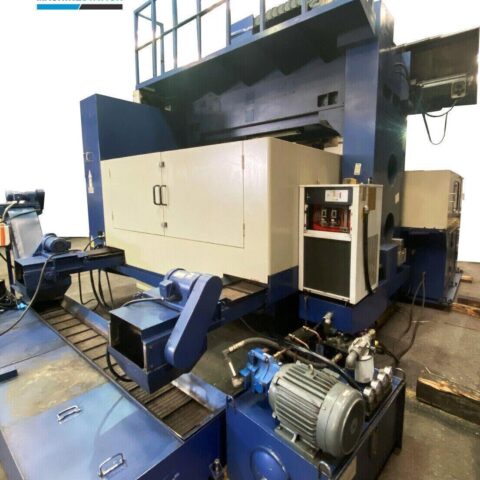

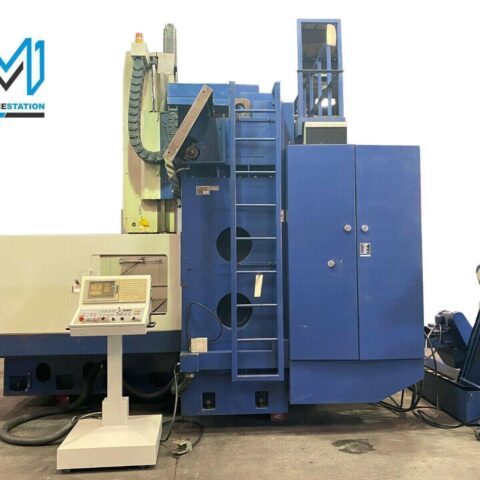

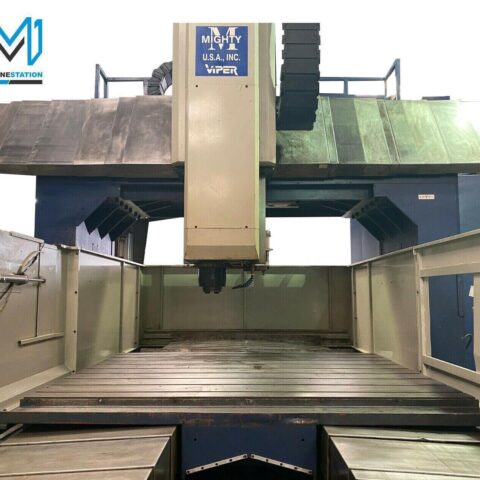

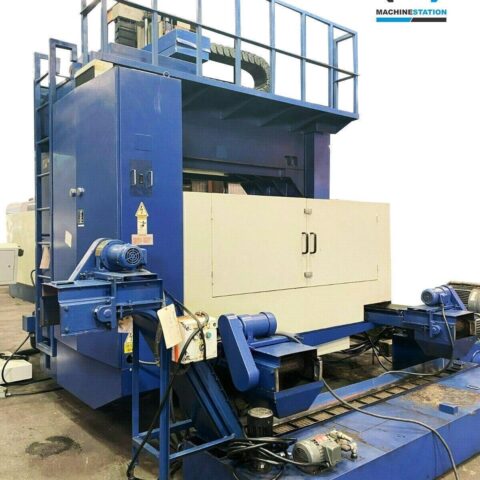

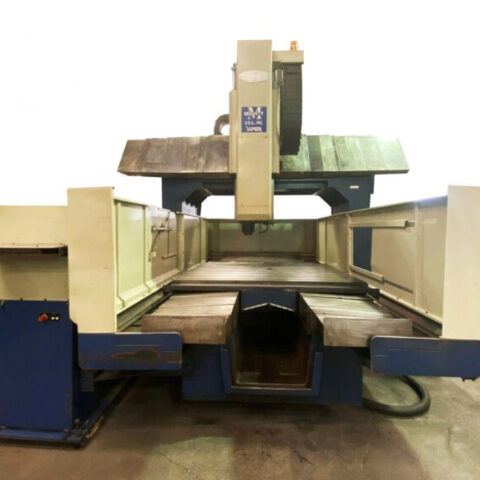

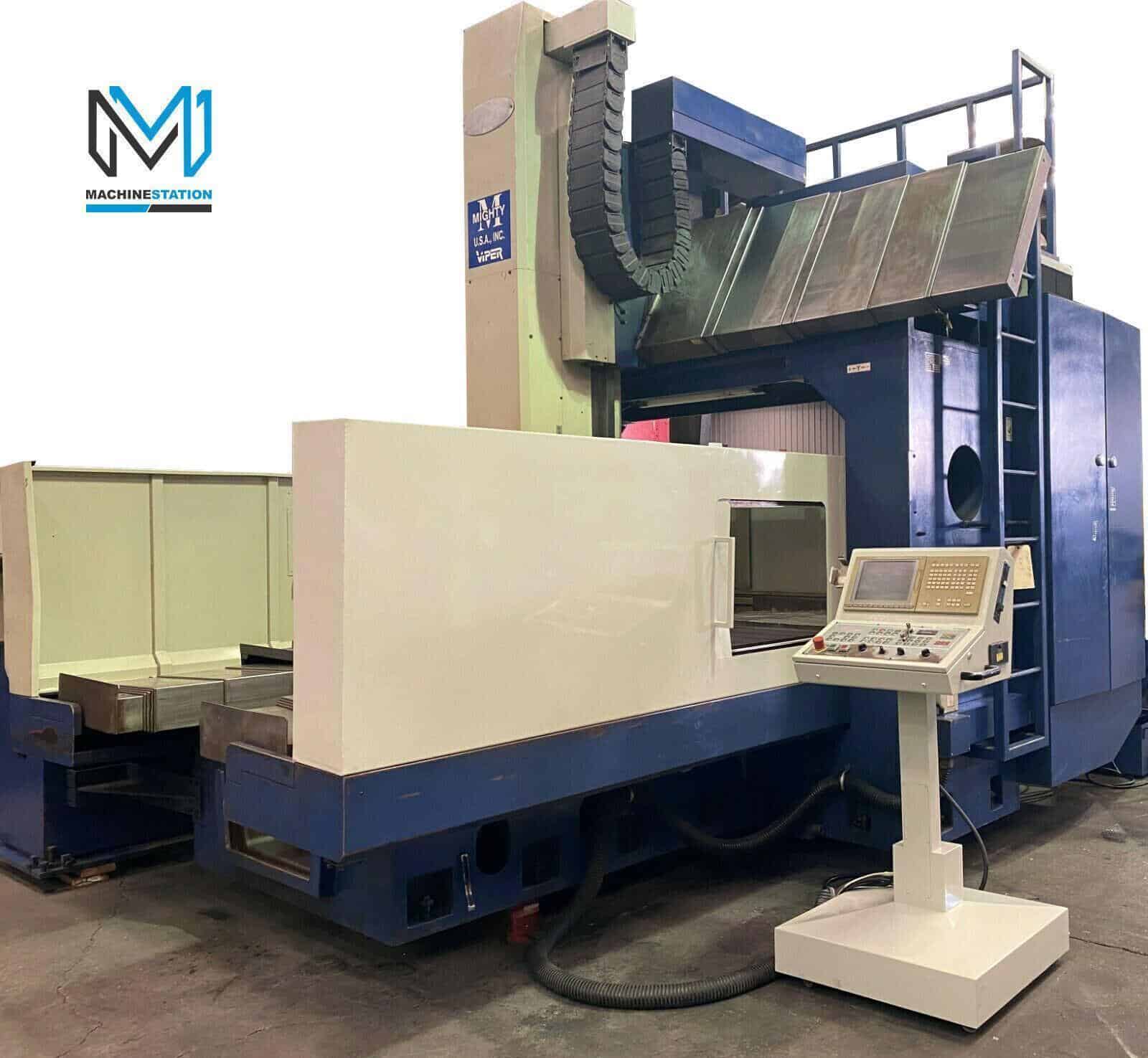

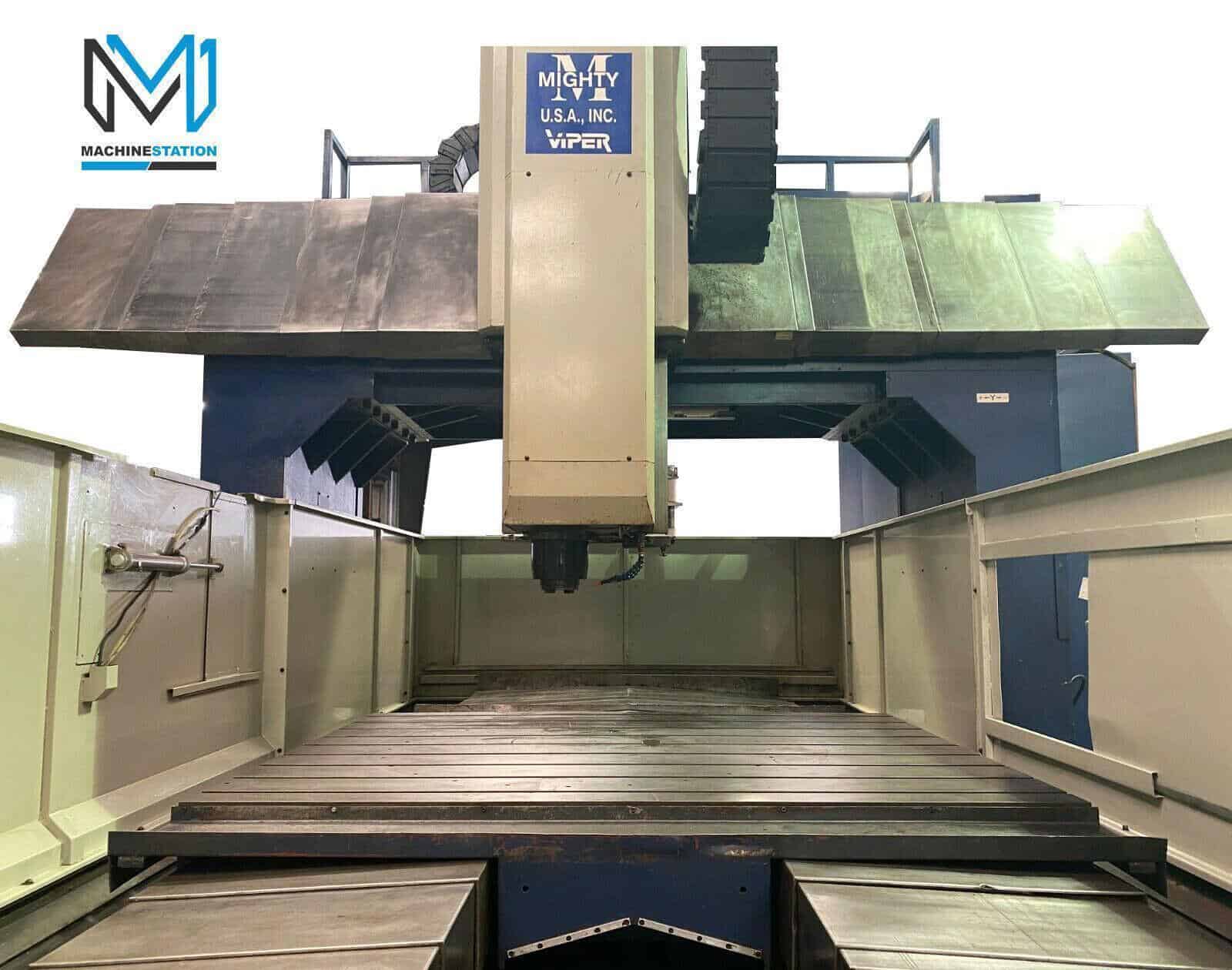

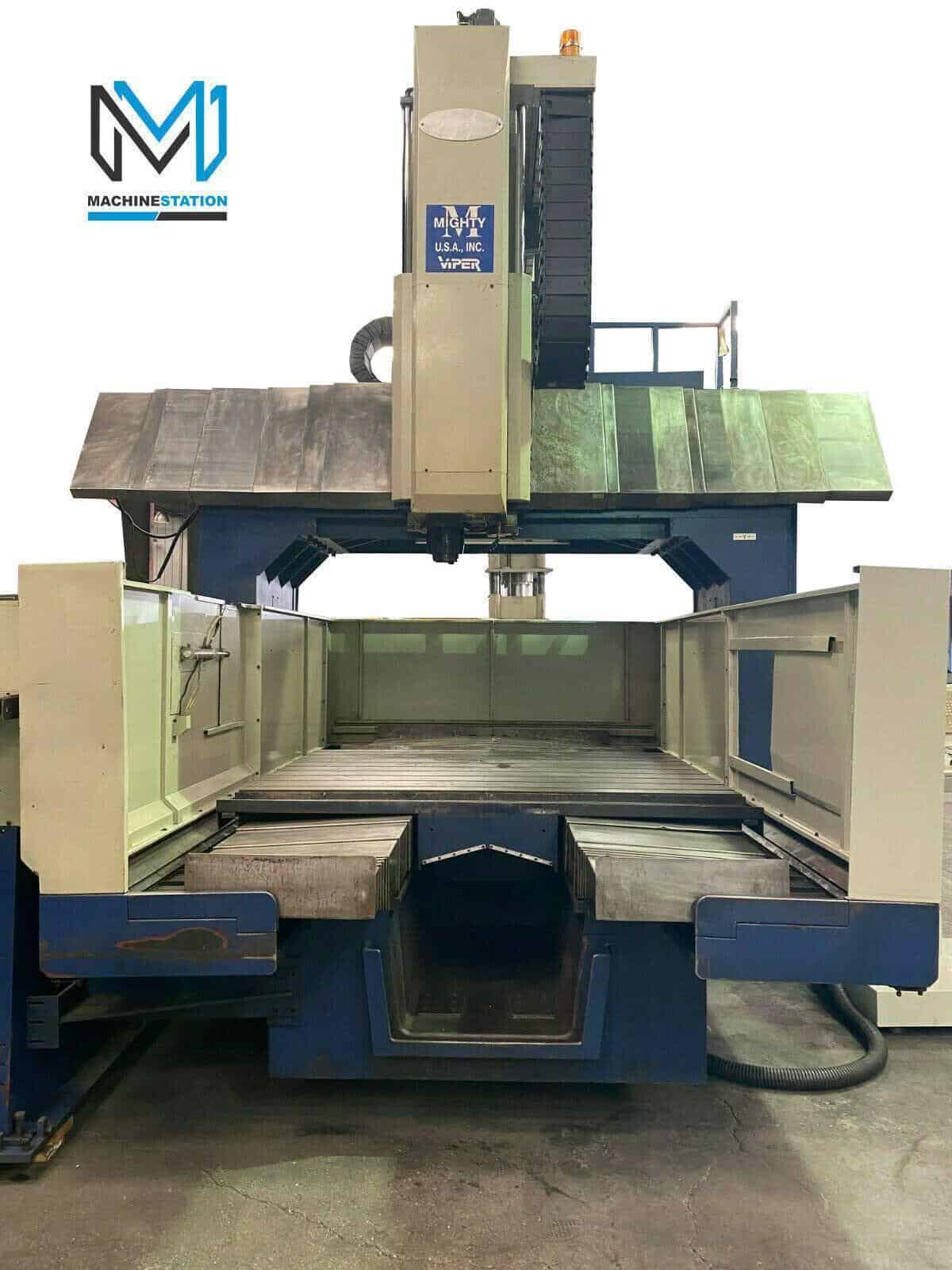

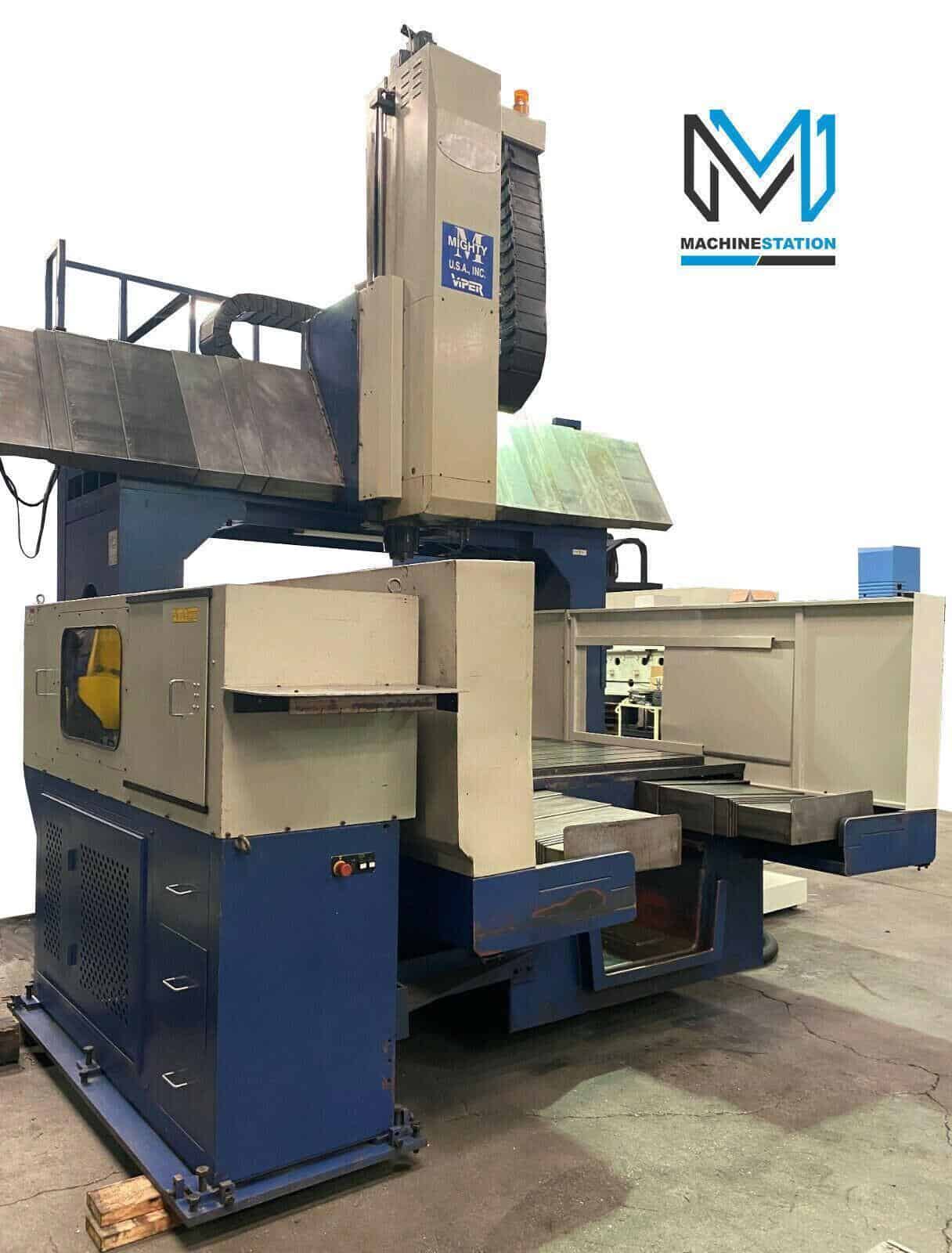

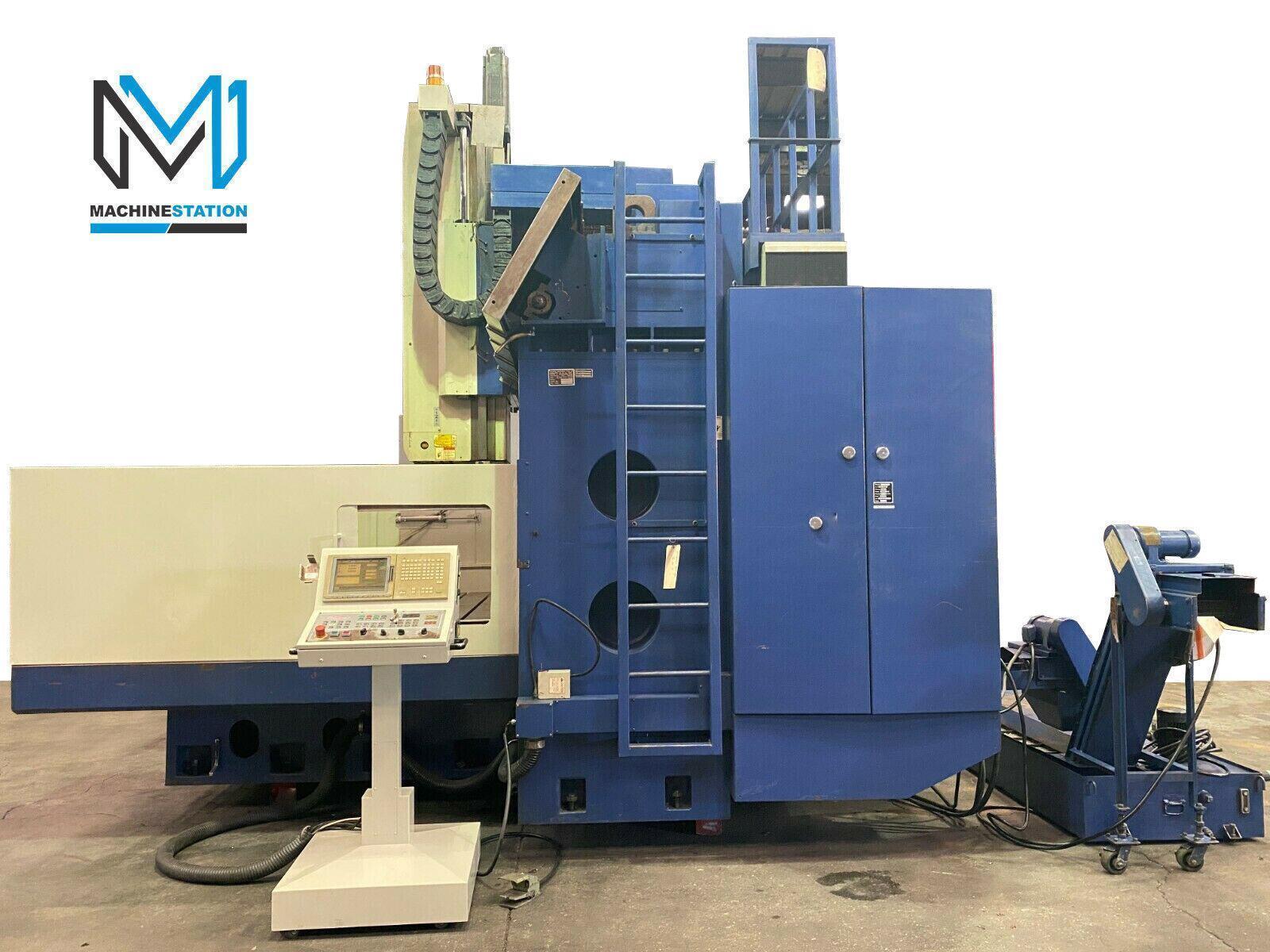

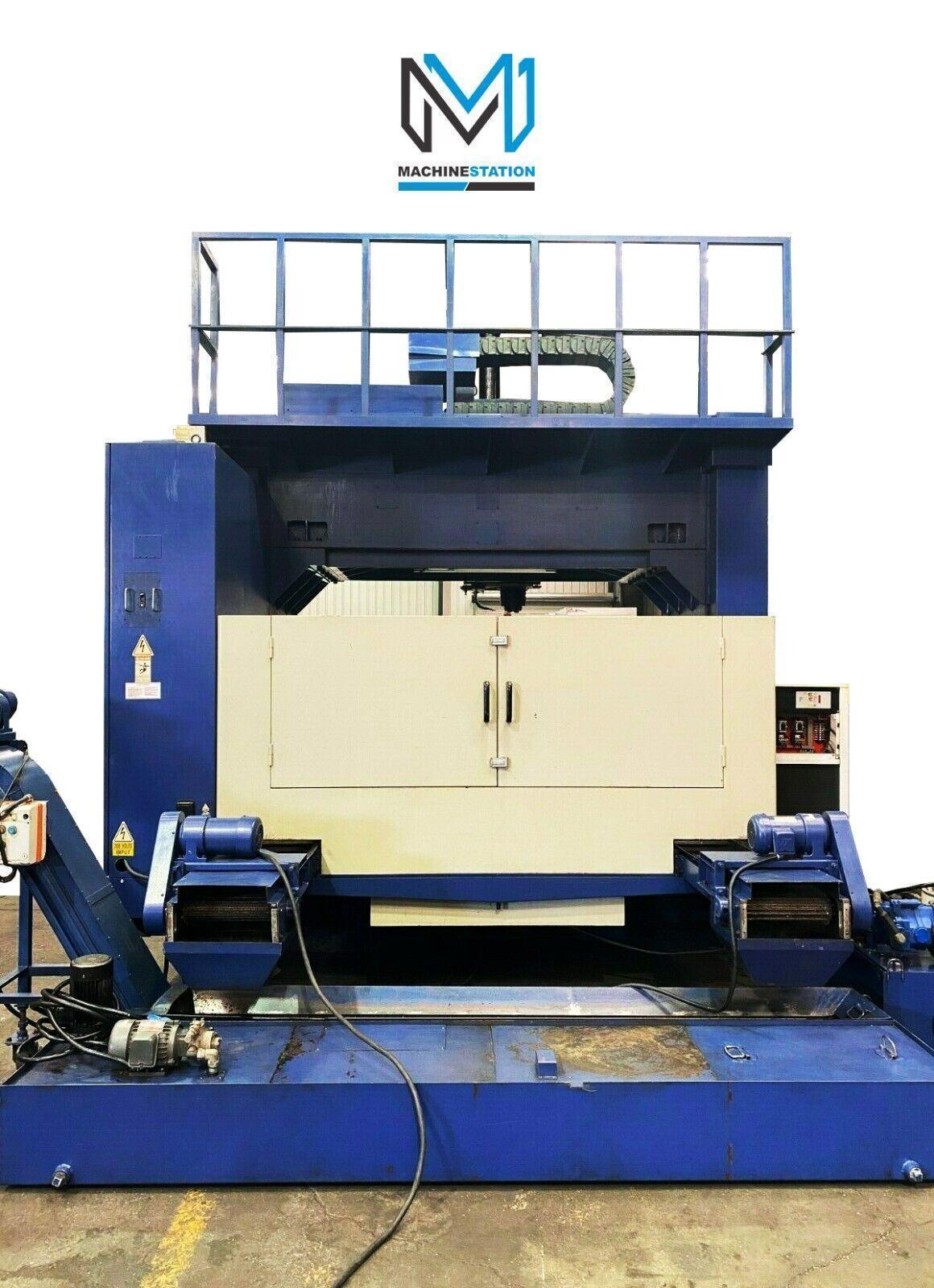

Comes as Shown in Pictures……
