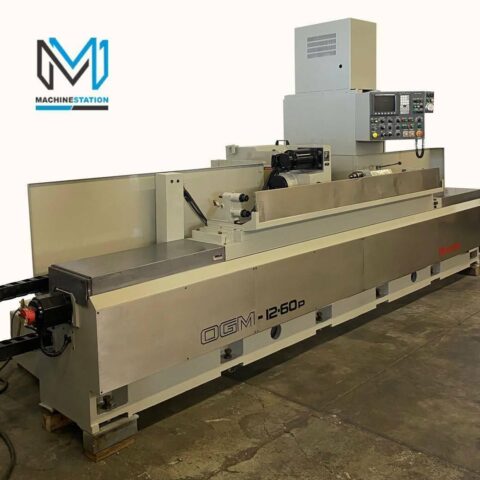

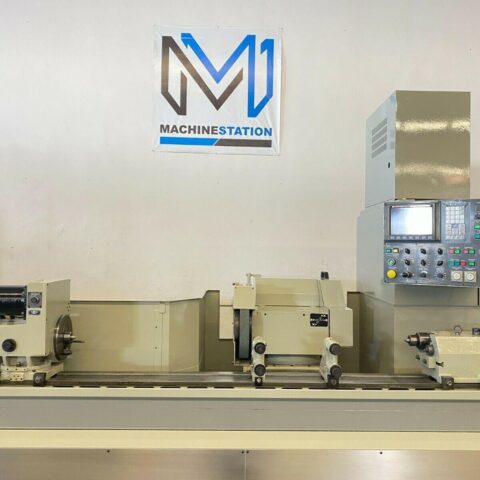

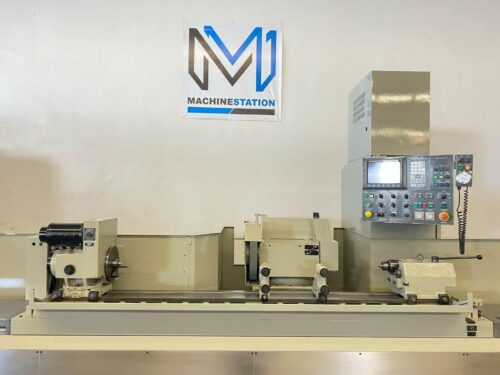

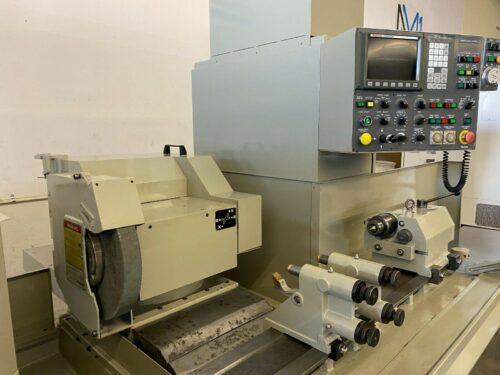

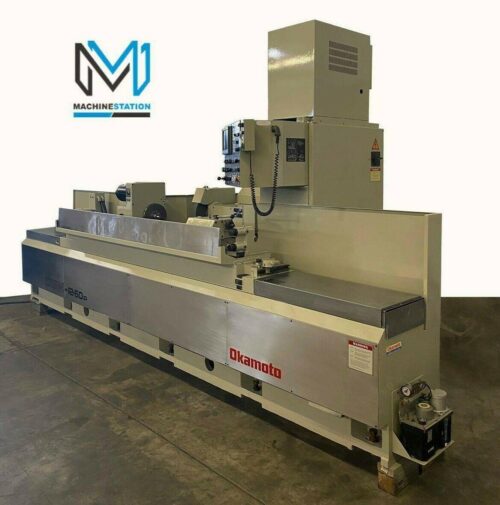

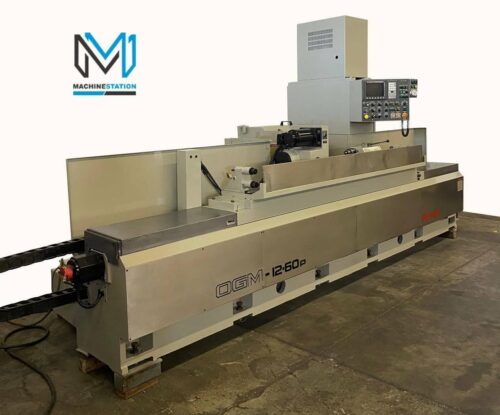

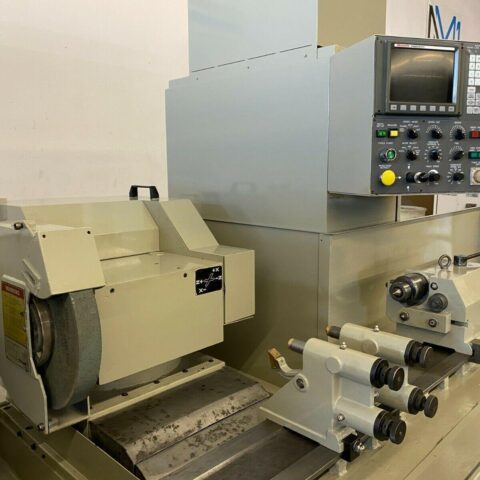

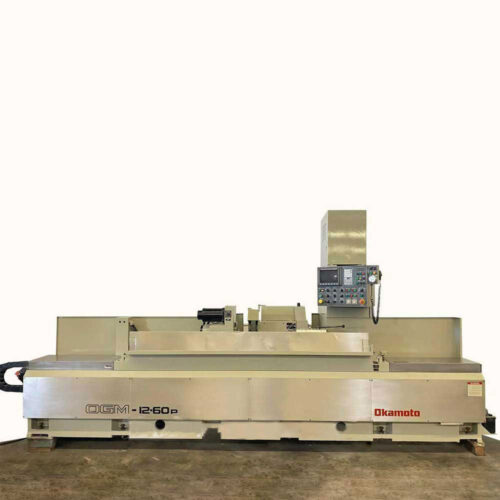

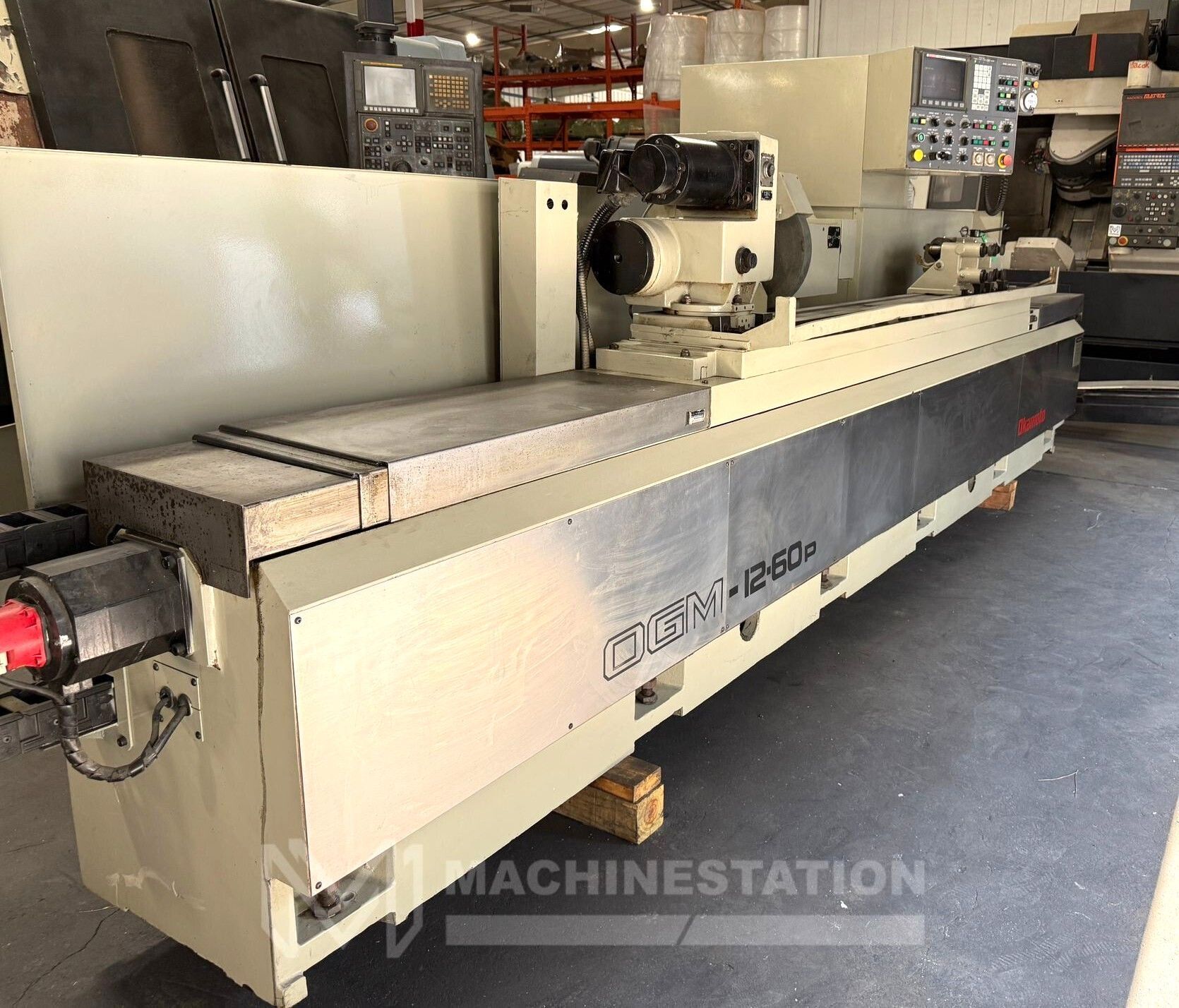

Okamoto OGM 12-60P CNC OD Cylindrical Grinder

$39,600.00

1 in stock

Location:Houston, TX

SKU: 2014

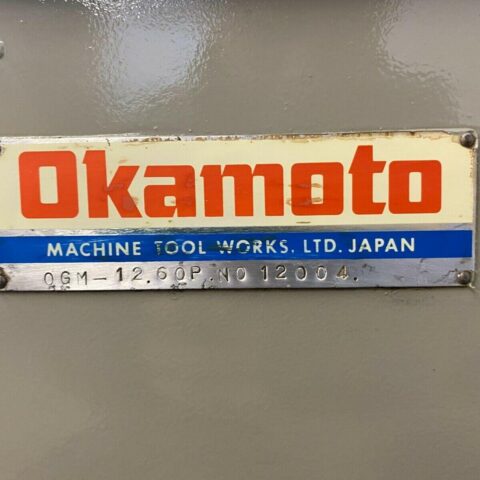

Make/Model: OKAMOTO OGM 12.60P
Video: No Video
SKU: 2014

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

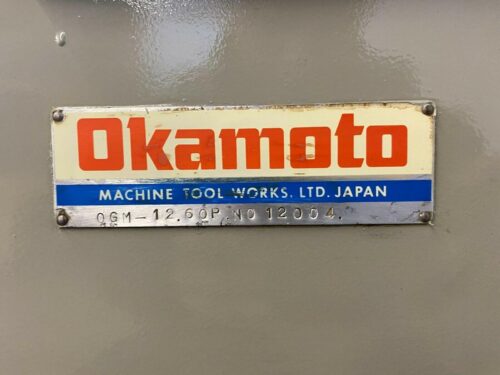

Make: OKAMOTO
Model: OGM 12.60P
Year:
Condition: Used – Good



Equipped With:

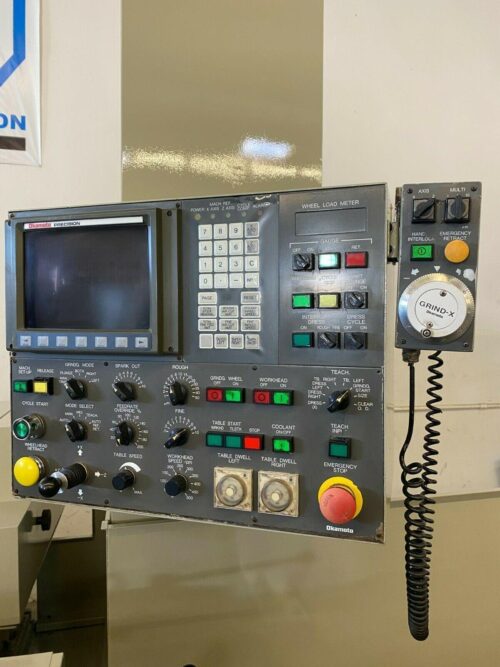

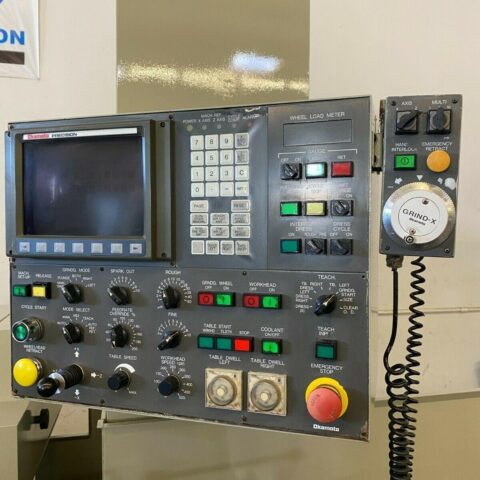

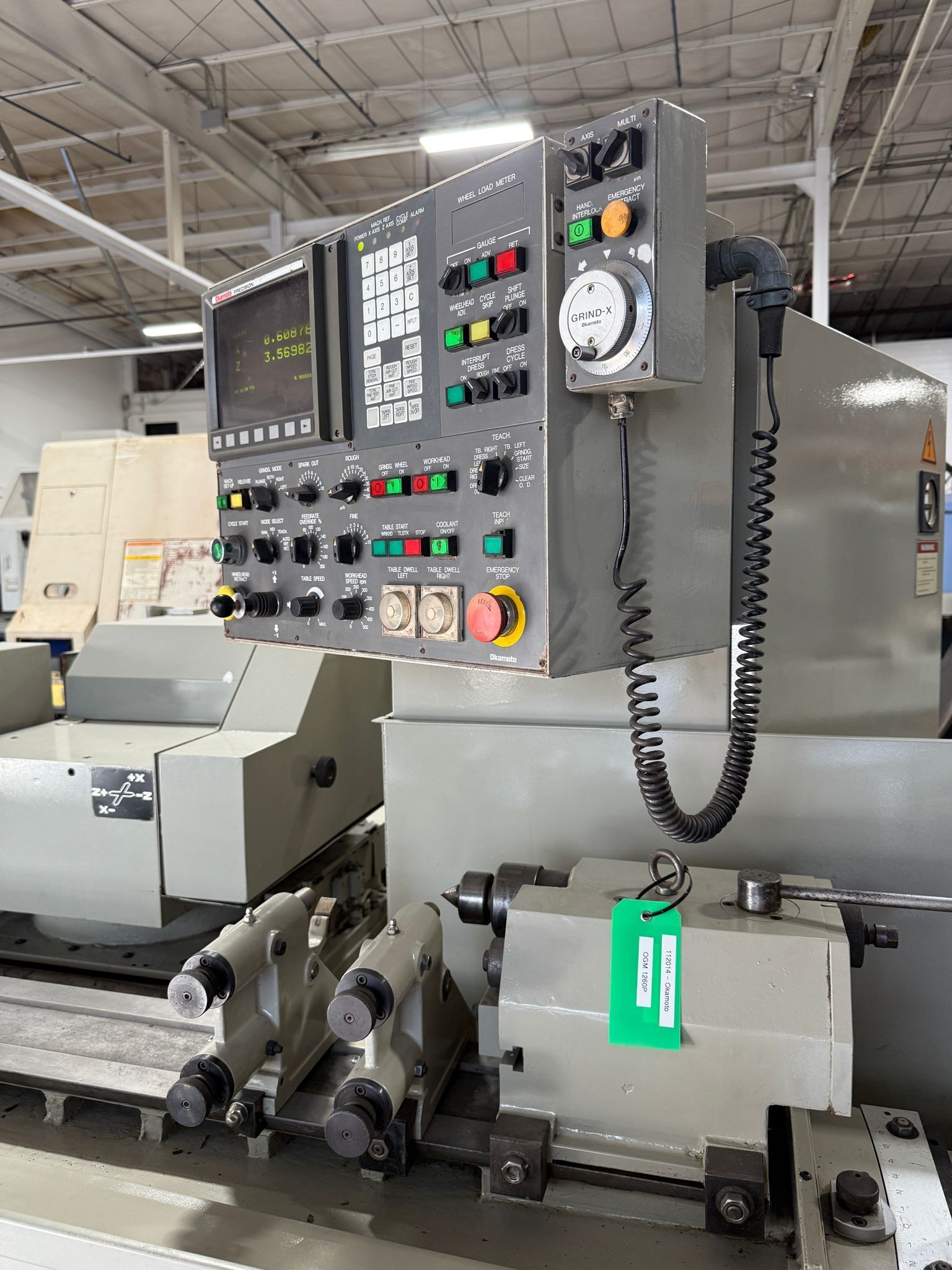

Fanuc 21-GA
Absolute/Incremental Combined Programming
4 x Subprograms

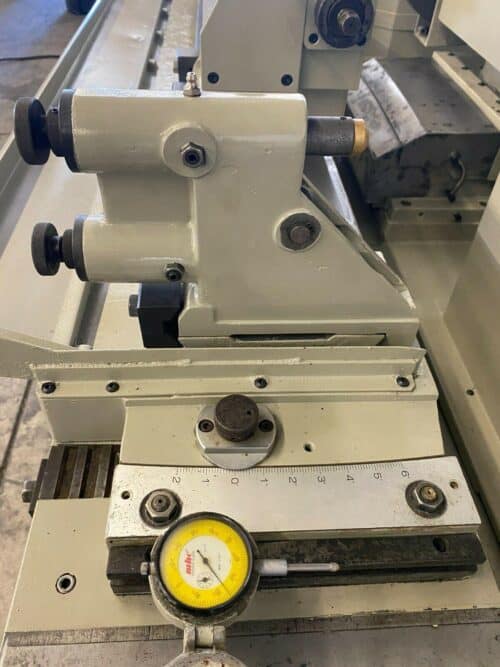

Swivelable Table
MPG Control

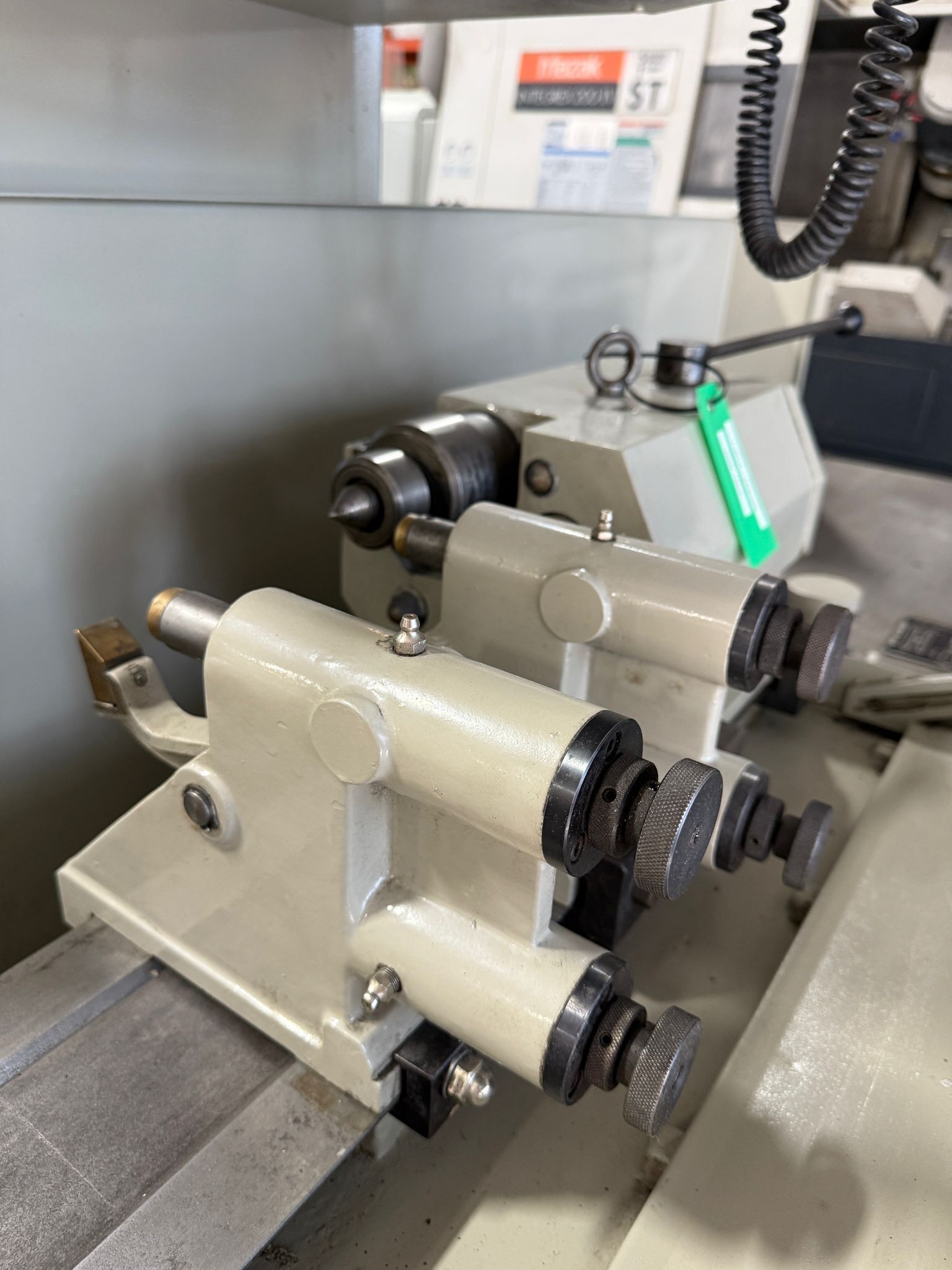

2 X Steady Rests
Inch / Metric Conversion
Stored Stroke Check
Auto Reference Point Return
Automatic Acceleration & Deceleration

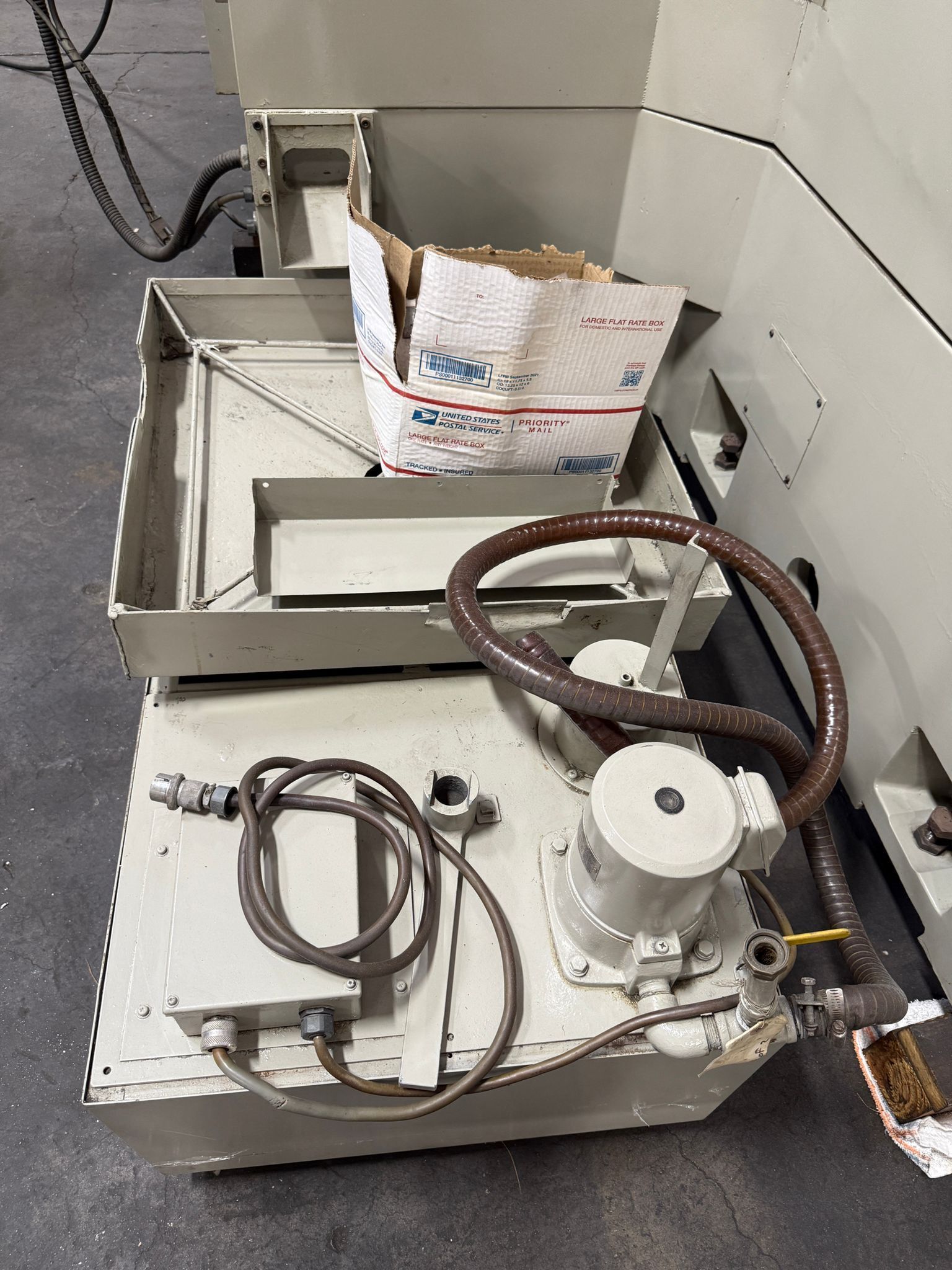

Coolant System
Automatic Lubrication system
Manuals



Capacity:
Max Grinding Diameter: 11.81″
Max Grinding Length: 62.99″
Max load Capacity: 330 lbs
Swing Over Table: 12.59″
Distance Between Centers: 63.0″

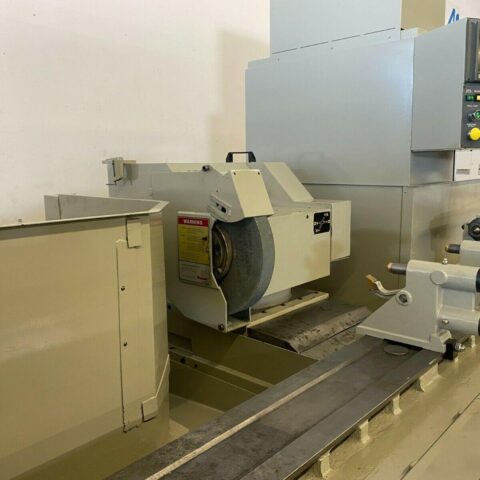

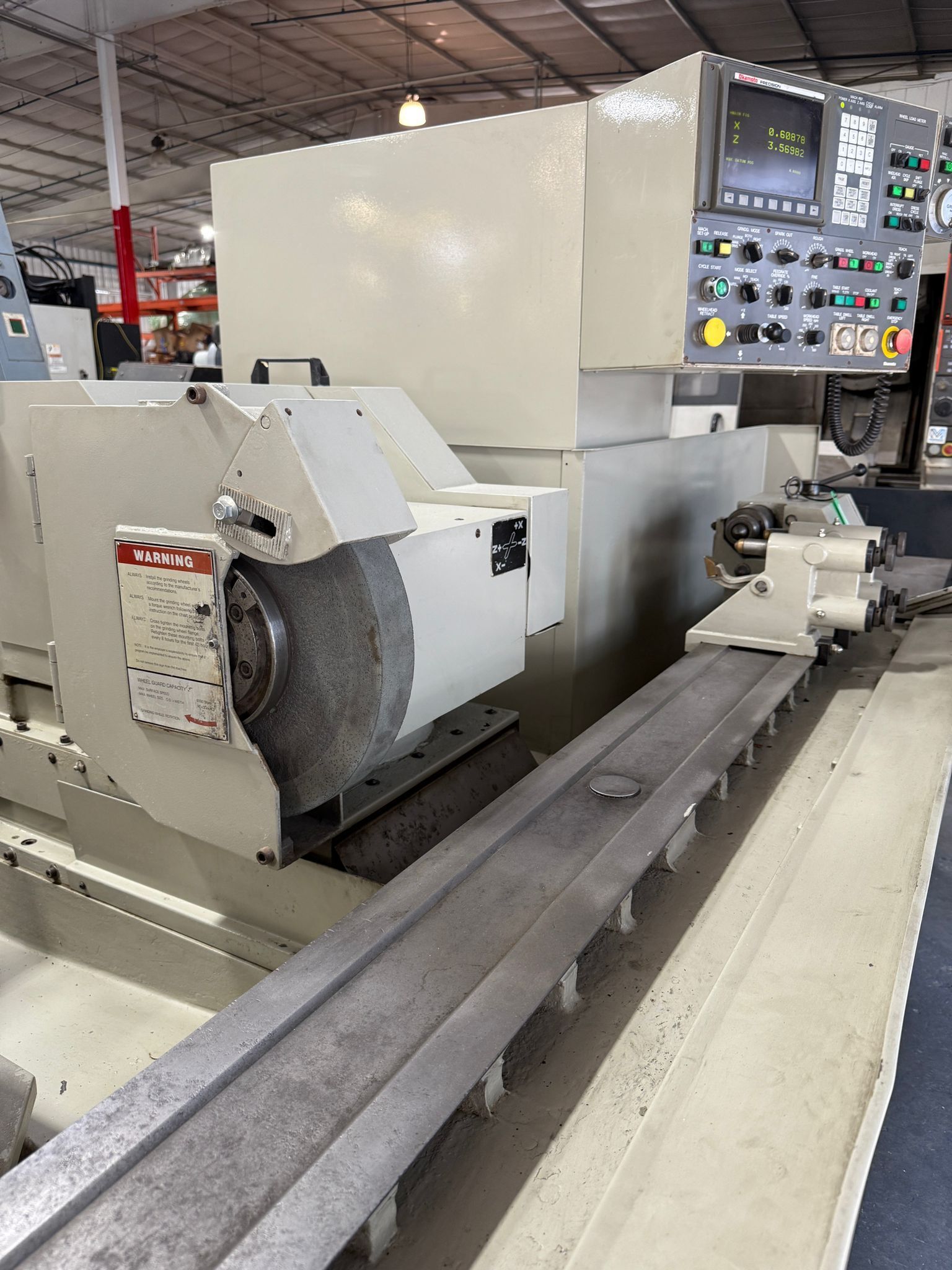

Grinding Wheel:
Speed: 1742 RPM
wheel Size: 16″ X 2″ X 5″

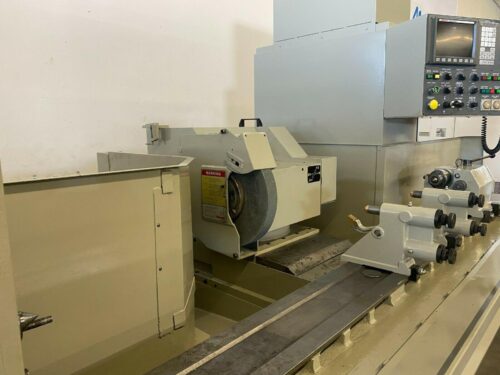

Wheelhead:
X Axis Infeed Travel: 11.81″
Handfeed Travel: 7.9”
Least Travel Increment: 0.0001”
Rapid Feed Rate: 158″
Cont. Feed Rate: 0.0001″ to 158″
Motor: 7.5 HP

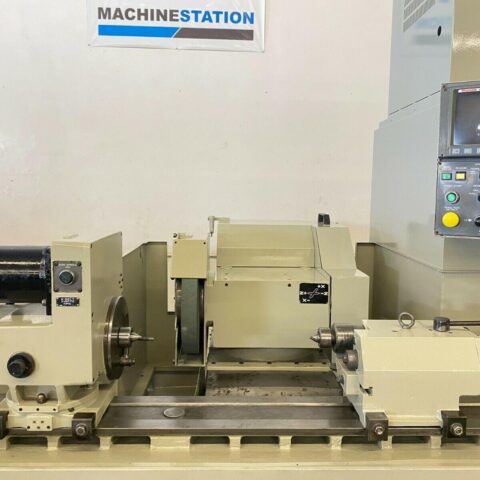

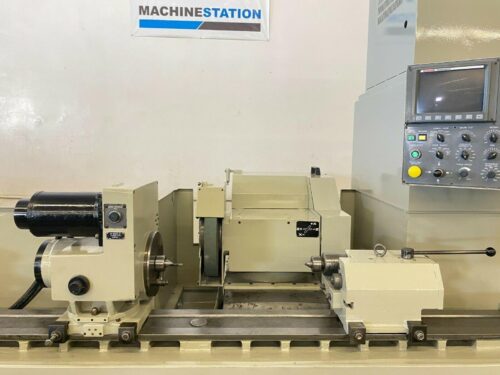

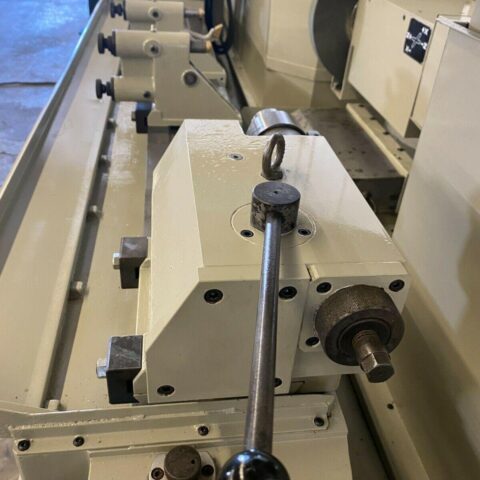

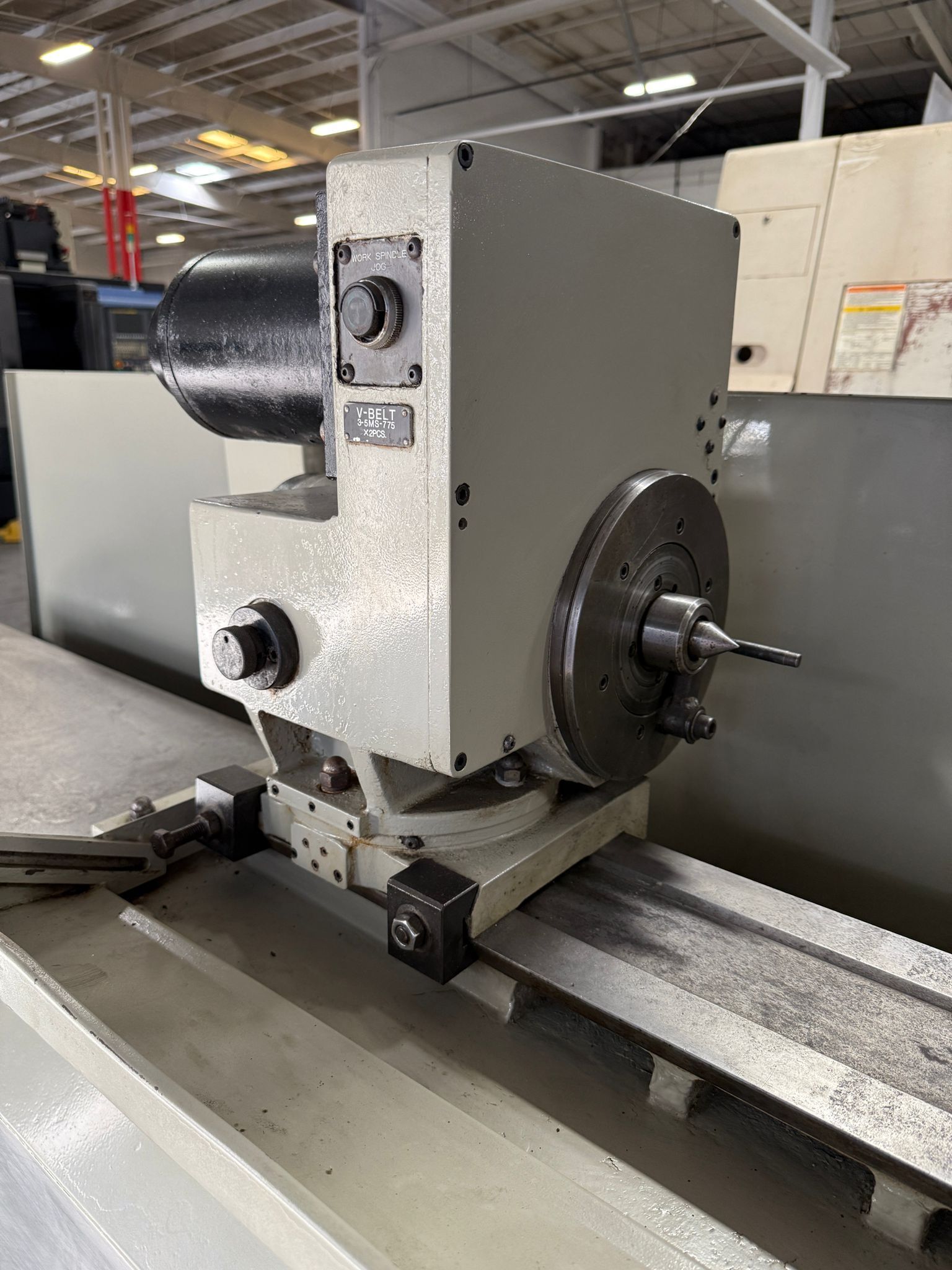

Workhead:
Center Taper: MT-4
Spindle Bore Dia.: 0.68″
Speed: 10-500 RPM
Motor: 1 HP



Table:
Z Axis Travel: 68.89″
Swivel Angle: +2 /- 6°
Least Travel Increment: 0.0001”
Rapid Feed Rate: 393″
Cont. Feed Rate: 0.0001″ to 393″

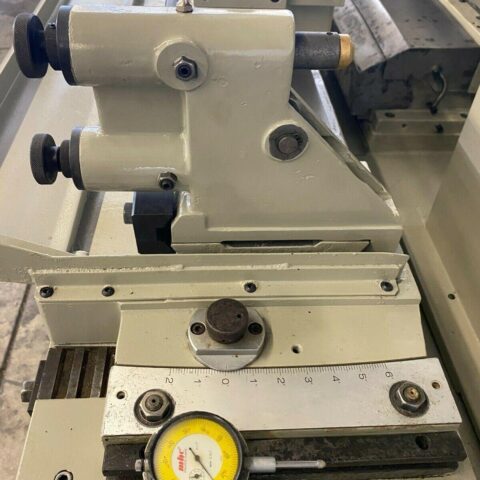

Tailstock:
Tailstock Quill Stroke: 1.18″
Tailstock Taper: MT-4



General:
Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 20 kva
Overall Dimensions: 245″ x 75″ x 66″ High
Weight : 11200 lbs Approx.



“No Charges for loading at list Price”
