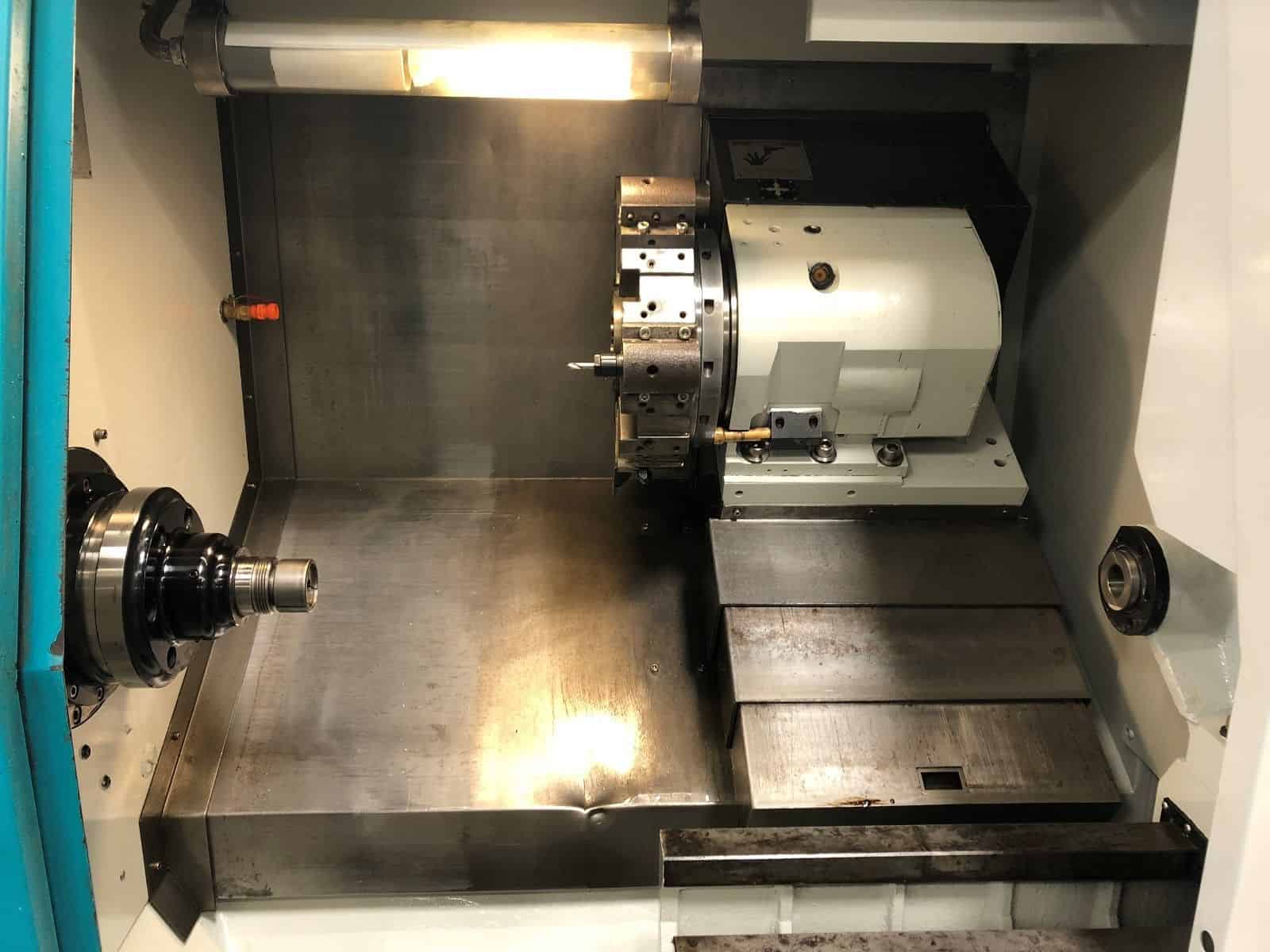

Akira Seiki SL-30 CNC Turning Center

All specifications are approximations and are subject to verification.

• Akira Seiki SL-30 Equipped With:

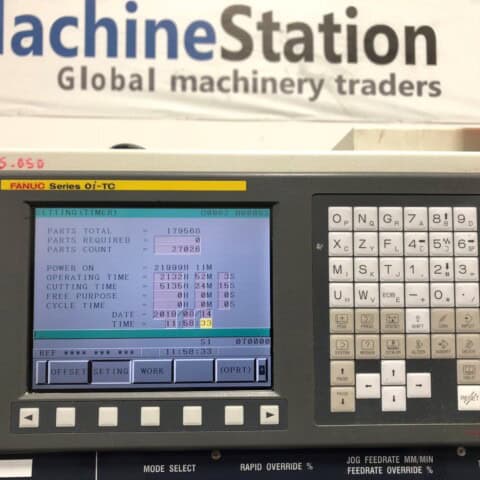

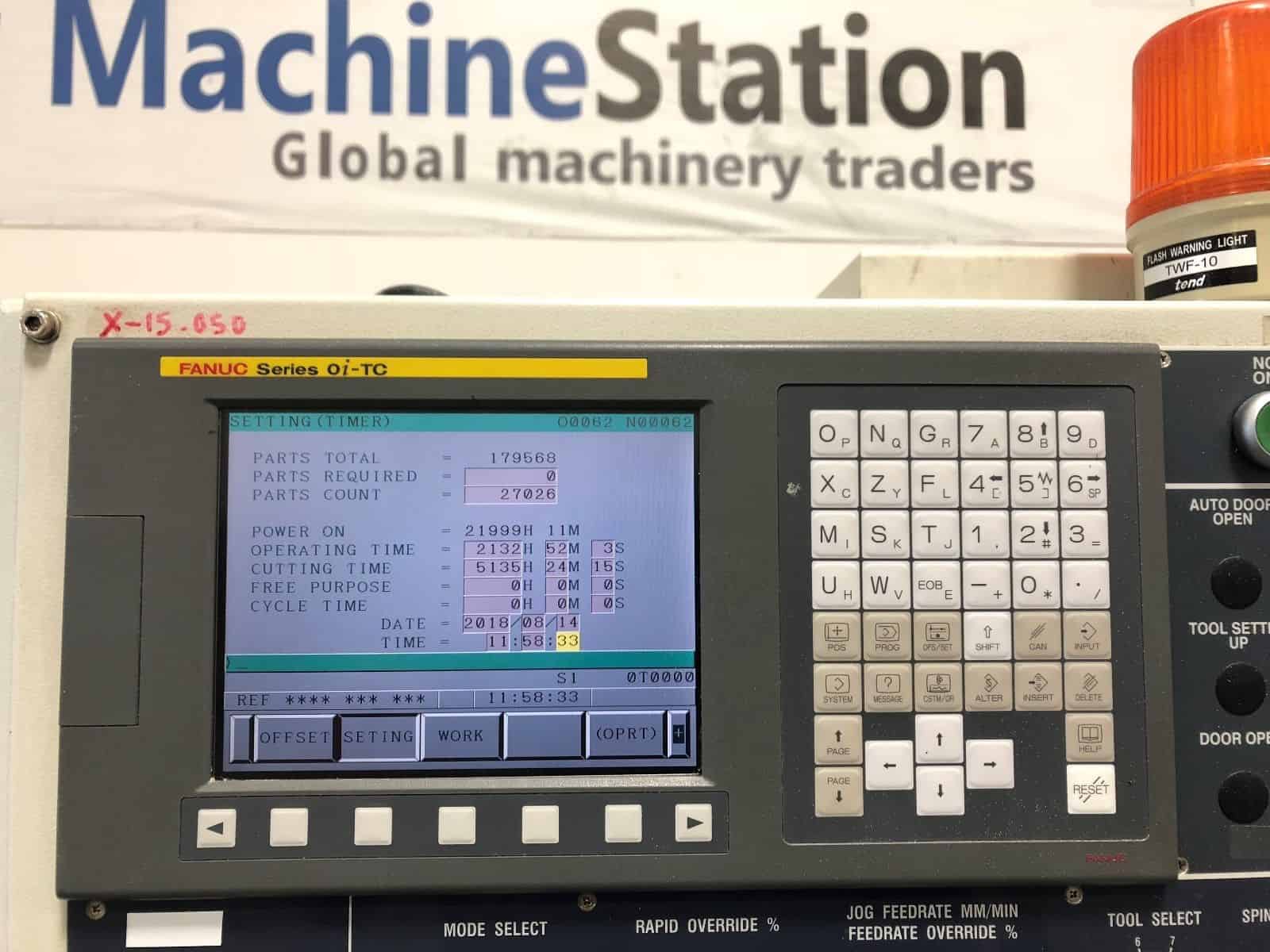

• Fanuc Oi-TC series CNC Control
• Box way construction
• Rigid Tapping
• Hydraulic Collet Chuck

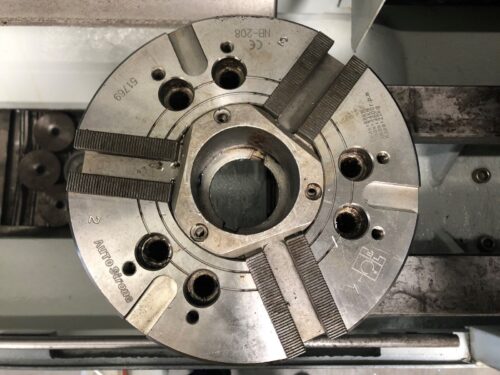

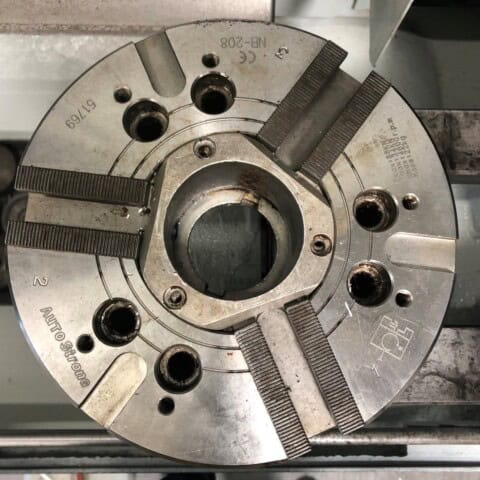

• 8″ 3 Jaw Chuck ( 10″ Capable )
• A2-6 Spindle
• Hydraulic Tailstock and Quill
• PCMCIA Card Slot
• Barfeed Interface

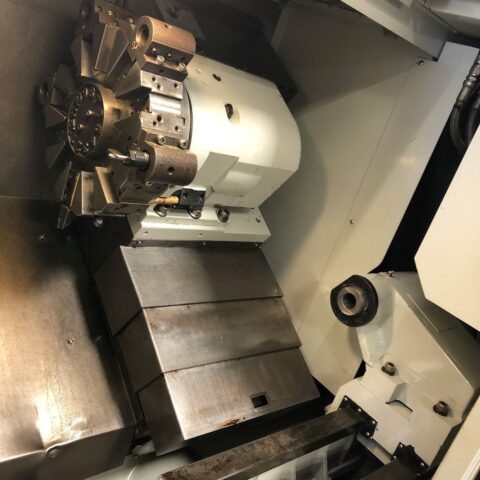

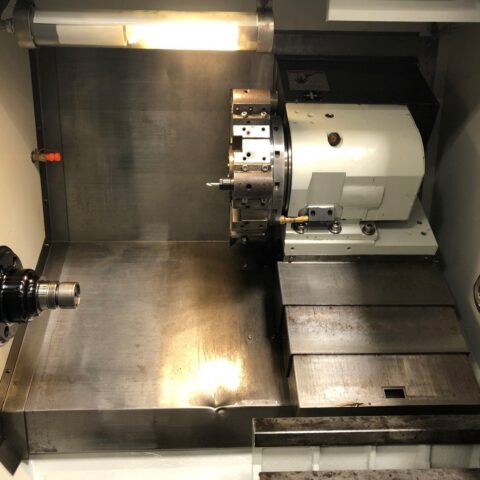

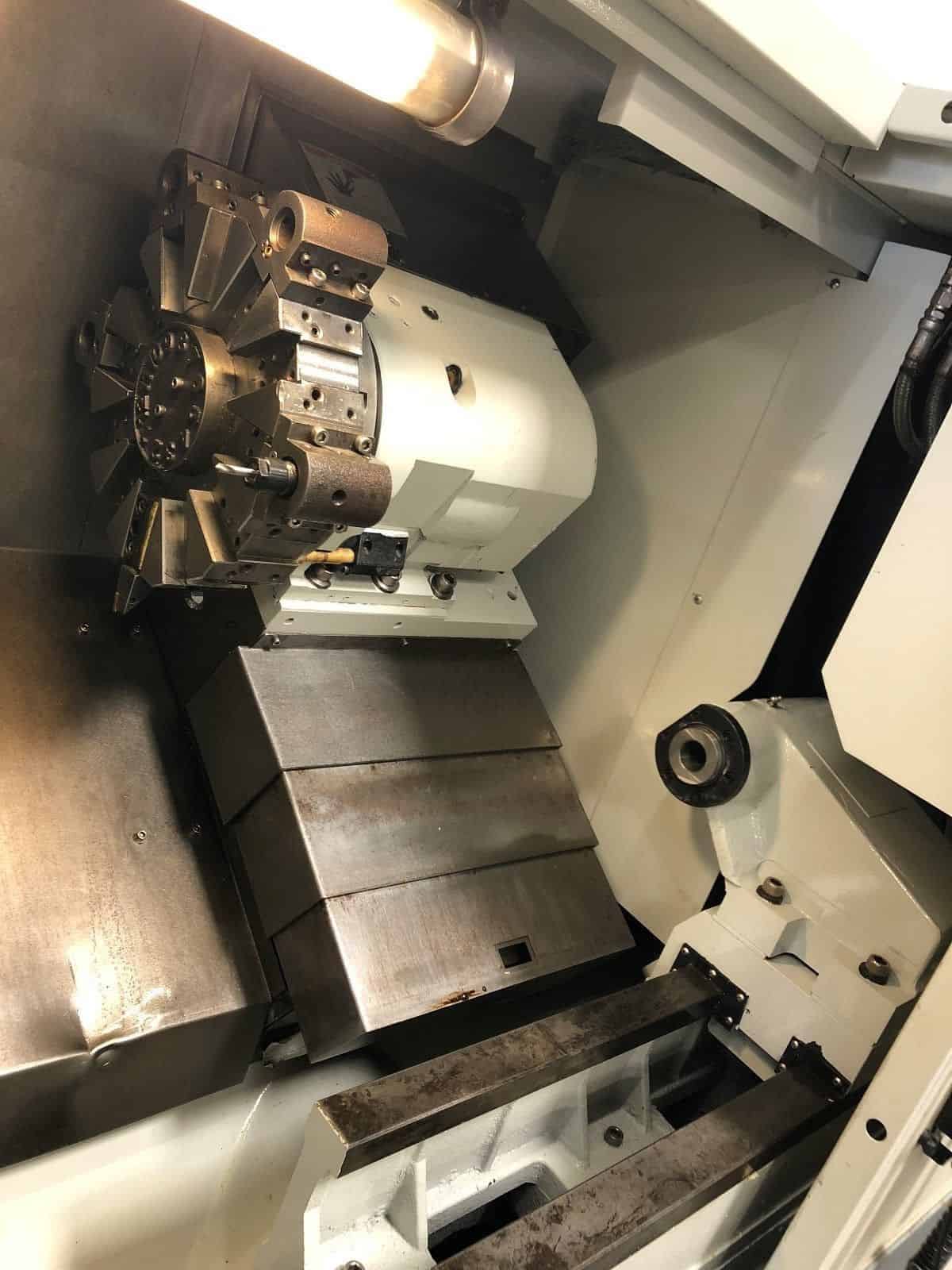

• 12 Station Automatic Turret
• Foot Switch
• Chip Tank and Conveyor
• Original Manuals

• Akira Seiki SL-30 Specifications:

• Capacity:
• Max Turning Diameter: 15.7″
• Max Turning Length: 23.65″
• Max Bar Capacity: 2.55″
• Swing Over Bed: 23.6″
• Distance Between Centers: 28.0″
• X Axis Travel: 8.66″
• Z Axis Travel: 24.83″
• Rapid Traverse X Axis: 787 IPM
• Rapid Traverse Z Axis: 945 IPM
• Spindle Nose: A2-6
• Spindle Bore: 2.6″
• Spindle Speed: 45 – 4500 RPM
• Spindle Motor: 15kw
• Turret Capacity: 12 Stations
• Turret Index Time: 0.15 Second
• Tailstock Taper: MT-4
• Tailstock  Quill Dia.: 2.97″
• Tailstock Quill Travel: 3.55″

• General:

• Power: 35kw, 220v / 3-Phase
• Overall Dimensions: 130 x 70″ x 70″ High with Chip Conveyor
• Weight: 11800 lbs
