*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

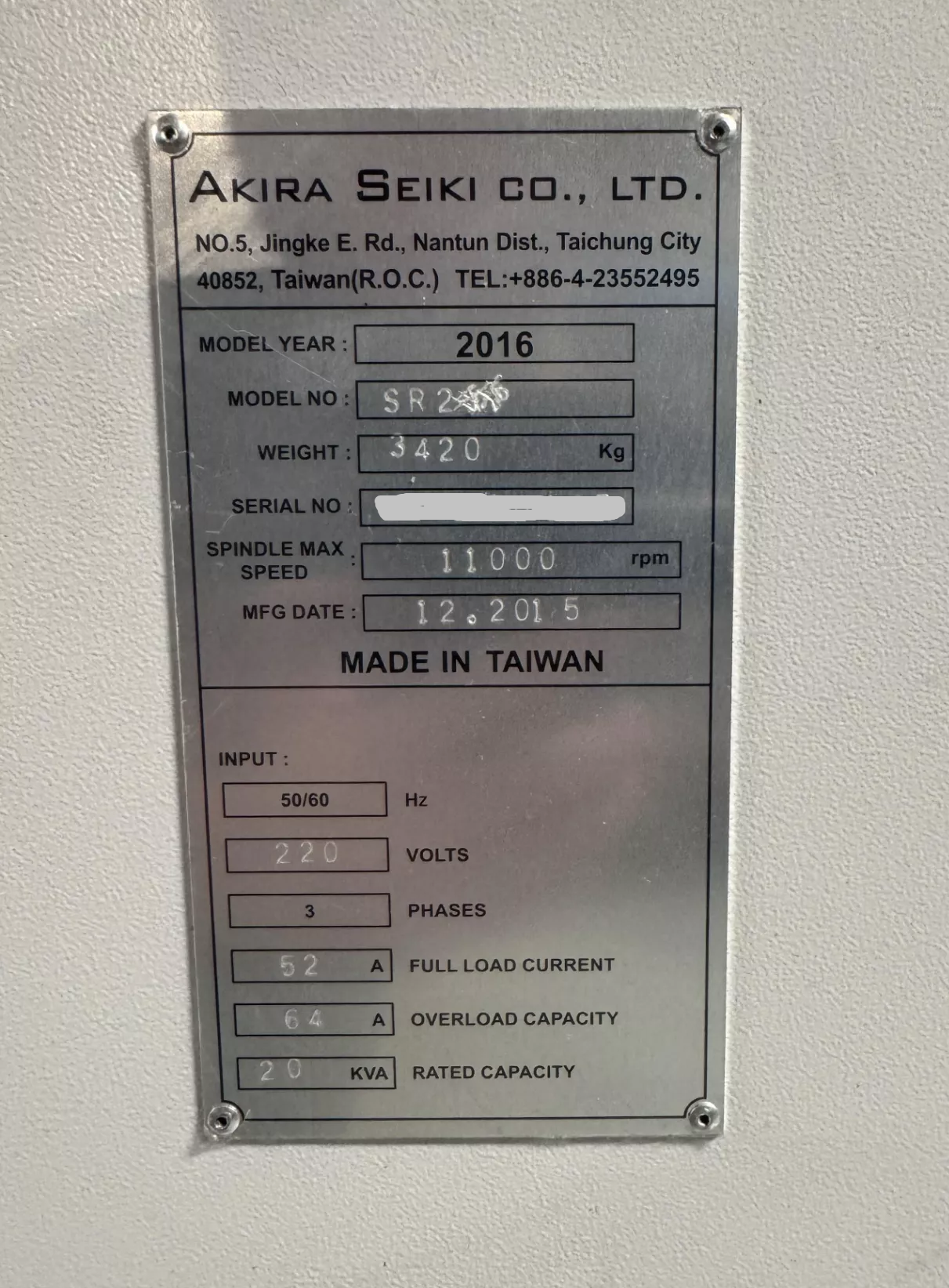

| Make: | Akira Seiki |
| Model No.: | SR2XP |
| Year of Manufacture: | 2016 |
| Condition: | Used – Good |

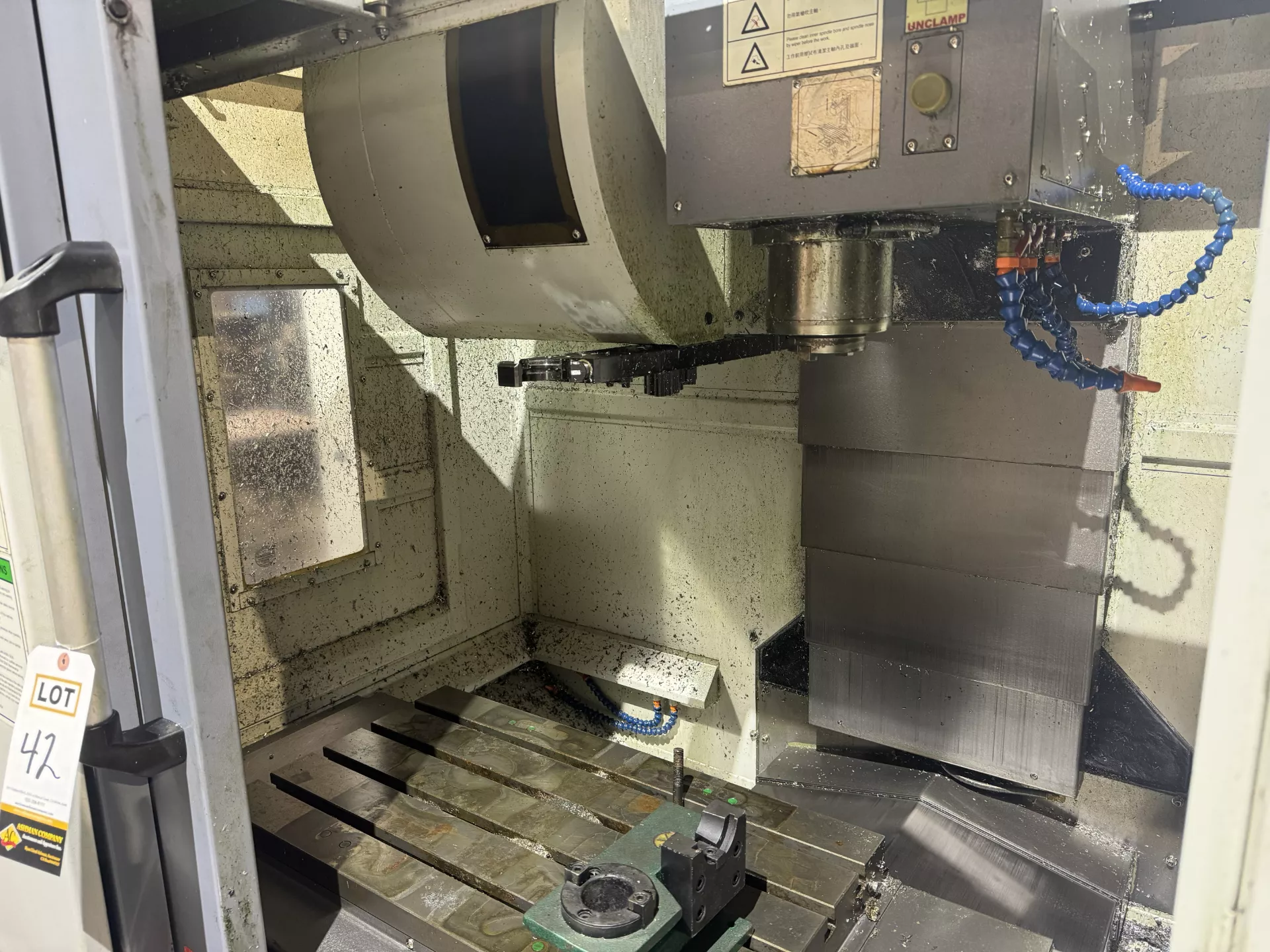

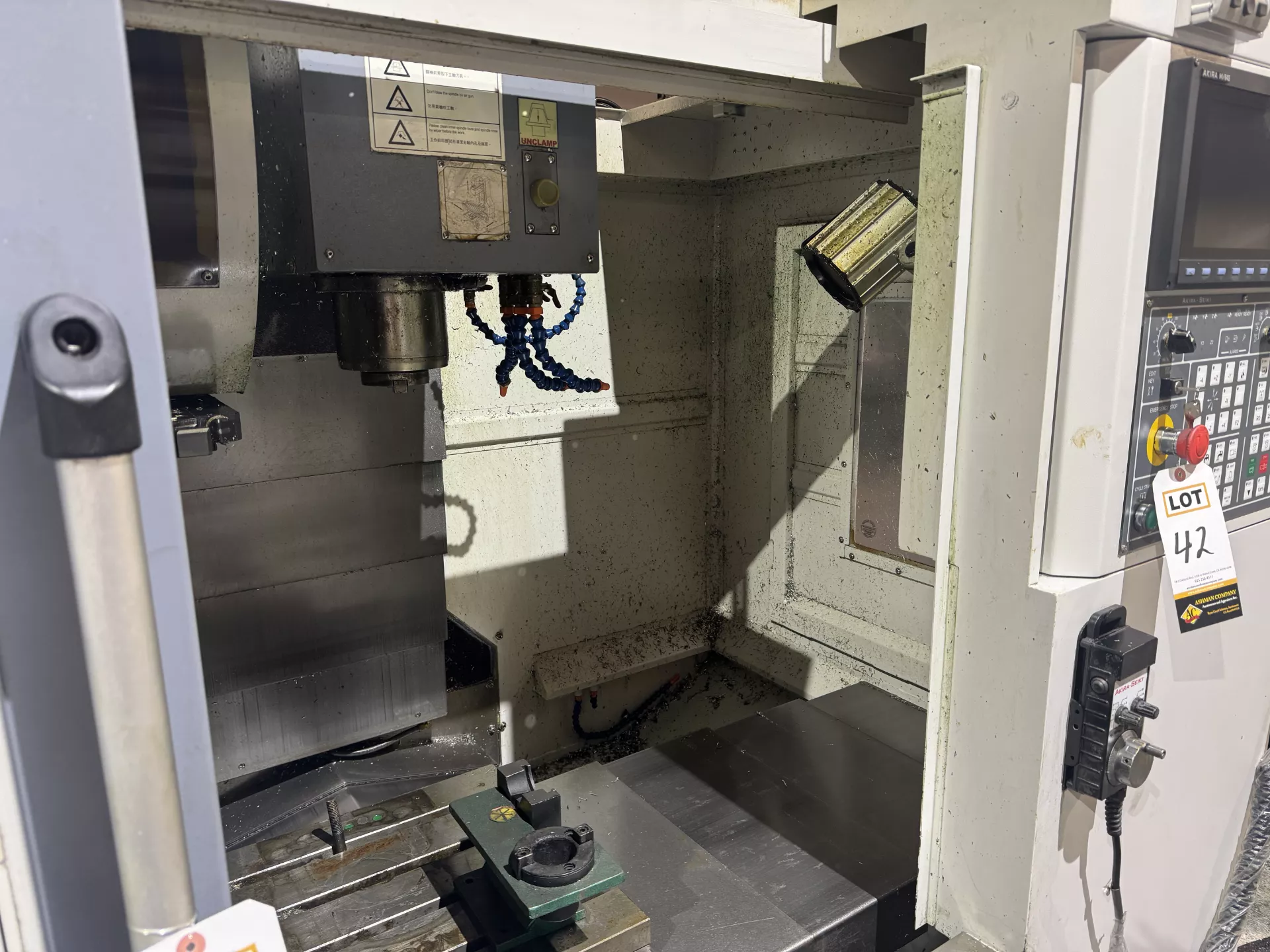

| Machine Type: | CNC Vertical Machining Center |

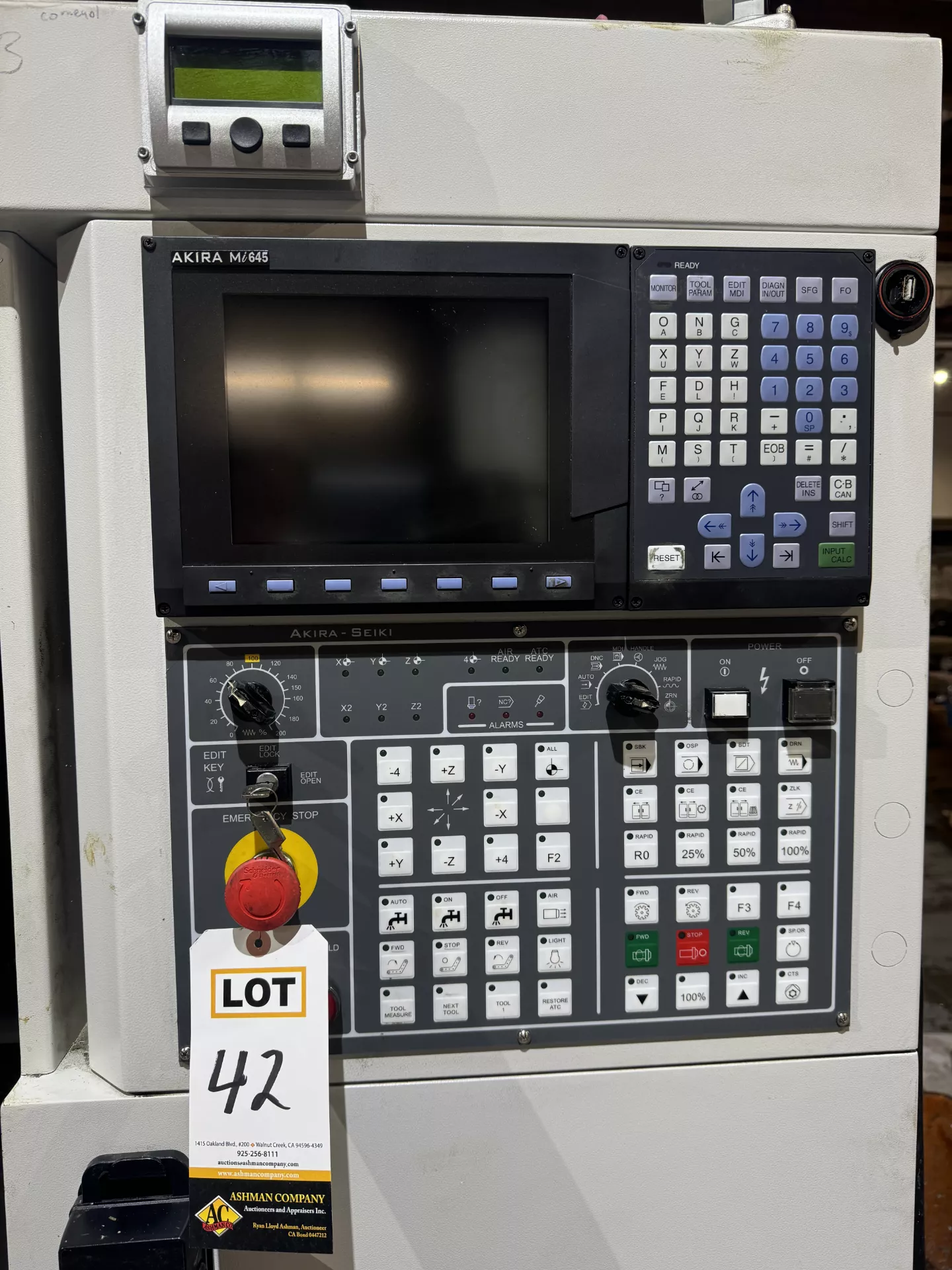

| CNC Control: | Fanuc Oi-MF CNC Control |
| Equipped With: |
|---|
| Fanuc Oi-MF CNC Control |
| 24-Station Automatic Tool Changer |
| BT40 Spindle Taper |
| High-Speed Spindle |
| Rigid Tapping |
| Programmable Coolant System |
| Chip Conveyor |
| Coolant Tank and Pump |
| Automatic Lubrication System |
| Work Light |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Table Size: 35.4″ × 16.1″ (900 × 410 mm) |
| Maximum Table Load: 770 lbs (350 kg) |
| T-Slots: 3 × 0.71″ (18 mm) |
| T-Slot Spacing: 4.9″ (125 mm) |
| Travel: |
|---|
| X-Axis Travel: 29.9″ (760 mm) |
| Y-Axis Travel: 16.1″ (410 mm) |
| Z-Axis Travel: 18.1″ (460 mm) |
| Spindle Nose to Table: 4.7″ – 22.8″ (120 – 580 mm) |
| Spindle: |
|---|
| Spindle Speed: Up to 12,000 RPM |
| Spindle Motor Power: Approx. 20 HP (15 kW) |
| Spindle Taper: BT40 |
| Spindle Drive: Direct Drive |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 24 Tools |
| Tool Change Type: Arm Type ATC |
| Maximum Tool Diameter: 3.15″ (80 mm) |
| Maximum Tool Length: 11.8″ (300 mm) |
| Maximum Tool Weight: 15.4 lbs (7 kg) |
| Tool Change Time: Approx. 2 sec |
| Feedrates: |
|---|
| Rapid Traverse (X / Y): 1,417 IPM (36 m/min) |
| Rapid Traverse (Z): 945 IPM (24 m/min) |
| Cutting Feed Rate: Up to 10 m/min |
| Accuracy: |
|---|
| Positioning Accuracy: ±0.005 mm |
| Repeatability: ±0.003 mm |
| Electrical: |
|---|
| Power Requirement: Approx. 20 kVA |
| Voltage: 220 / 380 / 440 V |
| Phase: 3-Phase |
| General: |
|---|
| Machine Dimensions (L × W × H): Approx. 94.5″ × 86.6″ × 102.4″ (2400 × 2200 × 2600 mm) |
| Machine Weight: Approx. 9,920 lbs (4,500 kg) |
| Features: |
|---|
| Rigid Cast Iron Machine Structure for Stability and Accuracy |
| High-Speed 12,000 RPM Spindle for Versatile Machining |
| Fanuc Oi-MF CNC Control for Reliable Operation |
| 24-Tool Automatic Tool Changer for Efficient Production |
| High Rapid Traverse Speeds for Reduced Cycle Times |
| Compact Footprint Suitable for Production Shops |
| Fully Enclosed Machining Area for Safety and Coolant Containment |
| Ideal for General Machining, Mold Work, Aerospace Components, and Precision Parts Manufacturing |
